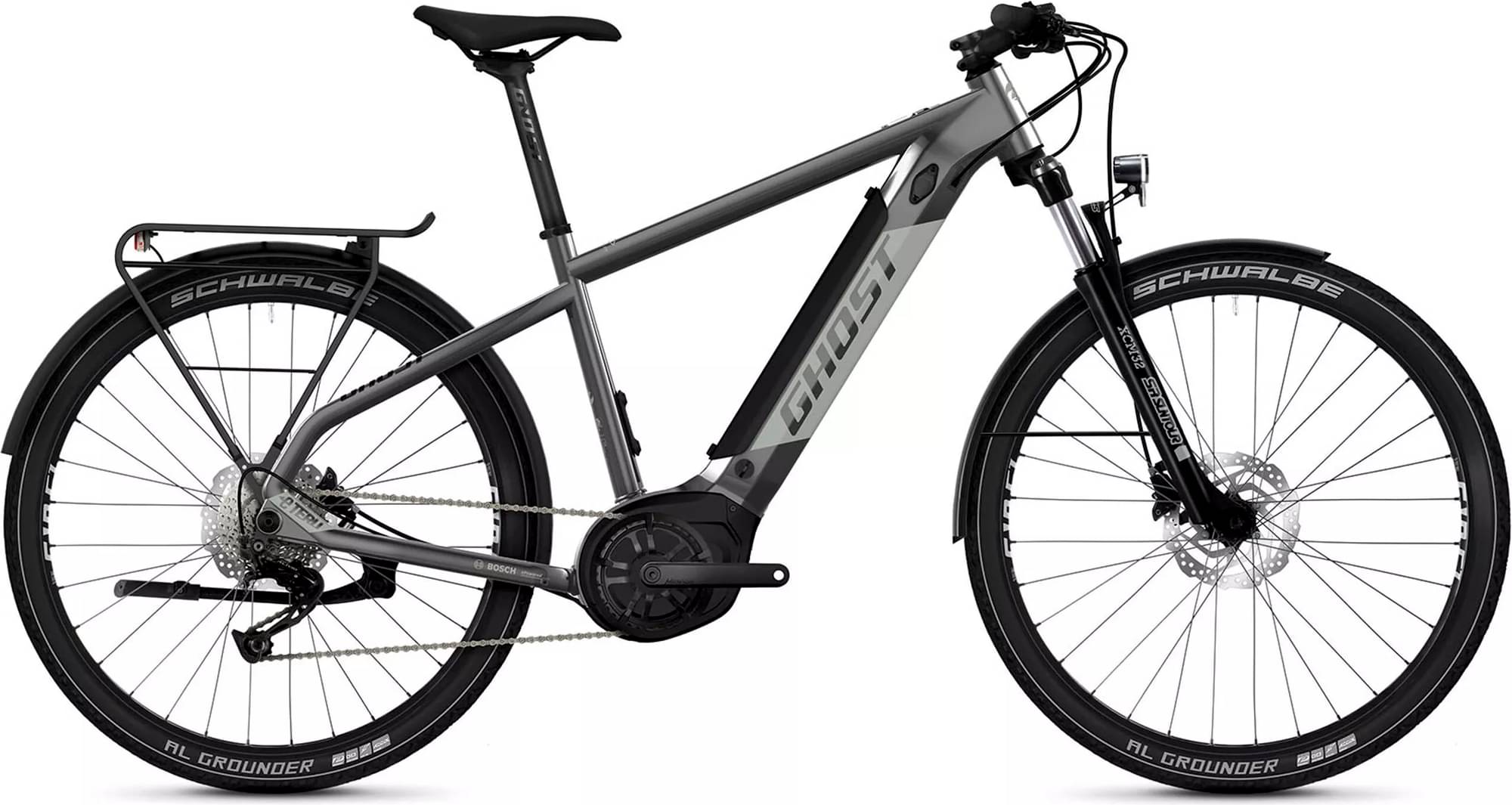

Ghost E-TERU ESSENTIAL EQ 2025
2025 E-bike
Estimate price |
3,489$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Power Tube 500 Wh, Capacity: 500 Wh, Location: Downtube -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Suntour XCM32 Boost DS 80 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Shift Levers
Shimano Altus SL-M2010
Cassette
Shimano CS-HG-200-9
Crank
Miranda Miranda 165
Chain
KMC e9s
Pedals
VP VPE-527
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
FH-MT400-B 12x148 mm
Rims
Schurmann Yak Disc 25
Tires
Schwalbe Al Grounder 2.35 60-584
Brakes
Brakes
Shimano BR-MT200 180 mm Disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm
Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm
Headset
Strummer 1SI11015Z 1 1/8 - 1,5
Seat
Saddle
Selle Royal 2315 HRN
Seatpost
XLC Non Suspension
Motor & Battery
Motor
Bosch Performance Cruise
Battery
Bosch Power Tube 500 Wh, Capacity: 500 Wh, Location: Downtube
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.576 mm | 1.54 mm | 1.506 mm | 1.48 mm |
| Front Center | 682 mm | 716 mm | 750 mm | 784 mm |
| Rake | 47 mm | 47 mm | 46 mm | 47 mm |
| Trail | 92 mm | 92 mm | 93 mm | 92 mm |
| Stack | 610 mm | 633 mm | 655 mm | 678 mm |
| Reach | 387 mm | 411 mm | 435 mm | 458 mm |
| Top Tube Length | 545 mm | 575 mm | 604 mm | 634 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 455 mm | 475 mm | 510 mm | 550 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 145 mm | 170 mm | 200 mm | 225 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1167 mm | 1201 mm | 1236 mm | 1270 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 49 mm | 49 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
