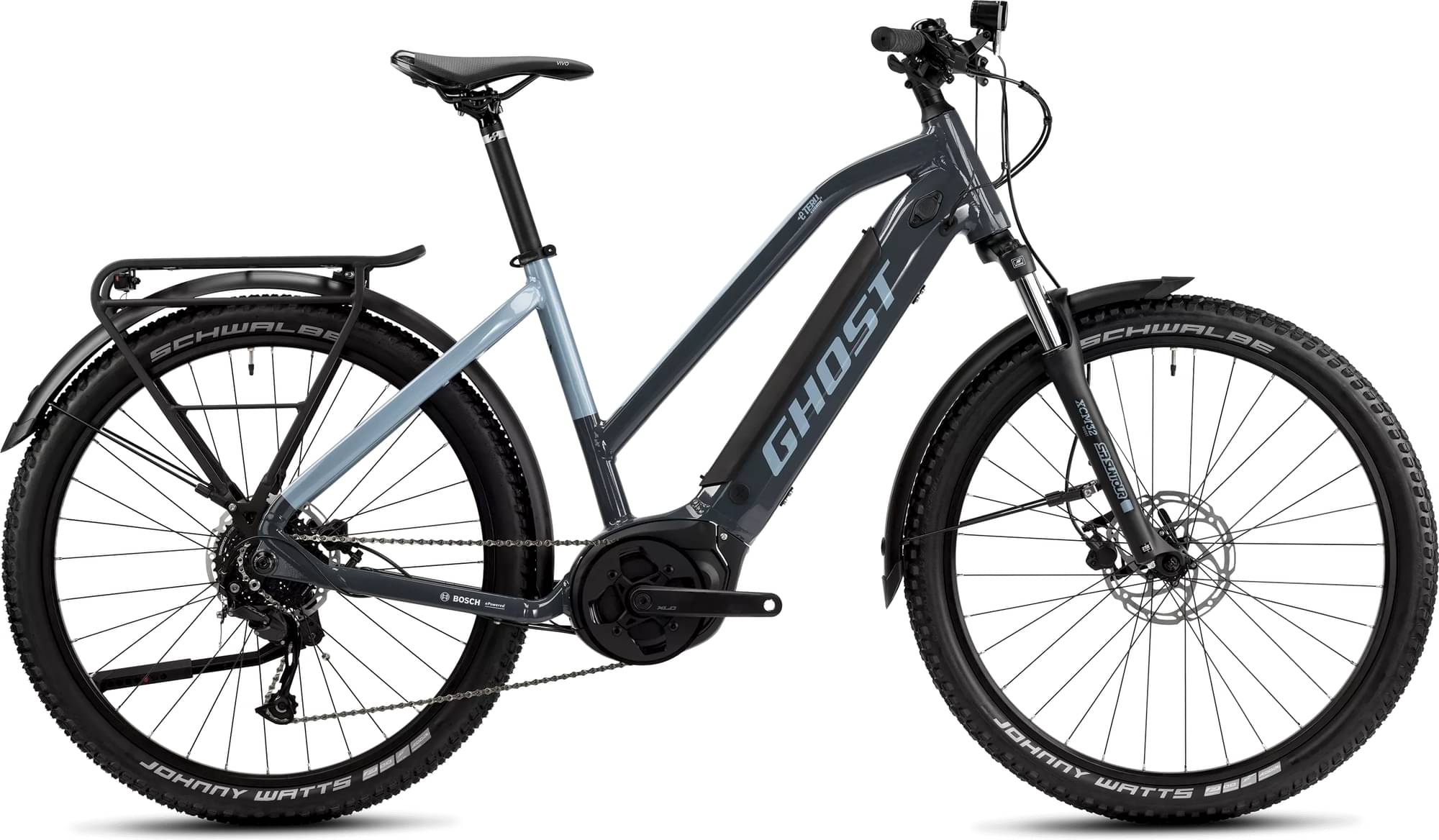

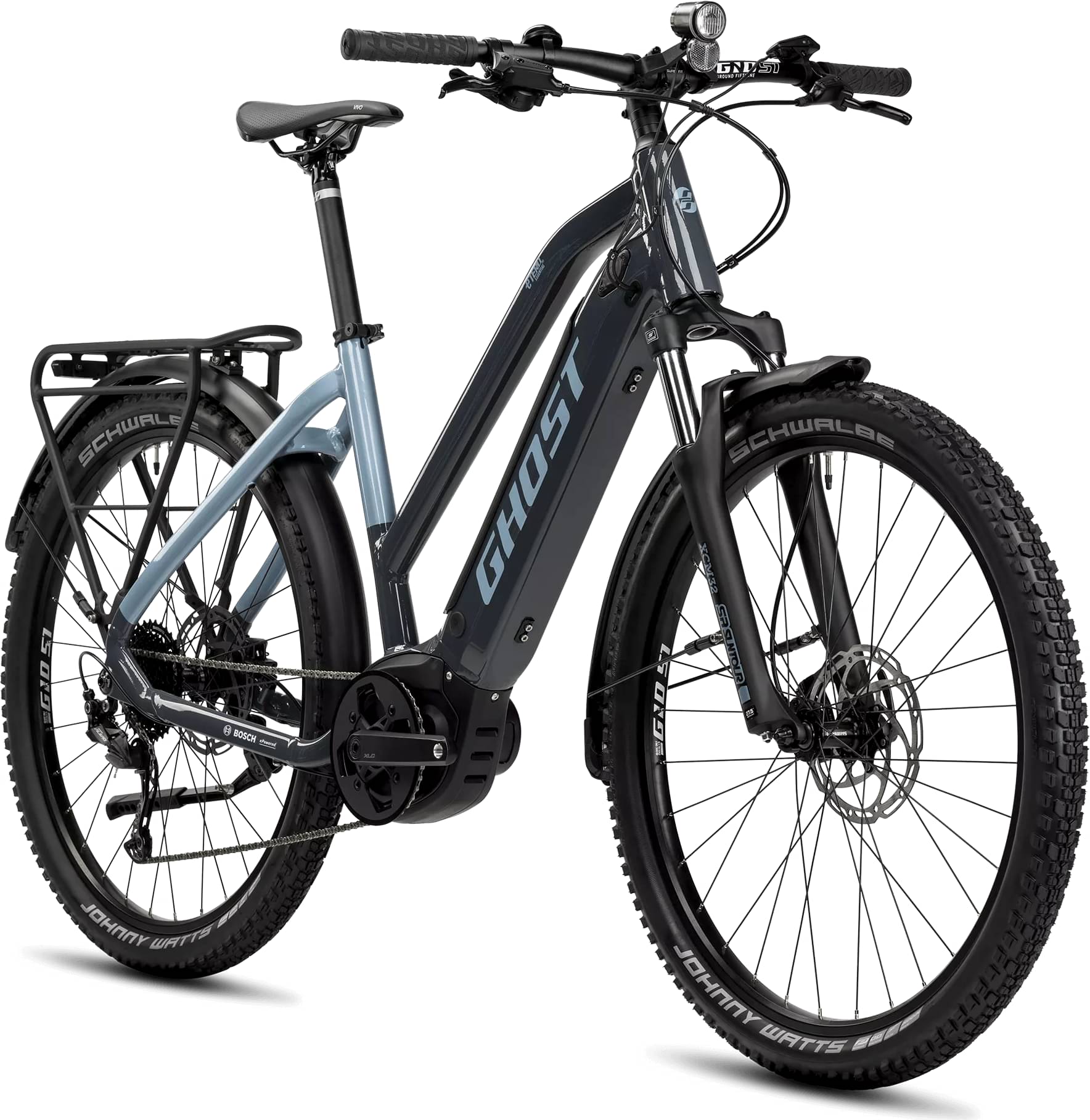

Ghost E-Teru Essential EQ Mid 2024
2024 E-bike
Estimate price |
3,489$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Power Tube 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 168cm
MD
166cm - 176cm
LG
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TERU AL Mid
Suspension Fork
SR Suntour XCM32 Boost DS 80 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Cassette
Shimano CS-HG-200-9 11-36
Crank
Miranda Virage 38T
Chain
KMC X9
Pedals
VPE-527
Wheels
Rims
Front: Schürmann Yak Disc 25, Rear: Schürmann Yak Disc 25
Tires
Front: Schwalbe Johnny Watts 2.35, Rear: Schwalbe Johnny Watts 2.35
Brakes
Brakes
Tektro HD-M275 180 mm Disc
Brake Levers
Tektro HD-M275

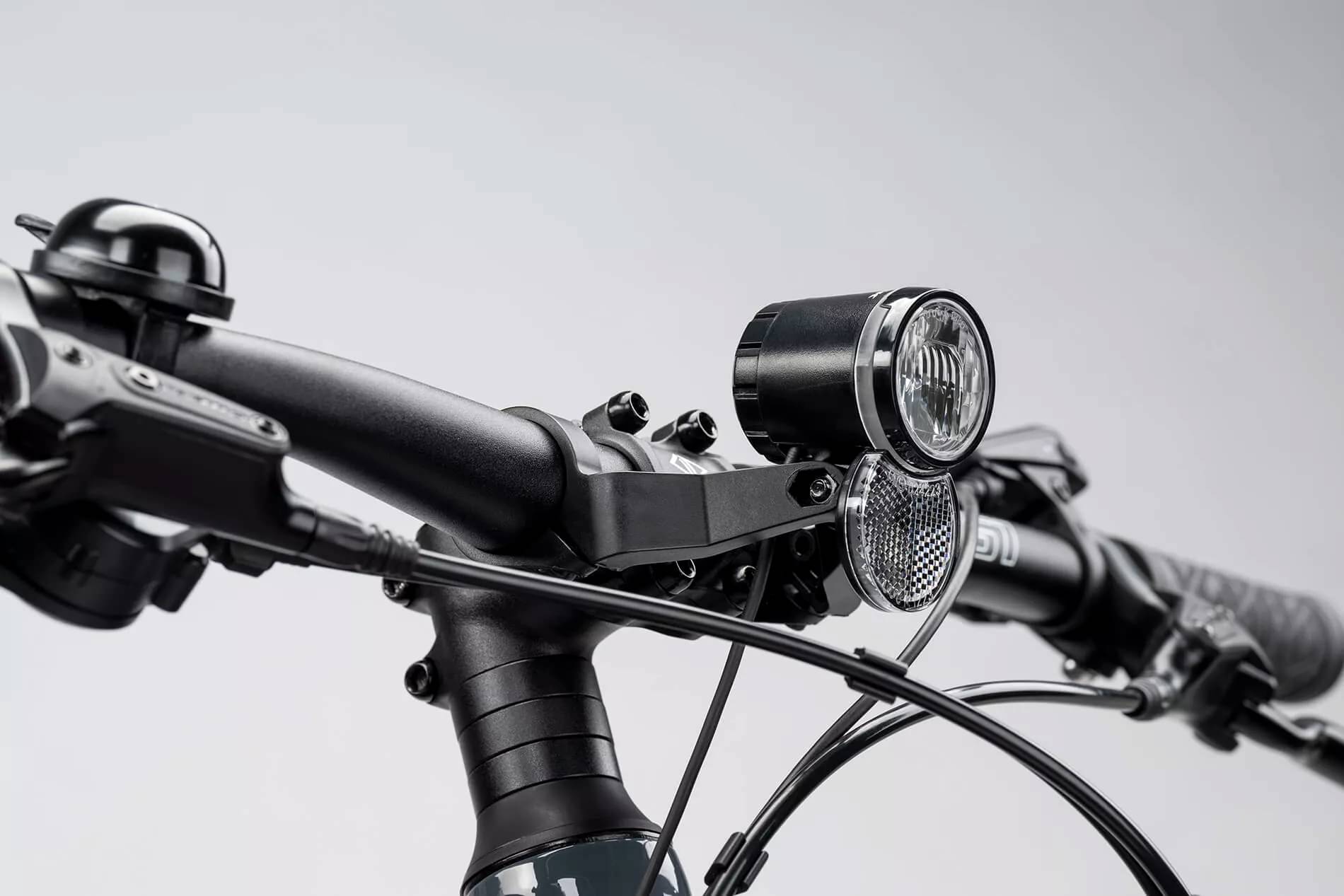

Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 700/0 (S) 720/20 (M) 740/27 (L)
Grips
MTB Grip
Seat
Saddle
Selle Royal Vivo
Seatpost
Ghost 31.6 mm
Motor & Battery

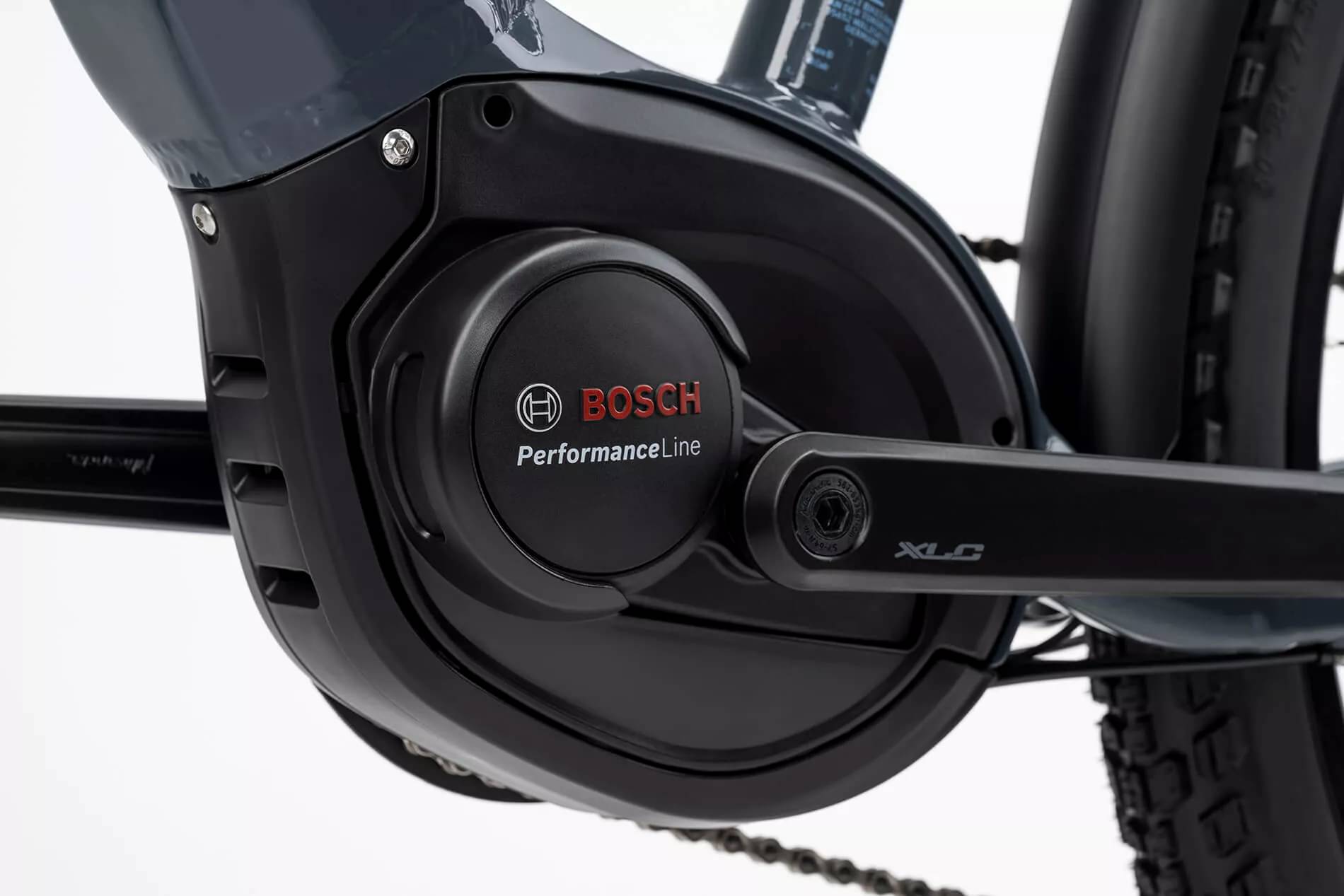

Motor
Bosch Performance Line
Battery
Bosch Power Tube 500 Wh
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.595 mm | 1.59 mm | 1.586 mm |
| Front Center | 684 mm | 699 mm | 720 mm |
| Rake | 47 mm | 46 mm | 46 mm |
| Trail | 97 mm | 98 mm | 98 mm |
| Stack | 622 mm | 636 mm | 655 mm |
| Reach | 390 mm | 400 mm | 413 mm |
| Top Tube Length | 580 mm | 595 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1169 mm | 1184 mm | 1205 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 601 mm | 601 mm | 600 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 166 cm | 174 cm |
| Rider Max Height | 168 cm | 176 cm | 183 cm |
