Ghost E-TERU MID 2025
2025 E-bike
Estimate price |
3,096$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch InTube 500 Wh, Capacity: 500 Wh, Location: Powertube -
Drivetrain 1 × 11 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
148cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MID Aluminium Uni
Suspension Fork
Suntour XCM32-Boost DS 15AH2-110 120 mm
Drivetrain
Rear Derailleur
Shimano CUES RD-U4000 9s, Shadow
Shift Levers
Shimano Triggershift CUES SL-U4010-9R, Rapidfire+

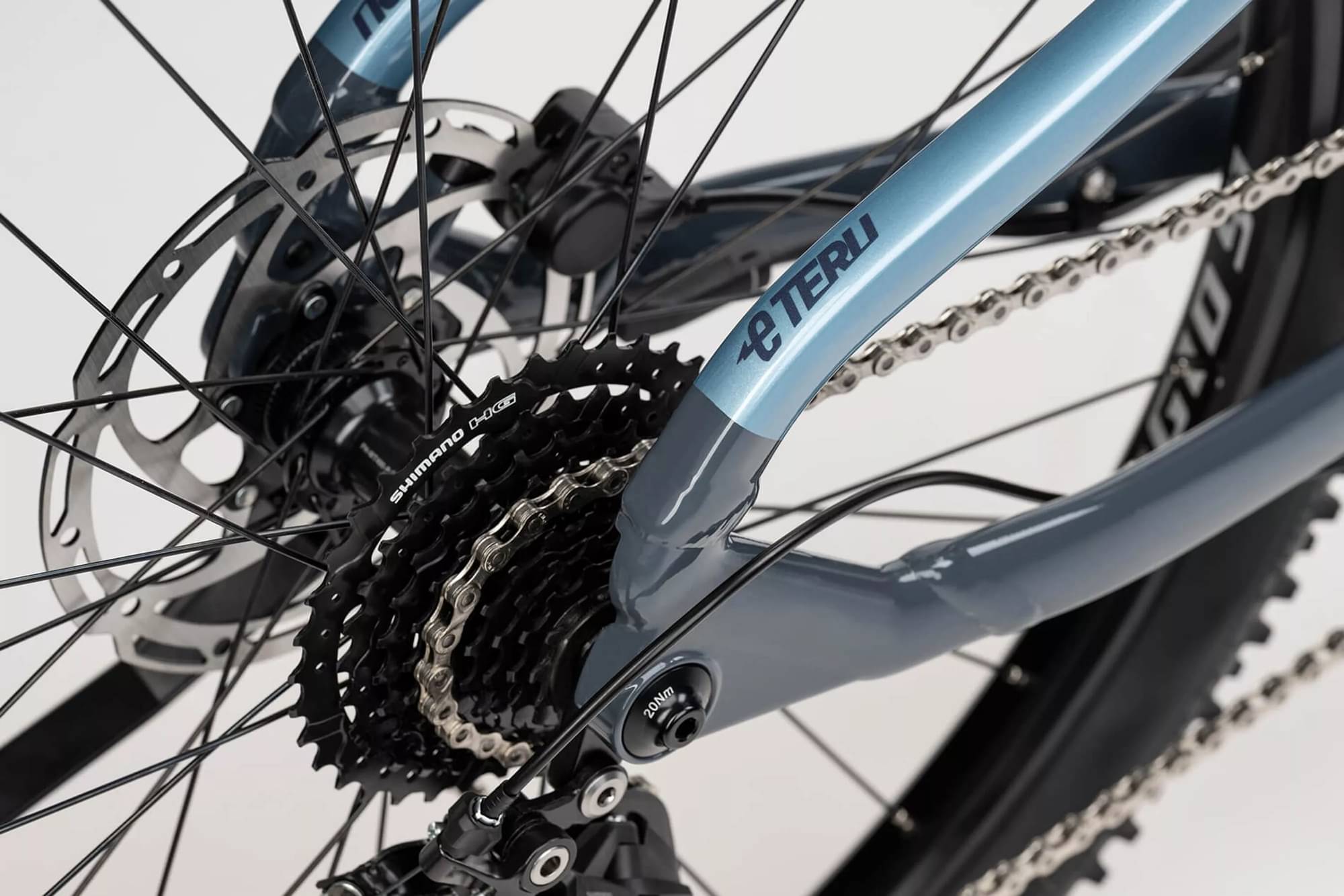

Cassette
Shimano CUES CS-LG400-9, HG
Crank
Miranda Virage Crankset w/ Chain Prot., BNI, BDU336Y, DM 165
Chain
Shimano CN-LG500 9-11s, LINKGLIDE
Pedals
VP VPE-527 Alloy w/ Reflector
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, Centerlock
Rear Hub
Shimano FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG
Rims
Schurmann YAK Disc 25-584 32H 6,5 mm Valve
Tires
Schwalbe Smart Sam K-Guard, 50EPI 60-584
Brakes
Brakes
Tektro Hydraulic Disc brake HD-M275, 2 pistons, resin pad, 180 mm
Brake Levers
Tektro HD-M275-BL

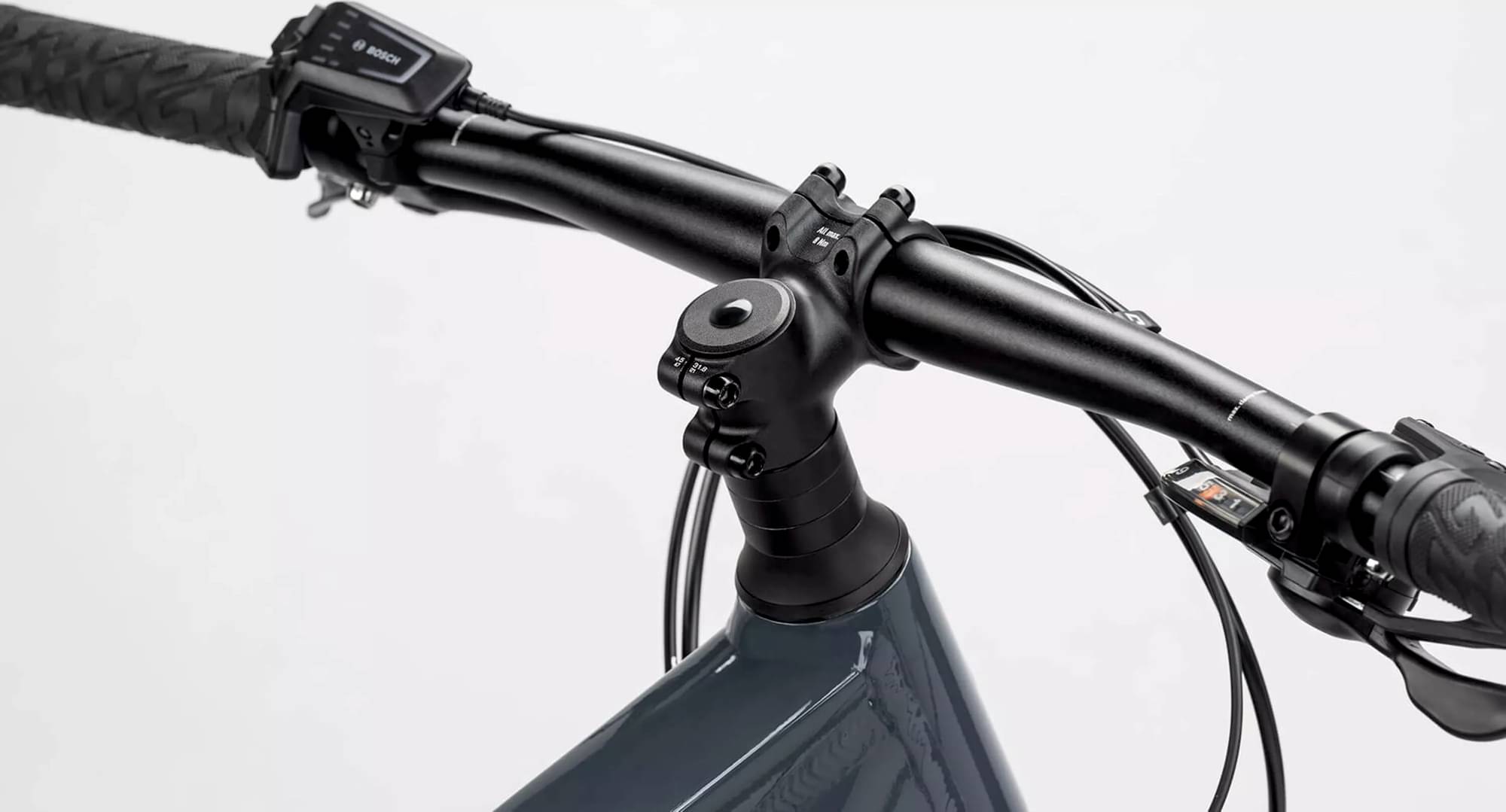

Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 45 mm, A-Head
Handlebar
Ghost Flat bar GND51 Dia. 31.8 mm, Rise: 0 mm, backsweep 9°

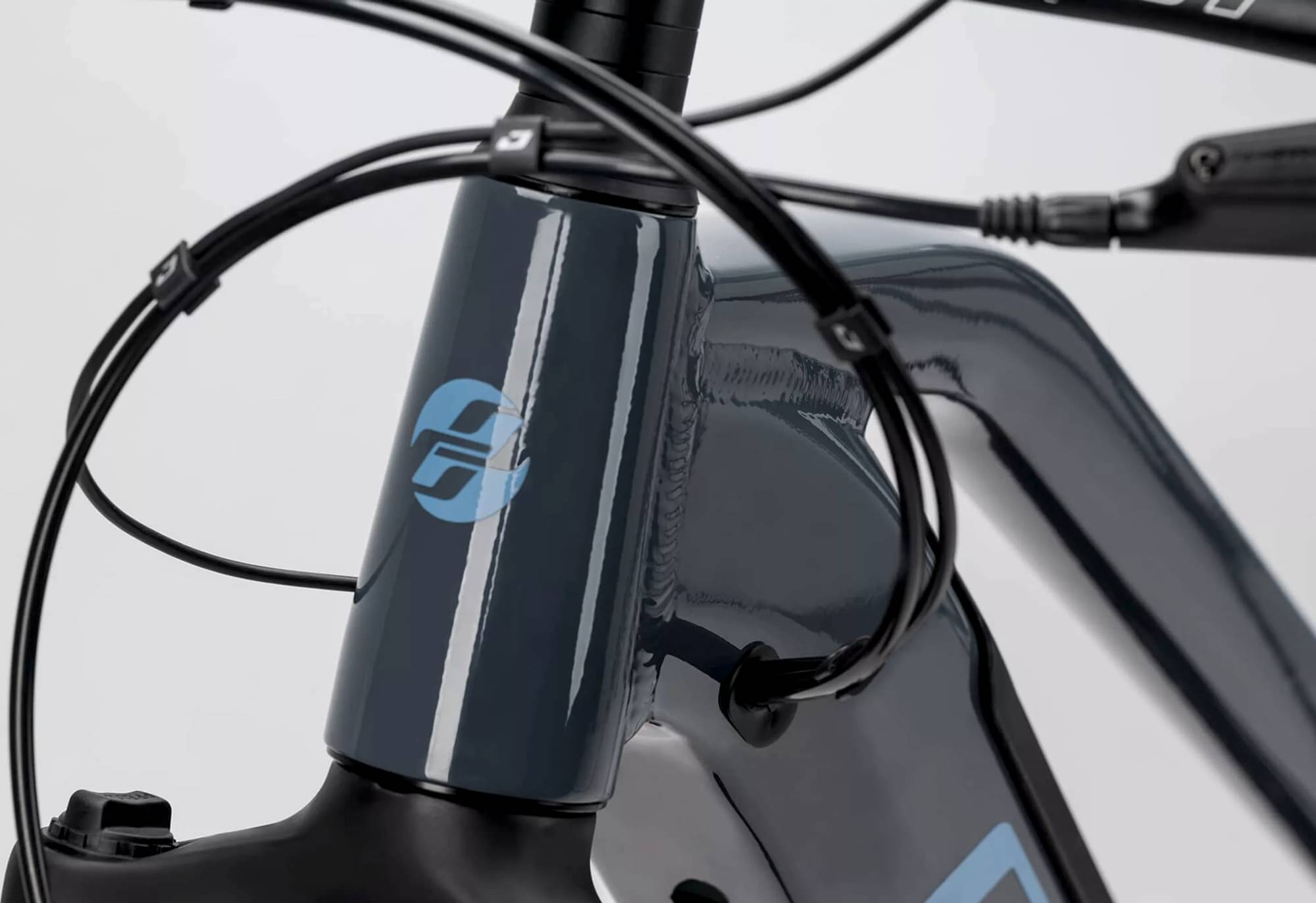

Headset
Feimin Semi-integrated FP-H868P Steel Tapered 44/28,6 - 56/39,8
Seat
Saddle
Selle Royal MTB Vivo 1216HRN
Seatpost
Kalloy Non Suspension SP-DC1, Dia. 31.6 mm, L: 350 mm 350 mm
Motor & Battery

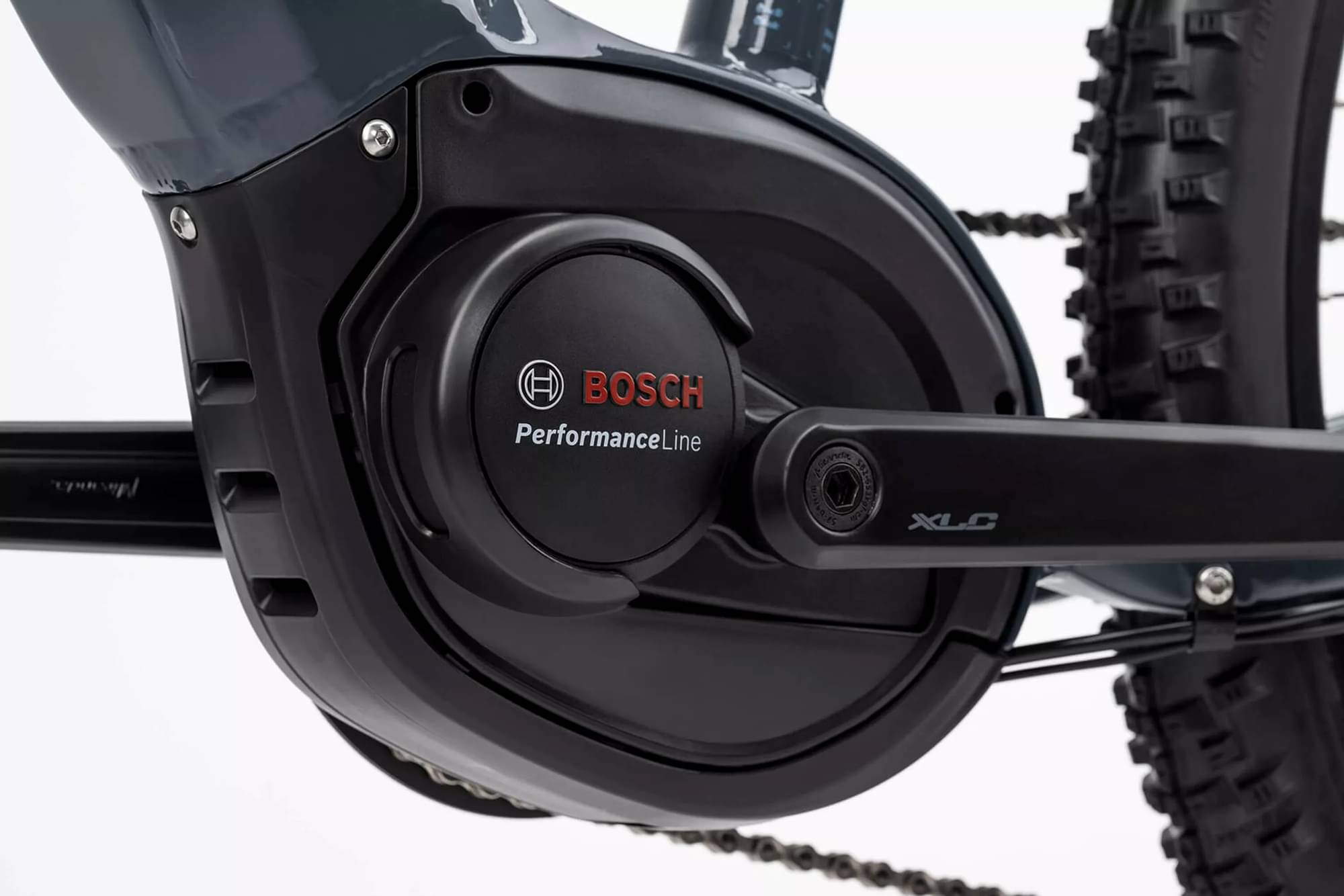

Motor
Bosch Performance Line
Battery
Bosch InTube 500 Wh, Capacity: 500 Wh, Location: Powertube
Charger
Bosch Compact Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.541 mm |
| Front Center | 732 mm |
| Rake | 54 mm |
| Trail | 94 mm |
| Stack | 624 mm |
| Reach | 405 mm |
| Top Tube Length | 574 mm |
| Seat Tube Angle | 74.8 ° |
| Seat Tube Length | 370 mm |
| Head Tube Angle | 65 ° |
| Head Tube Length | 125 mm |
| Chainstay Length | 490 mm |
| Wheelbase | 1217 mm |
| Bottom Bracket Drop | 54 mm |
| Standover Height | 620 mm |
| Wheels | 650 |
| Rider Min Height | 148 cm |
| Rider Max Height | 160 cm |
