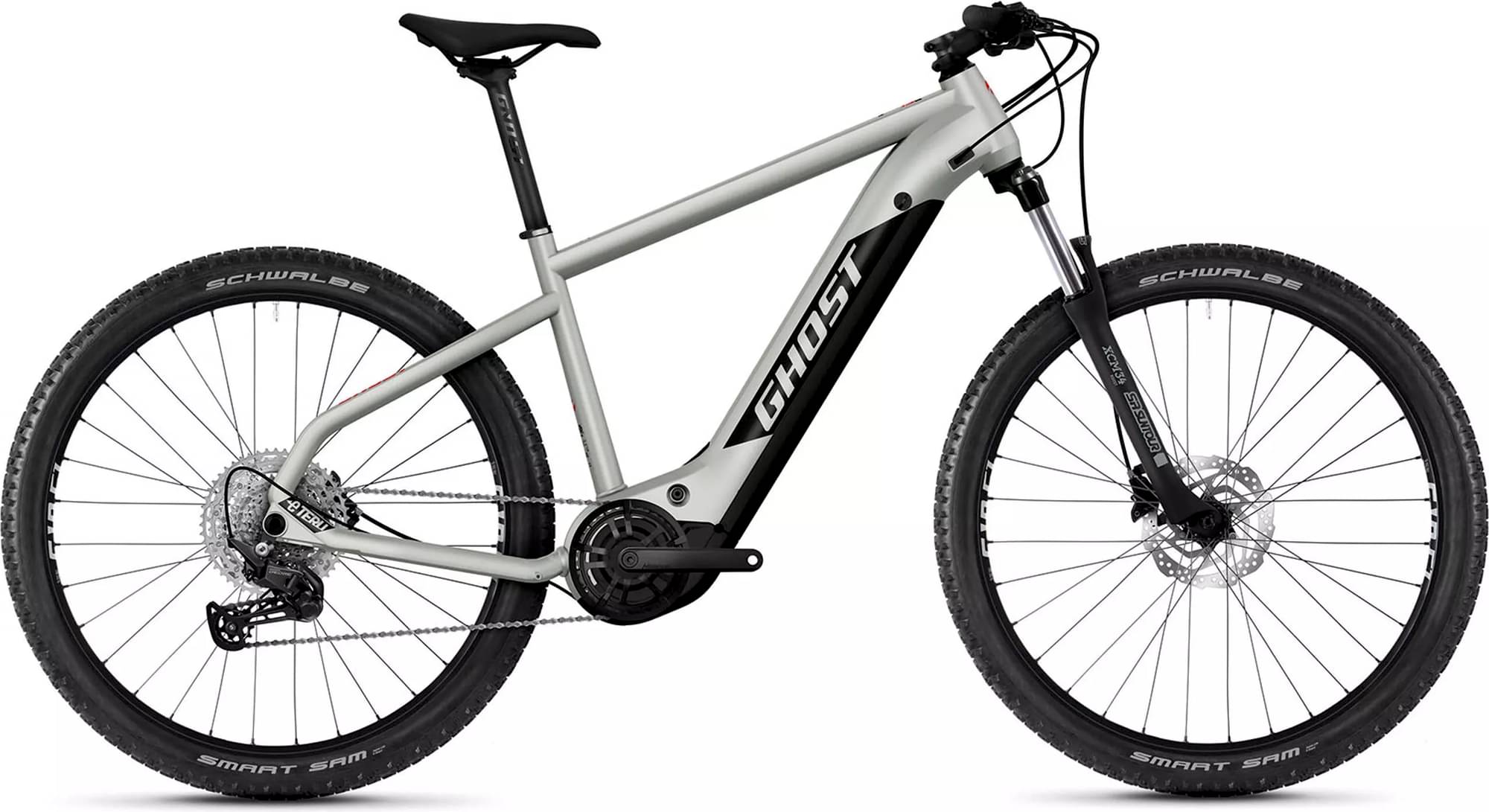

Ghost E-TERU UNIVERSAL 2025
2025 E-bike
Estimate price |
3,722$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha mid-drive -
Battery Simplo 630 Wh, Capacity: 630 Wh, Location: Downtube -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Suntour XCM34 DS 120 mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 12-S
Shift Levers
Shimano Deore SL-M6100
Cassette
Shimano Deore CS-M6100
Crank
Miranda Miranda 165
Chain
Shimano Deore CN-M6100
Pedals
VP VPE-527
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
FH-MT400-B 12x148 mm
Rims
Schurmann Craft Disc 30
Tires
Schwalbe Smart Sam 2.6 65-622
Brakes
Brakes
Shimano BR-MT200 180 mm Disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm
Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm
Headset
Strummer 1SI11015Z 1 1/8 - 1,5
Seat
Saddle
Selle Royal 2315 HRN
Seatpost
XLC Non Suspension
Motor & Battery
Motor
Yamaha PW-ST
Battery
Simplo 630 Wh, Capacity: 630 Wh, Location: Downtube
Charger
Simplo Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.469 mm | 1.403 mm | 1.373 mm |
| Front Center | 742 mm | 775 mm | 813 mm | 850 mm |
| Rake | 54 mm | 55 mm | 55 mm | 55 mm |
| Trail | 94 mm | 102 mm | 102 mm | 102 mm |
| Stack | 615 mm | 648 mm | 661 mm | 684 mm |
| Reach | 419 mm | 441 mm | 471 mm | 498 mm |
| Top Tube Length | 578 mm | 608 mm | 642 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 450 mm | 455 mm | 490 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 115 mm | 135 mm | 160 mm |
| Chainstay Length | 470 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1207 mm | 1242 mm | 1281 mm | 1318 mm |
| Bottom Bracket Drop | 54 mm | 69 mm | 64 mm | 64 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
