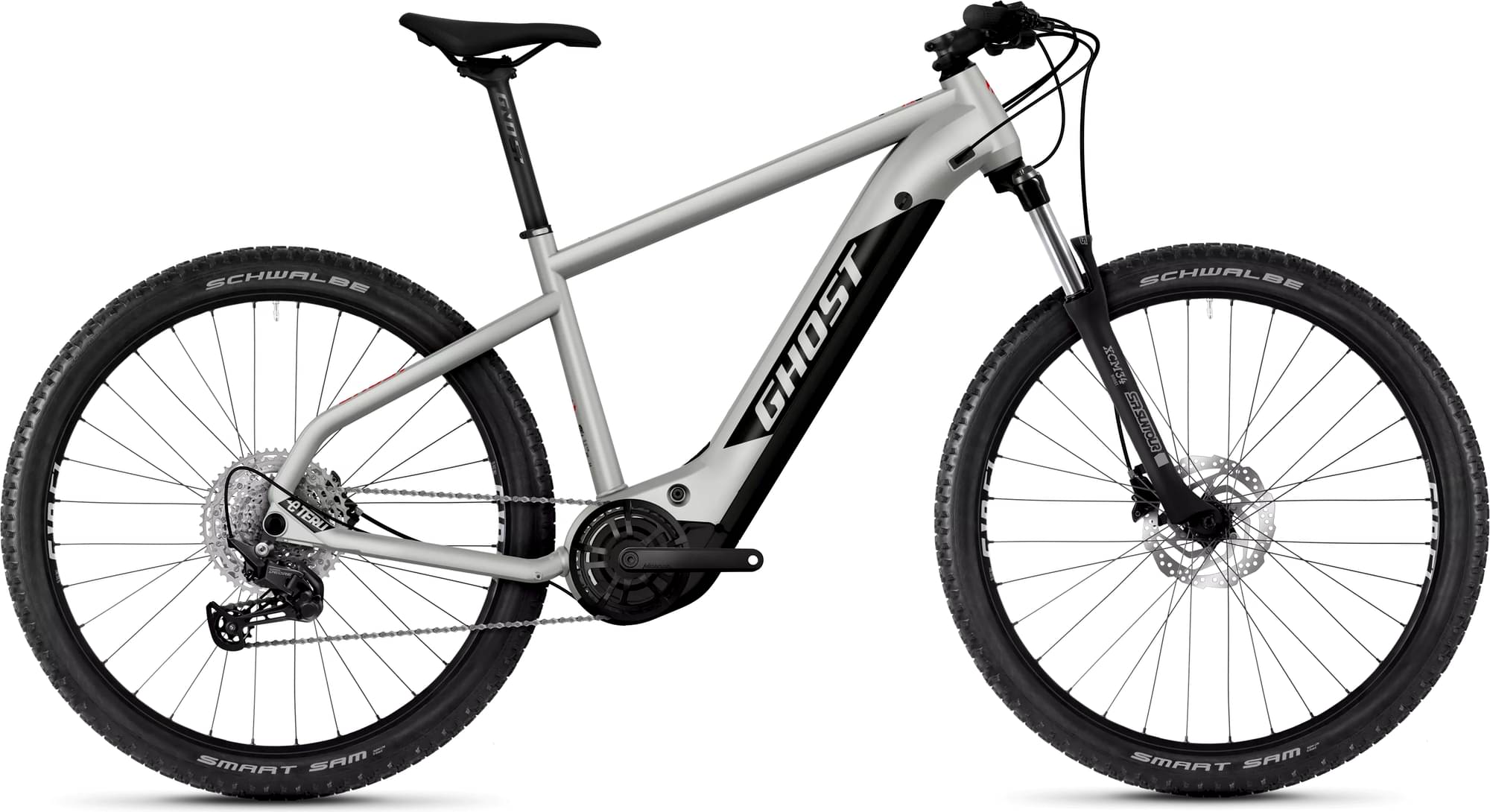

Ghost E-Teru Y Universal 2024
2024 E-bike
Estimate price |
3,954$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha mid-drive -
Battery Simplo 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TERU AL
Suspension Fork
SR Suntour XCM34 DS 120mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 12-S
Cassette
Shimano Deore CS-M6100 10-51
Crank
Miranda 38T
Chain
Shimano Deore CN-M6100
Pedals
VPE-461
Wheels
Rims
Front: Schürmann Craft Disc 30, Rear: Schürmann Craft Disc 30
Tires
Front: Schwalbe Smart Sam 2.6 (S 27,5"; M-XL 29"), Rear: Schwalbe Smart Sam 2.6 (S 27,5"; M-XL 29")
Brakes
Brakes
Shimano BR-MT200 180 mm Disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 S: 720/20 M/L: 740/27 XL: 760/40
Grips
Ground Fiftyone Ergo
Seat
Saddle
Selle Royal 2315 HRN
Seatpost
XLC 31.6 mm
Motor & Battery
Motor
Yamaha PW-ST
Battery
Simplo 630 Wh
Charger
Simplo Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.469 mm | 1.403 mm | 1.373 mm |
| Front Center | 742 mm | 775 mm | 813 mm | 850 mm |
| Rake | 54 mm | 55 mm | 55 mm | 55 mm |
| Trail | 103 mm | 102 mm | 102 mm | 102 mm |
| Stack | 615 mm | 648 mm | 661 mm | 684 mm |
| Reach | 419 mm | 441 mm | 471 mm | 498 mm |
| Top Tube Length | 578 mm | 608 mm | 642 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 450 mm | 455 mm | 490 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 115 mm | 135 mm | 160 mm |
| Chainstay Length | 470 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1207 mm | 1242 mm | 1281 mm | 1318 mm |
| Bottom Bracket Drop | 54 mm | 69 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
