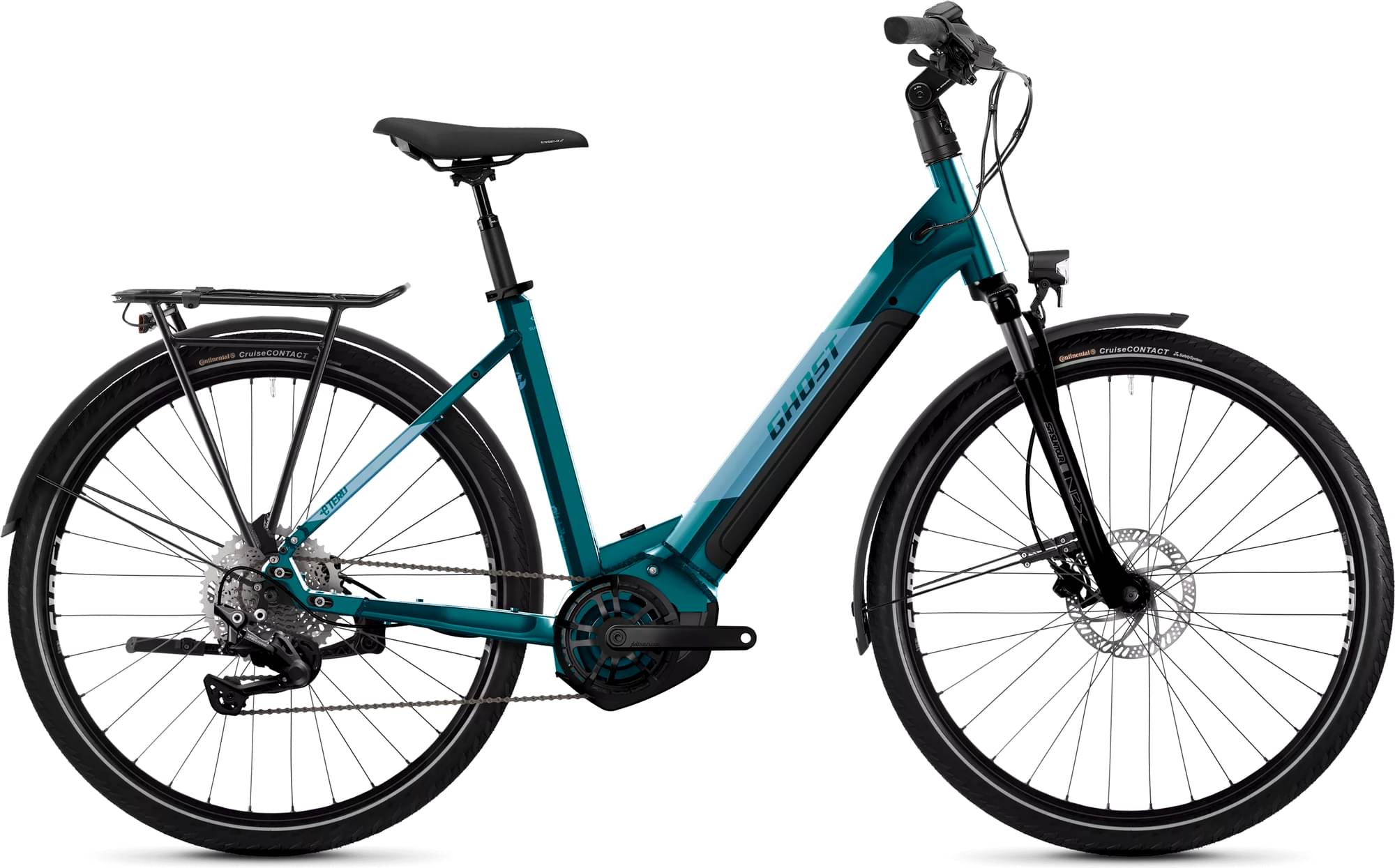

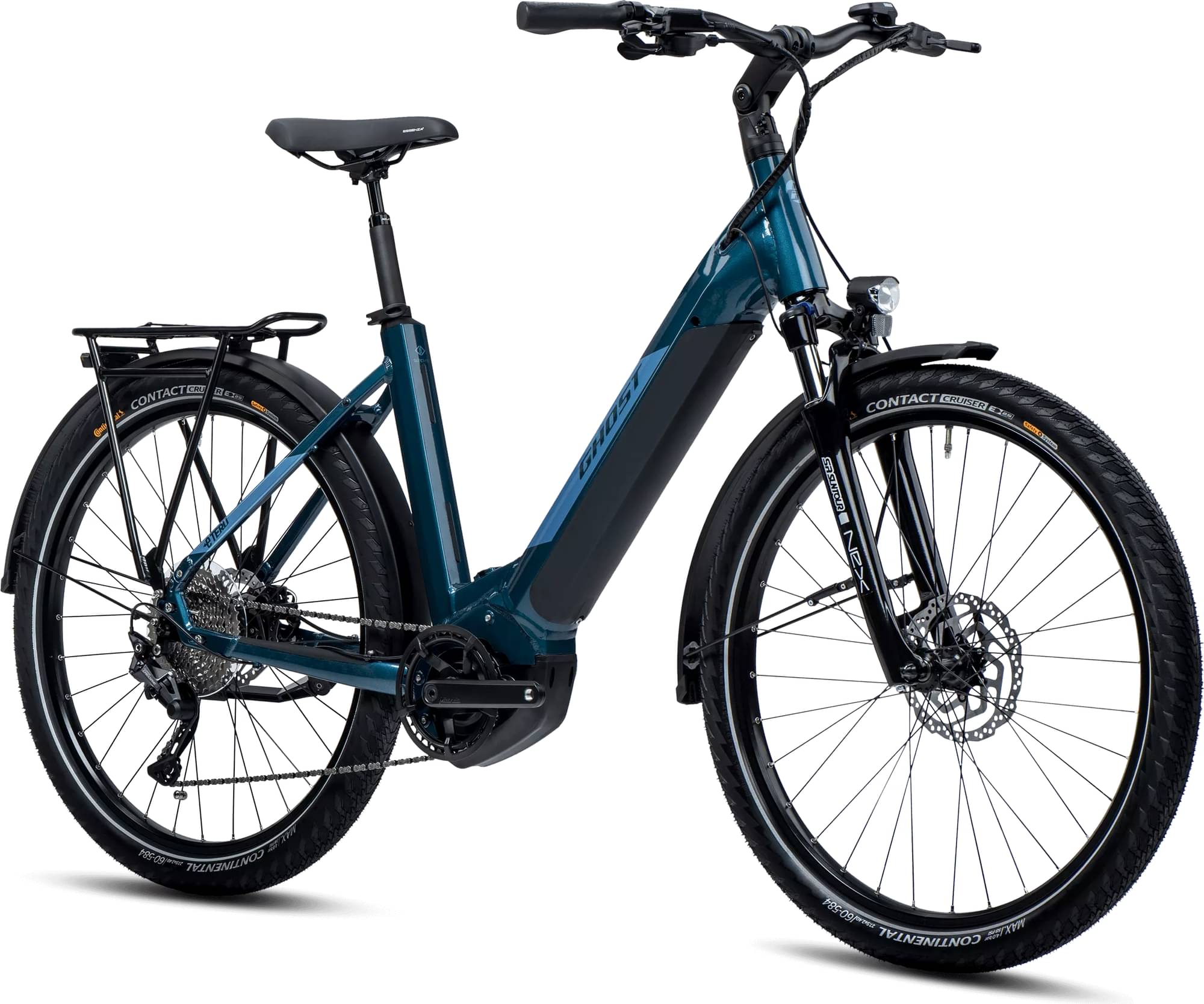

Ghost E-Teru Y Universal Low EQ 2024
2024 E-bike
Estimate price |
4,187$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha mid-drive -
Battery Simplo 630 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components

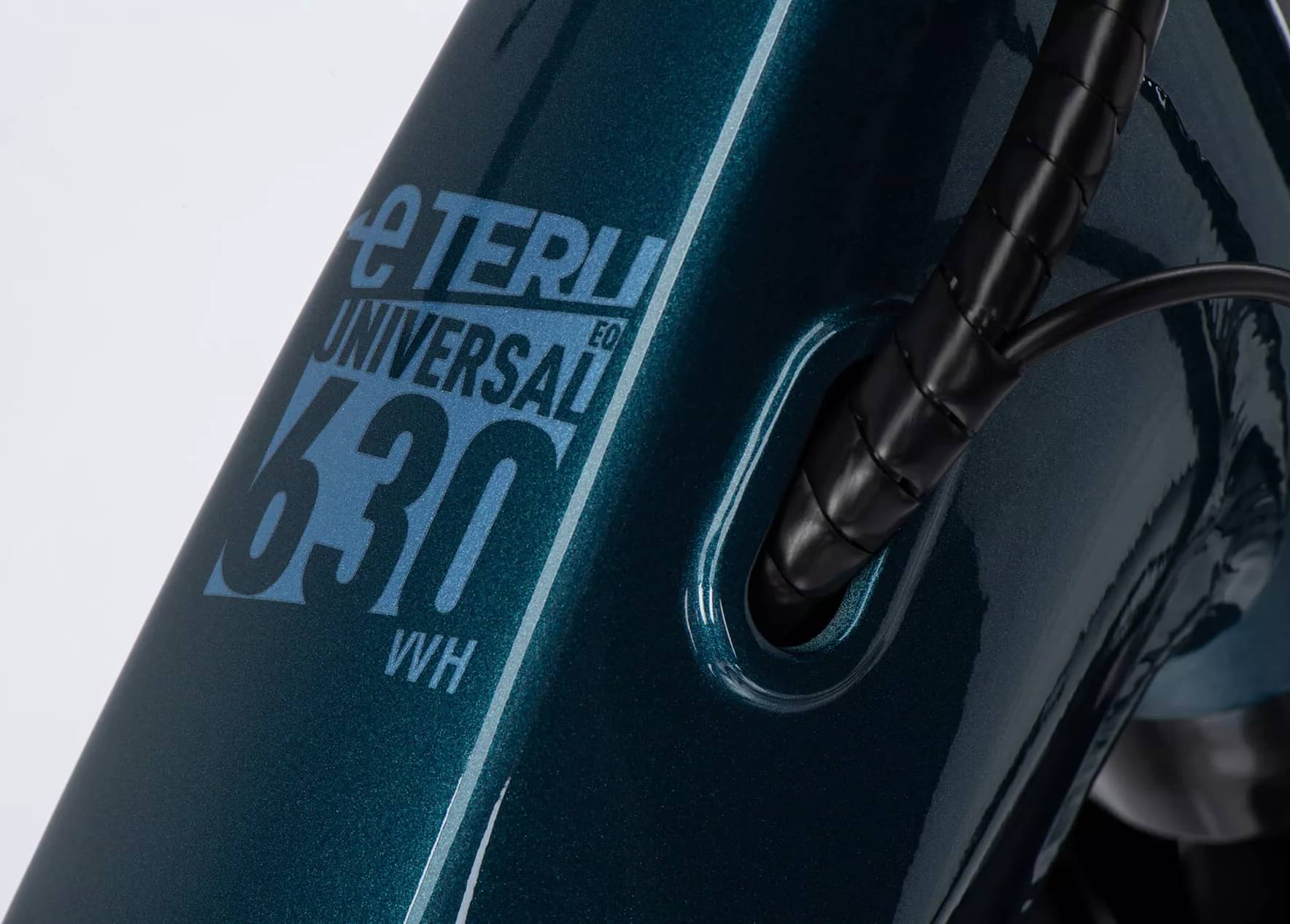

Frame
Frame
E-TERU AL Low
Suspension Fork
SR Suntour NEX HLO E25 DS 63 mm

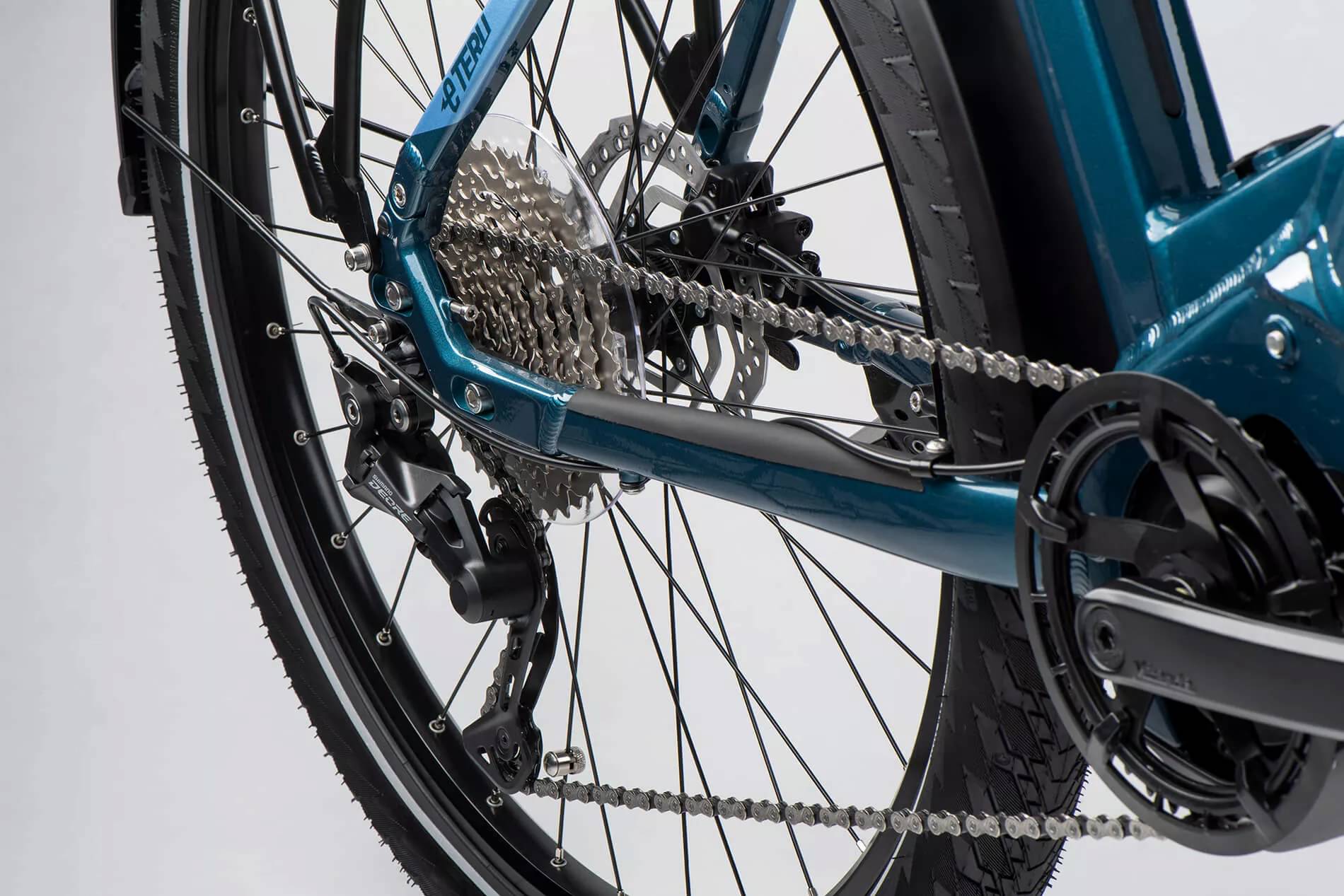

Drivetrain
Rear Derailleur
Shimano Deore RD-M4120 10-S
Cassette
Shimano Deore CS-M4100 11-42
Crank
Miranda 38T
Chain
KMC e10
Pedals
VPE-461
Wheels
Rims
Front: Schürmann Yak Disc 25, Rear: Schürmann Yak Disc 25
Tires
Front: Continental Contact Cruiser 2.4, Rear: Continental Contact Cruiser 2.4

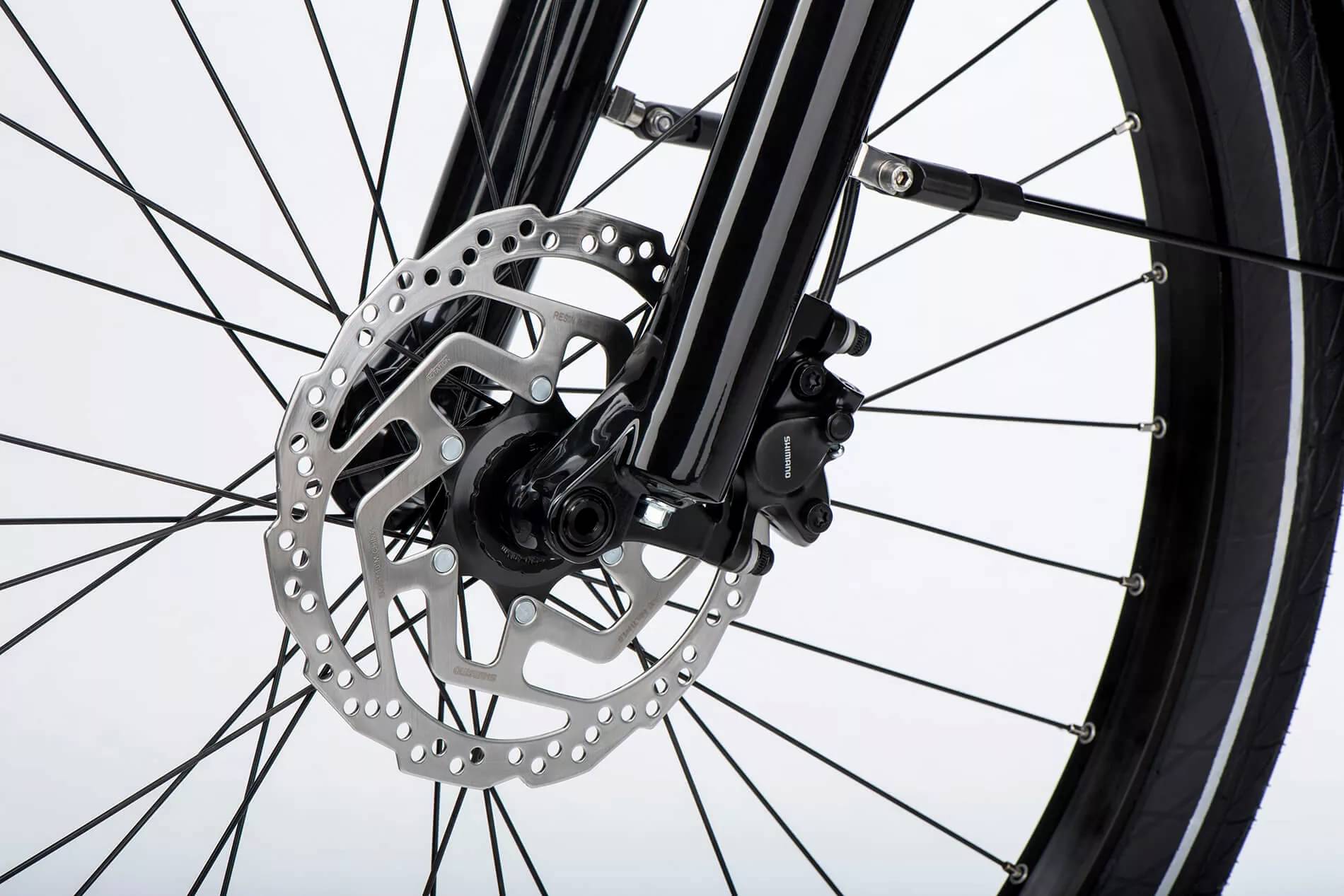

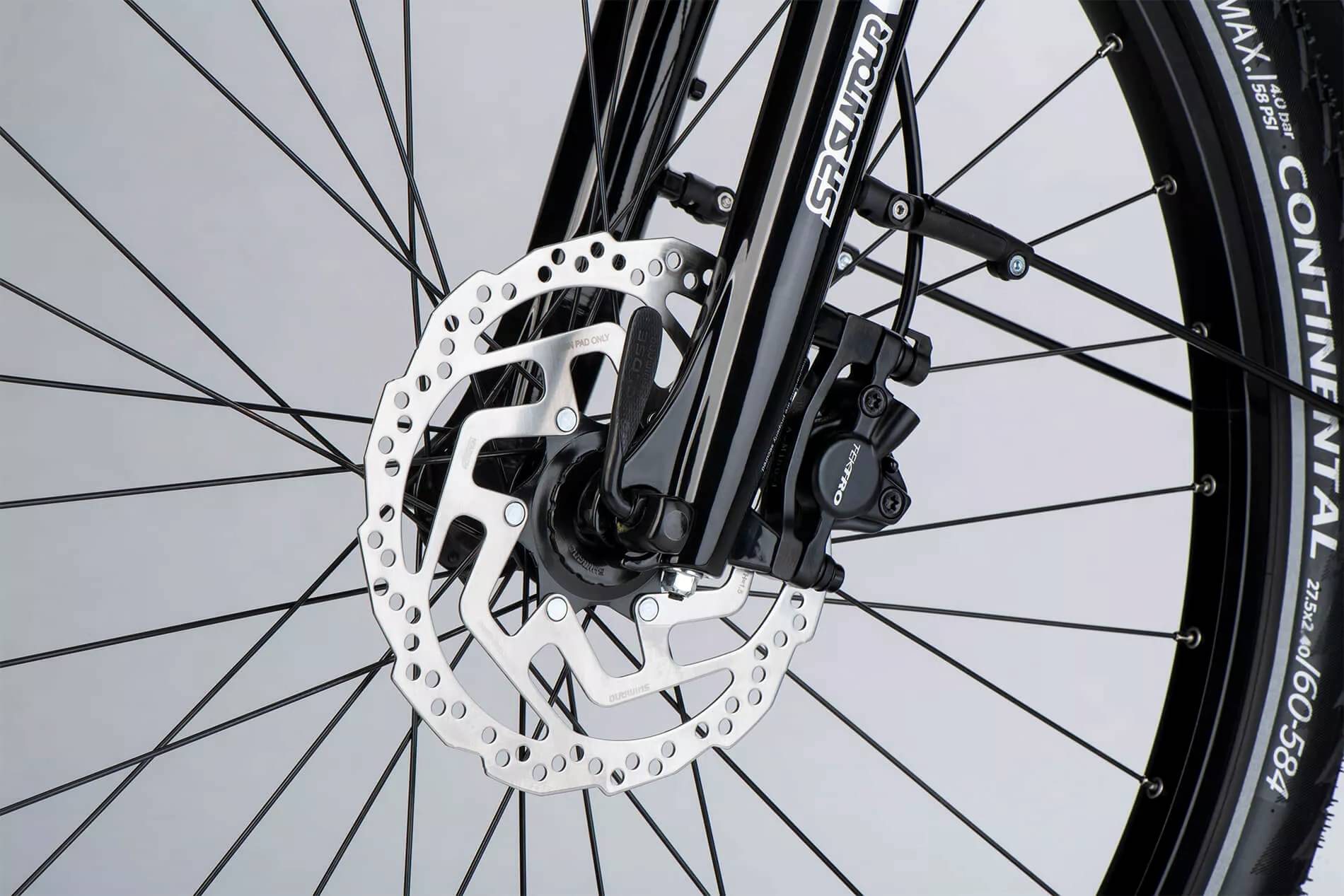

Brakes
Brakes
Tektro HD-T275 160 mm Disc
Brake Levers
Tektro HD-T275

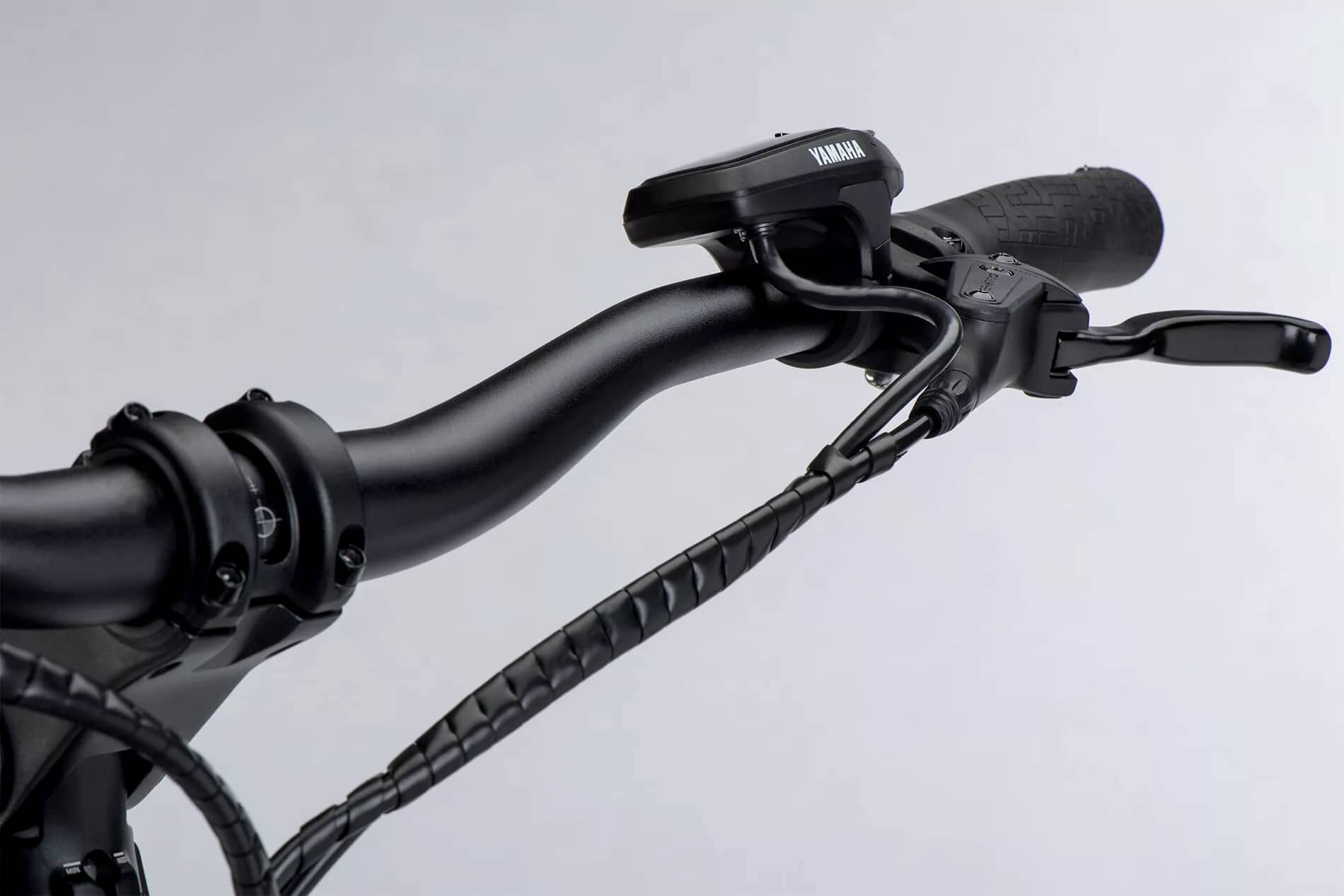

Cockpit
Stem
XLC 31.8
Handlebar
GHOST Dia. 31.8 mm 720/25
Grips
XLC Ergo
Seat
Saddle
Selle Royal Essenza
Seatpost
Satori Harmony SA 31.6 mm
Motor & Battery

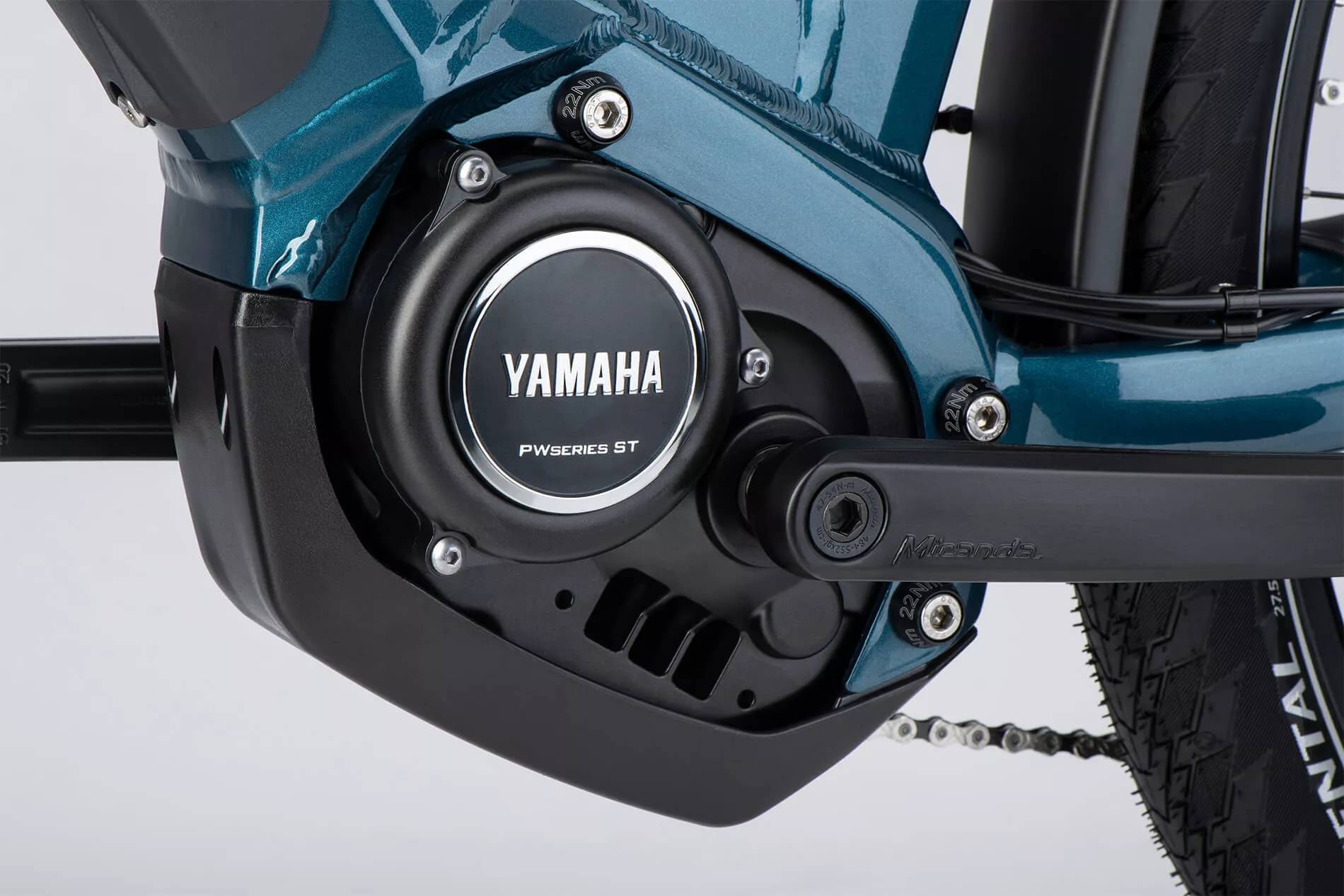

Motor
Yamaha PW-ST
Battery
Simplo 630 Wh
Charger
Simplo Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.46 mm | 1.489 mm |
| Front Center | 684 mm | 705 mm | 716 mm |
| Rake | 46 mm | 45 mm | 45 mm |
| Trail | 75 mm | 76 mm | 76 mm |
| Stack | 637 mm | 651 mm | 670 mm |
| Reach | 429 mm | 446 mm | 450 mm |
| Top Tube Length | 600 mm | 620 mm | 630 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1153 mm | 1174 mm | 1185 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 173 cm | 181 cm | 188 cm |
