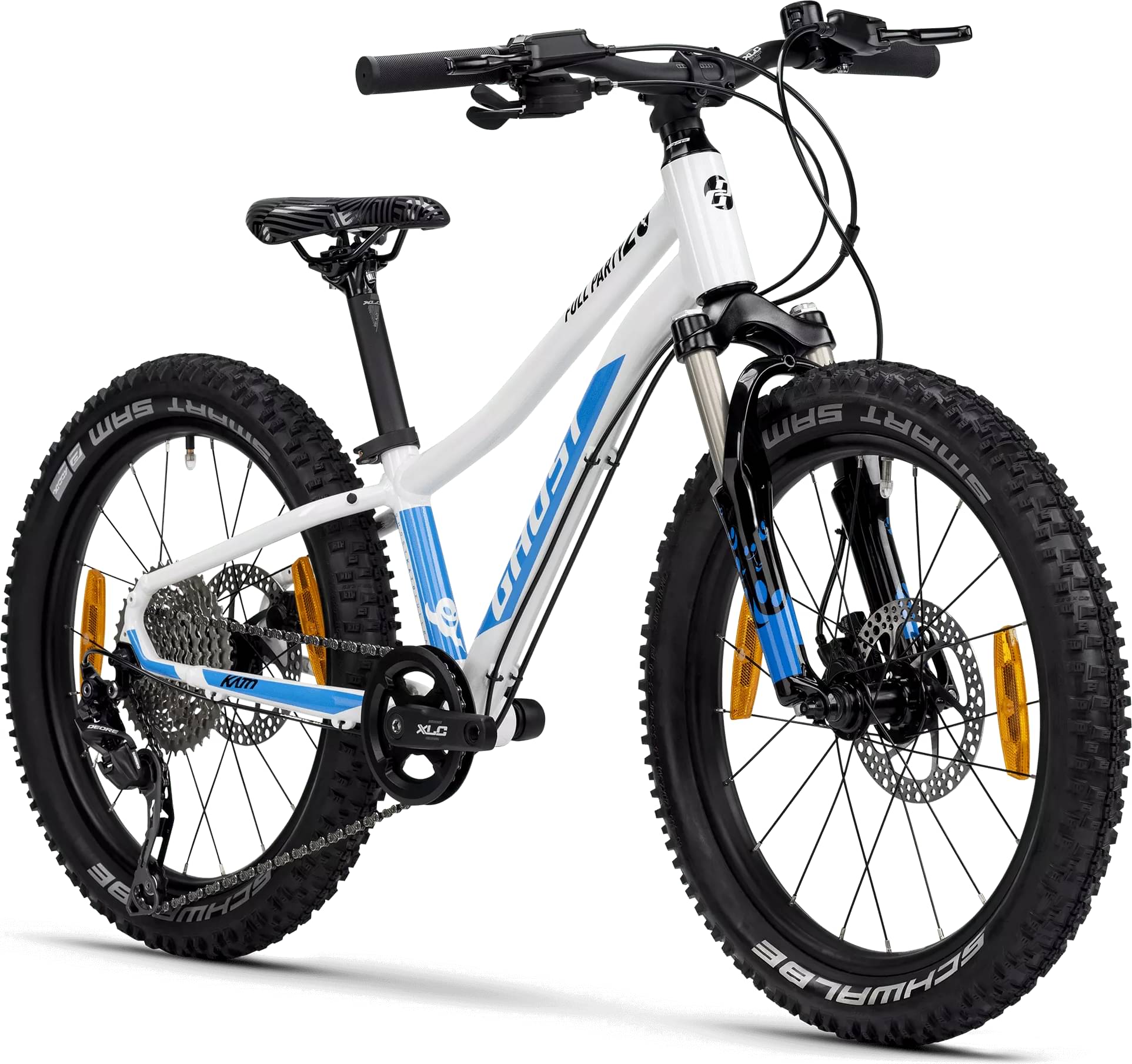

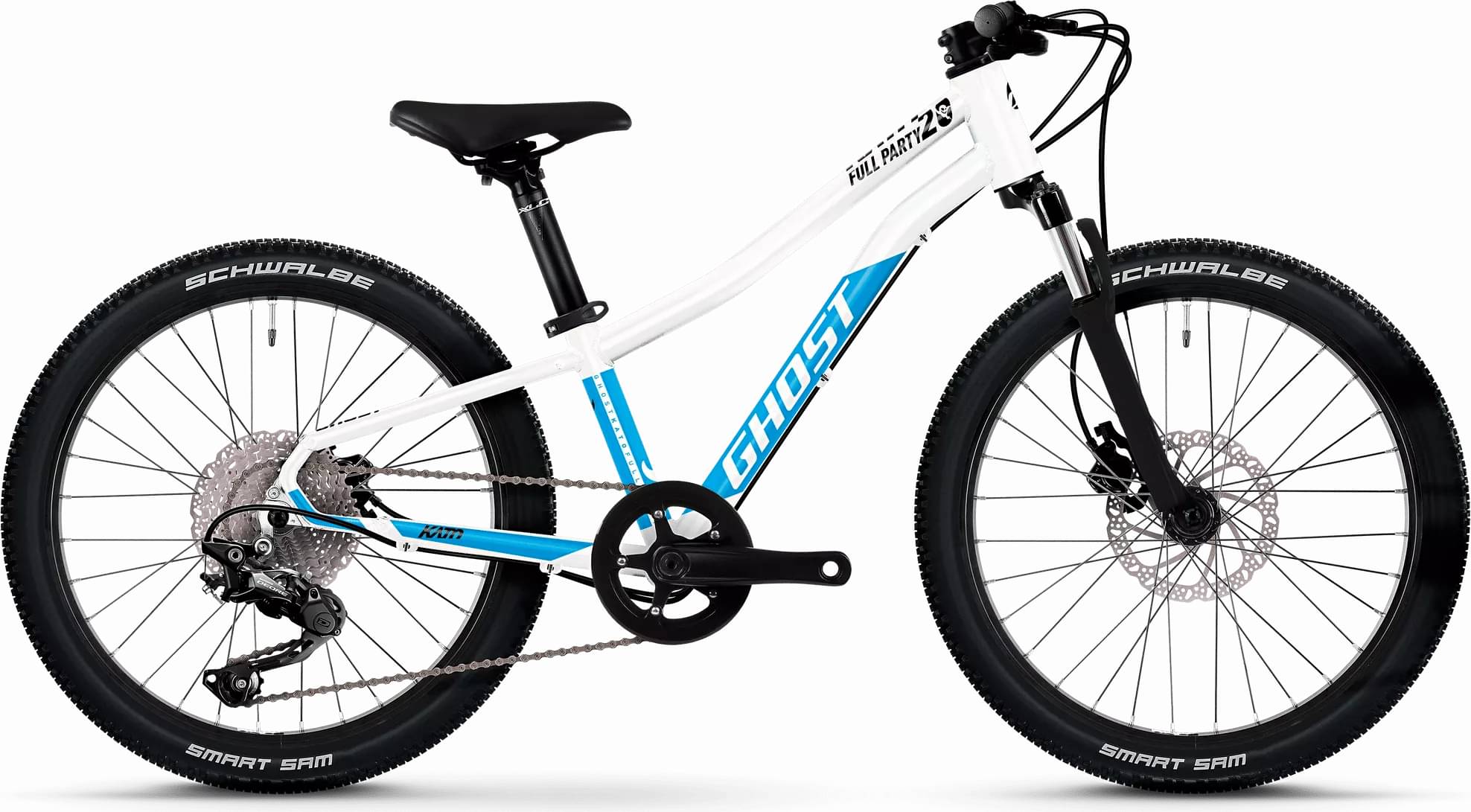

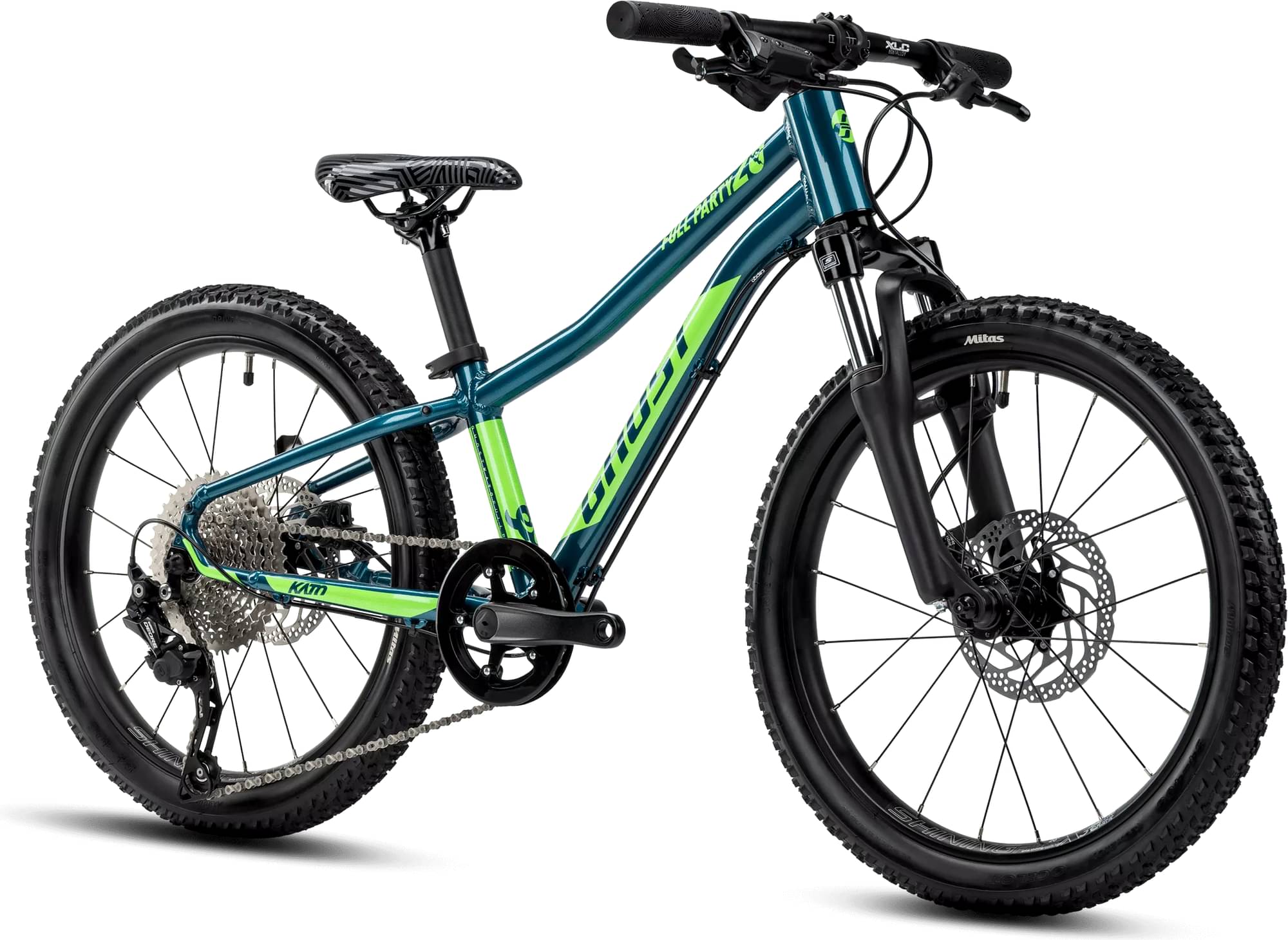

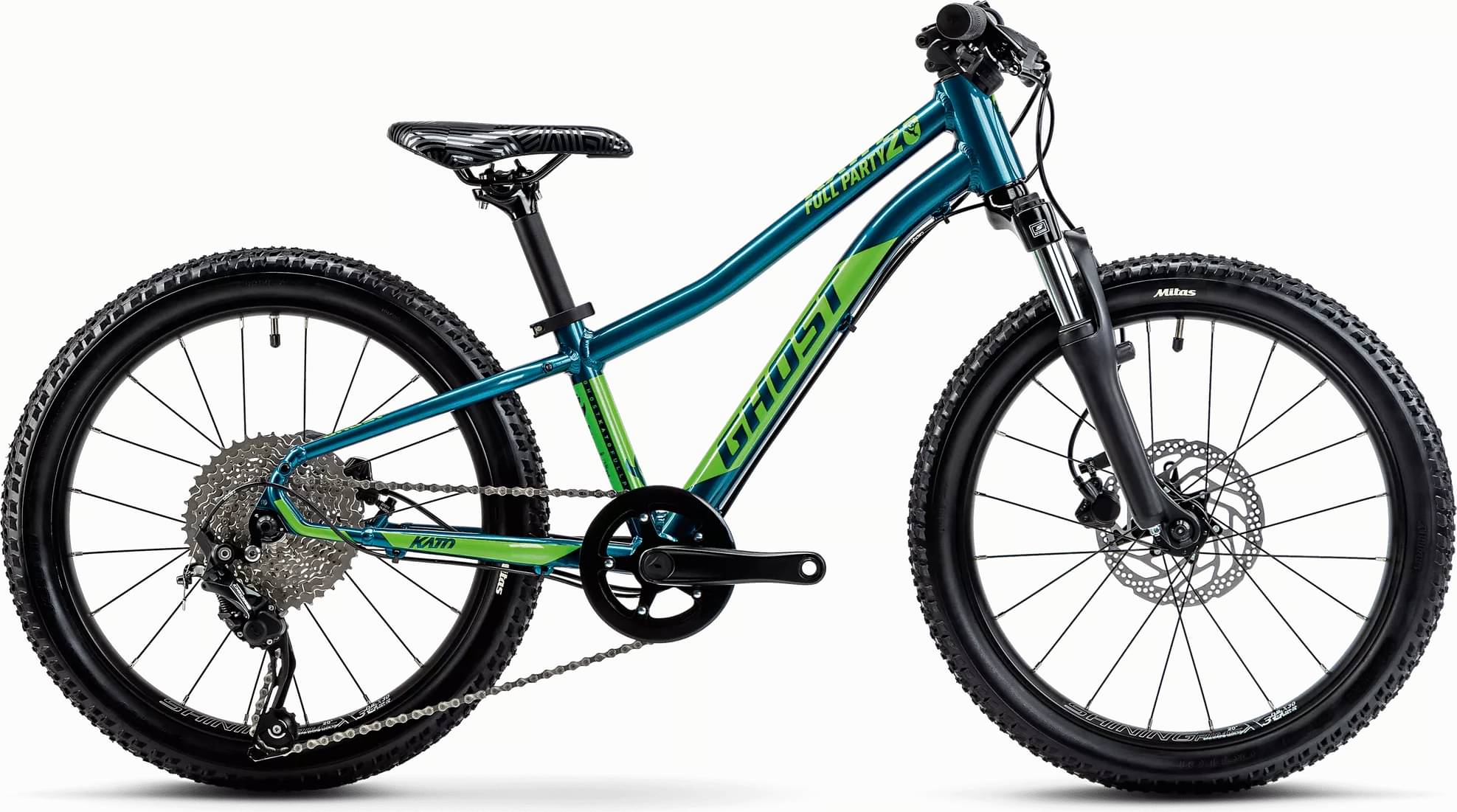

Ghost KATO 20 FULL PARTY 2025
2025 Youth
Estimate price |
930$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork SPINNER GRIND
-
Groupset Deore -
Suspension Hardtail -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
20"
115cm - 125cm
Parts list
Components
Main components, grouped by system.
Bike components

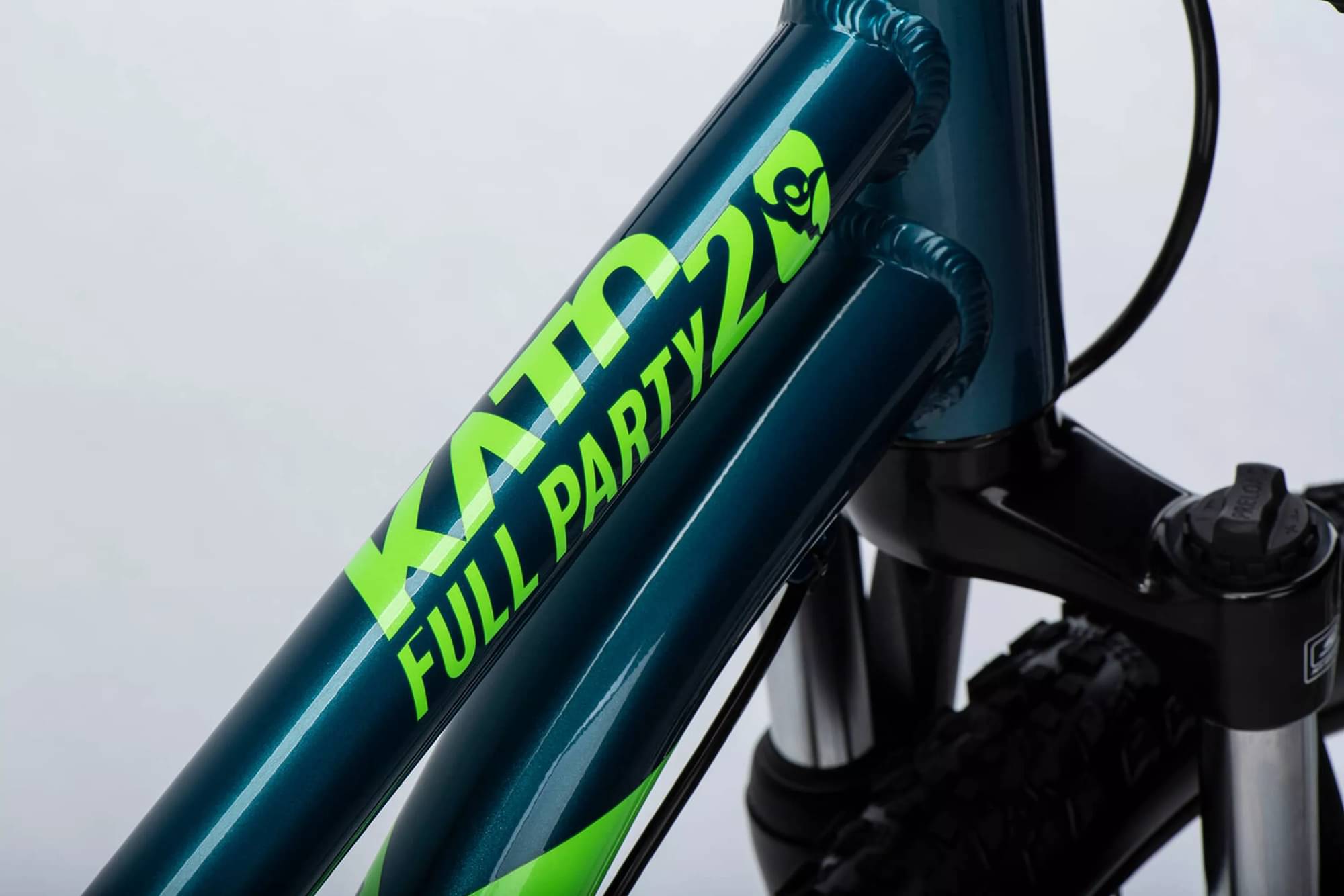

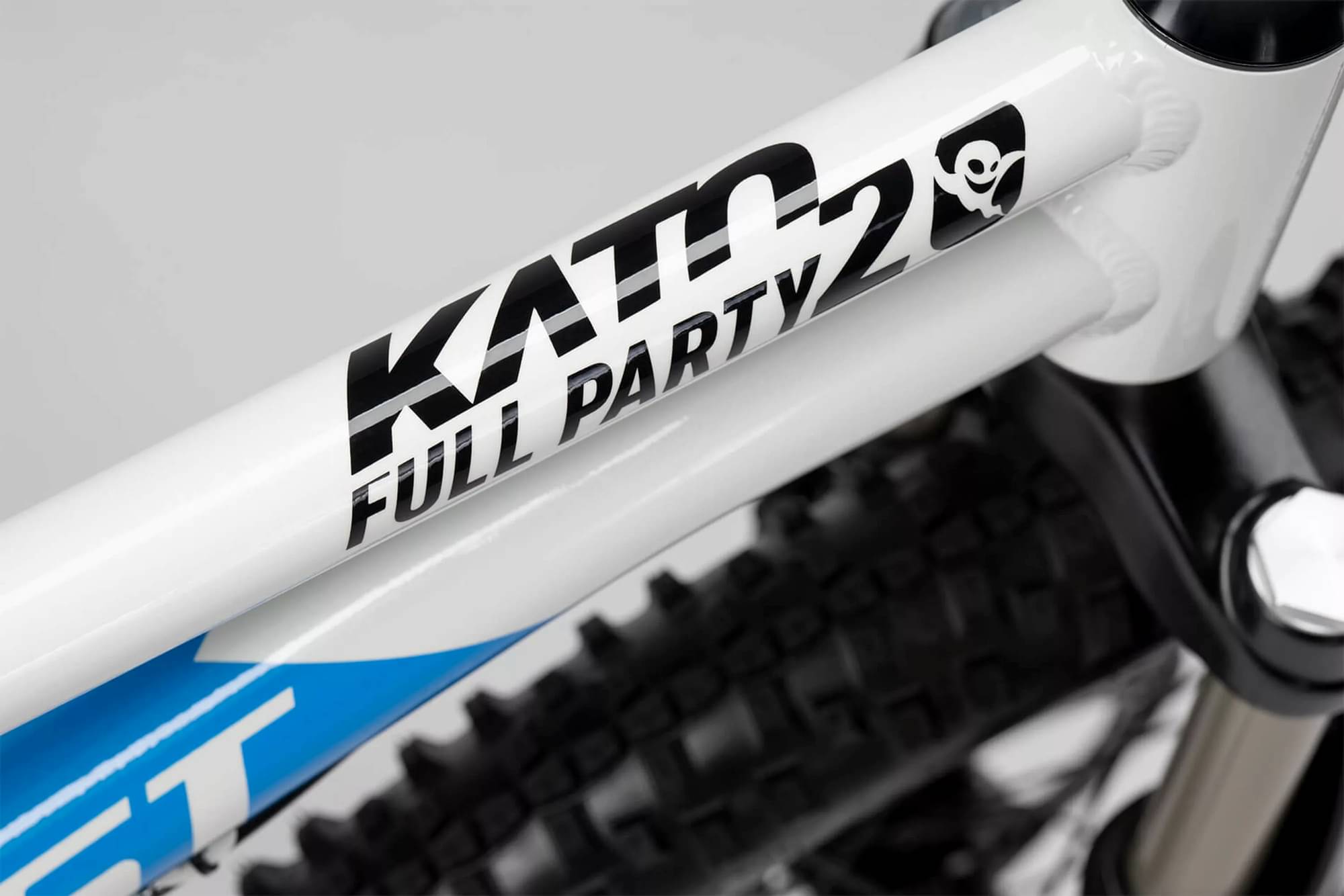

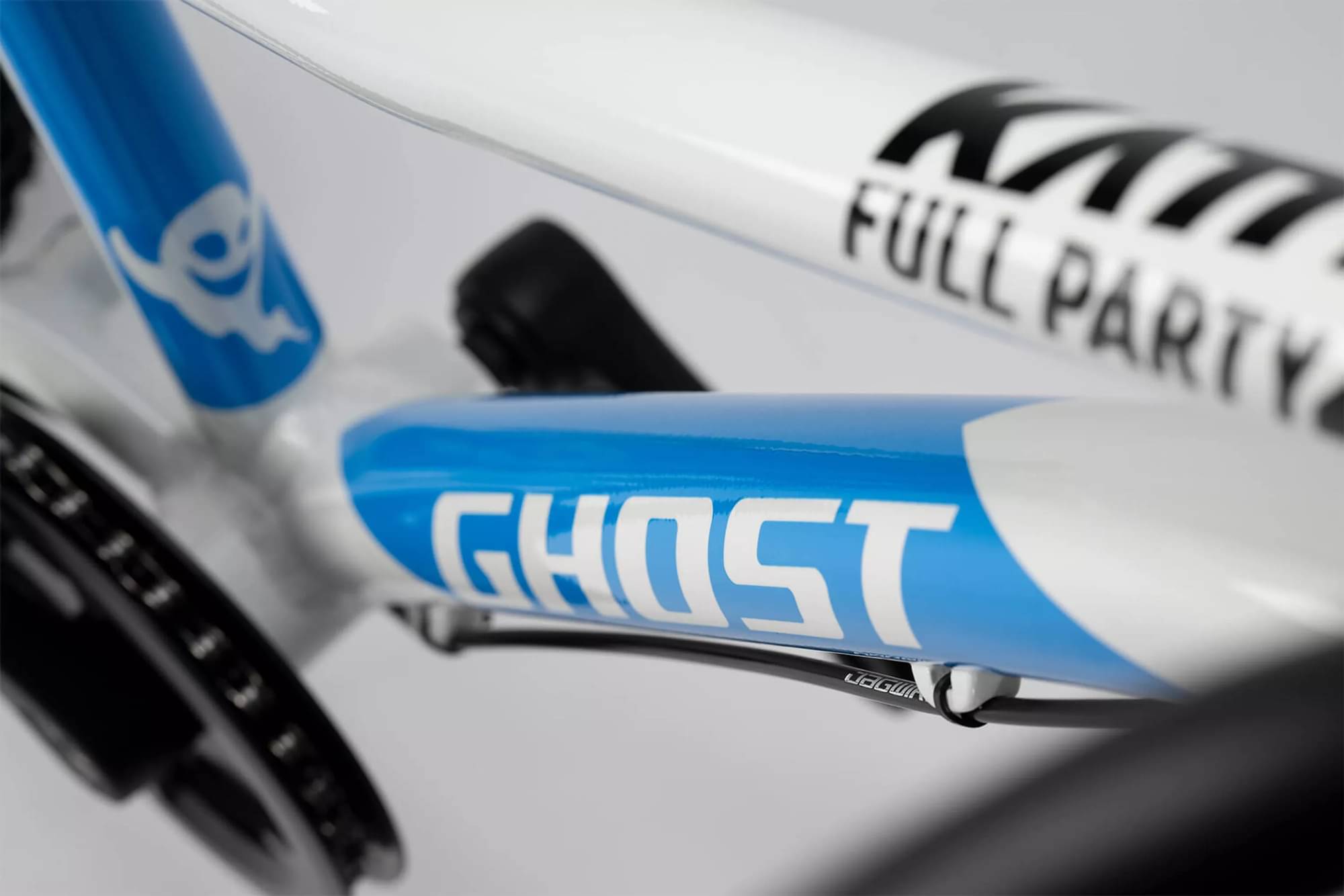

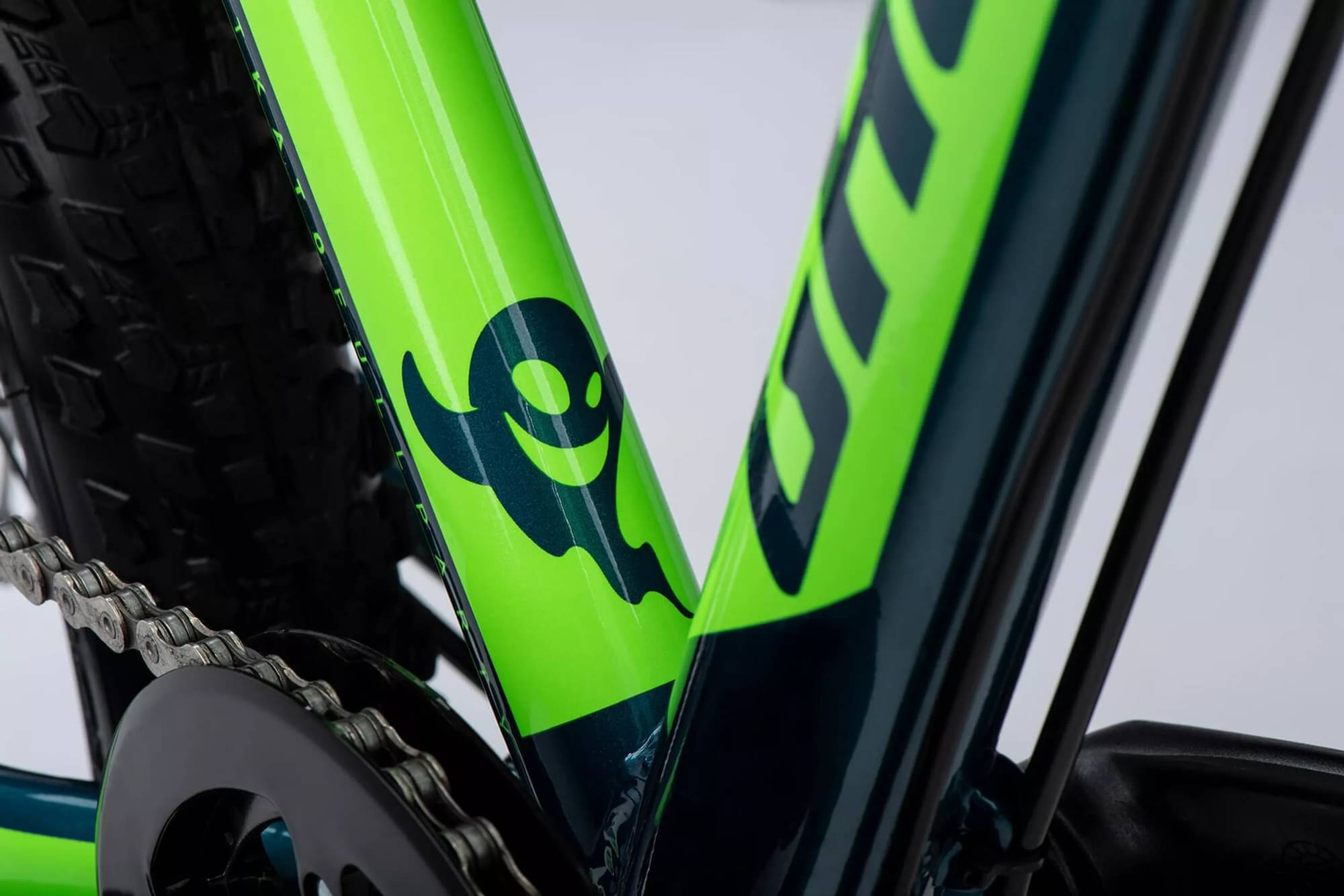

Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Ghost Spinner Grind Air 20", Gloss Black YS-728, 50 mm

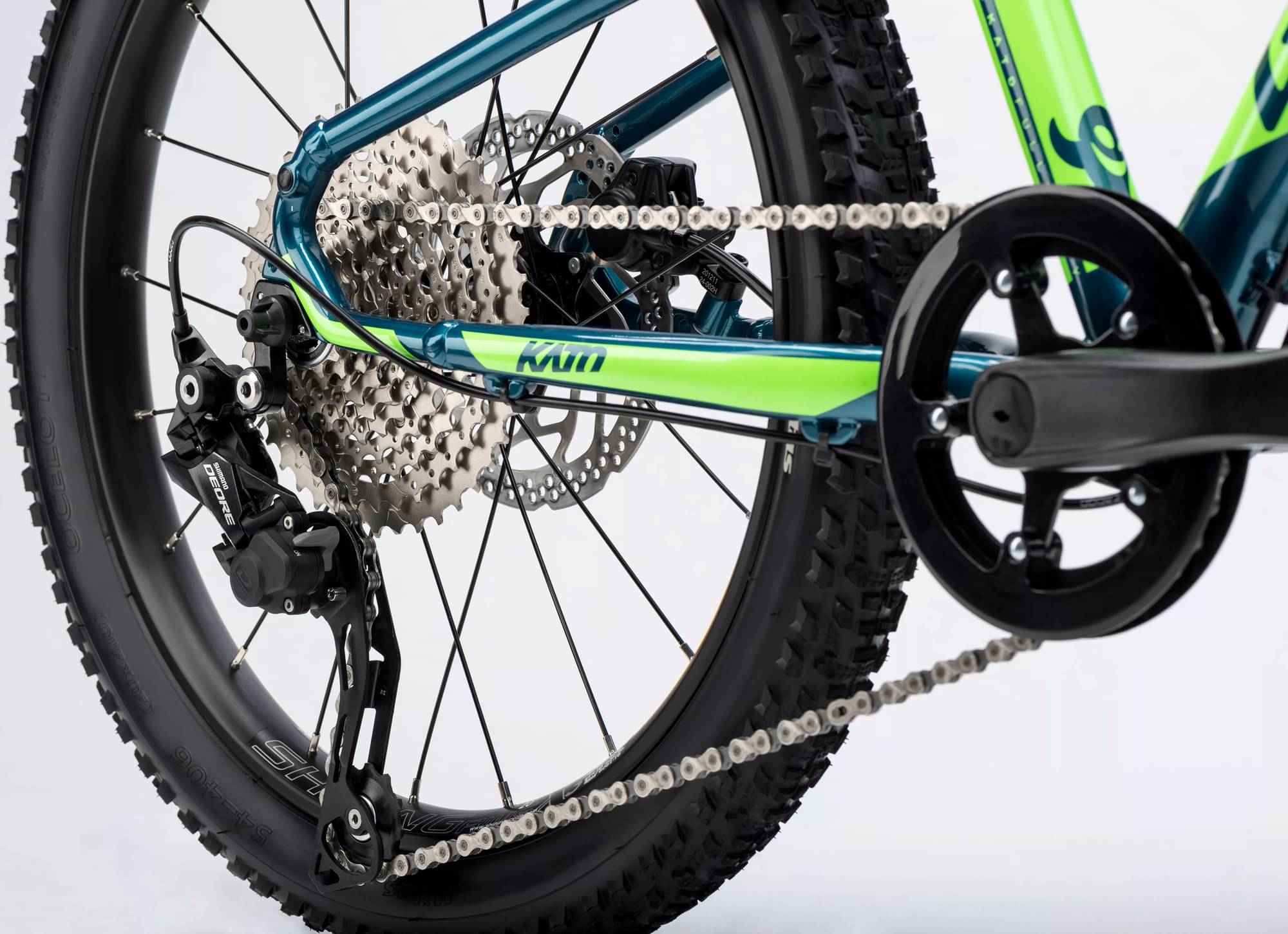

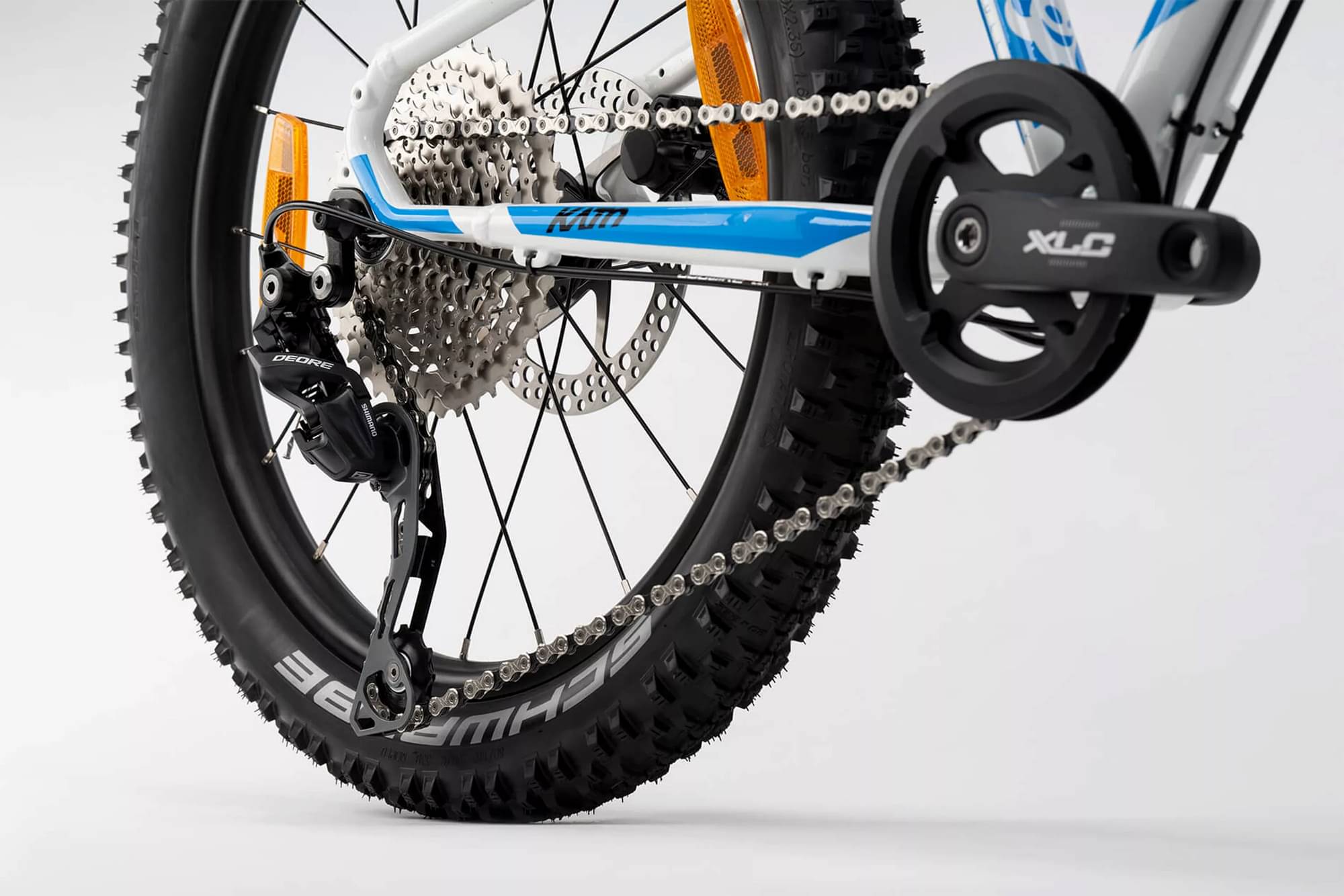

Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-GS 10s, Shadow+
Shift Levers
Shimano Triggershift Deore SL-M4100-R, Rapidfire+
Cassette
Shimano Deore CS-M4100-10, HG
Crank
Samox JIS Crankset SAC38J-166A-P37P 114
Bottom Bracket
Neco BSA B910-73, Axle 124,5 mm x 73 mm
Chain
KMC X10 Grey 1/2"x11/128" w/ CL559R
Pedals
VP VPE-225 93x87 mm w/ Reflector
Wheels
Front Hub
Quando KT-T04F QR 100 mm, 20H, 6 bolt Disc
Rear Hub
Quando KT-MR5R QR 135 mm, 20H, 6 bolt Disc, HG
Rims
Shining Rims DB-X30, 20" (406-30), 20H, Black, Double Wall
Tires
Schwalbe Smart Sam Performance, ADDIX 67EPI 60-406

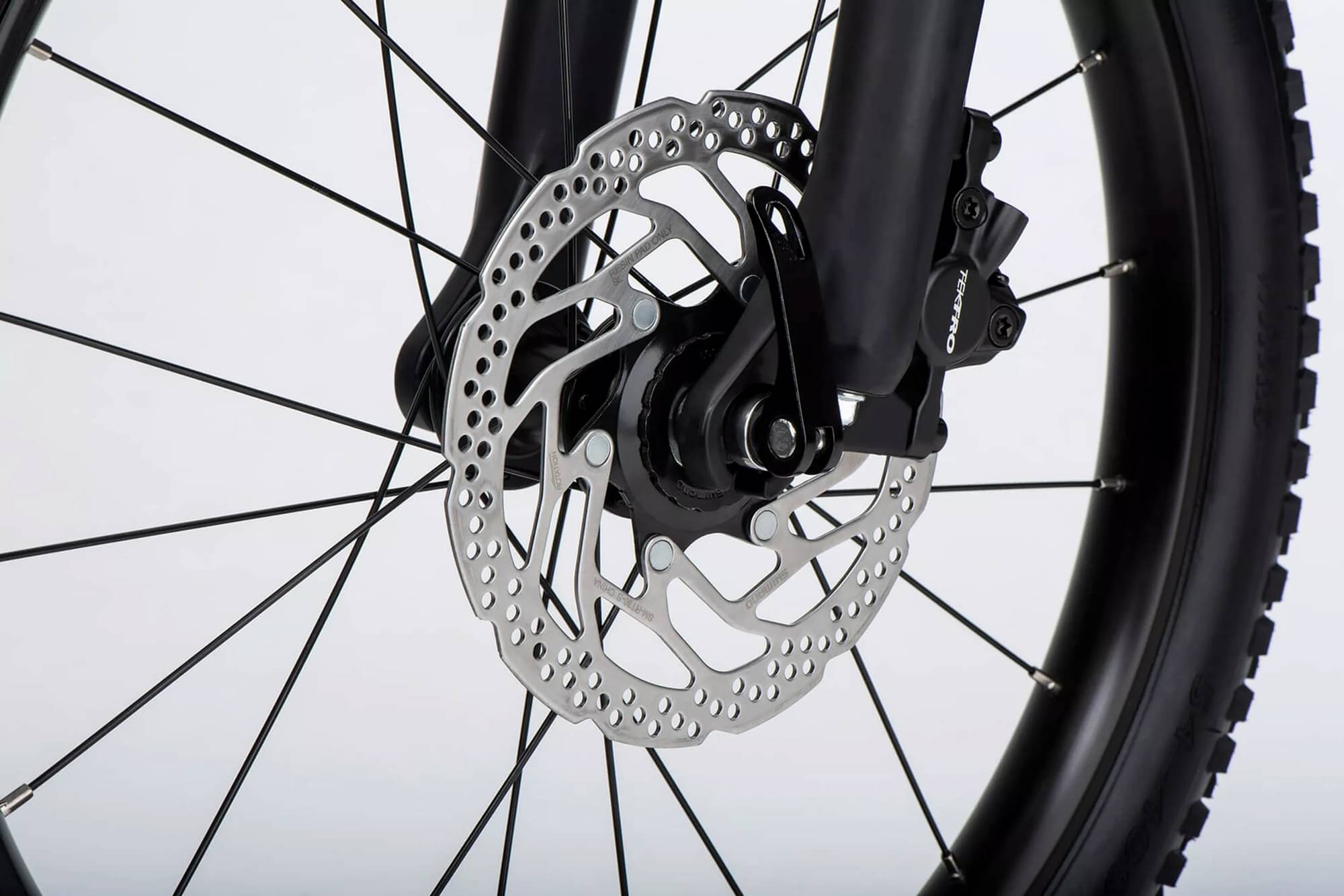

Brakes
Brakes
Tektro Hydraulic Disc brake HD-M276, 2 pistons, resin pad, 160 mm
Cockpit
Stem
Ghost Not Adjustable HL CORP TDS-C614N-5, Dia. 25.4 mm, L: 40 mm
Handlebar
XLC Riser Bar Satori Junior, Dia. 25.4 mm, Rise: 25 mm
Headset
Fsa Semi-integrated No. 10, 1-1/8", H: 8,9 mm ZS44/ZS44
Seat

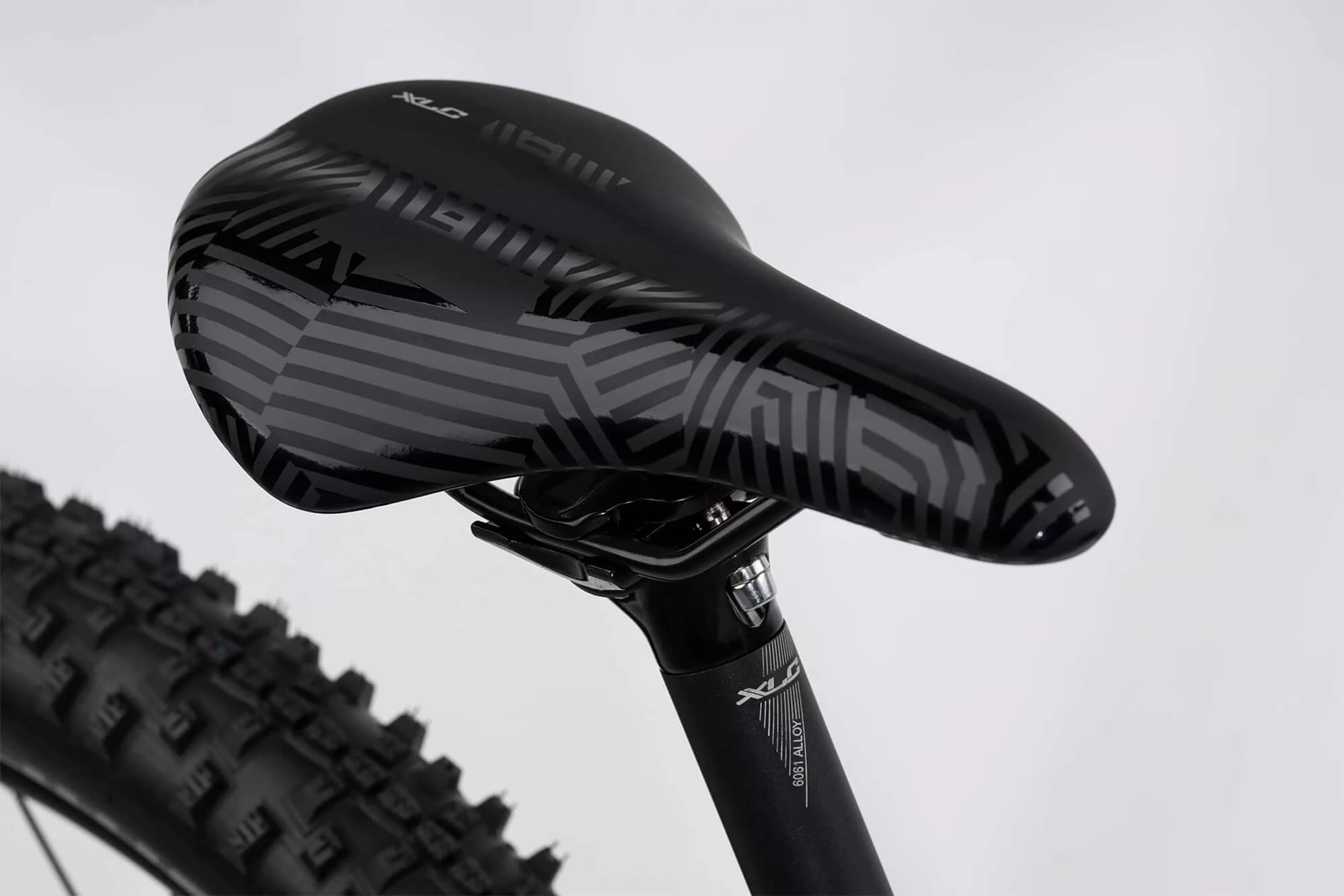

Saddle
XLC Kids DDK-D922 230x130 mm, black
Seatpost
Kalloy Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.625 mm |
| Front Center | 486 mm |
| Rake | 35 mm |
| Stack | 455 mm |
| Reach | 280 mm |
| Top Tube Length | 437 mm |
| Seat Tube Angle | 69 ° |
| Seat Tube Length | 250 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 362 mm |
| Wheelbase | 843 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 473 mm |
| Wheels | 20" |
| Rider Min Height | 115 cm |
| Rider Max Height | 125 cm |
