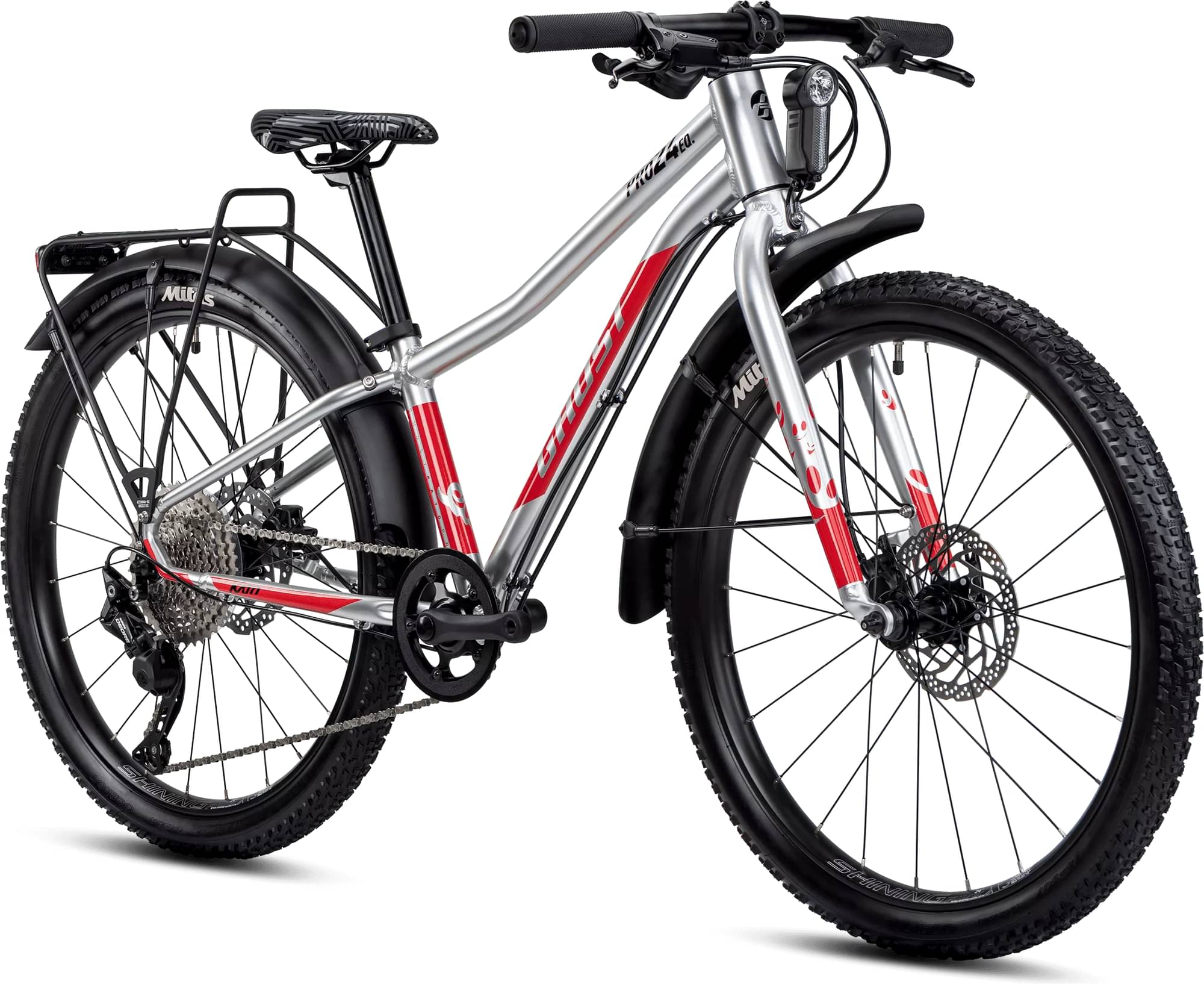

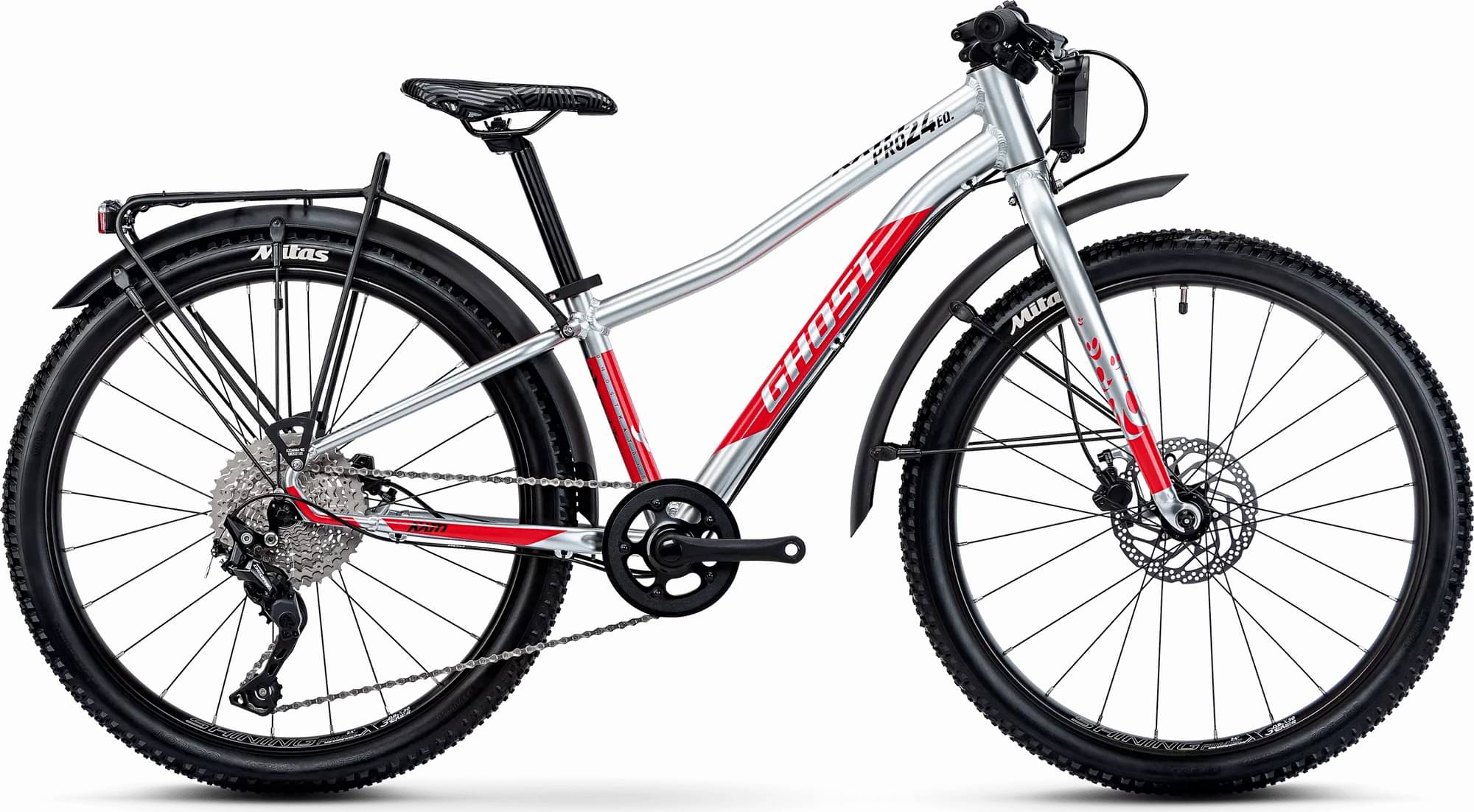

Ghost KATO 24 PRO EQ 2025
2025 Youth
Estimate price |
988$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
24"
125cm - 135cm
Parts list
Components
Main components, grouped by system.
Bike components

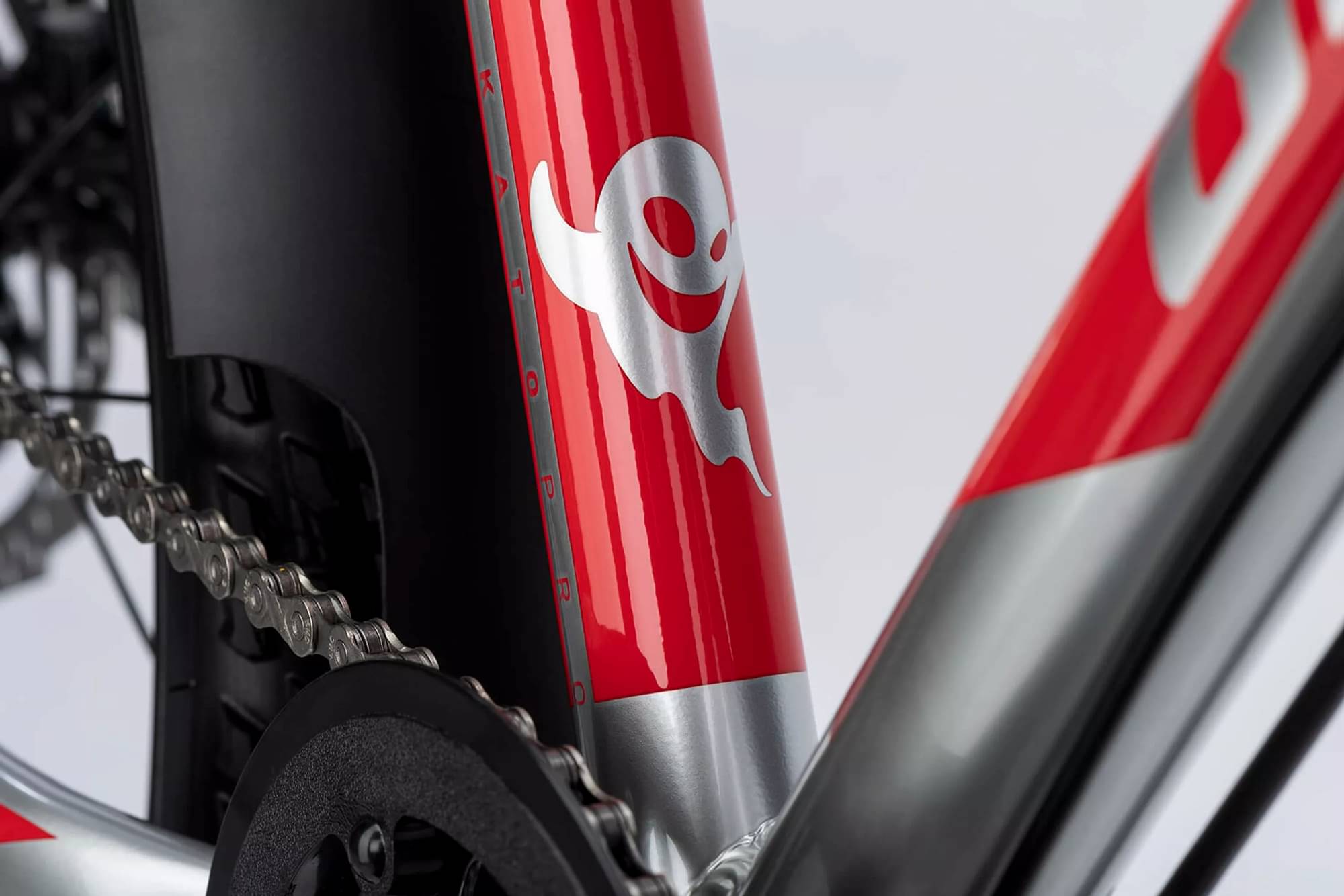

Frame
Frame

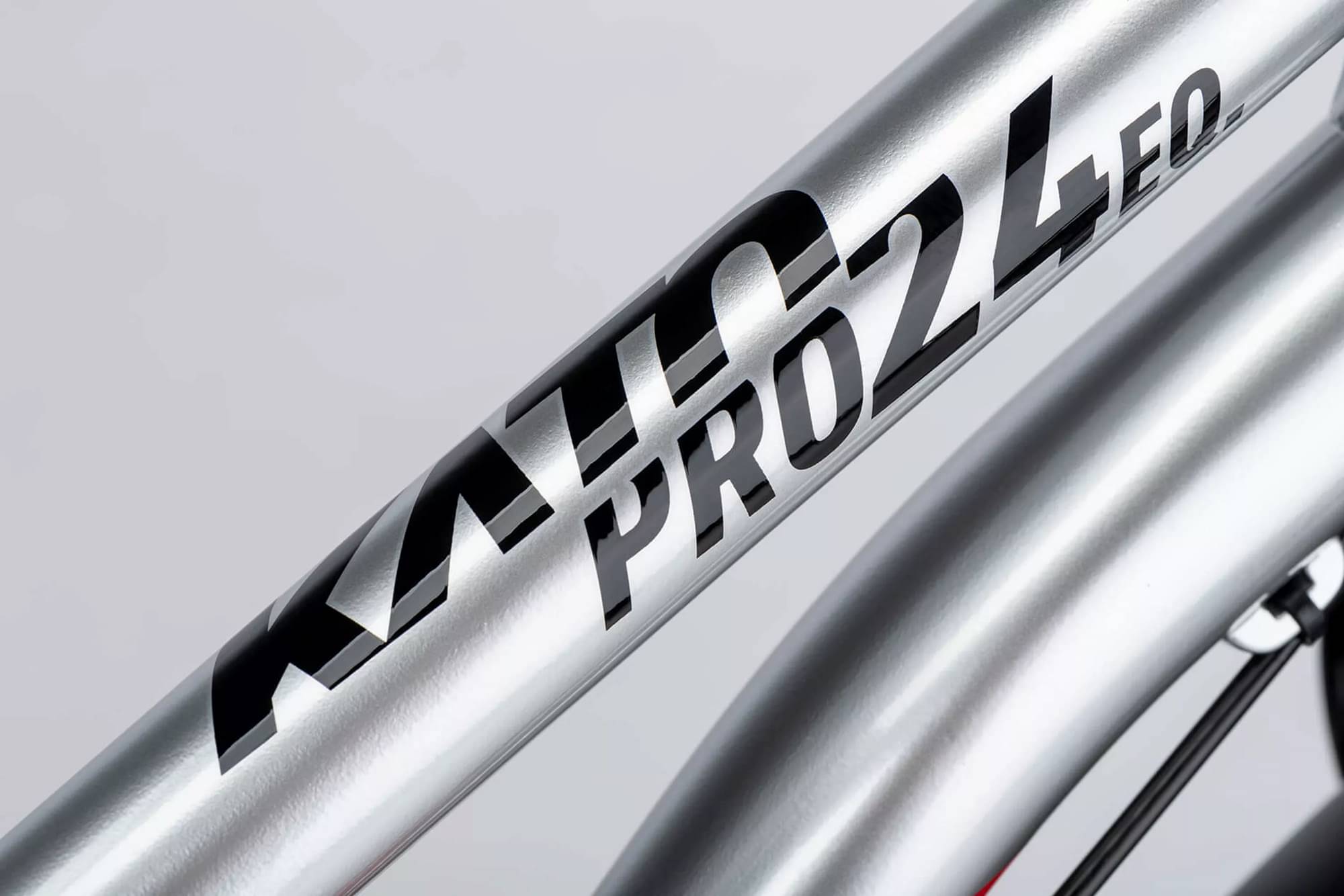

HIGH Aluminium Uni
Suspension Fork
Ghost MTB Rigid

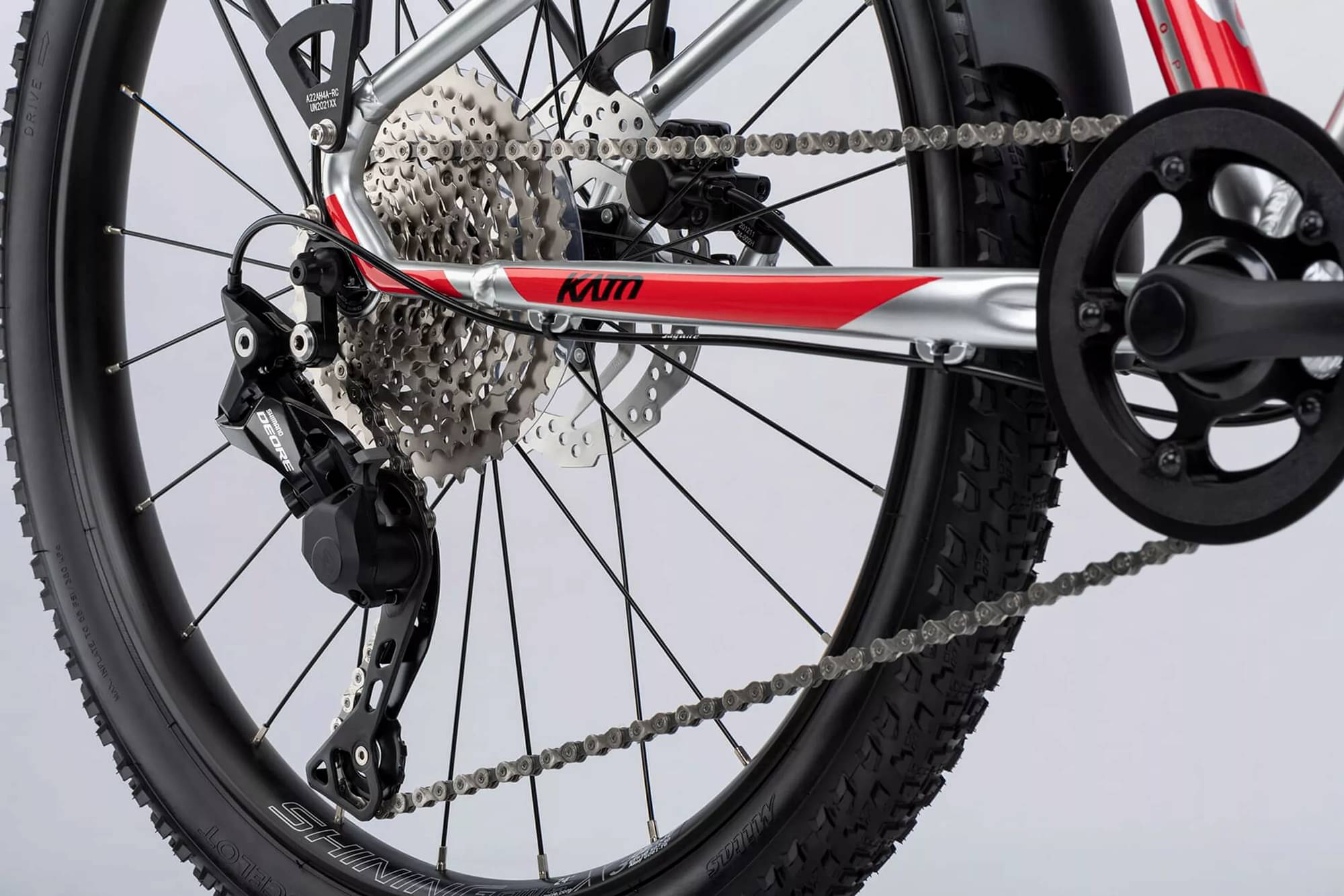

Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-GS 10s, Shadow+
Shift Levers
Shimano Triggershift Deore SL-M4100-R, Rapidfire+
Cassette
Shimano Deore CS-M4100-10, HG
Crank
Samox JIS Crankset SAC38J-166A-P37P 140
Bottom Bracket
Neco BSA B910-73, Axle 124,5 mm x 73 mm
Chain
KMC X10 Grey 1/2"x11/128" w/ CL559R
Pedals
VP VPE-225 93x87 mm w/ Reflector
Wheels
Front Hub
Quando KT-T04F QR 100 mm, 24H, 6 bolt Disc
Rear Hub
Quando KT-MR5R QR 135 mm, 24H, 6 bolt Disc, HG
Rims
Shining Rims DB-X30, 24" (507-30), 24H, Black, Double Wall
Tires
Schwalbe Smart Sam Performance, ADDIX 67EPI 60-507
Brakes

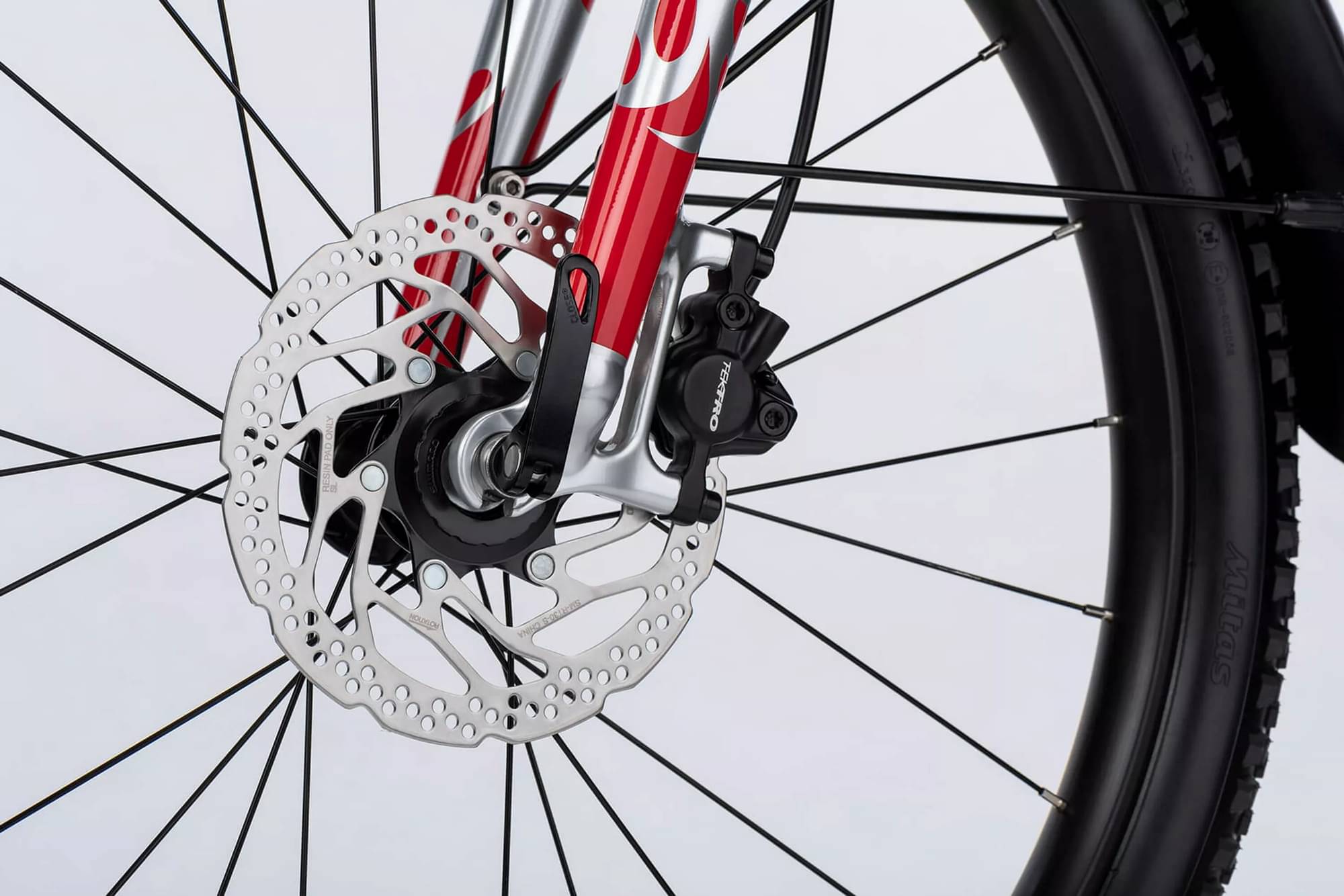

Brakes
Tektro Hydraulic Disc brake HD-M276, 2 pistons, resin pad, 160 mm
Brake Levers
Tektro HD-M276-BL

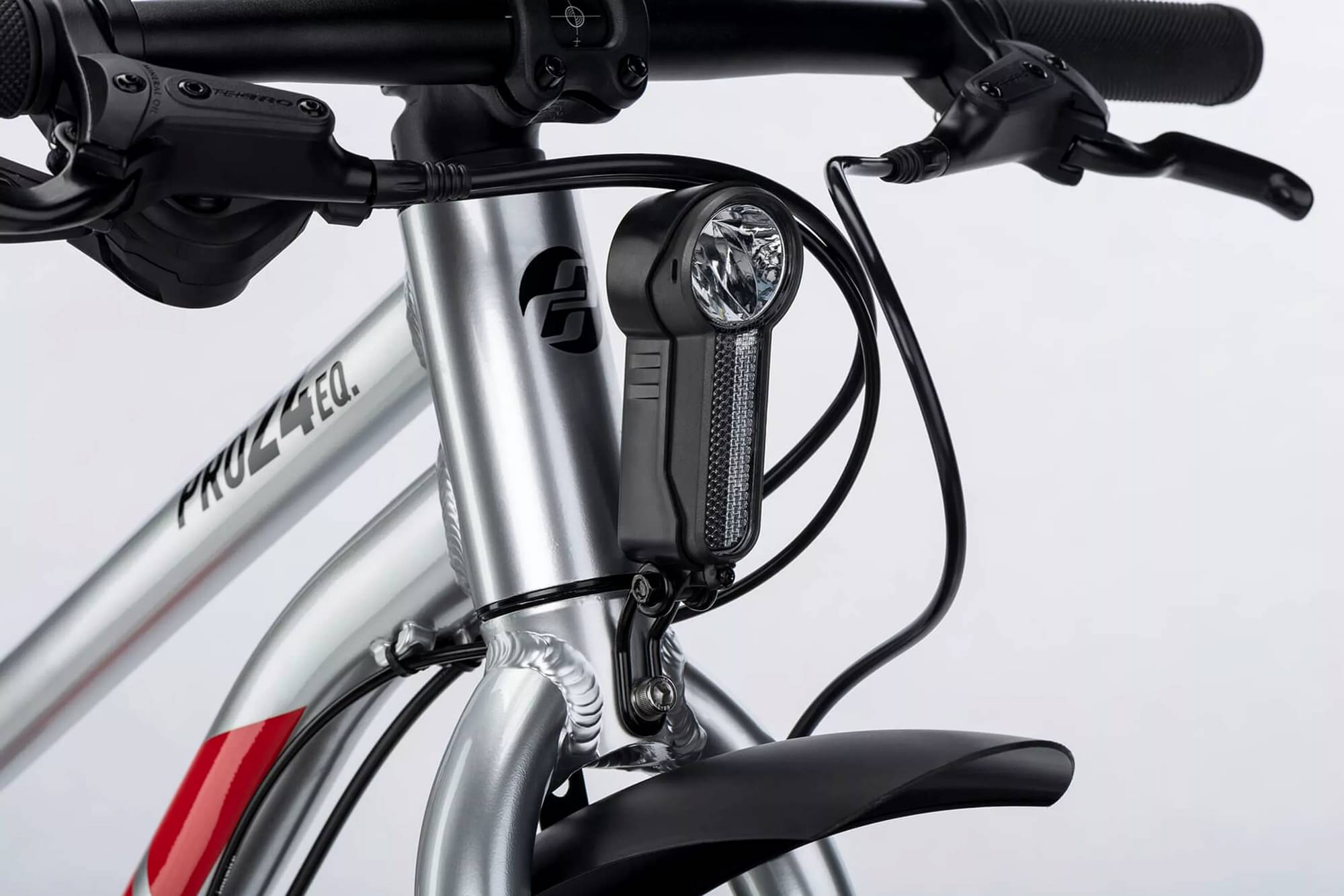

Cockpit
Stem
Ghost Not Adjustable HL CORP TDS-C614N-5, Dia. 25.4 mm, L: 40 mm
Handlebar
XLC Riser Bar Satori Junior, Dia. 25.4 mm, Rise: 25 mm
Headset
Fsa Semi-integrated No. 10, 1-1/8", H: 8,9 mm ZS44/ZS44
Seat
Saddle
XLC Kids DDK-D922 230x130 mm, black
Seatpost
Kalloy Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.515 mm |
| Front Center | 564 mm |
| Rake | 41 mm |
| Stack | 512 mm |
| Reach | 338 mm |
| Top Tube Length | 506 mm |
| Seat Tube Angle | 69 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 410 mm |
| Wheelbase | 971 mm |
| Bottom Bracket Drop | 40 mm |
| Standover Height | 543 mm |
| Wheels | 24" |
| Rider Min Height | 125 cm |
| Rider Max Height | 135 cm |
