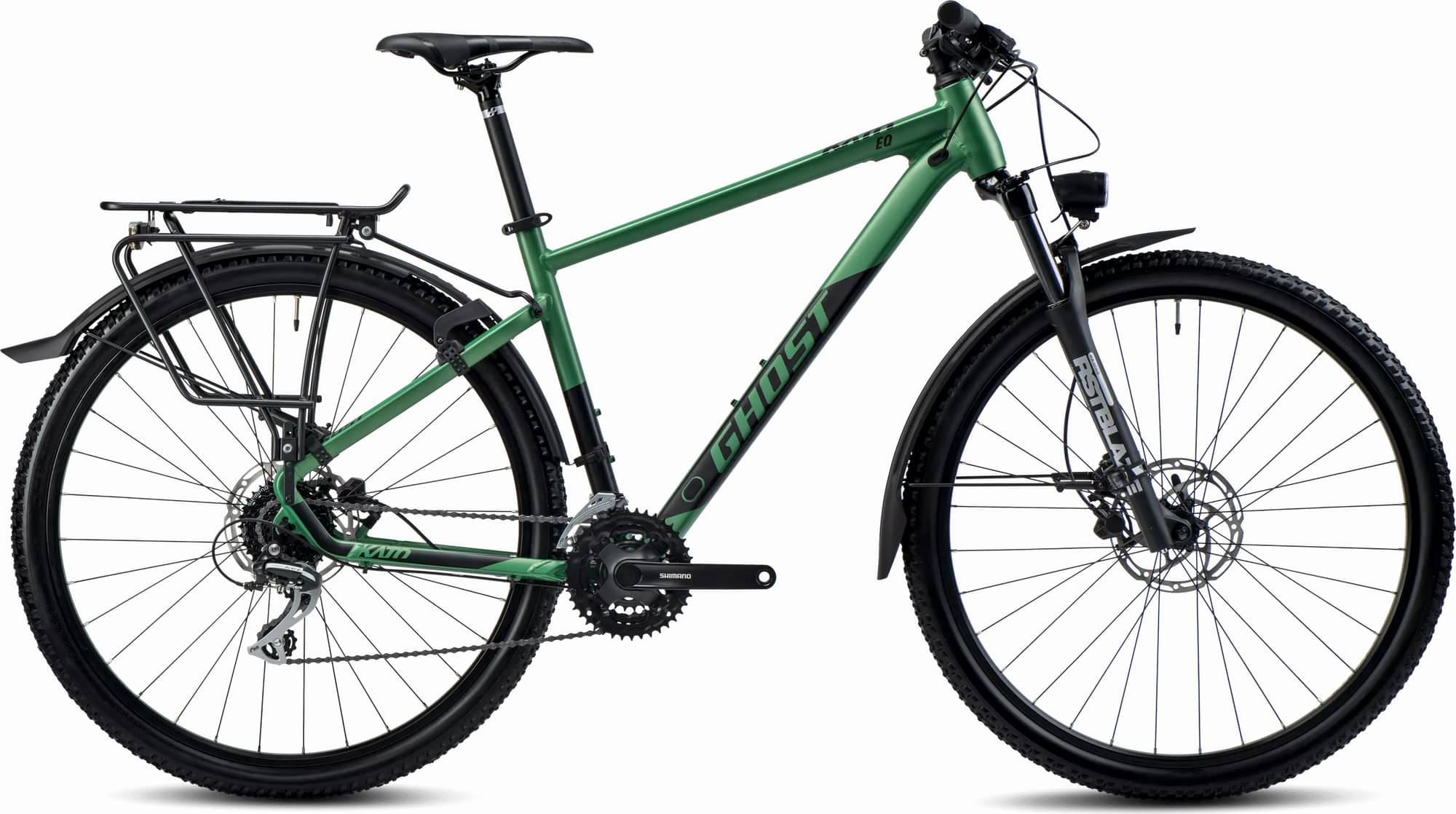

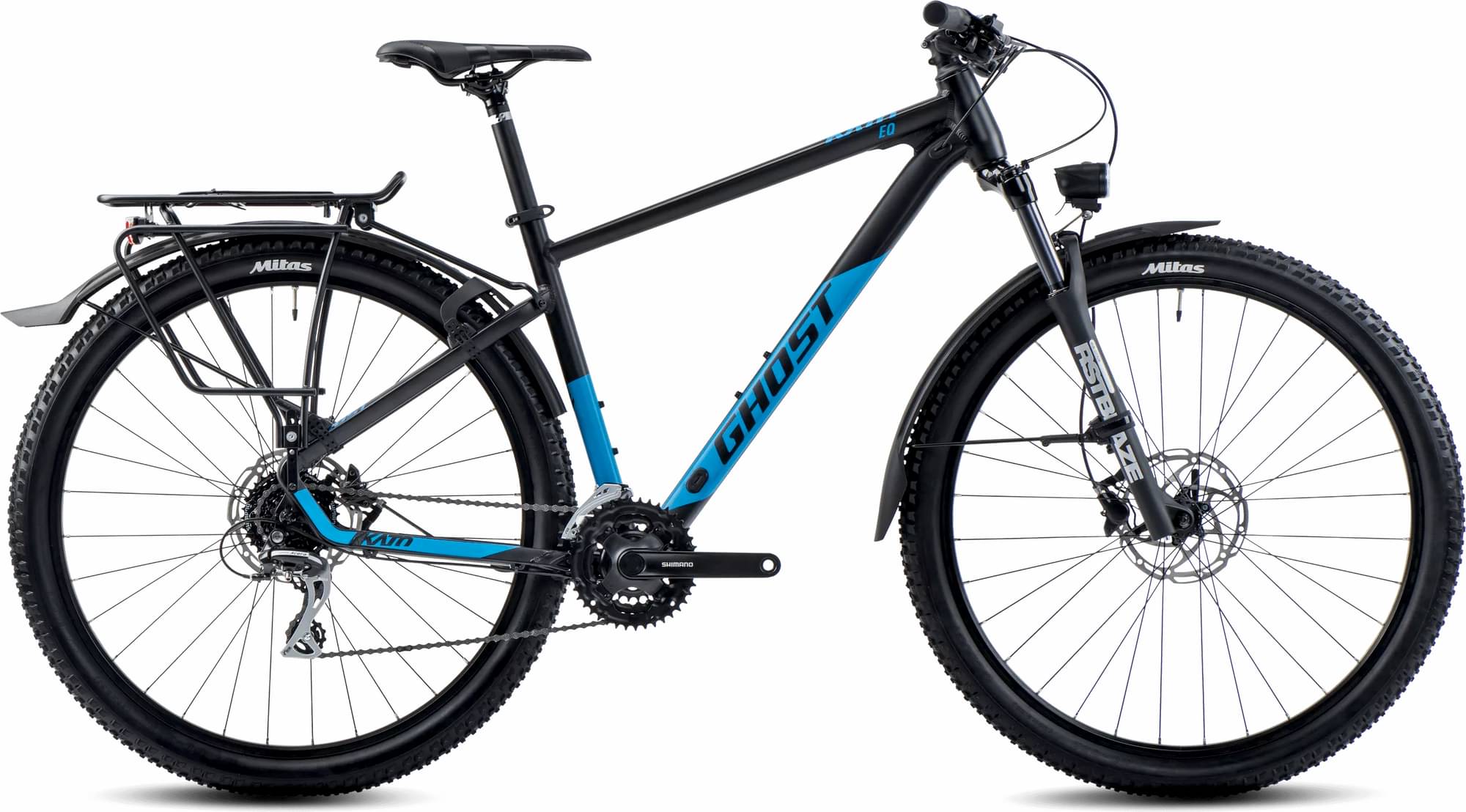

Ghost KATO EQ 2025
2025 Mountain
Estimate price |
1,023$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 160cm
SM
158cm - 169cm
MD
167cm - 178cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

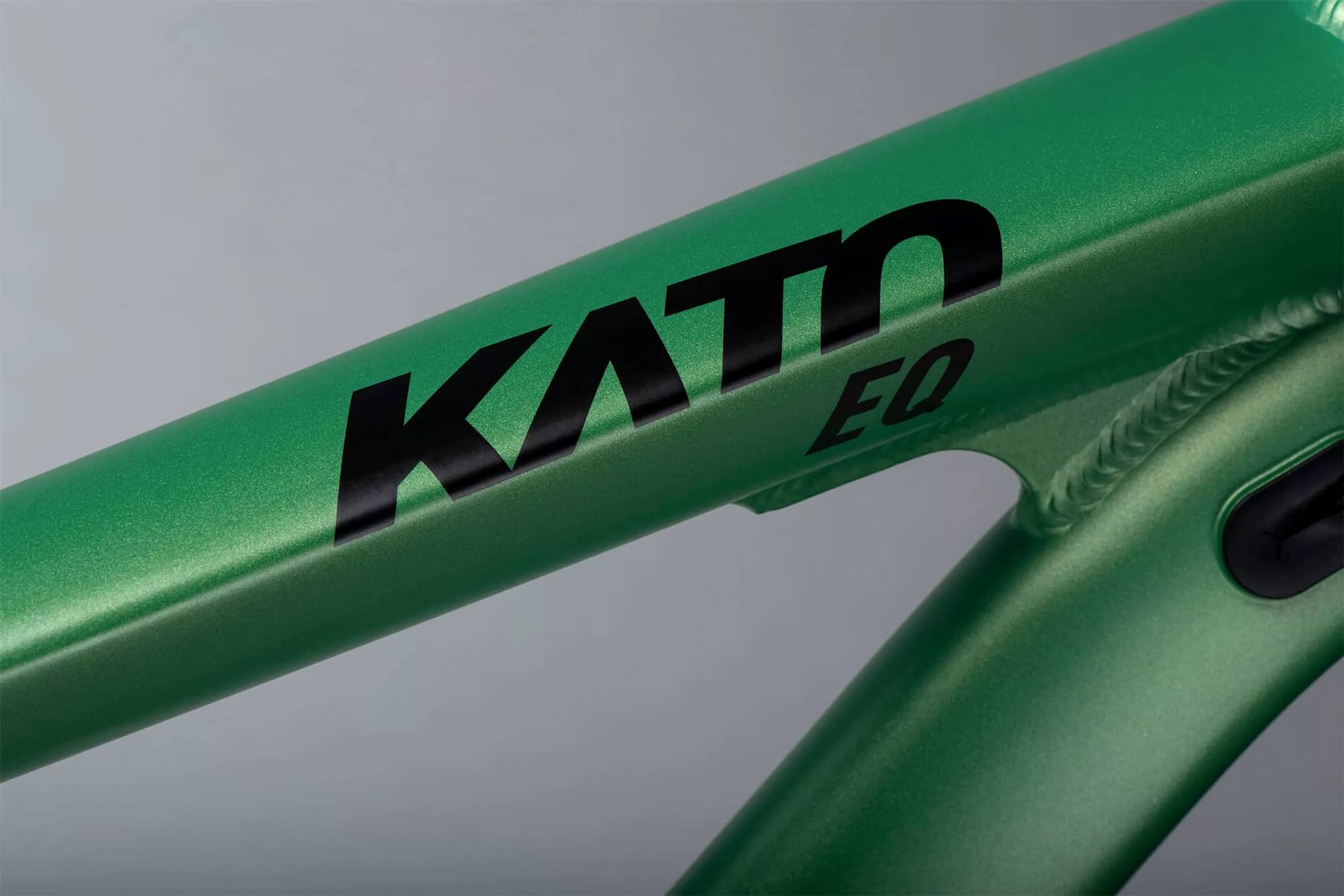

HIGH Aluminium Uni
Suspension Fork

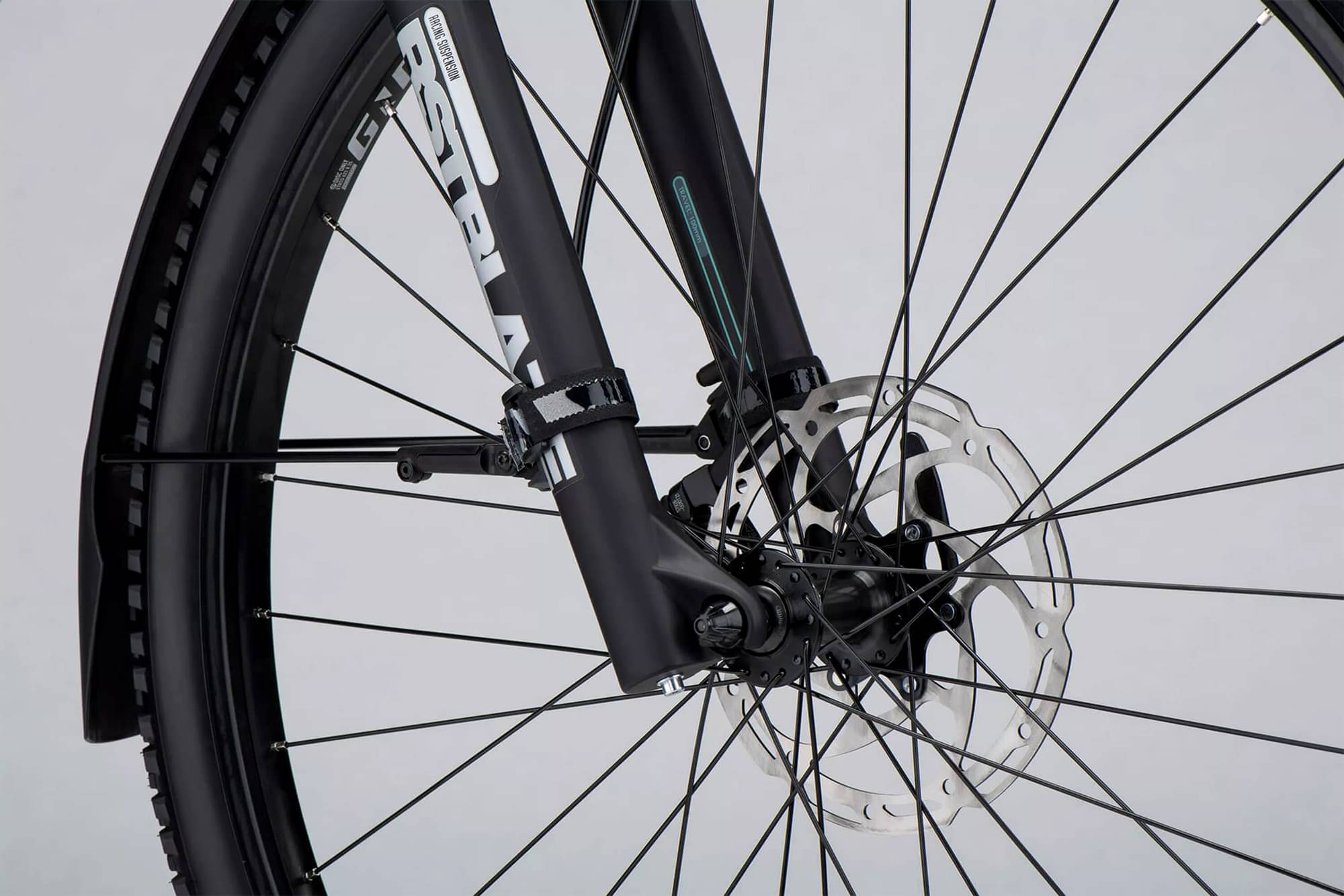

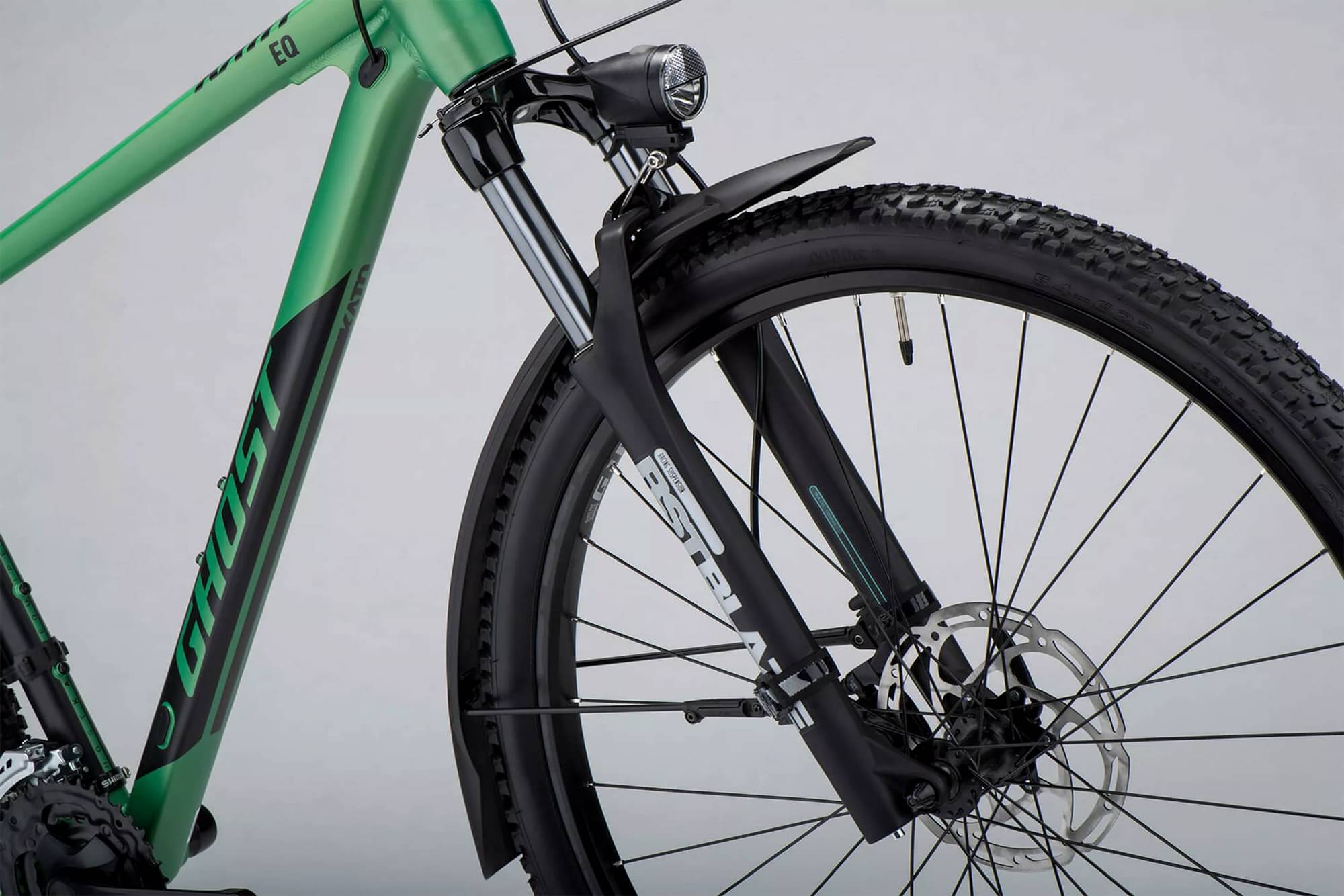

Rst Blaze 100 mm

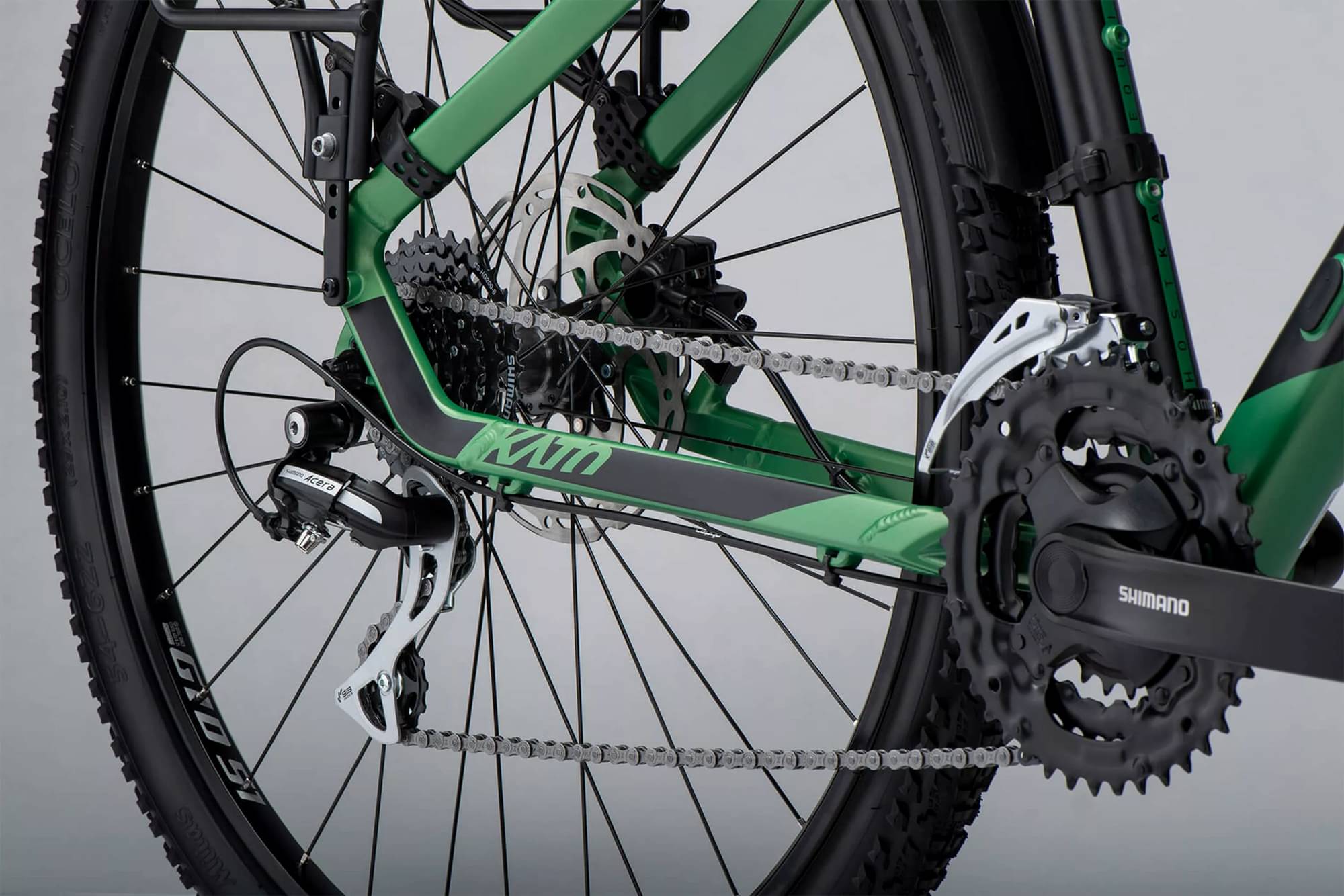

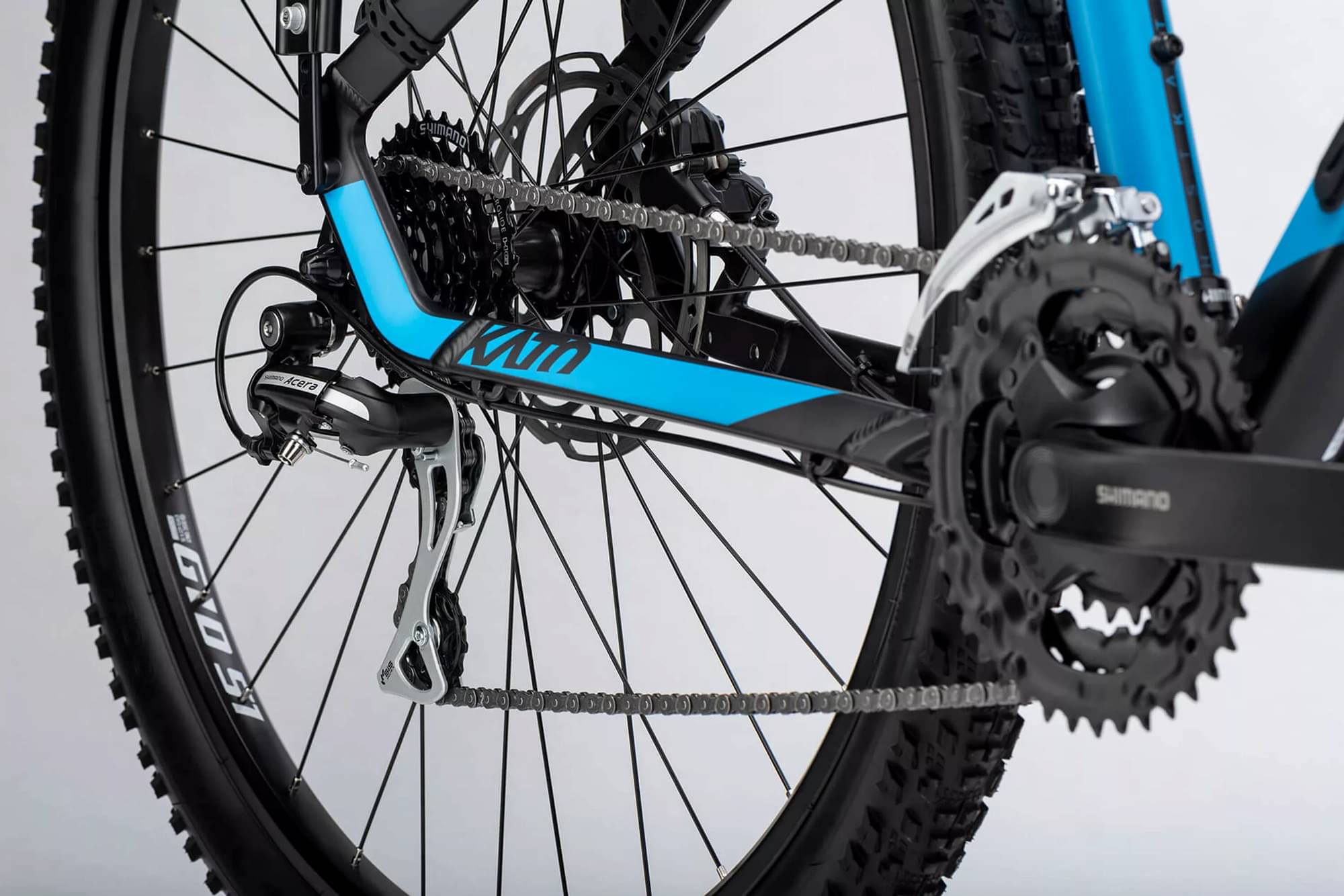

Drivetrain
Rear Derailleur
Shimano Acera RD-M360-SGS 7/8s, Double Servo
Front Derailleur
Shimano Tourney FD-TY700-TS6 3x7/8s, Top Swing
Shift Levers
Shimano Triggershift SL-M315-8R, Rapidfire+
Cassette
Shimano Tourney TX CS-HG200-8, HG
Crank
Shimano Tourney FC-TY301 170
Bottom Bracket
Thun BSA PASO-ML 68-73
Chain
KMC Z51 8s
Pedals
FPD NW-91K steel cage black
Wheels
Front Hub
Shimano HB-TX505, 32H, QR 100 mm, Centerlock
Rear Hub
Shimano FH-TX505-8, 32H, QR 135 mm, Centerlock, HG
Rims
Schurmann YAK Disc 25-584 32H 7,5 mm Valve
Tires
Mitas Ocelot 2.35
Brakes
Brakes

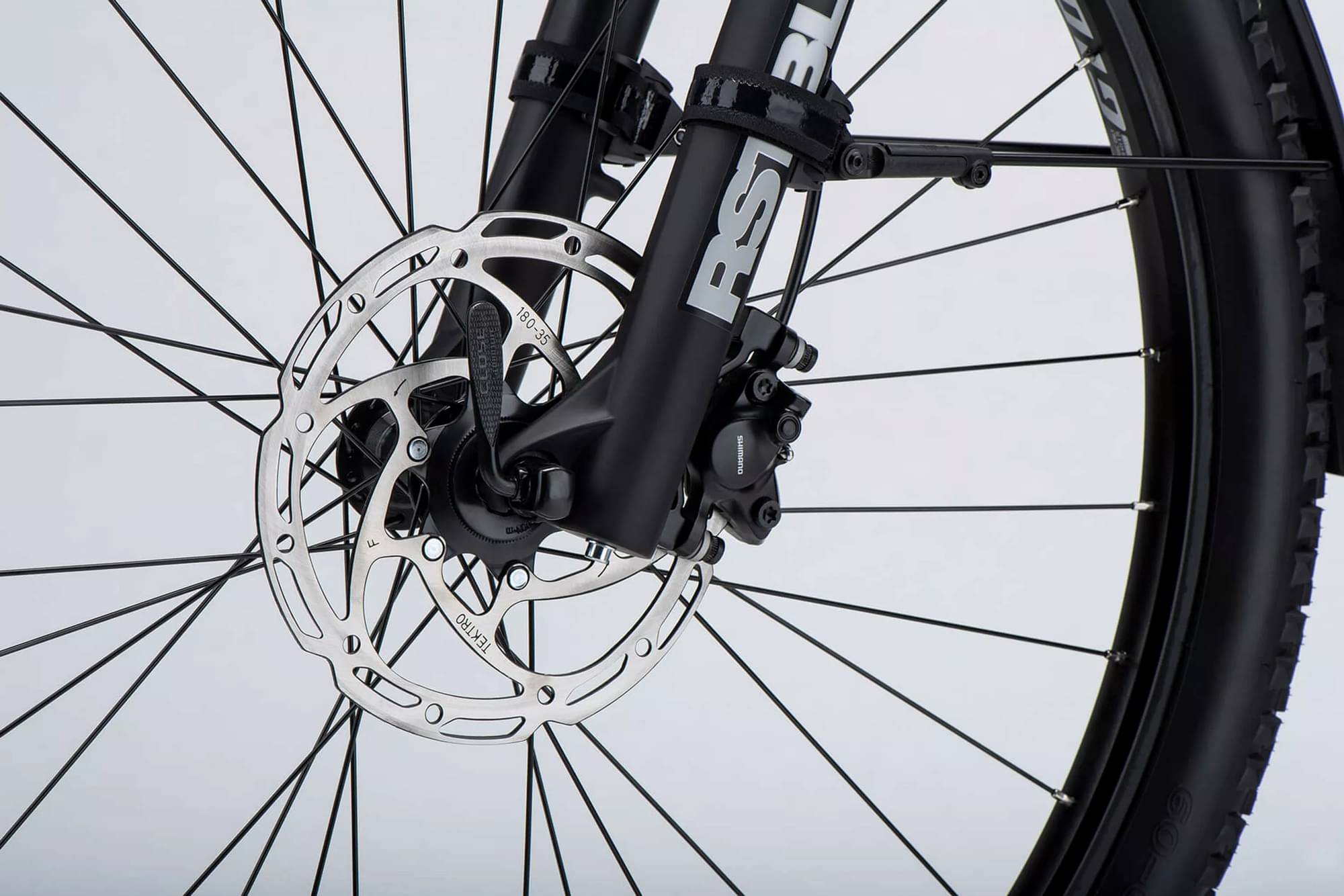

Tektro Hydraulic Disc brake HD-M275, 2 pistons, resin pad, 180 mm
Brake Levers
Tektro HD-M275-BL
Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head
Handlebar
Ghost Flat bar Ground Fiftyone Dia. 31.8 mm, backsweep 9°
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI110 ZS44/ZS44
Seat
Saddle
Selle Italia MTB X-Base
Seatpost
Kalloy Non Suspension SP-DC1, Dia. 31.6 mm, L: 400 mm 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.522 mm | 1.477 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 637 mm | 663 mm | 684 mm |
| Rake | 42 mm | 42 mm | 41 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 588 mm | 598 mm | 607 mm |
| Reach | 371 mm | 393 mm | 411 mm |
| Top Tube Length | 545 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1063 mm | 1089 mm | 1110 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 680 mm | 710 mm | 730 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 149 cm | 158 cm | 167 cm |
| Rider Max Height | 160 cm | 169 cm | 178 cm |
