Ghost KATO FS ESSENTIAL 2025
2025 Mountain
Estimate price |
2,093$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork Suntour XCR Air
-
Groupset GX Eagle, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 159cm
SM
157cm - 167cm
MD
165cm - 176cm
LG
174cm - 185cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni

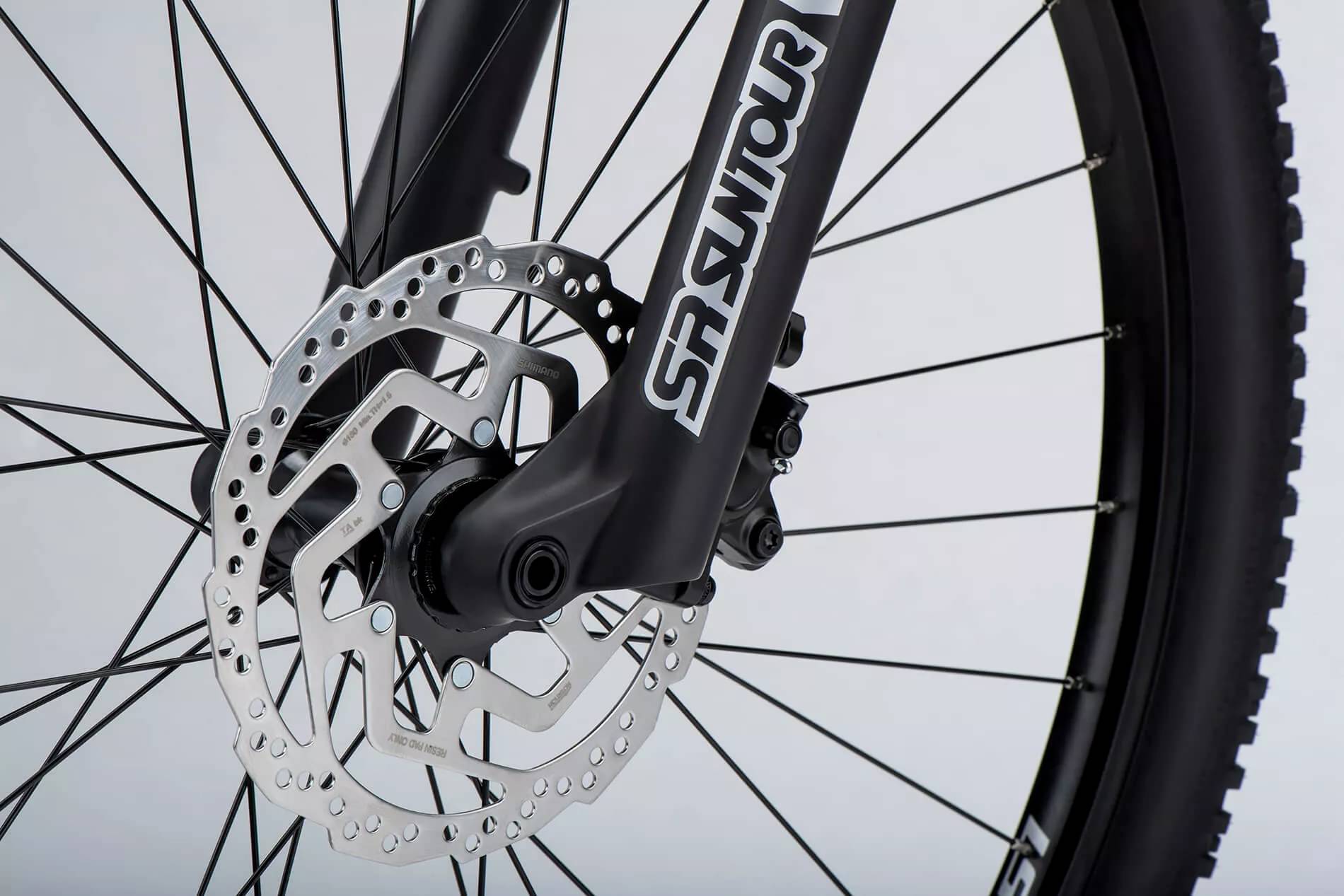

Suspension Fork
Suntour SF19-XCR34 Air Boost 130 mm

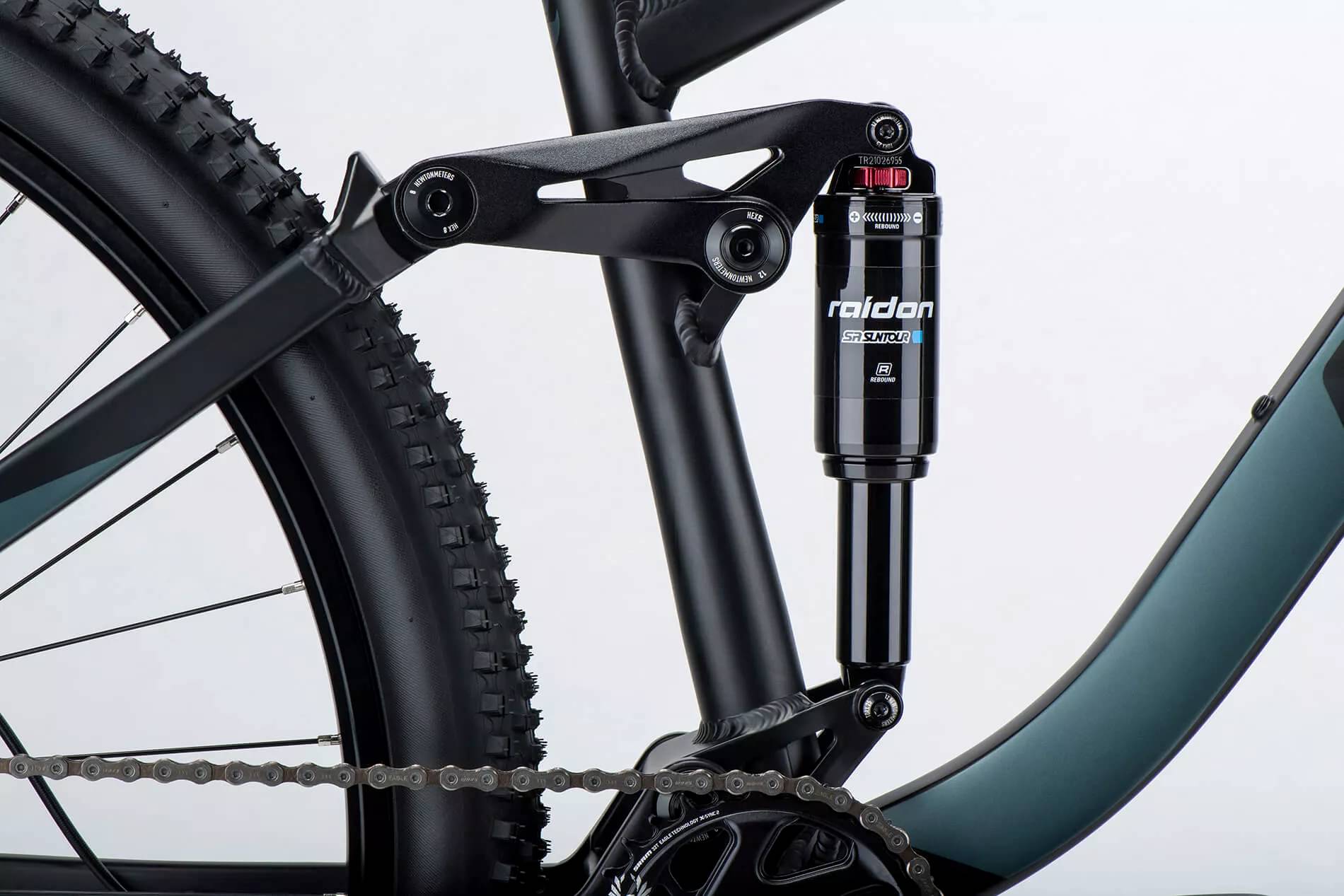

Rear Shock
Suntour Raidon R 210x50mm, Hardware: 30x8
Drivetrain

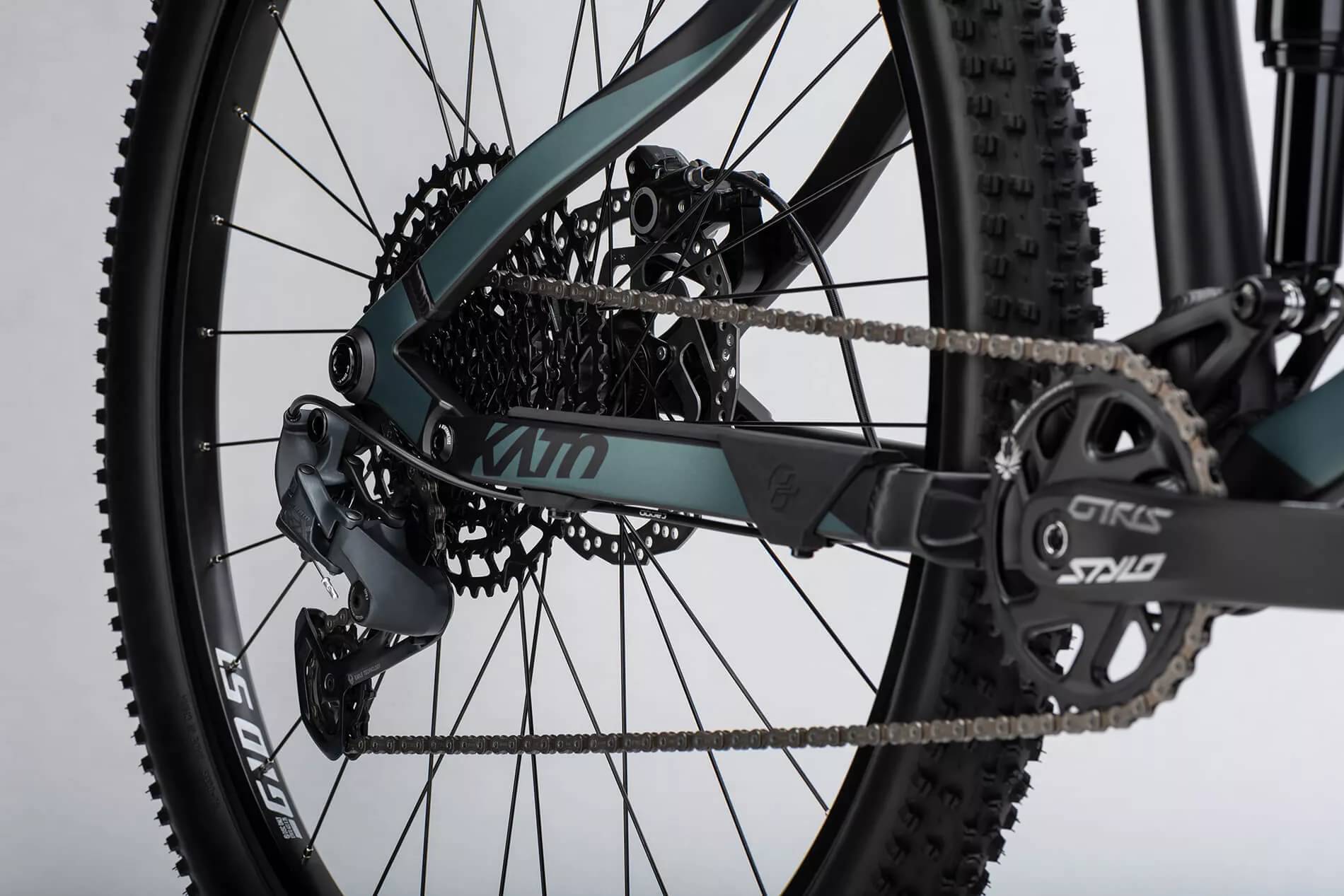

Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM Triggershift SX Eagle Trigger
Cassette
SRAM PG-1230 Eagle, HG
Crank
Truvativ FC Stylo 6K Eagle Boost, Power Spline, DM 175
Bottom Bracket
SRAM BSA Power Spline 118/73
Chain
SRAM SX Eagle 12s
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, Centerlock
Rear Hub
Shimano FH-TC600-HM-B 12x148 mm, 32H, Centerlock, HG
Rims
Schurmann YAK Disc 25-622 32H 8,5 mm Valve
Tires
WTB Ranger Comp 2.3
Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-MT410, 2 pistons, resin pad, 180 mm
Brake Levers
Shimano BL-MT401
Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head

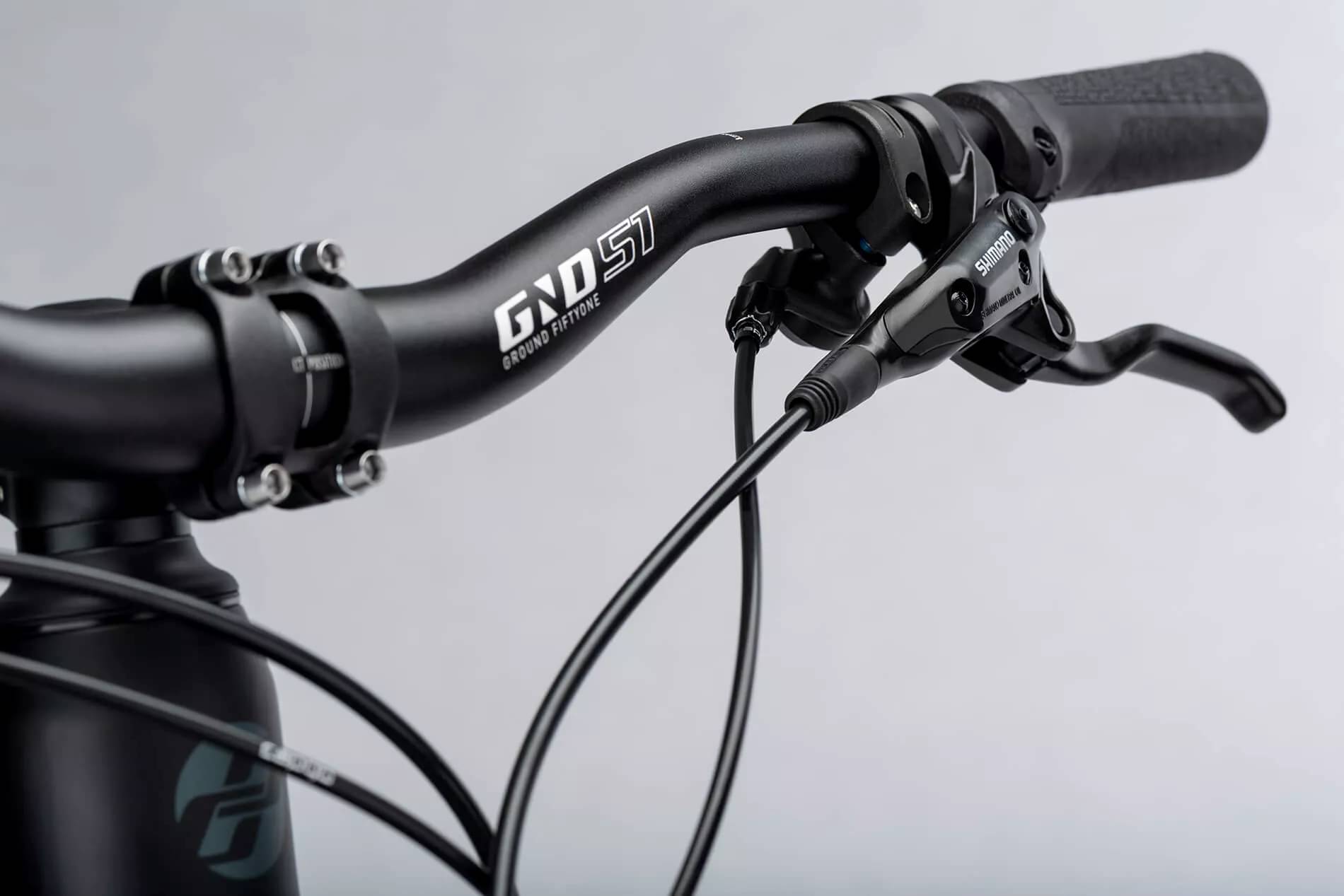

Handlebar
Ghost Riser Bar Ground Fiftyone Dia. 31.8 mm, Rise: 38 mm
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI11015Z ZS44/ZS56
Seat
Saddle
Selle Italia MTB X-Base
Seatpost
Limotec Dropperpost Alpha 1 Dropper, Dia. 31.6 mm, Travel: 150 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.302 mm | 1.35 mm | 1.294 mm | 1.271 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 716 mm | 752 mm | 783 mm | 820 mm | 857 mm |
| Rake | 45 mm | 45 mm | 52 mm | 52 mm | 52 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm | 110 mm |
| Stack | 578 mm | 587 mm | 625 mm | 639 mm | 662 mm |
| Reach | 419 mm | 451 mm | 463 mm | 494 mm | 521 mm |
| Top Tube Length | 550 mm | 586 mm | 606 mm | 641 mm | 674 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 385 mm | 395 mm | 415 mm | 435 mm | 465 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 160 mm |
| Chainstay Length | 430 mm | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1145 mm | 1181 mm | 1231 mm | 1268 mm | 1305 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 698 mm | 700 | 715 mm | 726 mm | 744 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 174 cm | 183 cm |
| Rider Max Height | 159 cm | 167 cm | 176 cm | 185 cm | 194 cm |
