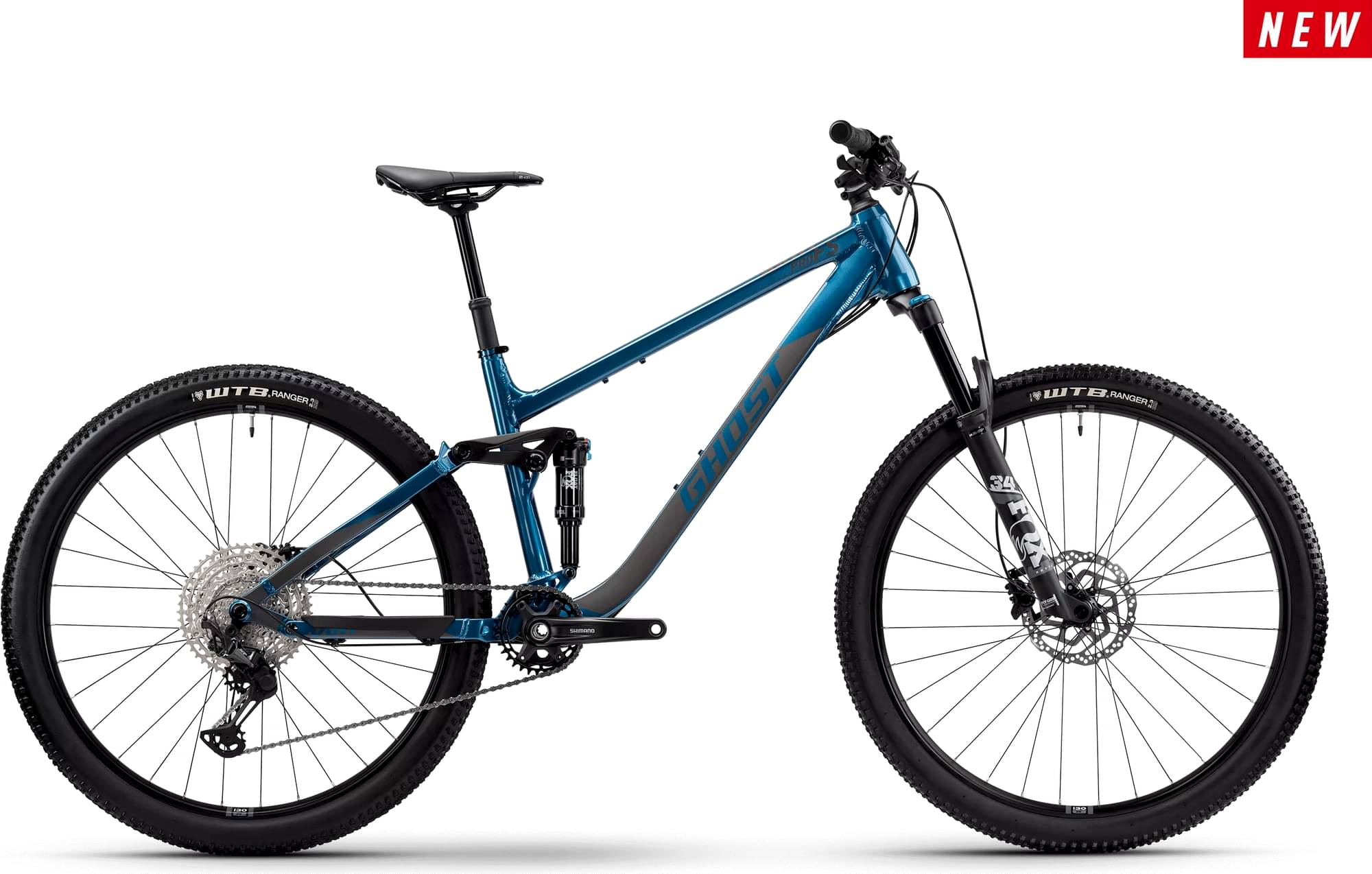

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 162cm
SM
160cm - 170cm
MD
168cm - 179cm
LG
177cm - 187cm
XL
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KATO FS AL
Suspension Fork
Fox 34 Float Rhythm 130 mm
Rear Shock
Fox Float DPS Performance 130 mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Cassette
Shimano Deore CS-M6100 10-51
Crank
Shimano FC-MT510 32T
Bottom Bracket
Shimano BB-MT501
Chain
Shimano SLX CN-M7100
Pedals
VPE-527
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: WTB Ranger 2.3 Comp, Rear: WTB Ranger 2.3 Comp
Brakes
Brakes
Shimano BR-MT500 180 mm
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Ghost Dia. 31.8 mm
Handlebar
Ghost MTB Dia. 31.8 mm 800/15 mm
Grips
Switch Components Kaleido
Seat
Saddle
Prologo Proxim W400 Performance
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.302 mm | 1.35 mm | 1.294 mm | 1.271 mm |
| Bottom Bracket Height | 333 mm | 352 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 716 mm | 752 mm | 783 mm | 820 mm | 857 mm |
| Rake | 45 mm | 45 mm | 52 mm | 52 mm | 52 mm |
| Trail | 109 mm | 117 mm | 110 mm | 110 mm | 110 mm |
| Stack | 587 mm | 587 mm | 625 mm | 639 mm | 662 mm |
| Reach | 415 mm | 451 mm | 463 mm | 494 mm | 521 mm |
| Top Tube Length | 550 mm | 586 mm | 606 mm | 641 mm | 674 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 385 mm | 395 mm | 415 mm | 435 mm | 465 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 135 mm | 160 mm |
| Chainstay Length | 430 mm | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1145 mm | 1181 mm | 1231 mm | 1268 mm | 1305 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 698 mm | 700 | 715 mm | 726 mm | 744 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 160 cm | 168 cm | 177 cm | 185 cm |
| Rider Max Height | 162 cm | 170 cm | 179 cm | 187 cm | 196 cm |
