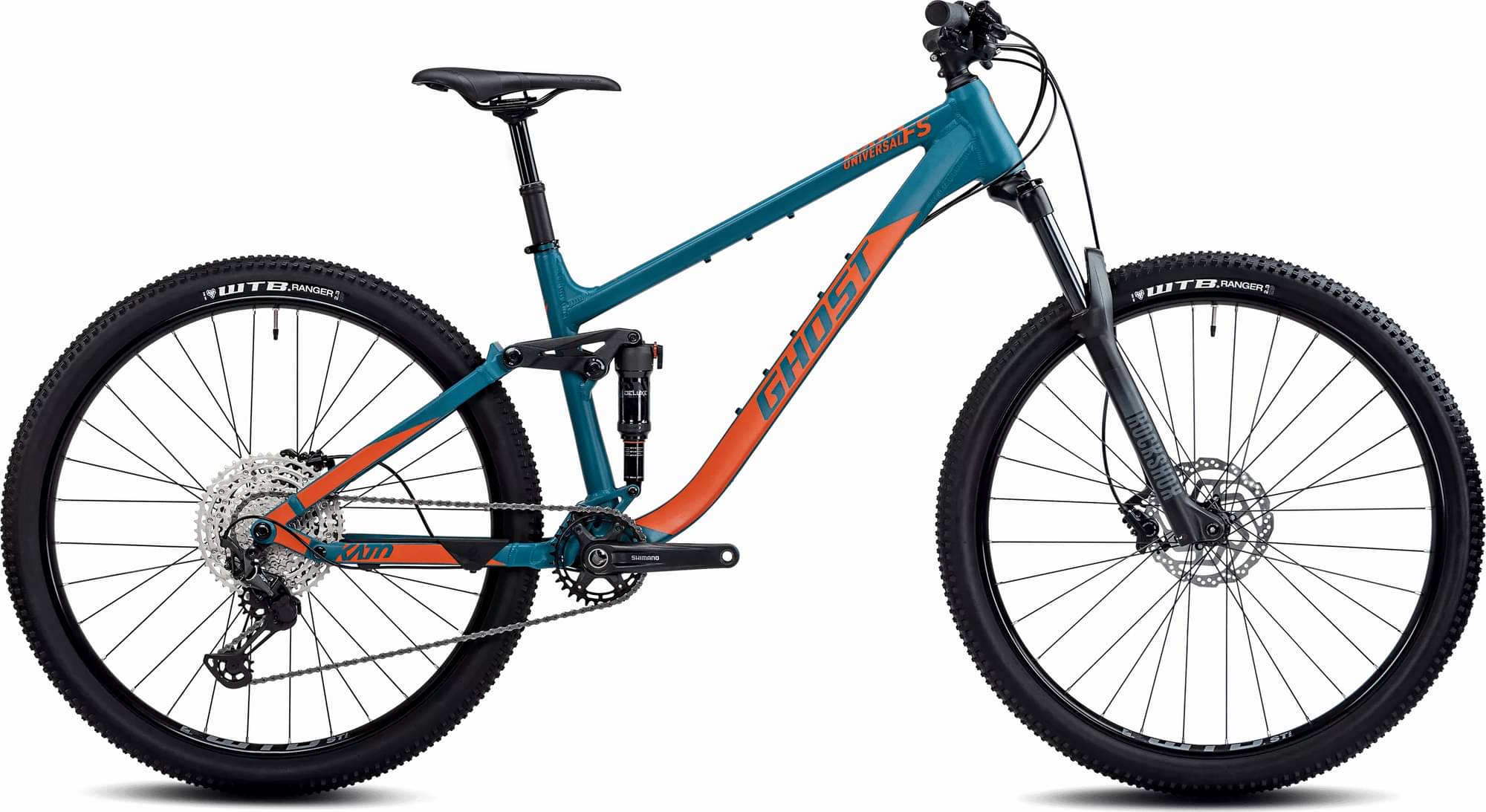

Ghost KATO FS UNIVERSAL 2025
2025 Mountain
Estimate price |
2,326$
Weight | 16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Full -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 159cm
SM
157cm - 167cm
MD
165cm - 176cm
LG
174cm - 185cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Rockshox Recon Silver RL, Solo Air, Crown Adjust. 130 mm

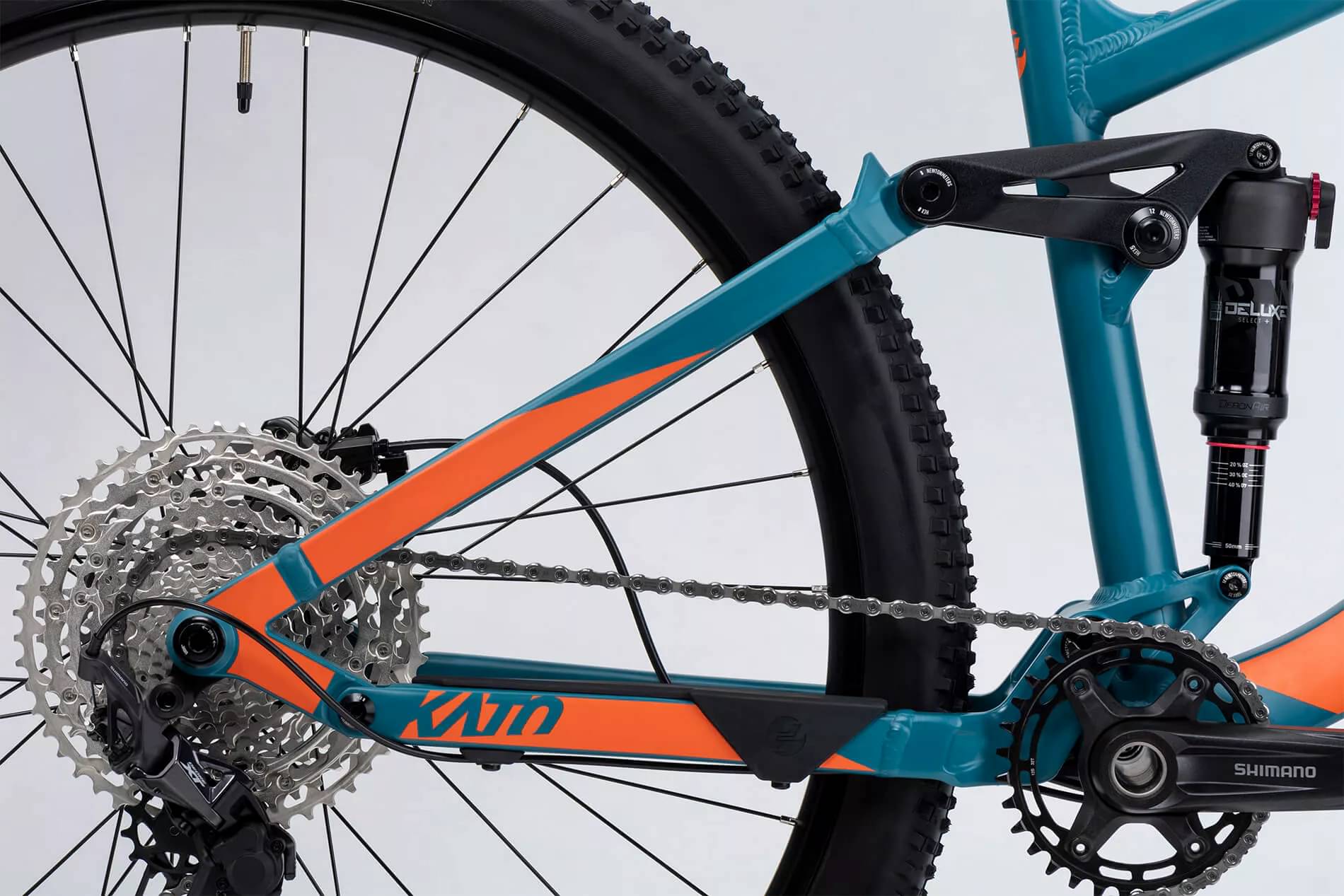

Rear Shock

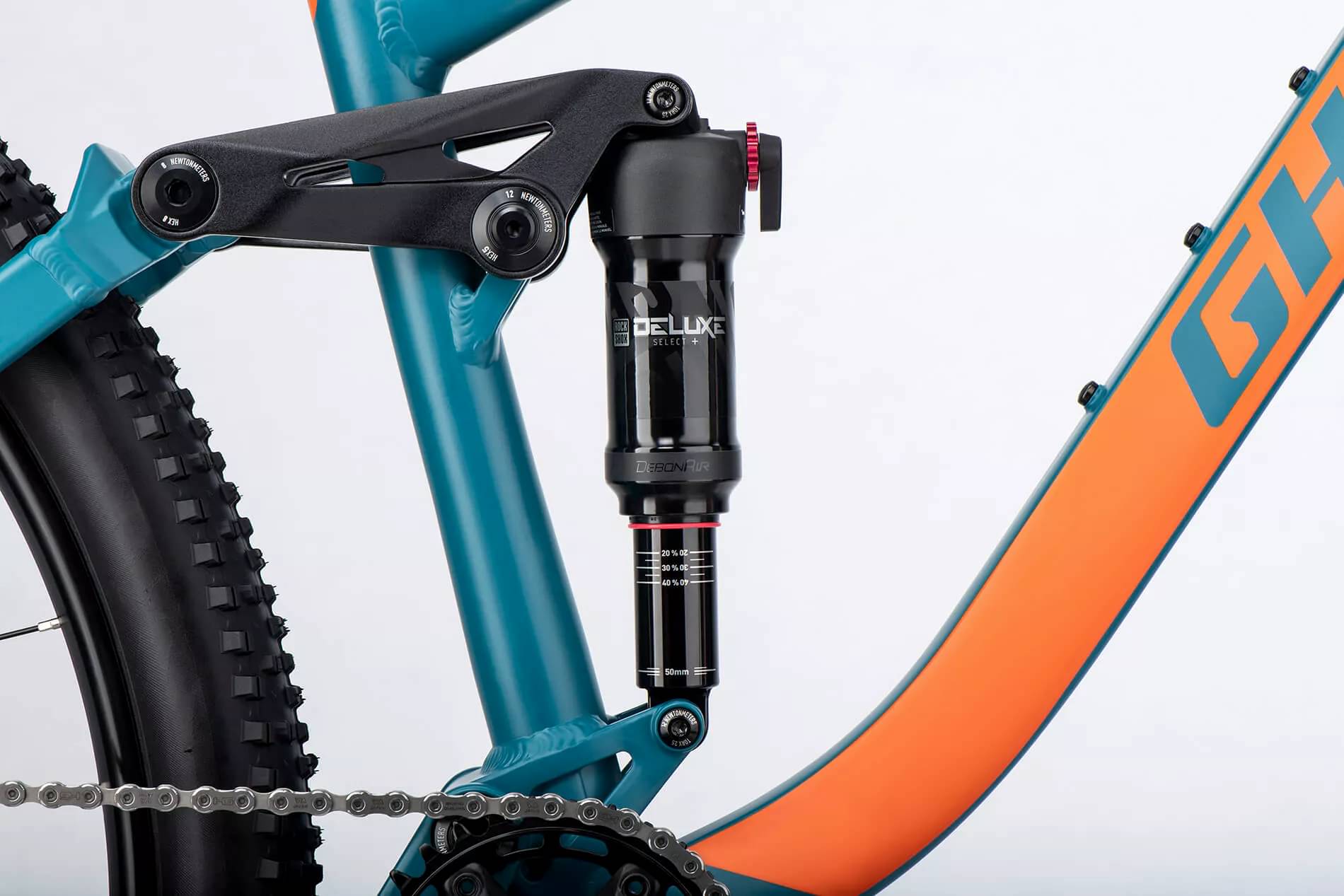

Rockshox Deluxe Select R 210x50mm, DebonAir+

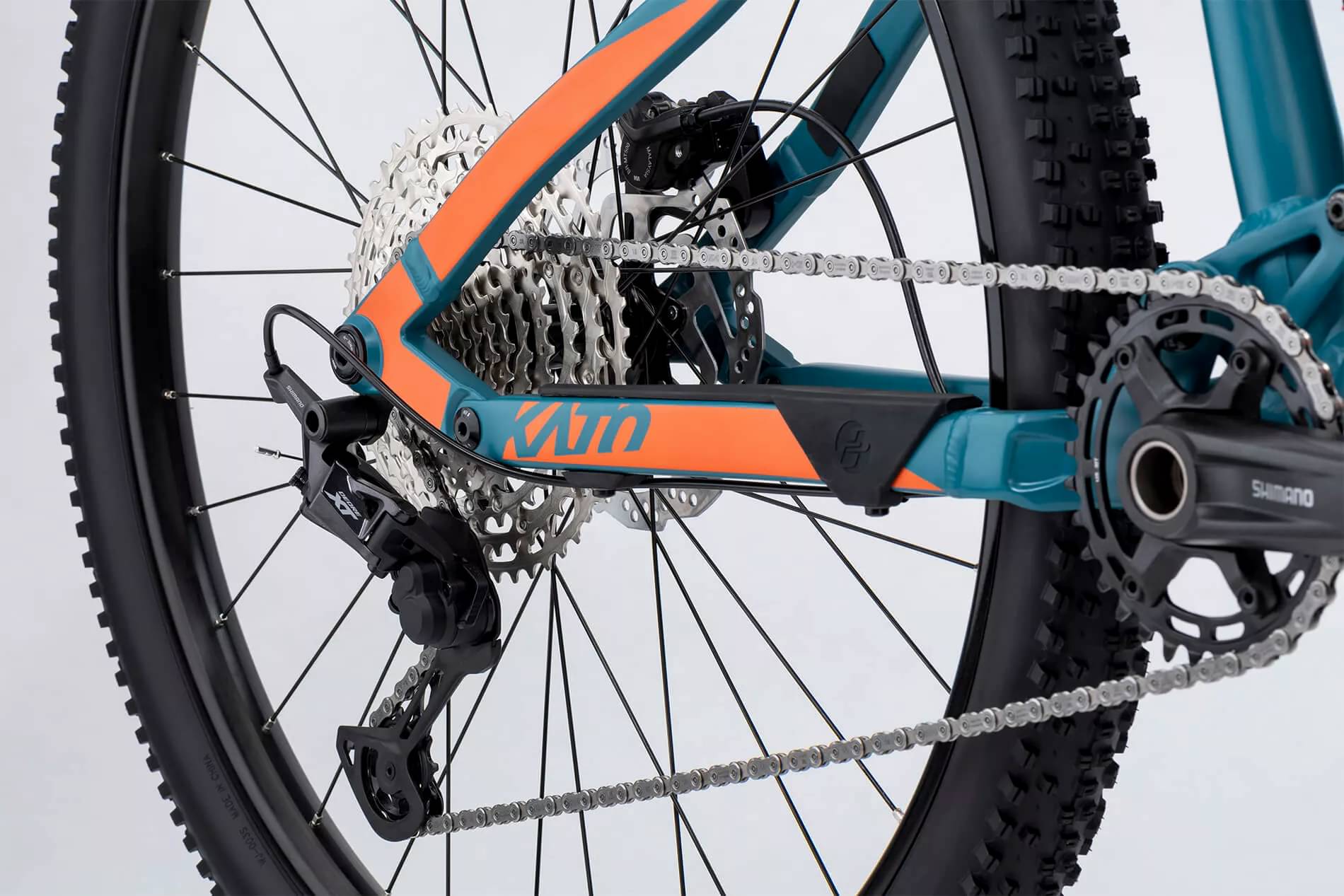

Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100-SGS 12s, Shadow+
Shift Levers
Shimano Triggershift Deore SL-M6100-R, Rapidfire+
Cassette
Shimano Deore CS-M6100-12, MICRO SPLINE
Crank
Shimano FC-MT510-1, 2-Piece Crankset 175
Bottom Bracket
Shimano BSA Deore SM-BB52 68/73 mm, HOLLOWTECH II
Chain
Shimano SLX CN-M7100 12s, SIL-TECH
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, Centerlock
Rear Hub
Shimano FH-MT410-B 12x148 mm, 32H, Centerlock, MS
Rims
WTB ST i30 TCS 2.0 29" 32H
Tires
WTB Ranger Comp 2.3
Brakes
Brakes

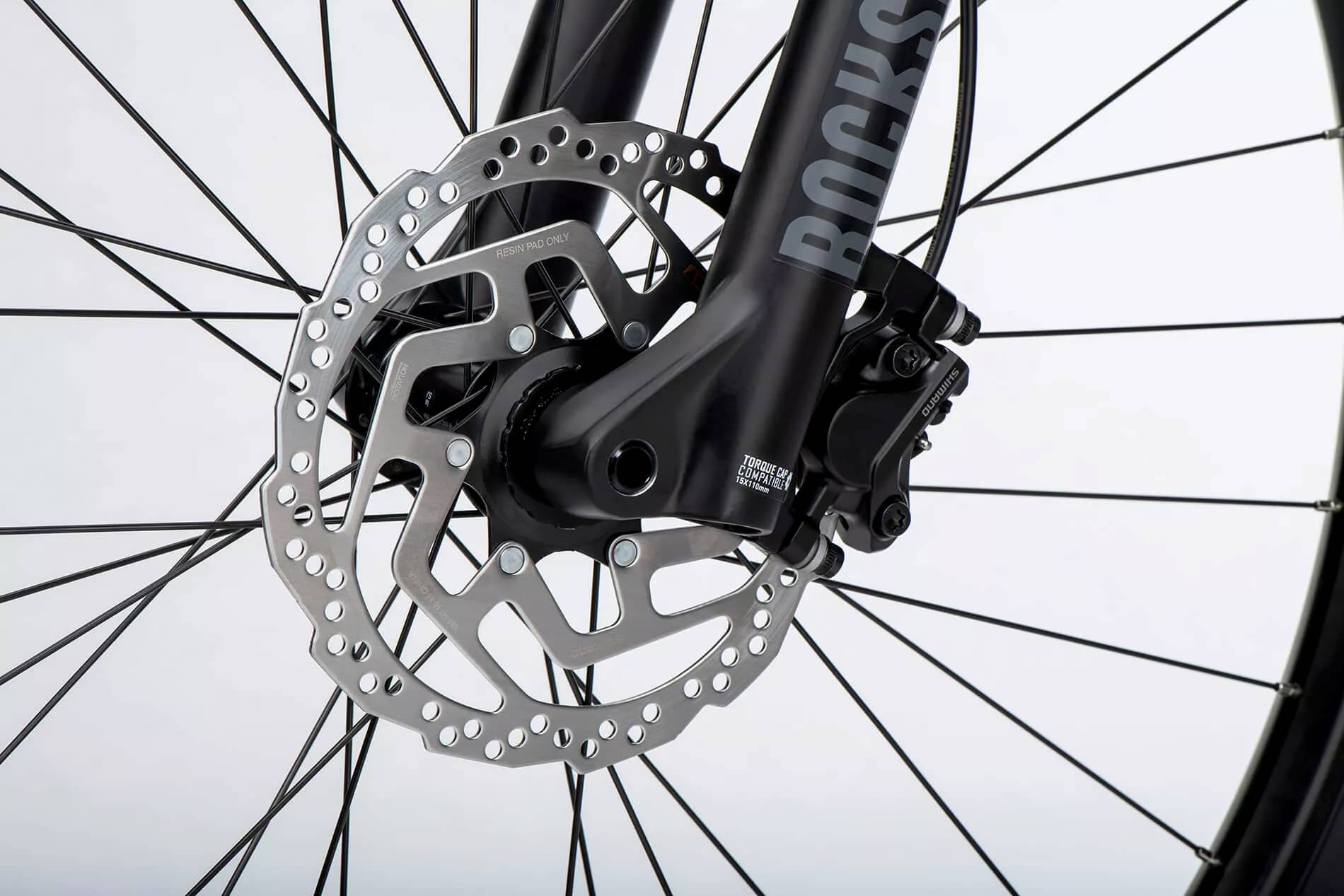

Shimano Hydraulic Disc brake BR-MT500, 2 pistons, resin pad, 180 mm
Brake Levers
Shimano BL-MT501, I-SPEC II, 2 Finger
Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head
Handlebar
Ghost Riser Bar Ground Fiftyone Dia. 31.8 mm, Rise: 30 mm
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI11015Z ZS44/ZS56
Seat
Saddle
Selle Italia MTB X-Base
Seatpost
Limotec Dropperpost Alpha 1 Dropper, Dia. 31.6 mm, Travel: 150 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.302 mm | 1.35 mm | 1.294 mm | 1.271 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 716 mm | 752 mm | 783 mm | 820 mm | 857 mm |
| Rake | 45 mm | 45 mm | 52 mm | 52 mm | 52 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm | 110 mm |
| Stack | 578 mm | 587 mm | 625 mm | 639 mm | 662 mm |
| Reach | 419 mm | 451 mm | 463 mm | 494 mm | 521 mm |
| Top Tube Length | 550 mm | 586 mm | 606 mm | 641 mm | 674 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 385 mm | 395 mm | 415 mm | 435 mm | 465 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 160 mm |
| Chainstay Length | 430 mm | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1145 mm | 1181 mm | 1231 mm | 1268 mm | 1305 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 698 mm | 700 | 715 mm | 726 mm | 744 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 174 cm | 183 cm |
| Rider Max Height | 159 cm | 167 cm | 176 cm | 185 cm | 194 cm |
