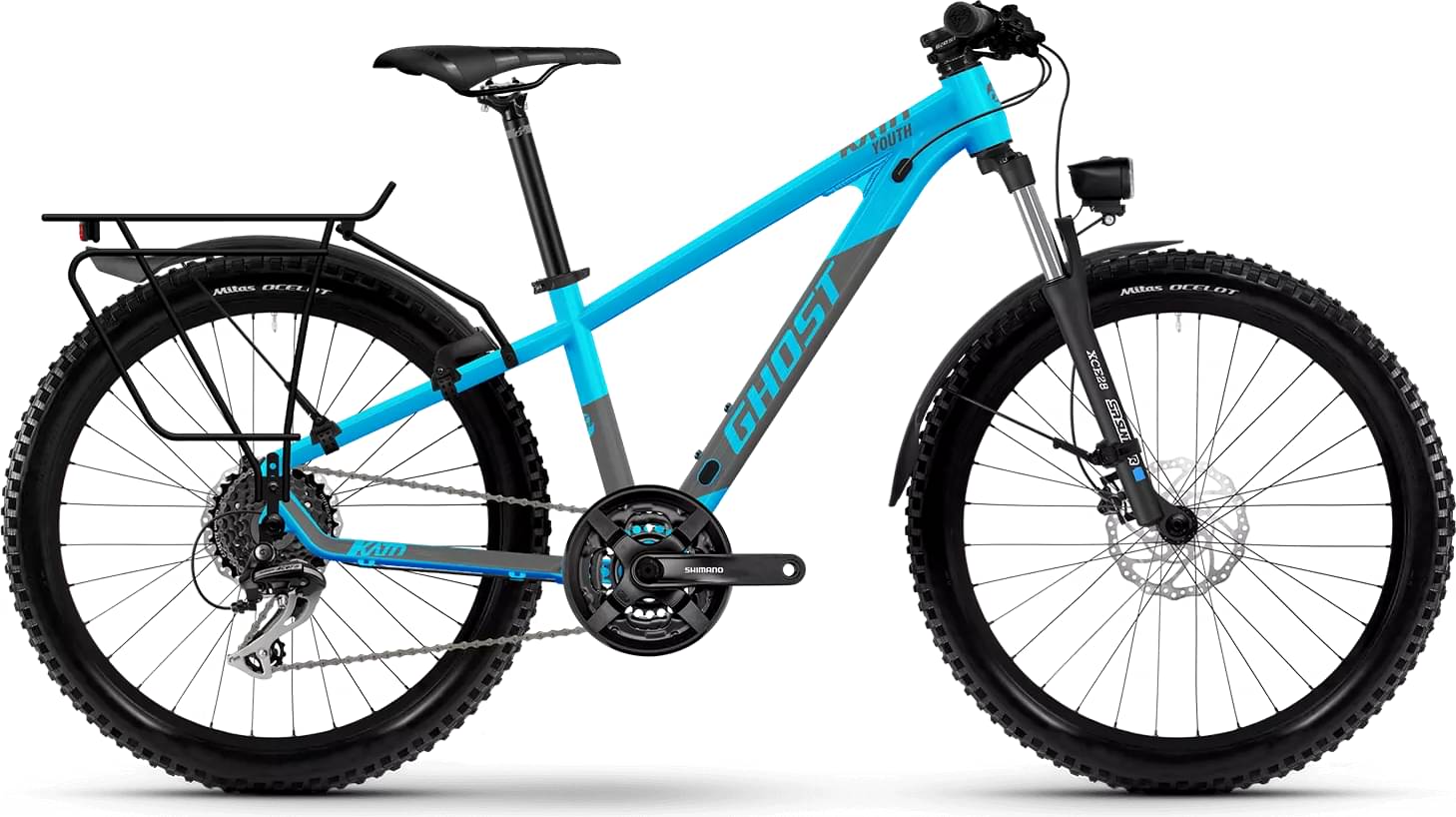

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
145cm - 164cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KATO YOUTH AL
Suspension Fork
SR Suntour XCE28 DS 100 mm
Drivetrain
Rear Derailleur
Shimano Acera RD-M3020 8-S
Front Derailleur
Shimano Tourney FD-TY700-TS6
Cassette
Shimano CS-HG-200-8 12-32
Crank
Shimano FC-TY301 42-34-24
Bottom Bracket
Shimano BB-UN101
Chain
KMC Z51
Pedals
FPD NW-91K
Wheels
Rims
Front: Schürmann Yak Disc 25, Rear: Schürmann Yak Disc 25
Tires
Front: Mitas Ocelot 2.10, Rear: Mitas Ocelot 2.10
Brakes
Brakes
Tektro HD-M275 180 mm Disc
Brake Levers
Tektro HD-M275
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 700/0
Grips
MTB Grip
Seat
Saddle
Selle Italia X-Base
Seatpost
Ghost 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS |
|---|---|
| Stack Reach Ratio | 1.608 mm |
| Bottom Bracket Height | 310 mm |
| Front Center | 622 mm |
| Rake | 41 mm |
| Trail | 99 mm |
| Stack | 579 mm |
| Reach | 360 mm |
| Top Tube Length | 531 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 340 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1048 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 670 mm |
| Wheels | 27" |
| Rider Min Height | 145 cm |
| Rider Max Height | 164 cm |
