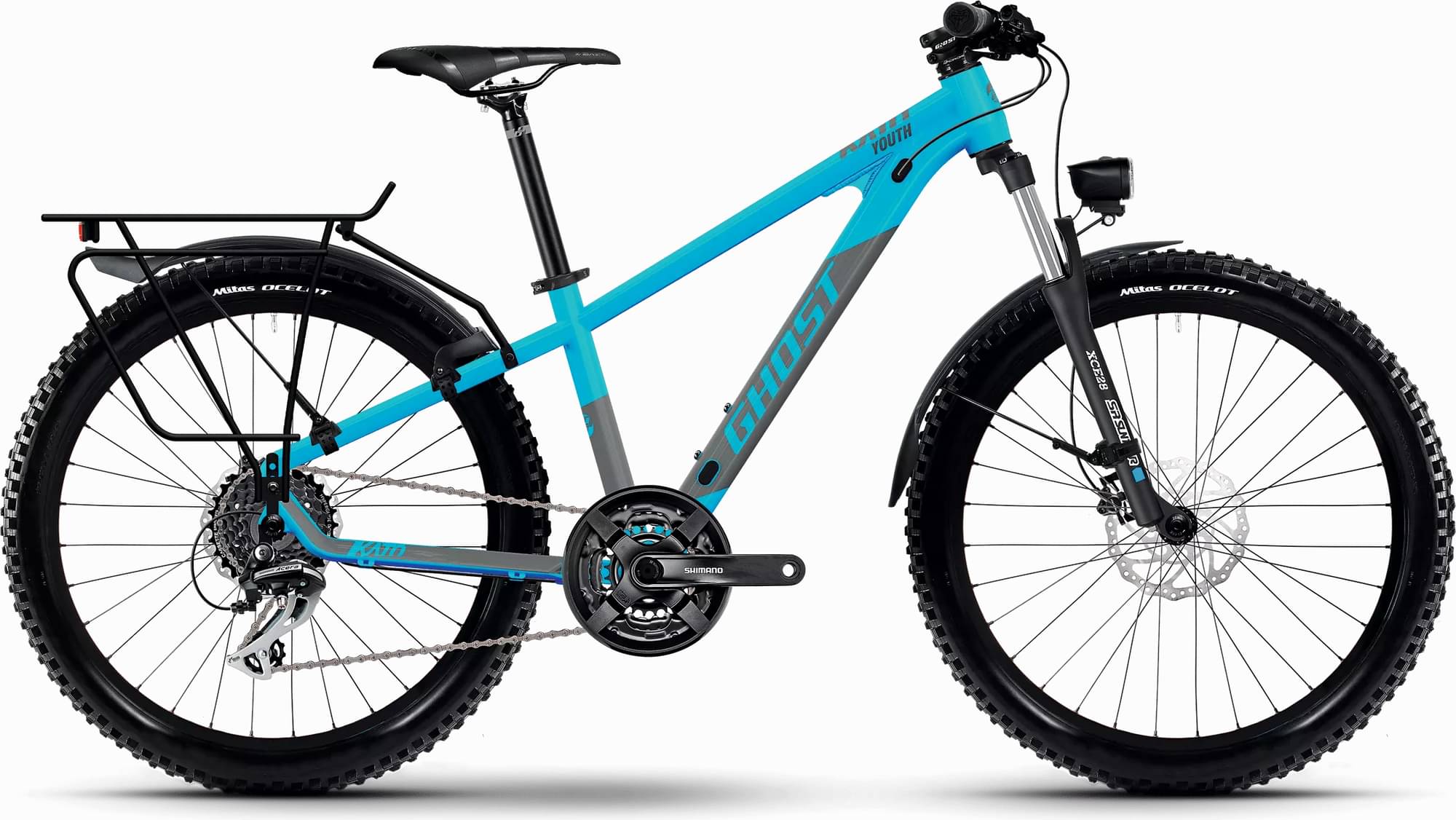

Ghost KATO YOUTH EQ 2025
2025 Mountain
Estimate price |
813$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XXS
145cm - 164cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Suntour XCE28 DS 100 mm
Drivetrain
Rear Derailleur
Shimano Acera RD-M3020-SGS 7/8s
Front Derailleur
Shimano Tourney FD-TY700-TS6 3x7/8s, Top Swing
Shift Levers
Shimano Triggershift SL-M315-8R, Rapidfire+
Cassette
Shimano Tourney TX CS-HG200-8, HG
Crank
Shimano Tourney FC-TY301 170
Bottom Bracket
Shimano BSA BB-UN101 68/73 mm, Square Type
Chain
KMC Z51 7/8s
Pedals
FPD NW-91K steel cage black
Wheels
Front Hub
Shimano HB-QC400, 32H, QR 100 mm, Centerlock
Rear Hub
Shimano FH-TX505-8 QR 135 mm, 32H, Centerlock, HG
Rims
Schurmann YAK Disc 25-584 32H 8,5 mm Valve
Tires
Mitas Ocelot 54-584
Brakes
Brakes
Tektro Hydraulic Disc brake HD-M275, 2 pistons, resin pad, 180 mm
Brake Levers
Tektro HD-M275-BL
Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head
Handlebar
Ghost Flat bar Ground Fiftyone Dia. 31.8 mm, backsweep 9°
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI110 ZS44/ZS44
Seat
Saddle
Selle Italia MTB Model X Superflow
Seatpost
Kalloy Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS |
|---|---|
| Stack Reach Ratio | 1.608 mm |
| Bottom Bracket Height | 310 mm |
| Front Center | 622 mm |
| Rake | 41 mm |
| Trail | 99 mm |
| Stack | 579 mm |
| Reach | 360 mm |
| Top Tube Length | 531 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 340 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1048 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 670 mm |
| Wheels | 27" |
| Rider Min Height | 145 cm |
| Rider Max Height | 164 cm |
