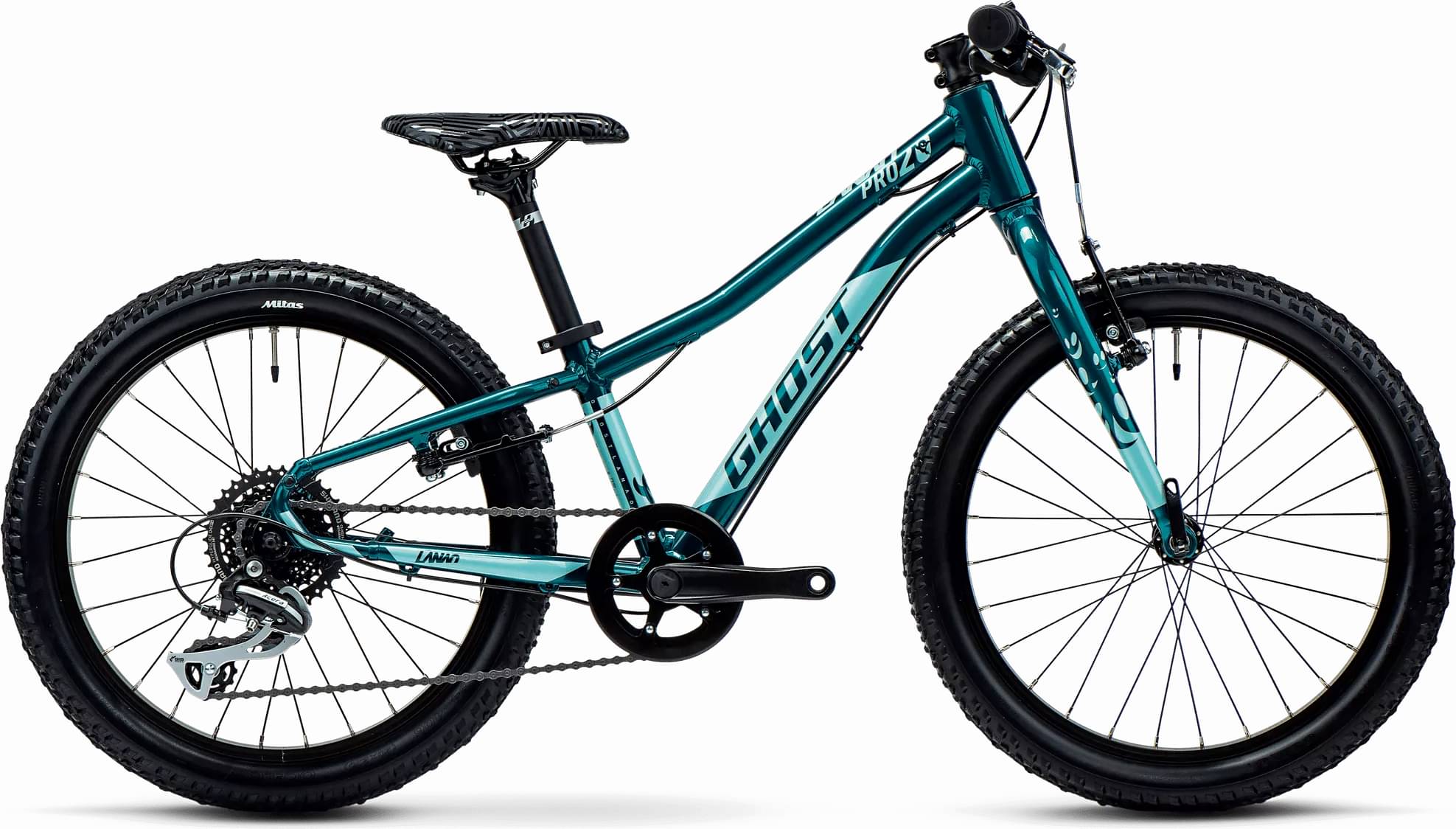

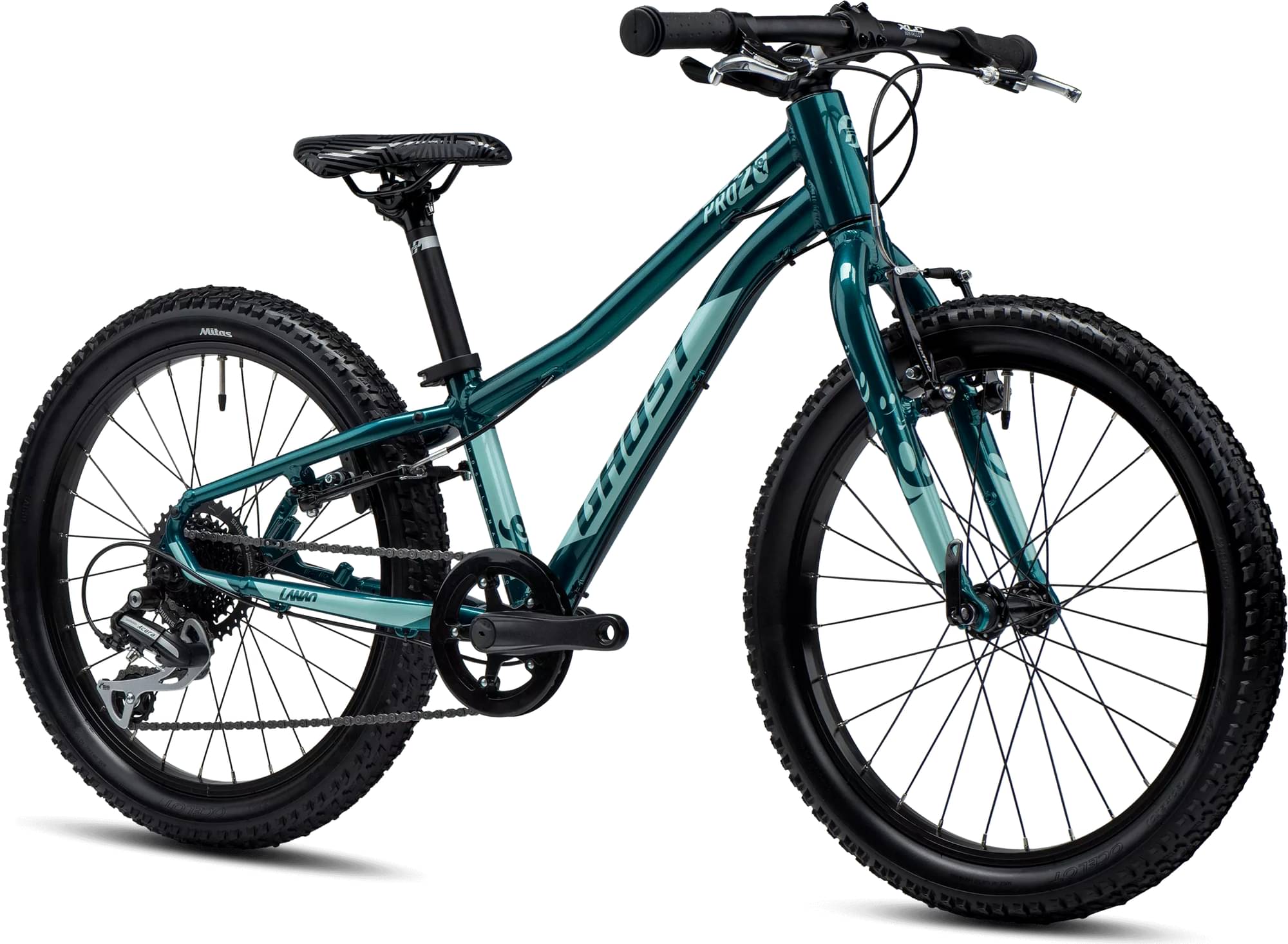

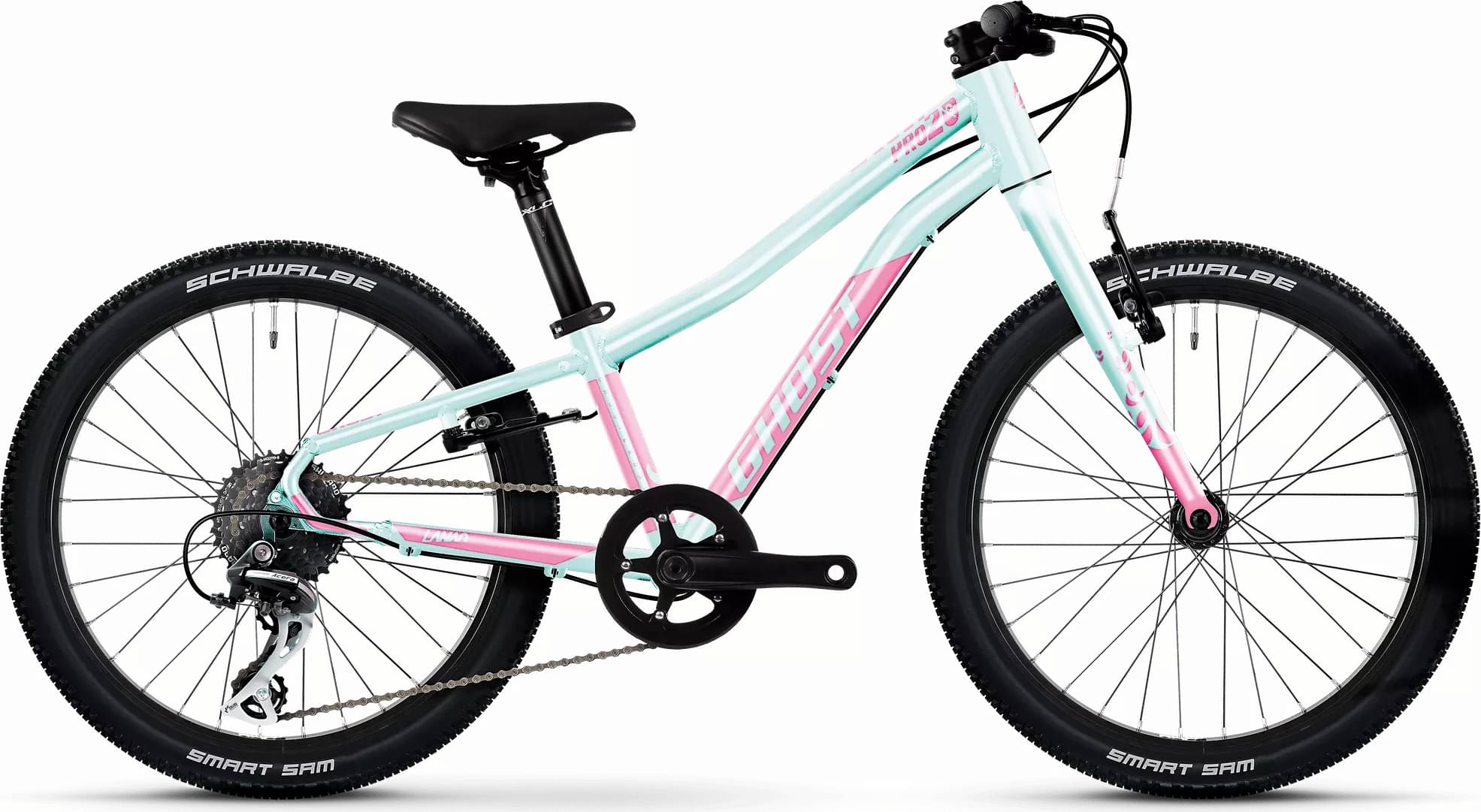

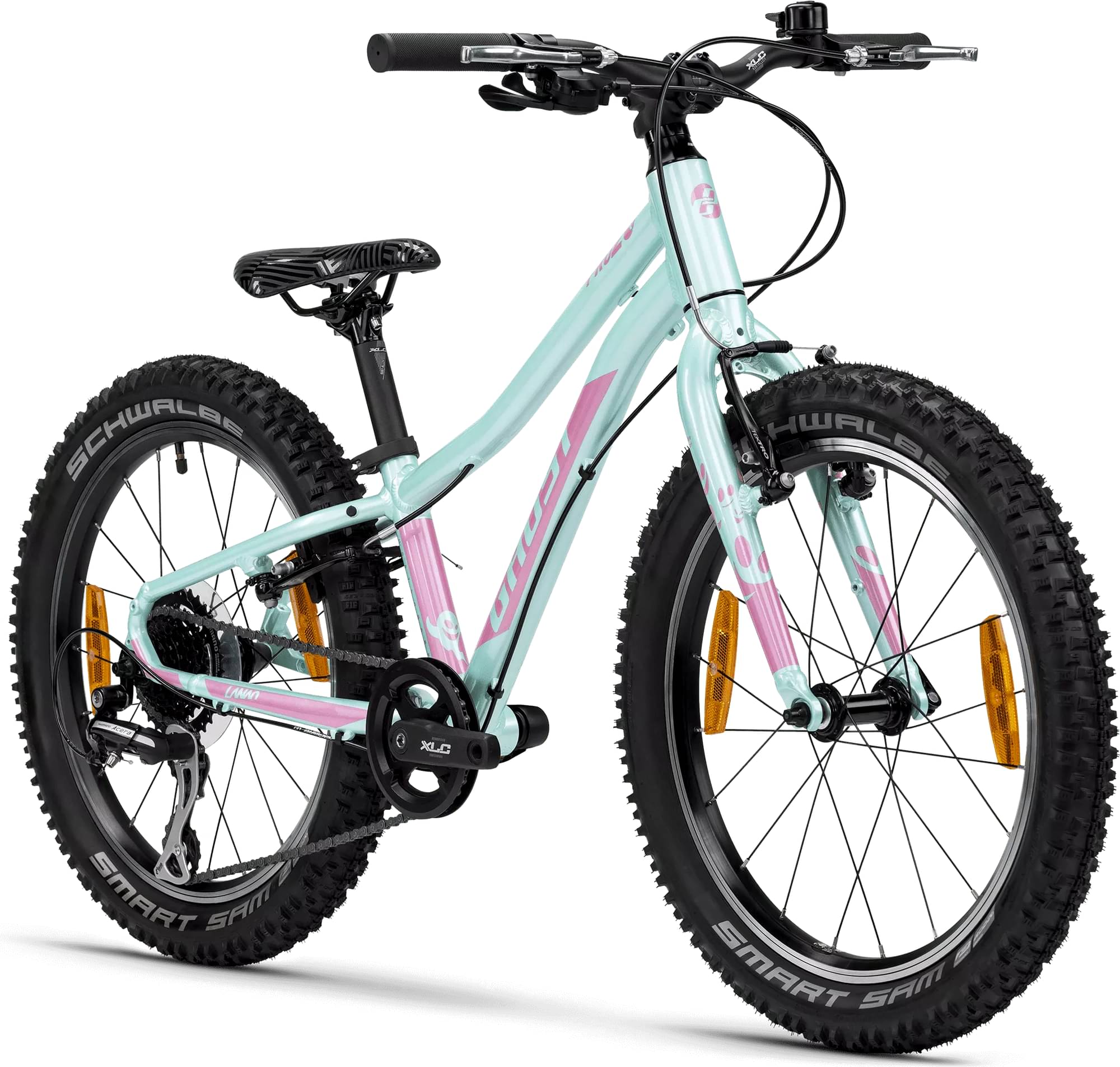

Ghost LANAO 20 PRO 2025
2025 Youth
Estimate price |
639$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Acera -
Suspension Rigid -
Brakes Tektro Rim
Sizing
Recommended size guide.
20"
115cm - 125cm
Parts list
Components
Main components, grouped by system.
Bike components

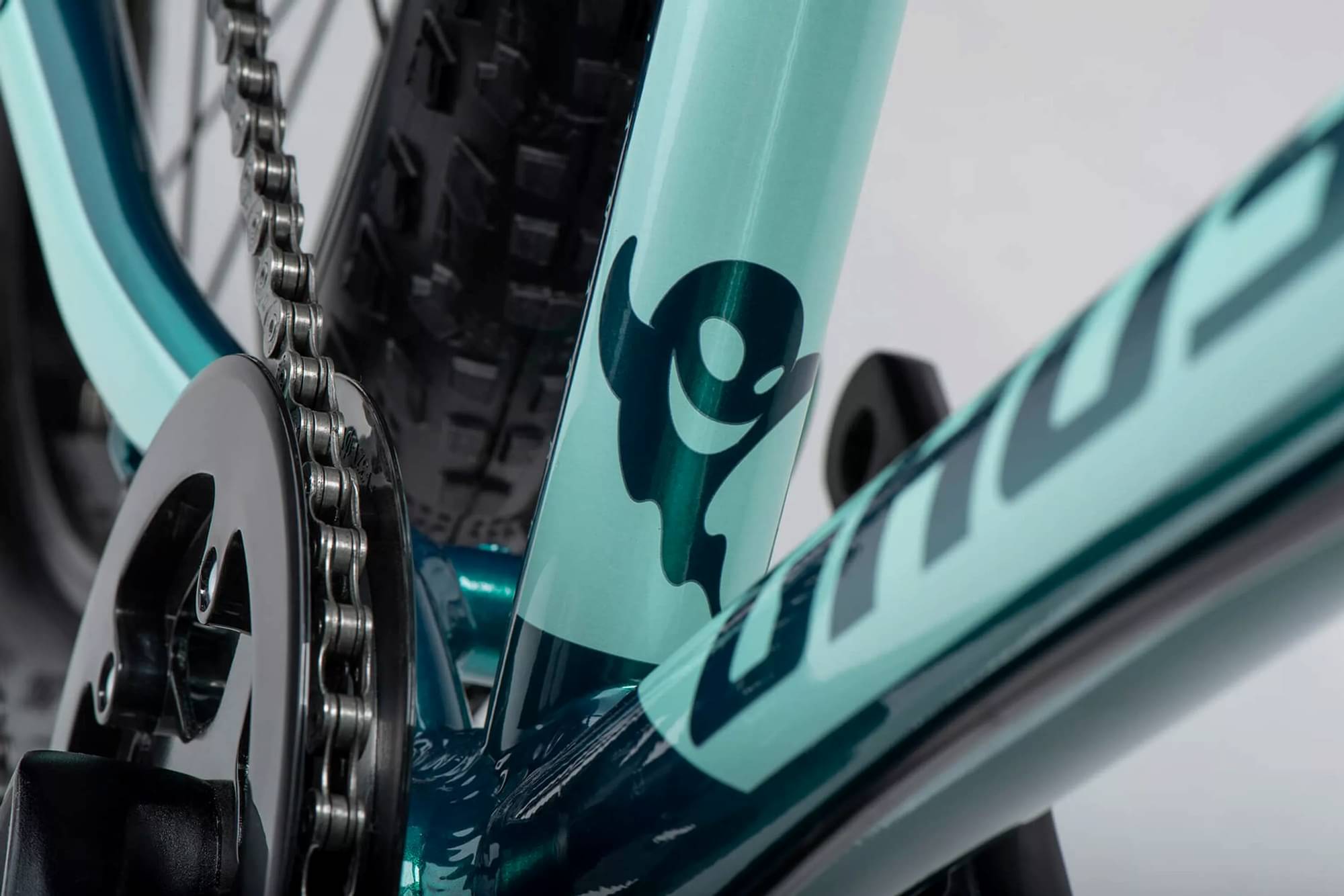

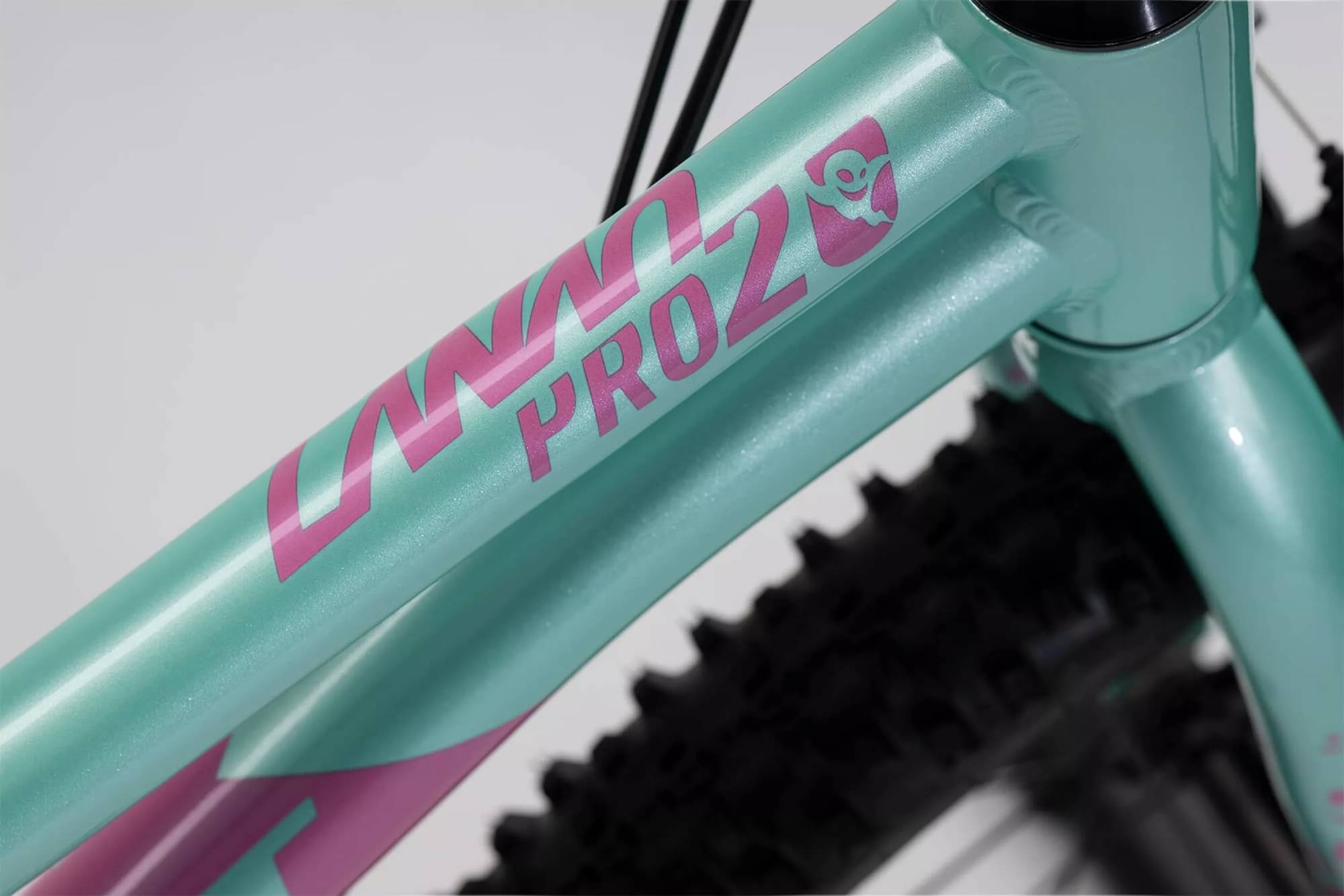

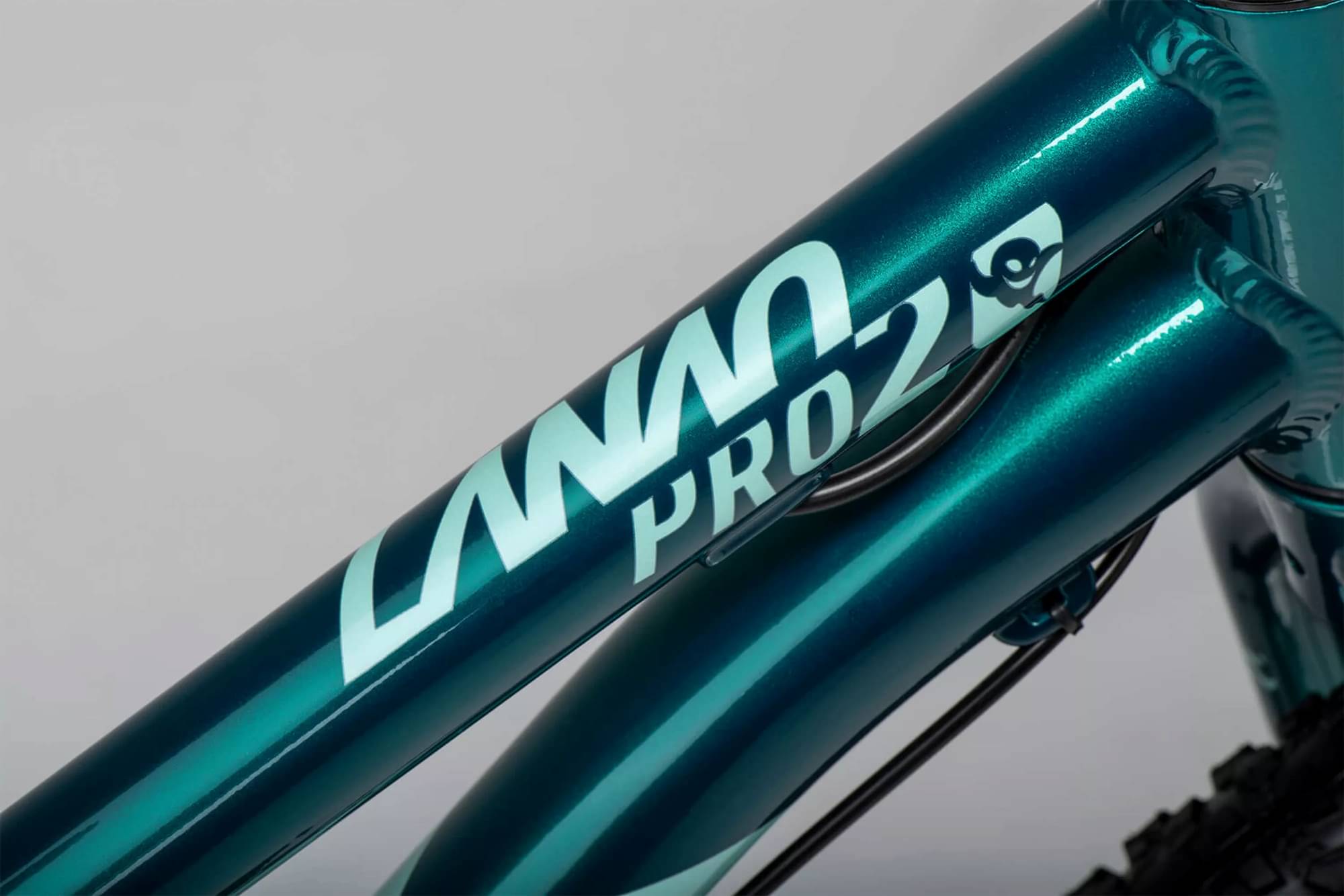

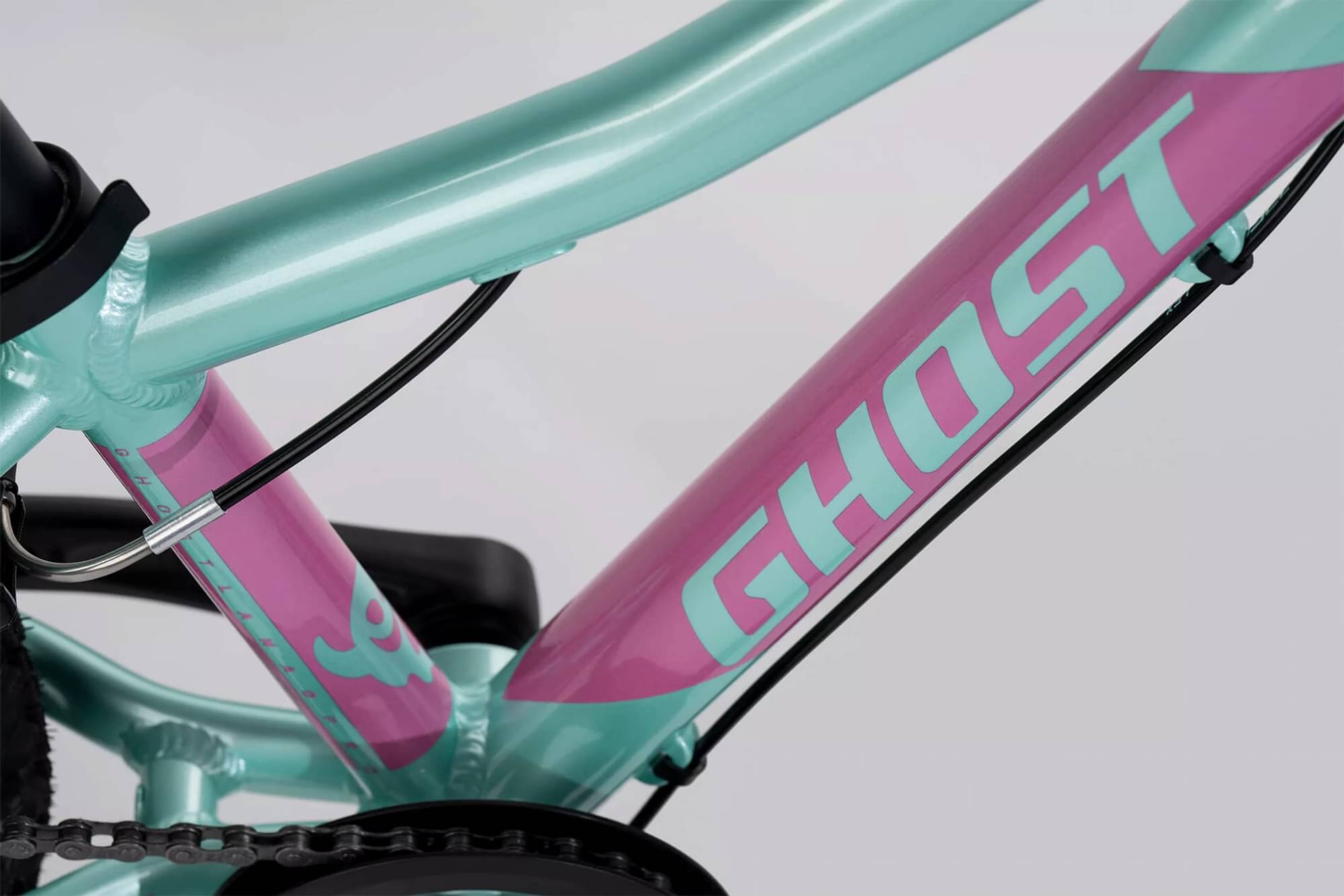

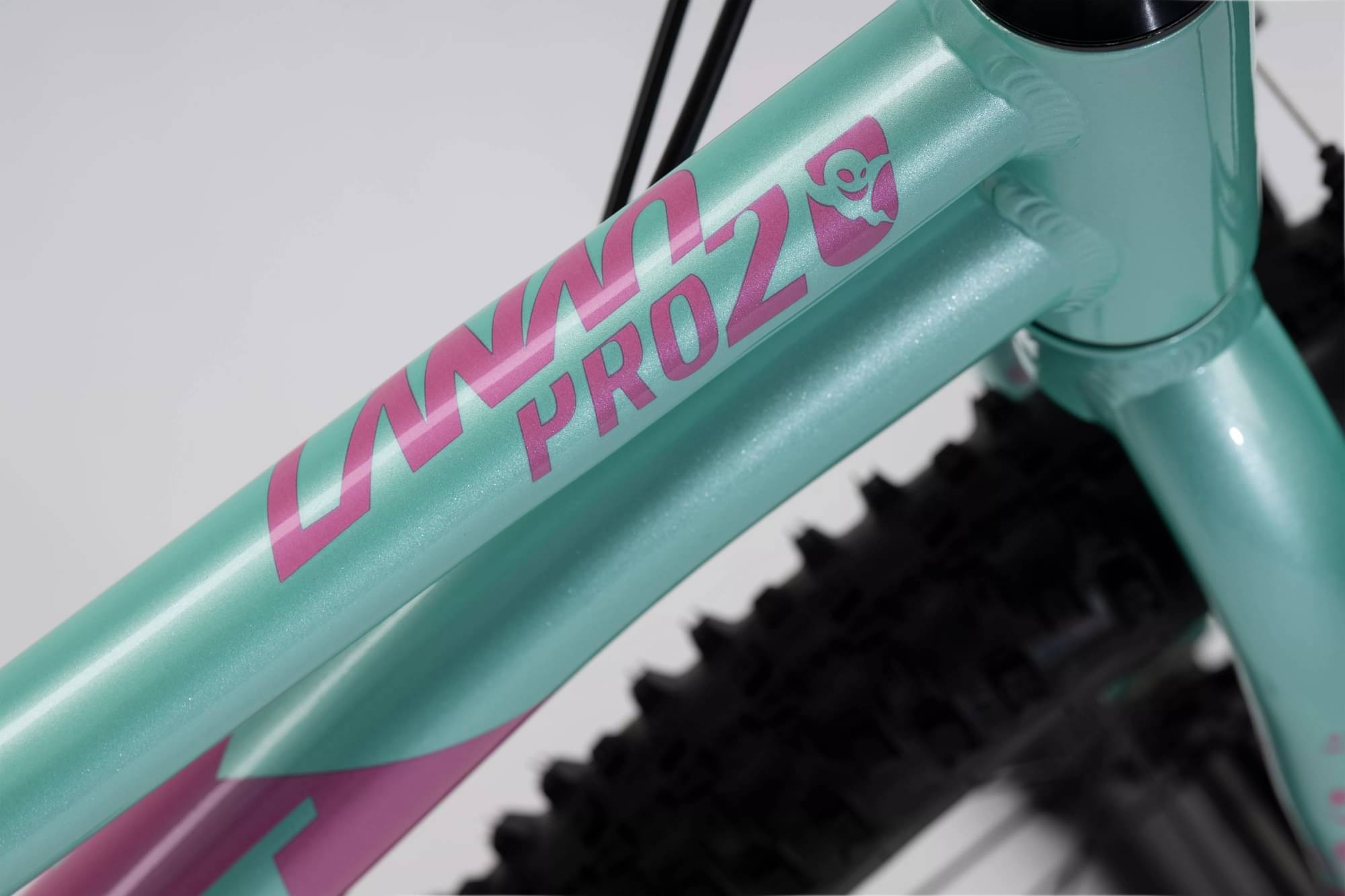

Frame
Frame
MID Aluminium Uni
Suspension Fork
Ghost 20" x 1-1/8"x1.4t, Unicrown, Alloy
Drivetrain

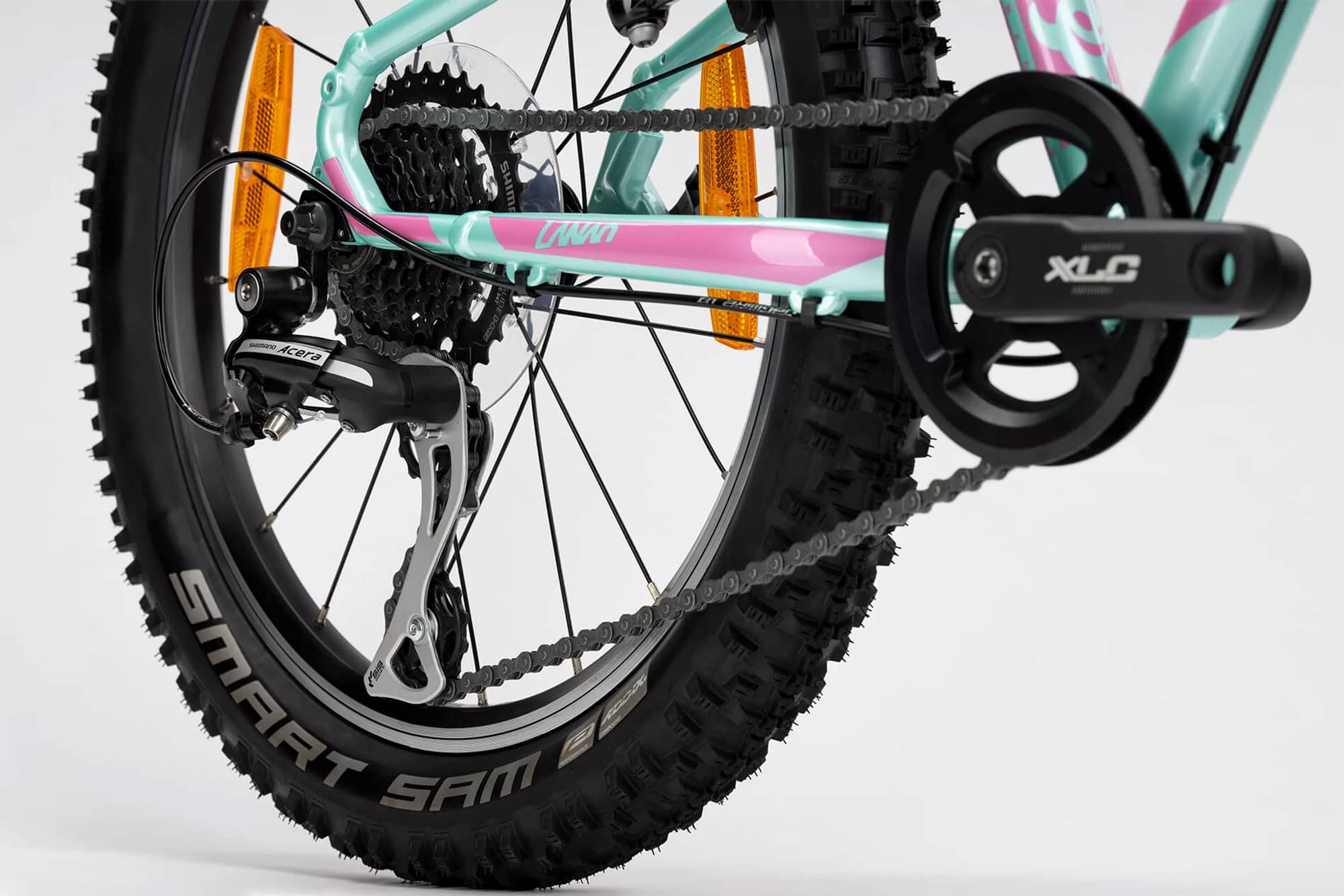

Rear Derailleur
Shimano Acera RD-M360-SGS 7/8s, Double Servo
Shift Levers
Shimano Triggershift SL-M315-8R, Rapidfire+
Cassette
Shimano CS-HG31-8, HG
Crank
Samox JIS Crankset SAC38J-166A-P37P 114
Bottom Bracket
Shimano BSA BB-UN101 68/73 mm, Square Type
Chain
KMC Z-7,1/2"x3/32", Silver/Silver
Pedals
VP VPE-225 93x87 mm w/ Reflector
Wheels
Front Hub
Quando KT-A15F QR 100 mm, 20H
Rear Hub
Quando KT-AZER QR 135 mm, 20H, 7-9s, HG
Rims
Shining Rims MT-46 20" (406x18) 20H, black, double wall
Tires
Schwalbe Smart Sam Performance, ADDIX 67EPI 60-406
Brakes
Brakes

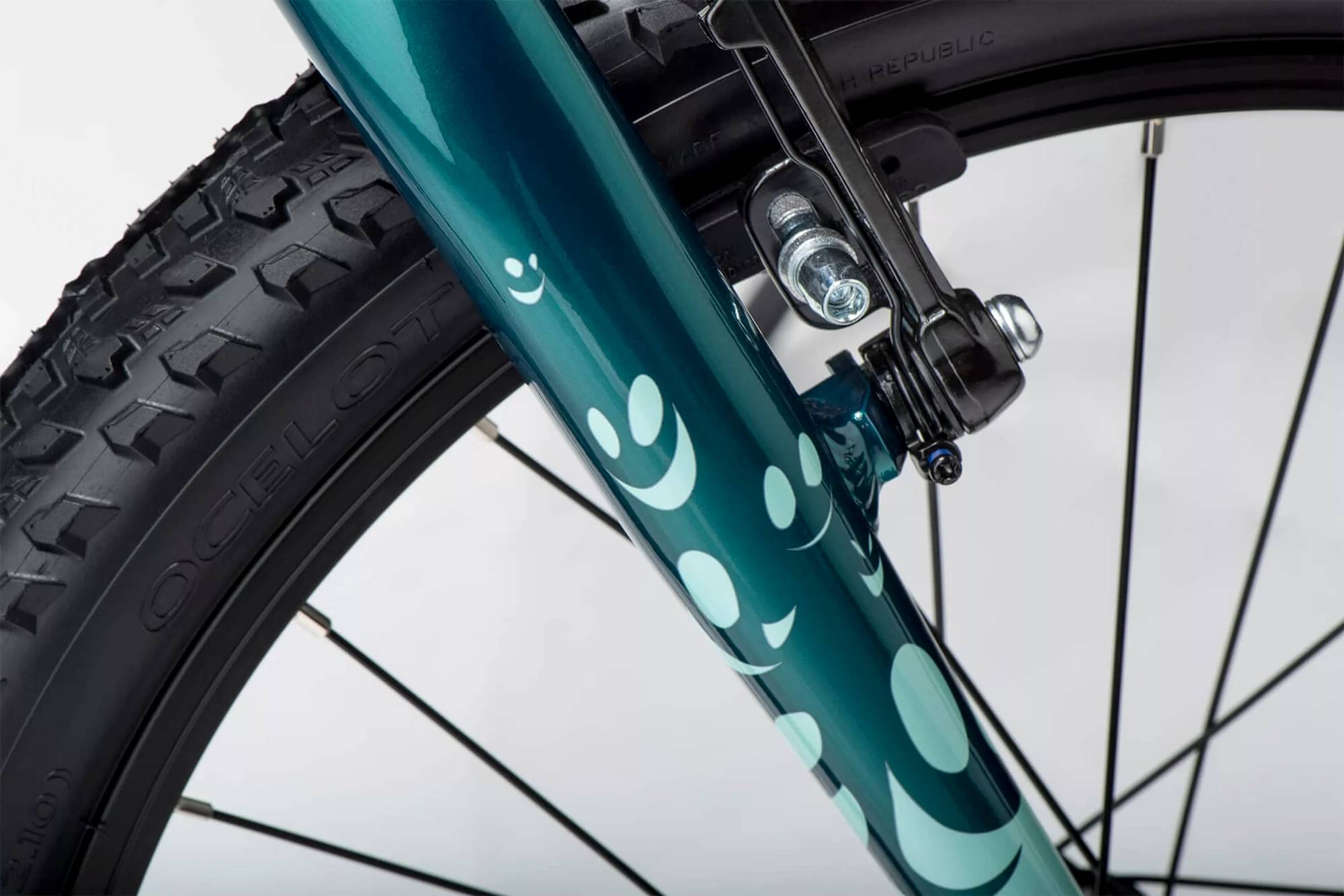

Tektro Mechanical V-brake C310, V-Brake, aluminium arms L: 110 mm
Cockpit
Stem
Ghost Not Adjustable HL CORP TDS-C614N-5, Dia. 25.4 mm, L: 40 mm
Handlebar
XLC Riser Bar Satori Junior, Dia. 25.4 mm, Rise: 25 mm
Headset
Fsa Semi-integrated No. 10, 1-1/8", H: 8,9 mm ZS44/ZS44
Seat
Saddle
XLC Kids DDK-D922 230x130 mm, black
Seatpost
Kalloy Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.625 mm |
| Front Center | 486 mm |
| Rake | 35 mm |
| Stack | 455 mm |
| Reach | 280 mm |
| Top Tube Length | 437 mm |
| Seat Tube Angle | 69 ° |
| Seat Tube Length | 250 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 362 mm |
| Wheelbase | 843 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 473 mm |
| Wheels | 20" |
| Rider Min Height | 115 cm |
| Rider Max Height | 125 cm |
