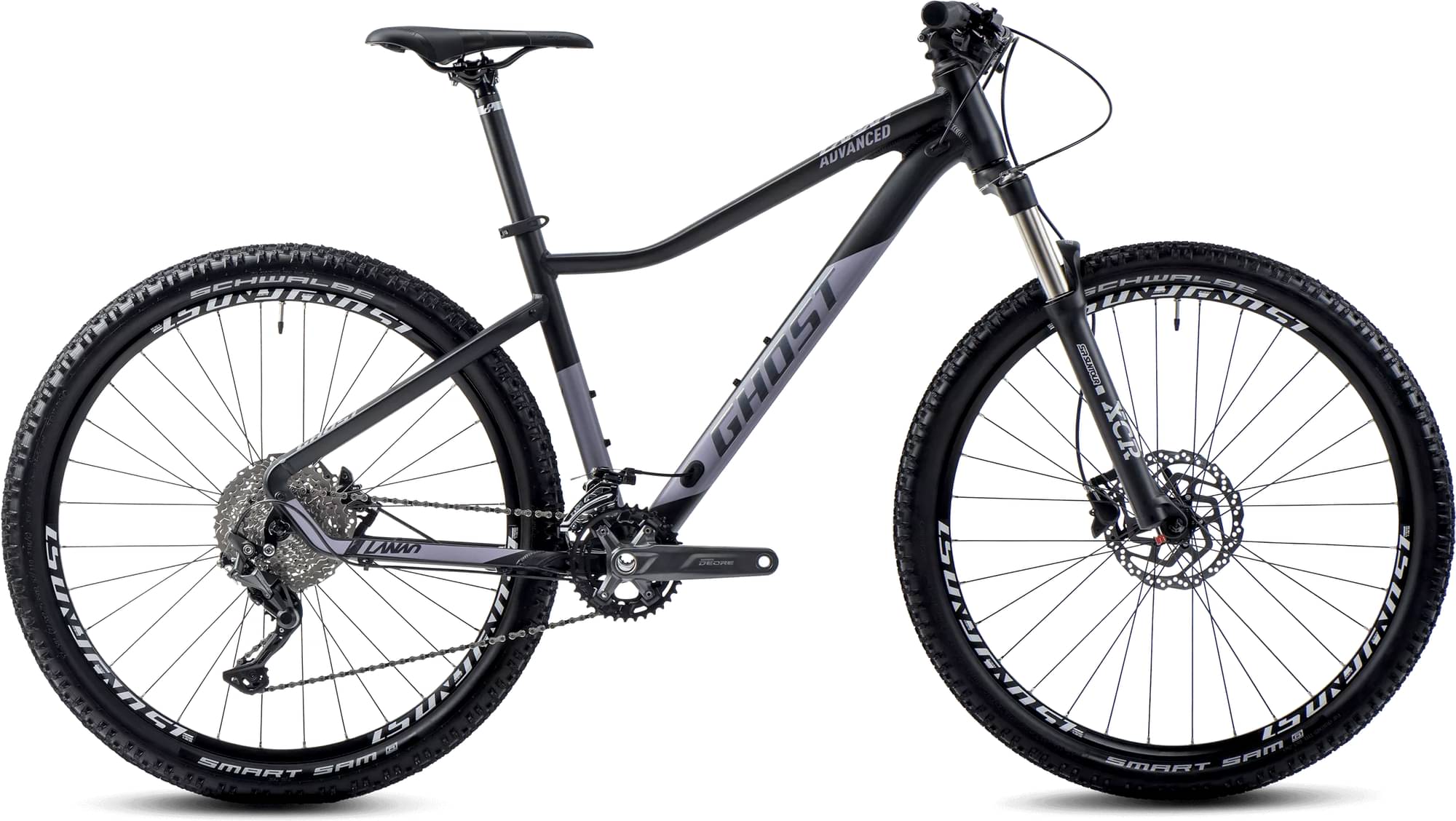

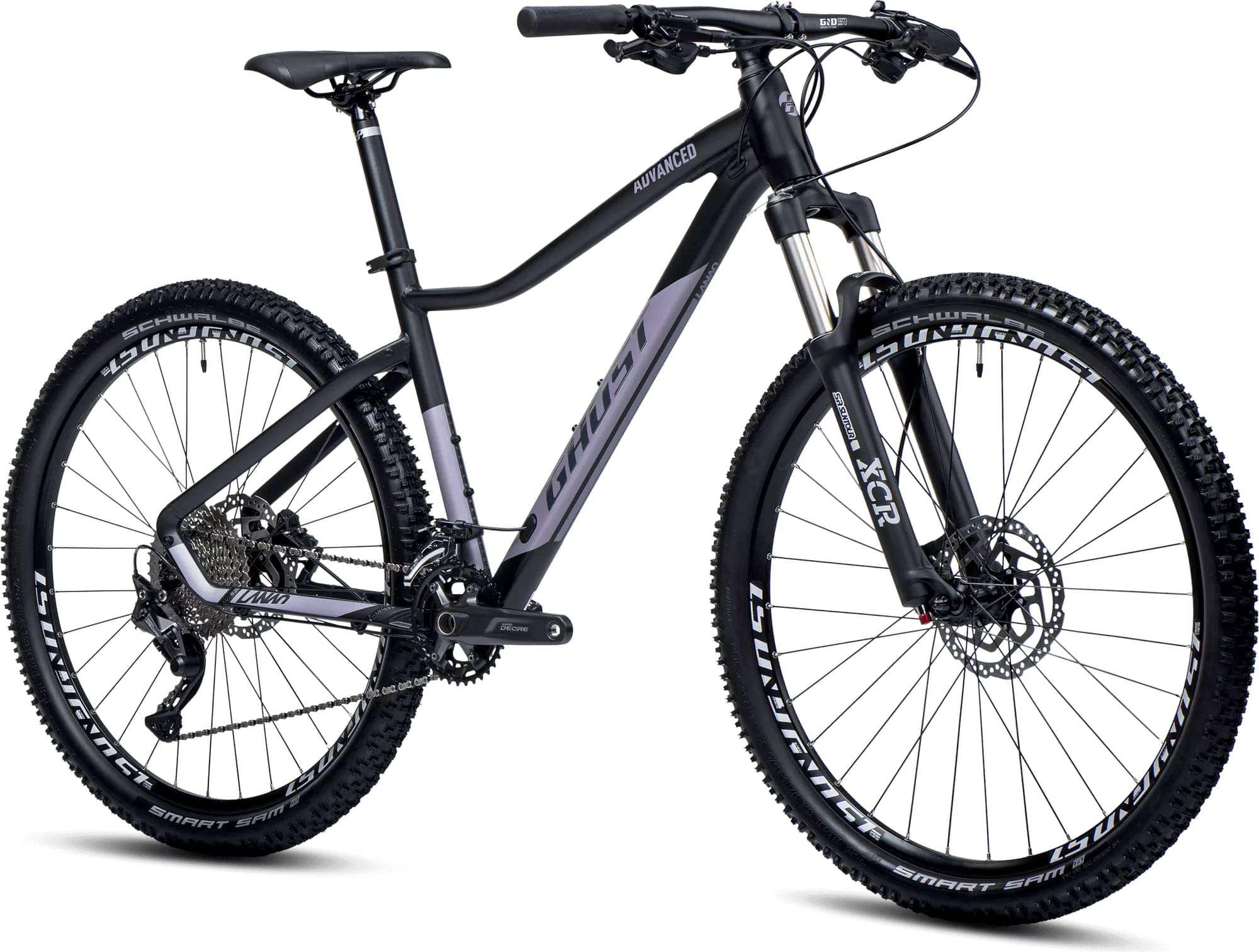

Ghost Lanao Advanced 27.5 AL 2024
2024 Mountain
Estimate price |
930$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
146cm - 158cm
SM
156cm - 169cm
MD
167cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LANAO AL
Suspension Fork
SR Suntour XCR RL-R AIR 100 mm
Drivetrain

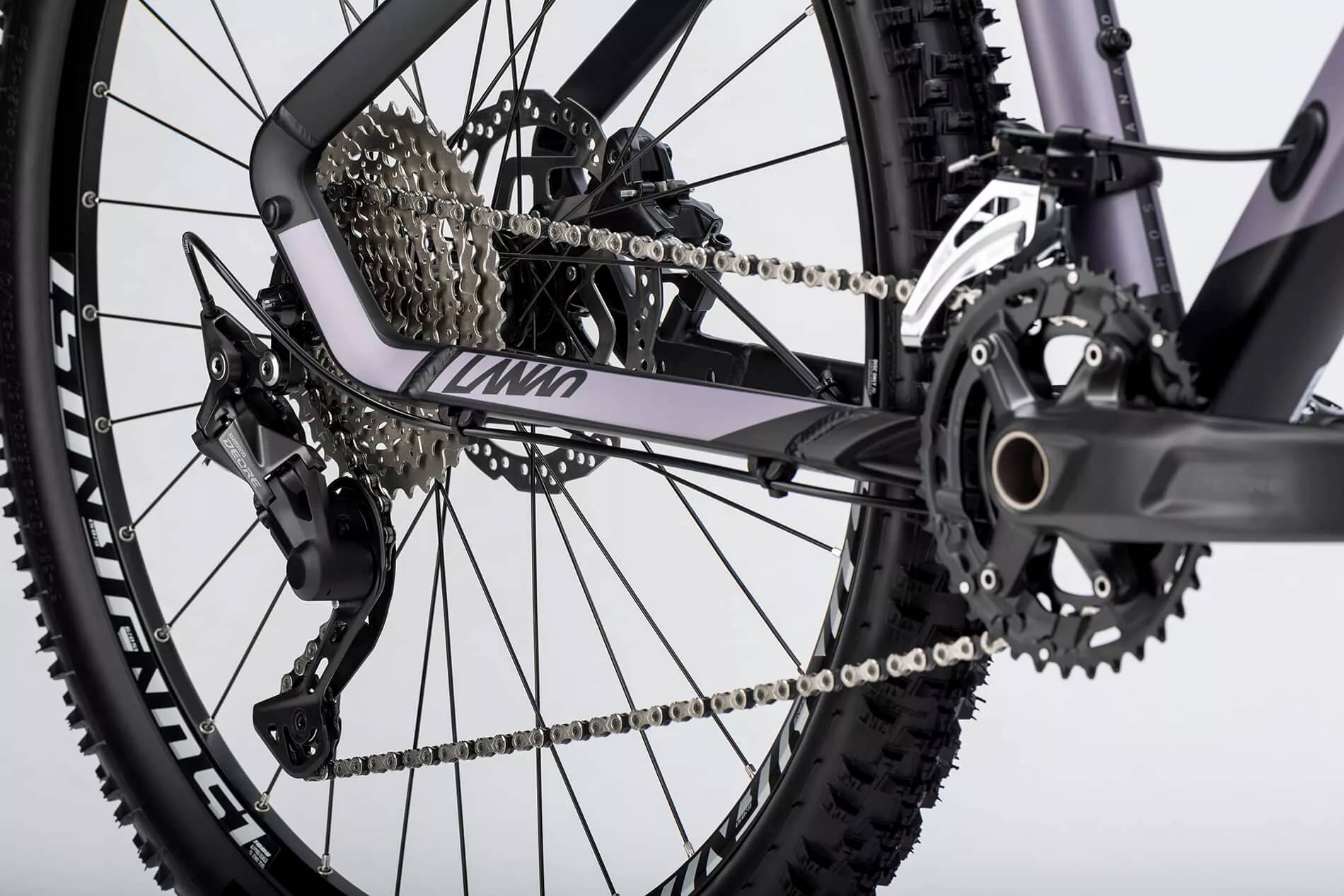

Rear Derailleur
Shimano Deore RD-M4120 10-S
Front Derailleur
Shimano Deore FD-M4100-M
Cassette
Shimano Deore CS-M4100 11-42
Crank
Shimano Deore FC-M4100 36-26
Bottom Bracket
Shimano BB52 BSA
Chain
KMC X10
Pedals
FPD NW-91K
Wheels
Rims
Front: Rodi Excalibur XC19, Rear: Rodi Excalibur XC19
Tires
Front: Schwalbe Smart Sam 27.5x2.25, Rear: Schwalbe Smart Sam 27.5x2.25
Brakes
Brakes

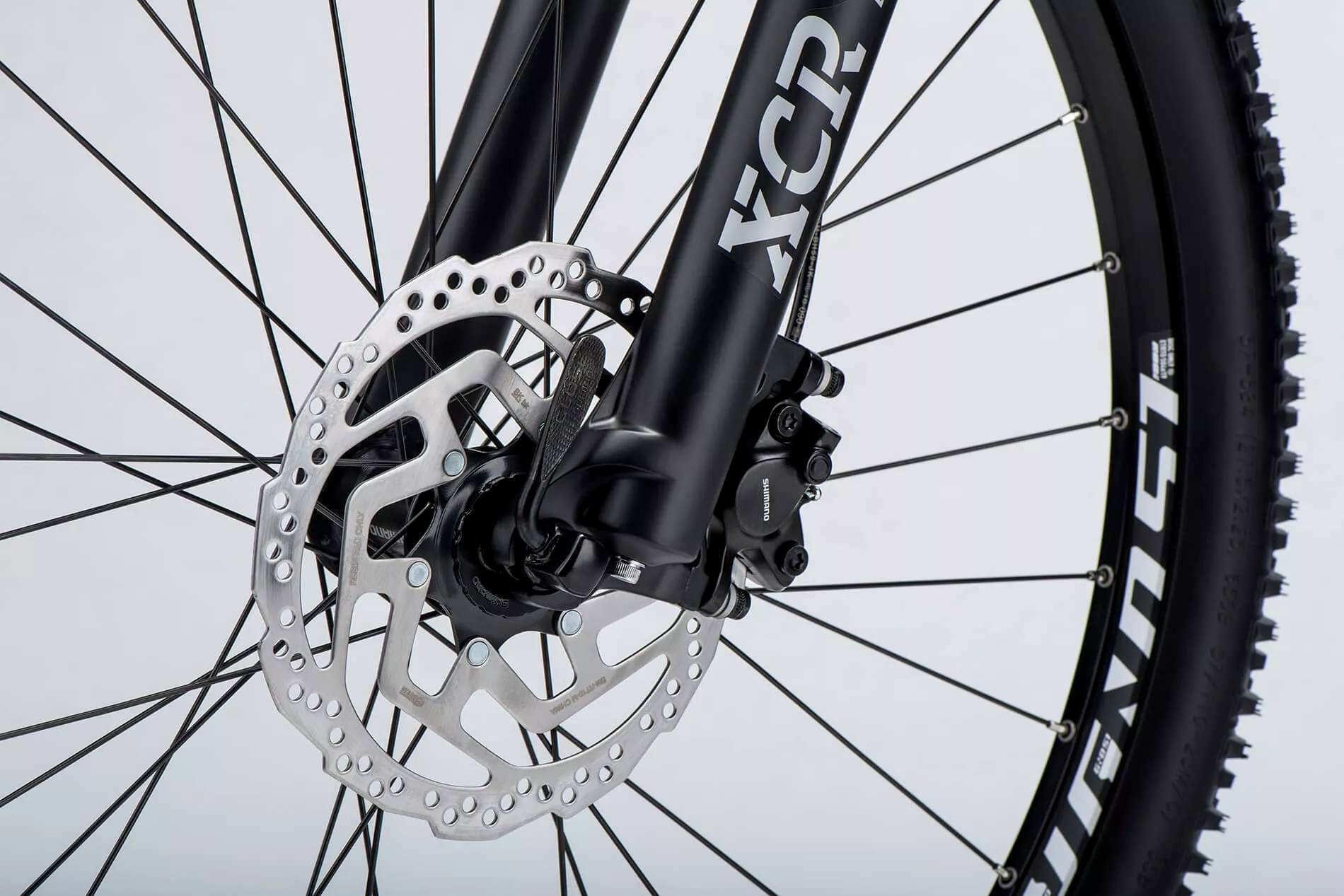

Shimano BR-MT200 180 mm Disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem

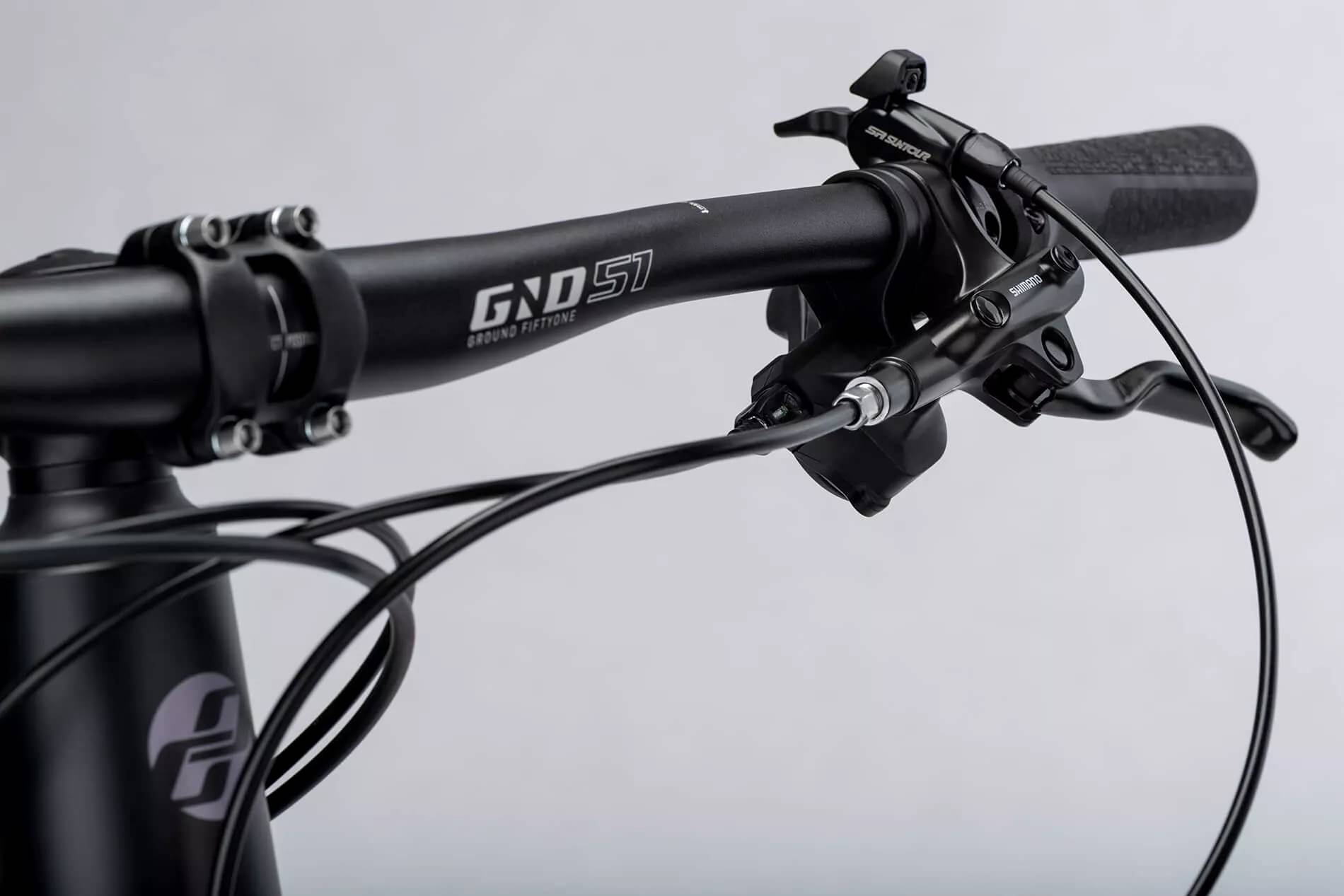

Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 0/700 mm (XS) 0/720 mm (S) 0/740 mm (M)
Grips
MTB Grip
Seat
Saddle
Selle Italia X-Base
Seatpost
GHOST SP DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.522 mm | 1.477 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 637 mm | 663 mm | 684 mm |
| Rake | 42 mm | 42 mm | 41 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 588 mm | 598 mm | 607 mm |
| Reach | 371 mm | 393 mm | 411 mm |
| Top Tube Length | 545 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1063 mm | 1089 mm | 1110 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 680 mm | 710 mm | 730 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 146 cm | 156 cm | 167 cm |
| Rider Max Height | 158 cm | 169 cm | 182 cm |
