Ghost LANAO UNIVERSAL 2025
2025 Mountain
Estimate price |
813$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Alivio, Altus -
Suspension Hardtail -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
146cm - 158cm
SM
156cm - 169cm
MD
167cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

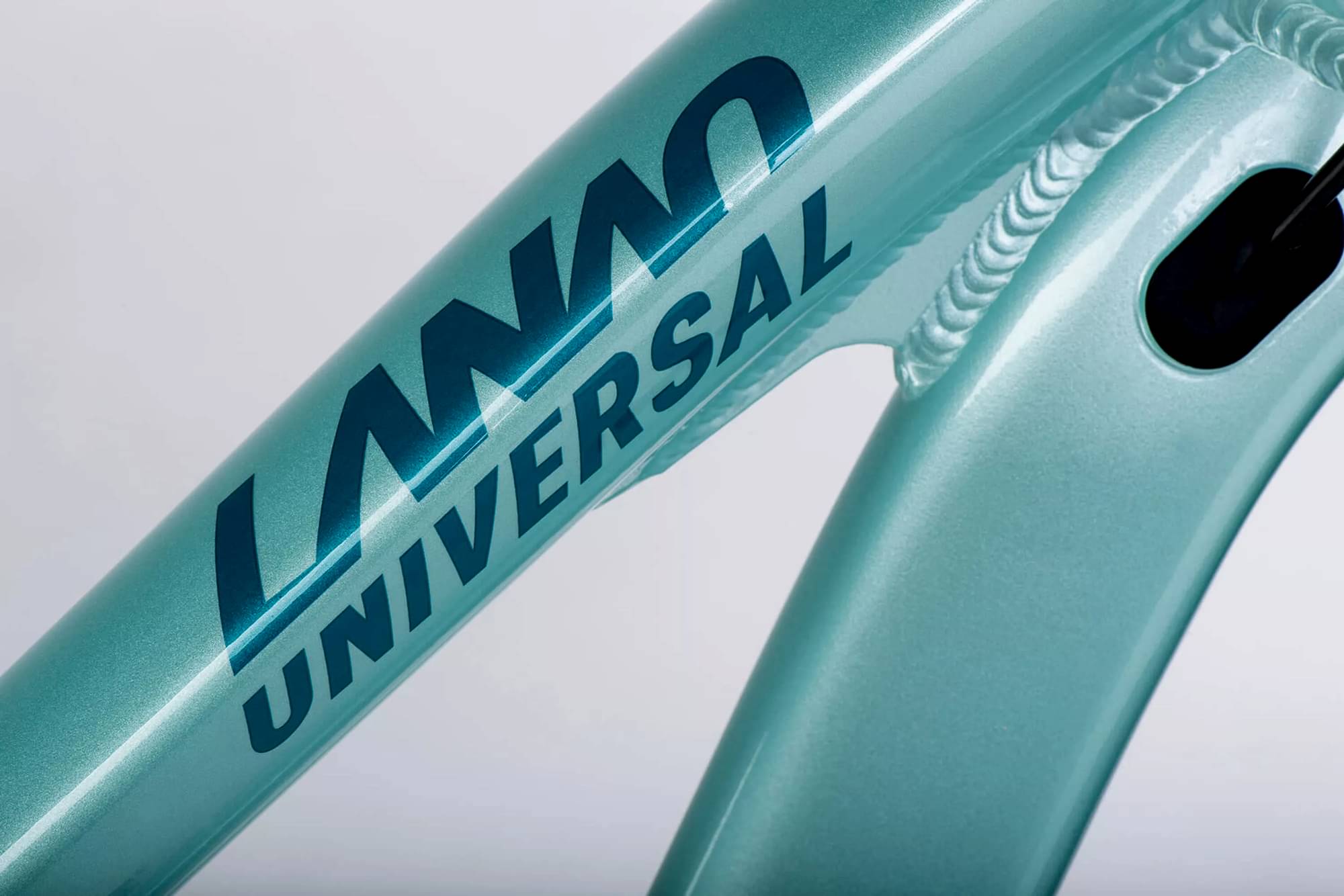

MID Aluminium Ladies
Suspension Fork
Rockshox Judy TK Crown Adjust, QR, 100 mm

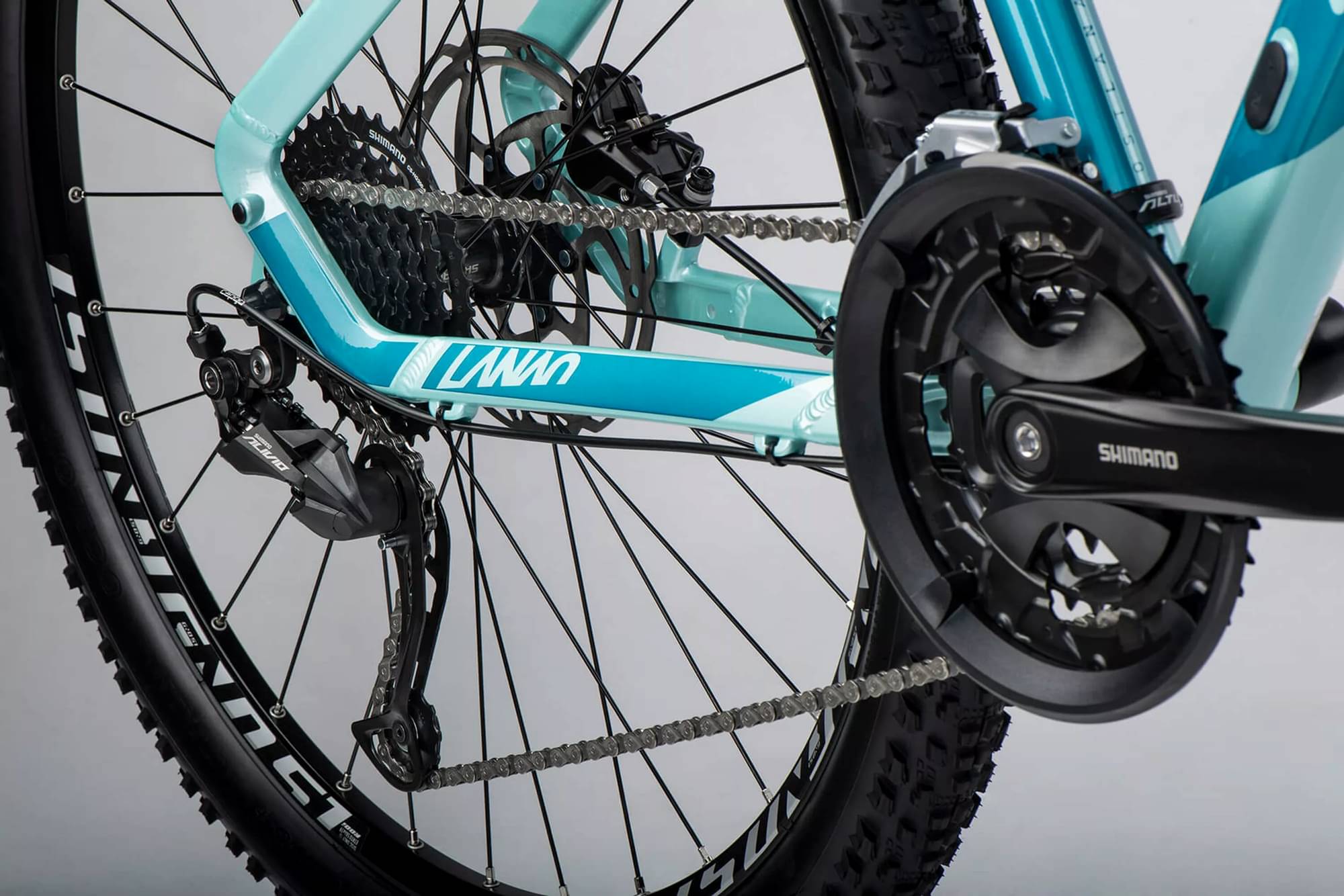

Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100-SGS 9s, Shadow
Front Derailleur
Shimano Altus FD-M370 3x9s, Top Swing
Shift Levers
Shimano Triggershift Alivio SL-M3100-9R, Rapidfire+
Cassette
Shimano CS-HG200-9, HG
Crank
Shimano FC-MT101, Hyperdrive Trail MTB Crankset 170
Bottom Bracket
Thun BSA PASO-ML 68-73
Chain
KMC X11 9s
Pedals
FPD NW-91K steel cage black
Wheels
Front Hub
Shimano HB-TX505, 32H, QR 100 mm, Centerlock
Rear Hub
Shimano FH-TX505-9, 32H, QR 135 mm, Centerlock, HG
Rims
Rodi Excalibur XC19 27,5", single eyelet, 32H
Tires
Mitas Ocelot 54-584
Brakes
Brakes

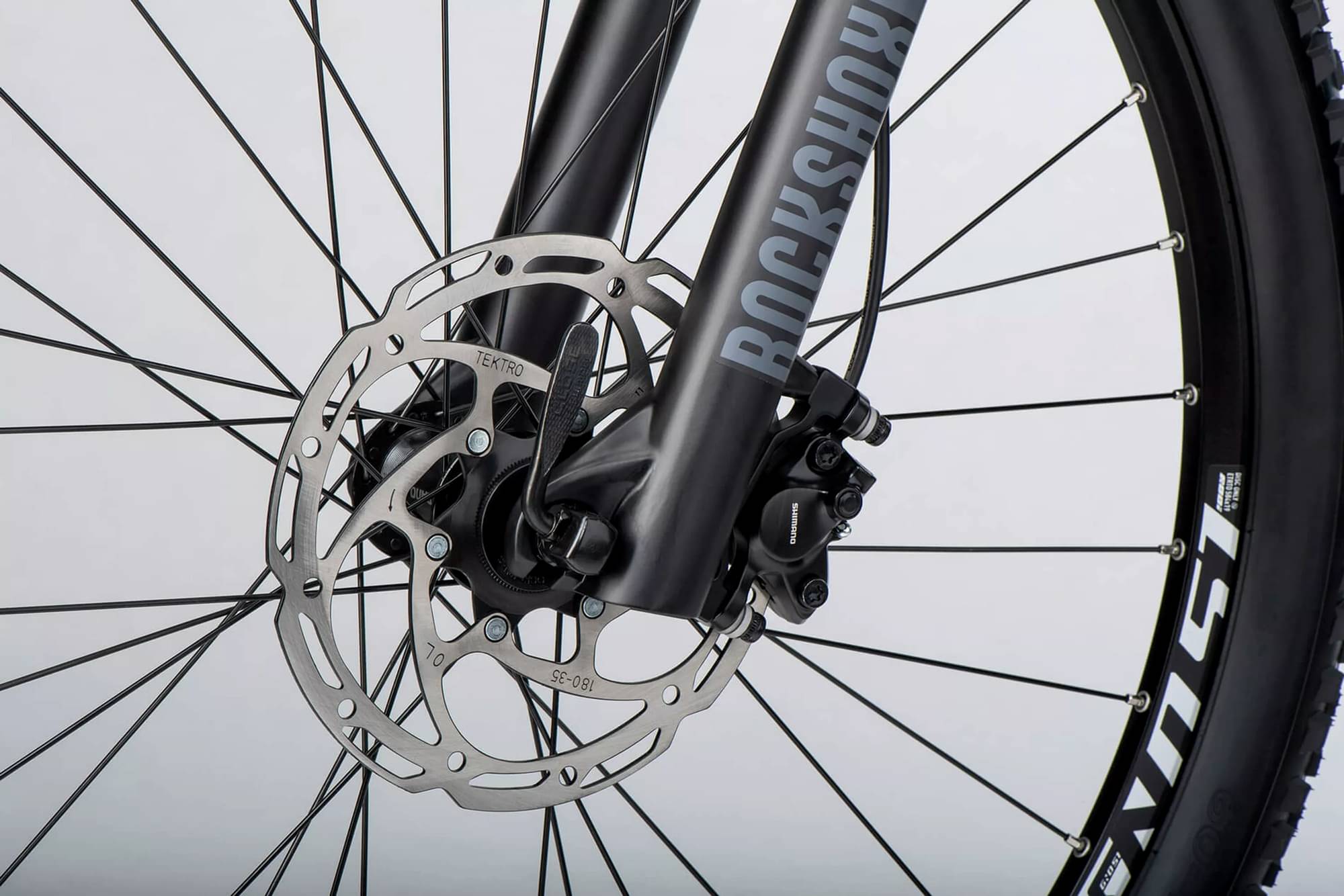

Tektro Hydraulic Disc brake HD-M275, 2 pistons, resin pad, 180 mm
Brake Levers
Tektro HD-M275-BL
Cockpit
Stem

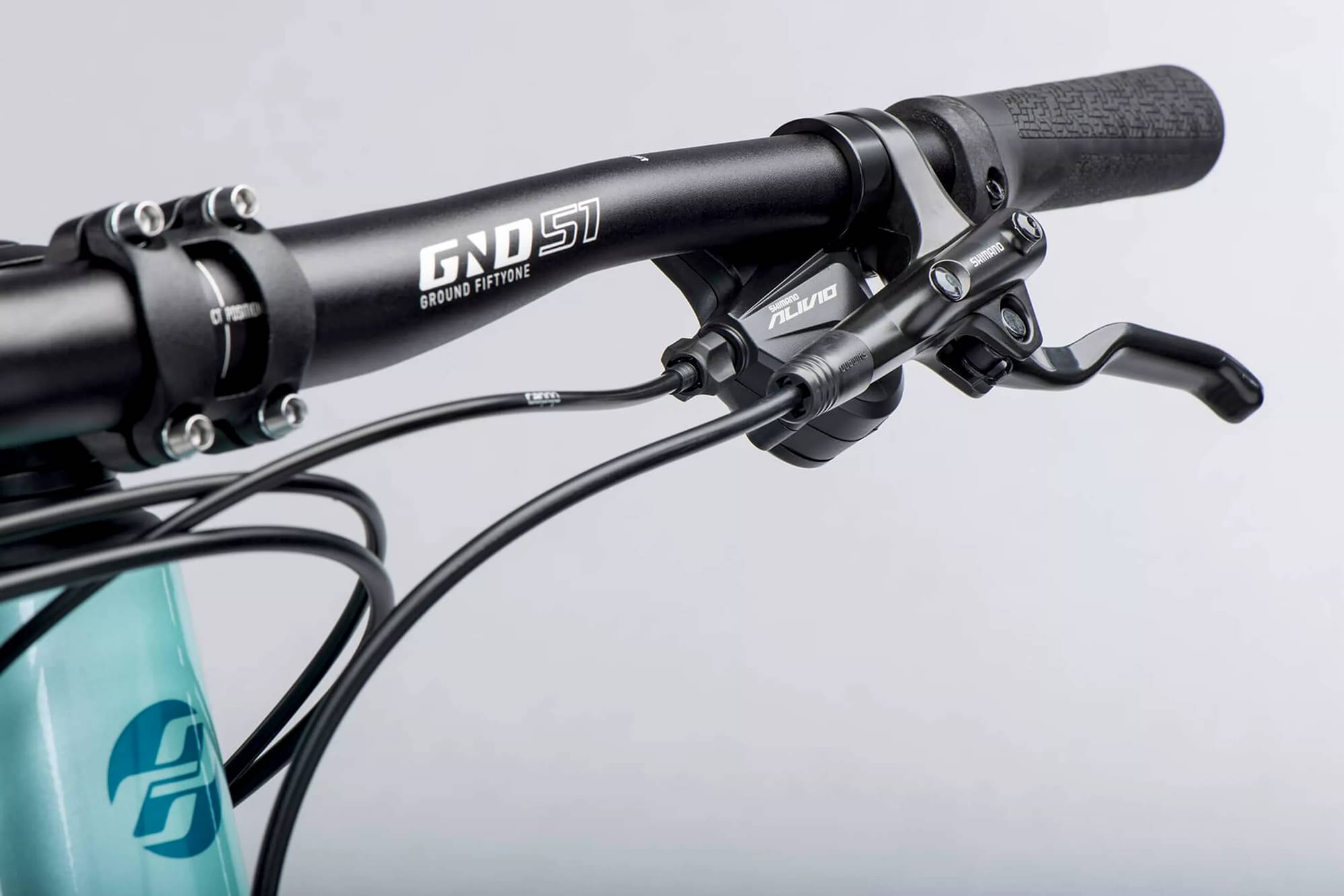

Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head
Handlebar
Ghost Flat bar Ground Fiftyone Dia. 31.8 mm, backsweep 9°
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI110 ZS44/ZS44
Seat
Saddle
Selle Italia MTB Model X Superflow
Seatpost
Kalloy Non Suspension SP-DC1, Dia. 31.6 mm, L: 400 mm 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.522 mm | 1.477 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 637 mm | 663 mm | 684 mm |
| Rake | 42 mm | 42 mm | 41 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 588 mm | 598 mm | 607 mm |
| Reach | 371 mm | 393 mm | 411 mm |
| Top Tube Length | 545 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1063 mm | 1089 mm | 1110 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 680 mm | 710 mm | 730 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 146 cm | 156 cm | 167 cm |
| Rider Max Height | 158 cm | 169 cm | 182 cm |
