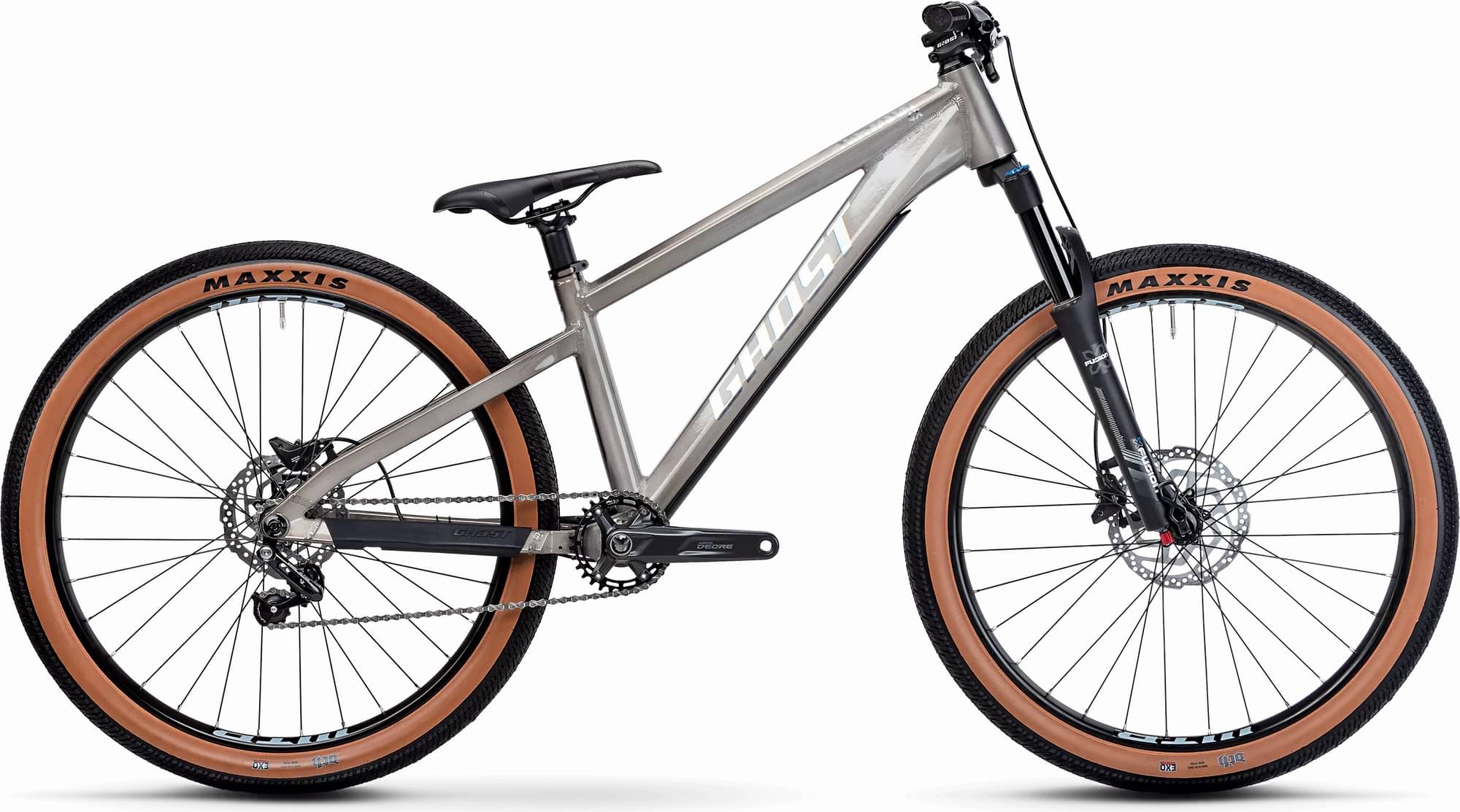

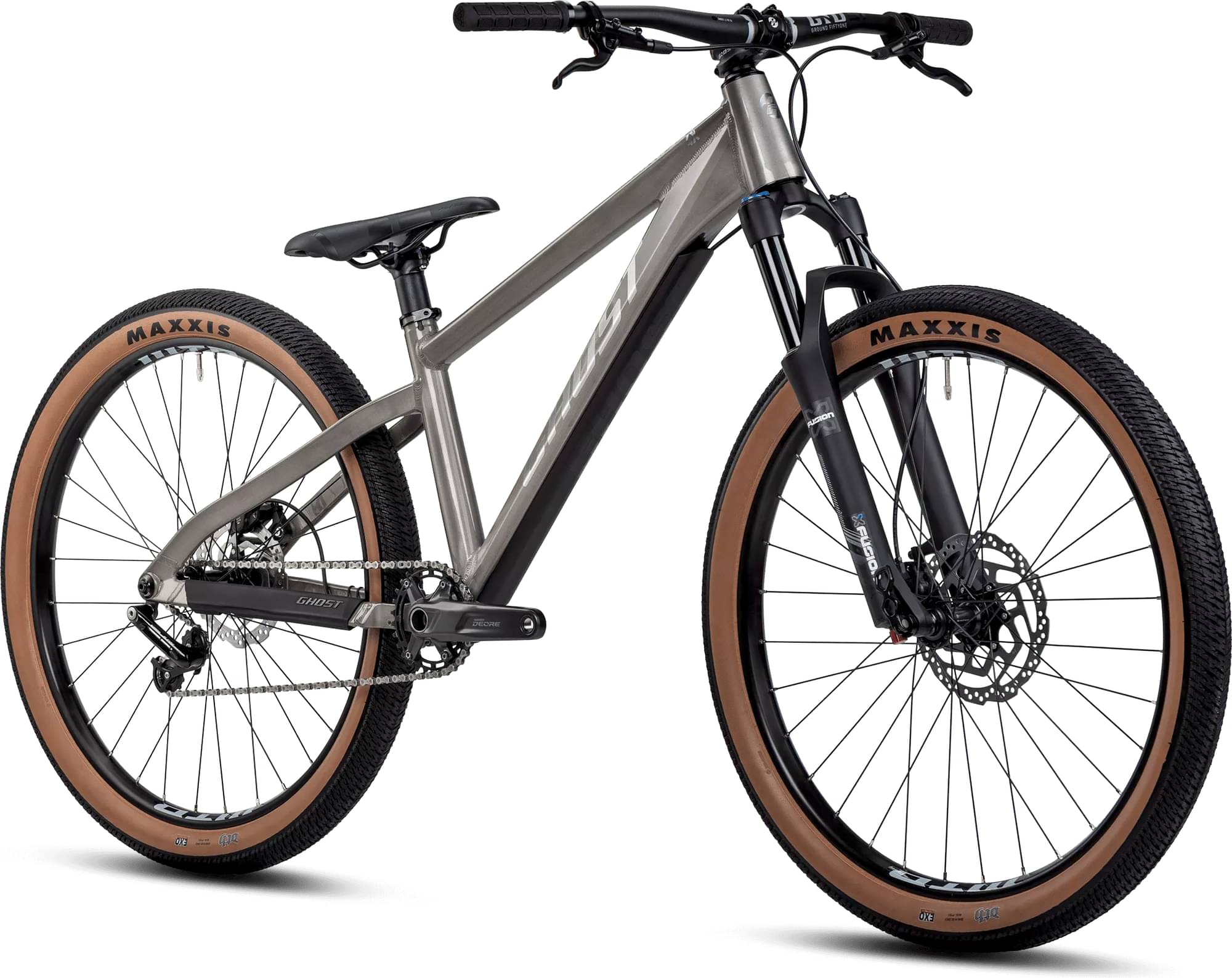

Ghost NIRVANA 4X 2025
2025 Mountain
Estimate price |
1,511$
Weight | 12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork X-Fusion SLANT
-
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

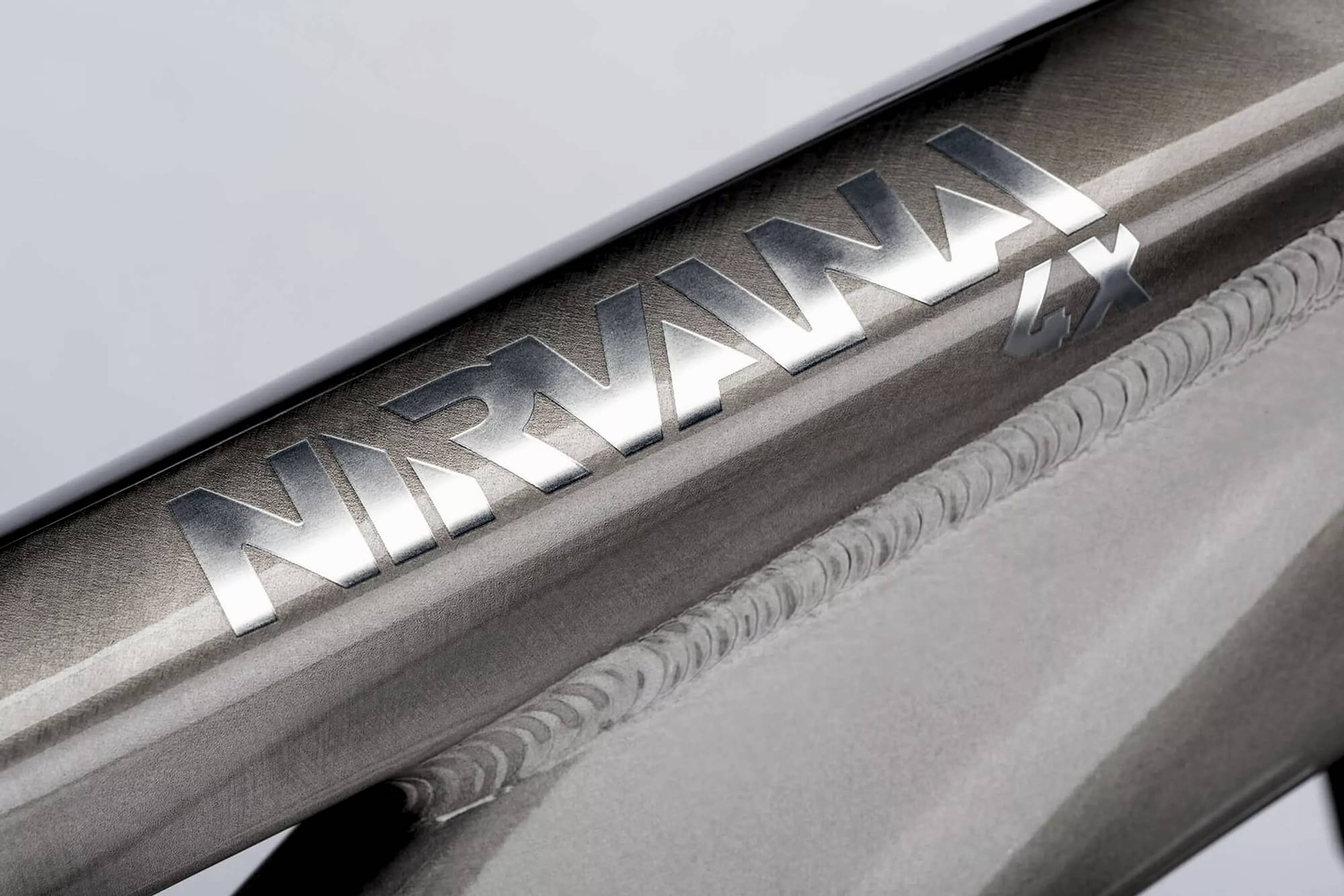

Frame
Frame
HIGH Aluminium Uni

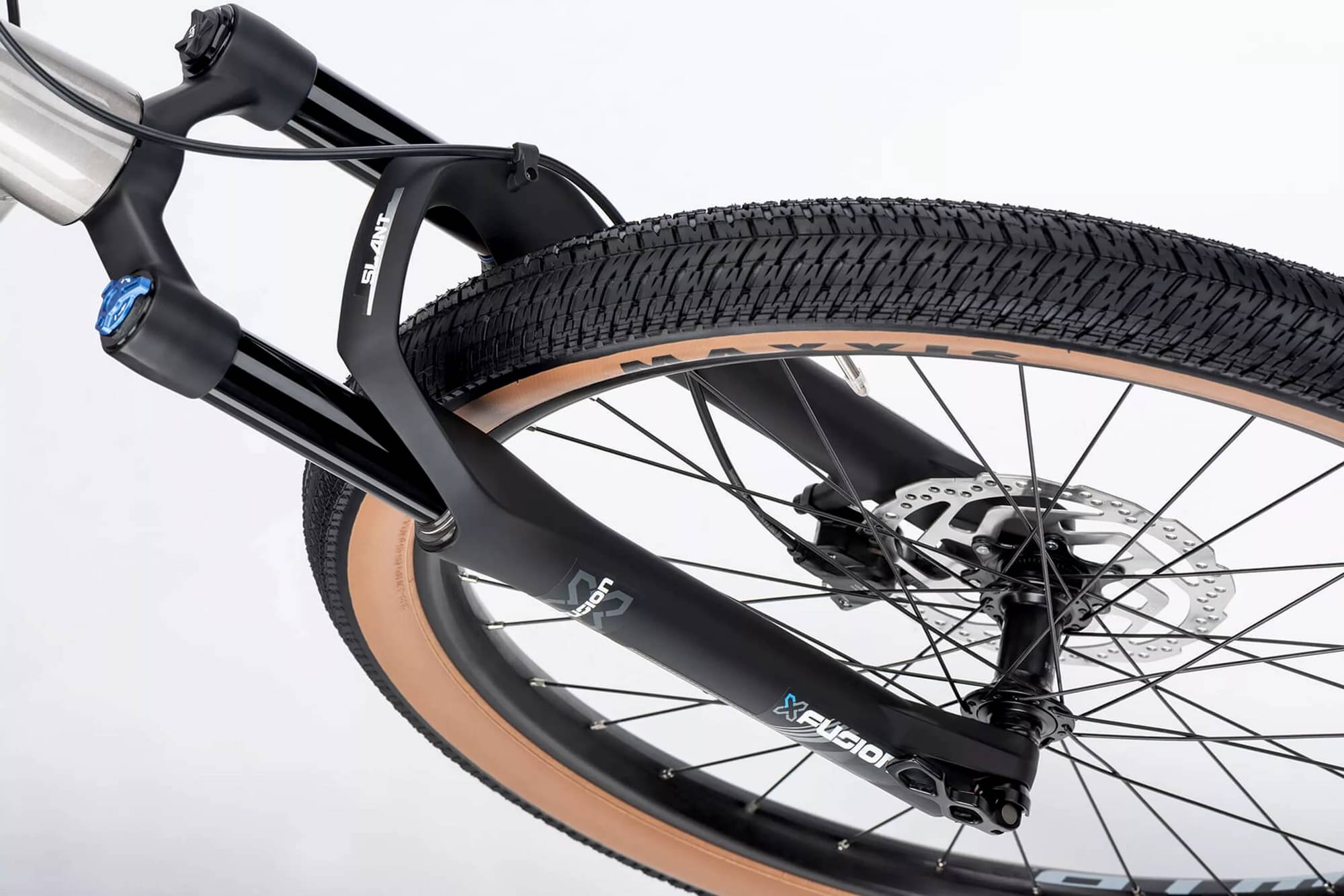

Suspension Fork
X-Fusion Slant 34 RC 100 mm

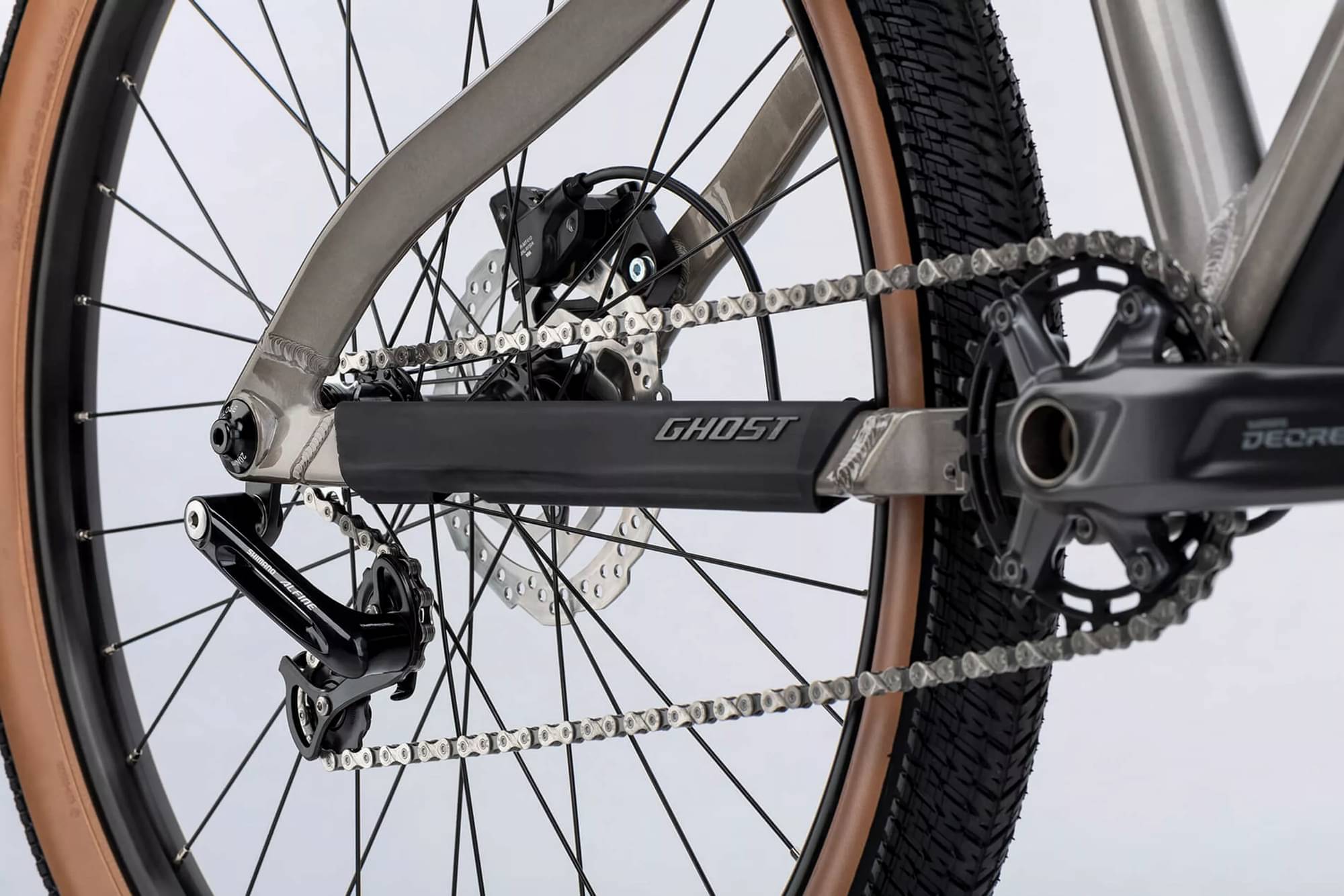

Drivetrain
Cassette
Formula Chainring + Chain Tensioner Alfine CT-S500, HG
Crank
Miranda Delta Crankset, JIS 175
Bottom Bracket
Miranda BSA Delta JIS Bottom Bracket
Chain
KMC Z51 7/8s
Wheels
Front Hub
Shimano HB-TC500-15 15x100 mm, 32H, Centerlock
Rear Hub
Shimano FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG
Rims
WTB ST Light i29 26"
Tires
Maxxis DTH EXO Tanwall, Folding, MaxxTerra, 60TPI 58-559

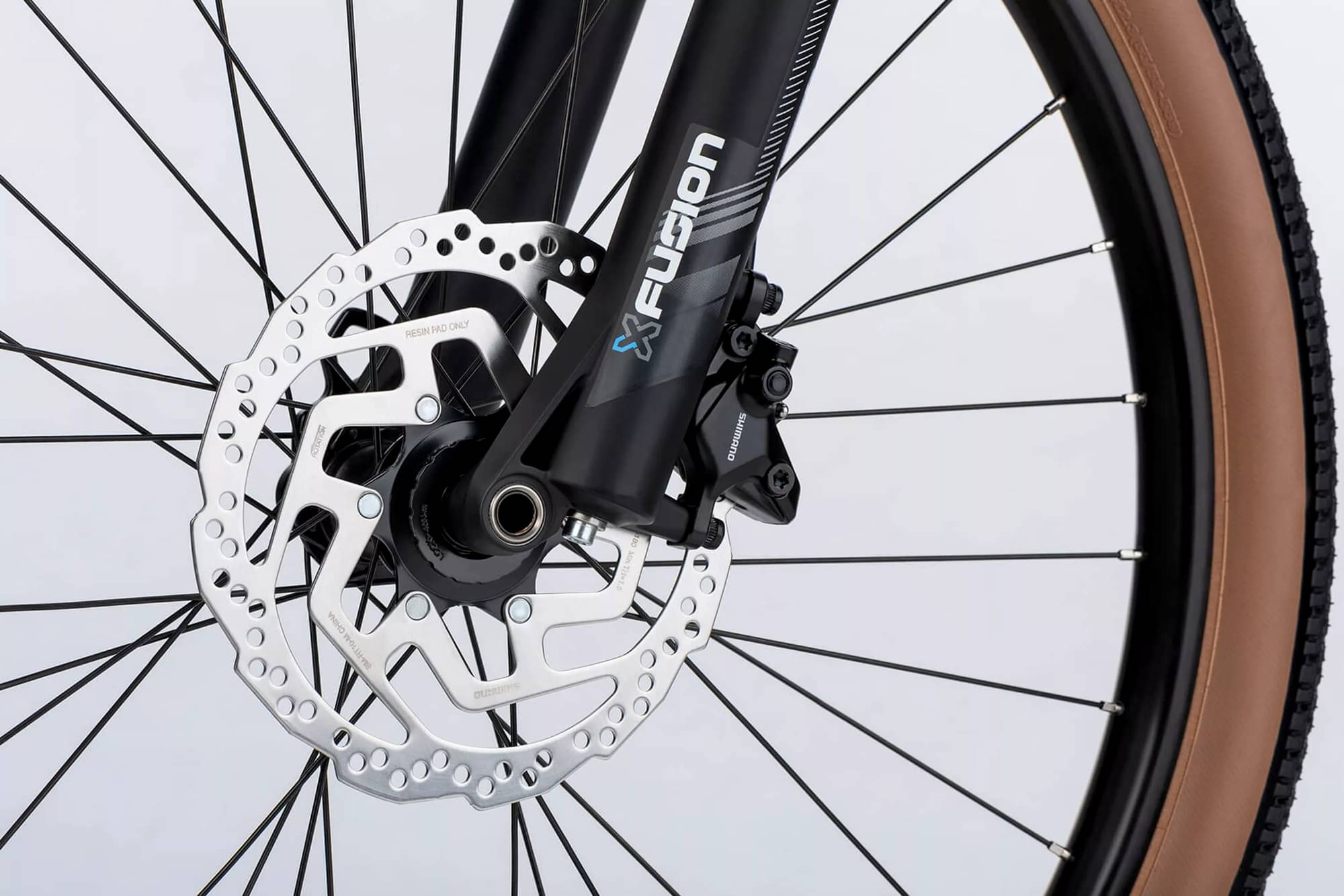

Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-MT410, 2 pistons, resin pad, 160 mm
Brake Levers
Shimano BL-MT401

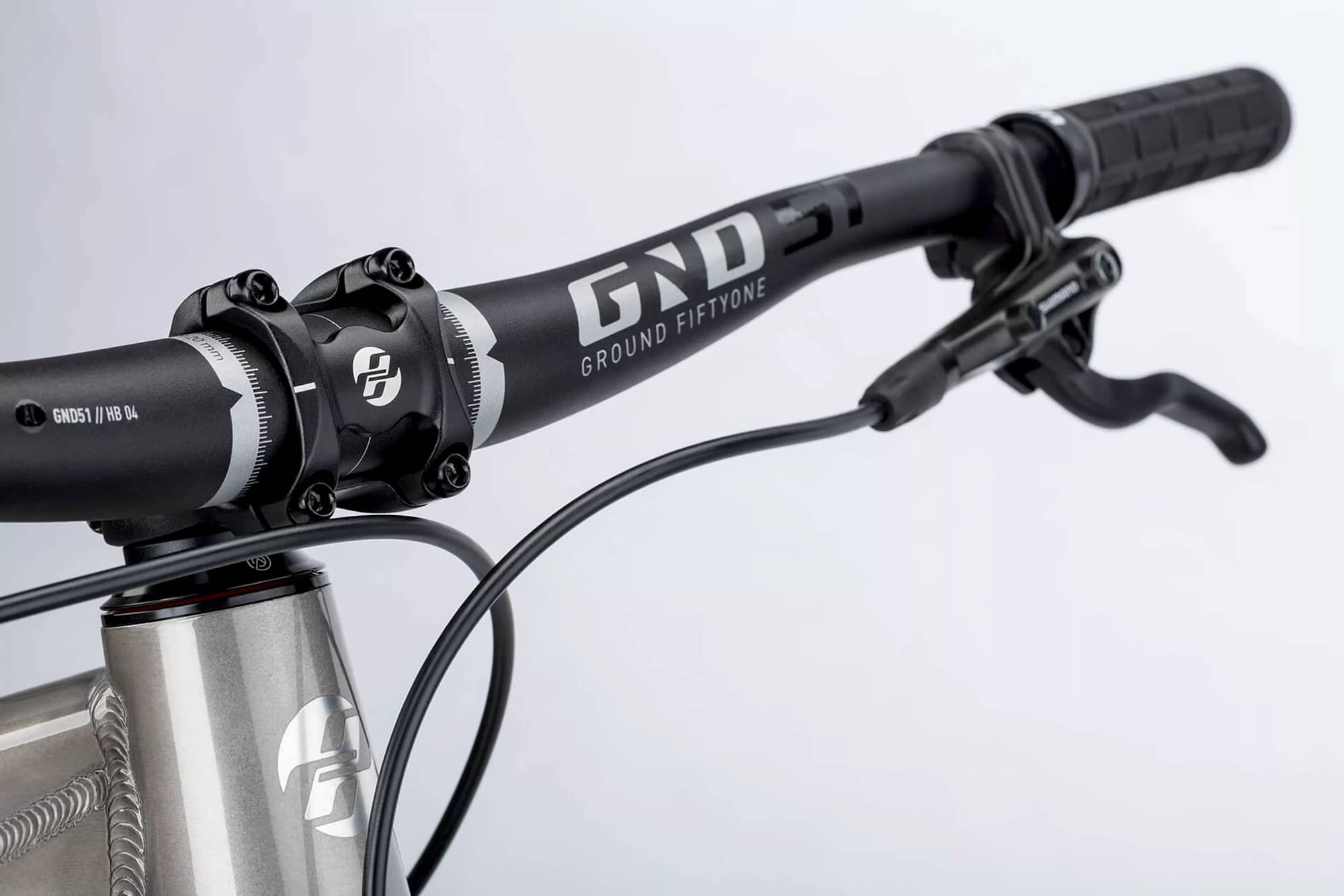

Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head
Handlebar
Ghost Riser Bar GND51 Dia. 31.8 mm, Rise: 30 mm, backsweep 9°
Headset
Acros Semi-integrated AZX-203 ZS44/ZS56 incl. Topcap
Seat
Saddle
Selle Italia MTB Model X Superflow
Seatpost
JD Non Suspension SP20T, Dia. 34.9 mm, L: 300 mm 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.376 mm |
| Bottom Bracket Height | 315 mm |
| Front Center | 680 mm |
| Rake | 41 mm |
| Trail | 94 mm |
| Stack | 571 mm |
| Reach | 415 mm |
| Top Tube Length | 561 mm |
| Seat Tube Angle | 74.6 ° |
| Seat Tube Length | 340 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 415 mm |
| Wheelbase | 1093 mm |
| Bottom Bracket Drop | 28 mm |
| Standover Height | 666 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
