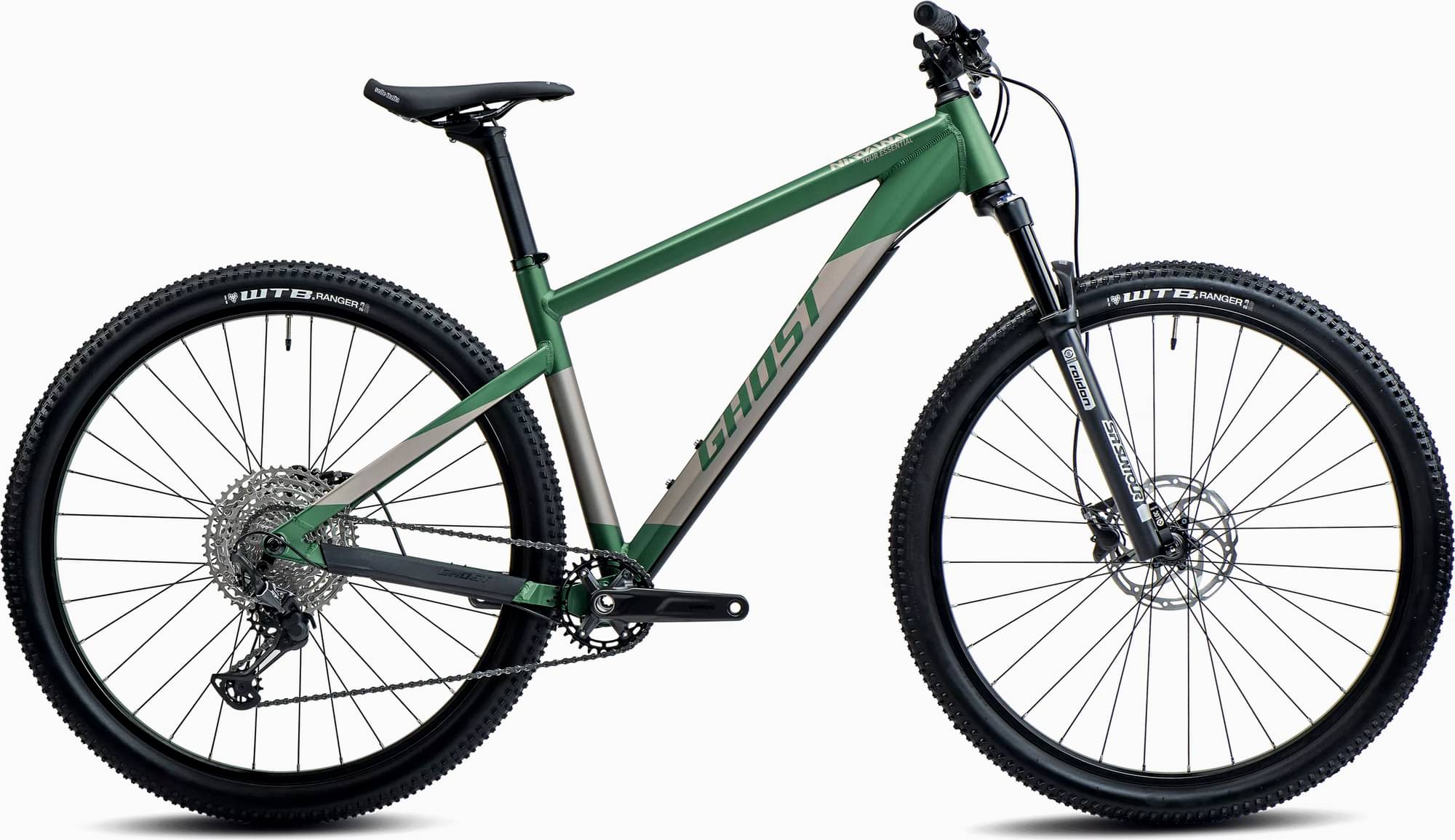

Ghost NIRVANA TOUR ESSENTIAL 2025
2025 Mountain
Estimate price |
1,511$
Weight | 14.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset XT, Deore -
Suspension Hardtail -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 165cm
SM
163cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

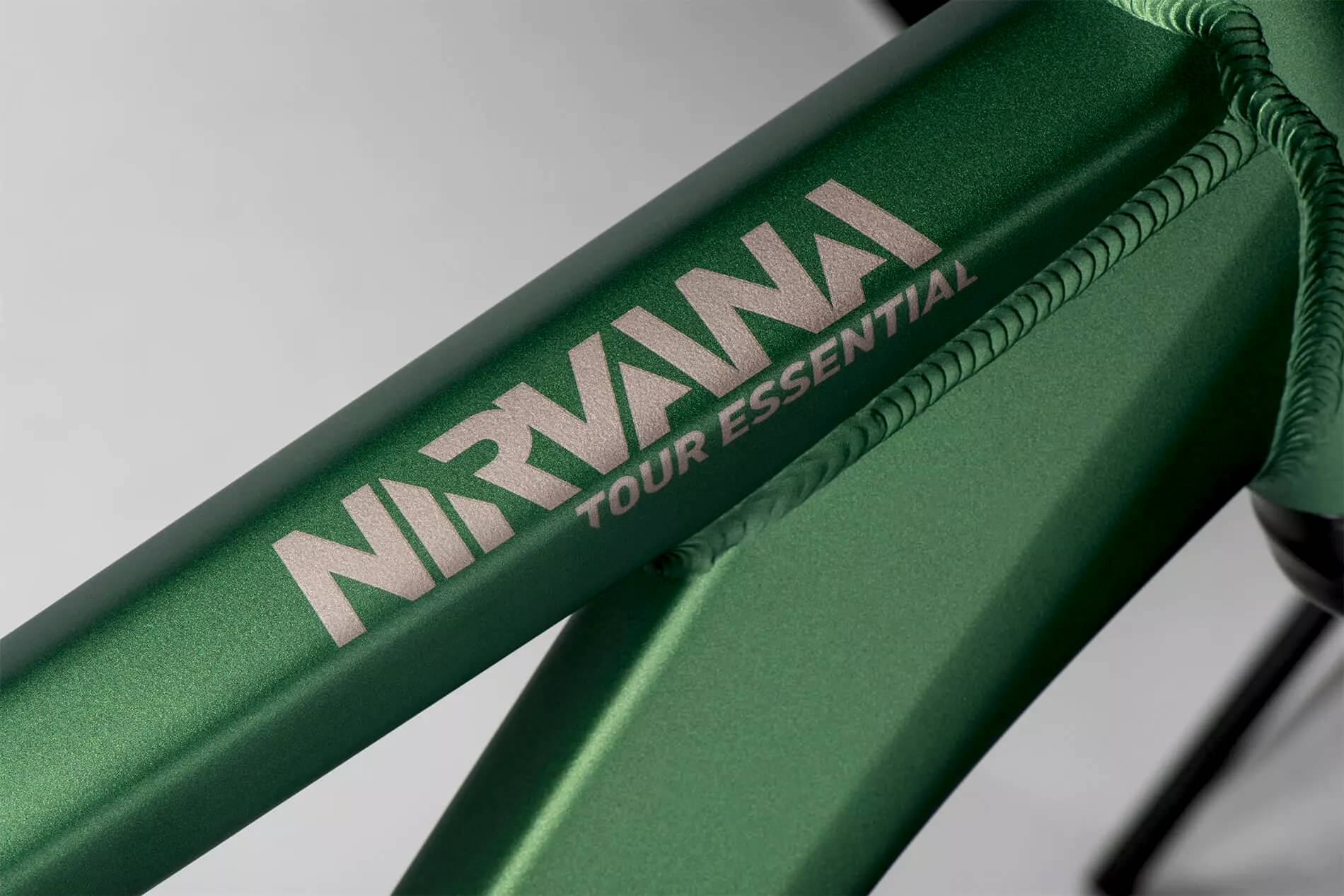

Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Suntour RAIDON 32 LOR DS 120 mm
Drivetrain

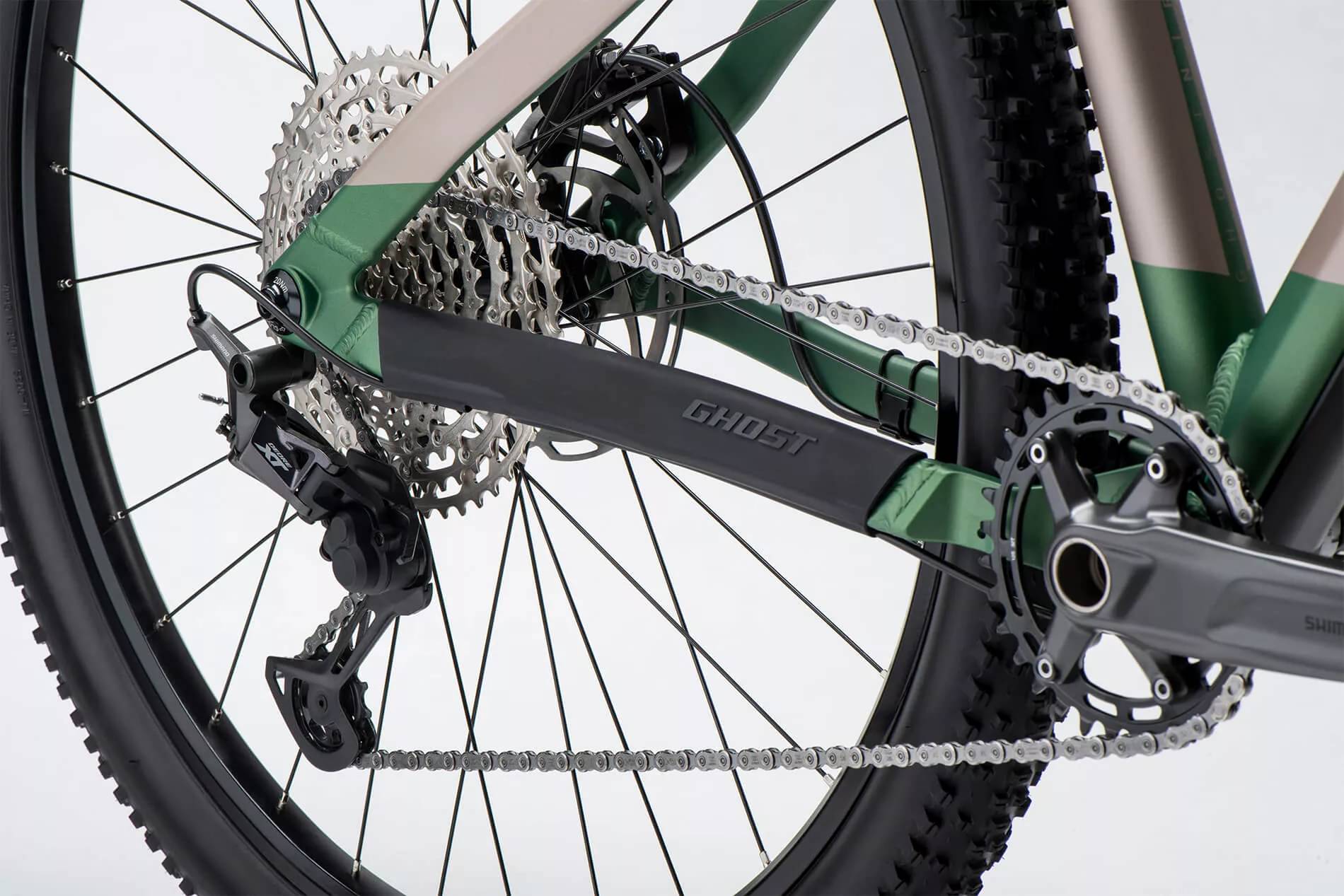

Rear Derailleur
Shimano Deore XT RD-M8100-SGS 12s, Shadow+
Shift Levers
Shimano Triggershift Deore SL-M6100-R, Rapidfire+

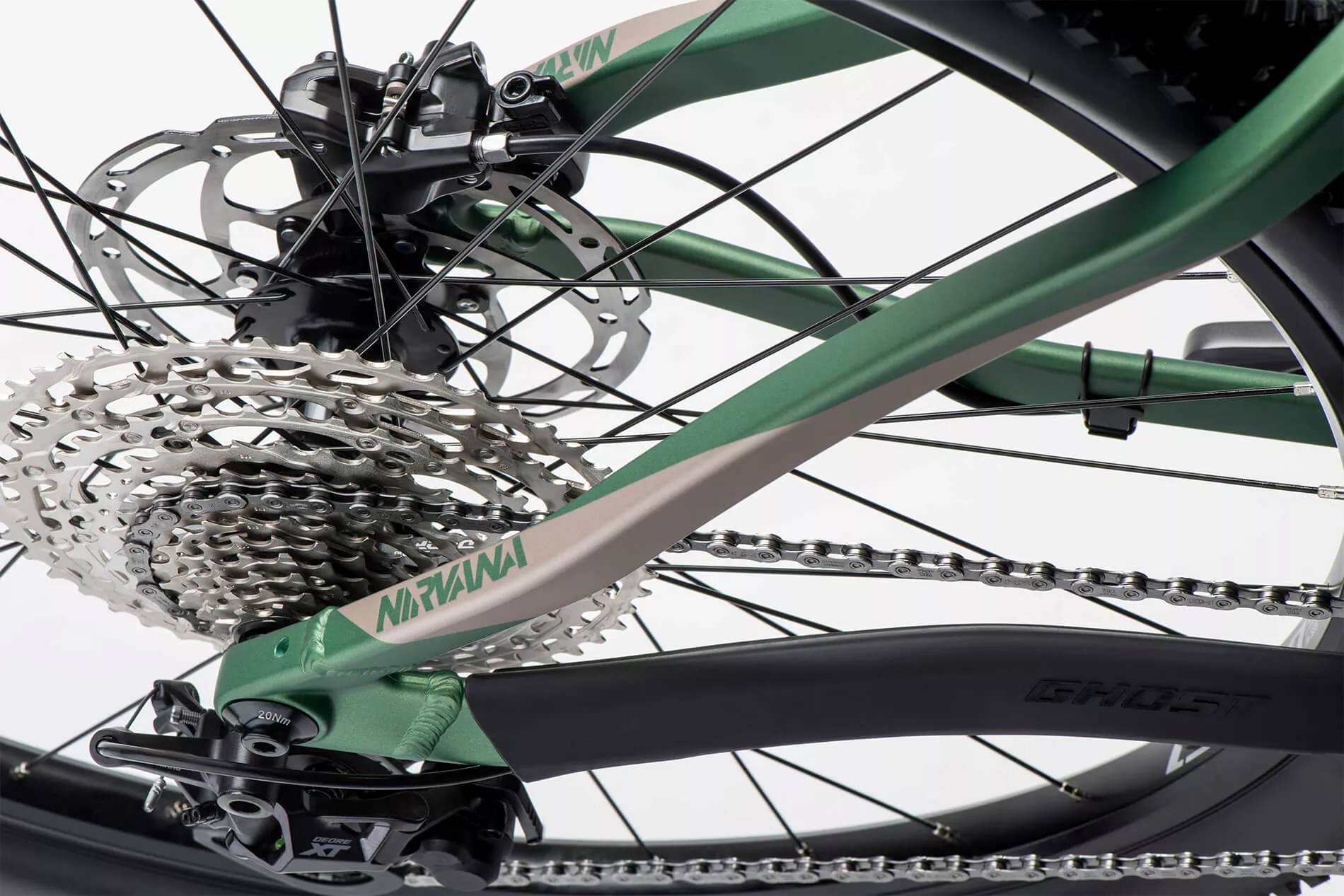

Cassette
Shimano Deore CS-M6100-12, MICRO SPLINE
Crank
Shimano FC-MT511-1, 2-Piece Crankset 170
Bottom Bracket
Shimano BSA Deore SM-BB52 68/73 mm, HOLLOWTECH II
Chain
Shimano Deore CN-M6100 12s
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, Centerlock
Rear Hub
Shimano FH-MT410-B 12x148 mm, 32H, Centerlock, MS
Rims
Schurmann YAK Disc 25-584 32H 8,5 mm Valve
Tires
WTB Ranger Comp 2.3 55-584
Brakes

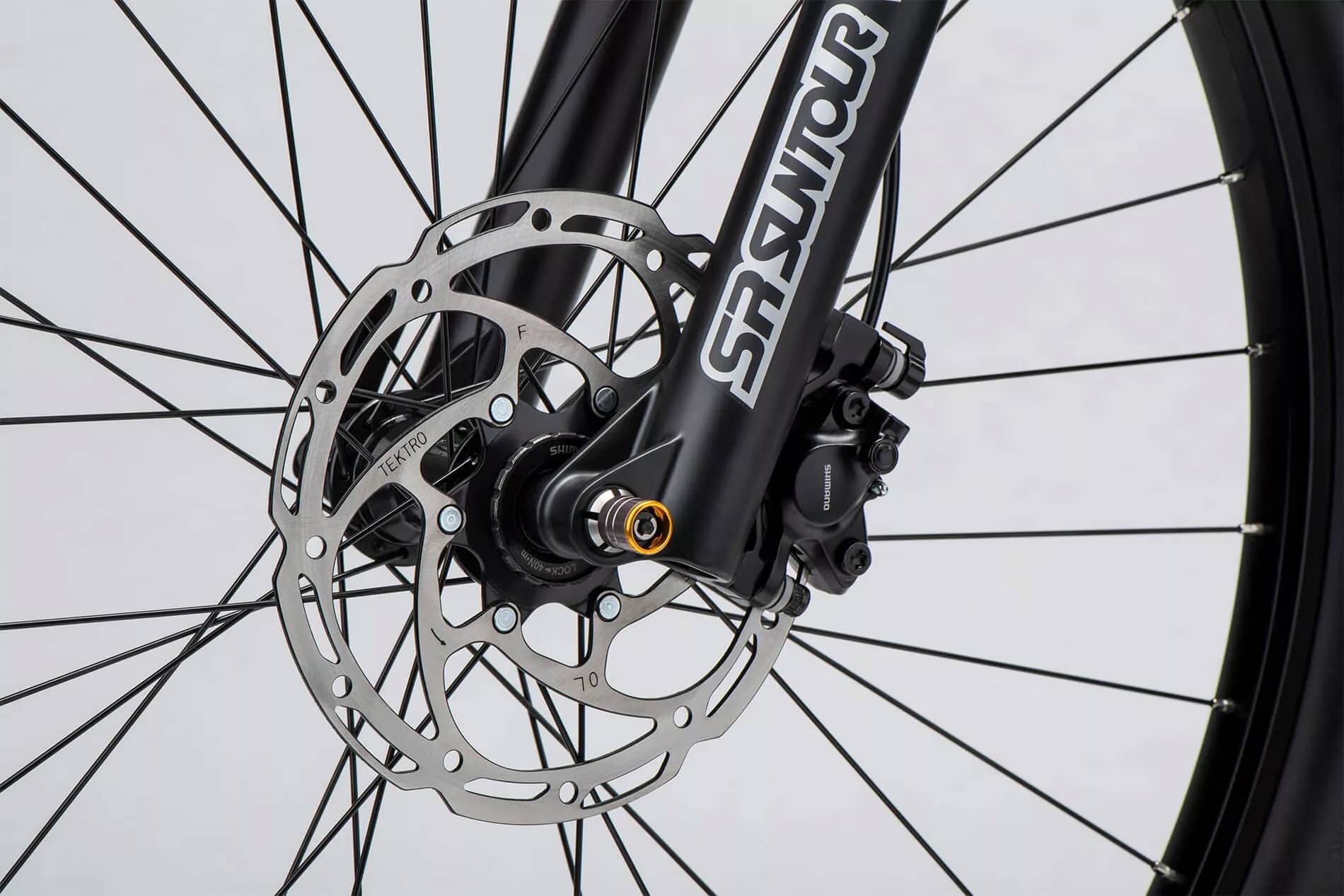

Brakes
Tektro Hydraulic Disc brake HD-M275, 2 pistons, resin pad, 180 mm
Brake Levers
Tektro HD-M275-BL
Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 45 mm, A-Head

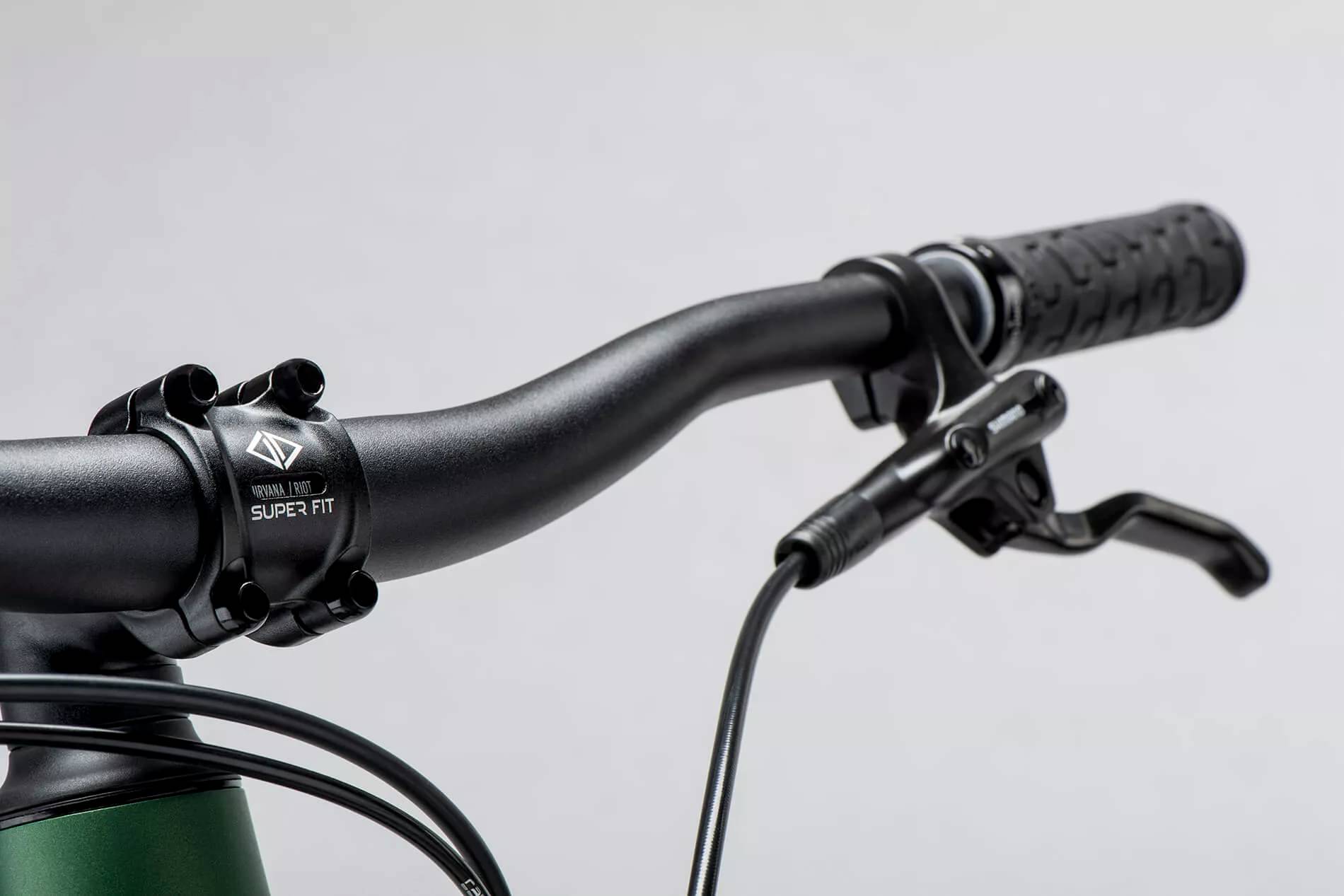

Handlebar
Ghost Flat bar GND51 Dia. 31.8 mm, Rise: 0 mm, backsweep 8°
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI11015Z ZS44/ZS56
Seat
Saddle
Selle Italia MTB Adjustable, Rail Alloy, Color: Black
Seatpost
Kalloy Non Suspension SP-FG101, Dia. 34.9 mm, L: 400 mm 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.46 mm | 1.502 mm | 1.435 mm | 1.381 mm |
| Bottom Bracket Height | 304 mm | 290 mm | 290 mm | 295 mm | 300 mm |
| Front Center | 667 mm | 696 mm | 728 mm | 763 mm | 797 mm |
| Rake | 40 mm | 47 mm | 59 mm | 58 mm | 57 mm |
| Trail | 117 mm | 96 mm | 91 mm | 92 mm | 93 mm |
| Stack | 586 mm | 609 mm | 643 mm | 656 mm | 670 mm |
| Reach | 379 mm | 417 mm | 428 mm | 457 mm | 485 mm |
| Top Tube Length | 568 mm | 592 mm | 612 mm | 645 mm | 677 mm |
| Seat Tube Angle | 72.1 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.6 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 405 mm | 405 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1067 mm | 1093 mm | 1140 mm | 1176 mm | 1212 mm |
| Bottom Bracket Drop | 51 mm | 65 mm | 84 mm | 79 mm | 74 mm |
| Standover Height | 679 mm | 699 mm | 717 mm | 735 mm | 756 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 165 cm | 173 cm | 181 cm | 189 cm | 198 cm |
