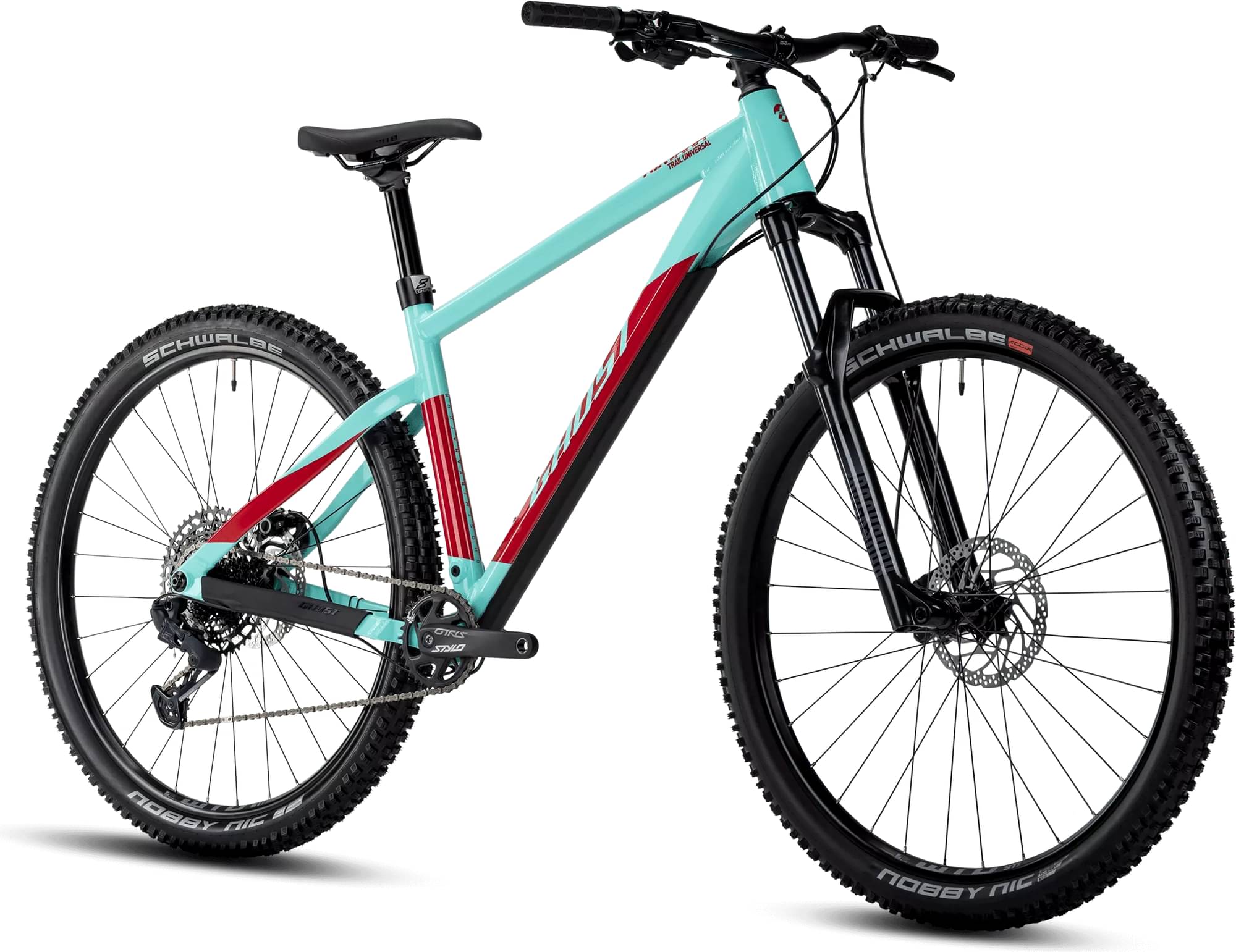

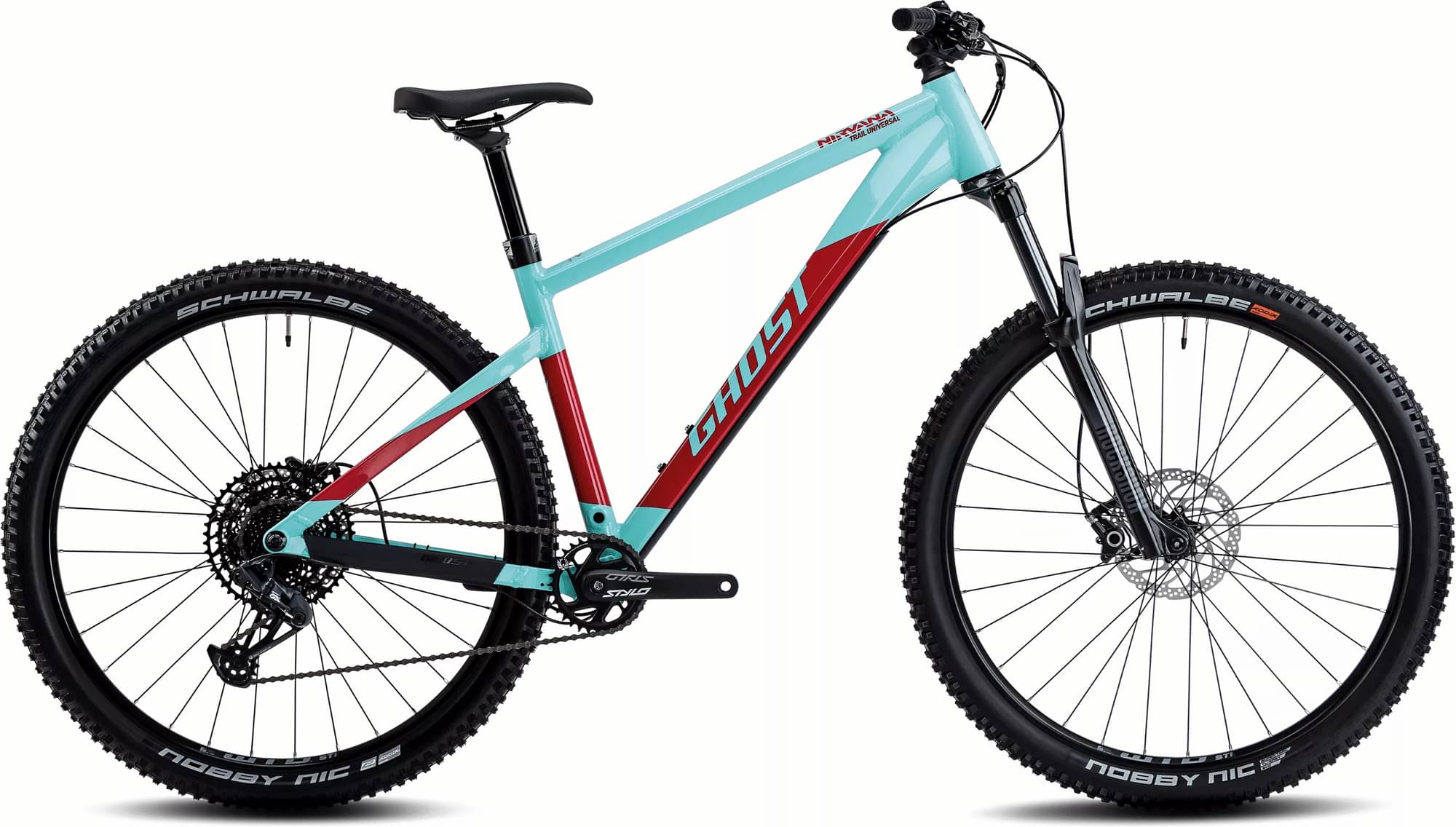

Ghost NIRVANA TRAIL UNIVERSAL 2025
2025 Mountain
Estimate price |
2,063$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset GX Eagle, SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components

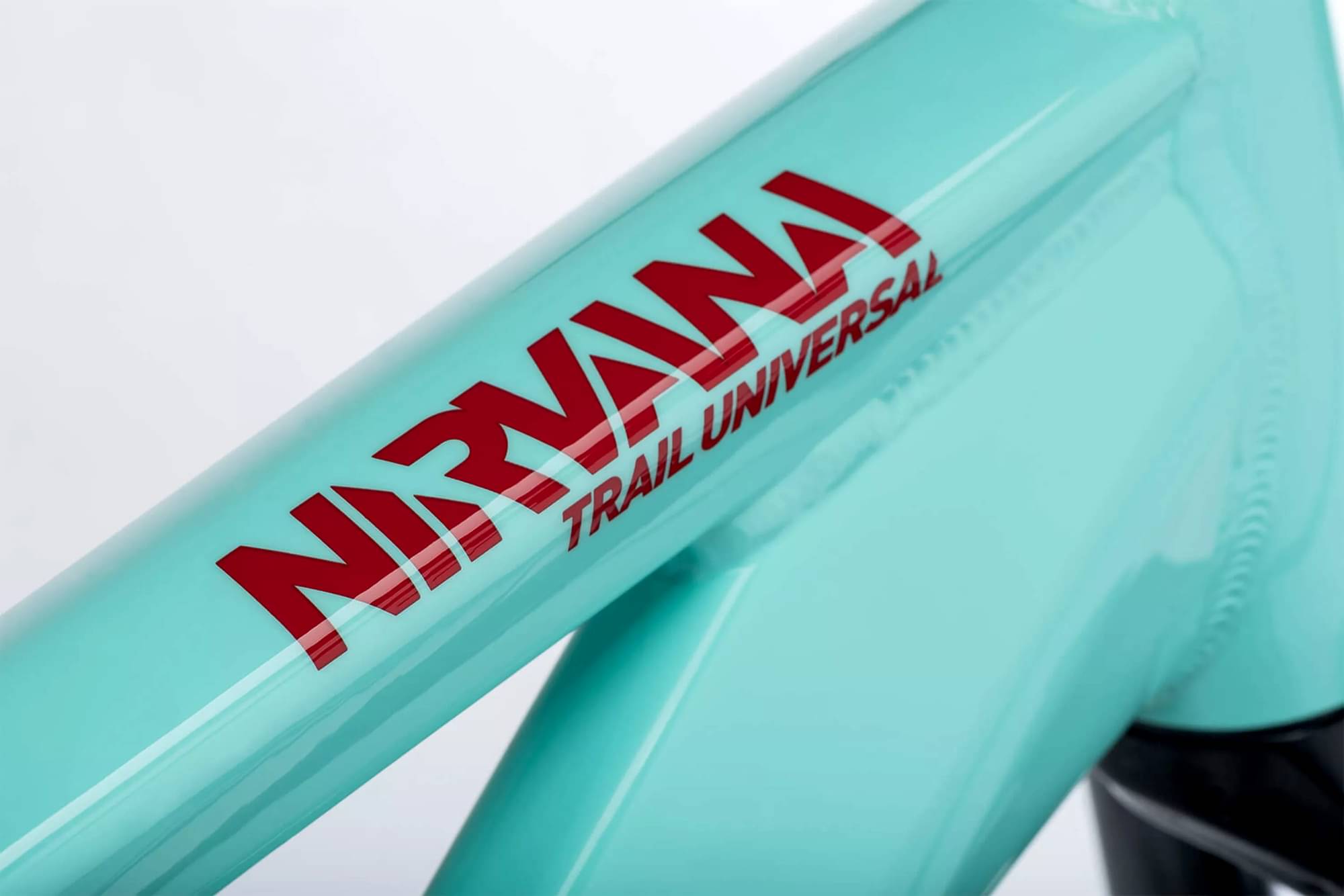

Frame
Frame
HIGH Aluminium Uni

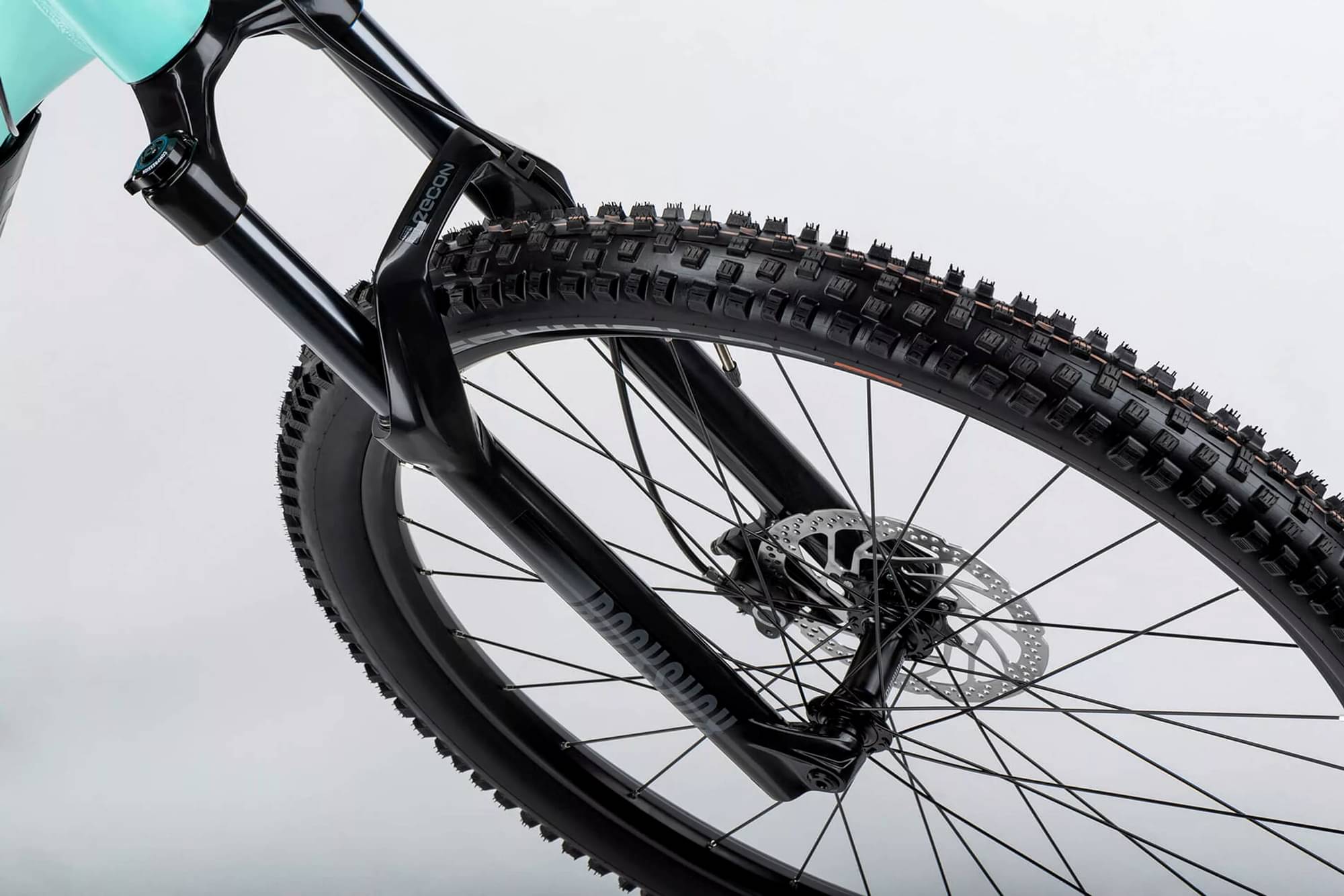

Suspension Fork
Rockshox Recon Silver RL, Solo Air, Crown Adjust. 140 mm

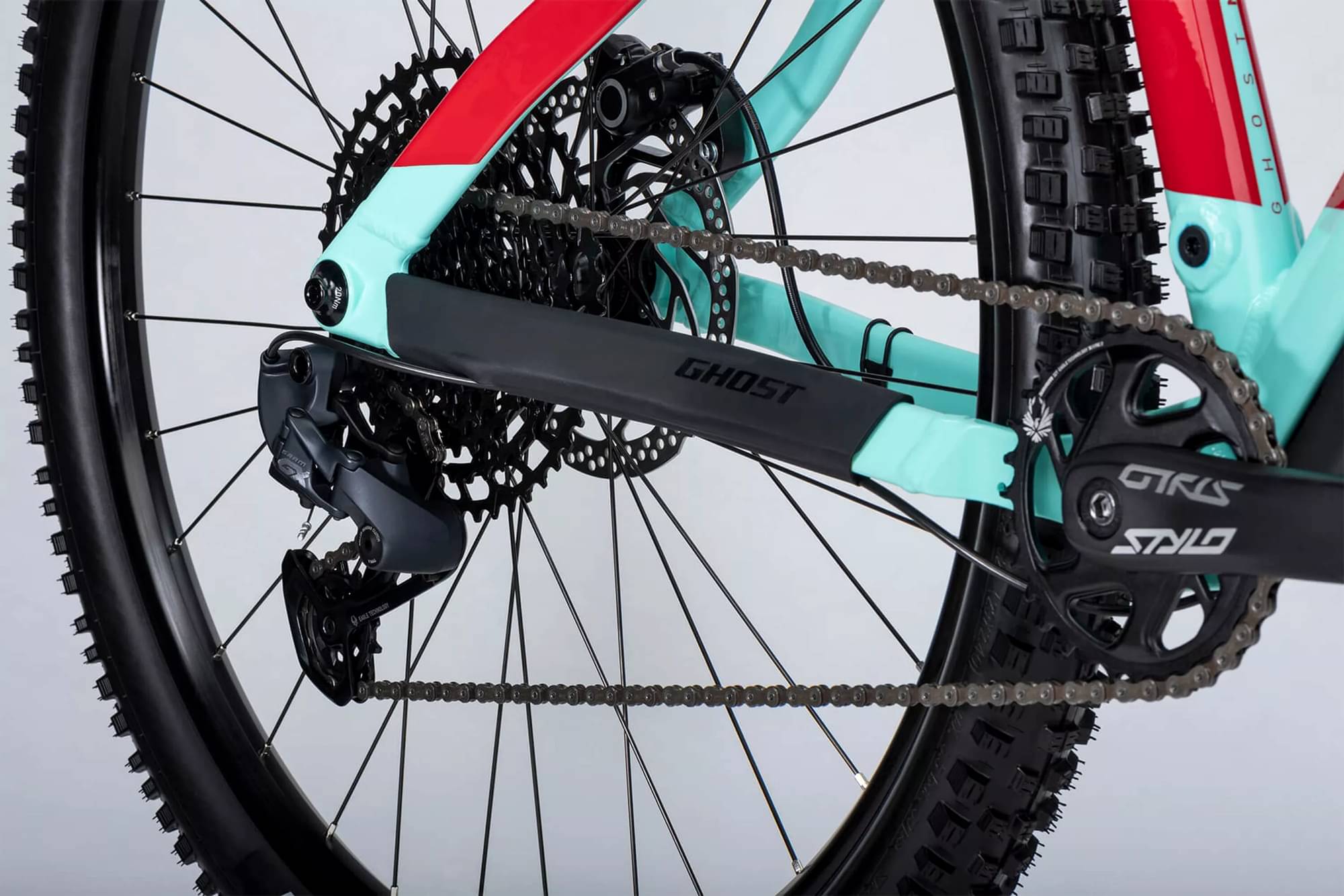

Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM Triggershift SX Eagle Trigger
Cassette
SRAM PG-1210 Eagle, HG
Crank
Truvativ FC Stylo 6K Eagle Boost, Power Spline, DM 170
Bottom Bracket
SRAM BSA Power Spline 118/73
Chain
SRAM SX Eagle 12s
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, Centerlock
Rear Hub
Shimano FH-TC600-HM-B 12x148 mm, 32H, Centerlock, HG
Rims
WTB ST i25 TCS 2.0 29" 32H
Tires
Schwalbe Nobby Nic, Super Trail, ADDIX Soft, 50EPI 62-622

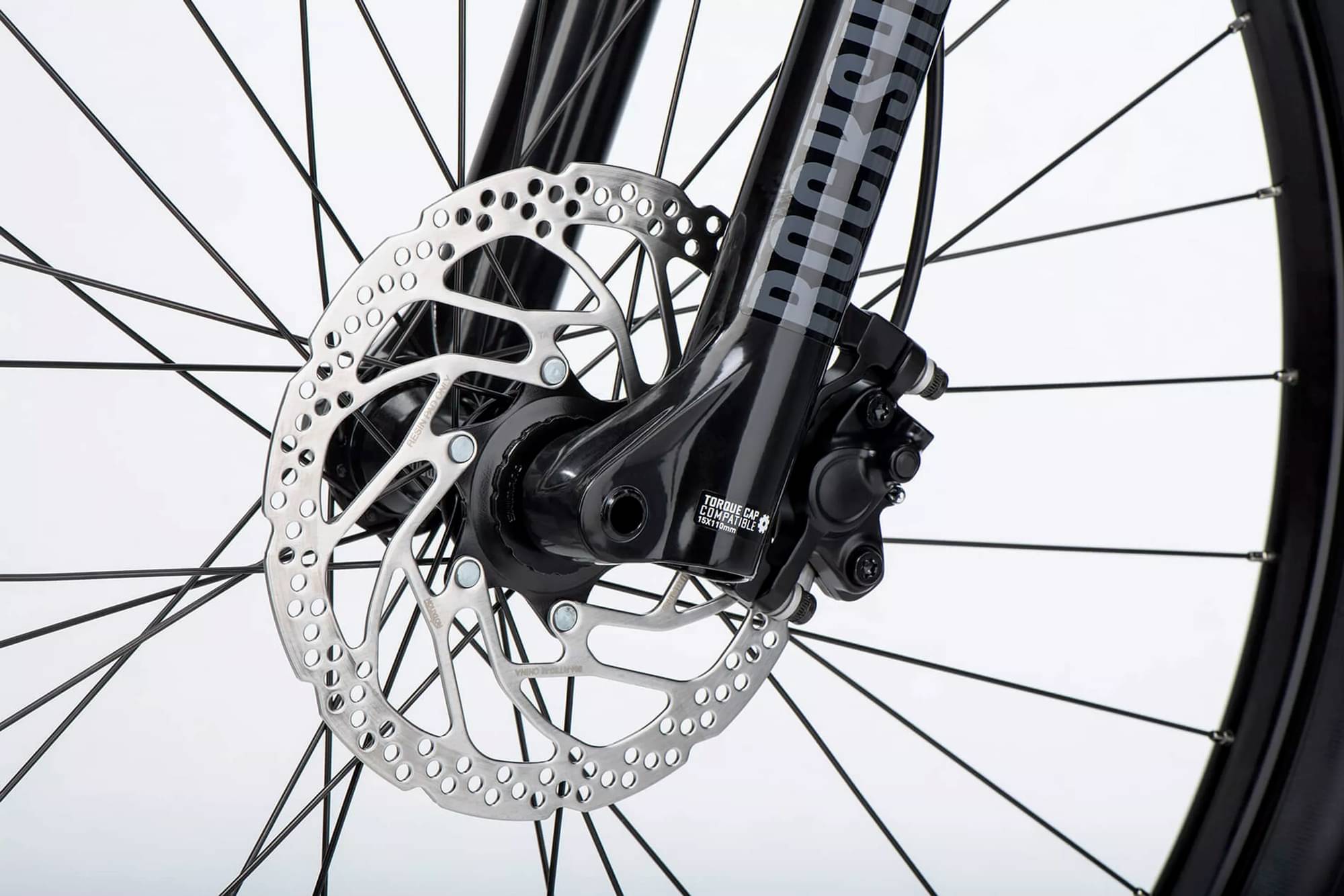

Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-MT410, 2 pistons, resin pad, 180 mm
Brake Levers
Shimano BL-MT401
Cockpit
Stem
Ghost Not Adjustable Ground Fiftyone Dia. 31.8 mm, L: 45 mm, A-Head
Handlebar
Ghost Riser Bar GND51 Dia. 31.8 mm, Rise: 20 mm, backsweep 8°
Headset
Glory Wheel Semi-integrated Strummer Headset, 1SI11015Z ZS44/ZS56

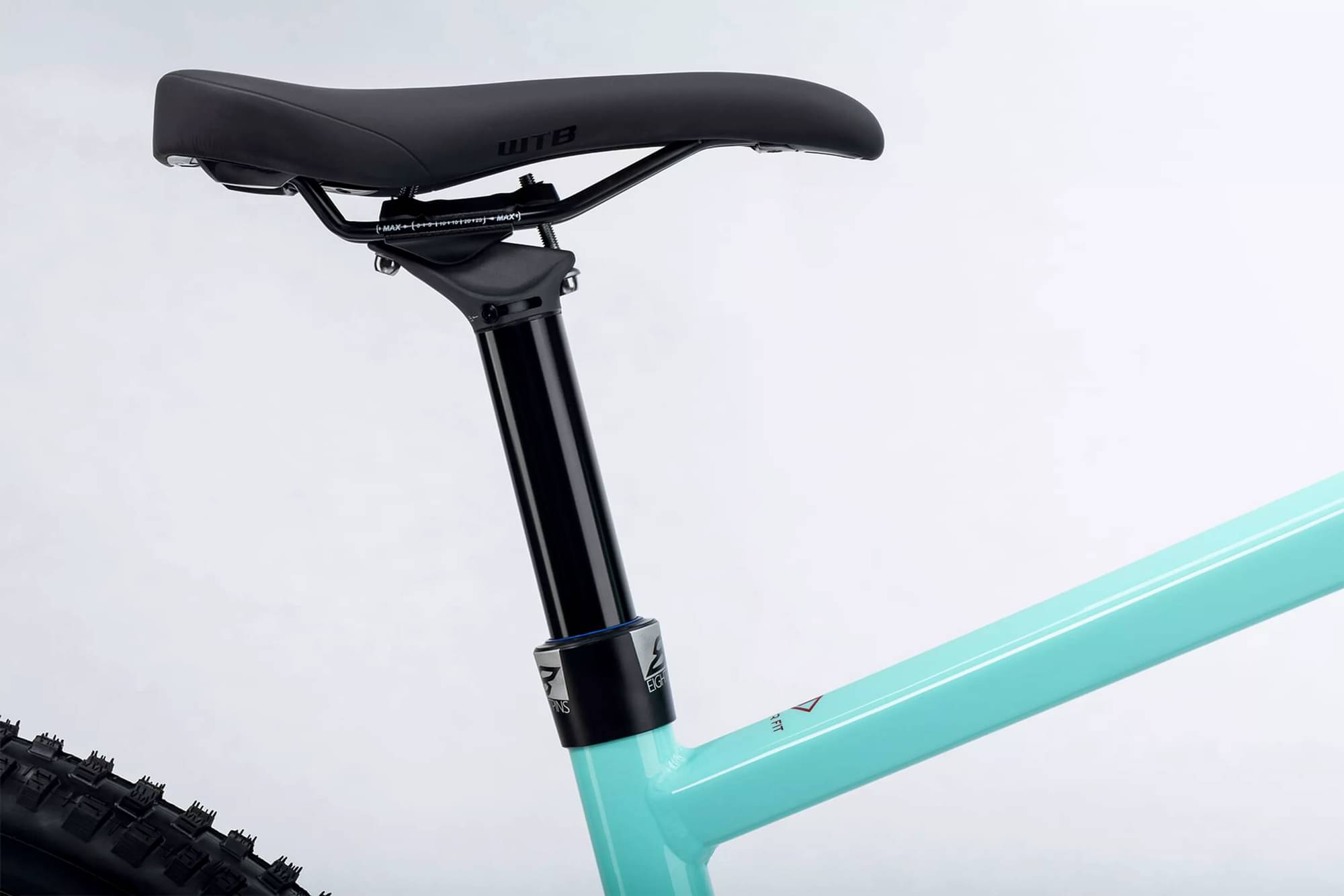

Seat
Saddle
WTB MTB Volt Medium Steel 142x265 mm
Seatpost
Eightpins Dropperpost H01 Hydraulic, telescope, Dia. 34.9 mm, 6X-M
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.463 mm | 1.465 mm | 1.418 mm |
| Bottom Bracket Height | 297 mm | 303 mm | 308 mm | 308 mm |
| Front Center | 729 mm | 761 mm | 798 mm | 834 mm |
| Rake | 46 mm | 56 mm | 56 mm | 56 mm |
| Trail | 108 mm | 105 mm | 105 mm | 105 mm |
| Stack | 618 mm | 645 mm | 677 mm | 695 mm |
| Reach | 427 mm | 441 mm | 462 mm | 490 mm |
| Top Tube Length | 580 mm | 600 mm | 629 mm | 659 mm |
| Seat Tube Angle | 76.1 ° | 76.2 ° | 76.1 ° | 76.3 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 405 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1128 mm | 1177 mm | 1215 mm | 1251 mm |
| Bottom Bracket Drop | 58 mm | 71 mm | 66 mm | 66 mm |
| Standover Height | 710 mm | 728 mm | 764 mm | 784 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 201 cm |
