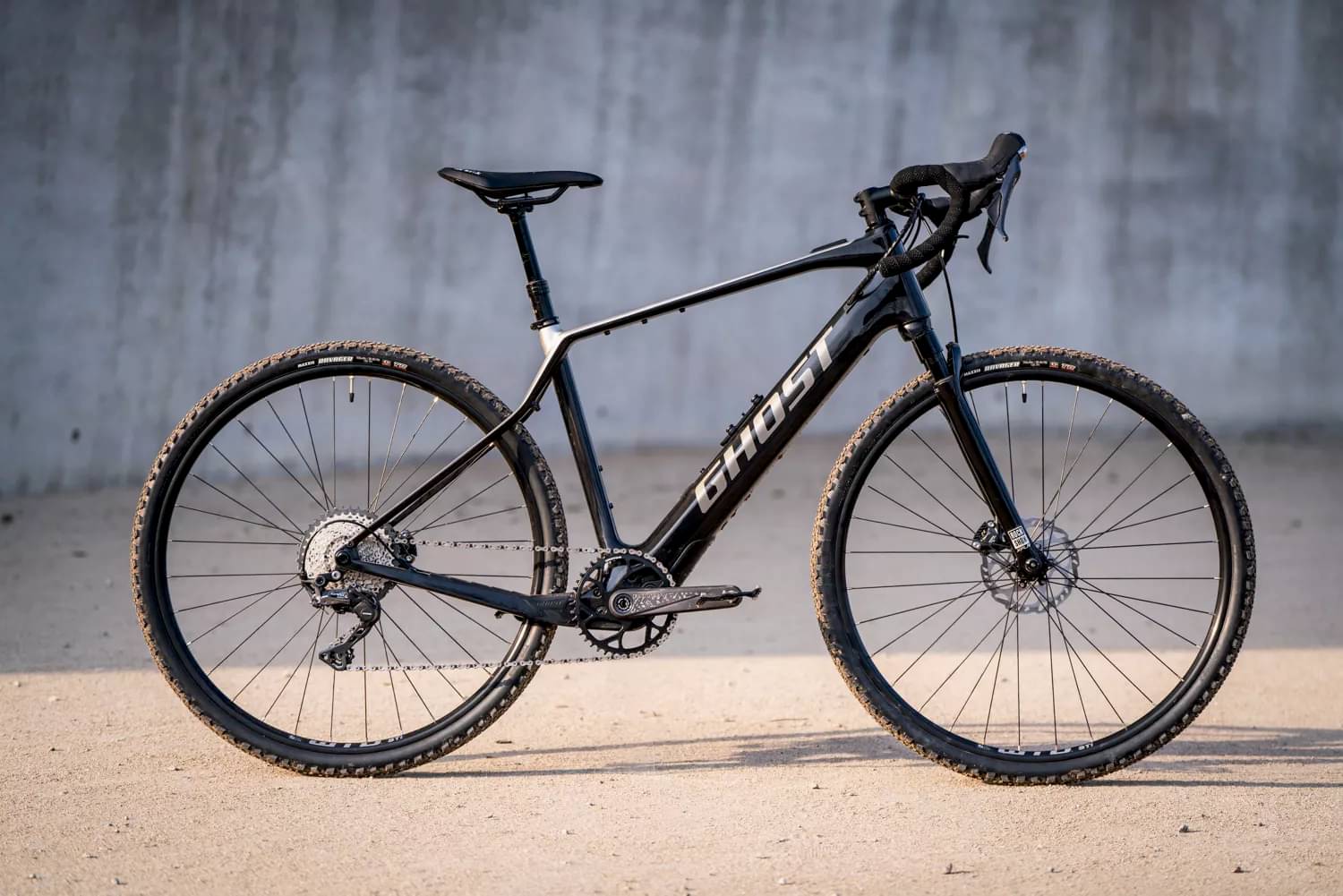

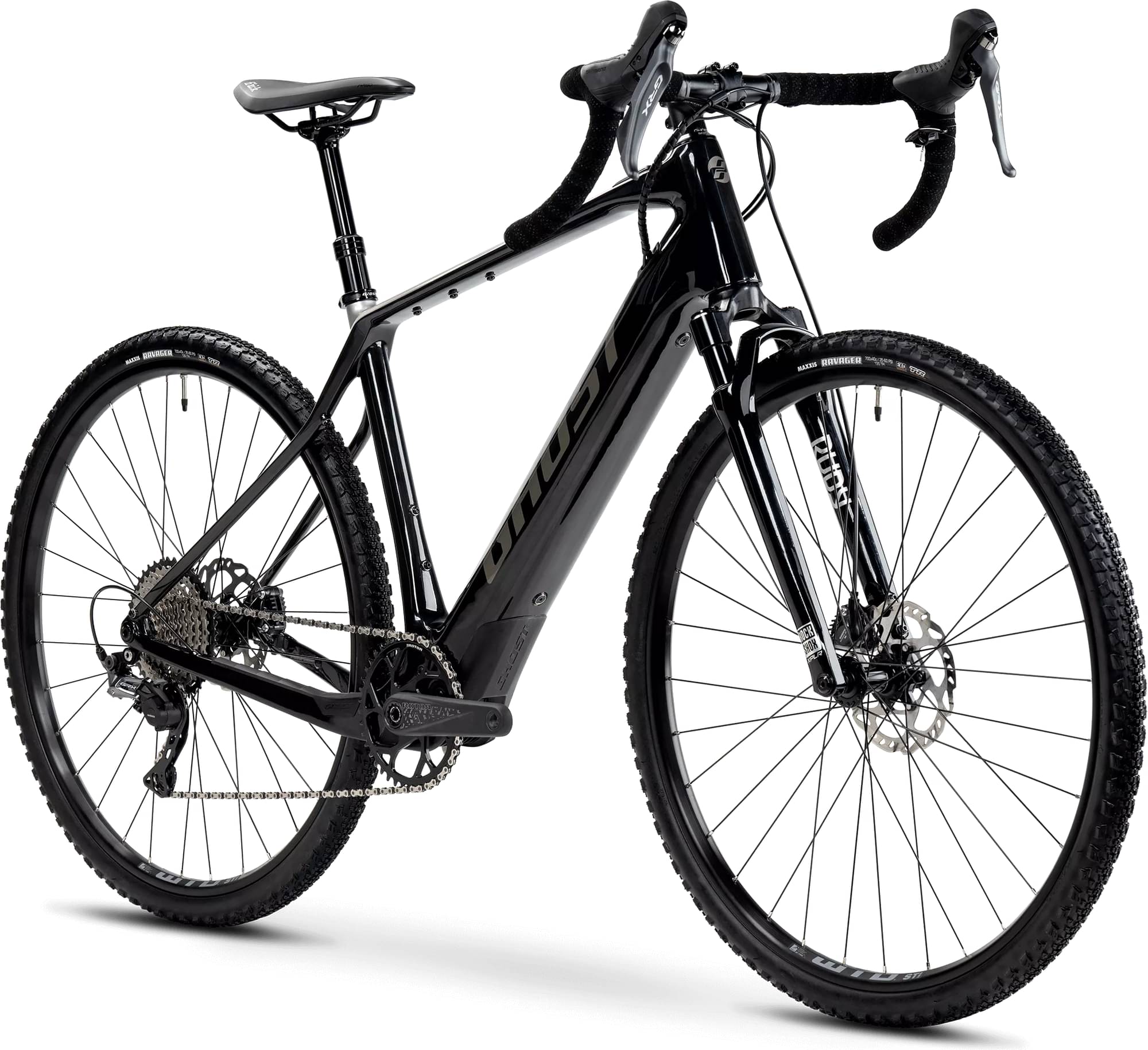

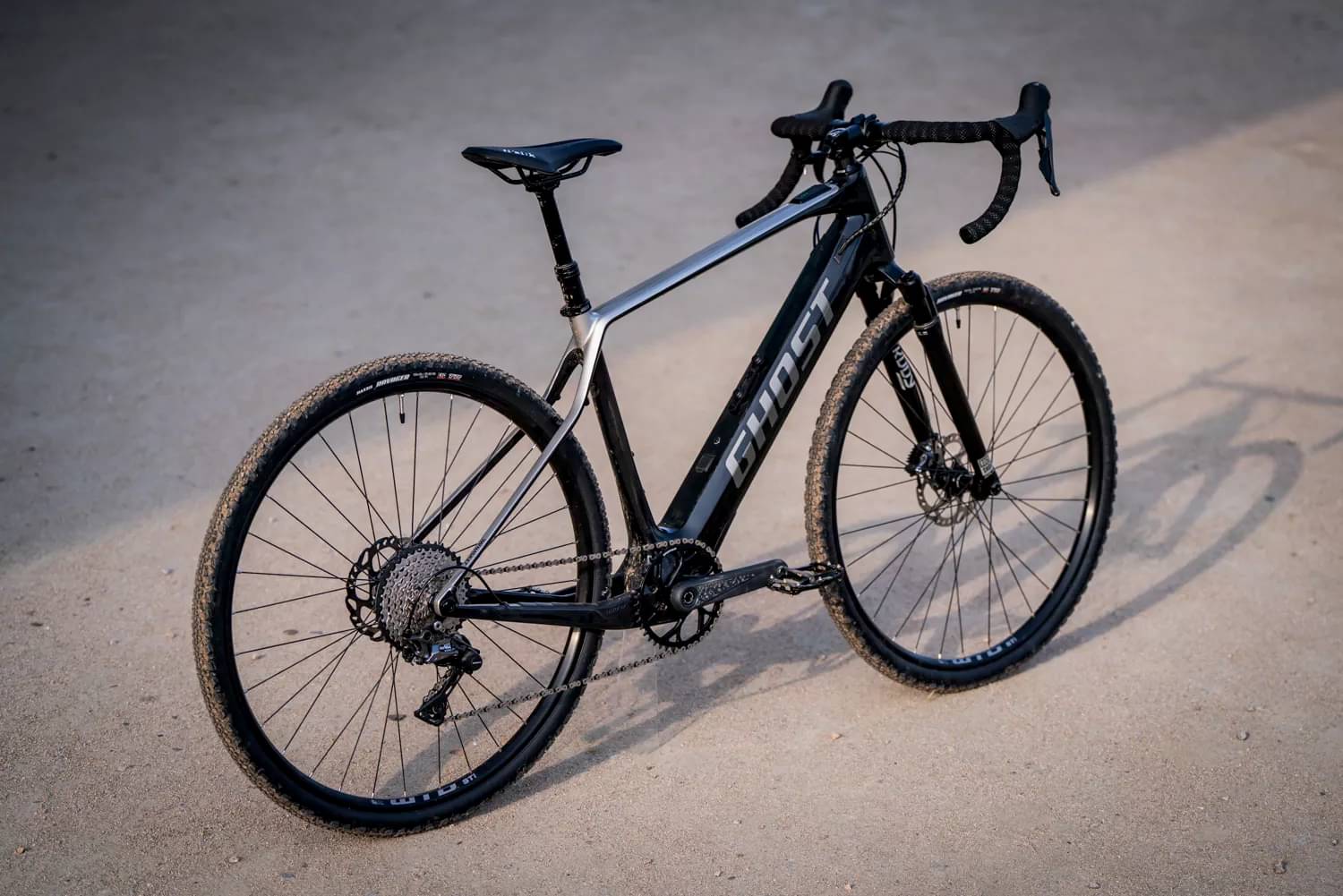

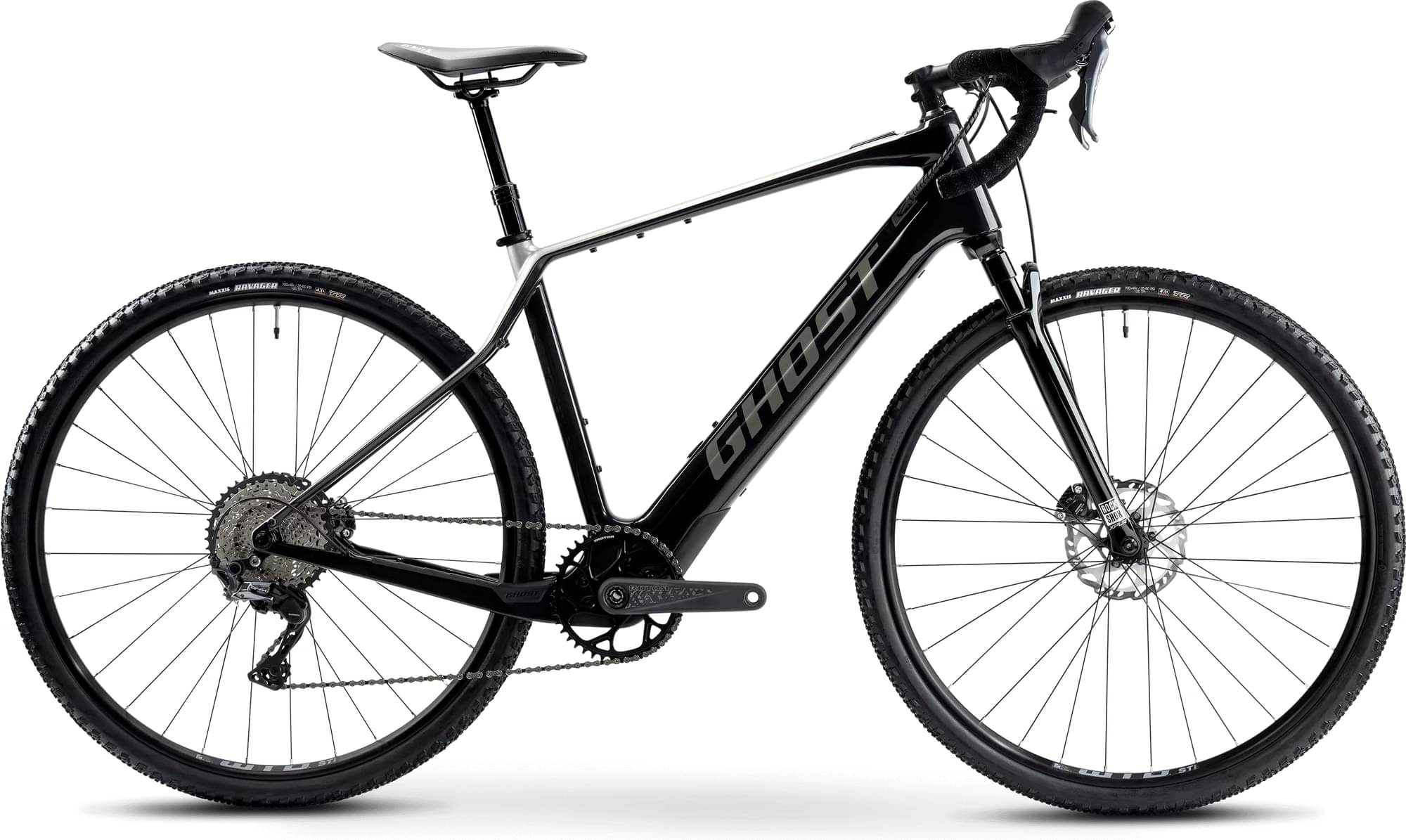

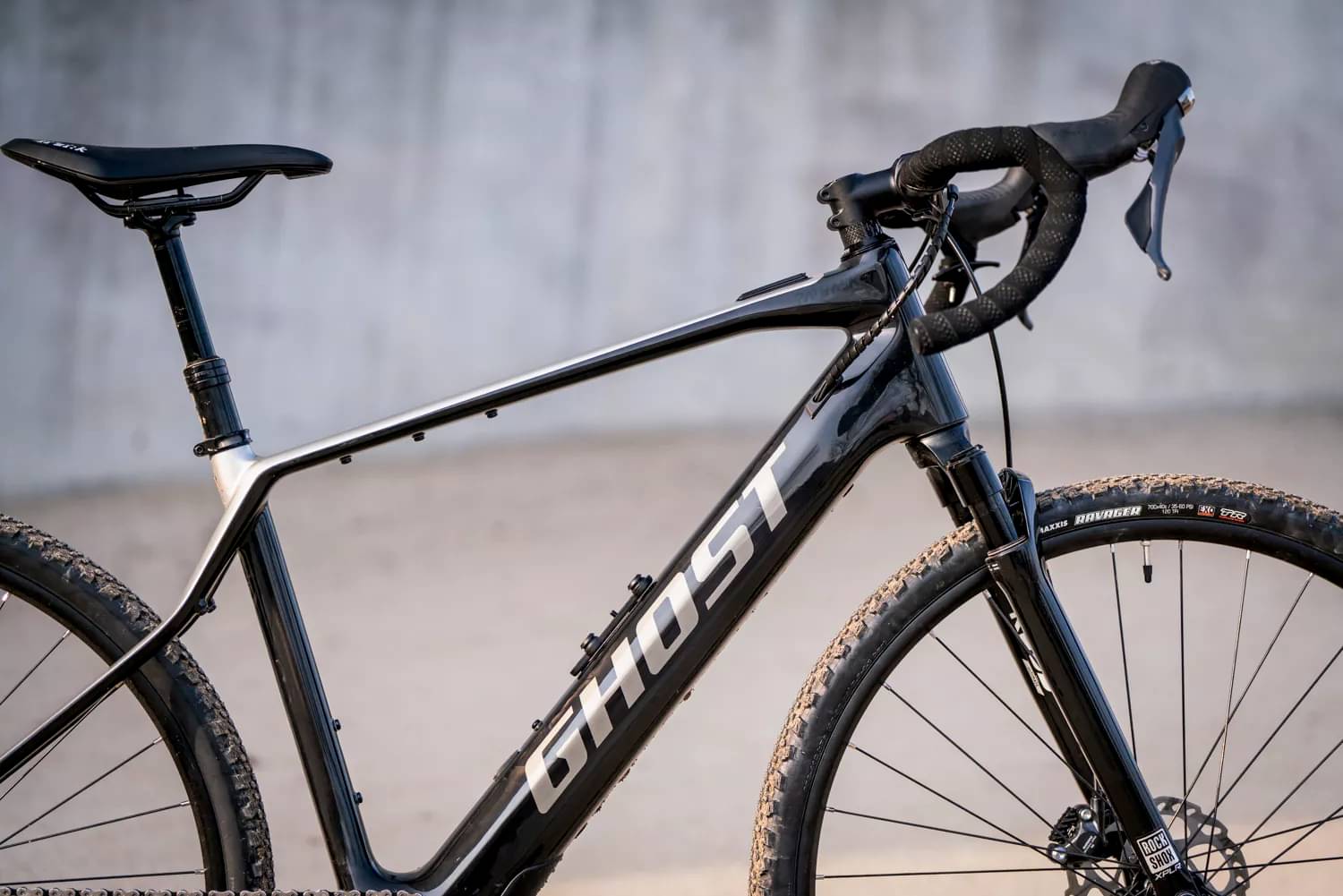

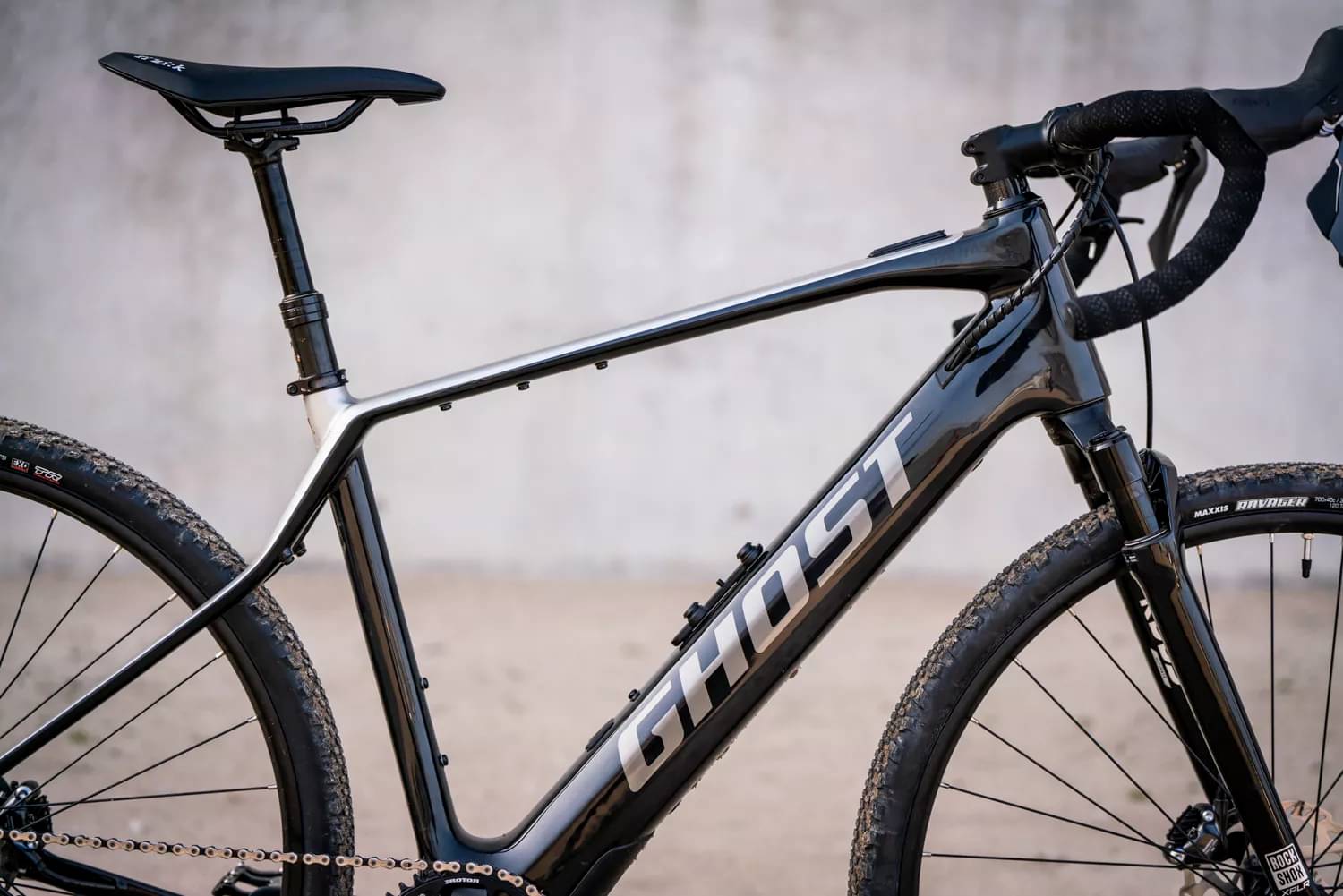

Ghost Path Asket Advanced 2024
2024 E-bike
Estimate price |
7,212$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset GRX 800 -
Suspension Hardtail -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy Fix 430 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
168cm - 178cm
LG
176cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PATH ASKET LC
Suspension Fork
Rock Shox Rudy Base 40 mm

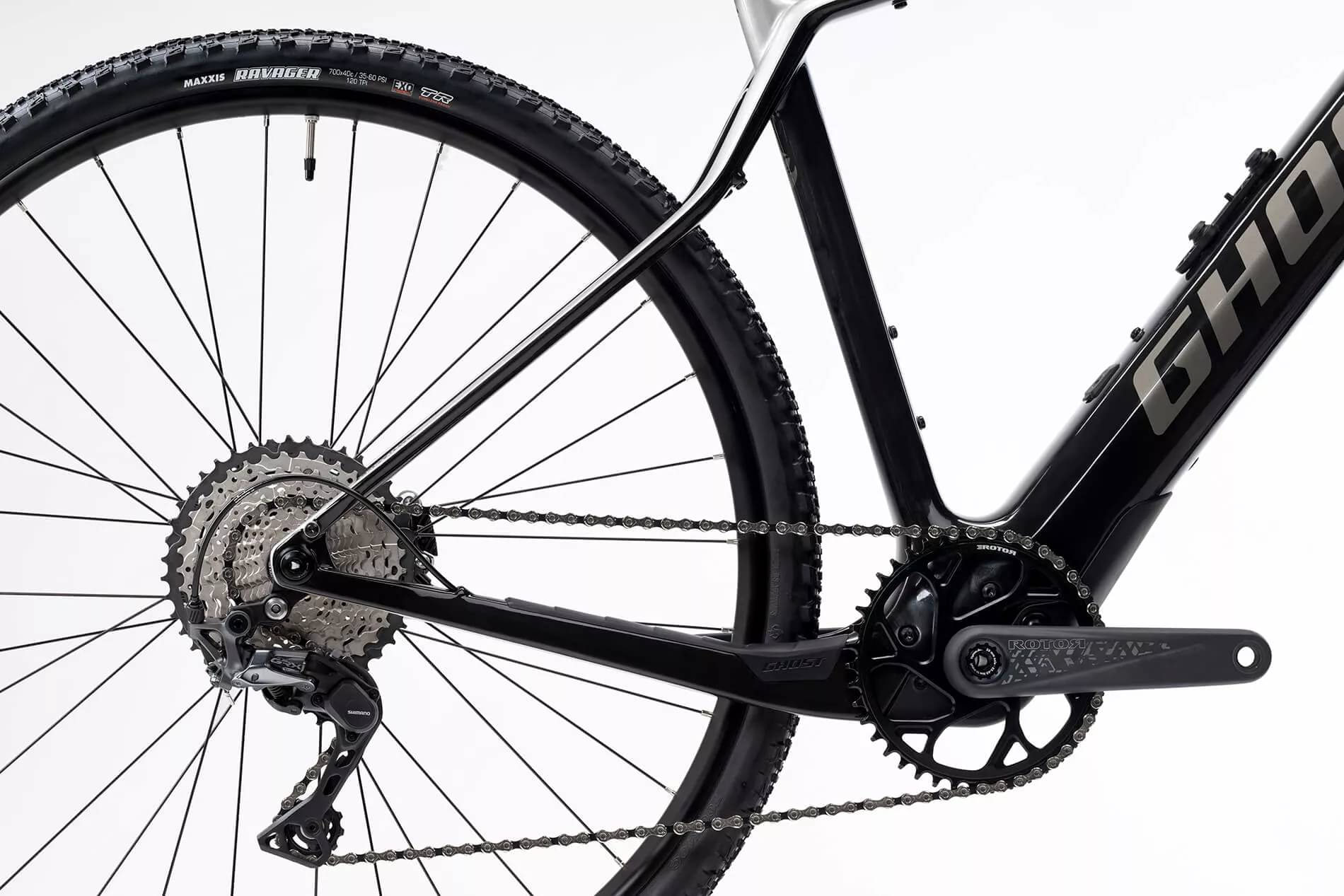

Drivetrain
Rear Derailleur
Shimano GRX RD-RX812 11-S
Cassette
Shimano XT CS-M8000 11-42
Crank
Rotor 42T
Chain
KMC X11
Wheels
Rims
Front: WTB ST i25, Rear: WTB ST i25
Tires
Front: Maxxis Ravager Exo TR 40-622, Rear: Maxxis Ravager Exo TR 40-622
Brakes
Brakes
Shimano GRX BR-RX810 160 mm Disc
Brake Levers
Shimano GRX ST-RX810

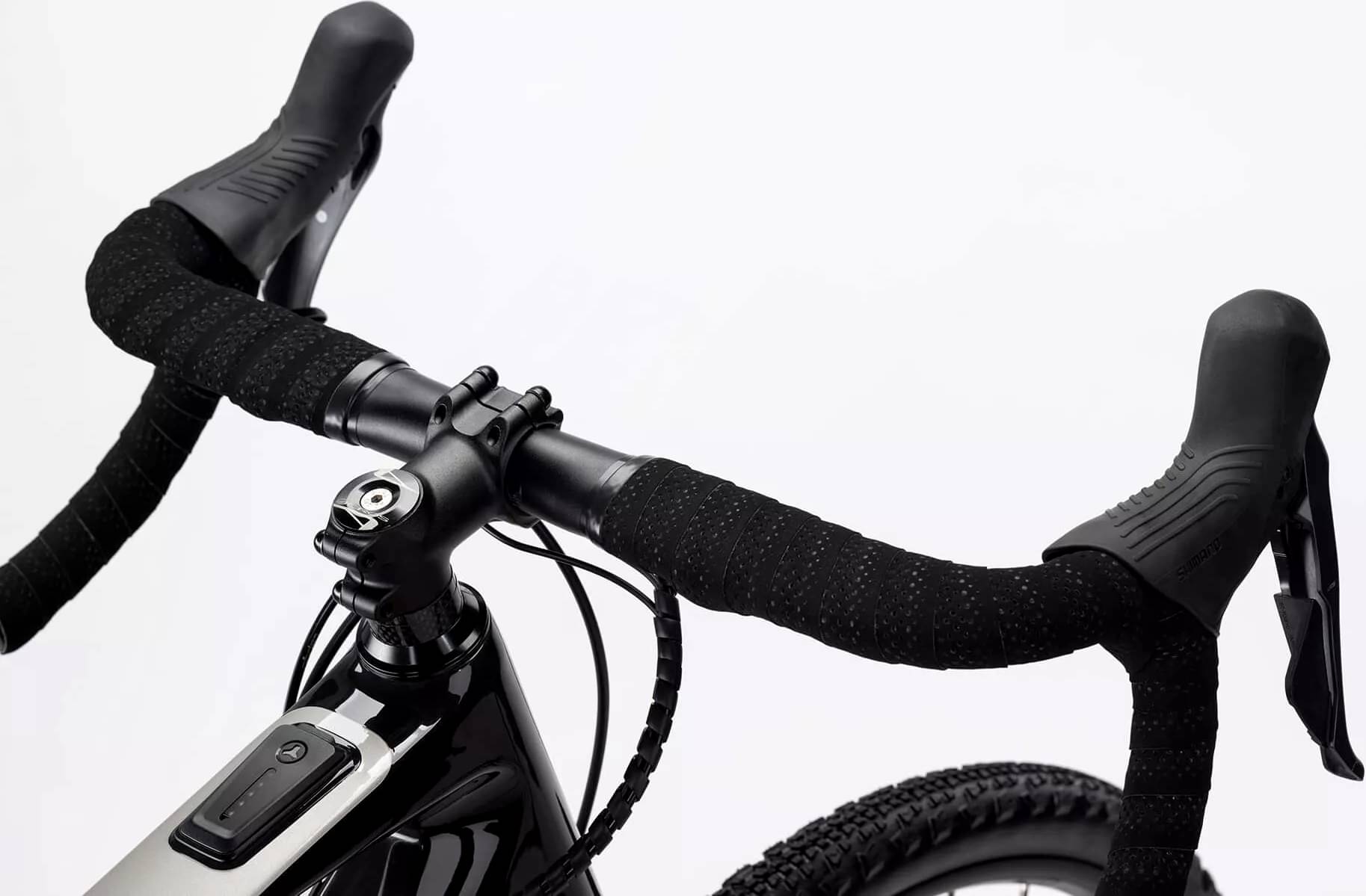

Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Gravel Bar RA120A 440 mm (S) 460 mm (M) 480 mm (L) 500 mm (XL)
Grips
Fizik Tempo Bondcrush
Seat

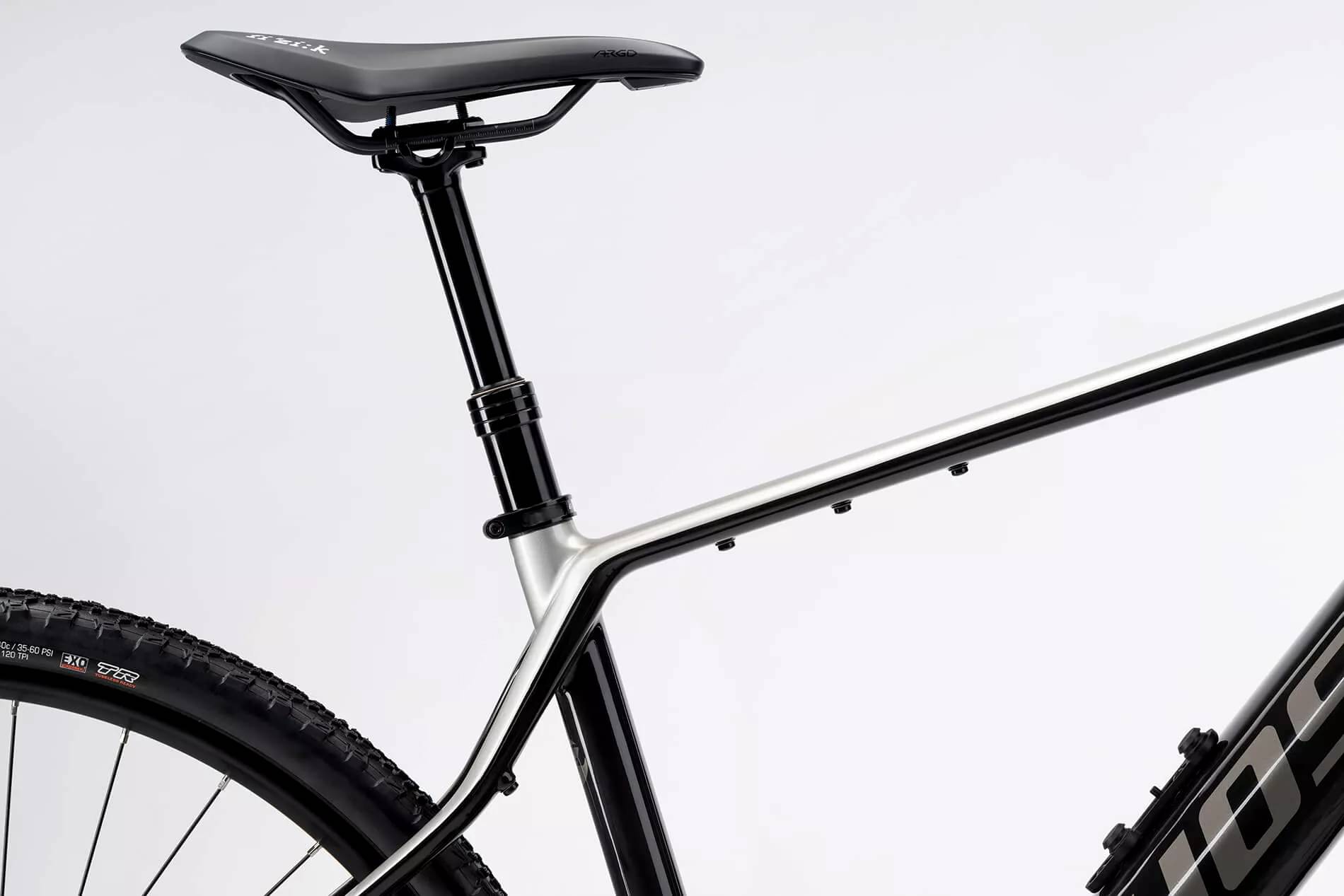

Saddle
Selle Royal SRX
Seatpost
JD YSP15DL 31.6 mm 100 mm (S/M) 125 mm (L/XL)
Motor & Battery
Motor
Fazua Ride 60

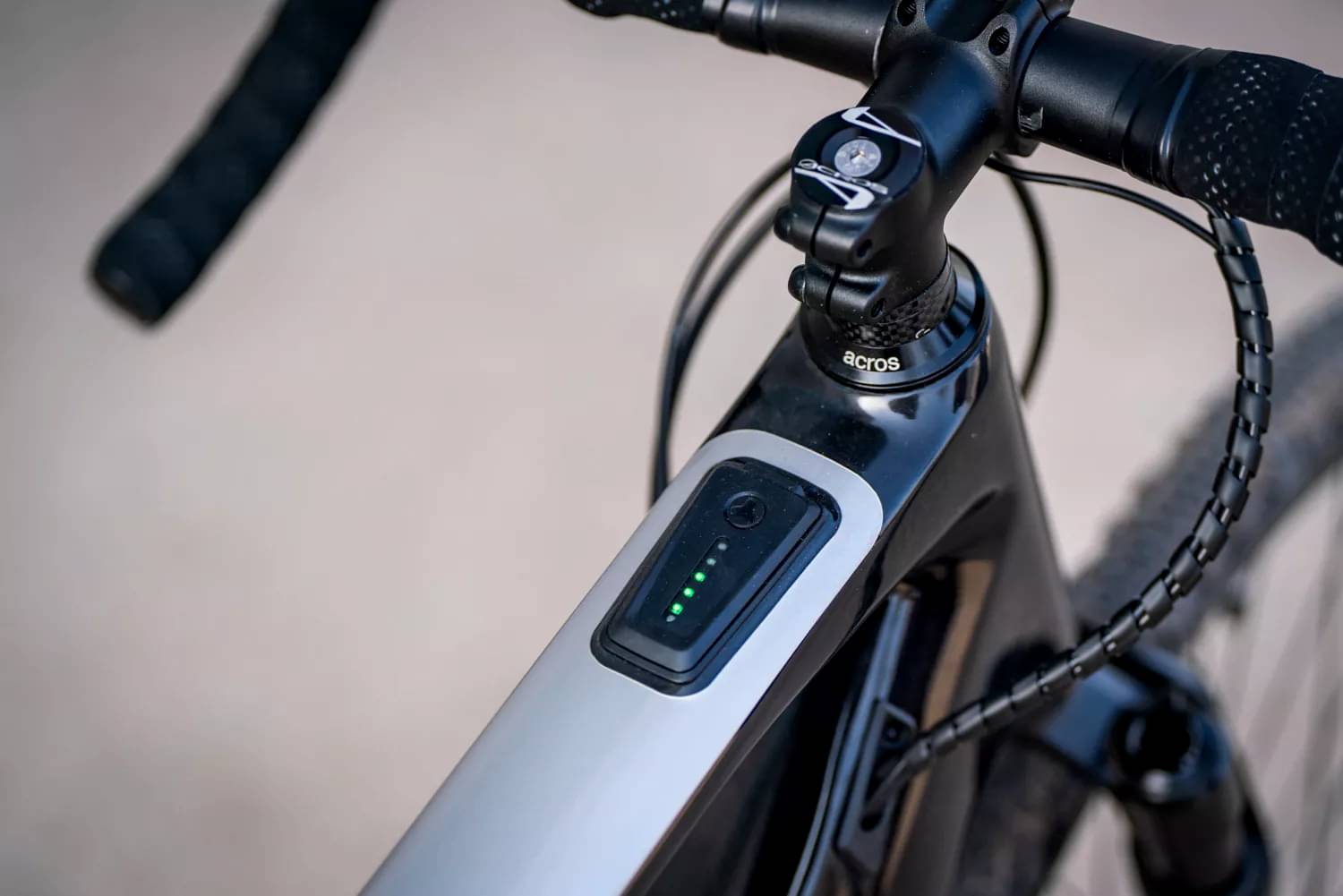

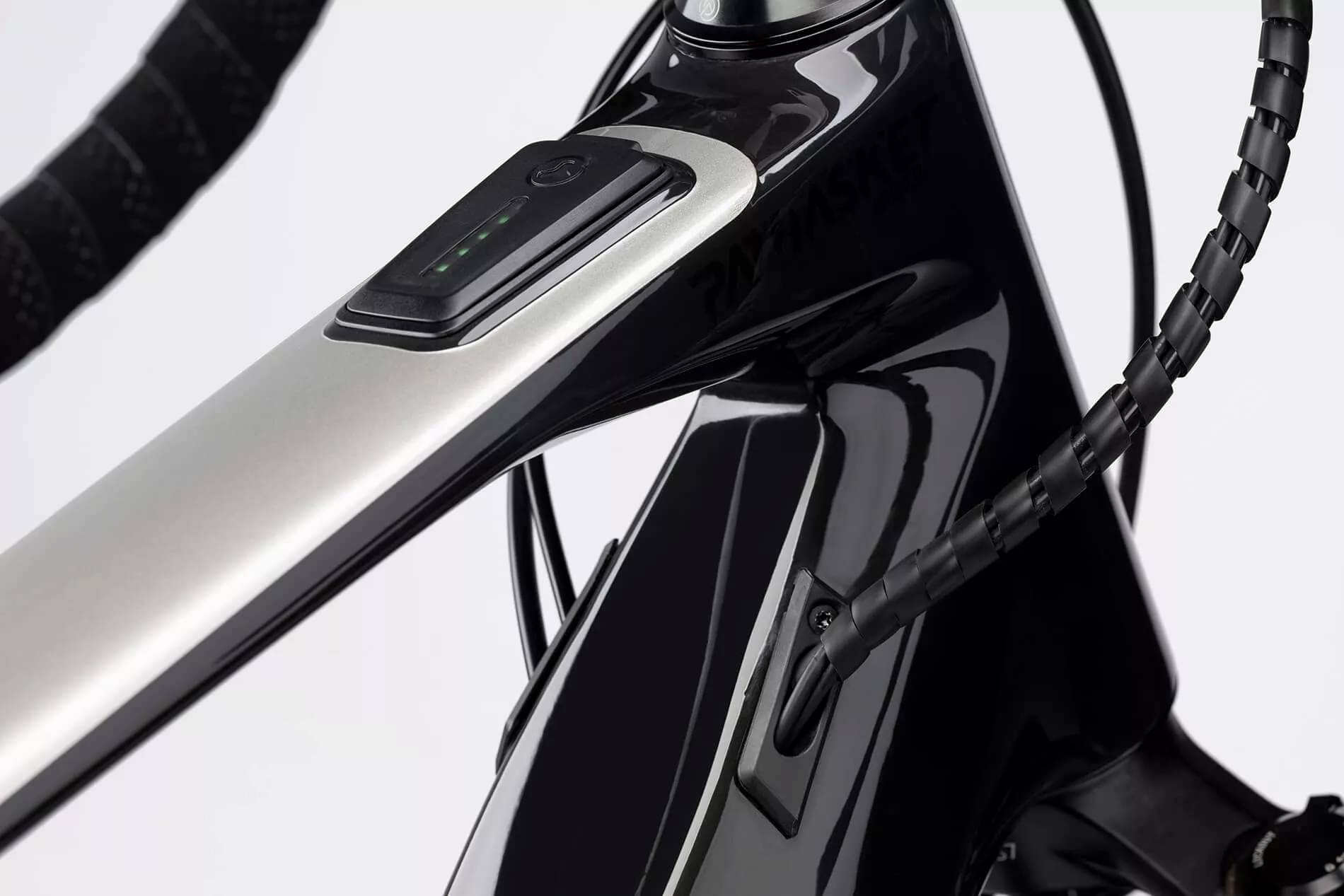

Battery
Fazua Energy Fix 430 Wh
Charger
Fazua Charger 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.507 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 284 mm | 284 mm |
| Front Center | 647 mm | 669 mm | 697 mm | 719 mm |
| Rake | 56 mm | 56 mm | 56 mm | 55 mm |
| Trail | 69 mm | 67 mm | 65 mm | 65 mm |
| Stack | 586 mm | 615 mm | 639 mm | 669 mm |
| Reach | 394 mm | 408 mm | 429 mm | 443 mm |
| Top Tube Length | 564 mm | 588 mm | 616 mm | 640 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 440 mm | 480 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.8 ° | 70 ° | 70.3 ° | 70.5 ° |
| Head Tube Length | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 445 mm | 450 mm | 455 mm | 460 mm |
| Wheelbase | 1083 mm | 1110 mm | 1144 mm | 1171 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 65 mm | 65 mm |
| Standover Height | 720 mm | 760 mm | 780 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 159 cm | 168 cm | 176 cm | 184 cm |
| Rider Max Height | 170 cm | 178 cm | 186 cm | 195 cm |
