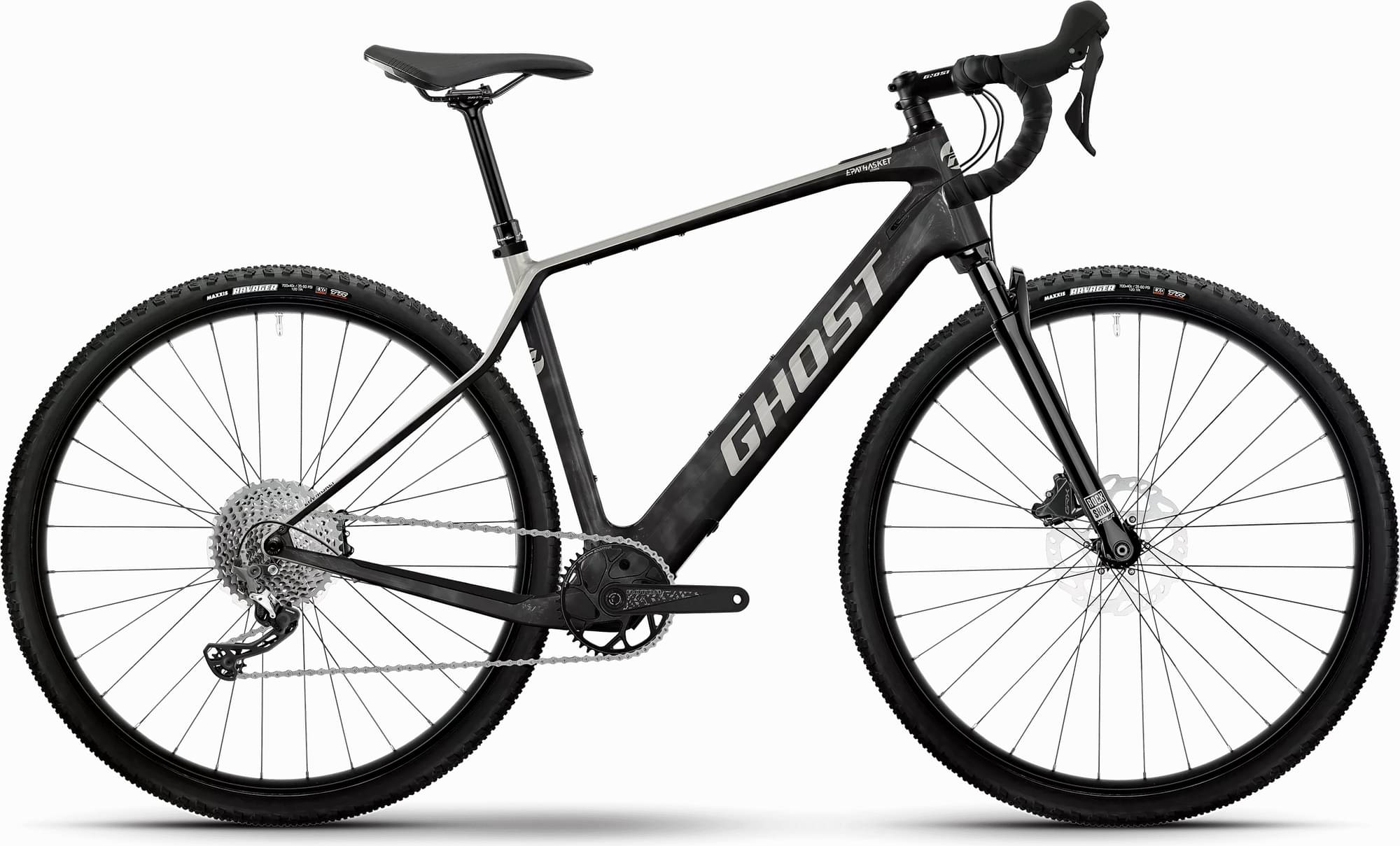

Ghost PATH ASKET ADVANCED 2025
2025 E-bike
Estimate price |
7,212$
Weight | 14.74 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset GRX 800 -
Suspension Hardtail -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 480 Wh, Location: Powertube -
Drivetrain 1 × 11 -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
168cm - 178cm
LG
176cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Carbon Uni
Suspension Fork
Rockshox Rudy Base 40 mm
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812 11s, Shadow+
Shift Levers
Shimano Shift-brake lever GRX ST-RX810
Cassette
Shimano Deore XT CS-M8000-11, HG
Crank
Ghost Rotor crank set for Fazua 170
Chain
KMC X11
Wheels
Front Hub
Shimano HB-RS470 12x100 mm
Rear Hub
Shimano FH-MT400-B 12x148 mm
Rims
WTB ST i25 TCS 2.0
Tires
Maxxis Ravager Exo TR 40-622
Brakes
Brakes
Shimano Hydraulic Disc brake GRX BR-RX810, 160 mm
Brake Levers
Shimano GRX ST-RX810
Cockpit
Stem
Ghost Dia. 31.8 mm, L: 60 mm
Handlebar
JD Drop bar Gravel Bar RA120A
Headset
Acros Semi-integrated AZX-203 R4, ZS44/56 ALU BLACK
Seat
Saddle
Selle Royal Gravel SRX
Seatpost
JD Dropperpost YSP15DL, Dia. 31.6 mm, Travel: 100 mm
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 480 Wh, Location: Powertube
Charger
Fazua Charger 3A, 230V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.507 mm | 1.49 mm | 1.51 mm |
| Front Center | 647 mm | 669 mm | 697 mm | 719 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 69 mm | 67 mm | 65 mm | 65 mm |
| Stack | 586 mm | 615 mm | 639 mm | 669 mm |
| Reach | 394 mm | 408 mm | 429 mm | 443 mm |
| Top Tube Length | 564 mm | 588 mm | 616 mm | 640 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 440 mm | 480 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.8 ° | 70 ° | 70.3 ° | 70.5 ° |
| Head Tube Length | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 445 mm | 450 mm | 455 mm | 460 mm |
| Wheelbase | 1083 mm | 1110 mm | 1144 mm | 1171 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 65 mm | 65 mm |
| Standover Height | 720 mm | 760 mm | 780 mm | 820 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 168 cm | 176 cm | 184 cm |
| Rider Max Height | 170 cm | 178 cm | 186 cm | 195 cm |
