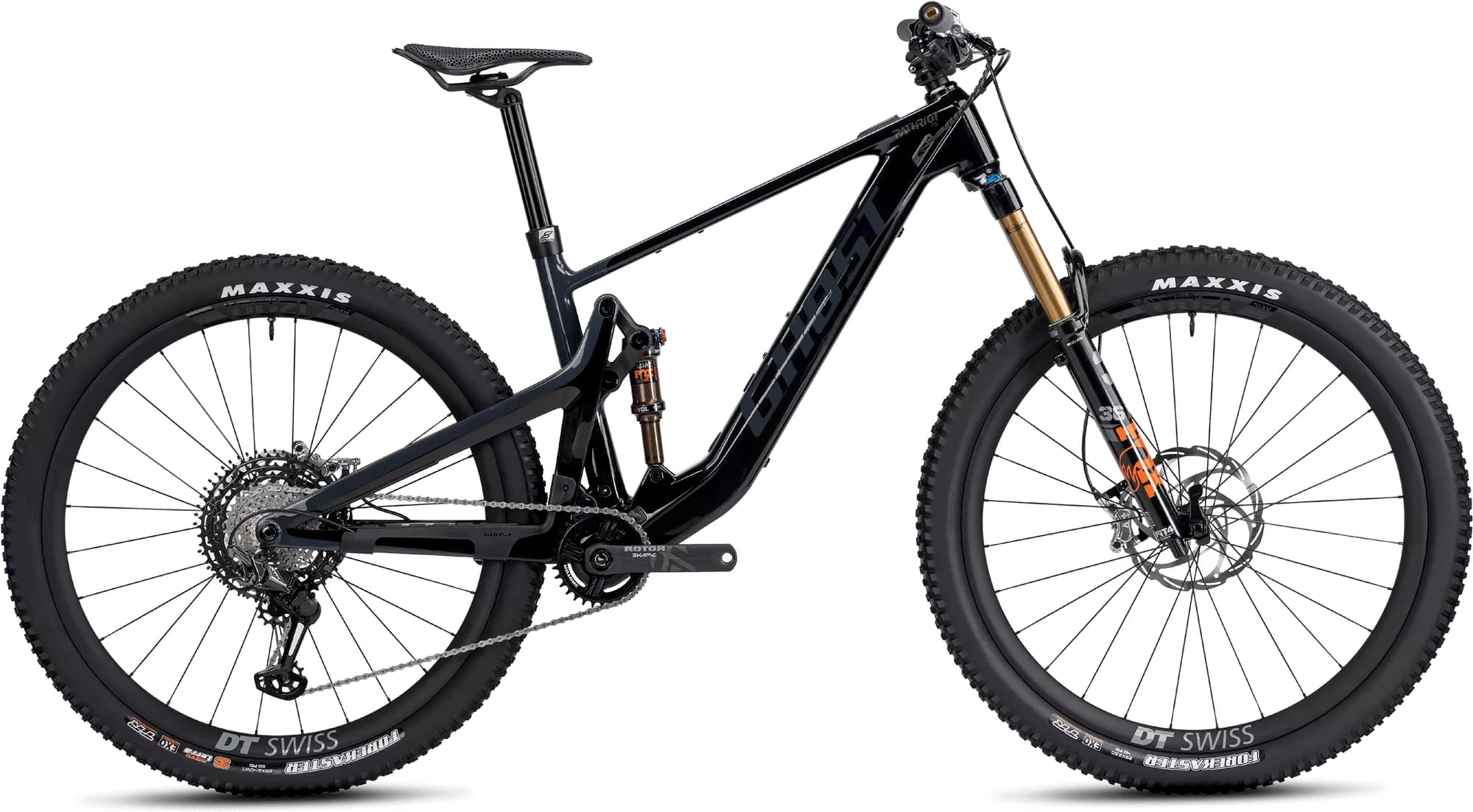

Ghost PATH RIOT LTD 2025
2025 E-bike
Estimate price |
12,797$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 480 Wh, Capacity: 480 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Formula Cura 4 Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Carbon Uni
Suspension Fork
FOX Factory 36 Float Factory FIT4 150 mm

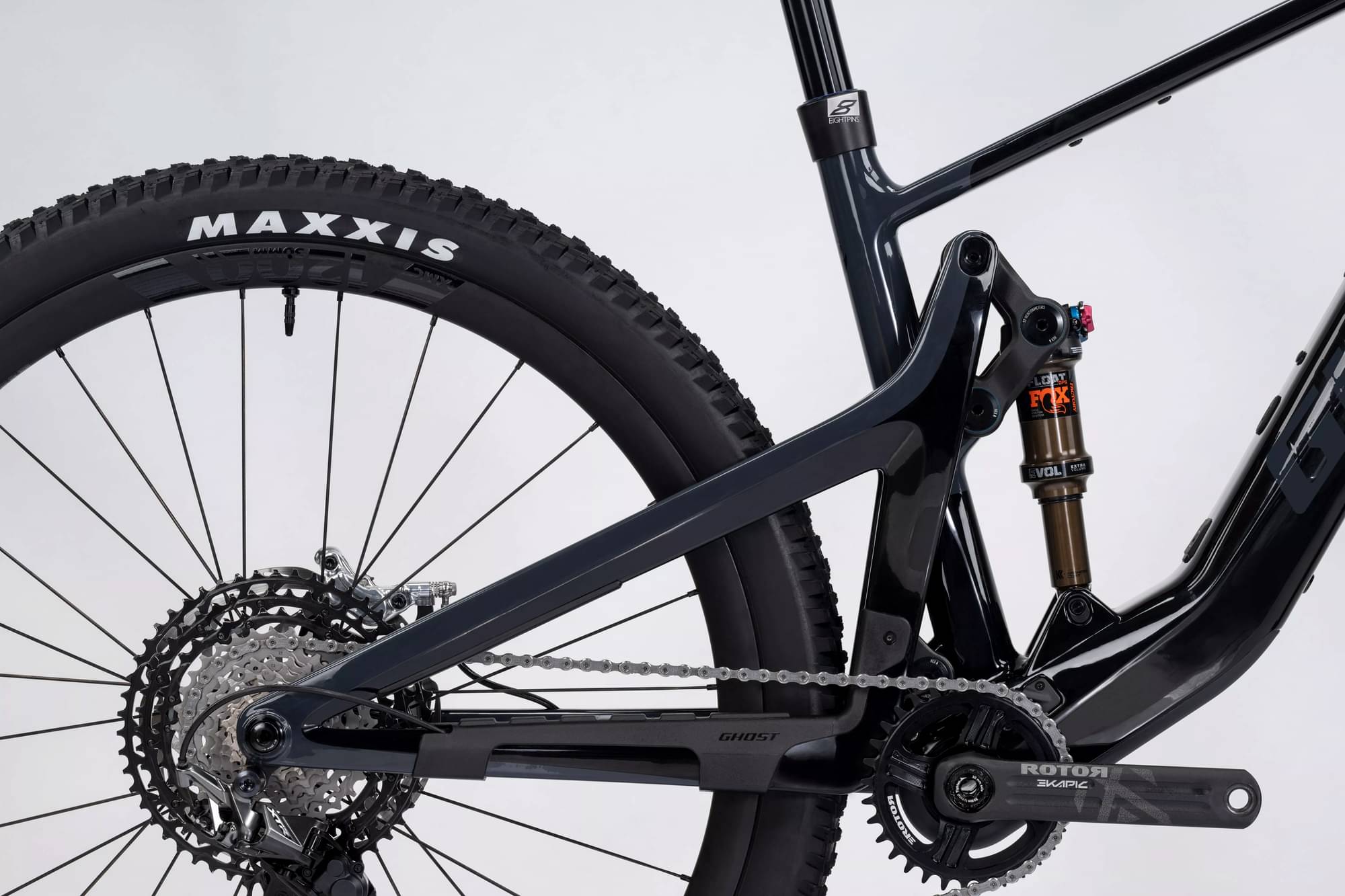

Rear Shock
FOX Factory Float DPS Factory 185x55mm, Trunnion
Drivetrain
Rear Derailleur
Shimano XTR RD-M9100 12s, Shadow+

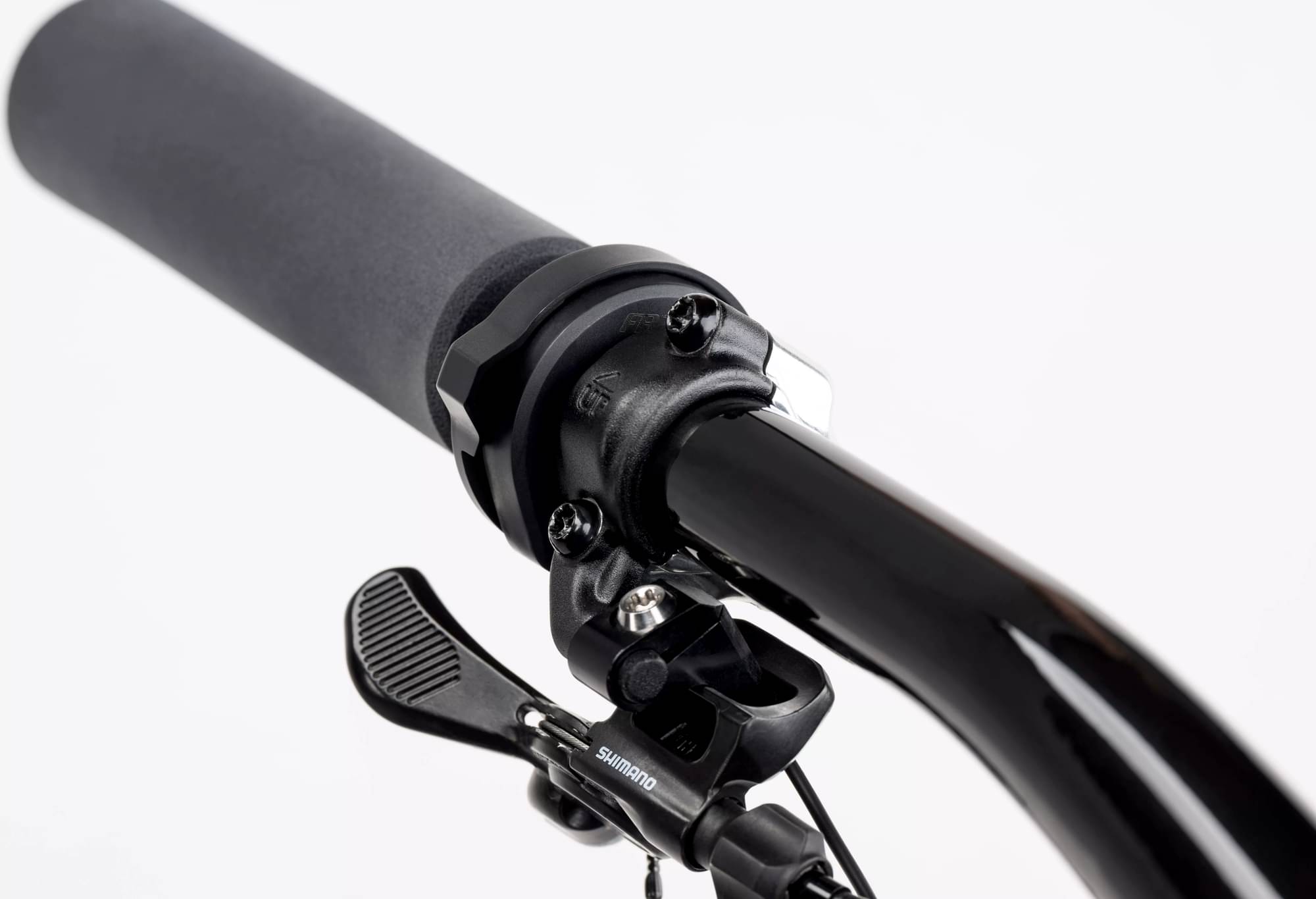

Shift Levers
Shimano Triggershift XTR SL-M9100, Rapidfire+
Cassette
Shimano XTR CS-M9101-12, MICRO SPLINE
Crank
Ghost Rotor crank set for Fazua 175
Chain
Shimano XTR CN-M9100
Wheels
Rims
DT Swiss XMC 1200 Spline 30 mm 15x110 mm
Tires
Maxxis Forekaster 2.6, 60TPI
Brakes
Brakes
Formula Hydraulic Disc brake Cura 4, 203 mm
Brake Levers
Formula CURA 4-BL
Cockpit
Stem
Syntace Megaforce3 Dia. 31.8 mm, L: 40 mm
Handlebar
Syntace Riser Bar Vector Carbon Dia. 31.8 mm, Rise: 35 mm
Headset
Acros Semi-integrated Blocklock 135° AZX-582 44/56 ALU
Seat

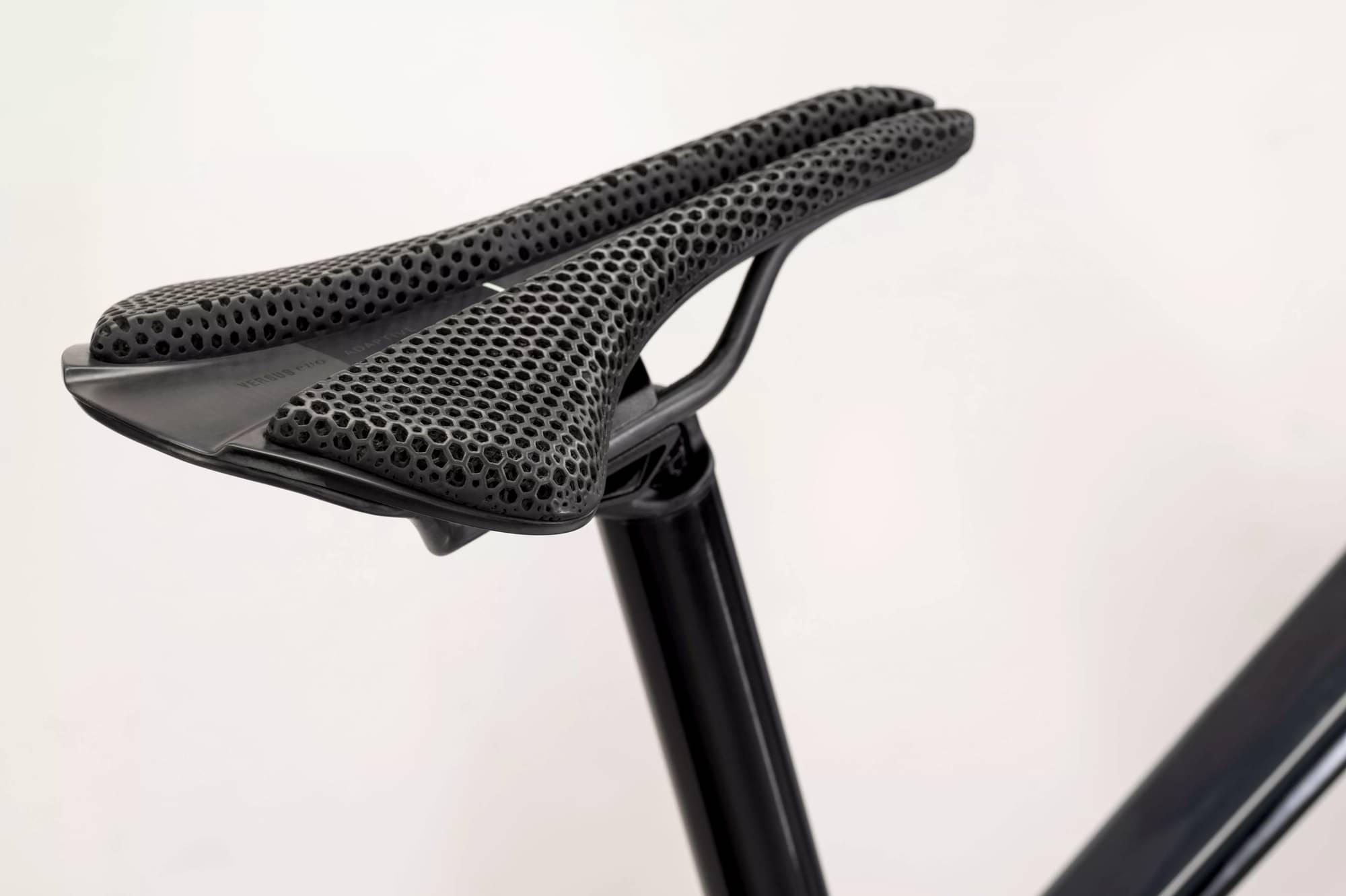

Saddle
Fizik MTB Vento Argo R1 Adaptive

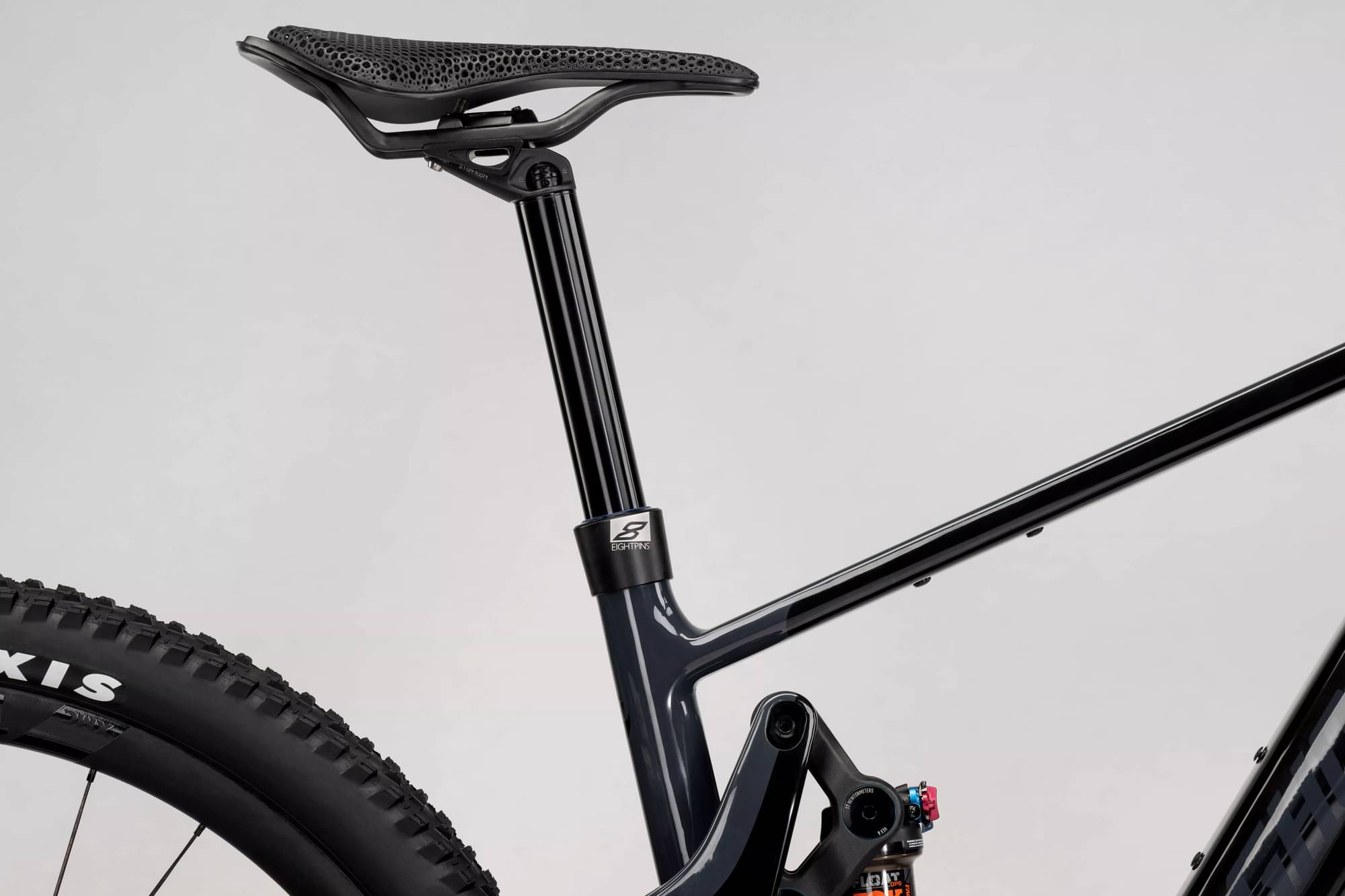

Seatpost
Eightpins Dropperpost H01 Hydraulic, telescope, Dia. 34.9 mm
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 480 Wh, Capacity: 480 Wh, Location: Powertube
Charger
Fazua Charger 3A, 230V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.373 mm | 1.323 mm | 1.296 mm | 1.256 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 341 mm | 341 mm |
| Front Center | 776 mm | 814 mm | 853 mm | 892 mm |
| Rake | 53 mm | 52 mm | 51 mm | 52 mm |
| Trail | 124 mm | 125 mm | 126 mm | 125 mm |
| Stack | 604 mm | 622 mm | 644 mm | 662 mm |
| Reach | 440 mm | 470 mm | 497 mm | 527 mm |
| Top Tube Length | 580 mm | 614 mm | 646 mm | 680 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 110 mm | 140 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 455 mm | 455 mm |
| Wheelbase | 1219 mm | 1257 mm | 1306 mm | 1345 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 33 mm | 33 mm |
| Standover Height | 742 mm | 757 mm | 783 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
