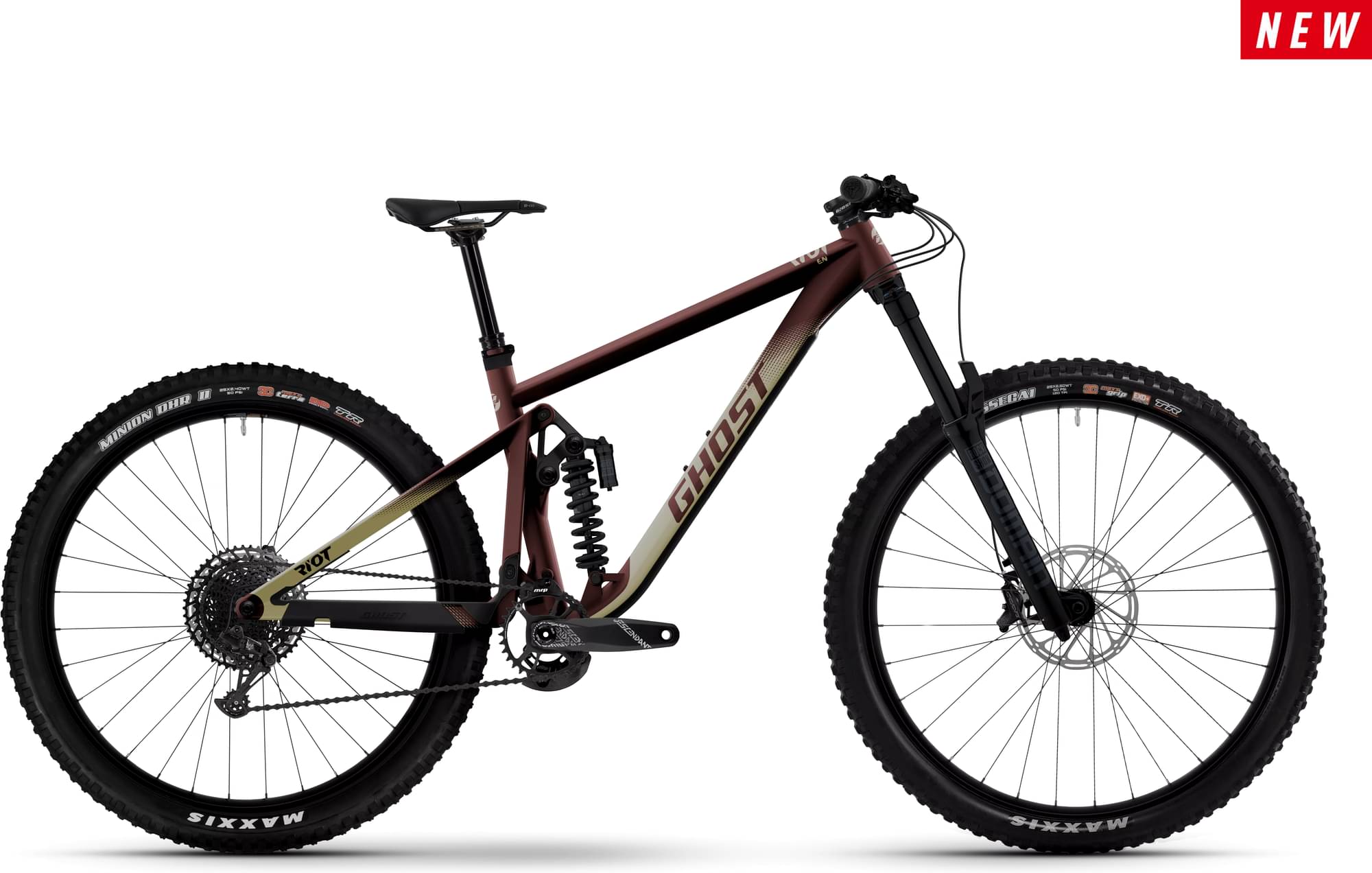

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 172cm
MD
170cm - 180cm
LG
178cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIOT AL (S:27.5 M-XL:29)

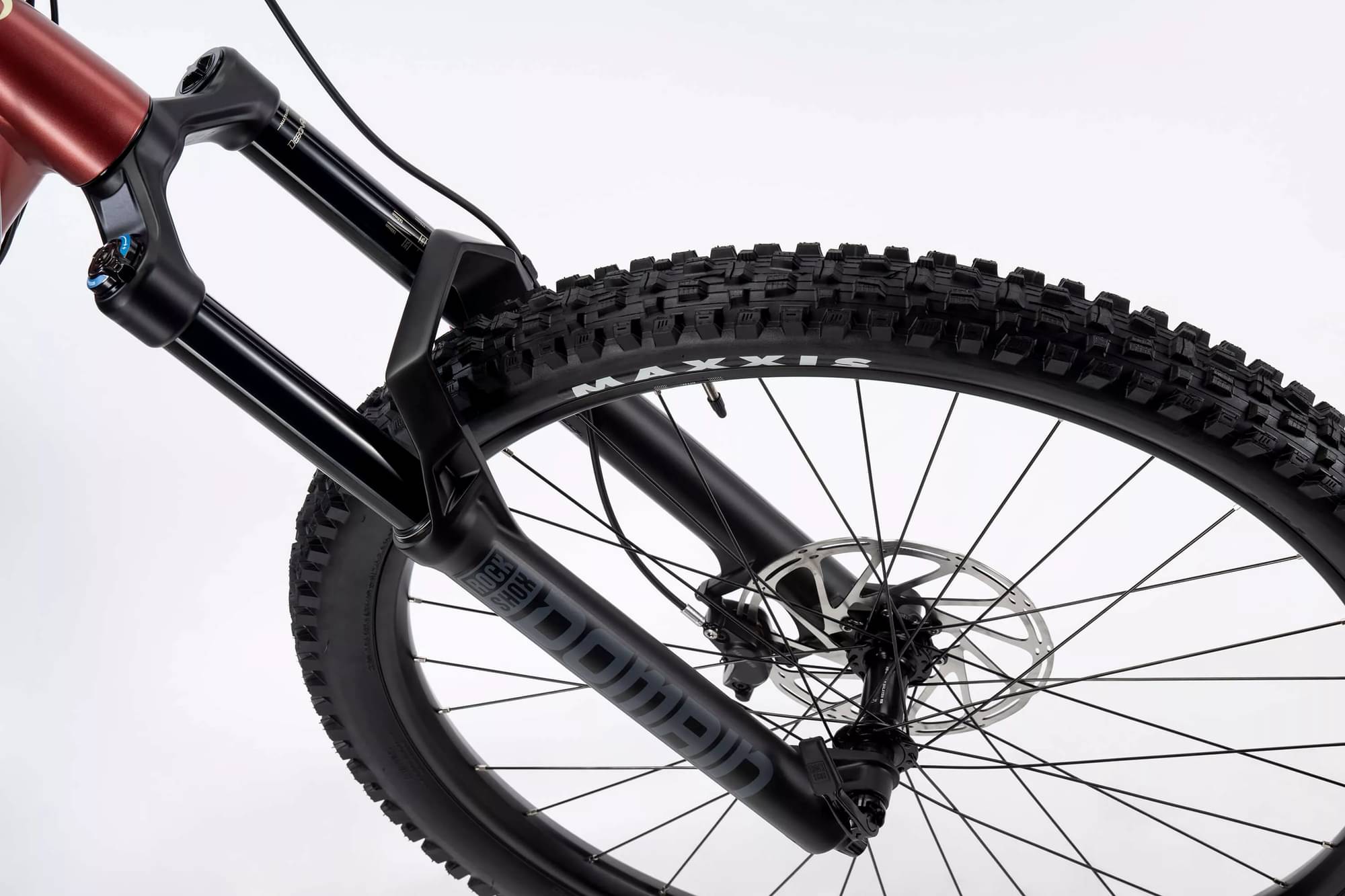

Suspension Fork
Rock Shox Domain RC 170 mm
Rear Shock
Rock Shox Super Deluxe Coil Select 160 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle 12-S
Cassette
SRAM PG-1230 11-50
Crank
SRAM Descendant 6K Eagle 32T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM GX Eagle
Chain Guide
MRP AMg CS
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Maxxis Assegai 3C MaxxGrip Exo+ 2.5, Rear: Maxxis Minion DHR II 3C MaxxTerra Double Down 2.4
Brakes
Brakes
SRAM Code R 200 mm
Brake Levers
SRAM Code R
Cockpit
Stem
Ghost Dia. 31.8 mm
Handlebar
Ghost MTB Dia. 31.8 mm 800/15 mm
Grips
Switch Components Kaleido
Seat
Saddle
Prologo Proxim W400 Performance
Seatpost
Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.314 mm | 1.331 mm | 1.29 mm |
| Bottom Bracket Height | 350 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 791 mm | 823 mm | 862 mm | 900 mm |
| Rake | 43 mm | 52 mm | 53 mm | 52 mm |
| Trail | 135 mm | 125 mm | 124 mm | 125 mm |
| Stack | 619 mm | 627 mm | 663 mm | 681 mm |
| Reach | 453 mm | 477 mm | 498 mm | 528 mm |
| Top Tube Length | 607 mm | 621 mm | 651 mm | 685 mm |
| Seat Tube Angle | 76.4 ° | 77.4 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1225 mm | 1276 mm | 1315 mm | 1353 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 740 mm | 752 mm | 755 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 161 cm | 170 cm | 178 cm | 187 cm |
| Rider Max Height | 172 cm | 180 cm | 189 cm | 198 cm |
