Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 38
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

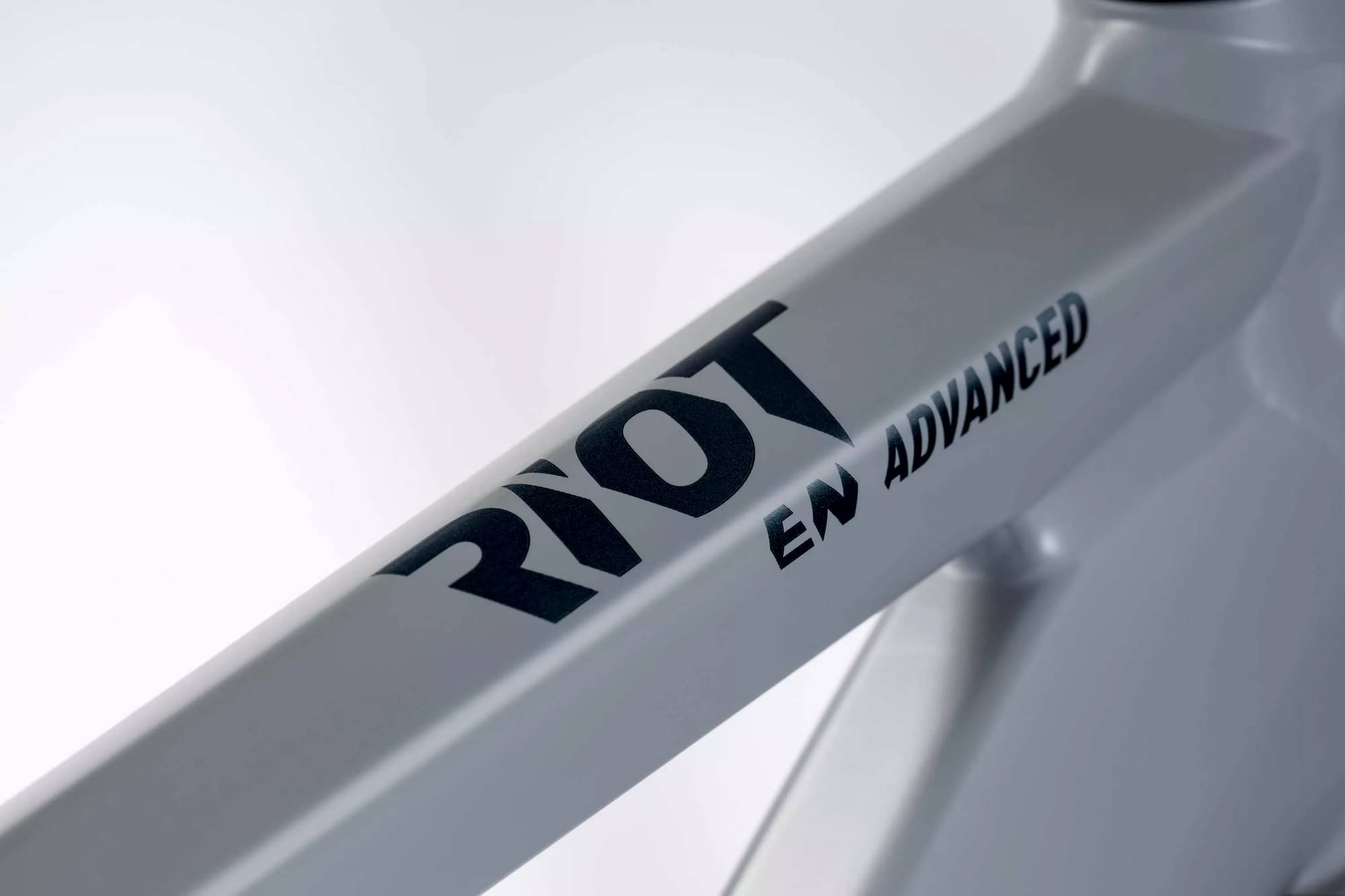

Frame
Frame
RIOT AL (S:27.5 M-XL:29)

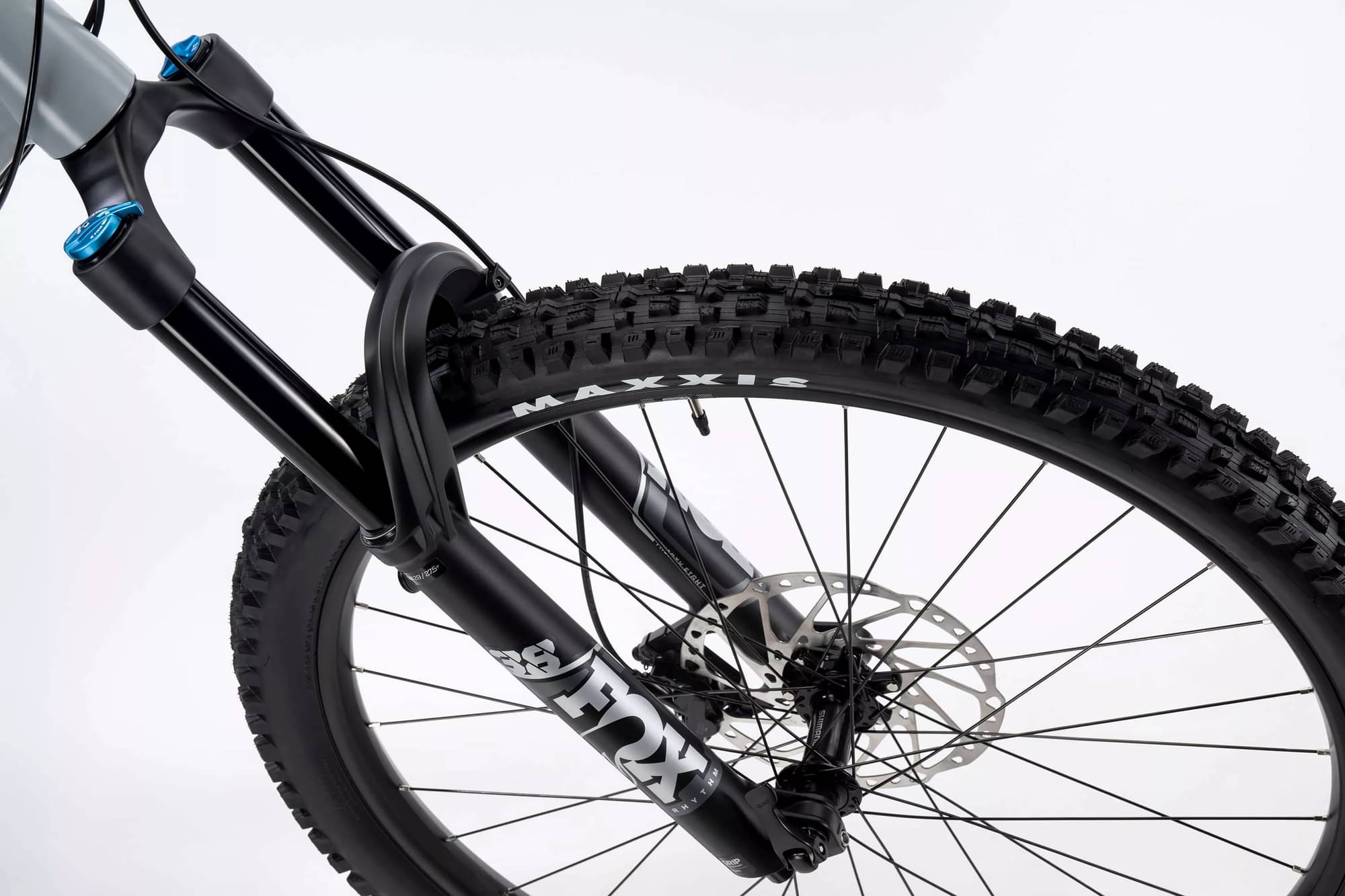

Suspension Fork
Fox 38 Float Rhythm 170 mm

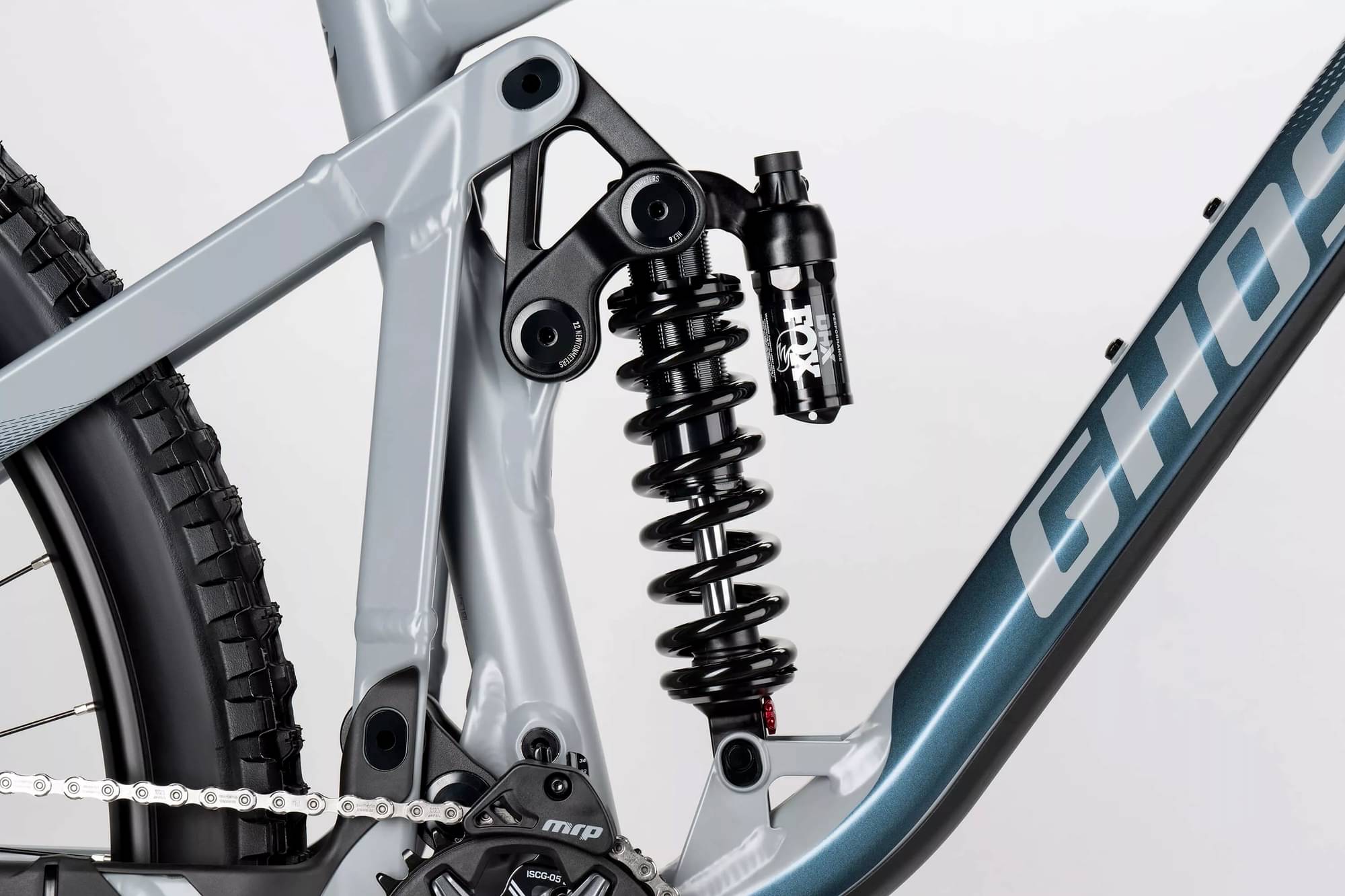

Rear Shock
Fox DHX Performance 160 mm

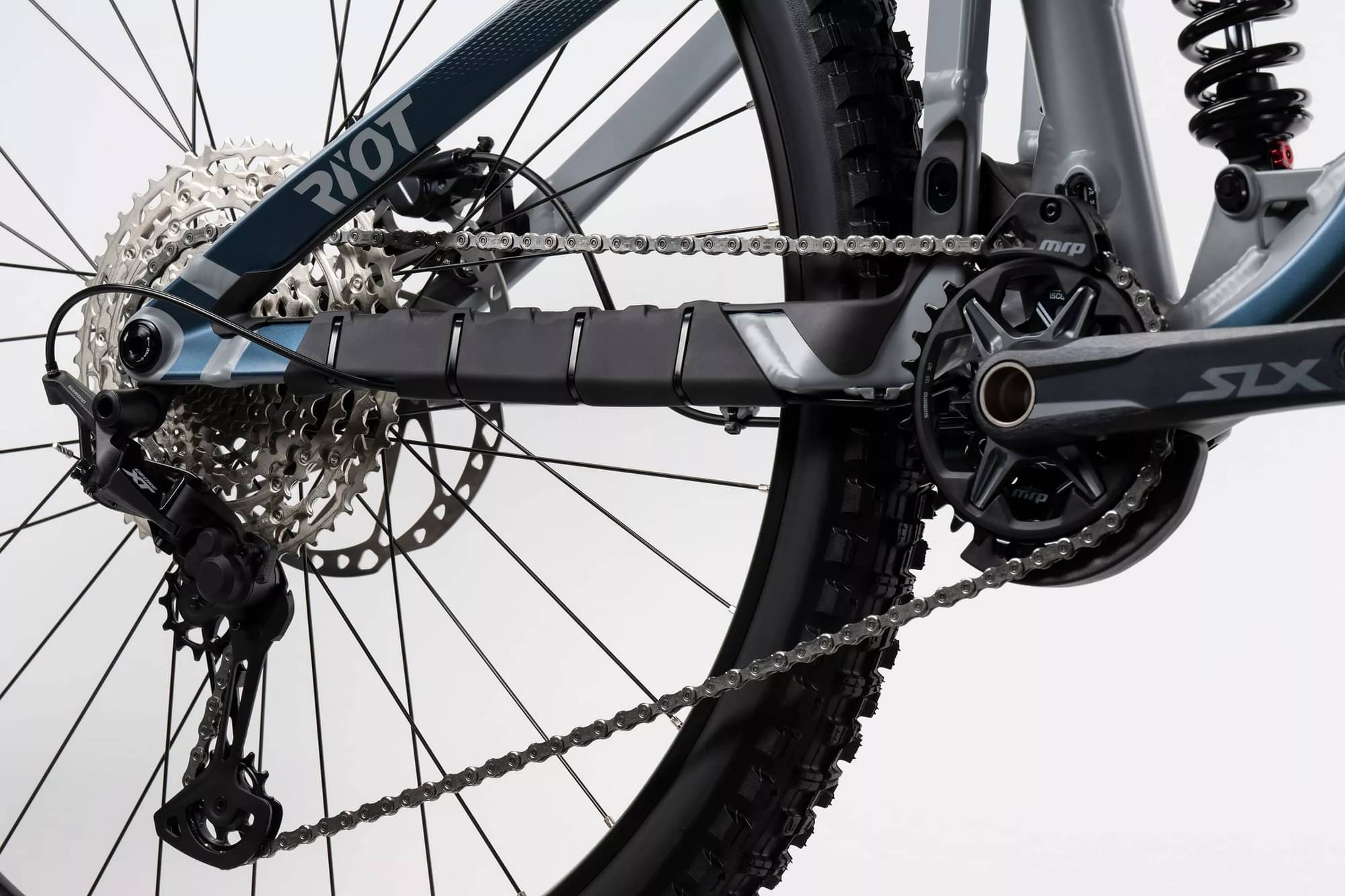

Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Cassette
Shimano Deore CS-M6100 10-51
Crank
Shimano SLX FC-M7100 32T
Bottom Bracket
Shimano BB-MT801
Chain
Shimano Deore CN-M6100
Chain Guide
MRP AMg CS
Wheels
Rims
WTB ST i30
Tires
Front: Maxxis Assegai 3C MaxxGrip Exo+ 2.5, Rear: Maxxis Minion DHR II 3C MaxxTerra Double Down 2.4
Brakes
Brakes
Shimano Deore BR-M6120 203 mm Disc
Brake Levers
Shimano BL-M6100

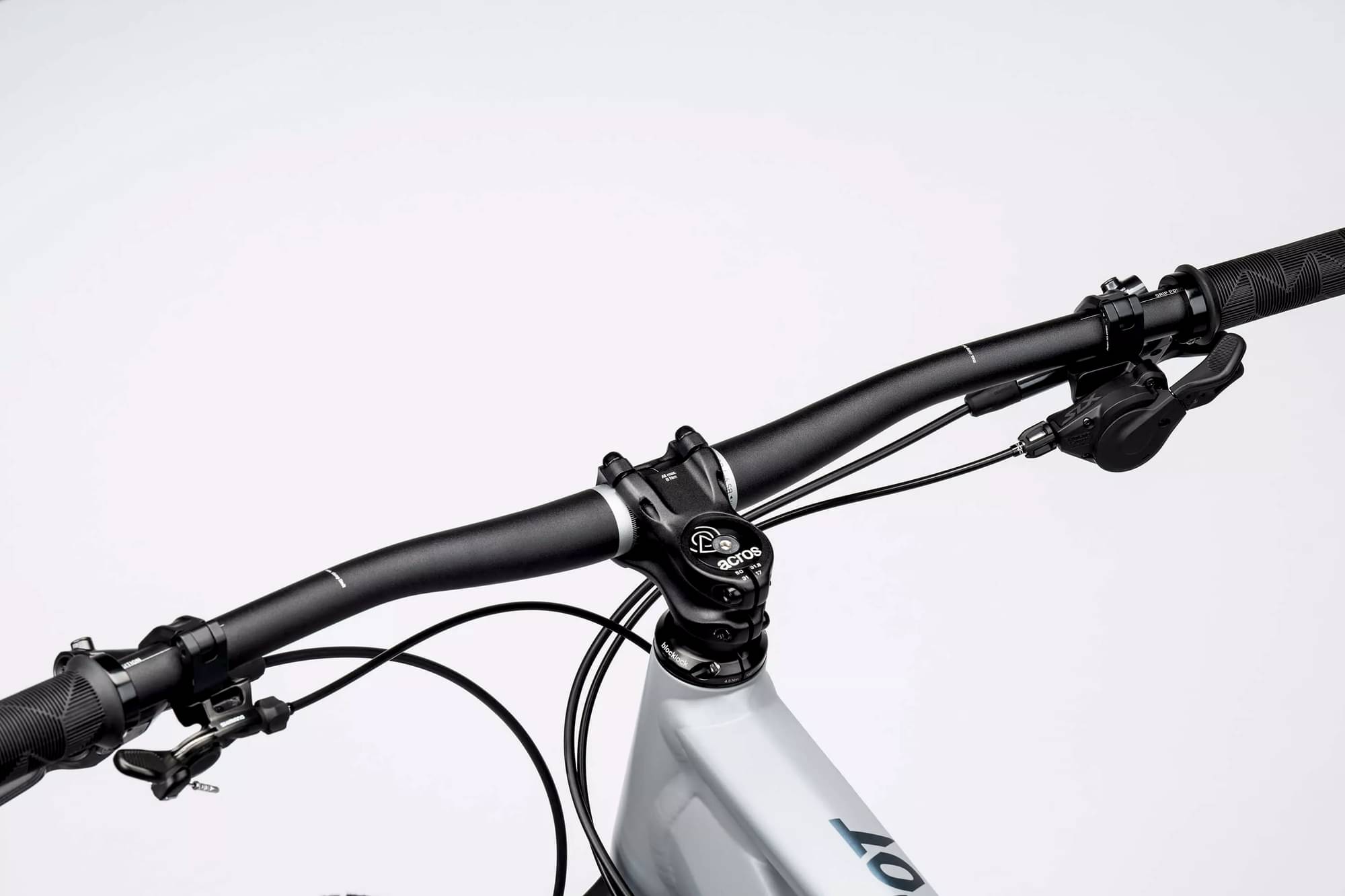

Cockpit
Stem
Ghost Dia. 31.8 mm
Handlebar
Ghost MTB Dia. 31.8 mm 800/15 mm
Grips
Switch Components Kaleido
Seat
Saddle
Prologo Proxim W400 Performance
Seatpost
Eightpins hydraulic 34.9 mm
