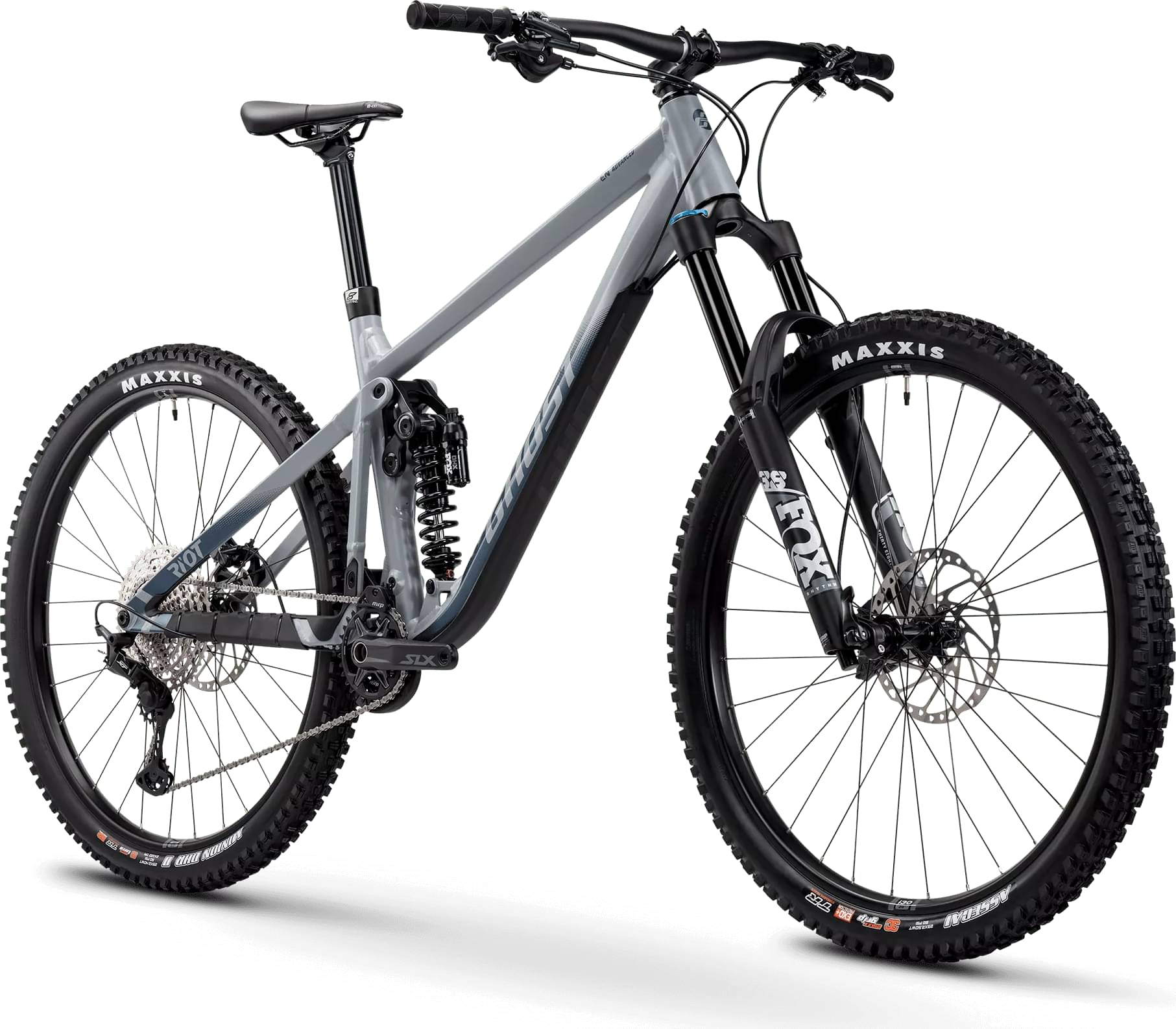

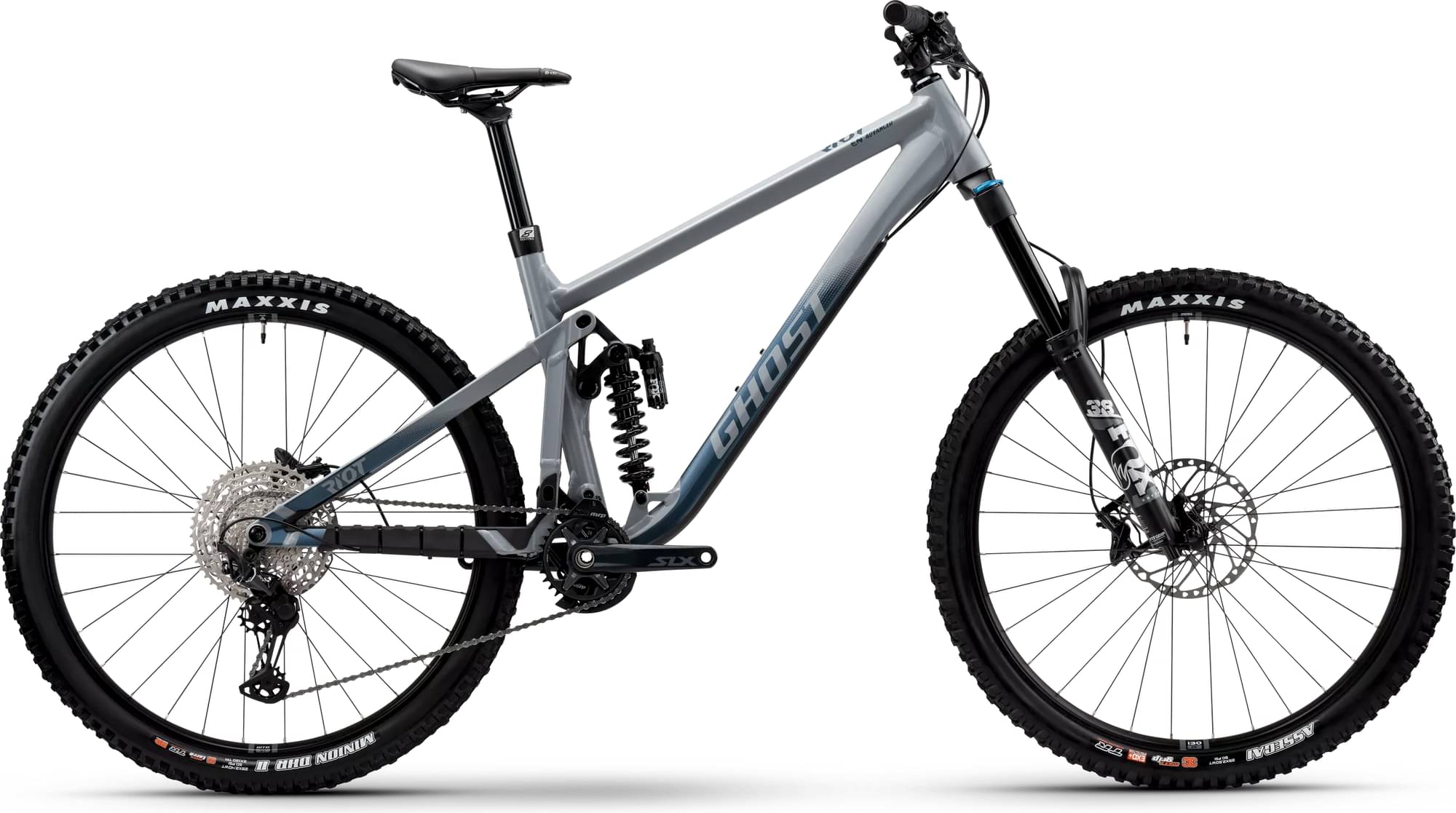

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork Fox Factory Float 38
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 172cm
MD
170cm - 180cm
LG
178cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
FOX Factory 38 Float Rhythm 170 mm
Rear Shock
FOX Factory DHX Performance 205x65mm, Trunnion
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100 12s, Shadow+
Shift Levers
Shimano Triggershift SLX SL-M7100, Rapidfire+
Cassette
Shimano Deore CS-M6100-12, MICRO SPLINE
Crank
Shimano SLX FC-M7100 165
Bottom Bracket
Shimano BSA BB-MT801
Chain
Shimano Deore CN-M6100
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm
Rear Hub
Shimano FH-TC500-MS-B 12x148 mm
Rims
WTB ST i30 TCS 2.0
Tires
Maxxis Assegai 3C MaxxGrip Exo+ 2.5
Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-M6120, 203 mm
Brake Levers
Shimano BL-M6100
Cockpit
Stem
Ghost Dia. 31.8 mm, L: 50 mm
Handlebar
Ghost Riser Bar MTB Dia. 31.8 mm, Rise: 15 mm
Headset
Fsa Semi-integrated NO.57-HBS/U-200 Anod Black 1-1/8"-1.5" w/H2442+H2621
Seat
Saddle
Prologo MTB Proxim W400 Performance
Seatpost
Eightpins Dropperpost H01 Hydraulic, telescope, Dia. 34.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.314 mm | 1.331 mm | 1.29 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 791 mm | 823 mm | 862 mm | 900 mm |
| Rake | 43 mm | 52 mm | 53 mm | 52 mm |
| Trail | 126 mm | 125 mm | 124 mm | 125 mm |
| Stack | 619 mm | 627 mm | 663 mm | 681 mm |
| Reach | 453 mm | 477 mm | 498 mm | 528 mm |
| Top Tube Length | 607 mm | 621 mm | 651 mm | 685 mm |
| Seat Tube Angle | 76.4 ° | 77.4 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1225 mm | 1276 mm | 1315 mm | 1353 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 740 mm | 752 mm | 755 mm | 754 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 161 cm | 170 cm | 178 cm | 187 cm |
| Rider Max Height | 172 cm | 180 cm | 189 cm | 198 cm |
