Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

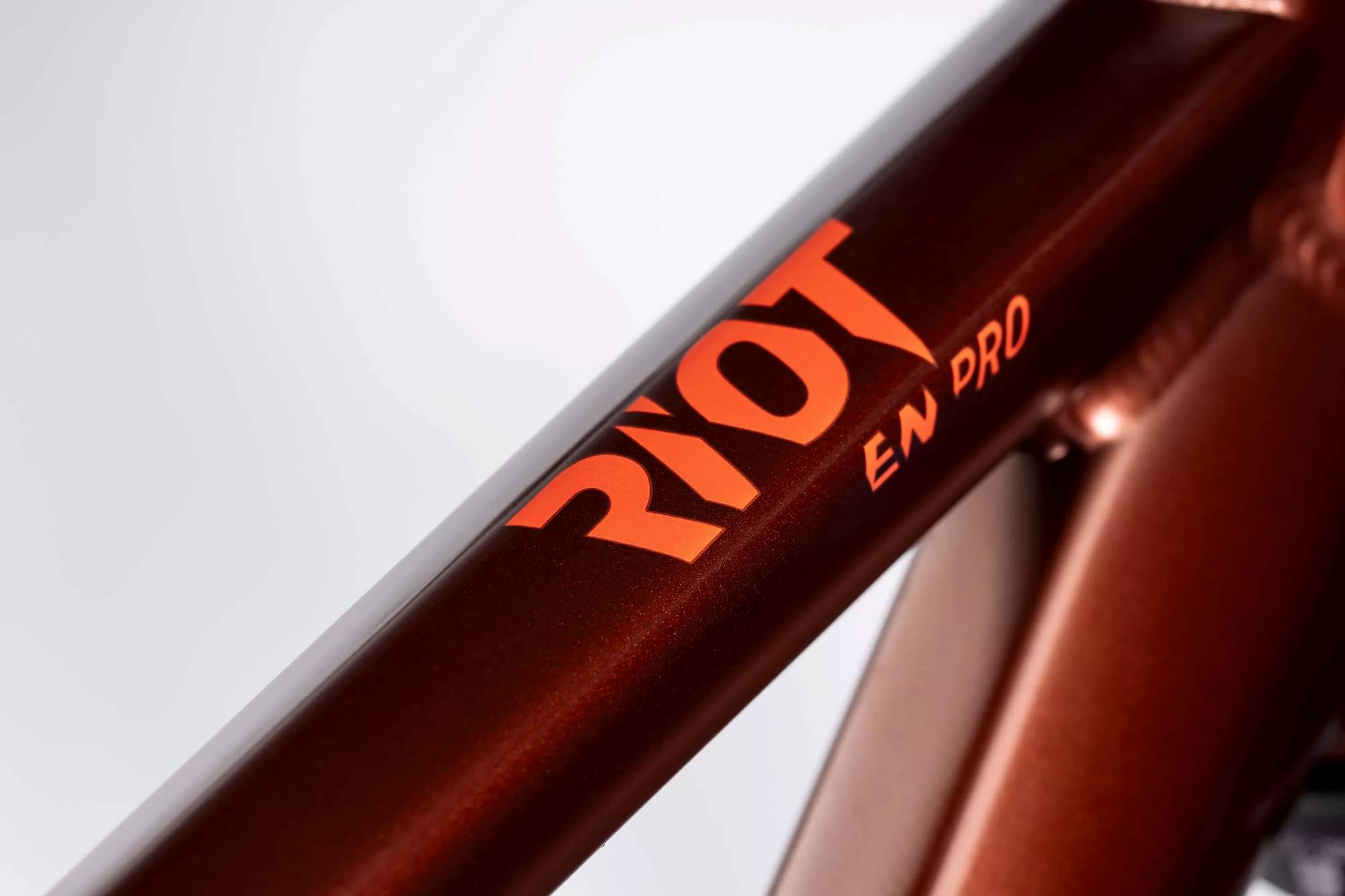

Frame

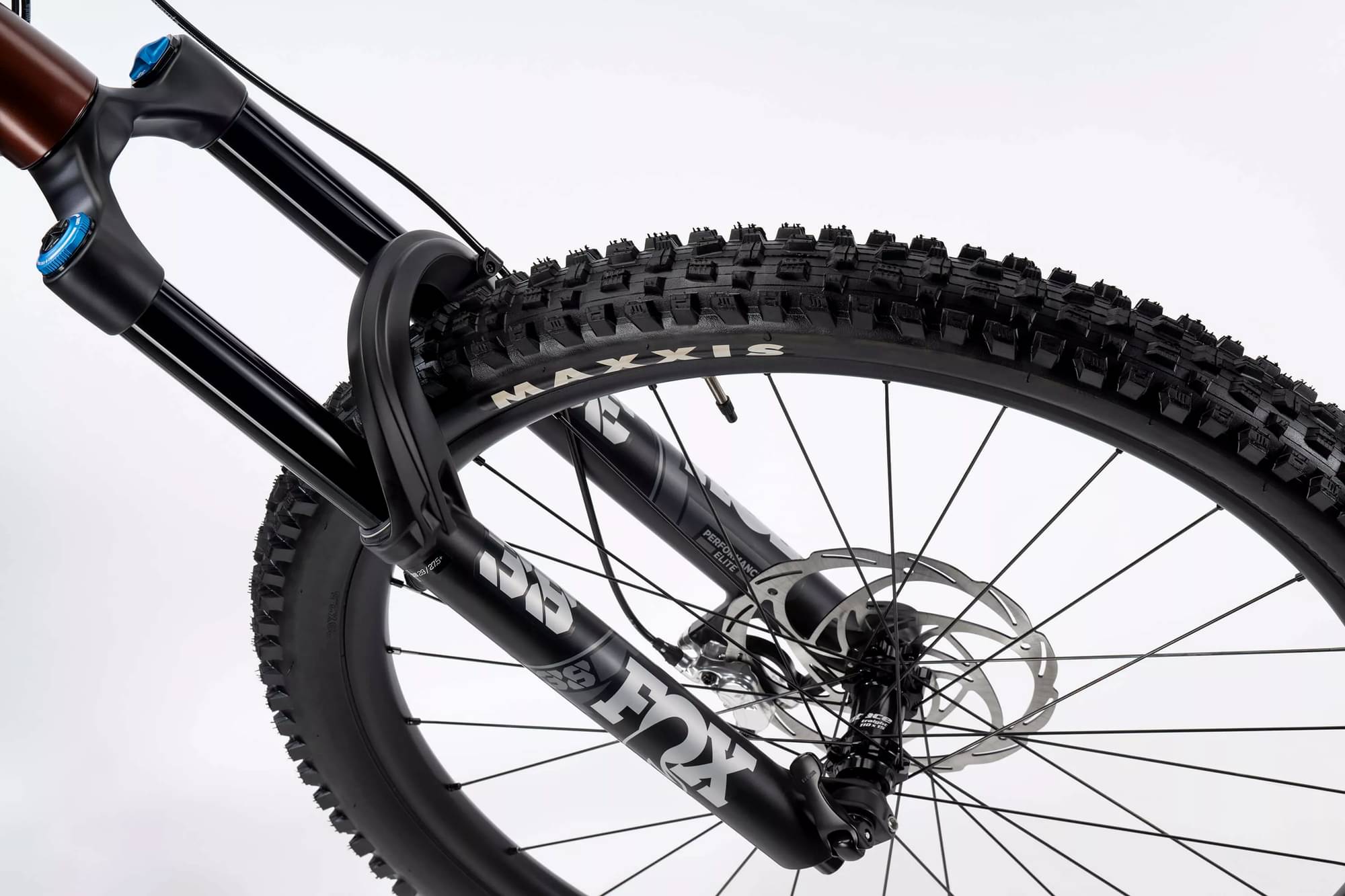

Suspension Fork
Fox 38 Float Performance Elite GRIP2 170 mm

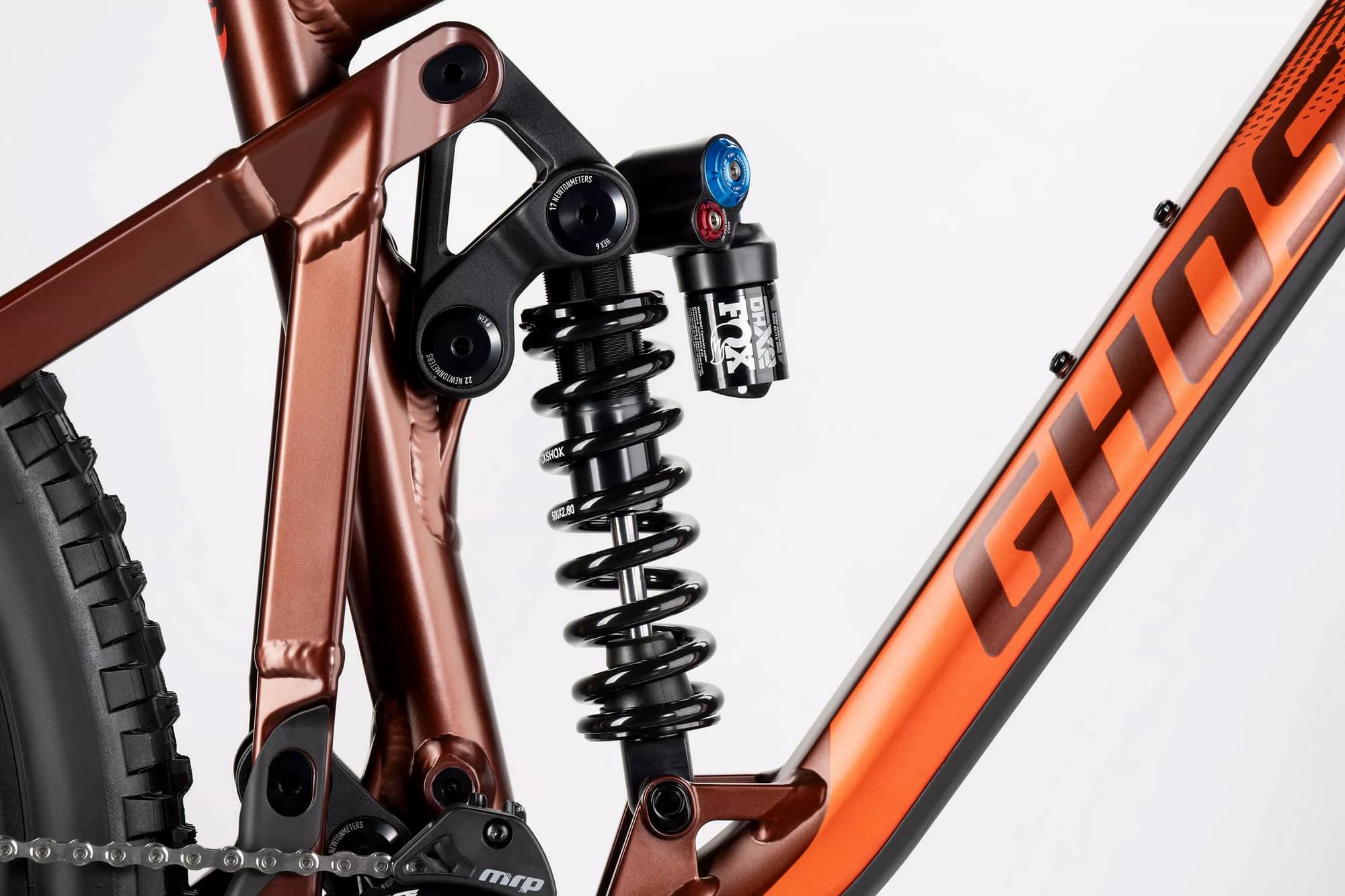

Rear Shock
Fox DHX2 Performance Elite 160 mm

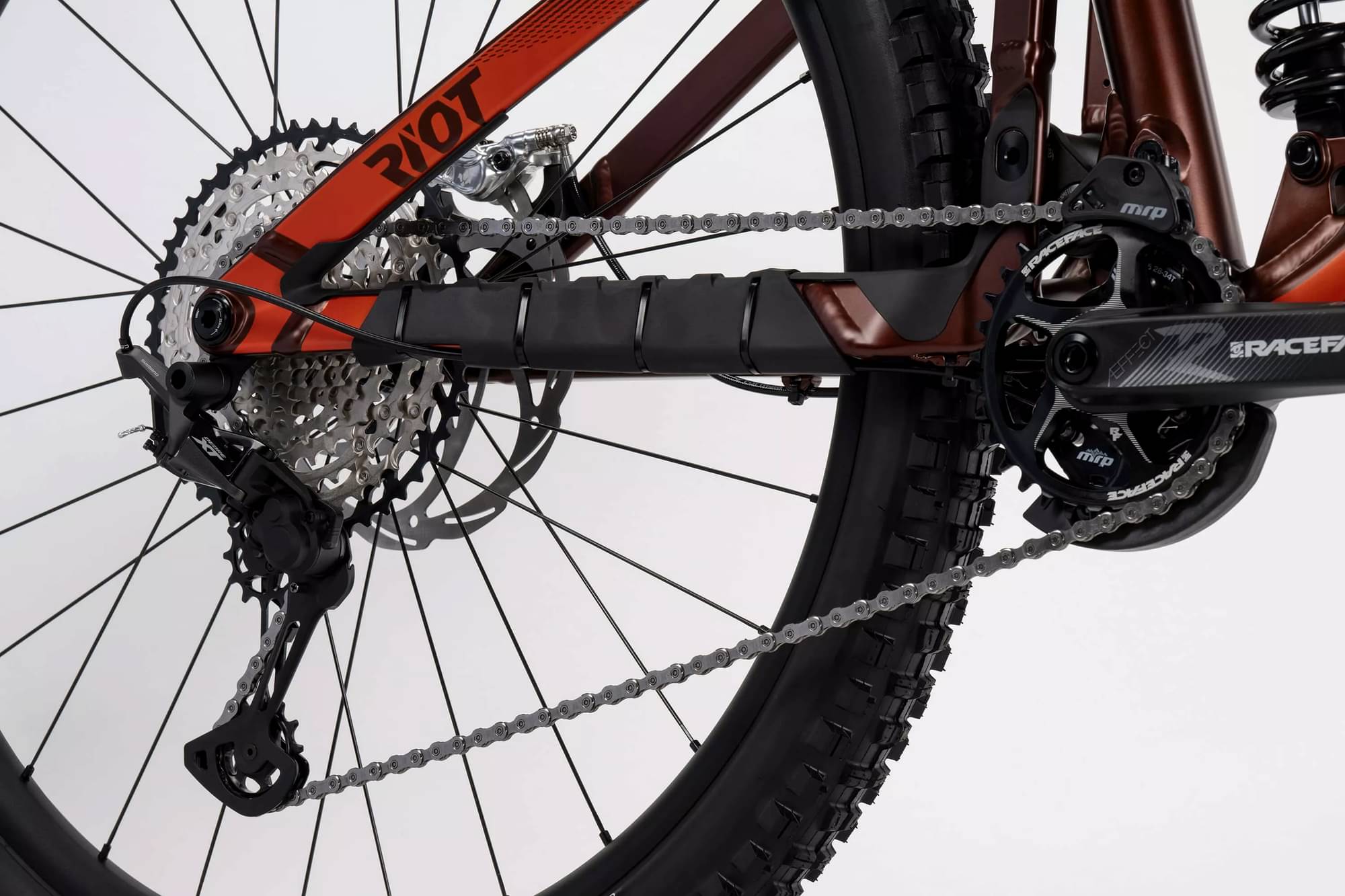

Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Cassette
Shimano SLX CS-M7100 10-51
Crank
Race Face Aeffect R 32T
Bottom Bracket
Race Face BSA 68/73
Chain
Shimano Deore CN-M6100
Chain Guide
MRP AMg CS
Wheels
Rims
Syntace V30 12x148 mm
Tires
Front: Maxxis Assegai 3C MaxxGrip Exo+ 2.5, Rear: Maxxis Minion DHR II 3C MaxxTerra Double Down 2.4
Brakes
Brakes
Formula Cura 4 203 mm Disc
Brake Levers
Formula Cura

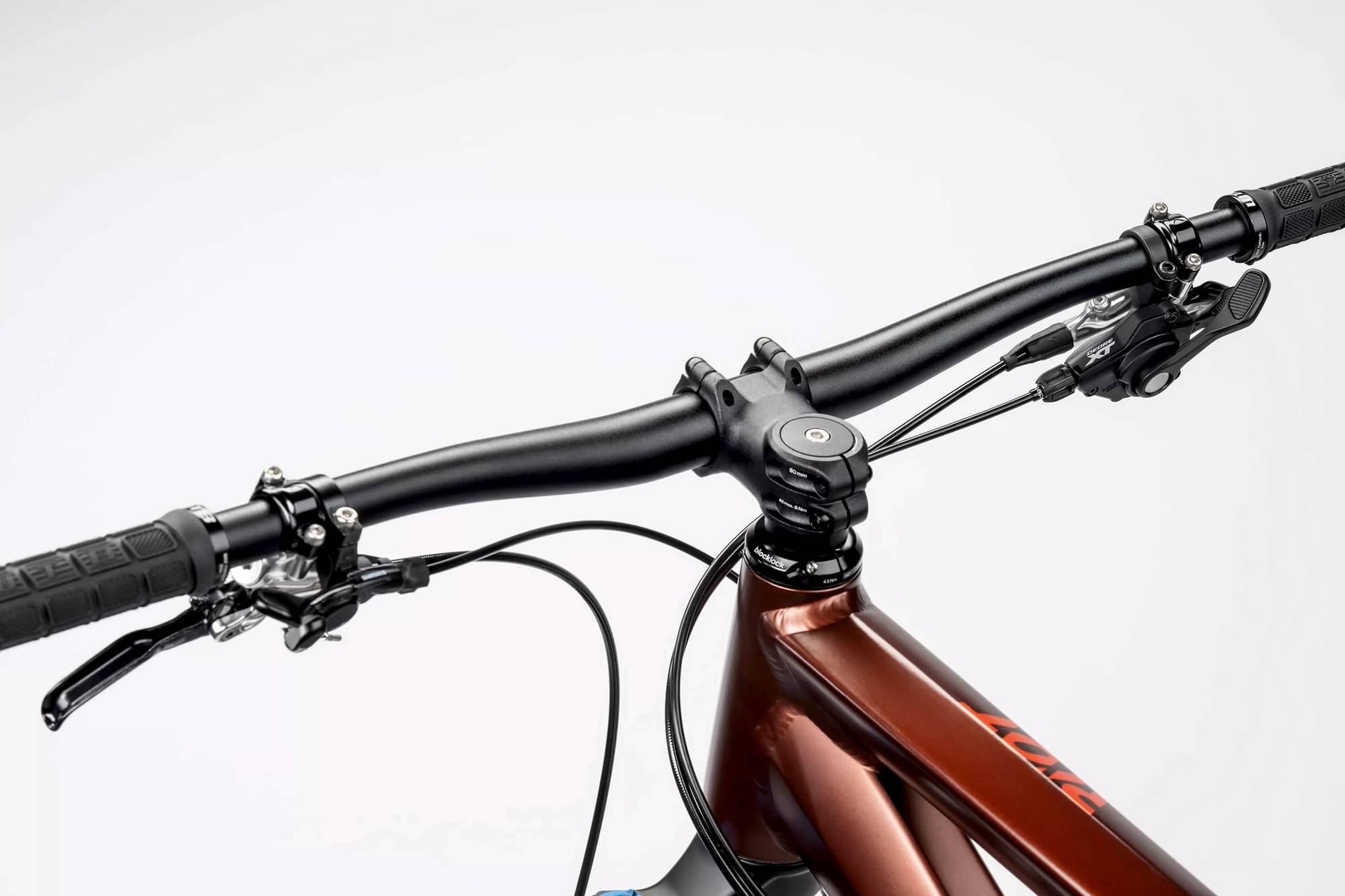

Cockpit
Stem
Syntace Megaforce2 Dia. 31.8 mm
Handlebar
Syntace Vector 7075 high20 780 mm
Grips
WTB Wafel
Seat
Saddle
Prologo Proxim W400 Performance
Seatpost
Eightpins hydraulic 34.9 mm
