Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components

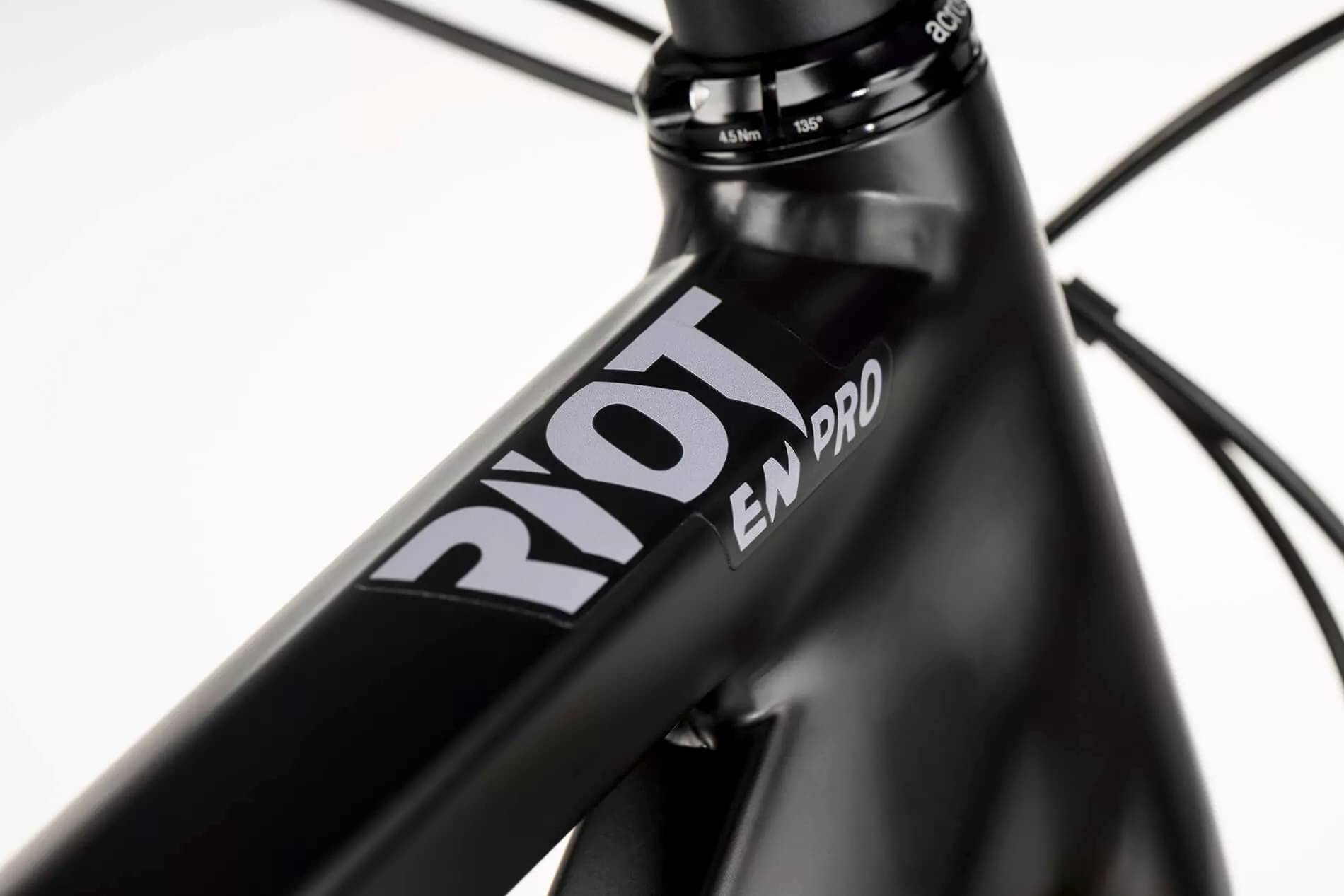

Frame
Frame
RIOT AL (S:27.5 M-XL:29)

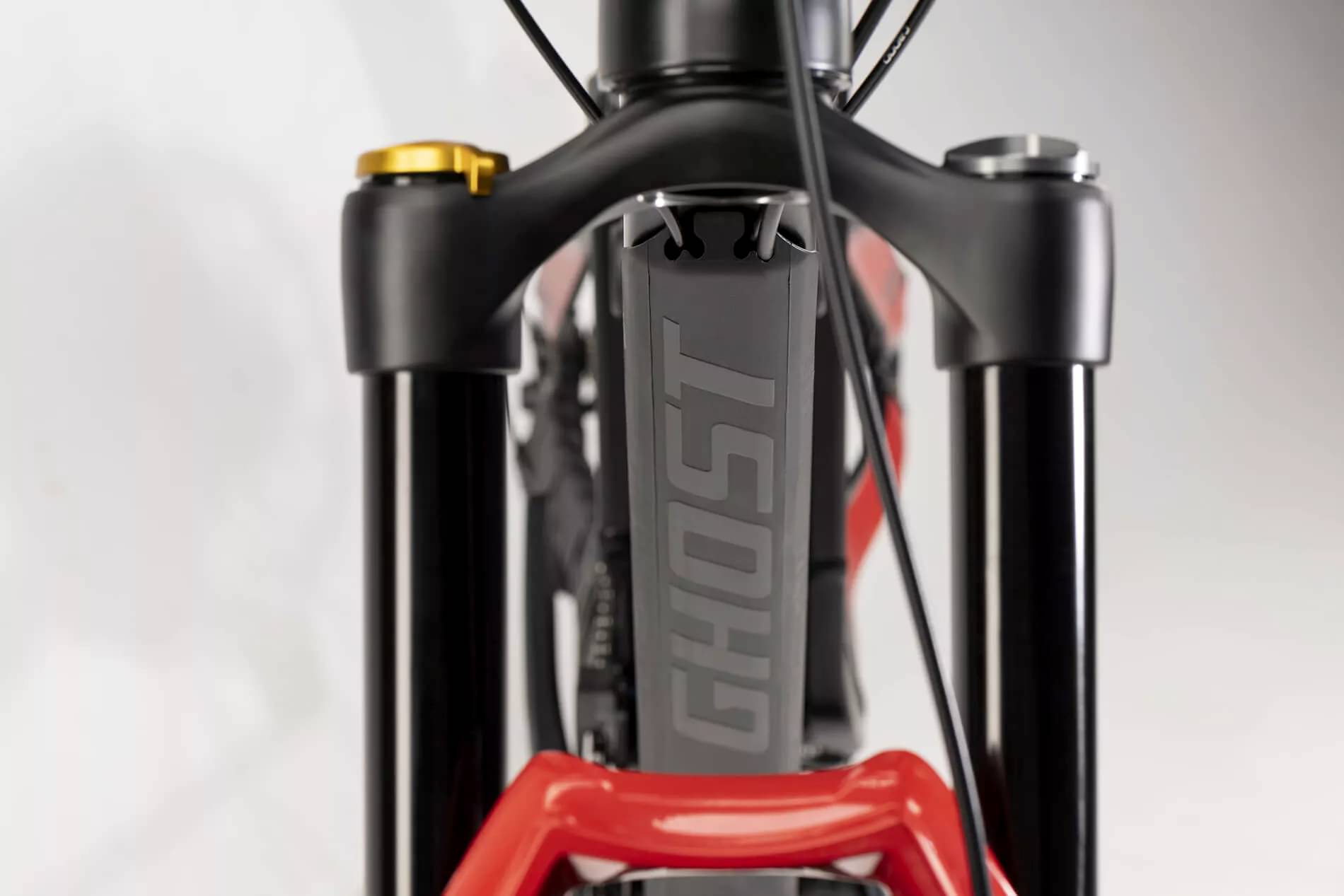

Suspension Fork
Marzocchi Bomber Z1 170 mm
Rear Shock
Marzocchi Bomber CR 160 mm

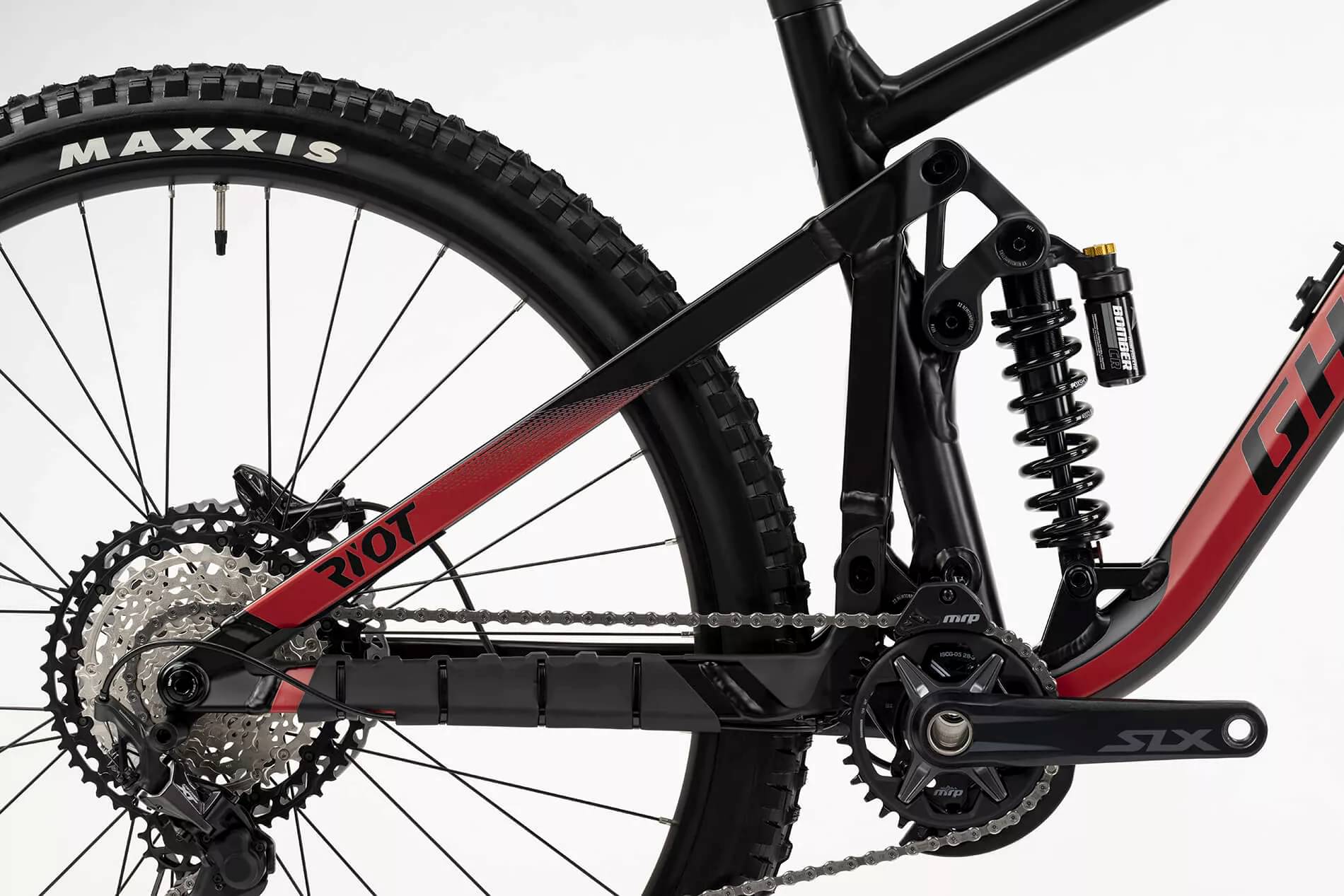

Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Cassette
Shimano XT CS-M8100 10-51
Crank
Shimano SLX FC-M7100 32T
Bottom Bracket
Shimano BB-MT801
Chain
Shimano XT CN-M8100
Chain Guide
MRP AMg
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Maxxis Assegai 3C MaxxGrip Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHR II 3C MaxxTerra Double Down 2.4 (S 27,5"; M-XL 29")
Brakes
Brakes
Shimano Deore BR-M6120 203 mm Disc
Brake Levers
Shimano BL-M6100

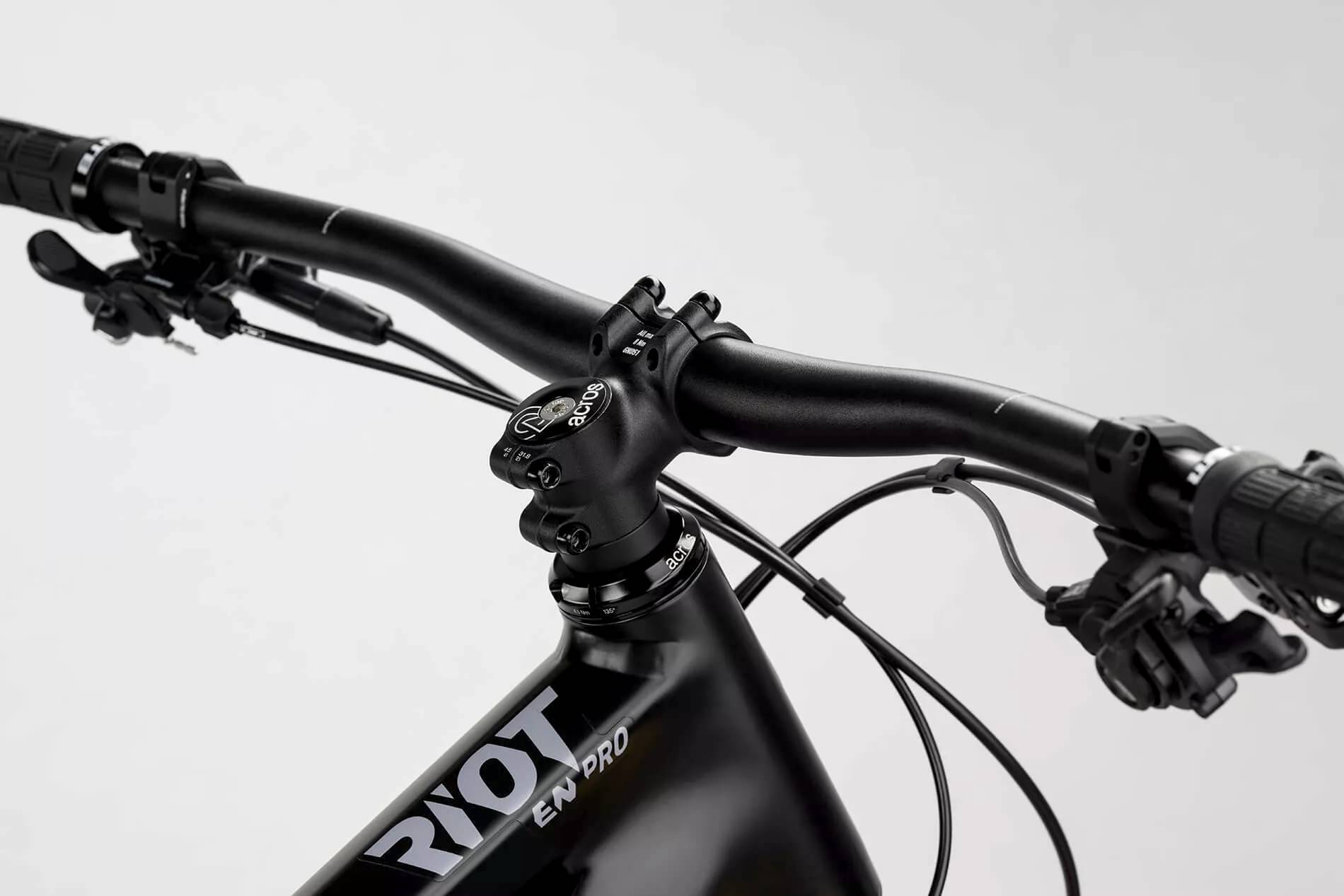

Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/25 (M-XL)
Grips
WTB Wafel
Seat

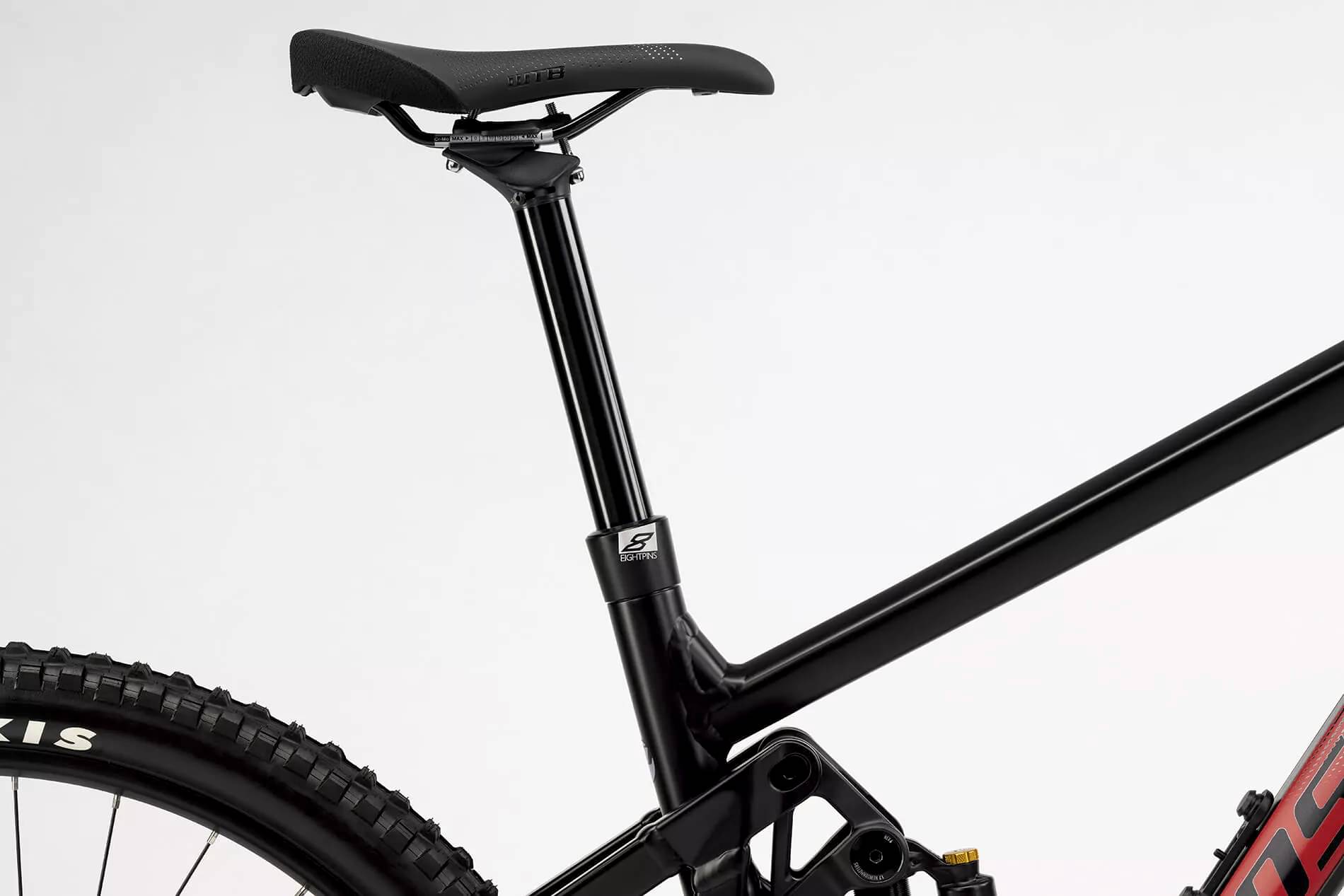

Saddle
WTB Volt
Seatpost
Eightpins hydraulic 34.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.314 mm | 1.331 mm | 1.29 mm |
| Bottom Bracket Height | 350 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 791 mm | 823 mm | 862 mm | 900 mm |
| Rake | 43 mm | 52 mm | 53 mm | 52 mm |
| Trail | 135 mm | 125 mm | 124 mm | 125 mm |
| Stack | 619 mm | 627 mm | 663 mm | 681 mm |
| Reach | 453 mm | 477 mm | 498 mm | 528 mm |
| Top Tube Length | 607 mm | 621 mm | 651 mm | 685 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1225 mm | 1276 mm | 1315 mm | 1353 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 740 mm | 752 mm | 755 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
