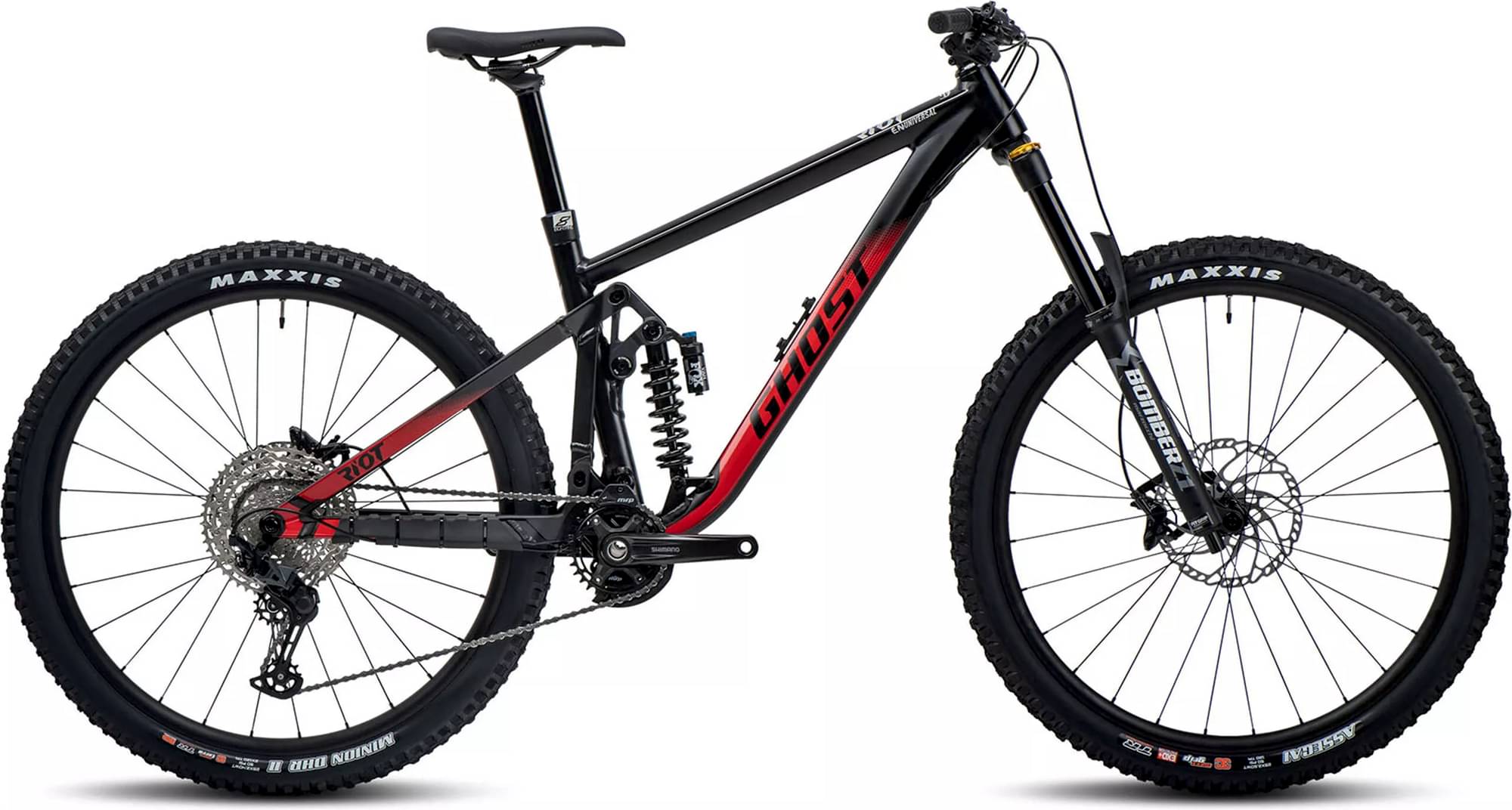

Ghost RIOT EN UNIVERSAL 2025
2025 Mountain
Estimate price |
3,898$
Weight | 17.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

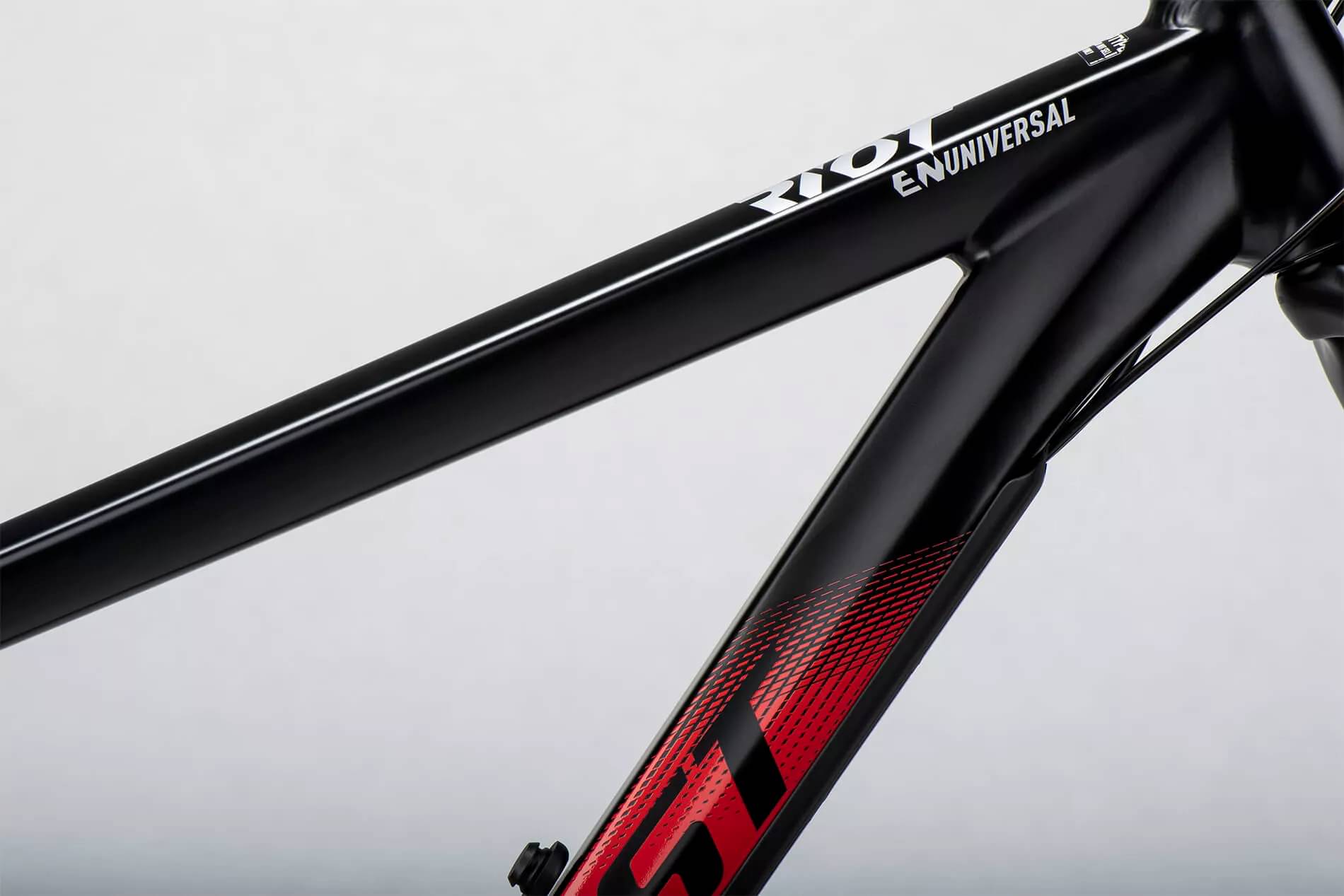

HIGH Aluminium Uni
Suspension Fork

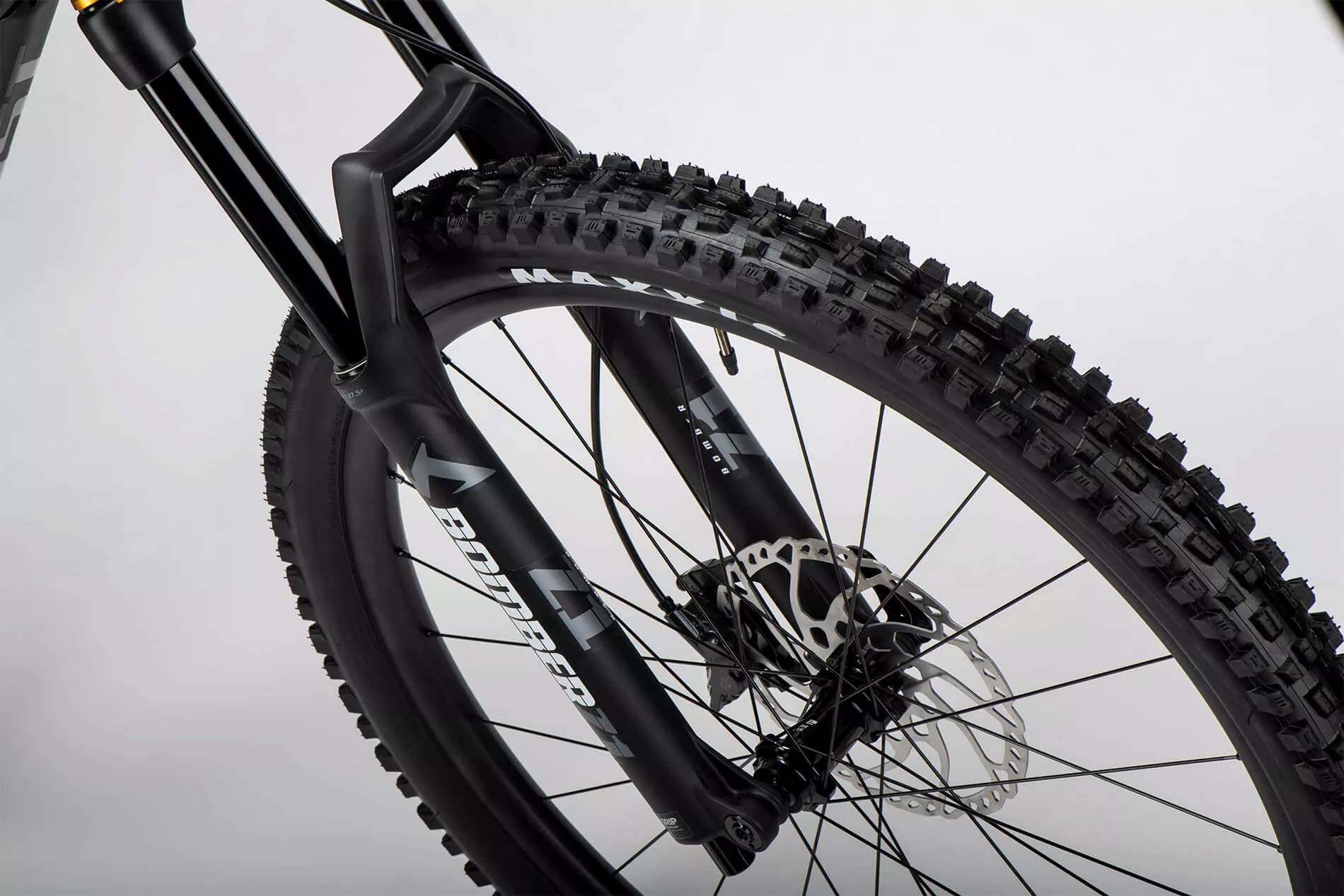

Marzocchi Bomber Z1 170 mm
Rear Shock

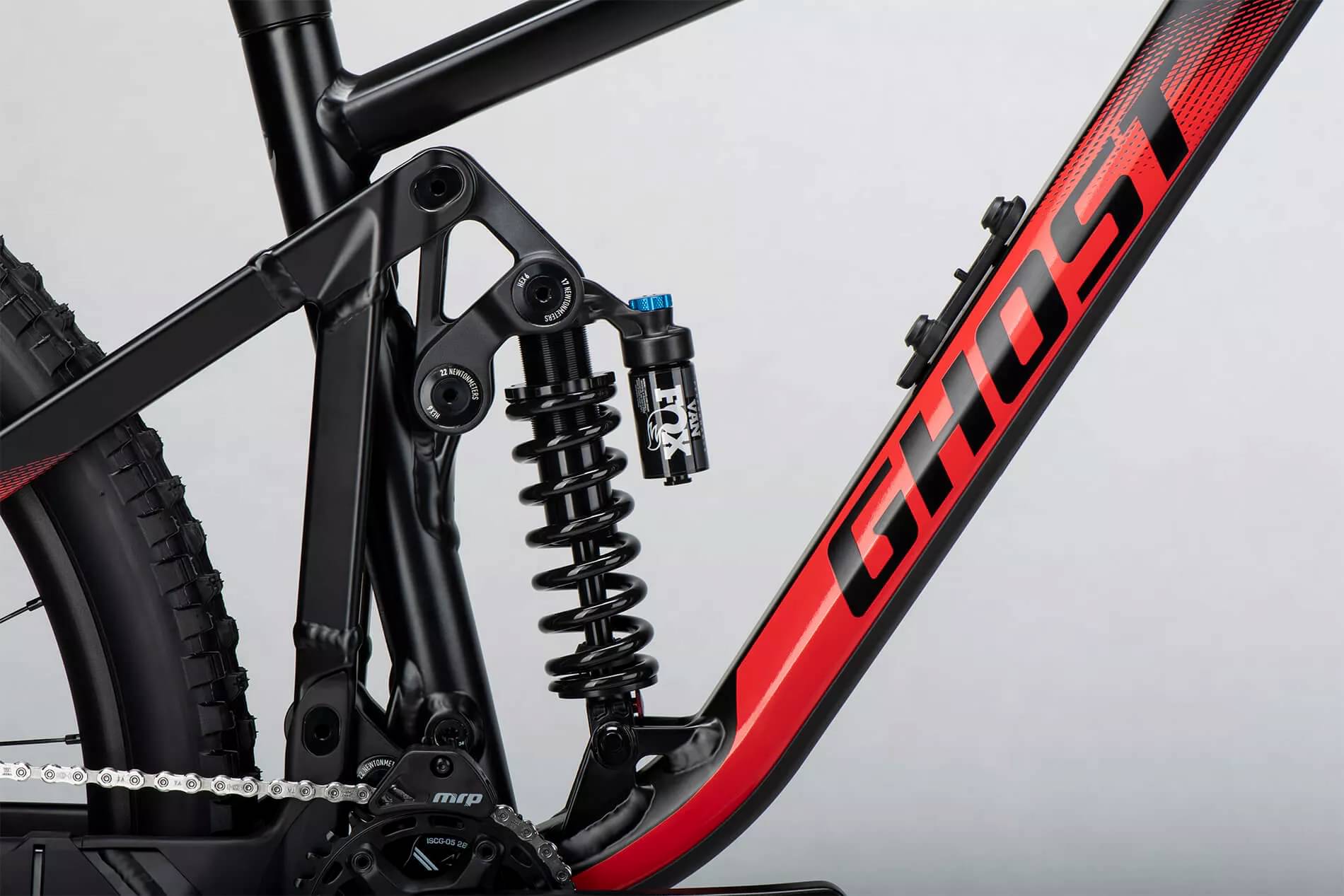

Marzocchi Bomber CR 160 mm

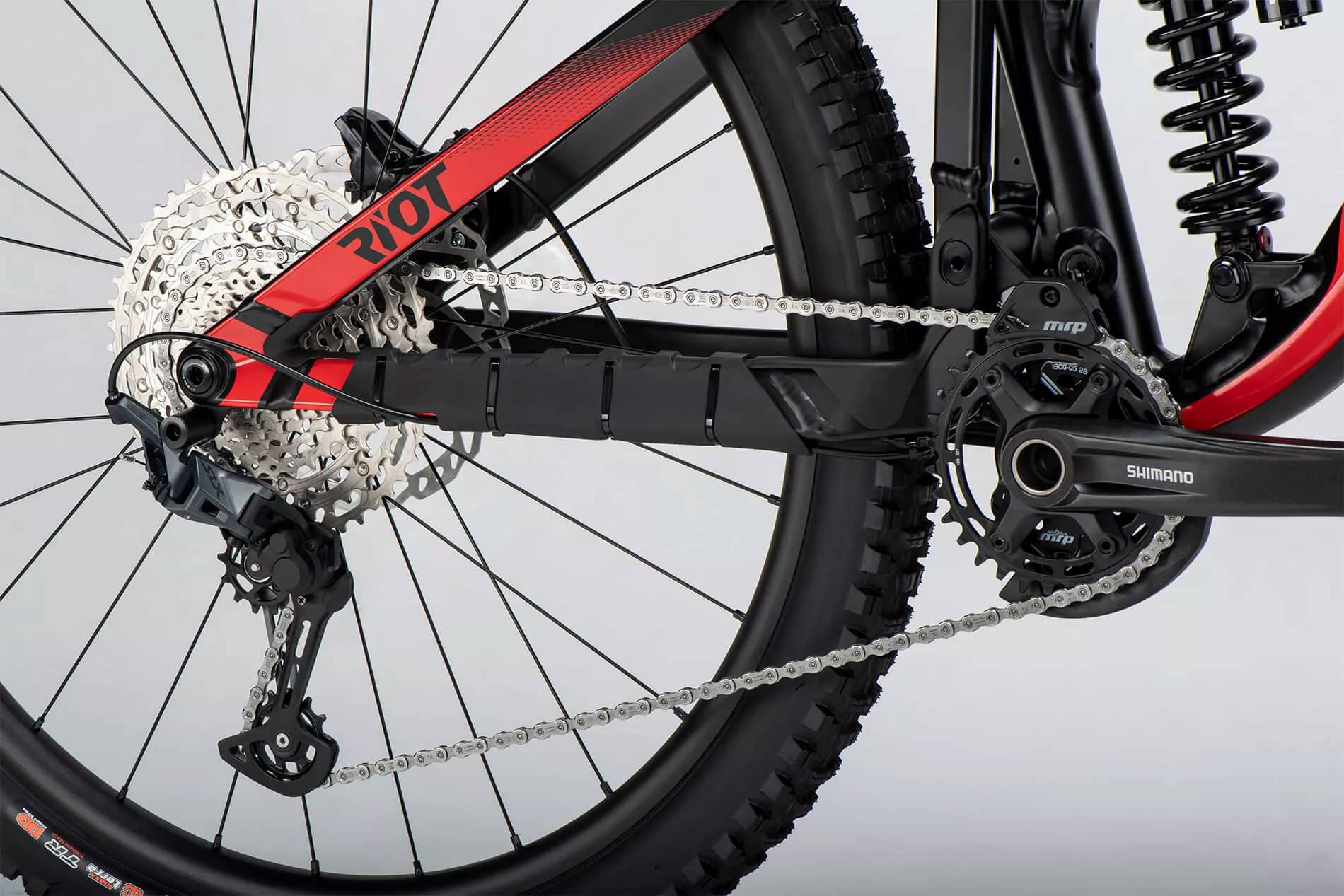

Drivetrain
Rear Derailleur
Shimano SLX RD-M7100 12-S
Shift Levers
Shimano Deore SL-M6100
Cassette
Shimano Deore CS-M6100
Crank
Shimano Deore FC-M6100 170
Bottom Bracket
Shimano BSA BB-MT801
Chain
Shimano Deore CN-M6100
Chain Guide
MRP AMg, 28-34T
Wheels
Rims
Syntace V30 15x110 mm
Tires
Maxxis Assegai 3C MaxxGrip Exo+ 2.5
Brakes
Brakes

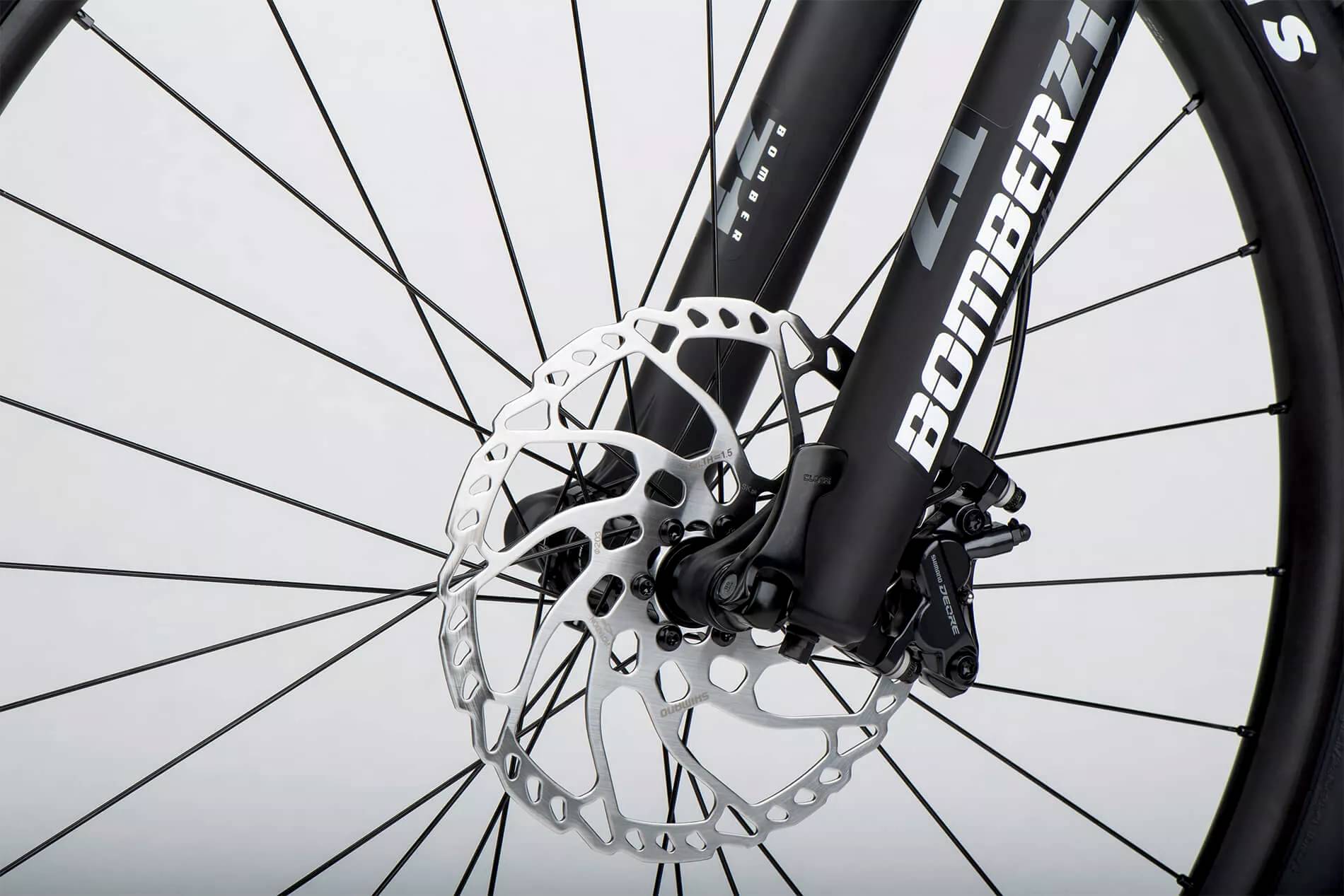

Shimano Deore BR-M6120 203 mm Disc
Brake Levers
Shimano BL-M6100
Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm
Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm, Rise 40 mm
Headset
Acros Blocklock 135° AZX-582
Seat
Saddle

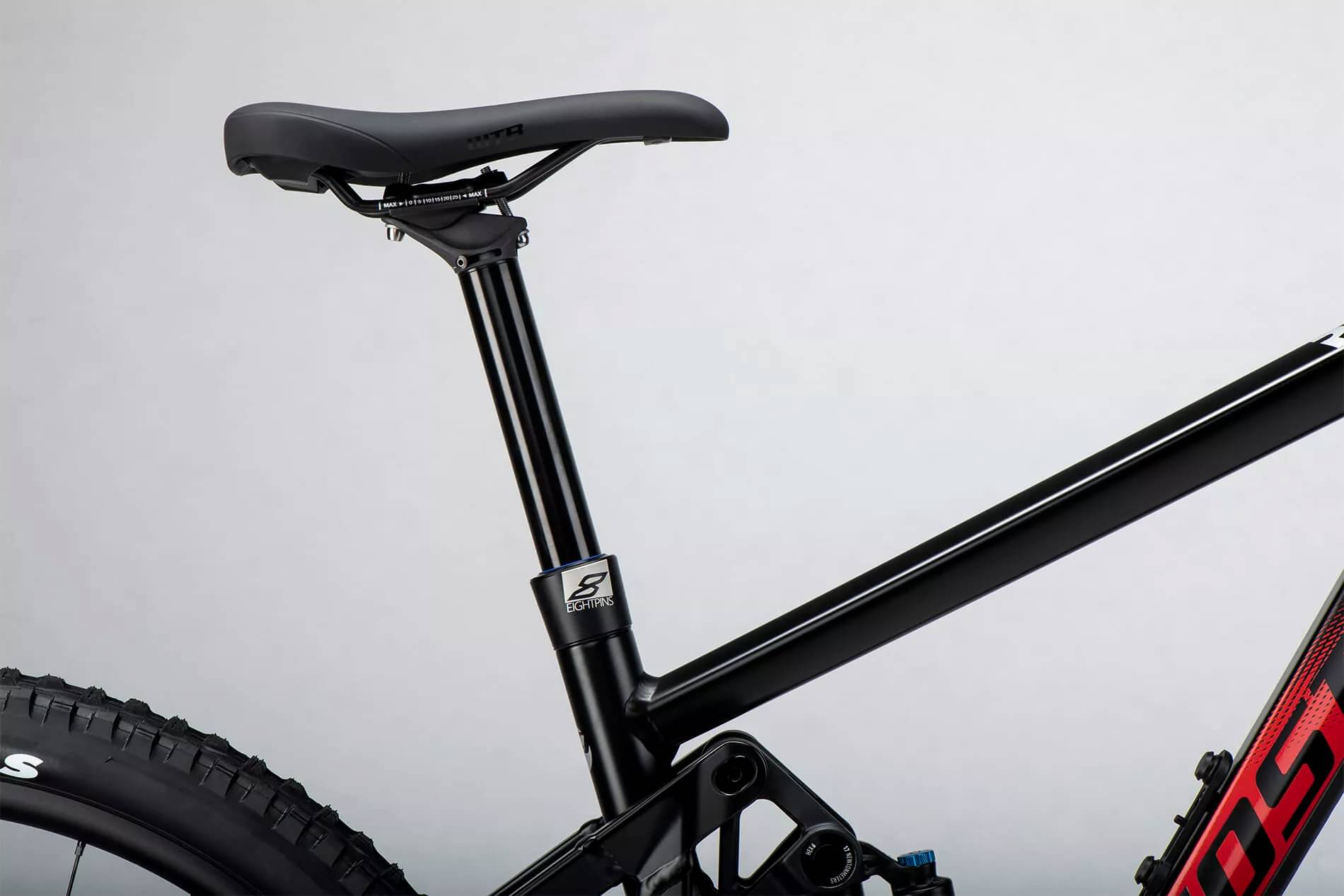

WTB Volt
Seatpost
Eightpins Dropperpost H01 Hydraulic, telescope, Dia 34.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.314 mm | 1.331 mm | 1.29 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 790 mm | 823 mm | 862 mm | 900 mm |
| Rake | 42 mm | 52 mm | 53 mm | 52 mm |
| Trail | 127 mm | 125 mm | 124 mm | 125 mm |
| Stack | 619 mm | 627 mm | 663 mm | 681 mm |
| Reach | 453 mm | 477 mm | 498 mm | 528 mm |
| Top Tube Length | 607 mm | 621 mm | 651 mm | 685 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1224 mm | 1276 mm | 1315 mm | 1353 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
