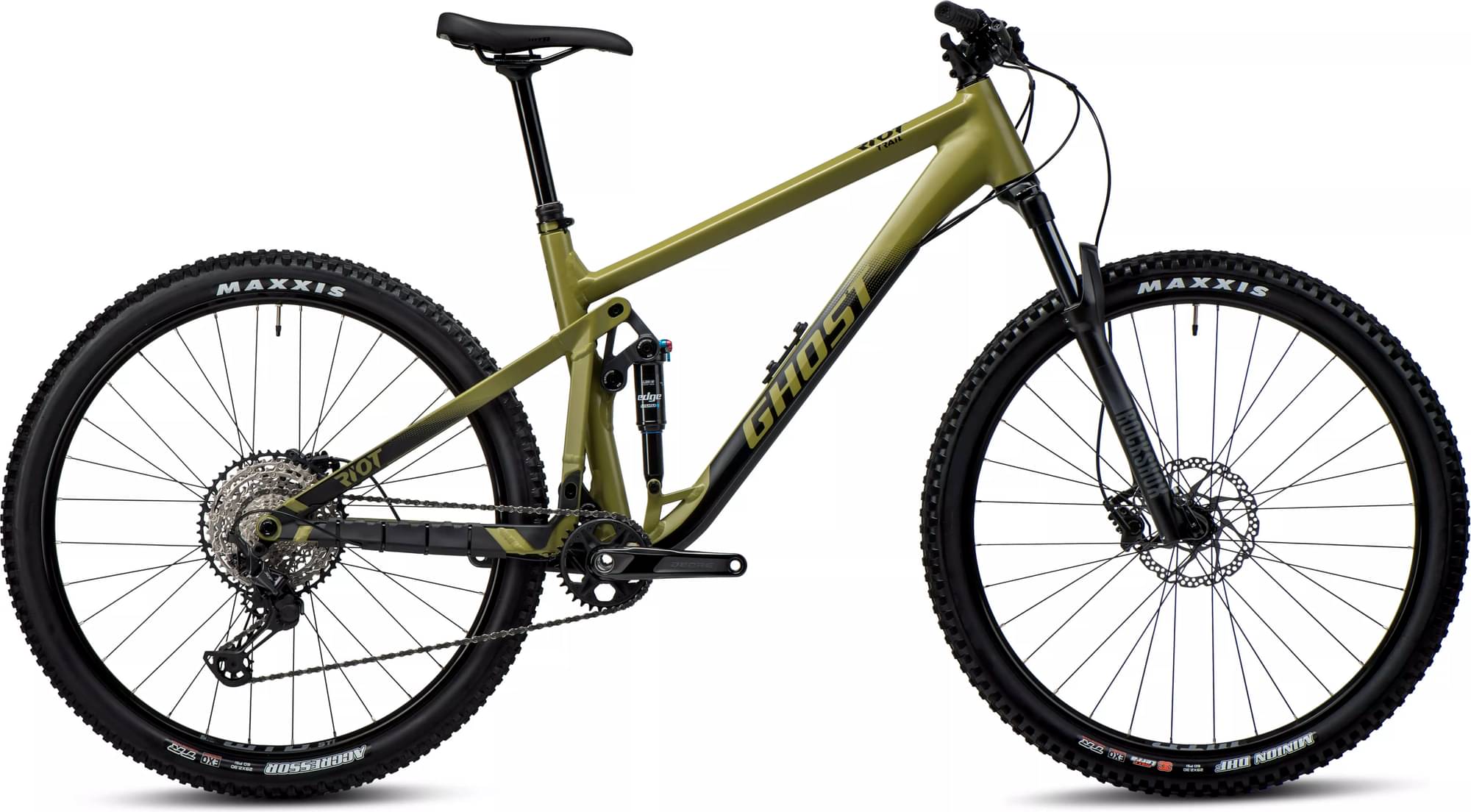

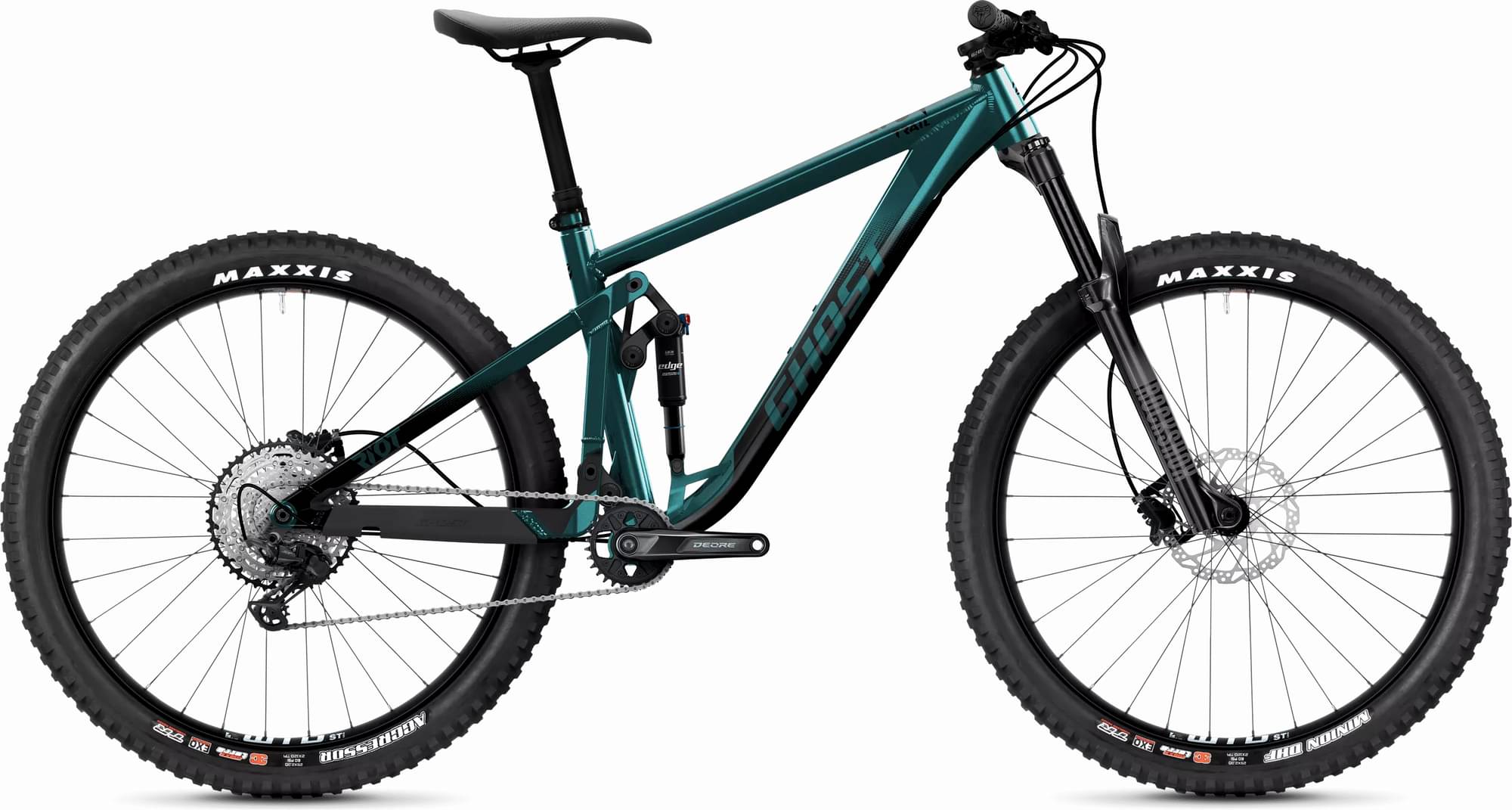

Ghost RIOT TRAIL 2025
2025 Mountain
Estimate price |
3,024$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -

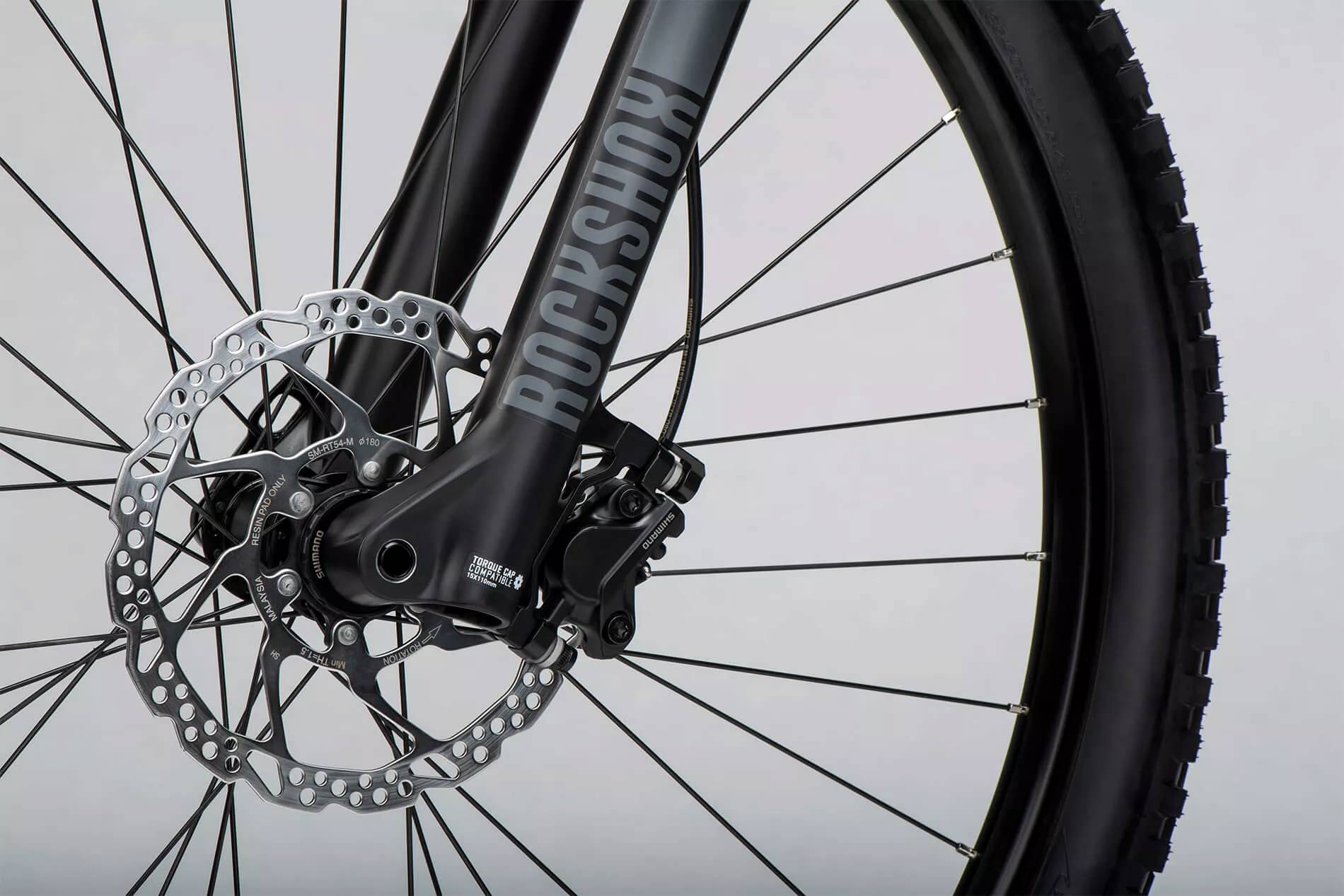

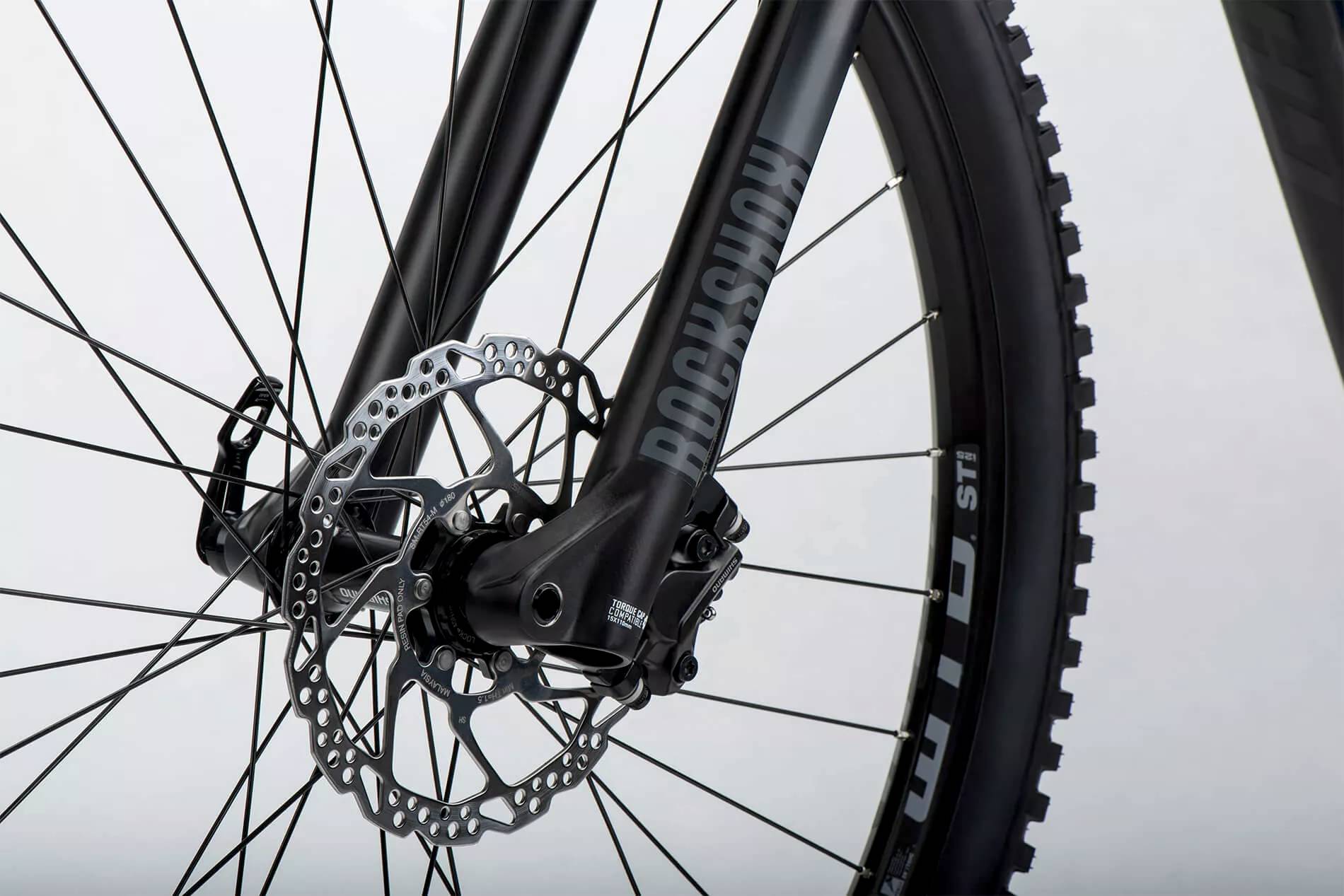

Fork RockShox Recon Silver RL
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

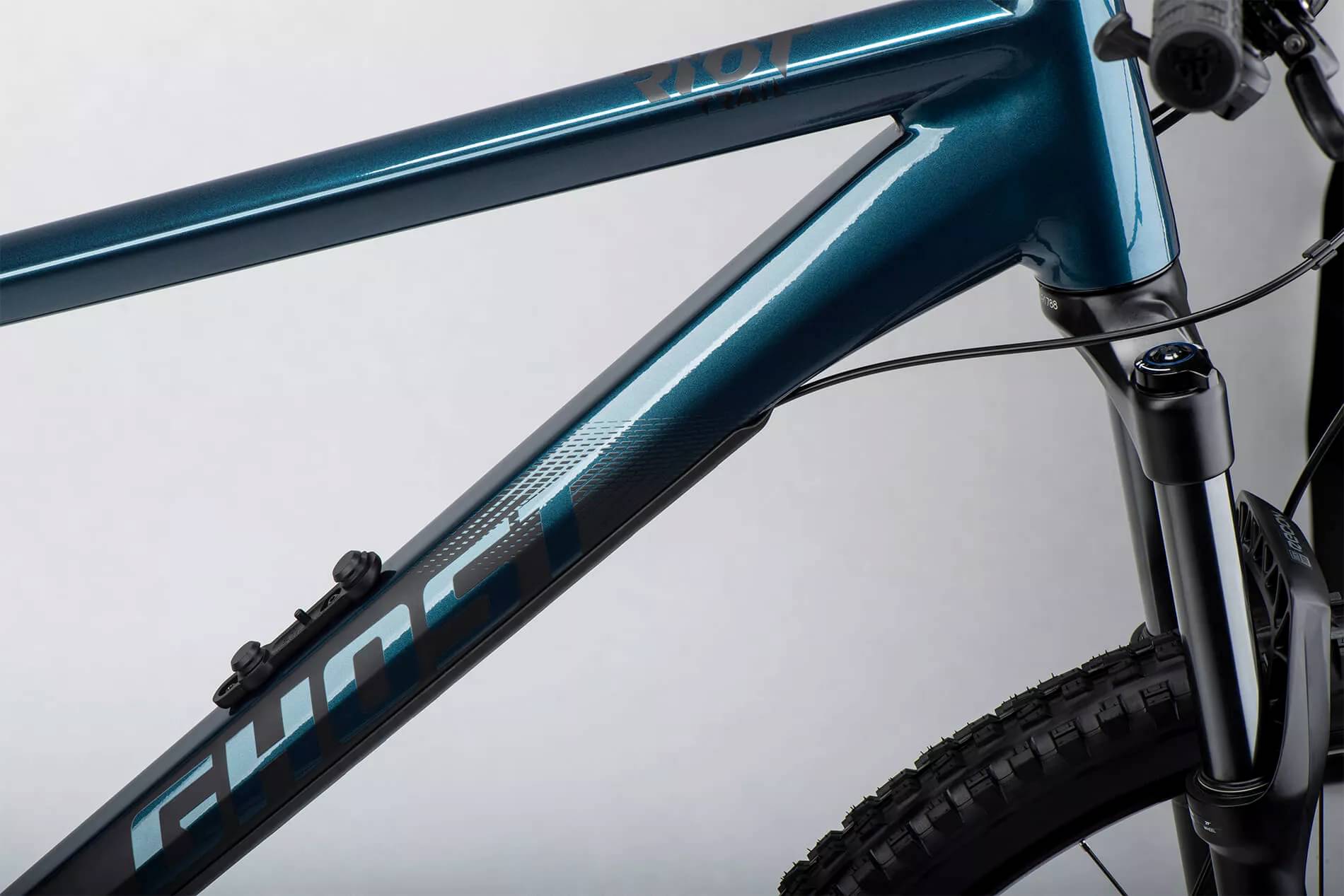

Frame
Frame
HIGH Aluminium Uni

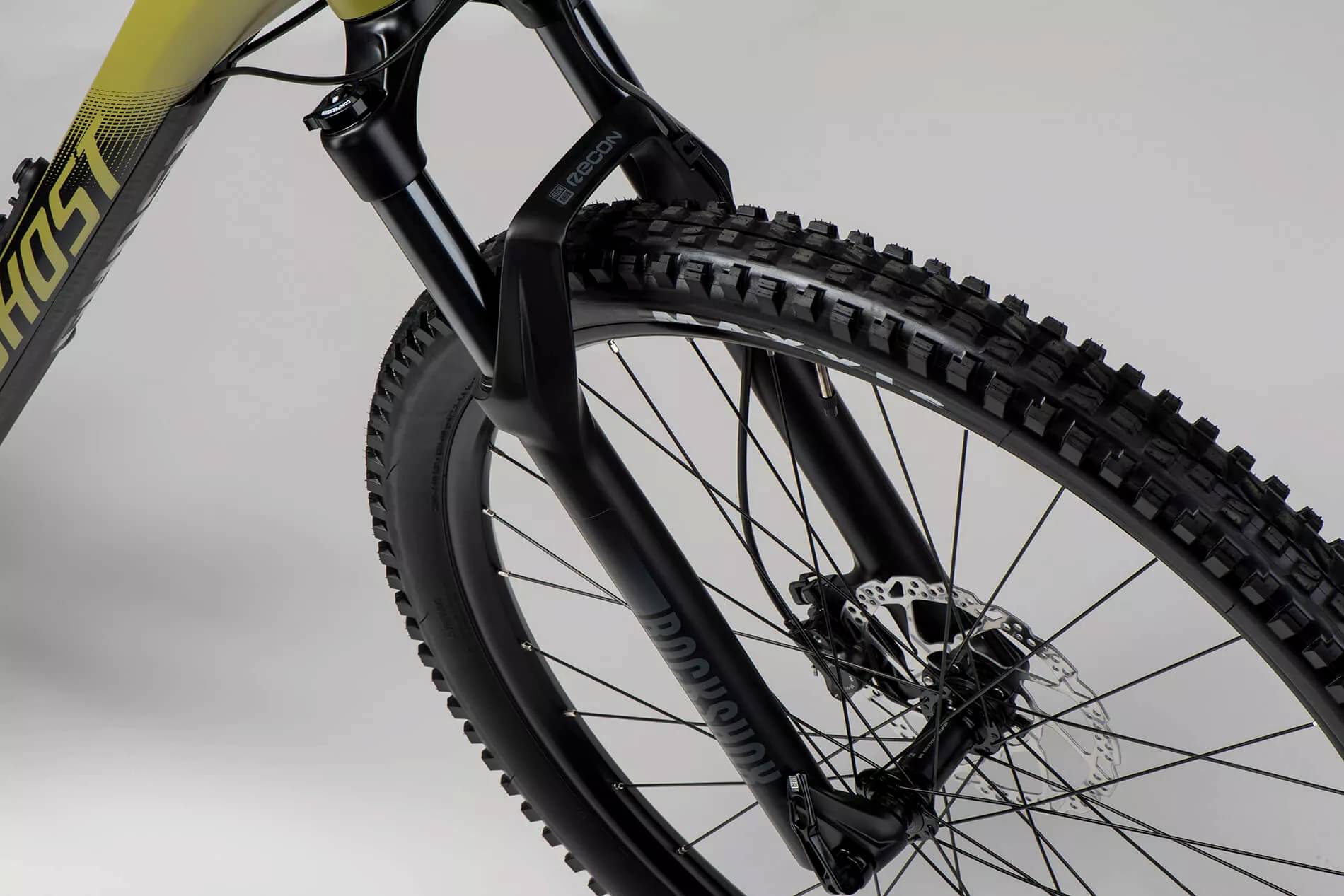

Suspension Fork
Rockshox Recon Silver RL 140 mm

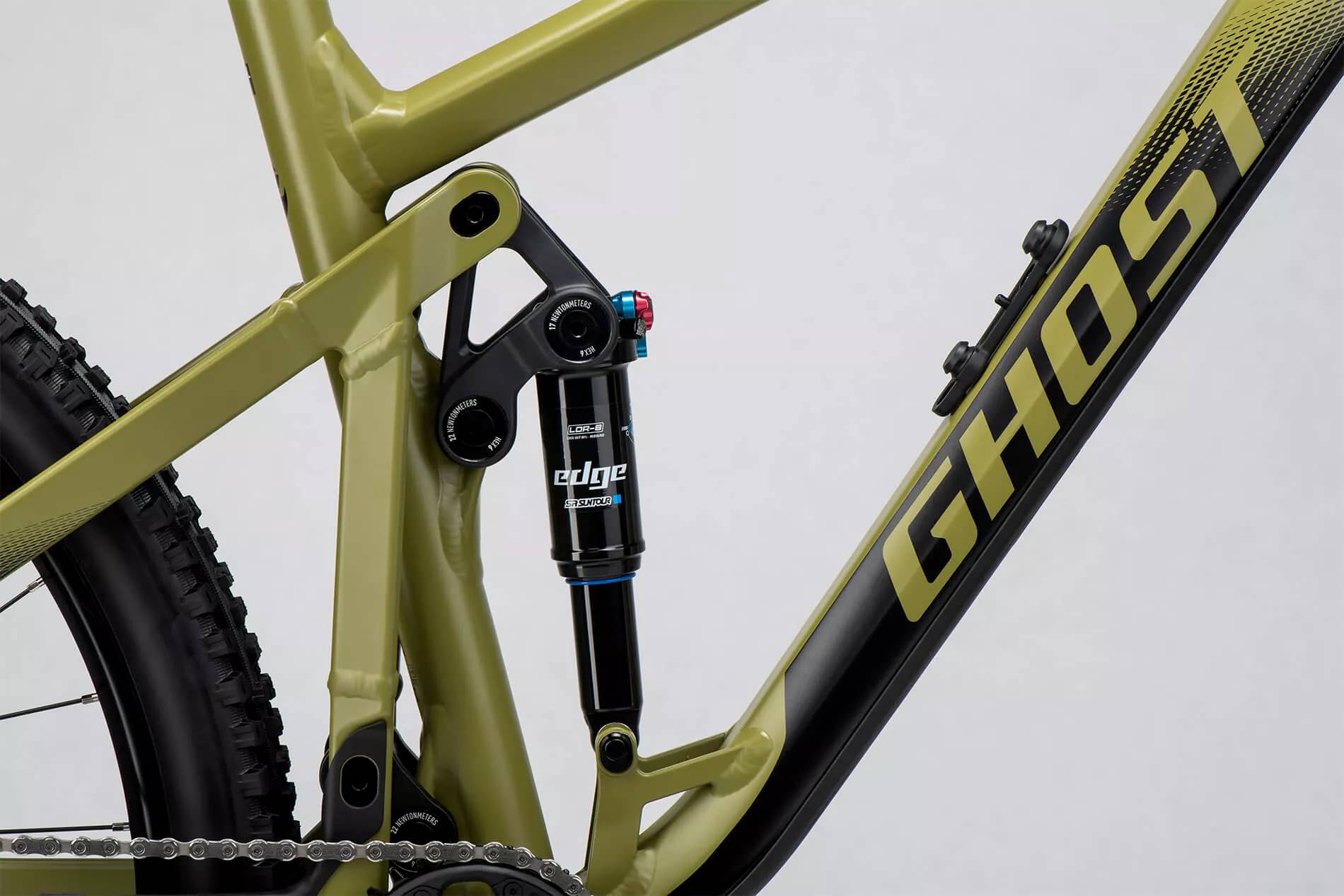

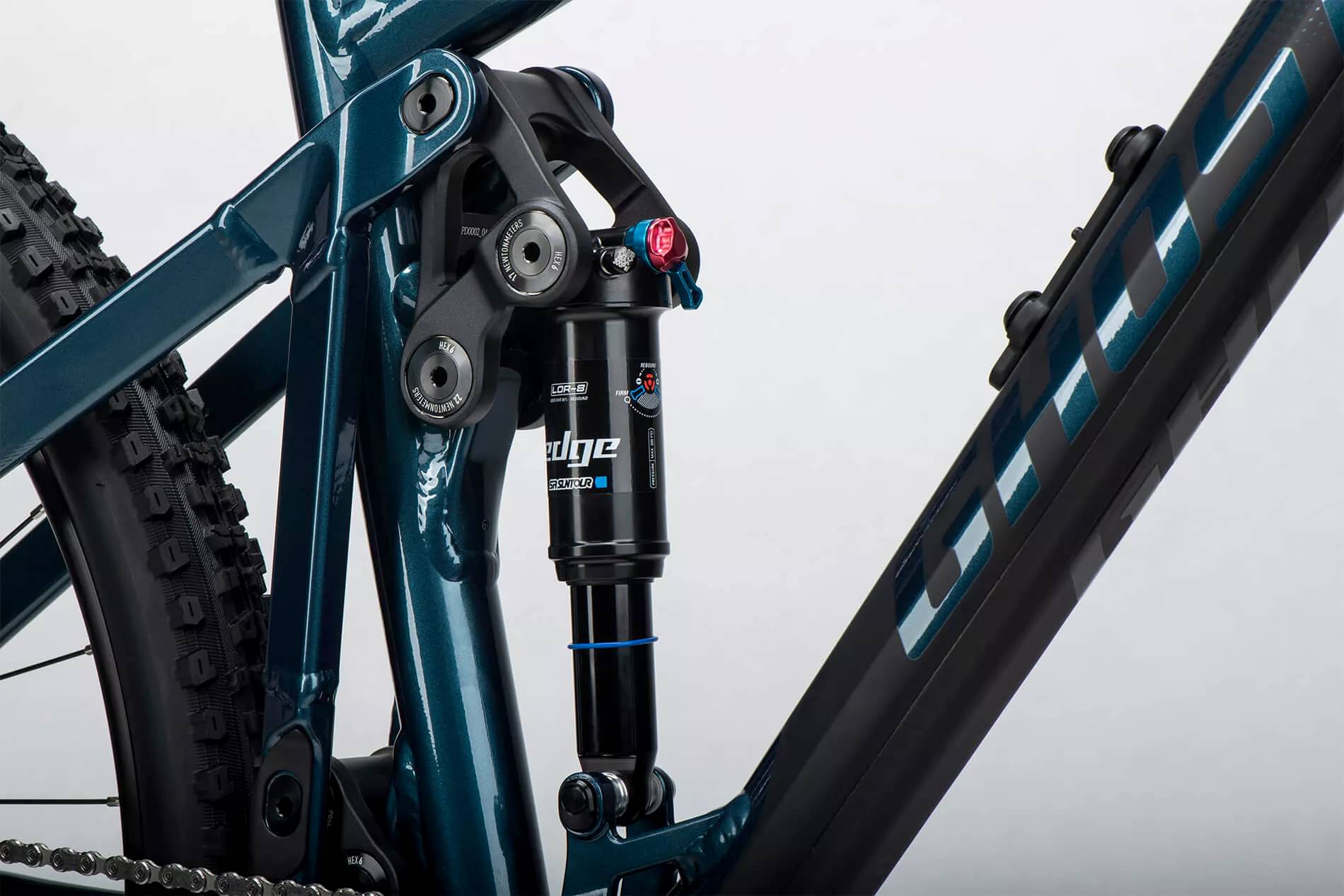

Rear Shock
Suntour Edge LOR8 140 mm

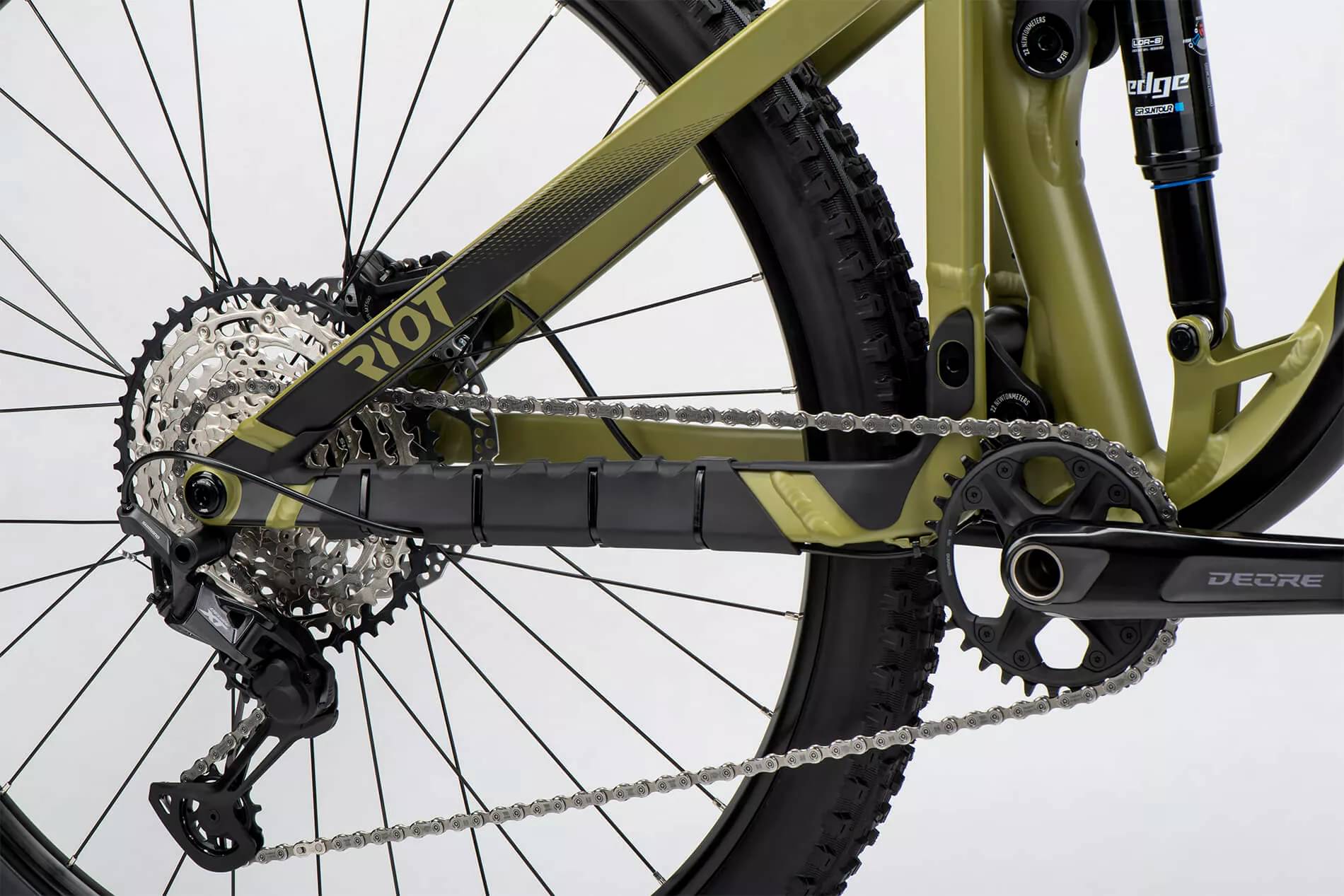

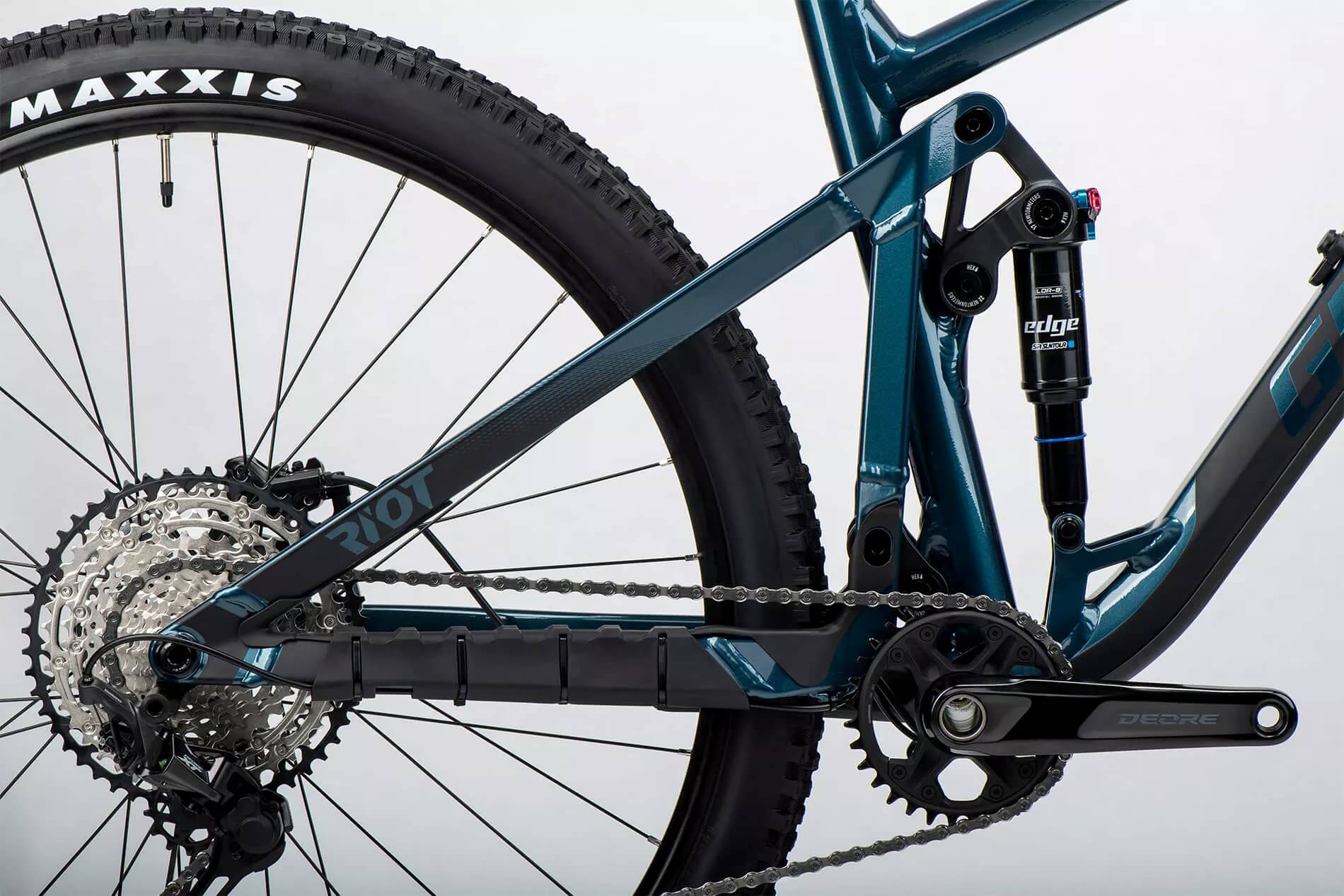

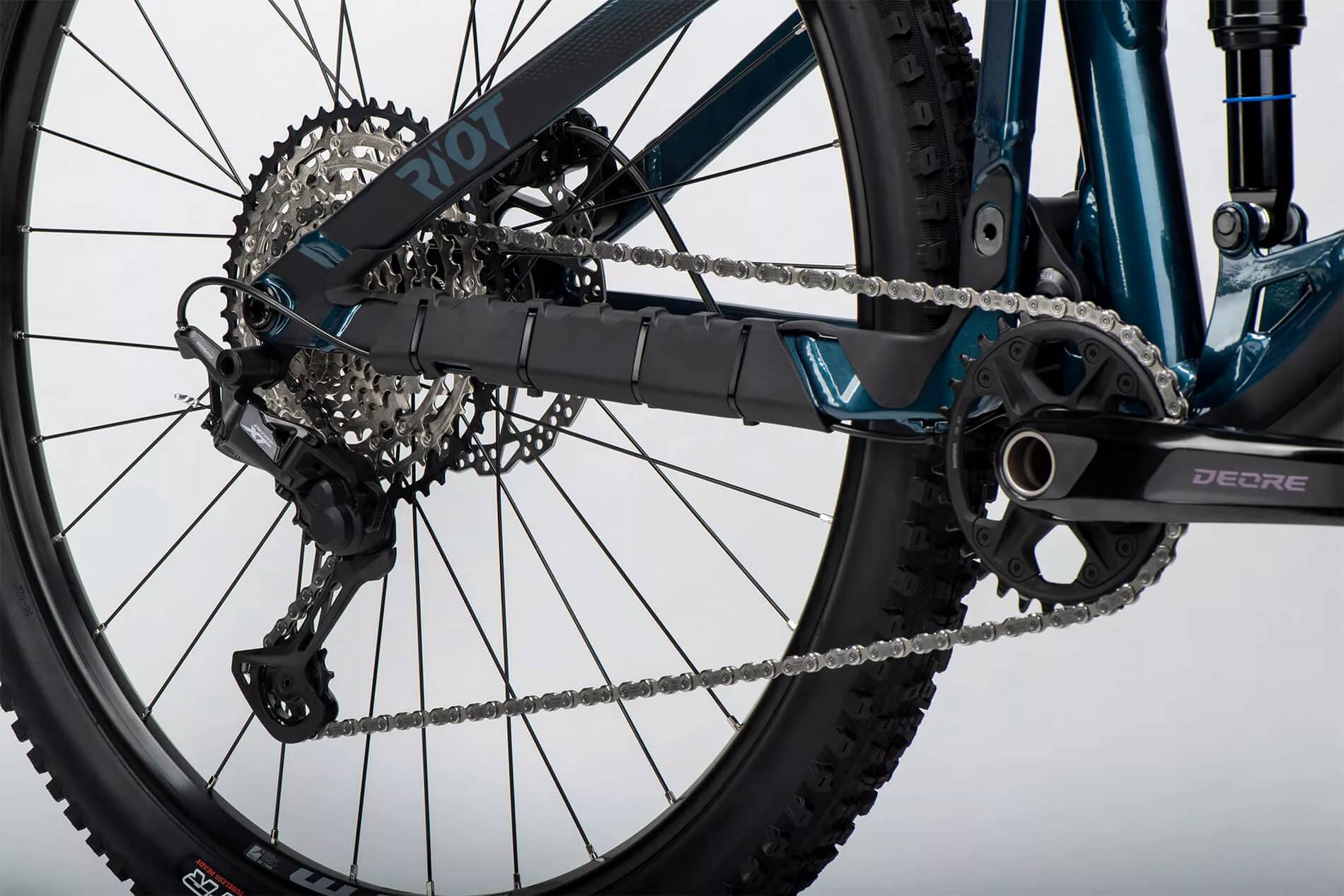

Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Shift Levers
Shimano SLX SL-M7100
Cassette
Shimano SLX CS-M7100
Crank
Shimano Deore FC-M6100 170
Bottom Bracket
Shimano BSA BB-MT801
Chain
Shimano SLX CN-M7100
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
FH-MT510-B 12x148 mm
Rims
WTB ST i25
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 2.3 58-622
Brakes
Brakes
Shimano BR-MT500 180 mm Disc
Brake Levers
Shimano BL-MT501

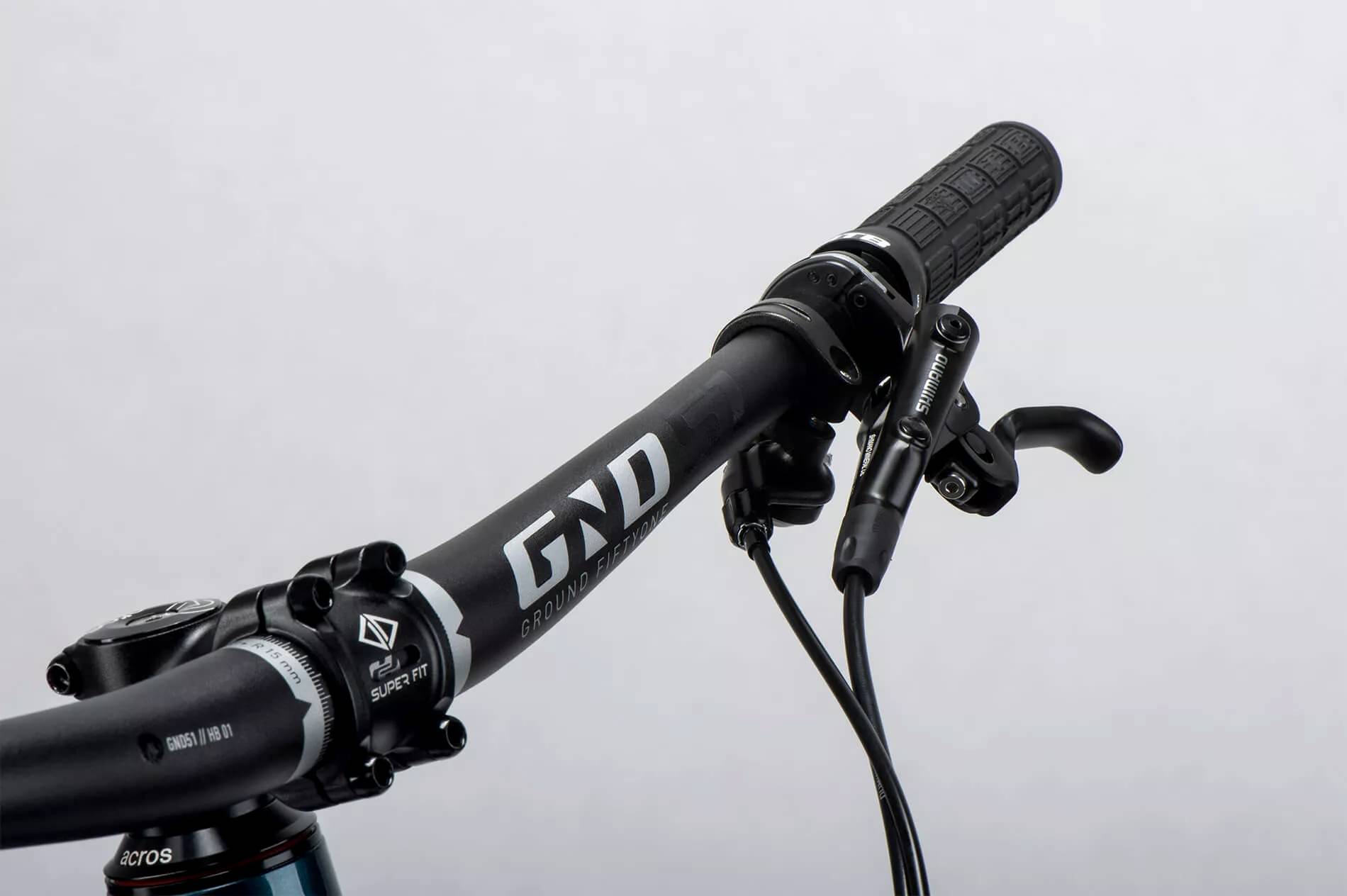

Cockpit
Stem
Ghost Ground Fiftyone Dia. 31,8 mm
Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm
Headset
Acros Blocklock 135° AZX-582
Seat
Saddle
WTB Volt
Seatpost
Limotec Dropperpost Alpha 1
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.307 mm | 1.317 mm | 1.339 mm | 1.298 mm |
| Bottom Bracket Height | 330 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 751 mm | 783 mm | 819 mm | 856 mm |
| Rake | 47 mm | 53 mm | 53 mm | 53 mm |
| Trail | 107 mm | 109 mm | 109 mm | 109 mm |
| Stack | 587 mm | 615 mm | 652 mm | 670 mm |
| Reach | 449 mm | 467 mm | 487 mm | 516 mm |
| Top Tube Length | 596 mm | 609 mm | 638 mm | 670 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1180 mm | 1230 mm | 1266 mm | 1303 mm |
| Bottom Bracket Drop | 25 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 772 mm | 800 mm | 803 mm | 802 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
