Ghost RIOT TRAIL UNIVERSAL 2025
2025 Mountain
Estimate price |
3,096$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Fox Factory Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Magura MT5 Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
171cm - 180cm
LG
178cm - 188cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni

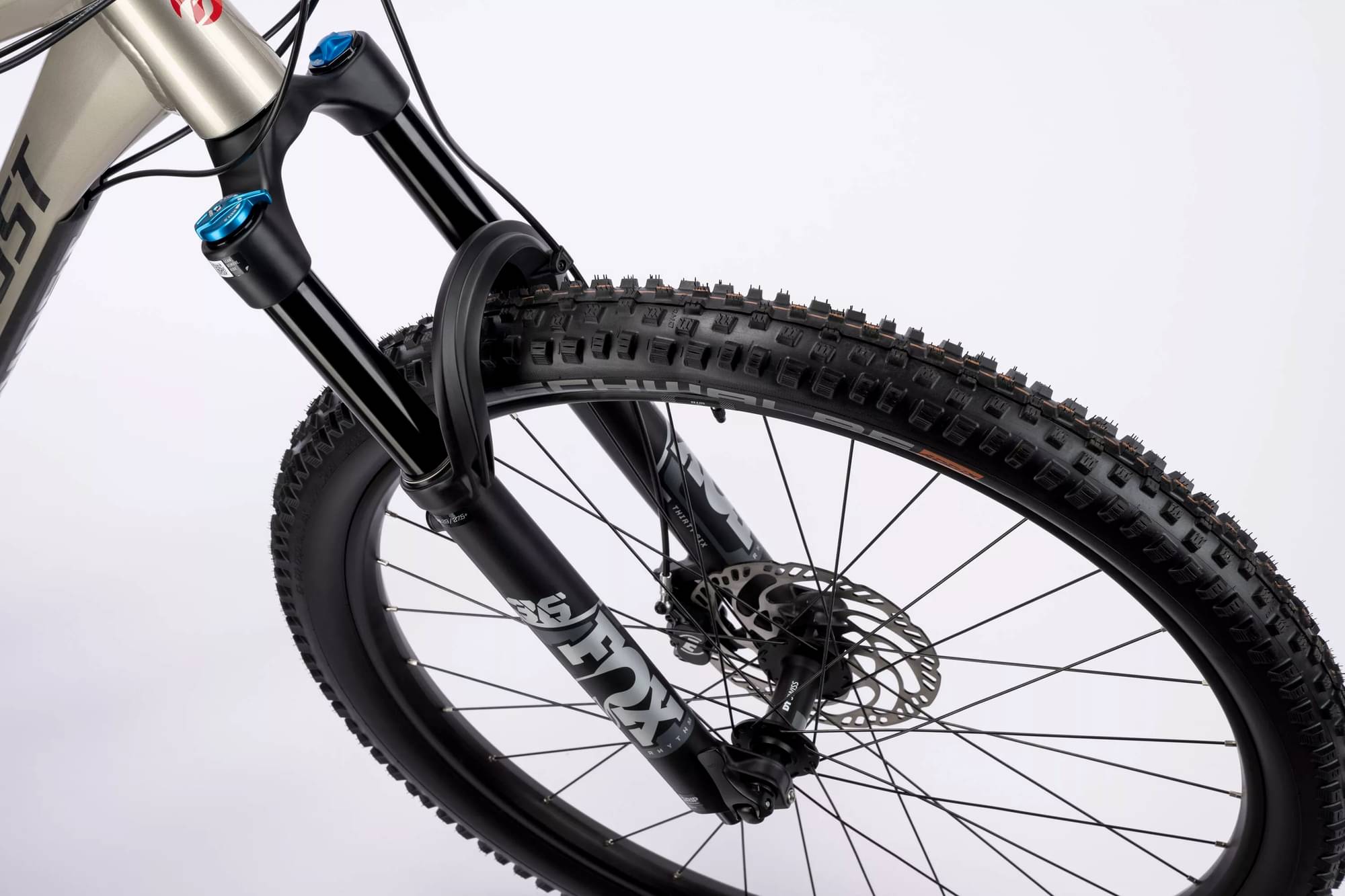

Suspension Fork
FOX Factory 36 FLOAT Rhythm - GRIP 140 mm, QR

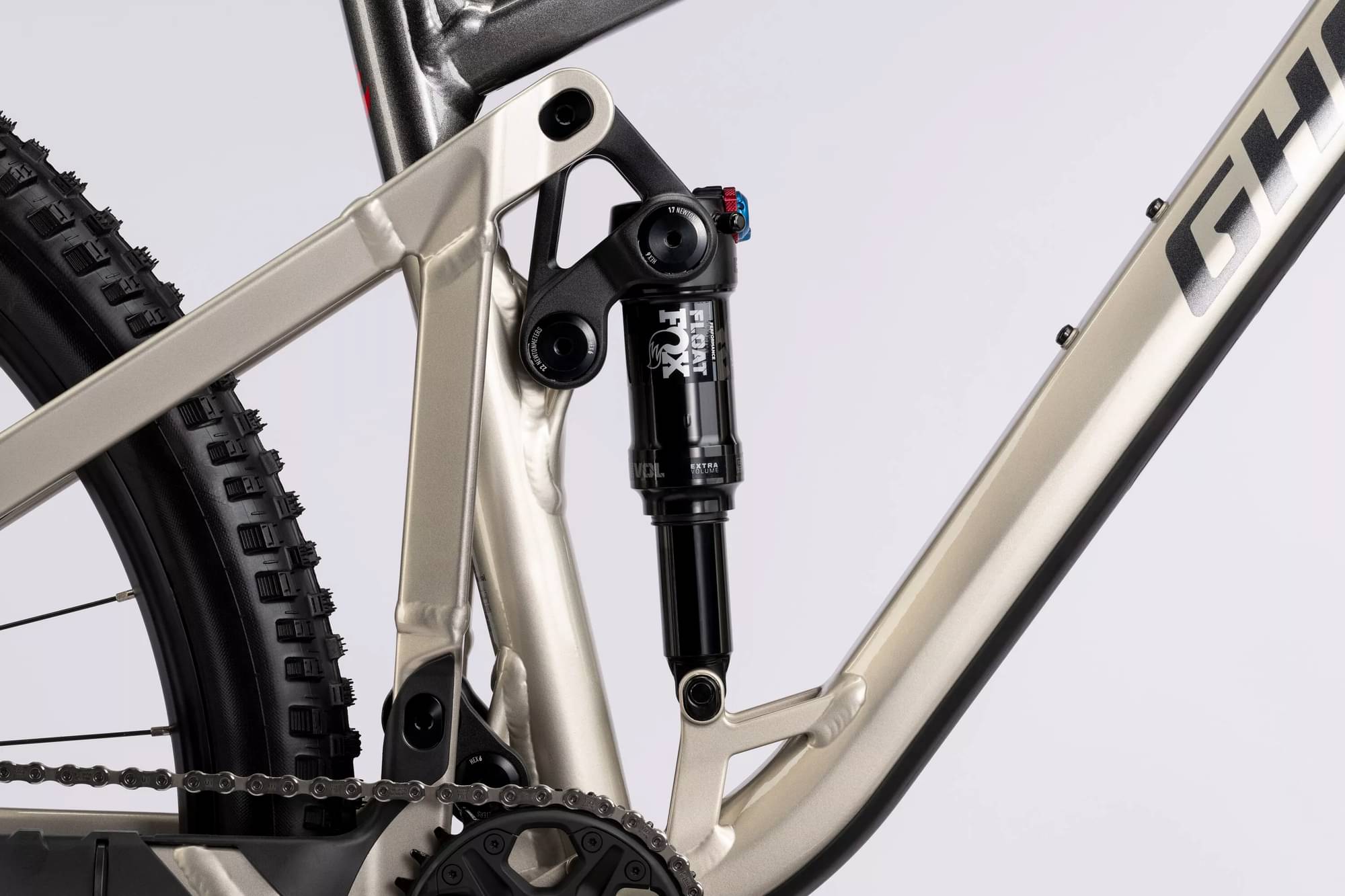

Rear Shock
FOX Factory FLOAT DPS Performance, EVOL LV, 3Pos. 185x55mm

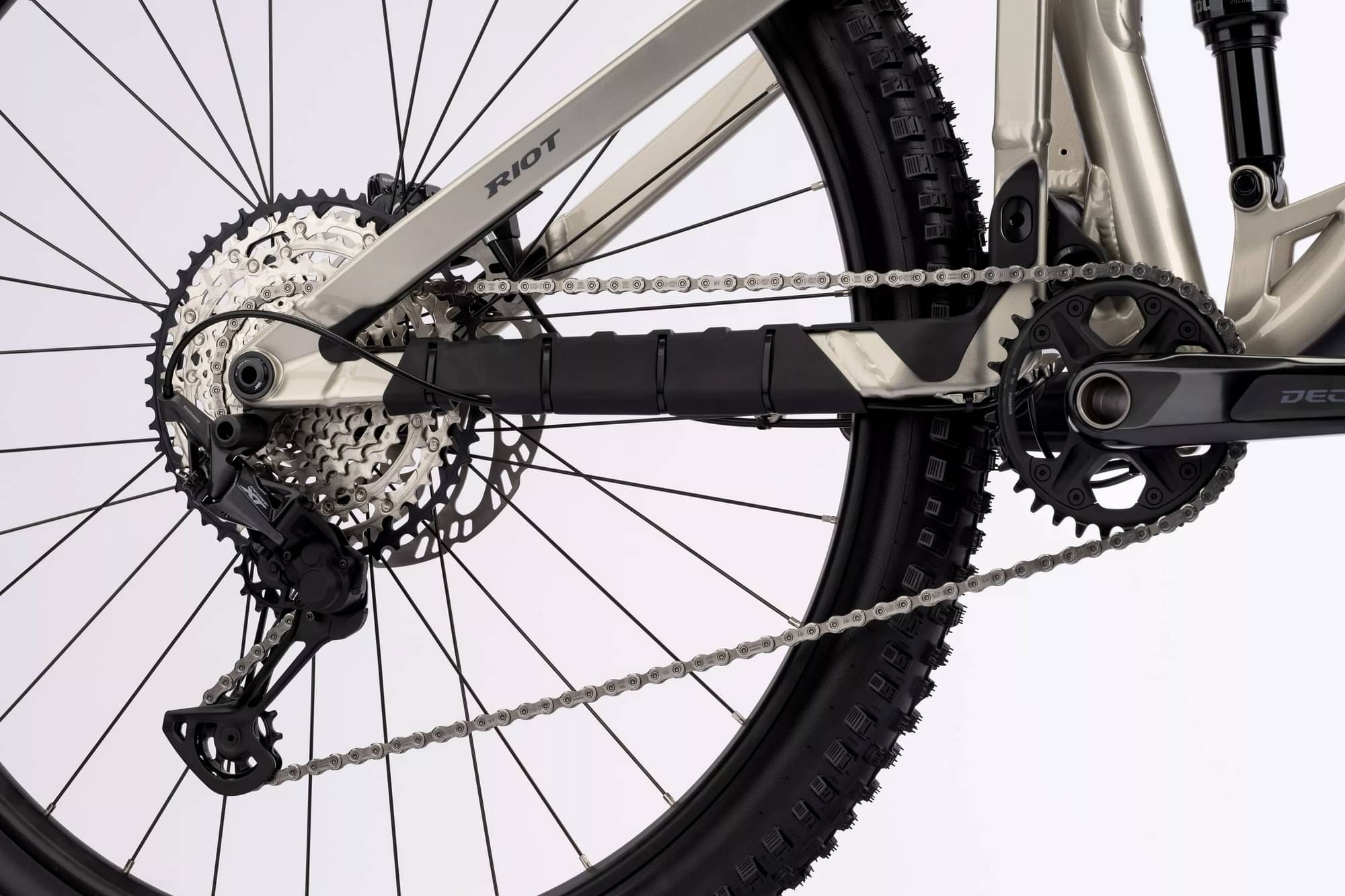

Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100-SGS 12s, Shadow+
Shift Levers
Shimano Triggershift SLX SL-M7100-R, Rapidfire+
Cassette
Shimano SLX CS-M7100-12, MICRO SPLINE
Crank
Shimano SLX FC-M7100-1, HOLLOWTECH 2 170
Bottom Bracket
Shimano BSA Deore XT BB-MT800 68/73 mm, HOLLOWTECH II
Chain
Shimano Deore CN-M6100 12s
Pedals
VP VPE-527 Alloy w/ Reflector
Wheels
Front Hub
DT Swiss 370 Classic 15x110 mm, 6 bolt Disc, 32H
Rear Hub
DT Swiss 370 Classic 12x148 mm, 6 bolt Disc, 32H, MS
Rims
WTB ST i30 TCS 2.0 27.5" 32H
Tires
Schwalbe Nobby Nic, Super Trail, ADDIX Soft, 50EPI 62-584
Brakes
Brakes
Magura Hydraulic Disc brake MT5, 4 pistons, 180 mm
Brake Levers
Magura MT5 HC-Lever

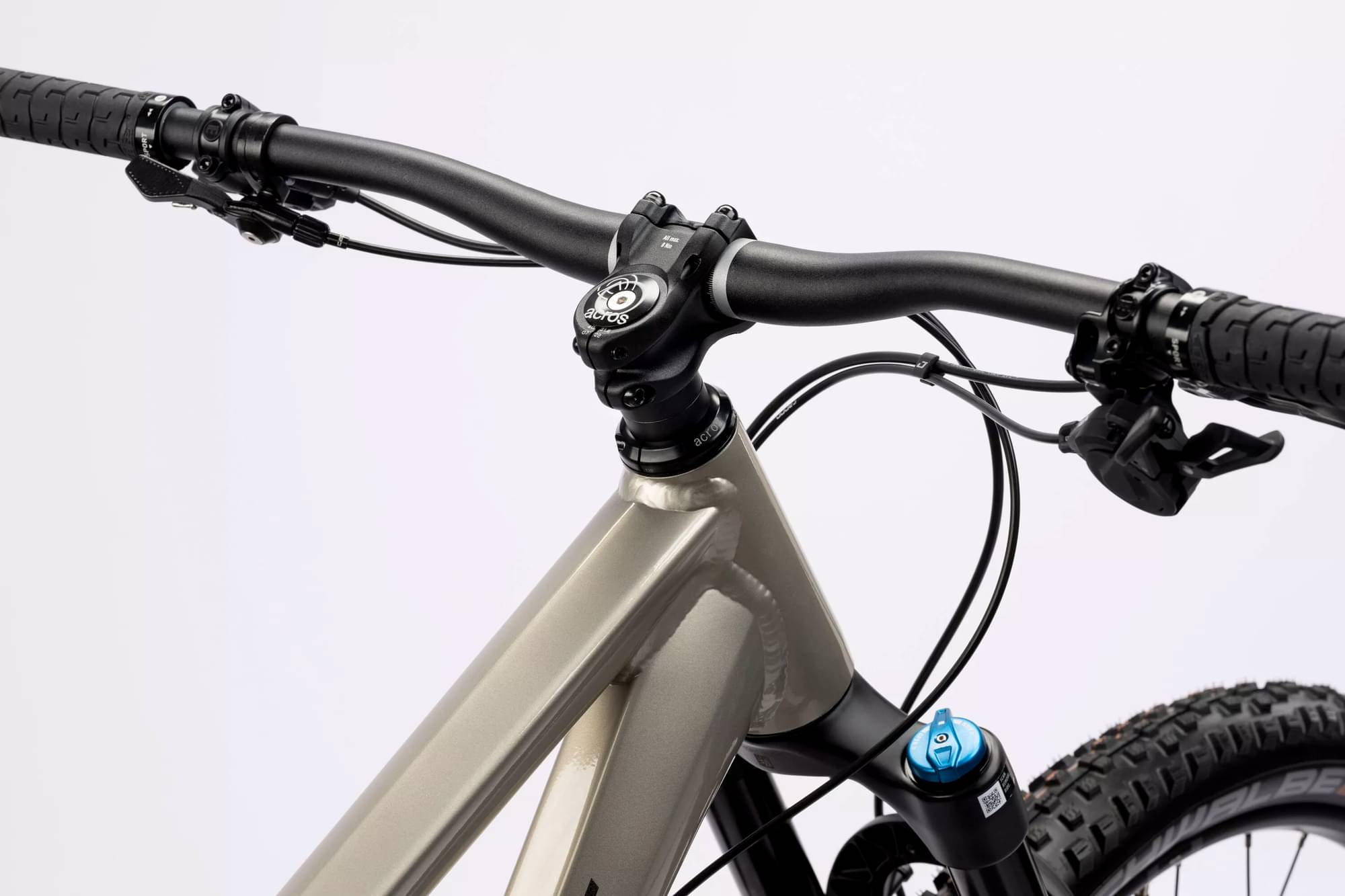

Cockpit
Stem
PMG Not Adjustable Team All Mtn, Dia. 31.8 mm, L: 50 mm, A-Head
Handlebar
PMG Riser Bar Race Alloy Riser Bar, Dia. 31.8 mm, Rise: 15 mm
Headset
Acros Semi-integrated Blocklock 135° ZS44/ZS56 Tapered
Seat
Saddle
Fizik MTB Terra Alpaca X5 fiber reinforced nylon

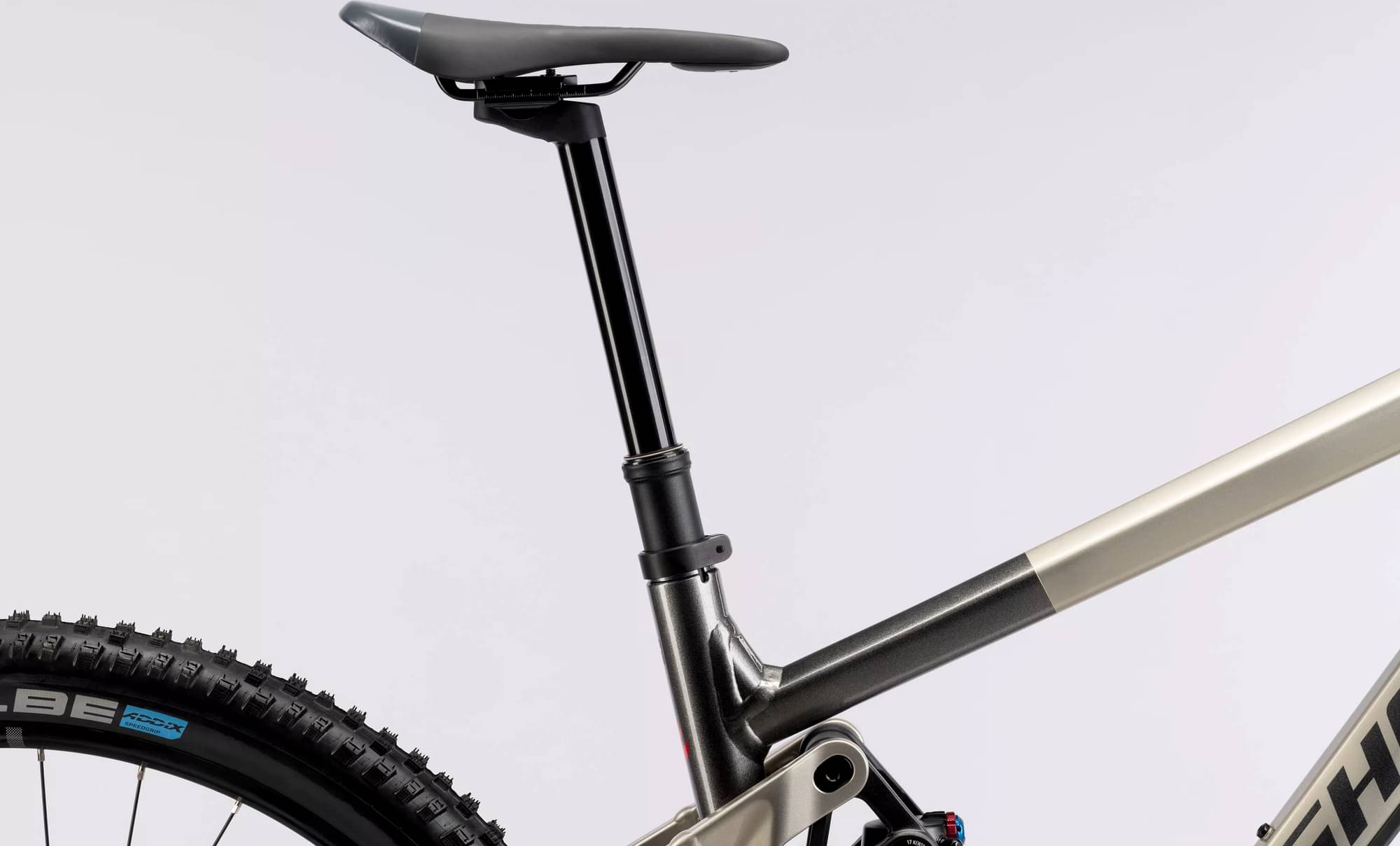

Seatpost
Limotec Dropperpost Alpha 1 Dropper, Dia. 34.9 mm, Travel: 150 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.307 mm | 1.317 mm | 1.339 mm | 1.298 mm |
| Bottom Bracket Height | 330 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 751 mm | 783 mm | 819 mm | 856 mm |
| Rake | 47 mm | 53 mm | 53 mm | 53 mm |
| Trail | 107 mm | 109 mm | 109 mm | 109 mm |
| Stack | 587 mm | 615 mm | 652 mm | 670 mm |
| Reach | 449 mm | 467 mm | 487 mm | 516 mm |
| Top Tube Length | 570 mm | 584 mm | 612 mm | 645 mm |
| Seat Tube Angle | 78.4 ° | 79.2 ° | 79.1 ° | 79.1 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1180 mm | 1230 mm | 1266 mm | 1303 mm |
| Bottom Bracket Drop | 25 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 772 mm | 800 mm | 803 mm | 802 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 171 cm | 178 cm | 186 cm |
| Rider Max Height | 173 cm | 180 cm | 188 cm | 198 cm |
