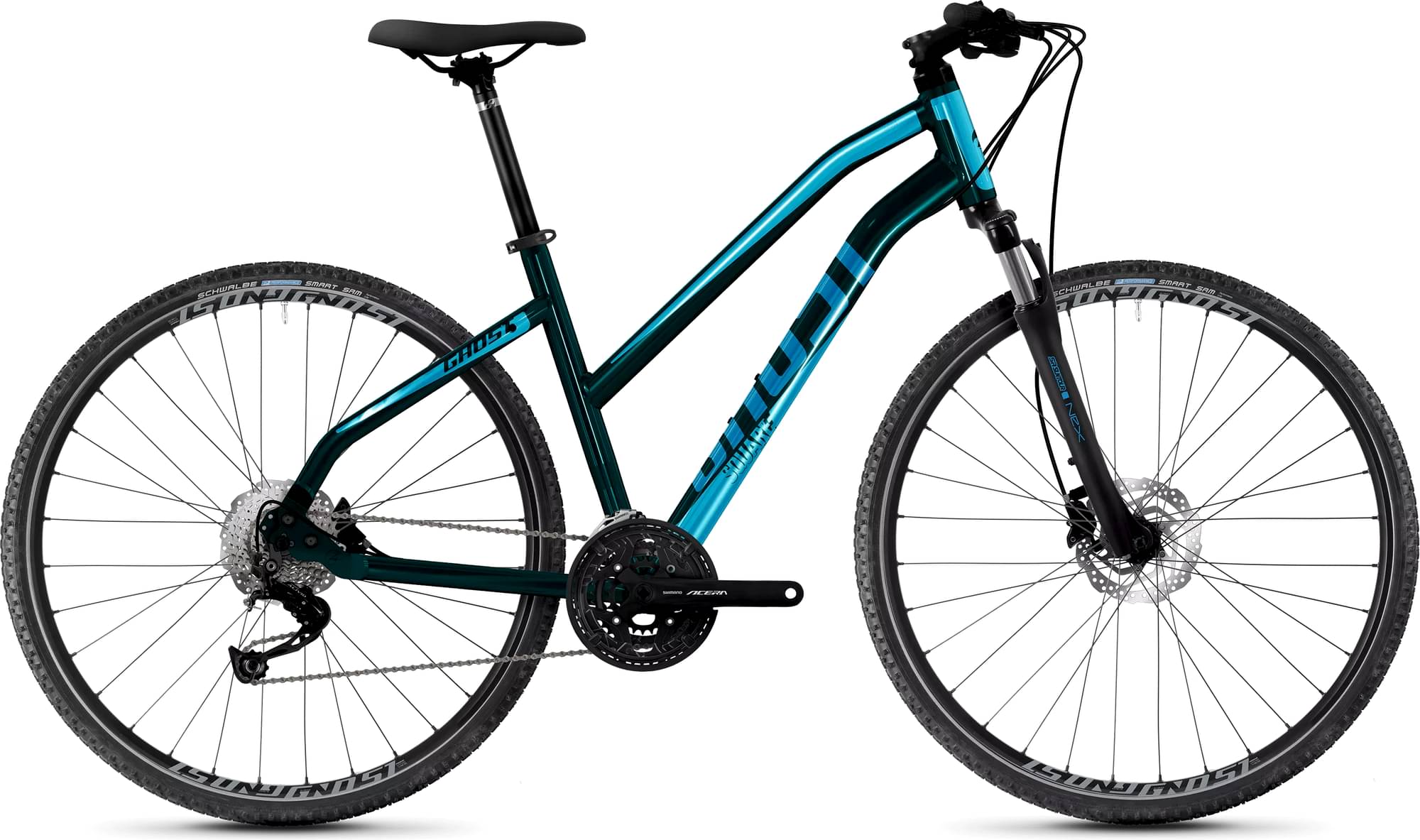

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
154cm - 163cm
SM
160cm - 170cm
MD
168cm - 179cm
LG
176cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SQUARE Cross AL
Suspension Fork
SR Suntour SF14 NEX DS-700C 63 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Front Derailleur
Shimano Acera FD-T3000
Cassette
Shimano CS-HG400-9 11-34
Crank
Shimano FC-T3010 44-32-22
Bottom Bracket
Prestine PT-6621
Chain
KMC X9
Pedals
FPD NW-499
Wheels
Rims
Front: Rodi Excalibur XC19, Rear: Rodi Excalibur XC19
Tires
Front: Schwalbe Smart Sam Performance 47-622, Rear: Schwalbe Smart Sam Performance 47-622
Brakes
Brakes
Shimano BR-MT200 160 mm Disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem
GHOST SQUARE Dia. 31.8 mm
Handlebar
GHOST Low Rizer SQUARE 680 mm Rise 25 mm Dia. 31.8 mm
Grips
Velo Grip
Seat
Saddle
Justek 3050 DRN
Seatpost
GHOST SP DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.709 mm | 1.718 mm | 1.71 mm | 1.676 mm |
| Stack | 629 mm | 634 mm | 648 mm | 662 mm |
| Reach | 368 mm | 369 mm | 379 mm | 395 mm |
| Top Tube Length | 560 mm | 575 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 150 mm | 155 mm | 170 mm | 185 mm |
| Wheelbase | 1073 mm | 1076 mm | 1091 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 630 mm | 625 mm | 625 mm | 625 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 160 cm | 168 cm | 176 cm |
| Rider Max Height | 163 cm | 170 cm | 179 cm | 186 cm |
