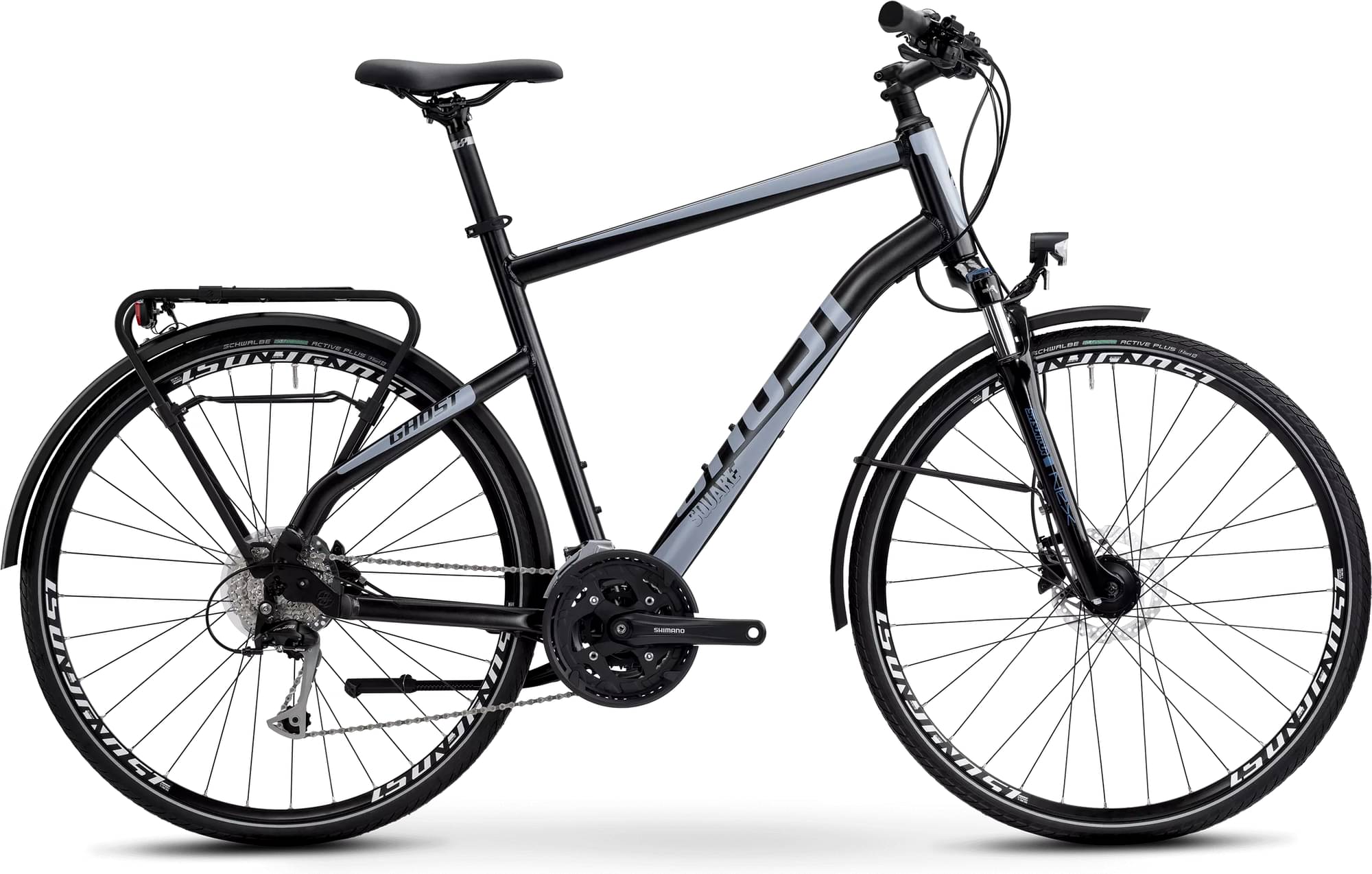

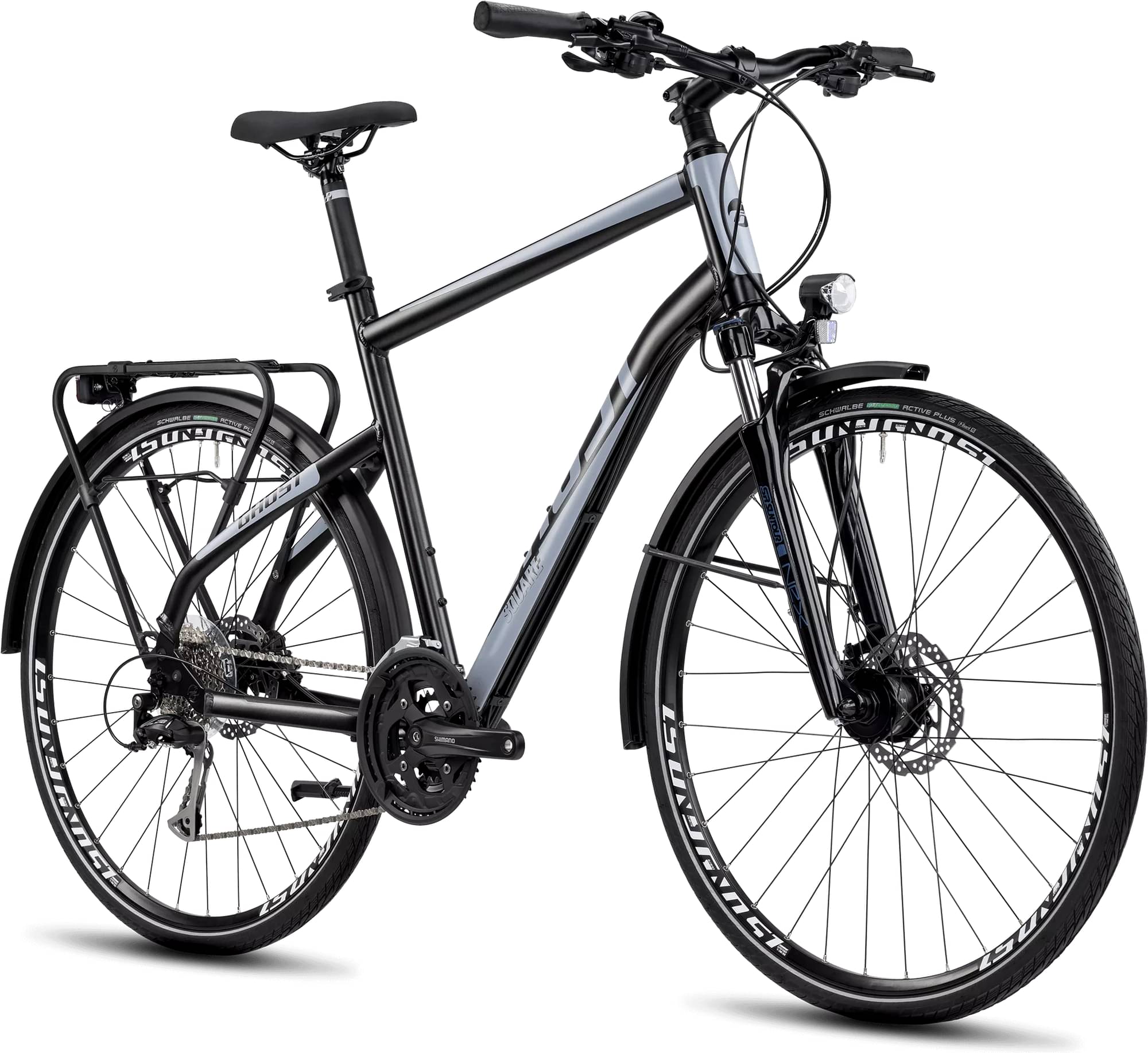

Ghost Square Trekking Essential 2024
2024 Urban
Estimate price |
1,162$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 180cm
LG
178cm - 188cm
XL
186cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SQUARE TREKKING AL
Suspension Fork
SR Suntour NEX HLO DS 63 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-T4000 9-S
Cassette
Shimano CS-HG400-9 11-34
Crank
Shimano FC-T4010 48-36-26
Bottom Bracket
Shimano BB-ES300
Chain
KMC X9
Pedals
FPD NW-499
Wheels
Rims
Front: Rodi Excalibur XC19, Rear: Rodi Excalibur XC19
Tires
Front: Schwalbe Energizer Activ Plus 37-622, Rear: Schwalbe Energizer Activ Plus 37-622
Brakes
Brakes
Shimano BR-MT200 160 mm Disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Ghost Dia. 31.8 mm
Handlebar
GHOST Dia. 31.8 mm 680 mm
Grips
Velo VLG-1752D2
Seat
Saddle
Justek 3050 HRN
Seatpost
GHOST SP DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.631 mm | 1.66 mm | 1.695 mm |
| Front Center | 657 mm | 660 mm | 664 mm | 673 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm |
| Trail | 74 mm | 75 mm | 67 mm | 67 mm |
| Stack | 636 mm | 641 mm | 664 mm | 683 mm |
| Reach | 391 mm | 393 mm | 400 mm | 403 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 470 mm | 520 mm | 570 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1105 mm | 1108 mm | 1112 mm | 1121 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 735 mm | 770 mm | 815 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 197 cm |
