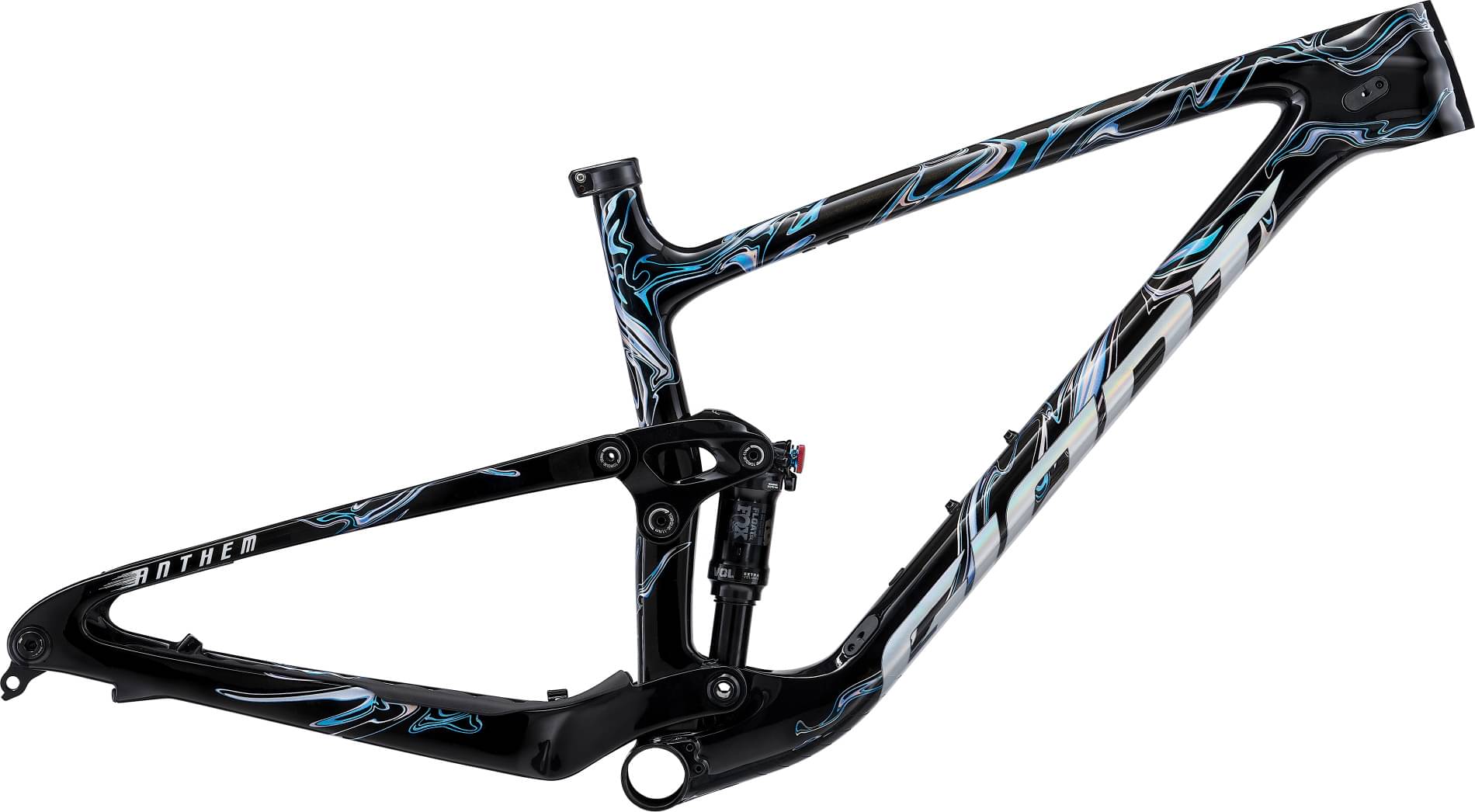

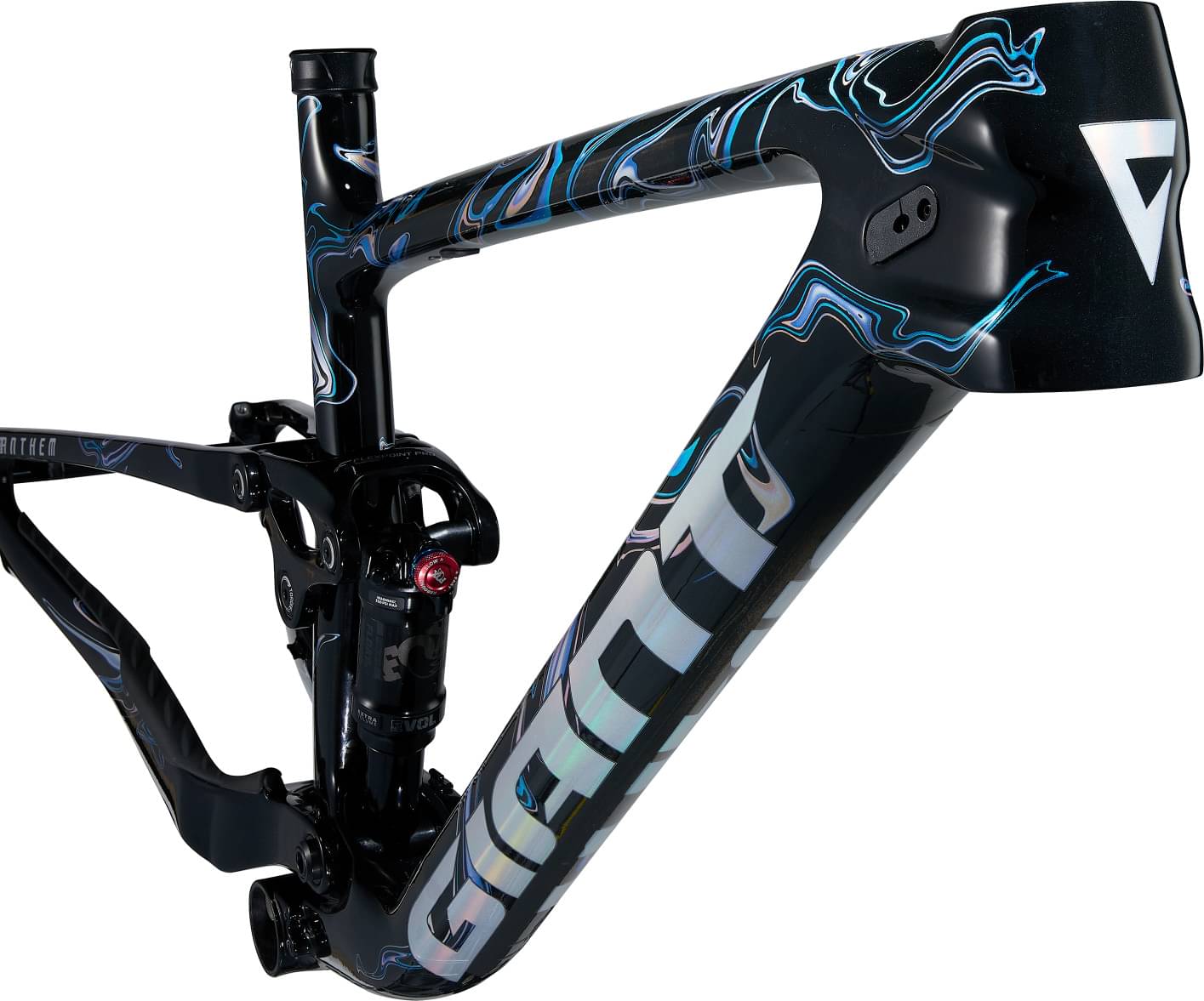

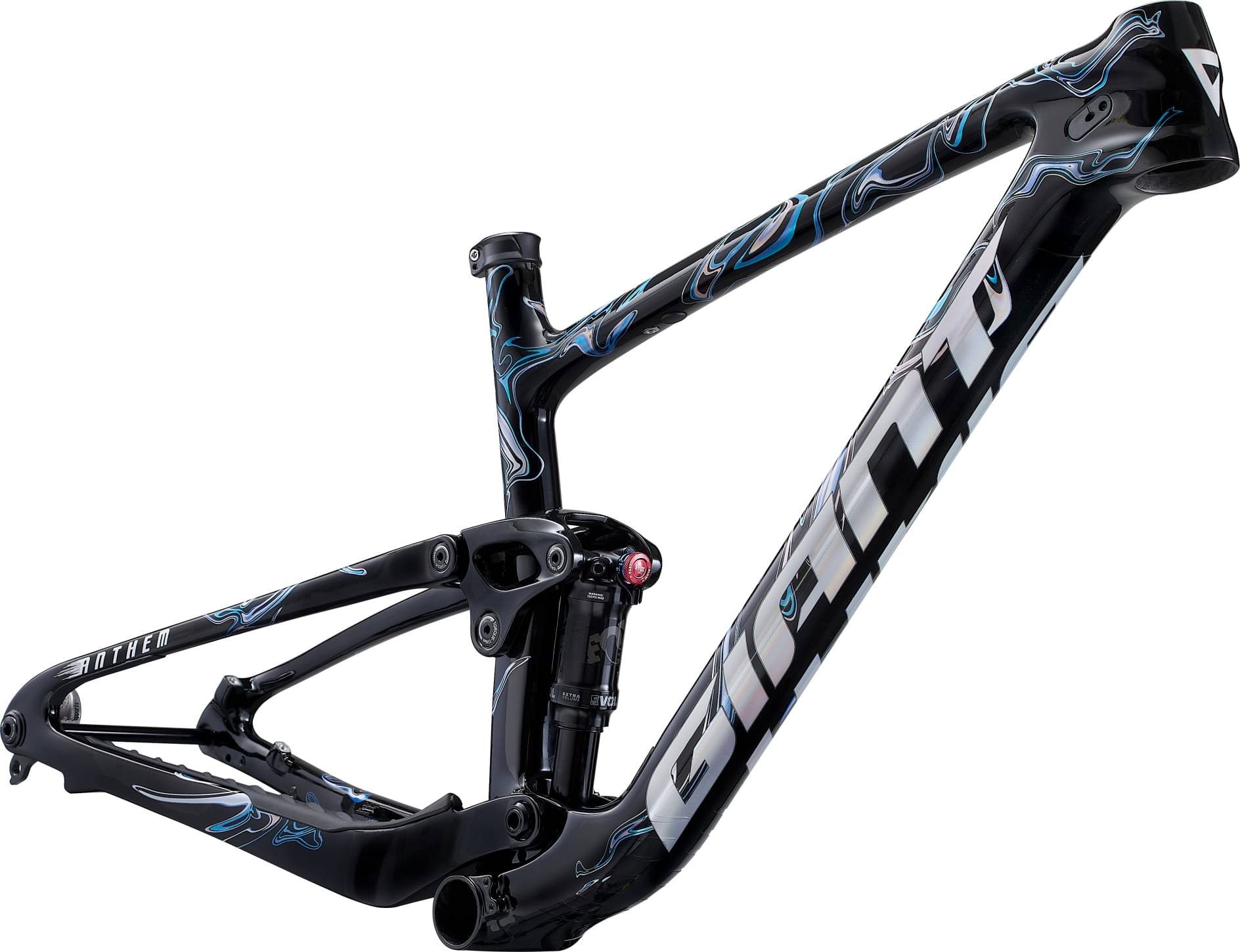

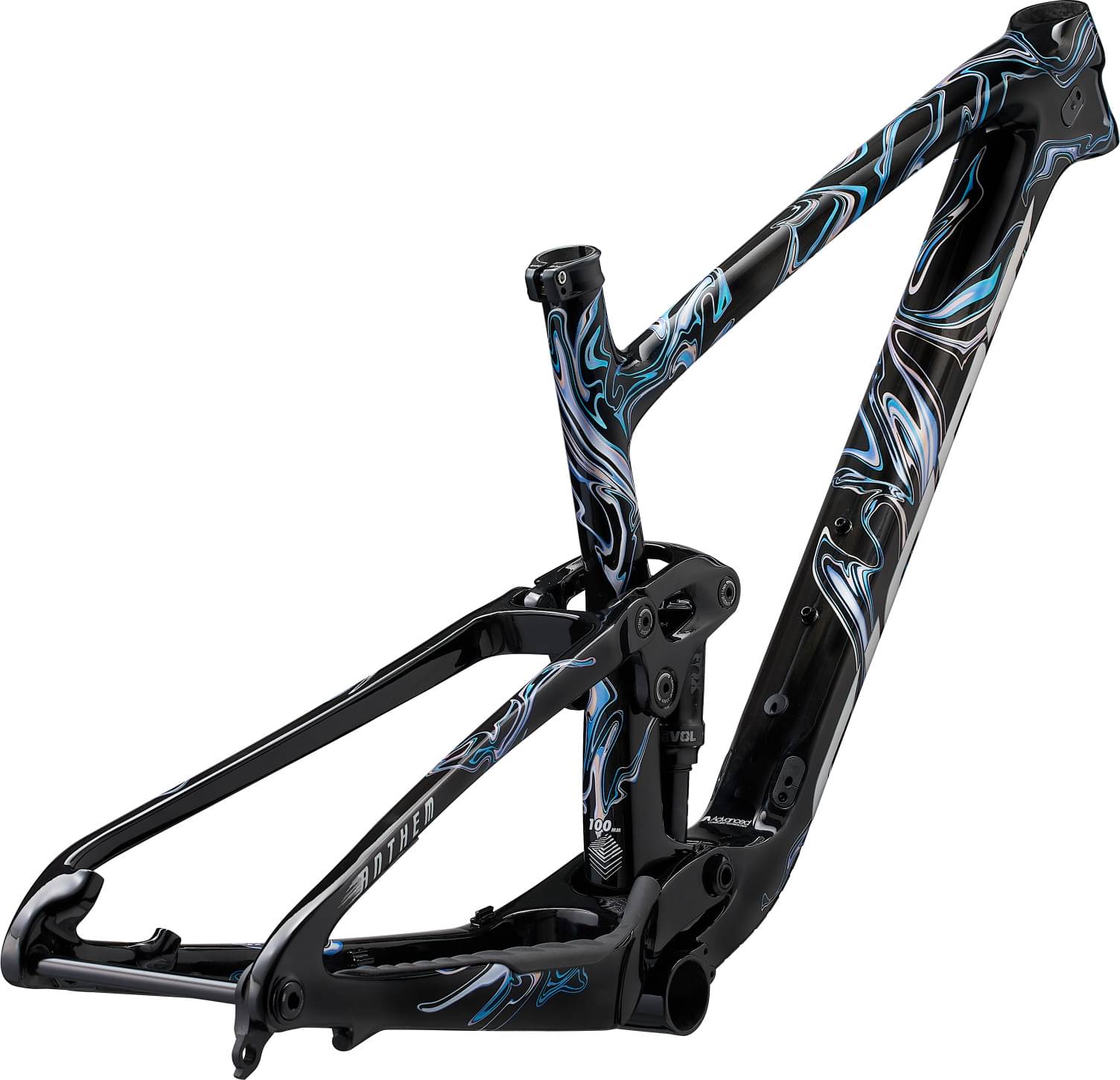

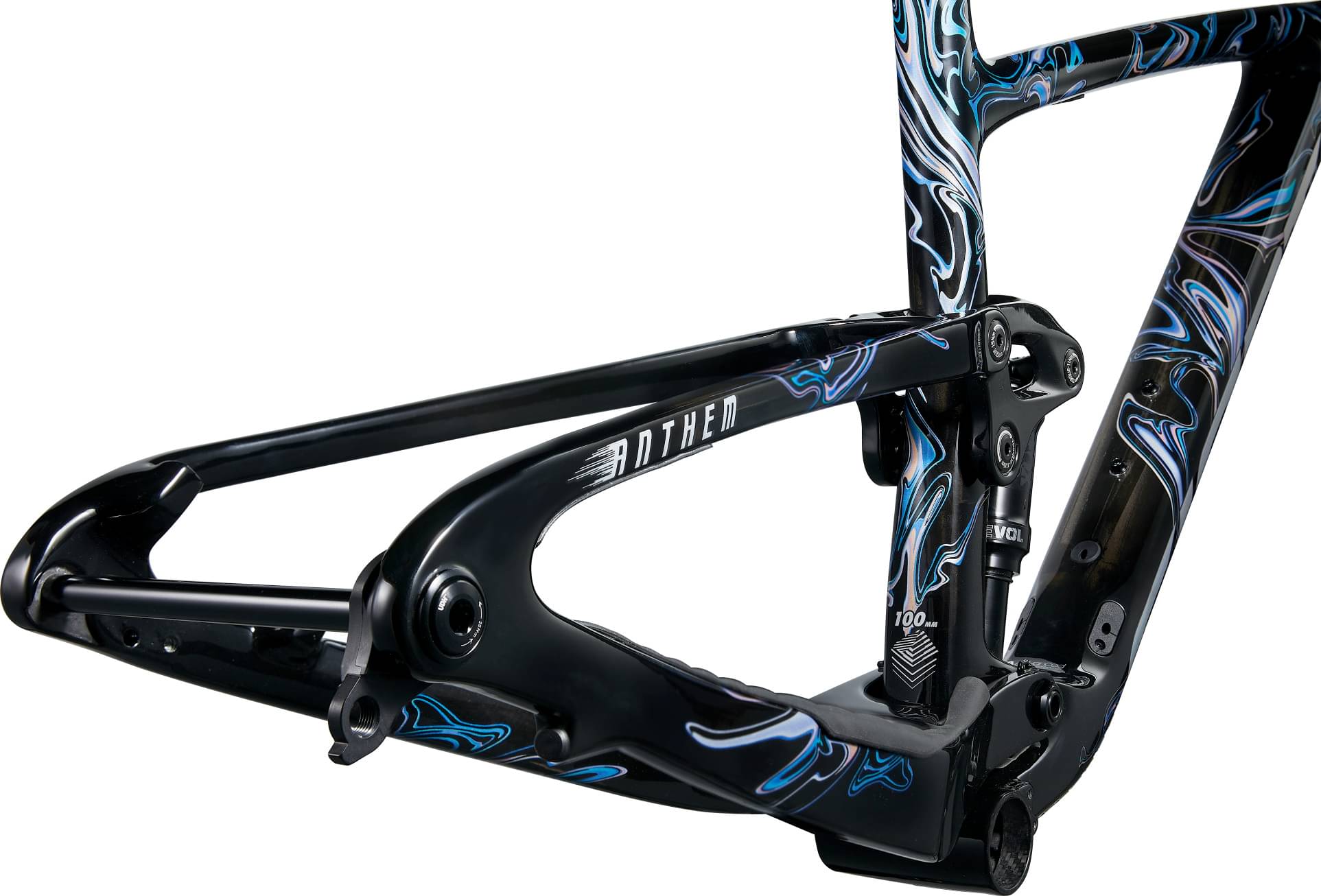

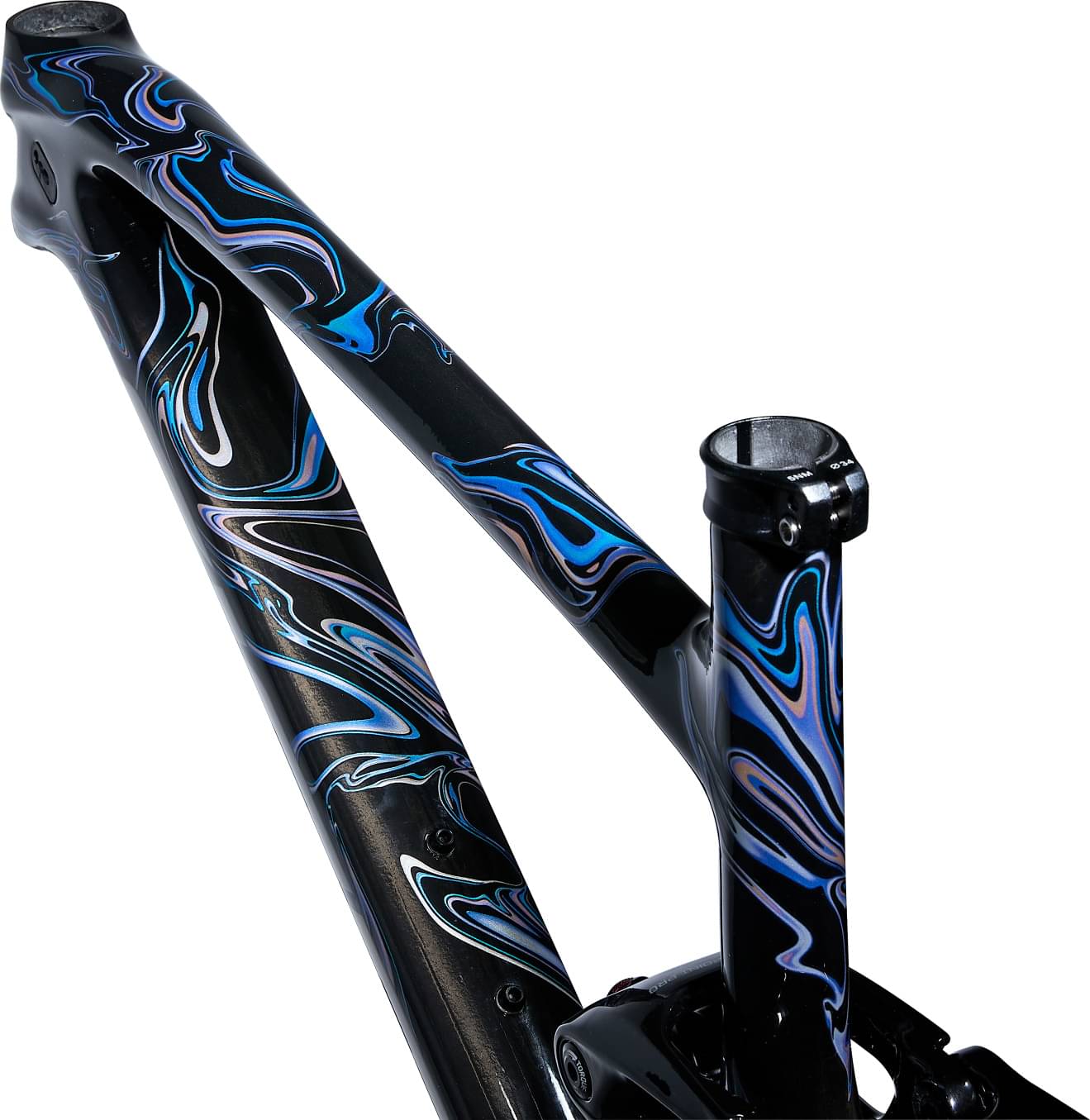

Giant Anthem Advanced 29 Frameset 2025
2025 Mountain
Estimate price |
4,013$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Travel Rear 100mm -
Suspension Full
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 189cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle
Rear Shock
Fox Float SL Performance Elite, three-position remote, 165/45
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.318 mm | 1.283 mm | 1.236 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 695 mm | 727 mm | 751 mm | 780 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 589 mm | 593 mm | 603 mm | 612 mm |
| Reach | 420 mm | 450 mm | 470 mm | 495 mm |
| Top Tube Length | 572 mm | 604 mm | 626 mm | 653 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 465 mm | 495 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1127 mm | 1159 mm | 1183 mm | 1212 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 745 mm | 750 mm | 777 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
