Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour -
Groupset Gates CDX, Nexus -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, integrated battery, M10 trailer mount, KSA40 kickstand mount
Suspension Fork

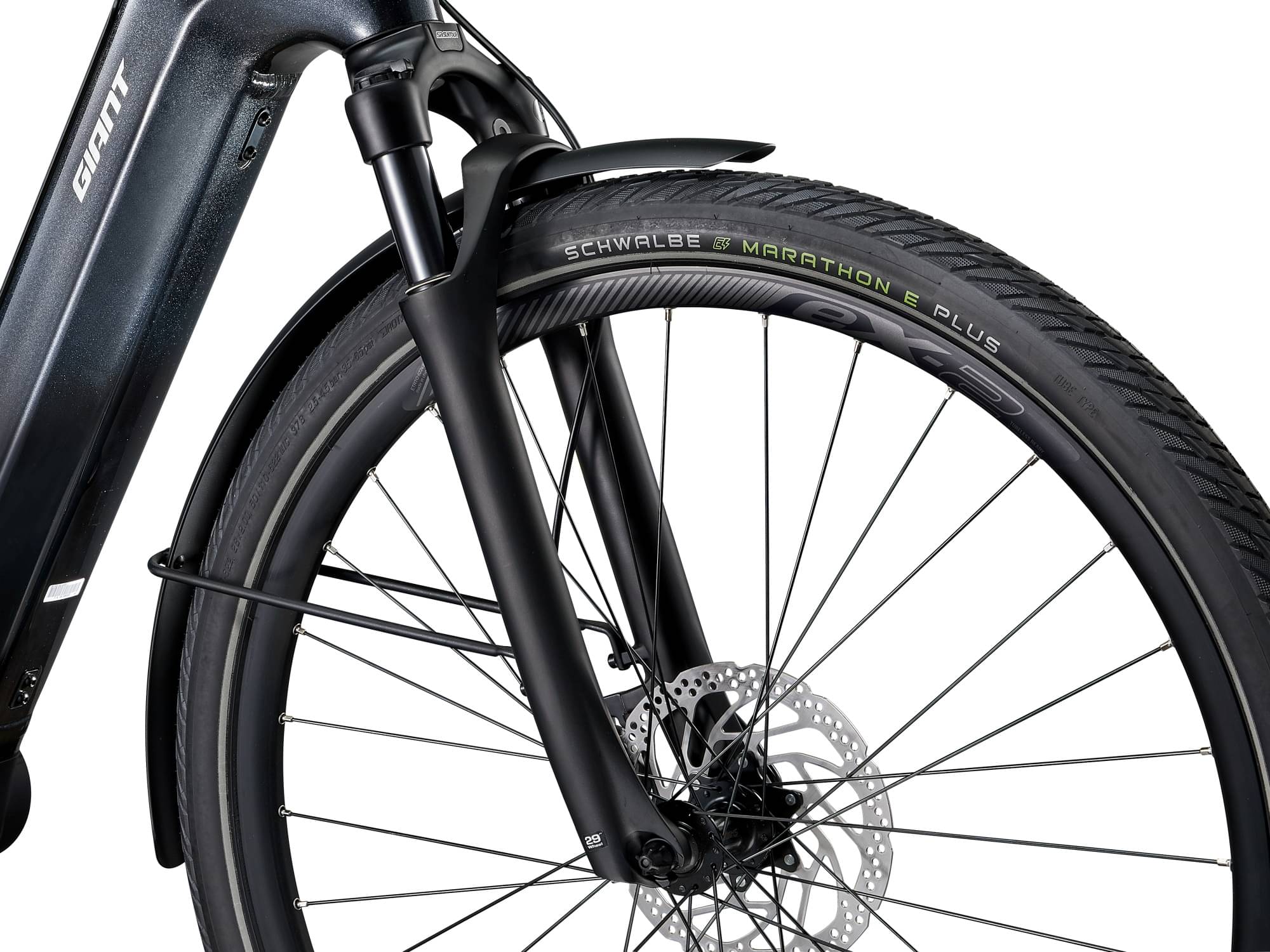

SR Suntour NCX32 E LO 29" Air 63mm travel
Rear Shock
n/a
Drivetrain
Shift Levers
Shimano Nexus 5sp REVOSHIFT
Cassette
Gates CDX stainless steel 32T
Crank
Gates CDX CenterTrack 46T front sprocket
Bottom Bracket
n/a
Chain
Gates CDX Carbon Drive 125T CenterTrack belt
Pedals
anti-slip
Wheels
Front Hub

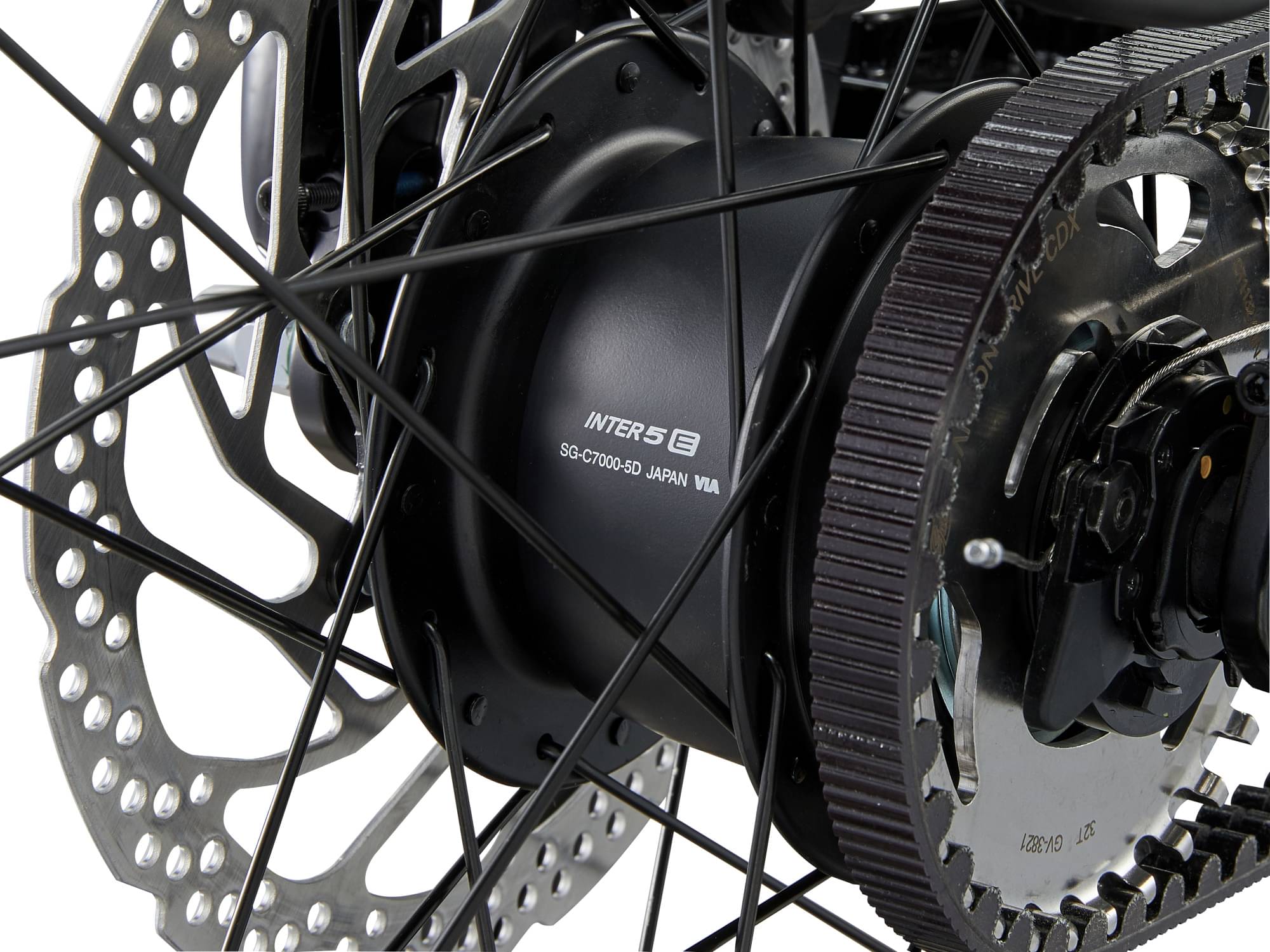

Shimano Hub, [F] 100x9mm QR, [R] Shimano Nexus E5
Rear Hub
Shimano Hub, [F] 100x9mm QR, [R] Shimano Nexus E5
Rims
Giant eX 2, alloy, tubeless ready, 700c
Spokes
Stainless
Tires
Schwalbe Marathon E Plus 622x50, Smart DualGuard Addix E
Brakes
Brakes
Shimano Deore, BR-MT410, hydraulic disc, 180mm
Brake Levers
Shimano Deore, BL-MT401
Cockpit
Stem

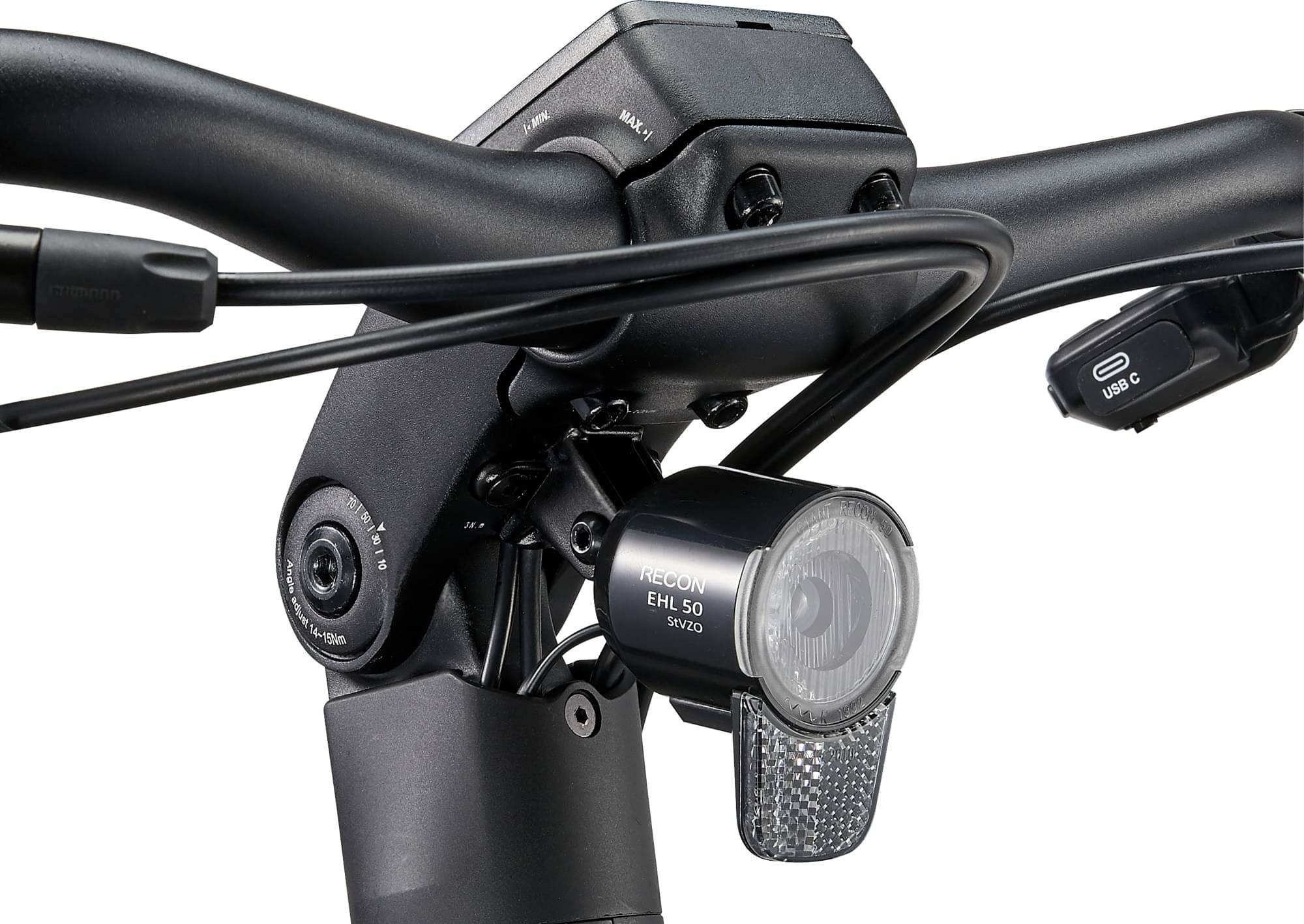

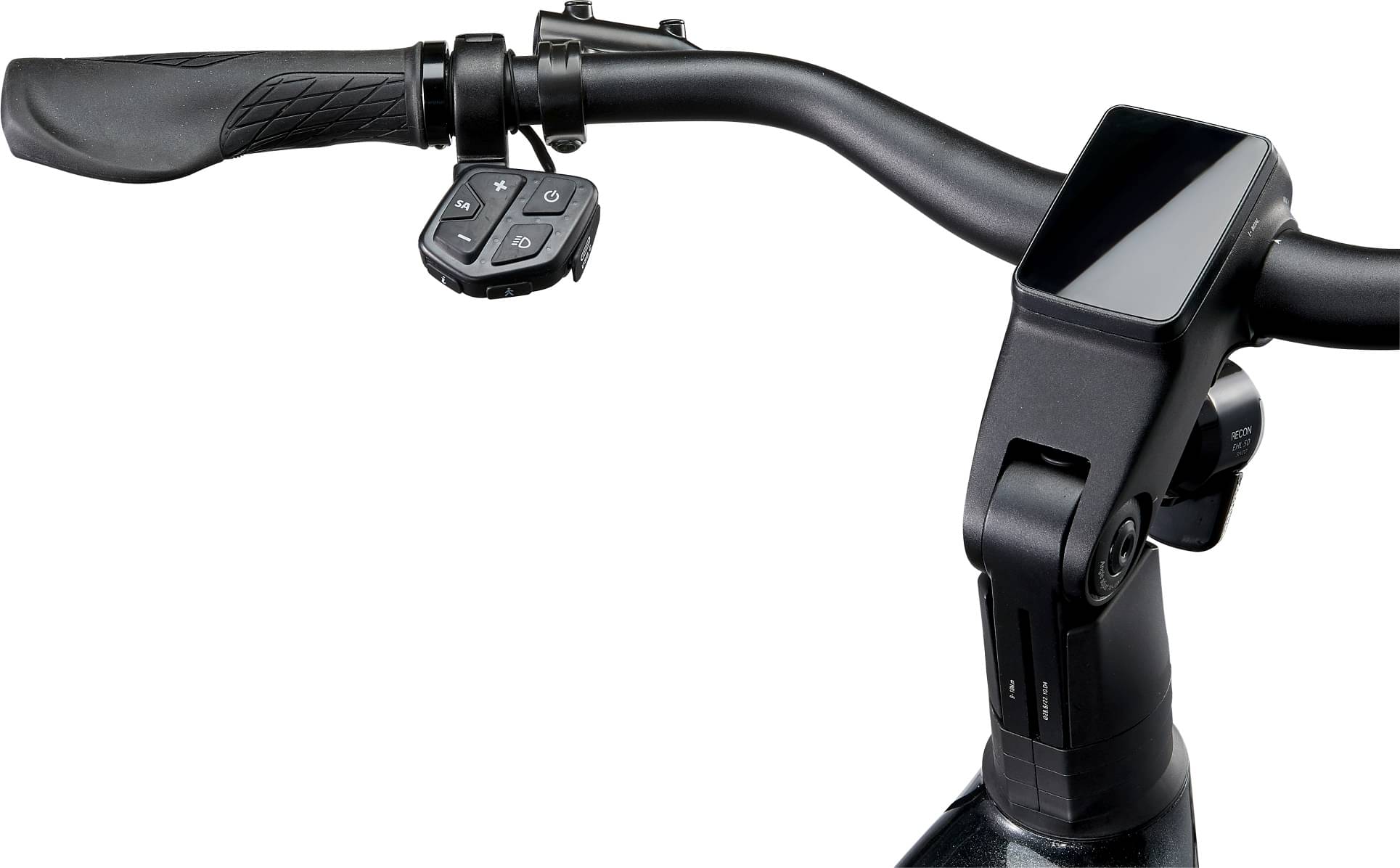

Giant Contour, EVO display integrated, adjustable
Handlebar
Giant Contour GT, cable integrated, 31.8mm
Grips
Giant Comfort Ergo Microtech Plus Lock-on
Seat
Saddle
Selle Royal Look-In gel
Seatpost
Suspension dropper seat post, 30.9mm
Motor & Battery
Motor

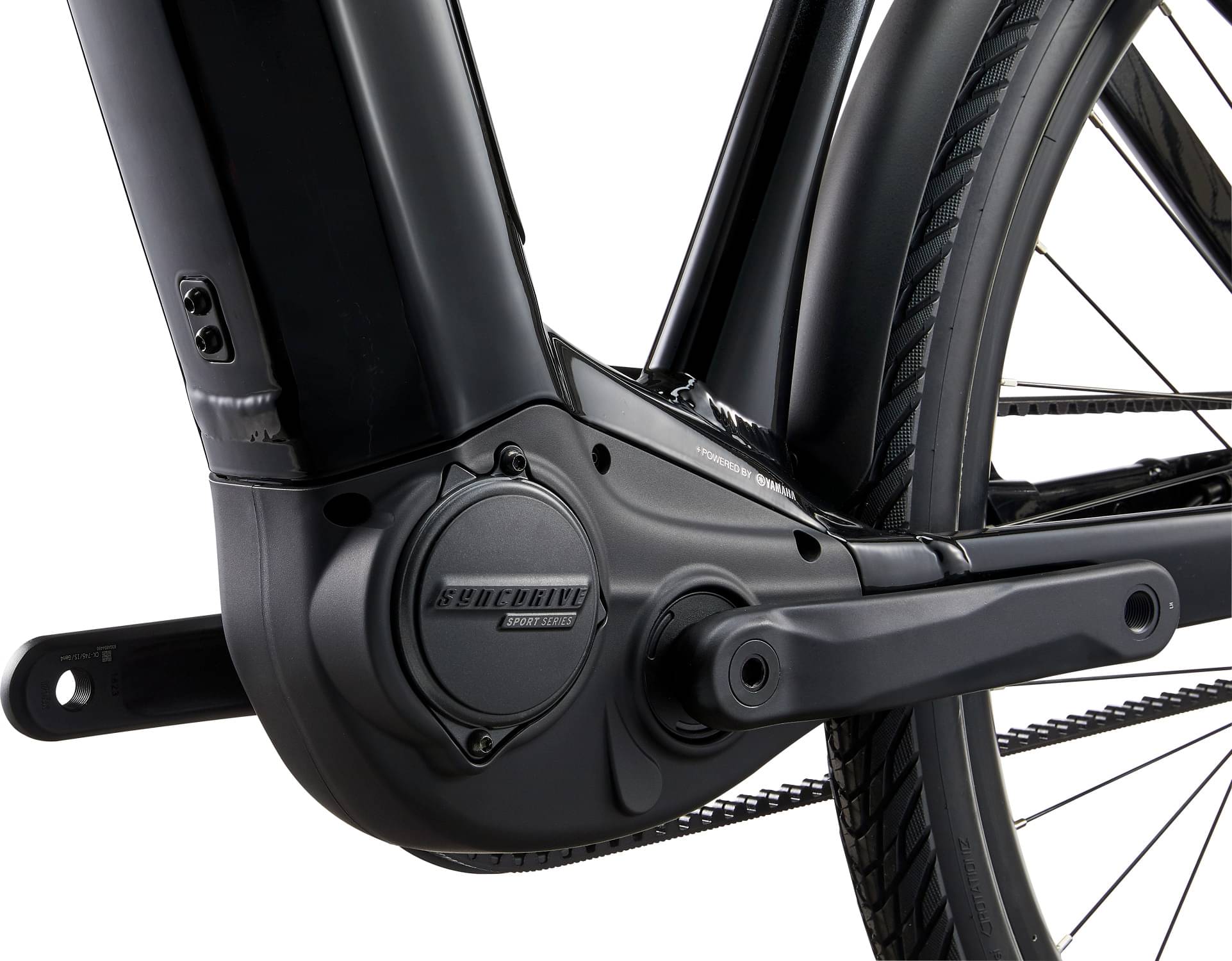

Giant SyncDrive Sport2 75Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Charger
Giant EnergyPak 6A smart charger, 60% charge in 2:15h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.691 mm | 1.691 mm | 1.683 mm | 1.601 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 653 mm | 653 mm | 669 mm | 689 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 90.6 mm | 91 mm | 91 mm | 91 mm |
| Stack | 663 mm | 663 mm | 663 mm | 663 mm |
| Reach | 392 mm | 392 mm | 394 mm | 414 mm |
| Top Tube Length | 590 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 410 mm | 460 mm | 480 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 130 mm | 170 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1114 mm | 1114 mm | 1130 mm | 1150 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 588 mm | 588 mm | 540 mm | 527 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
