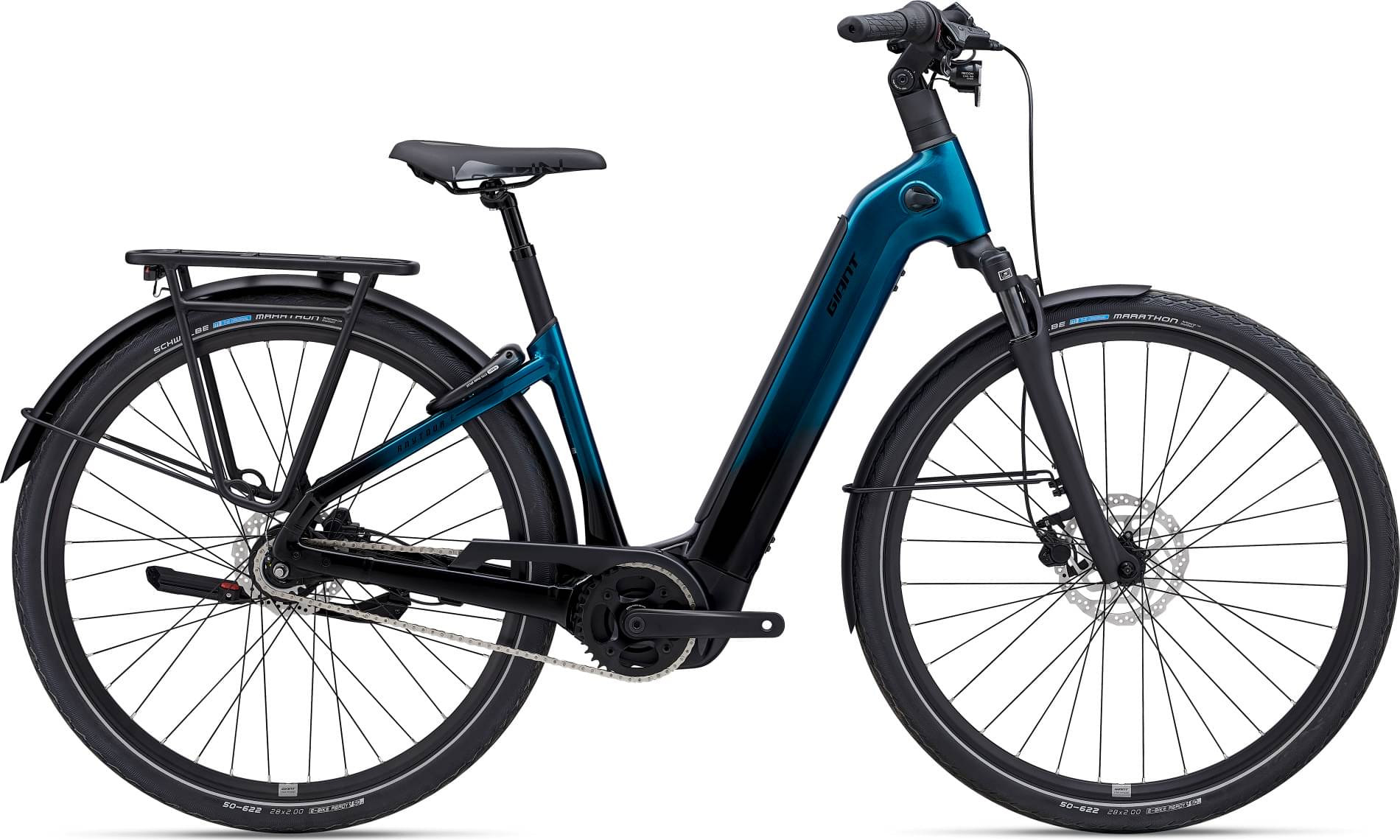

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Yamaha 250W 55Nm mid-drive -
Battery Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, integrated battery, M10 trailer mount, KSA40 kickstand mount
Suspension Fork
SR Suntour NEX E25 700C Coil 63mm travel
Rear Shock
n/a
Drivetrain
Shift Levers
Shimano Nexus 7sp REVOSHIFT
Cassette
18T
Crank
Aluminum, 38T
Bottom Bracket
n/a
Chain
KMC Z1e HX, e-bike optimized
Pedals
anti-slip
Wheels
Front Hub
Shimano [F], T200 9mm QR, [R] Shimano Nexus 7
Rear Hub
Shimano [F], T200 9mm QR, [R] Shimano Nexus 7
Rims
Giant double wall, alloy
Spokes
Stainless
Tires
Schwalbe Marathon 622x50 Green Guard
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 180mm [F], 160mm [R]
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Contour, EVO display integrated, adjustable
Handlebar
Giant Contour GT, cable integrated, 31.8mm
Grips
Giant Comfort Ergo Microtech Plus Lock-on
Seat
Saddle
Selle Royal Look-In gel
Seatpost
Suspension 2-bolt micro-adjustable, 30.9mm
Motor & Battery
Motor
Giant SyncDrive Core2, 55Nm, Powered by Yamaha, PedalPlus 6-sensor technology
Battery
Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Charger
EnergyPak 4A smart charger compact, 60% in 2:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.691 mm | 1.691 mm | 1.683 mm | 1.601 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 653 mm | 653 mm | 669 mm | 689 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 90.6 mm | 91 mm | 91 mm | 91 mm |
| Stack | 663 mm | 663 mm | 663 mm | 663 mm |
| Reach | 392 mm | 392 mm | 394 mm | 414 mm |
| Top Tube Length | 590 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 410 mm | 460 mm | 480 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 130 mm | 170 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1114 mm | 1114 mm | 1130 mm | 1150 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 588 mm | 588 mm | 540 mm | 527 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
