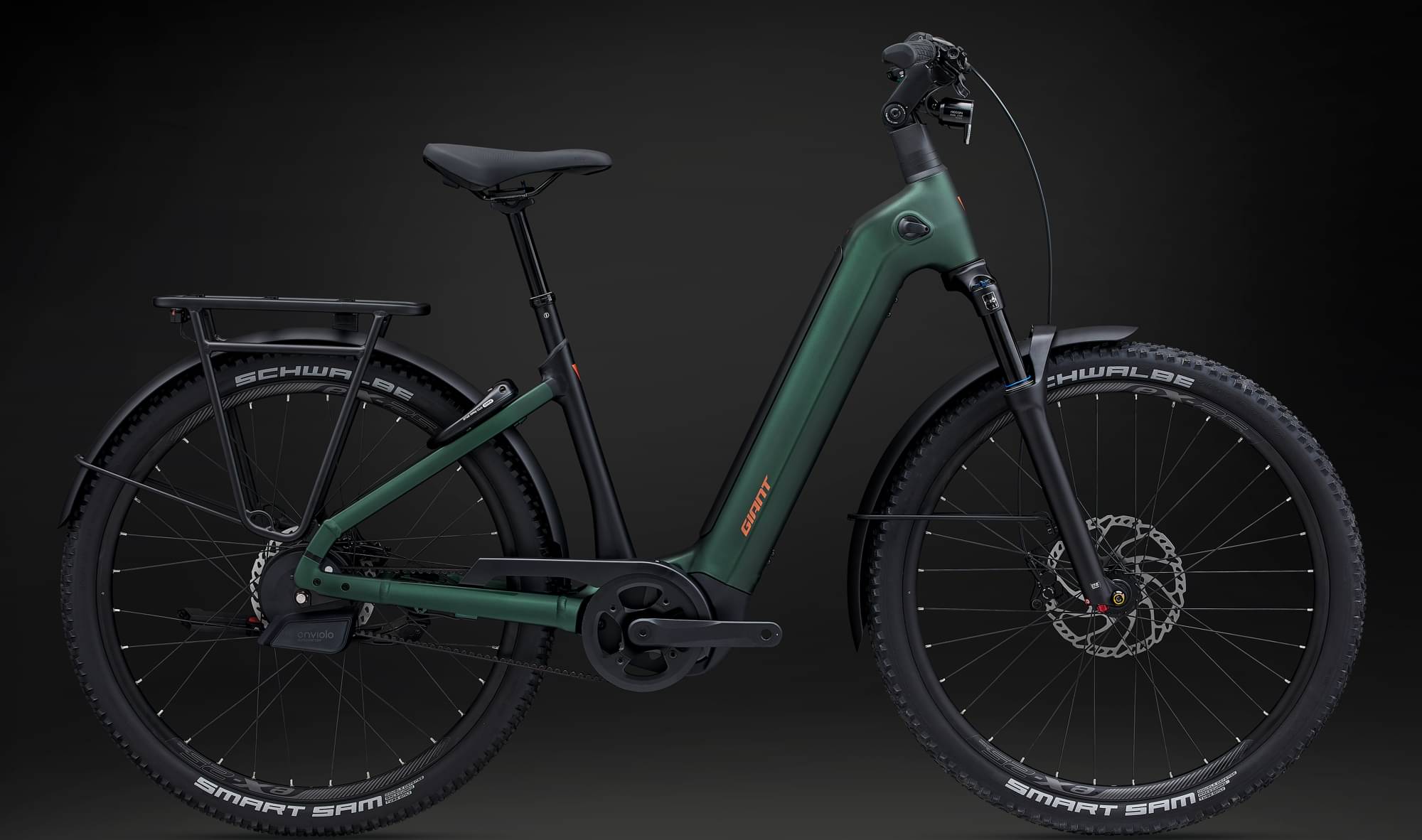

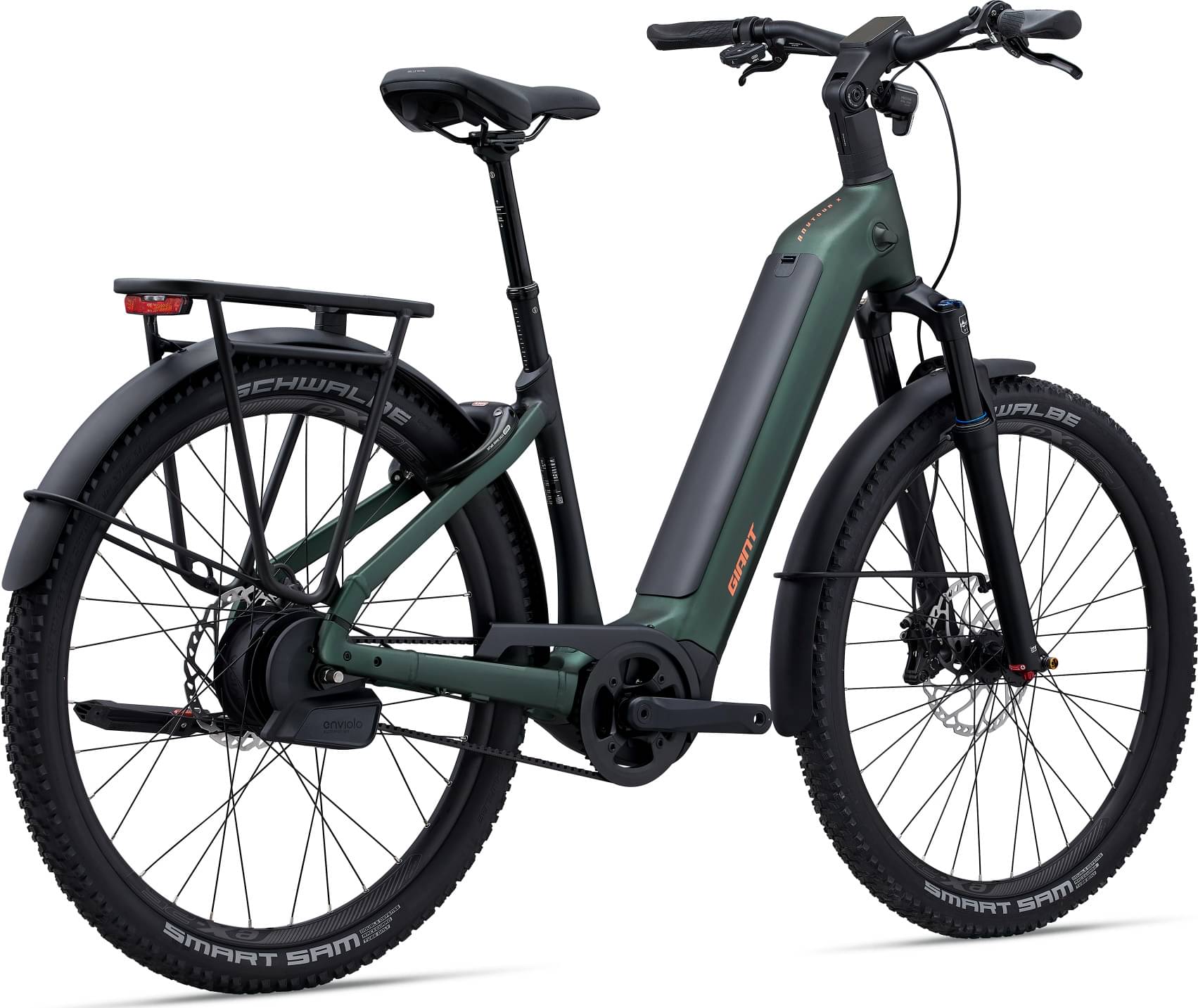

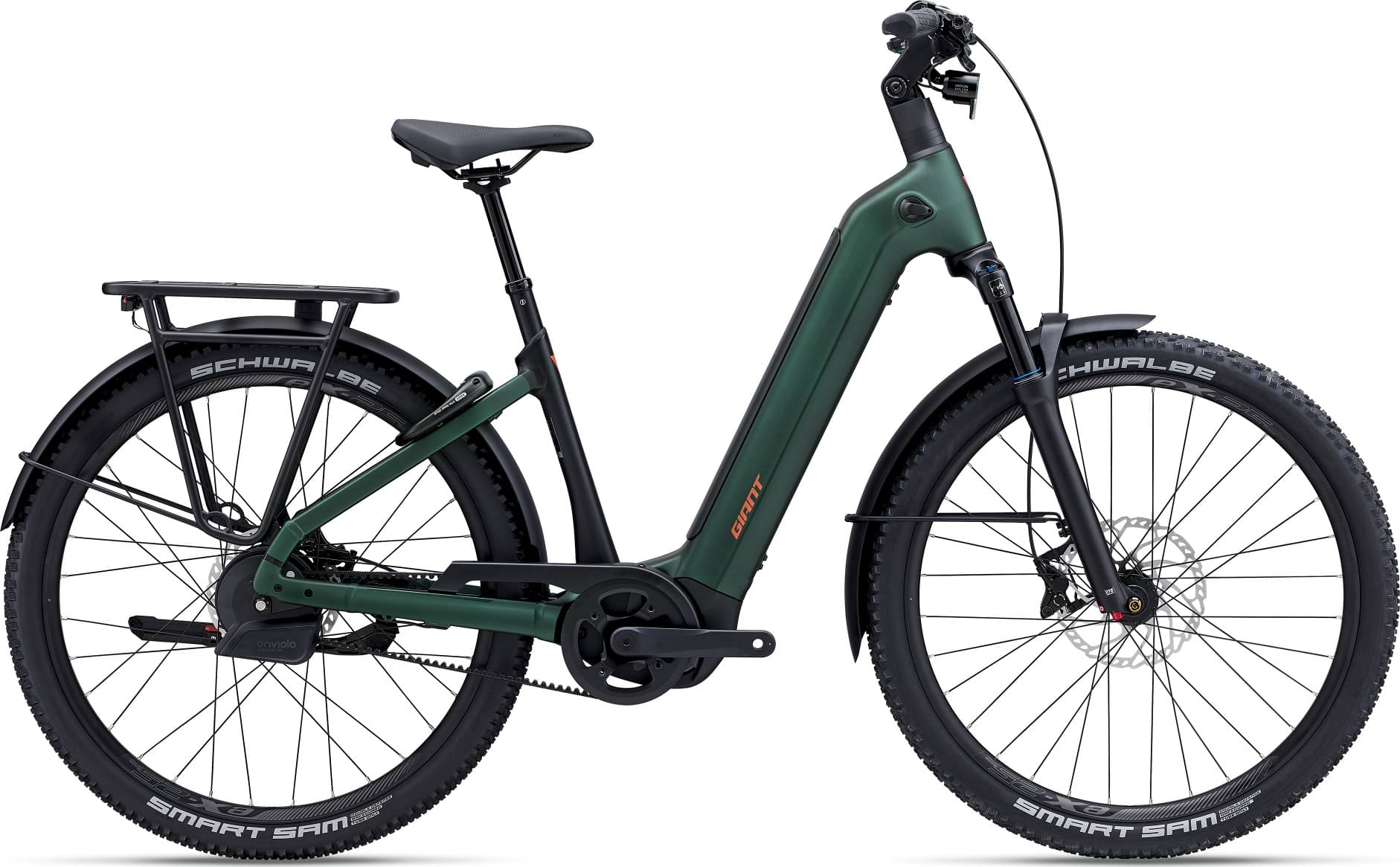

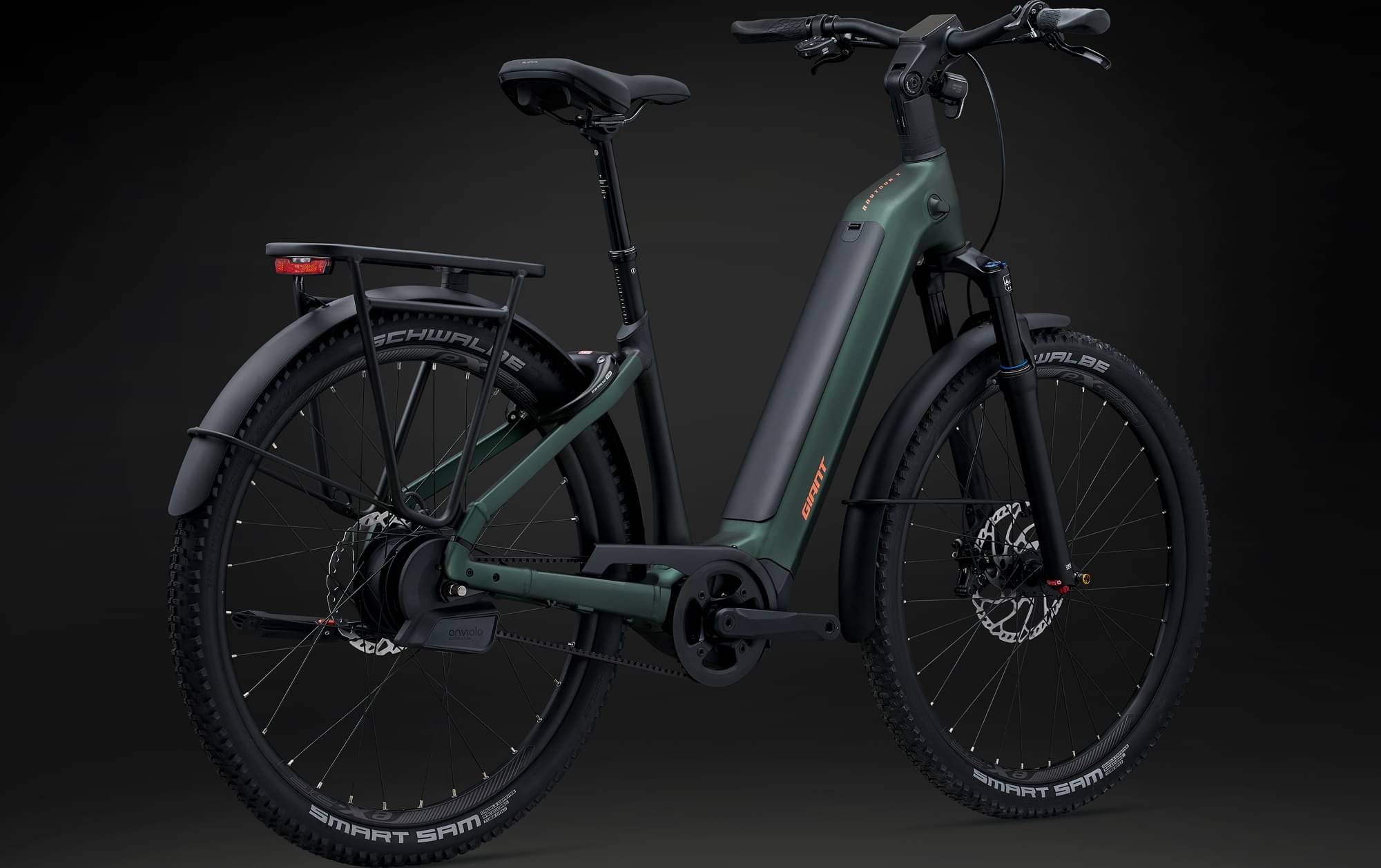

Giant Anytour X E+ 0 2024
2024 E-bike
Estimate price |
6,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Gates CDX -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production -

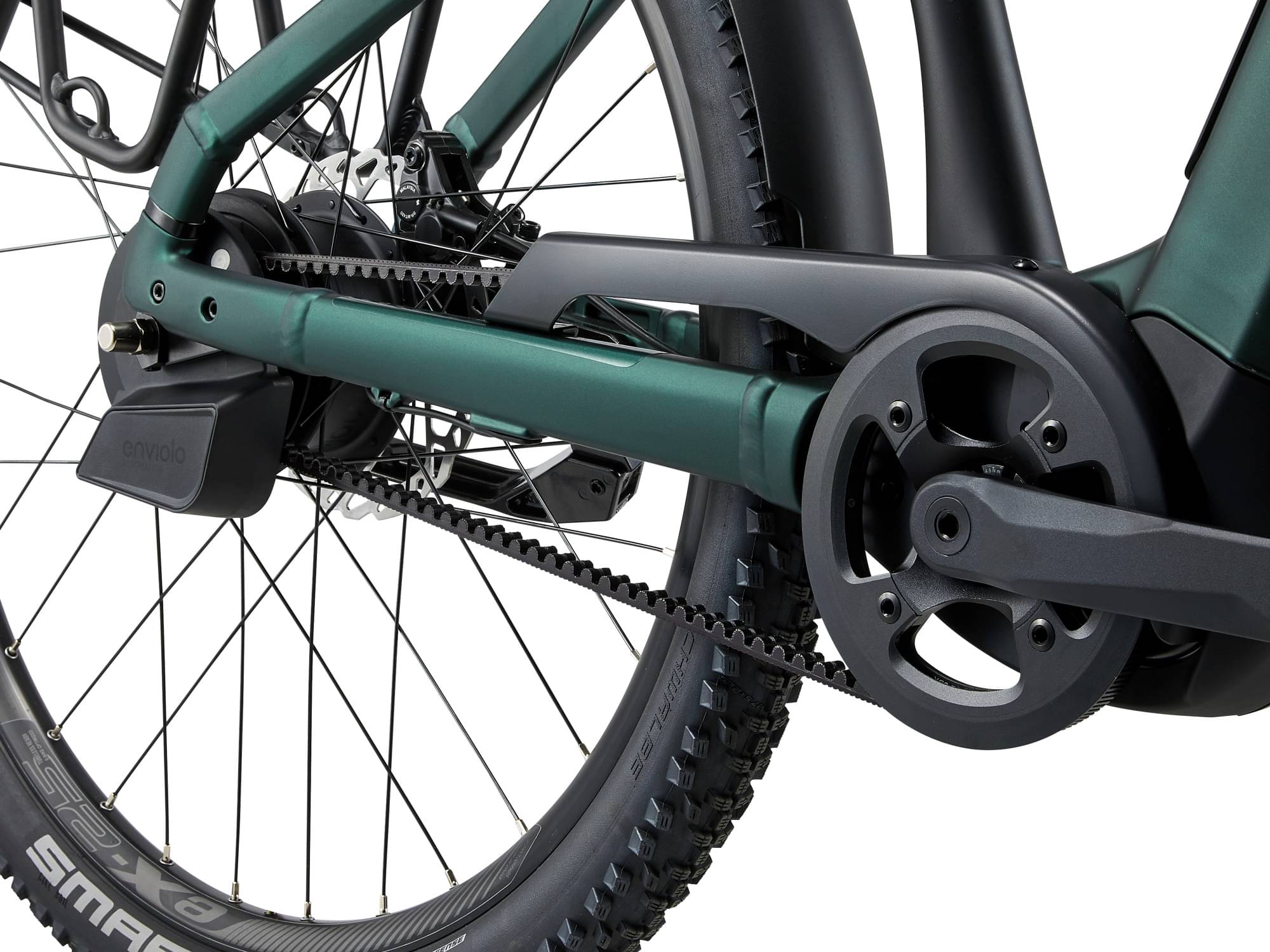

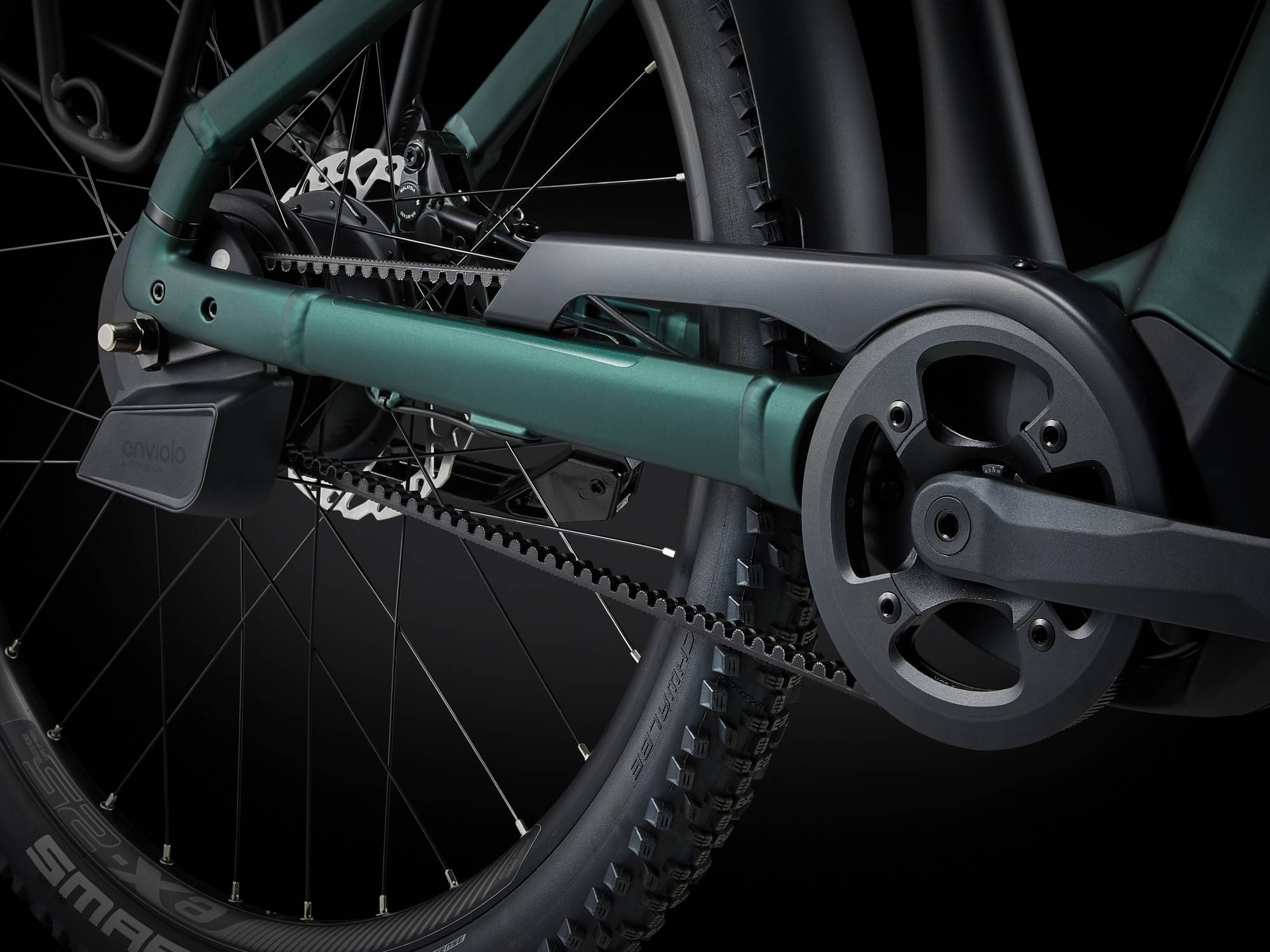

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Integrated battery design, Headset integrated cable routing, M10 Trailer Mount, 27,5" Frame-set, KSA40 Kickstand
Suspension Fork

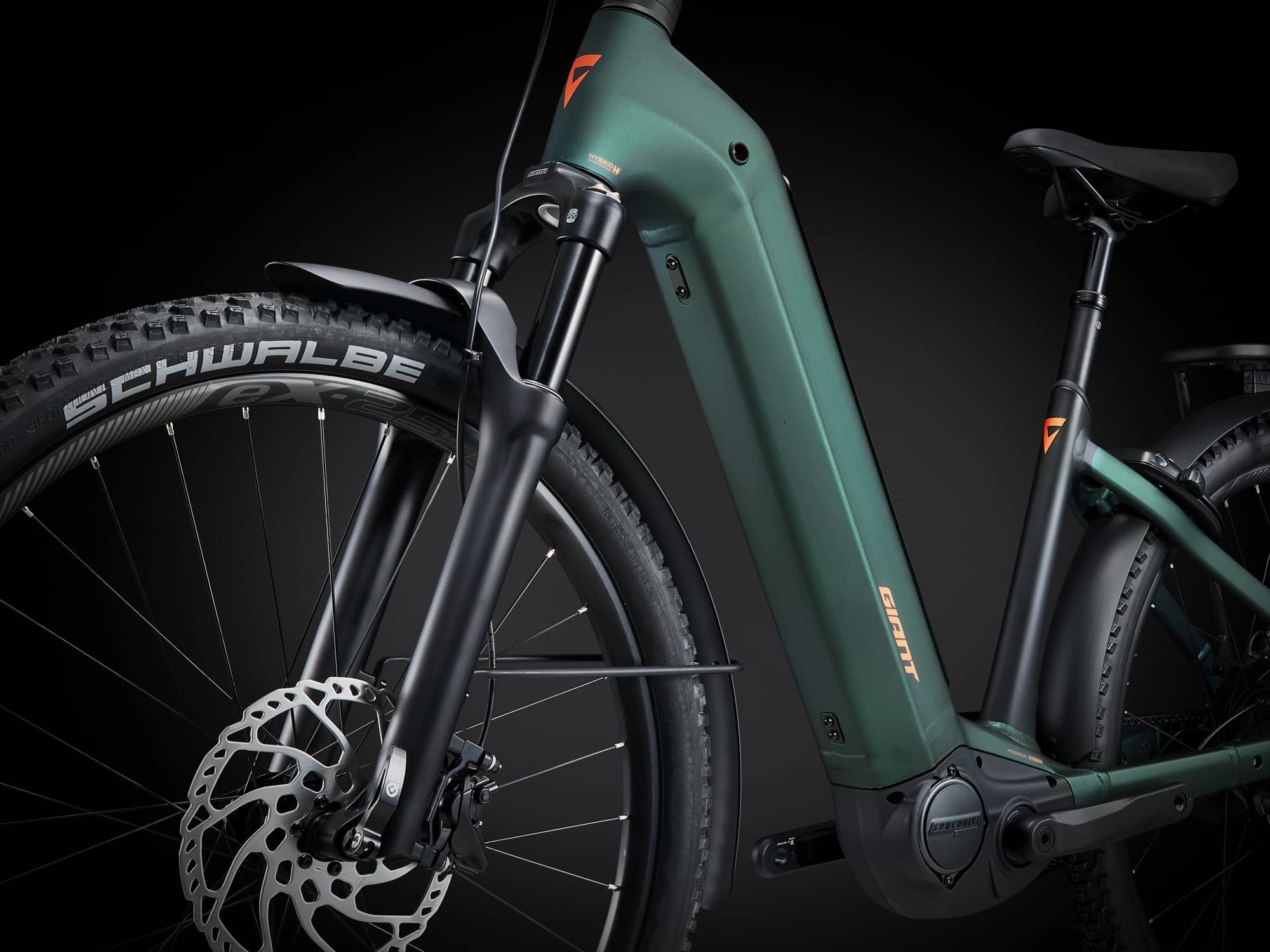

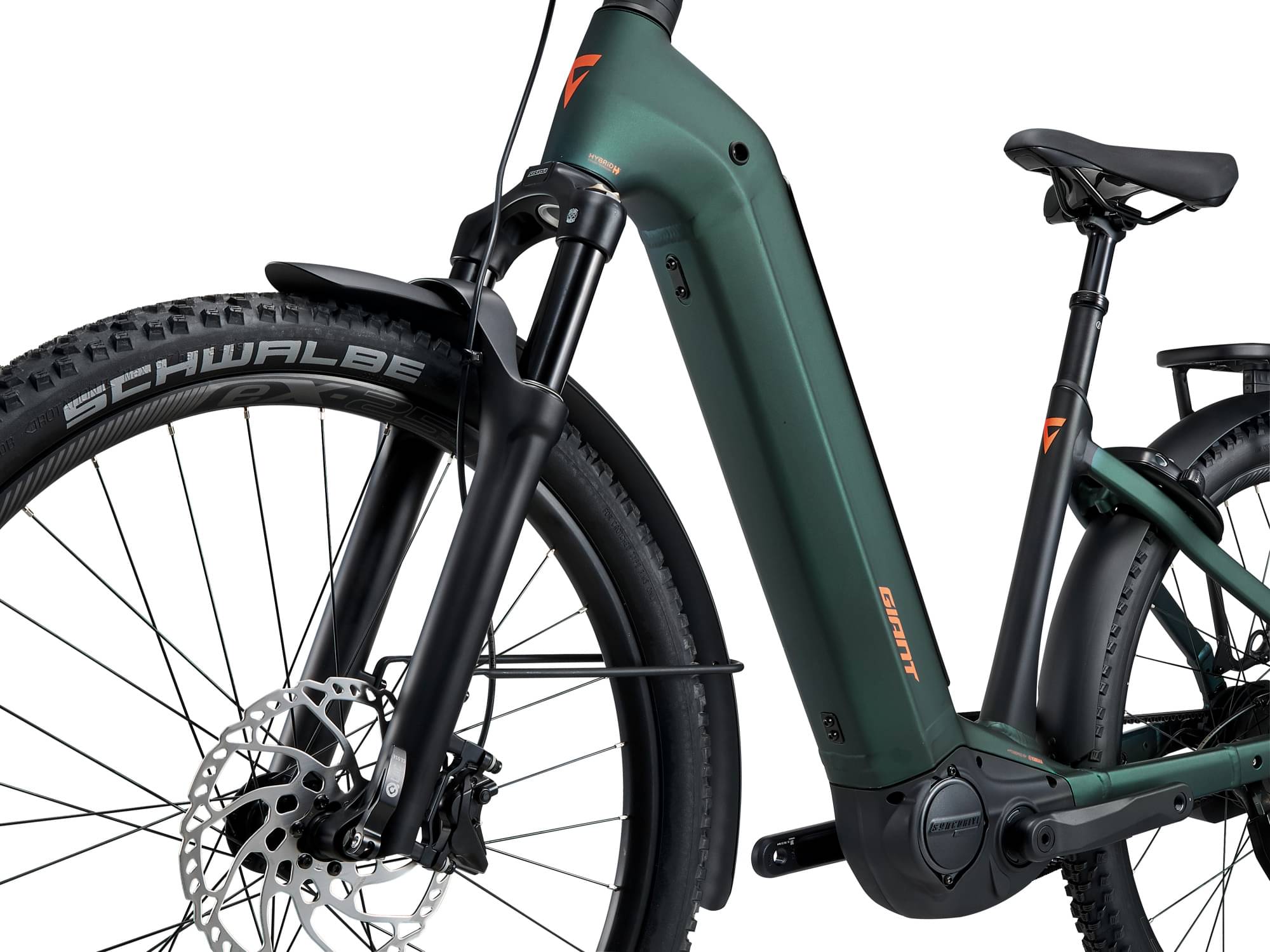

SR Suntour MOBIE 34 2CR 27.5" Air 100mm, 15x100mm 15QLC32 thru-axle
Rear Shock
n/a
Drivetrain
Shift Levers
n/a
Cassette
Gates CDX stainless steel 22T rear sprocket
Crank
Gates CDX CenterTrack 46T front sprocket
Bottom Bracket
n/a
Chain
Gates CDX Carbon Drive 120T CenterTrack belt
Pedals
VP VPE537, PP platform / Anti-slip
Wheels
Front Hub

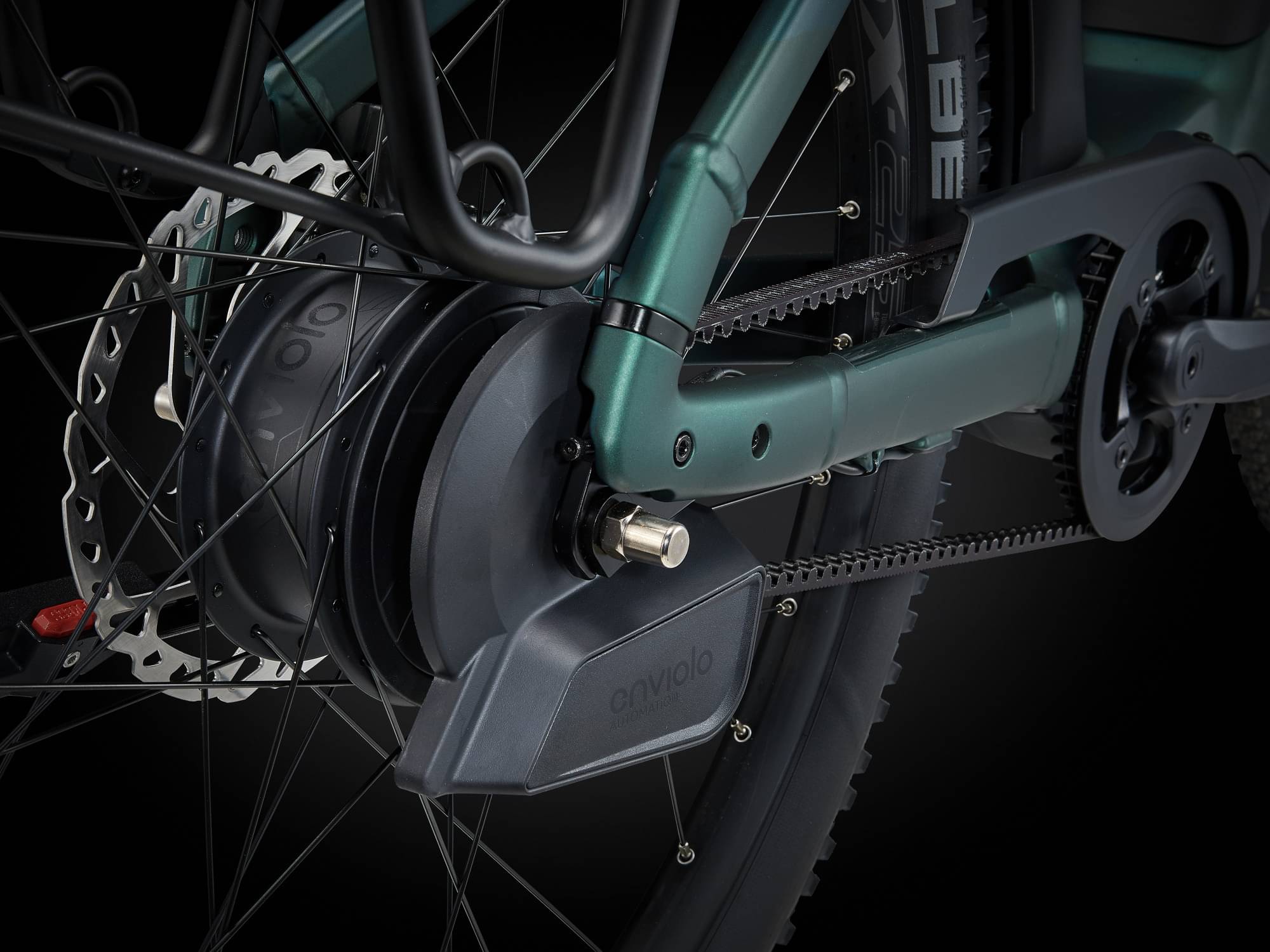

Giant eTracker 100x15mm thru-axle 6 bolts disc [F] Enviolo Trekking AUTOMATIQ [R]

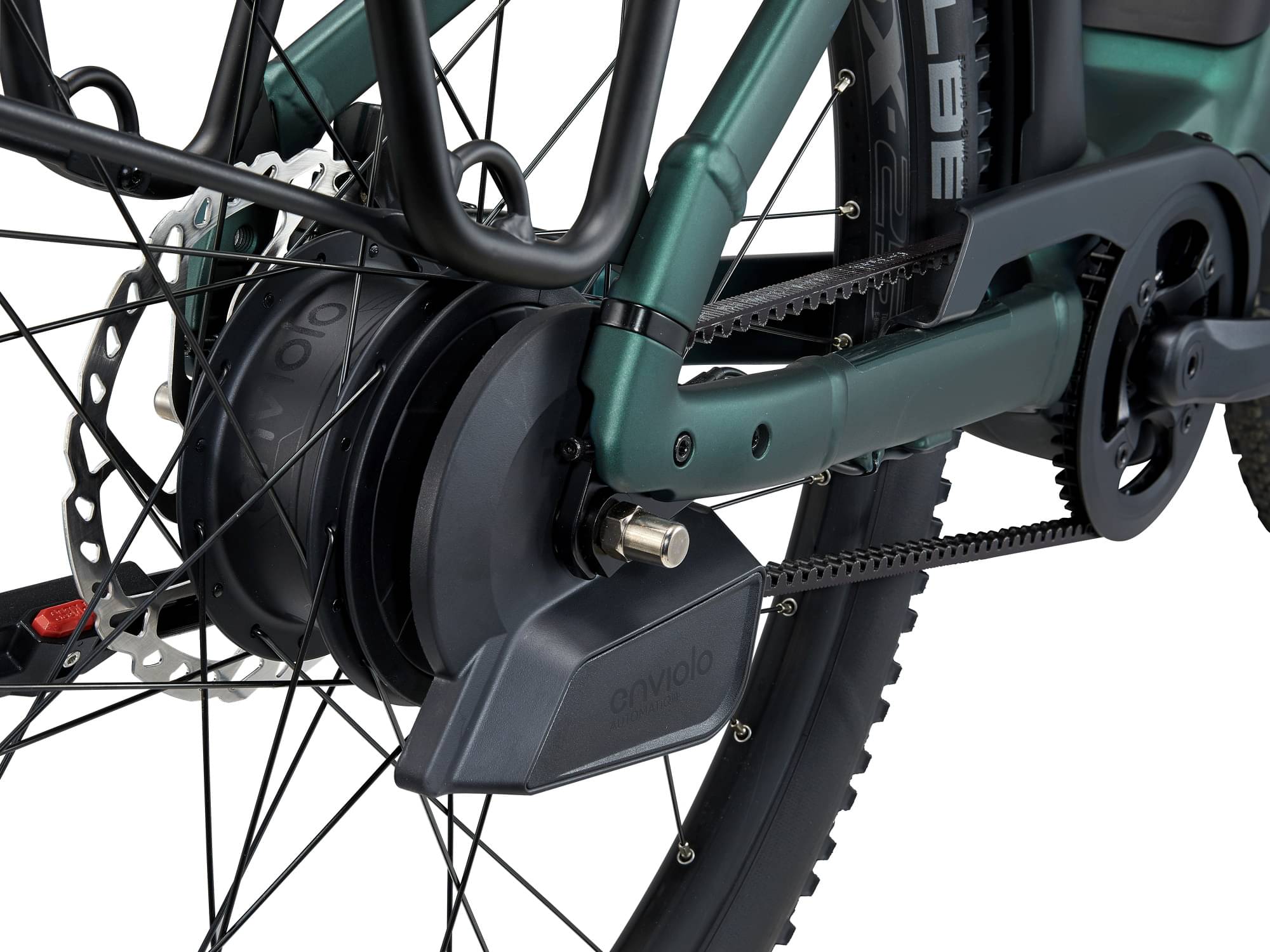

Rear Hub
Giant eTracker 100x15mm thru-axle 6 bolts disc [F] Enviolo Trekking AUTOMATIQ [R]
Rims
Giant eX25, Tubeless Ready, 584x25 Aluminium
Spokes
Stainless
Tires
Schwalbe Smart Sam Plus 57-584 (27.5 x 2.25"), DD, GreenGuard, ADDIX, E-50
Brakes
Brakes
Shimano Deore, BR-MT420, hydraulic disc, 4-piston, 203mm [F], 180mm [R]
Brake Levers
Shimano Deore

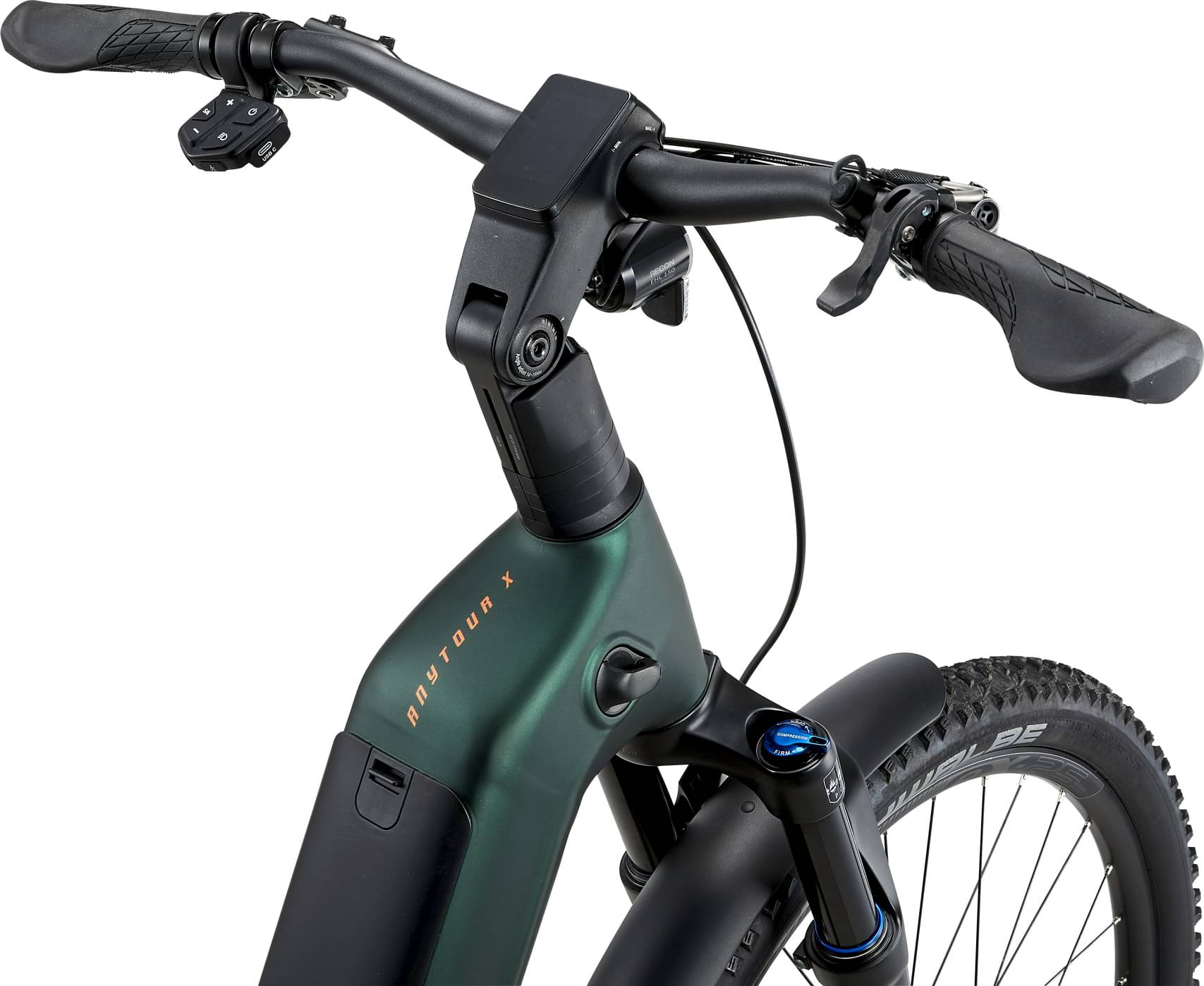

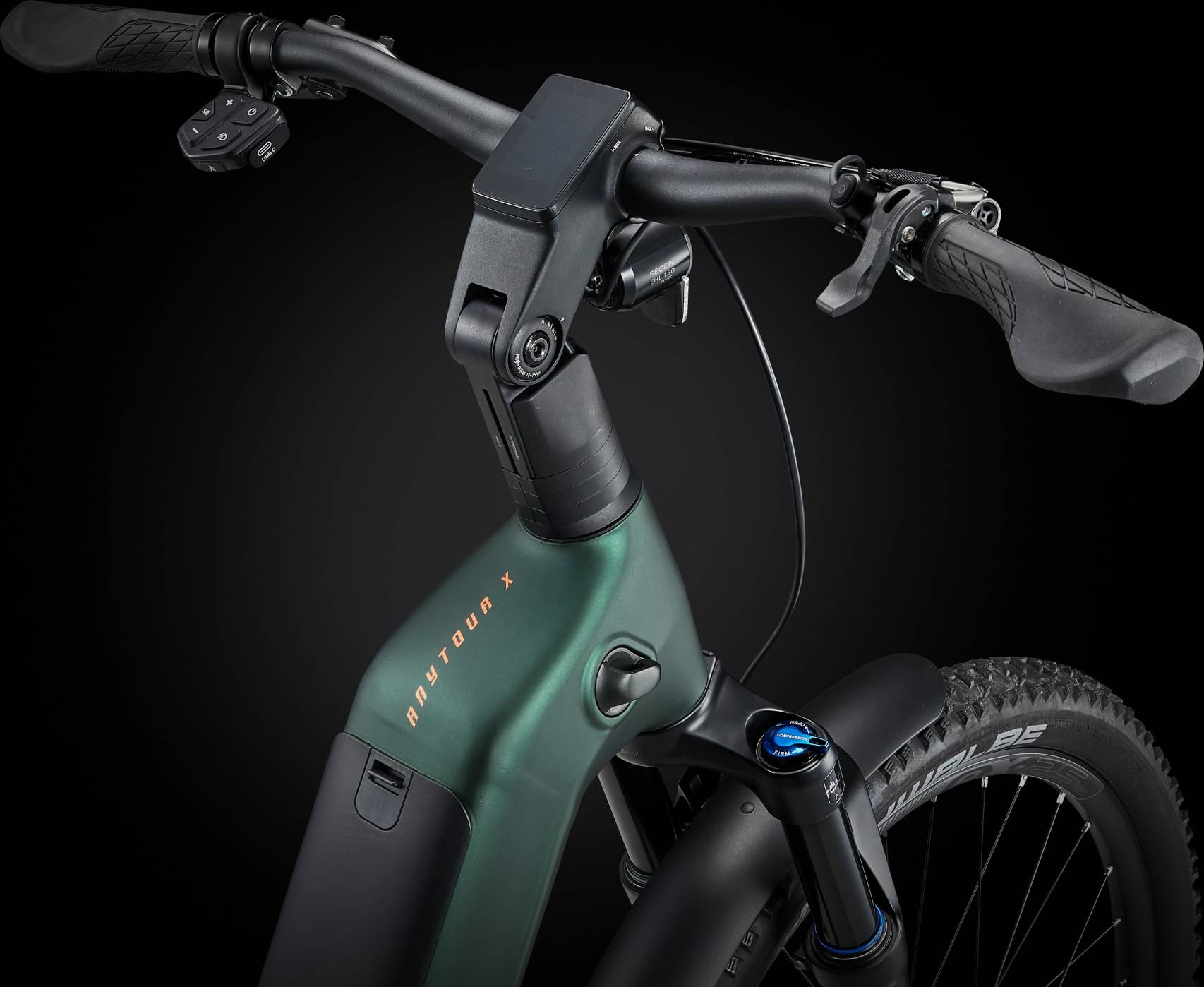

Cockpit
Stem

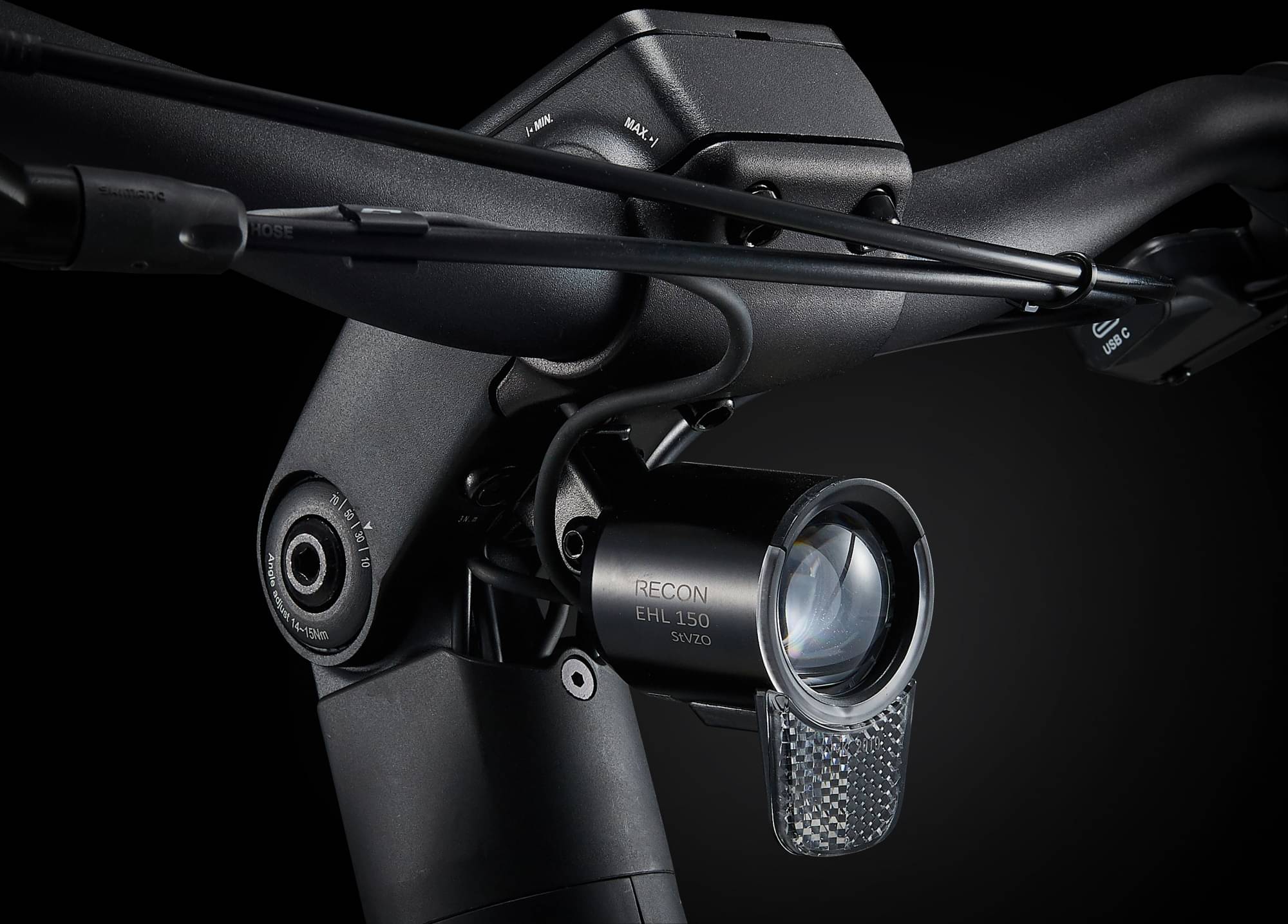

Giant Contour, EVO integrated, high adjustable
Handlebar
Giant Contour Comfort Riser 31.8x690mm
Grips
Giant Comfort Ergo Microtech Plus Lock-on
Seat

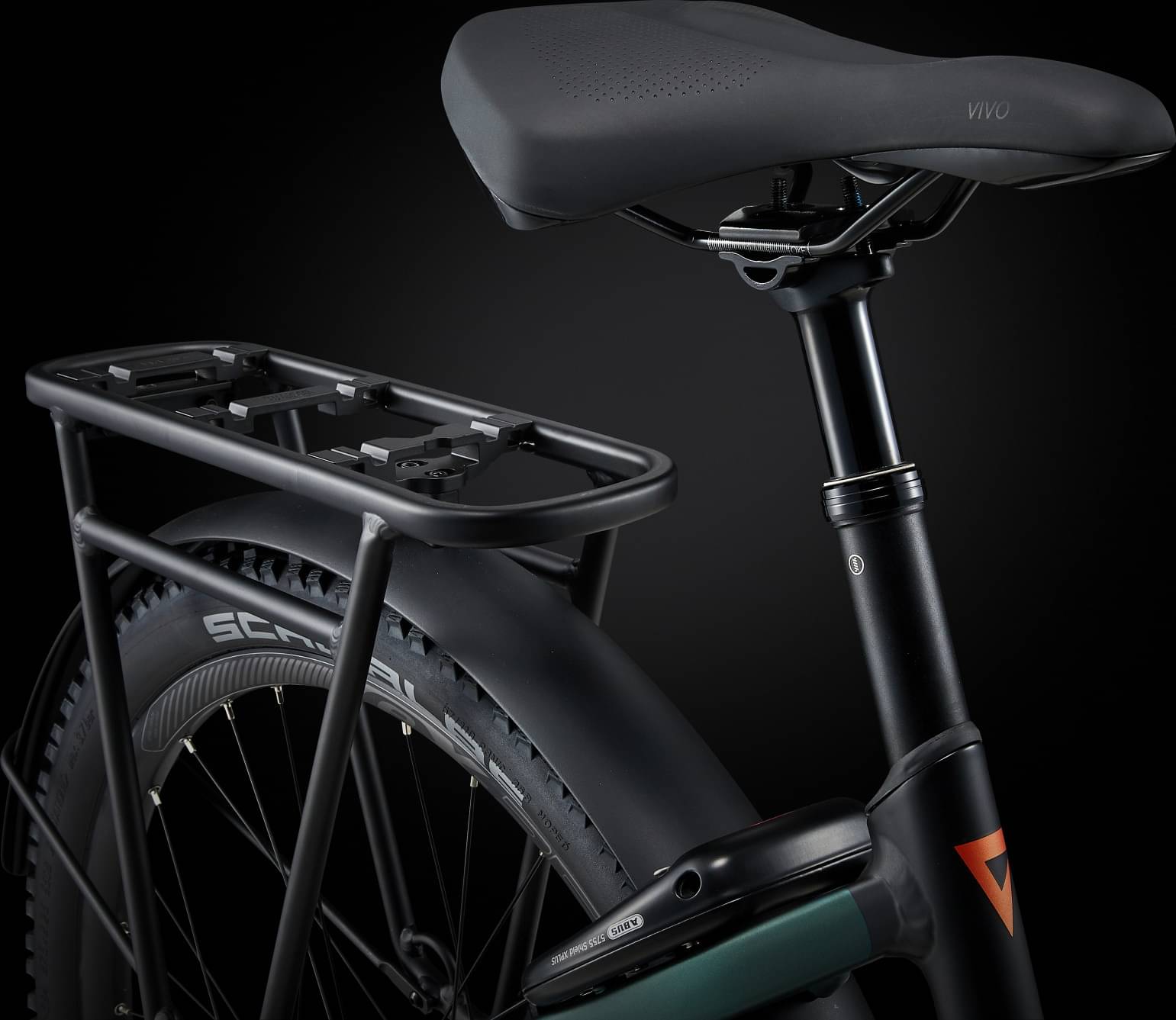

Saddle

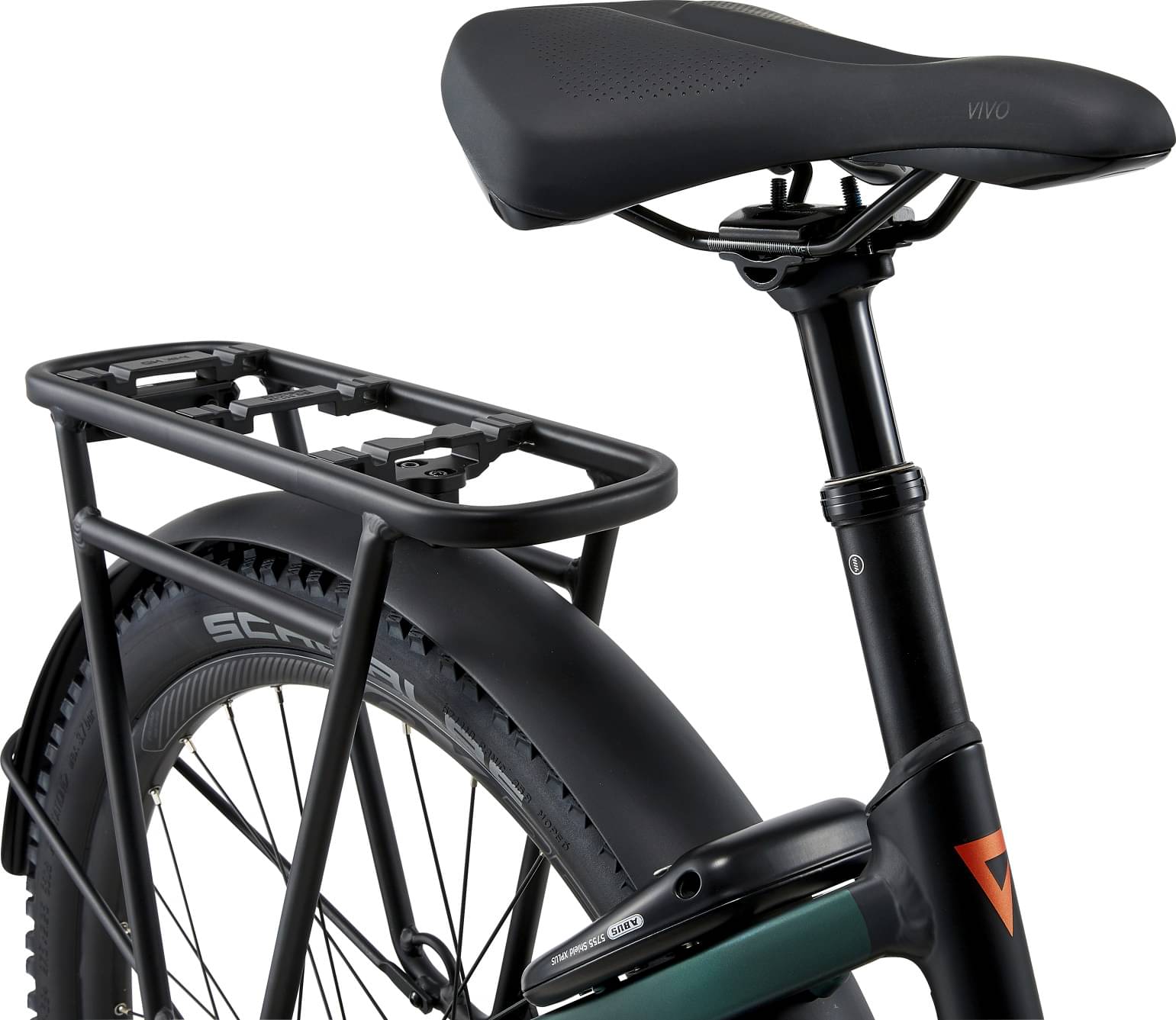

Selle Royal Vivo Ergo Unisex
Seatpost
Suspension dropper post, 30.9mm
Motor & Battery

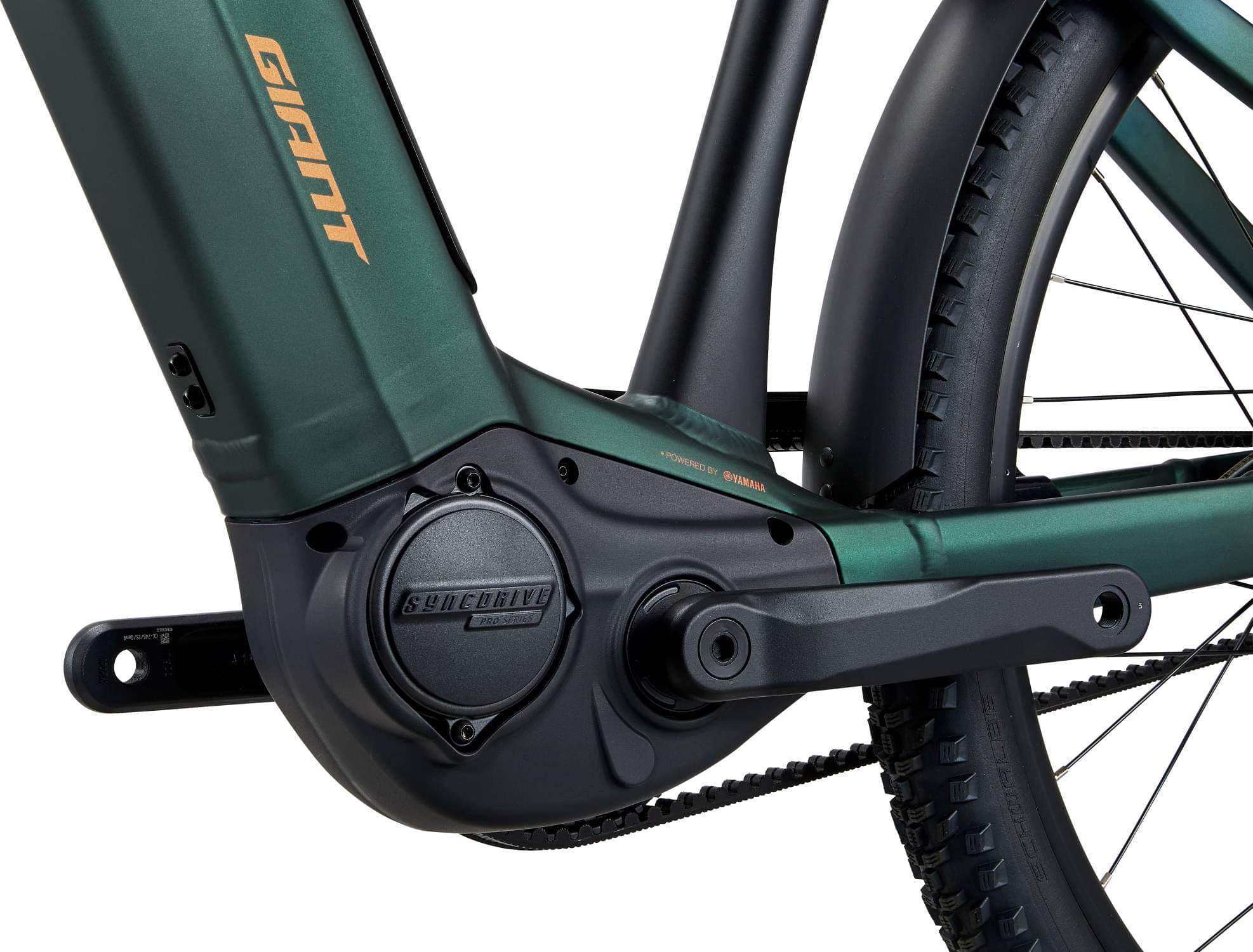

Motor

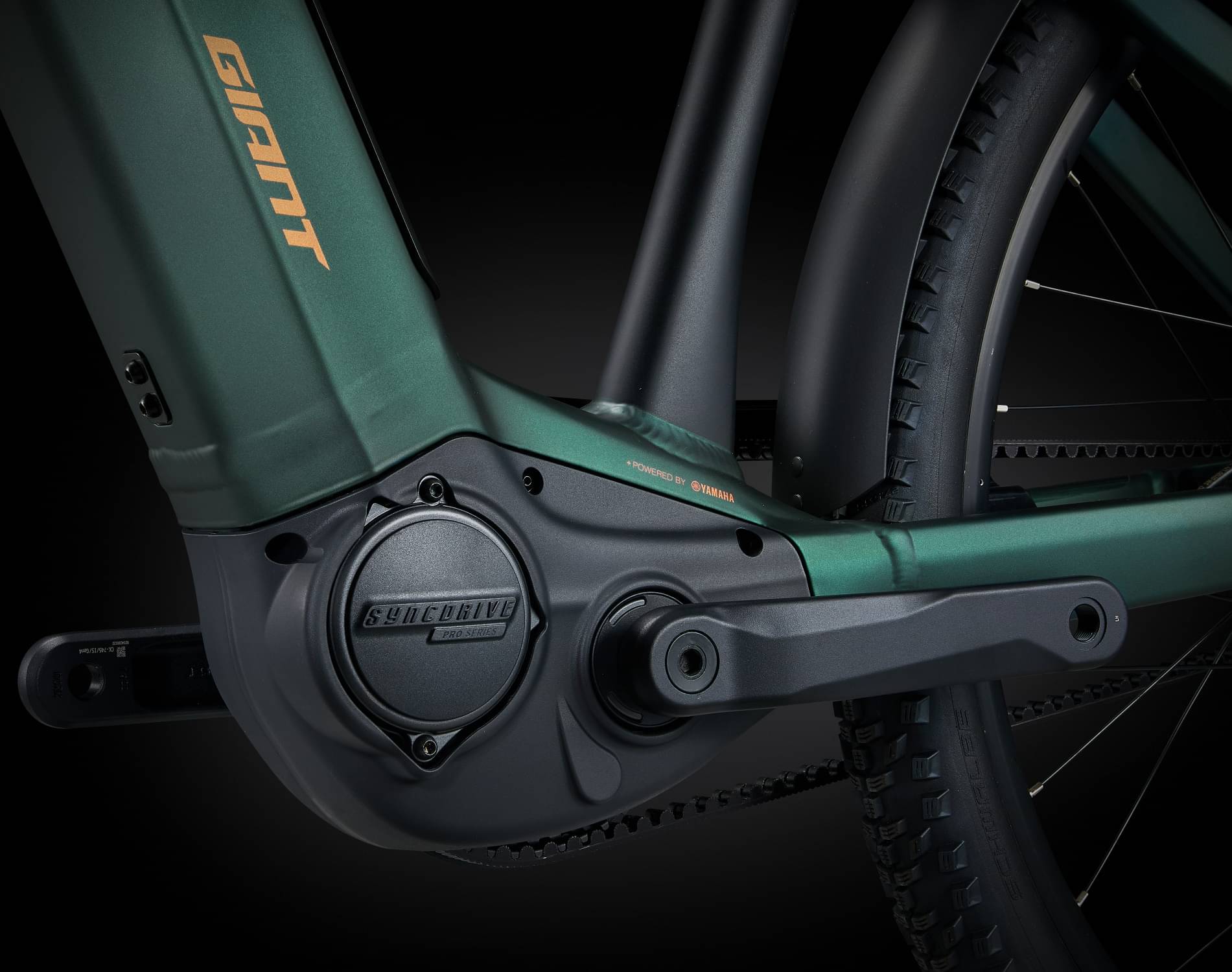

Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Charger
Giant EnergyPak 6A smart charger, 60% in 2:15h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.598 mm | 1.566 mm | 1.676 mm | 1.595 mm |
| Front Center | 655 mm | 663 mm | 673 mm | 692 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 625 mm | 625 mm | 662 mm | 662 mm |
| Reach | 391 mm | 399 mm | 395 mm | 415 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72 ° | 72 ° |
| Seat Tube Length | 340 mm | 410 mm | 480 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 130 mm | 170 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1120 mm | 1128 mm | 1138 mm | 1158 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 592 mm | 564 mm | 524 mm | 488 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
