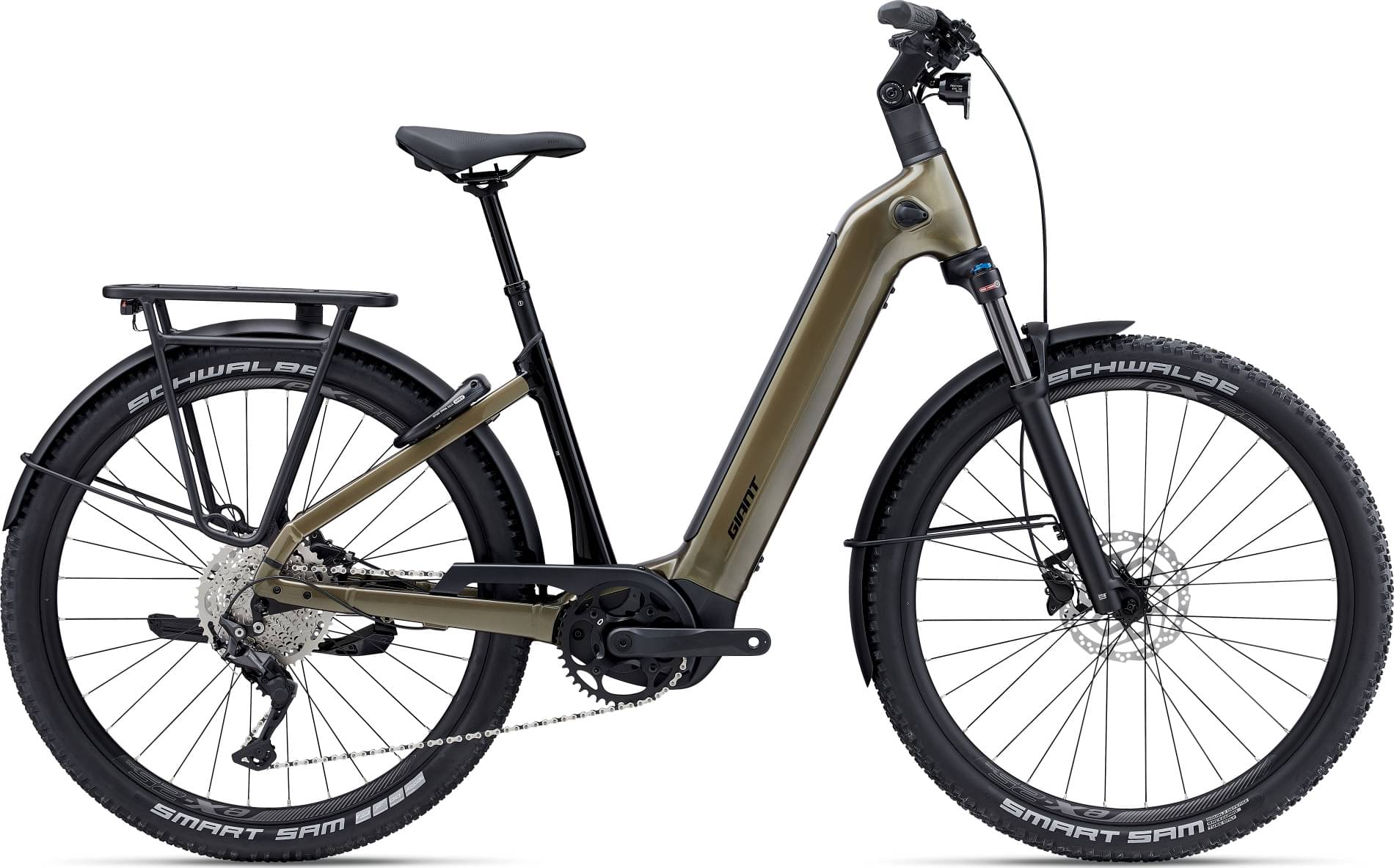

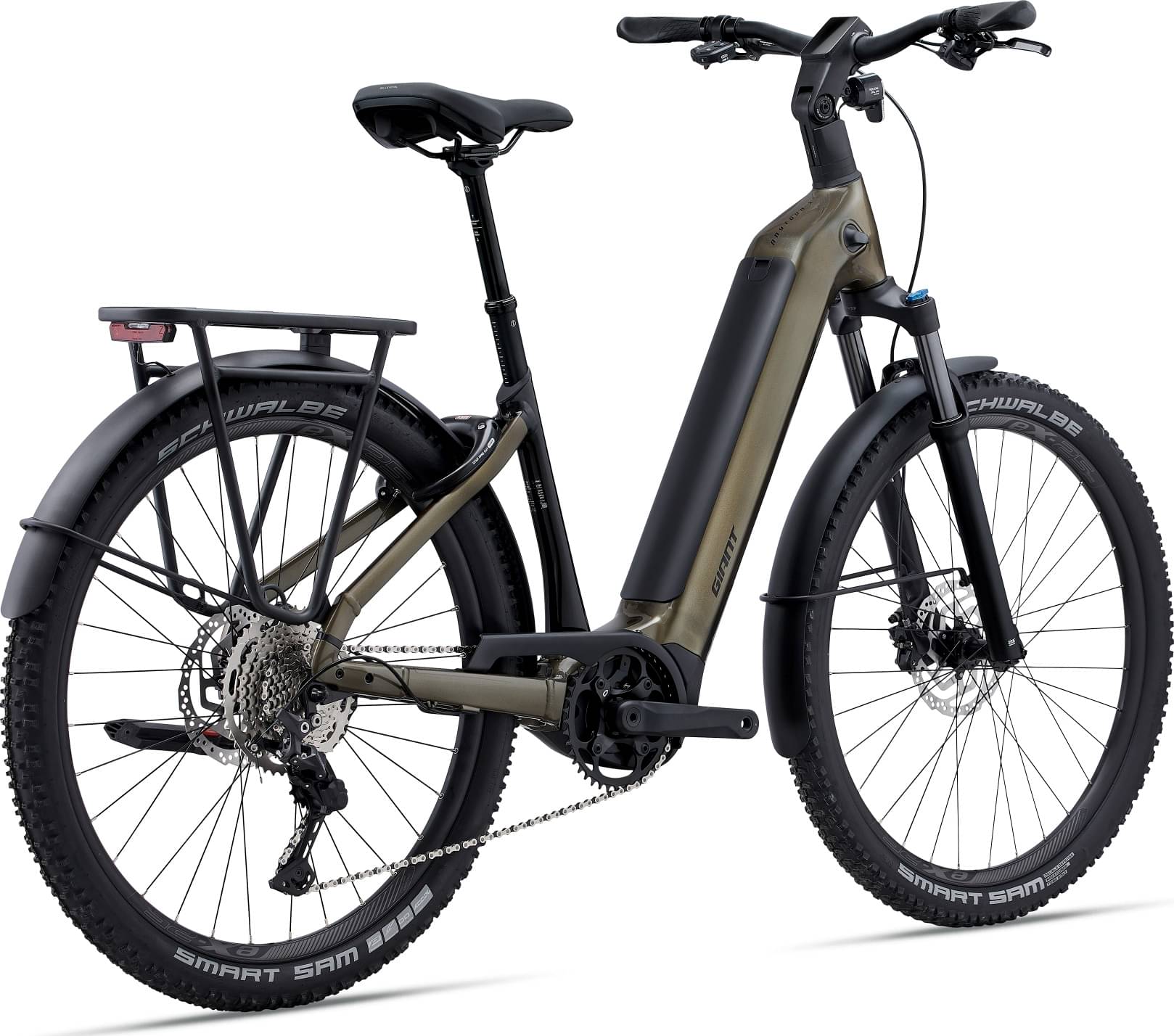

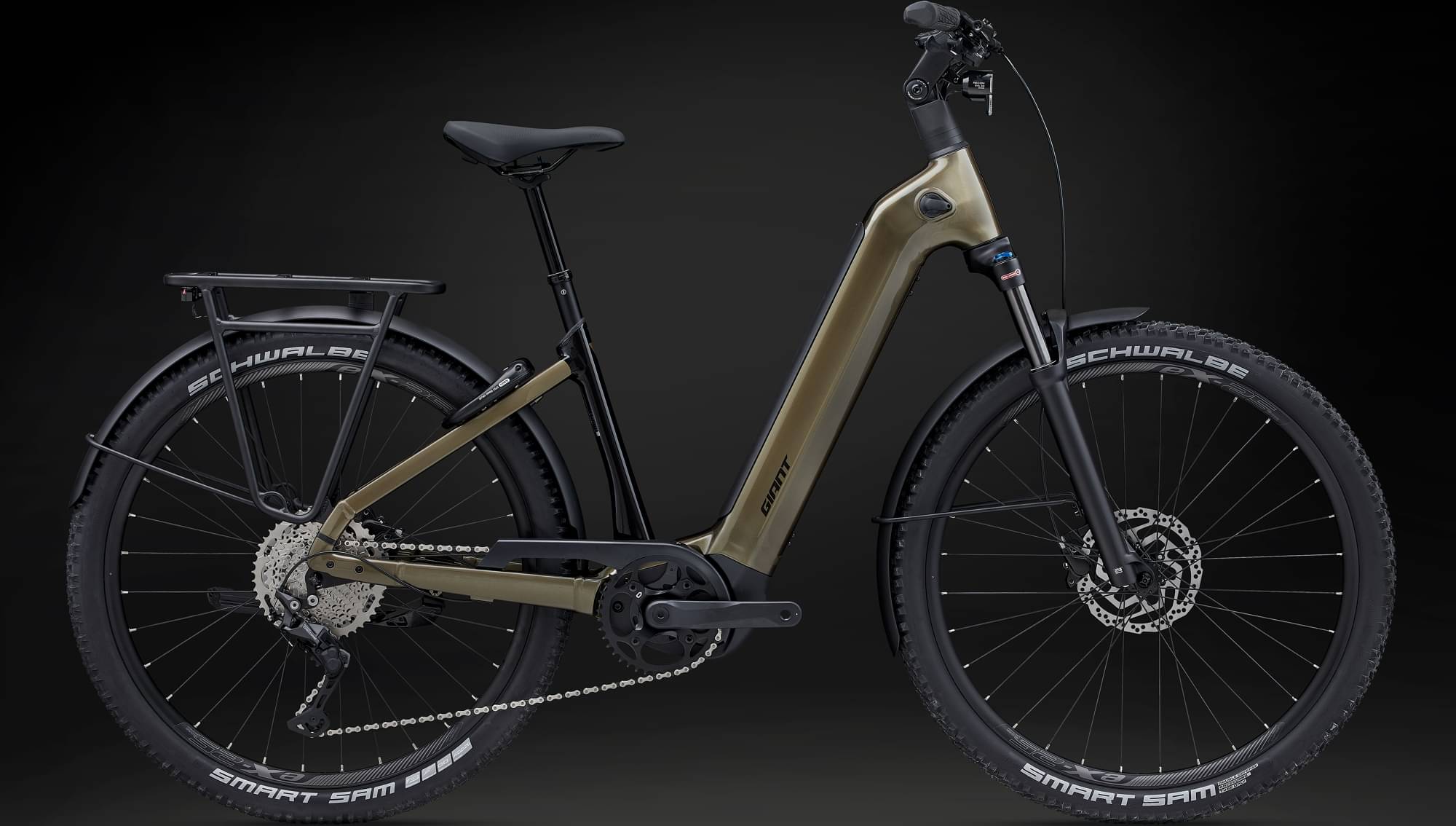

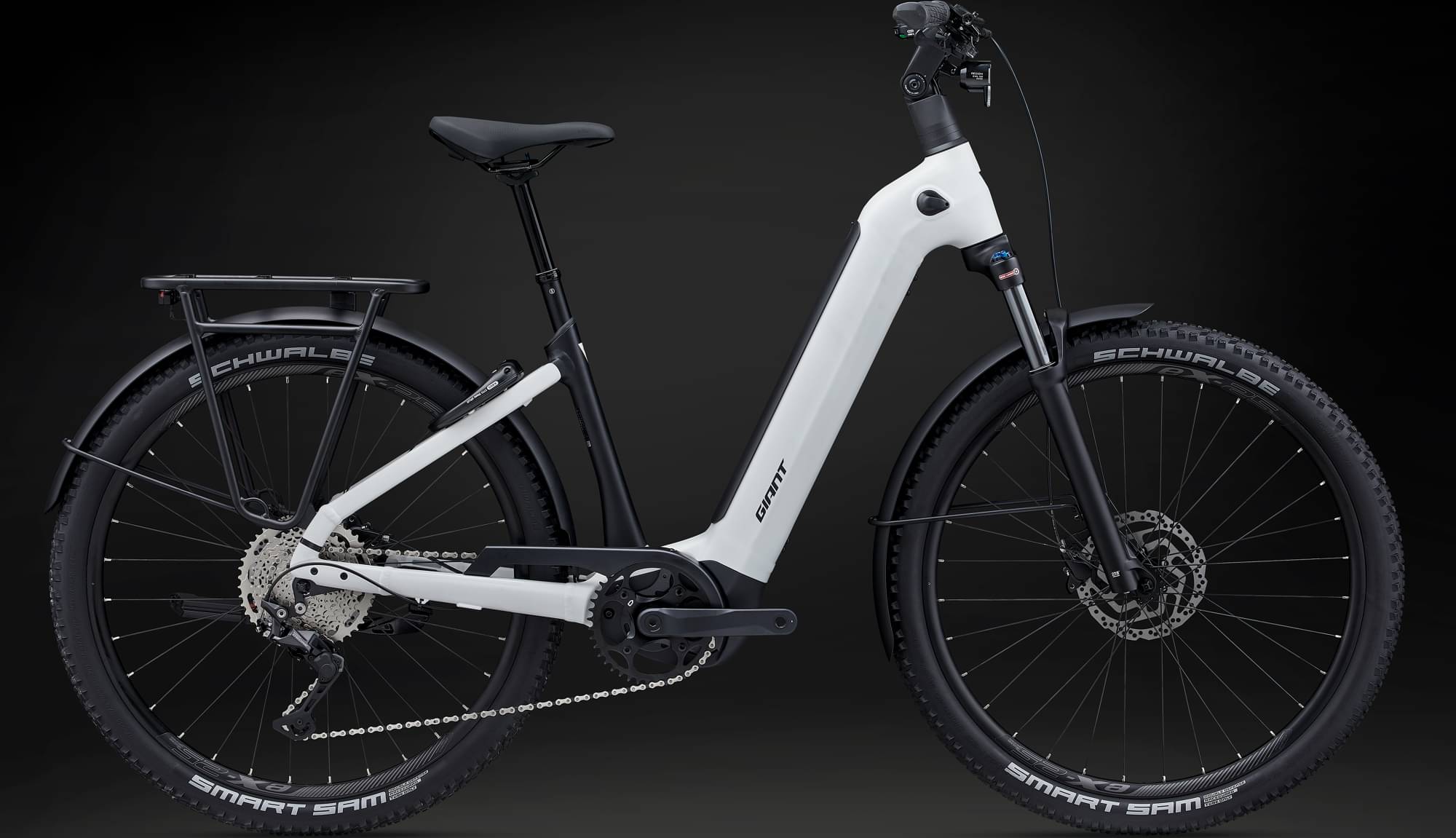

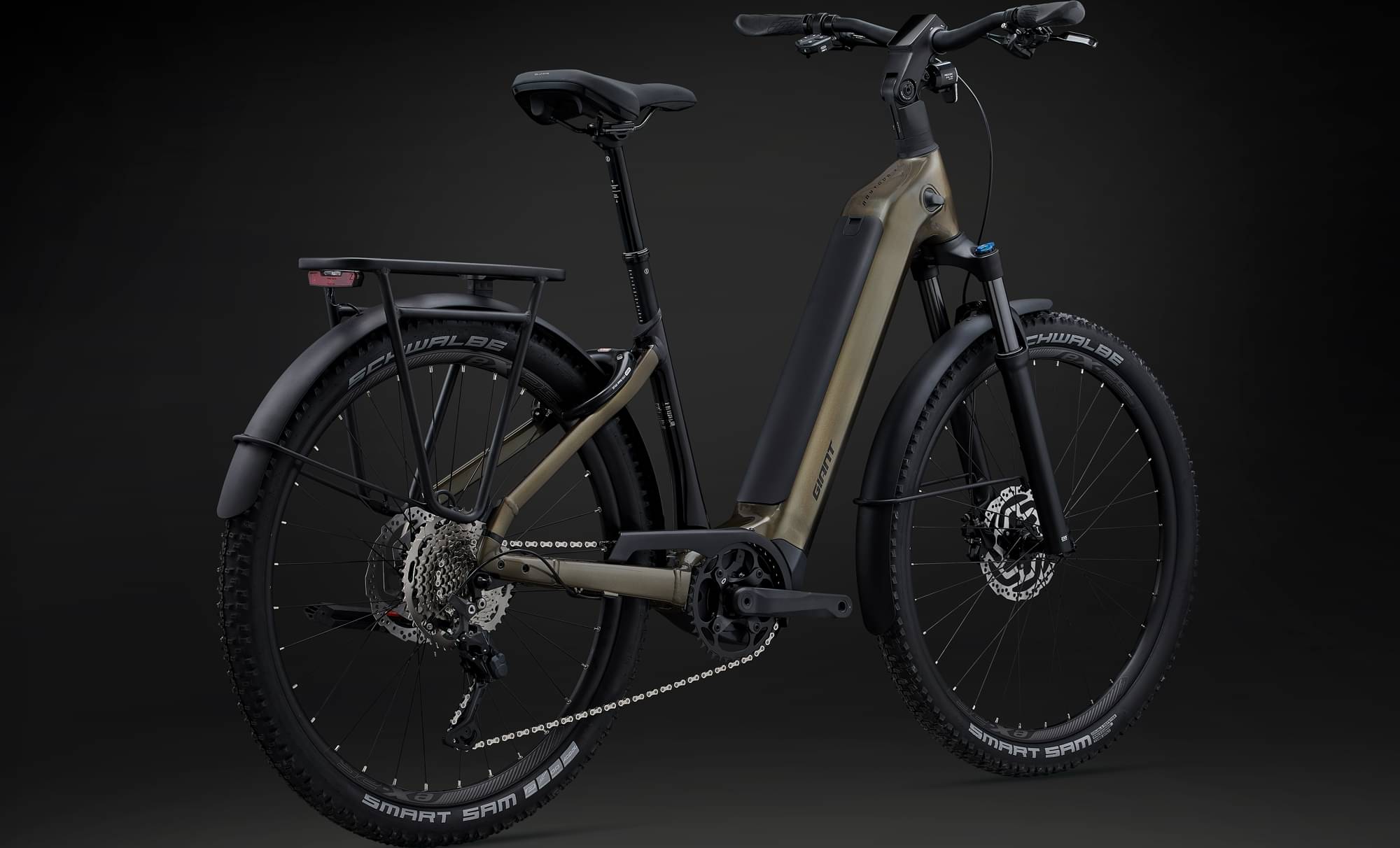

Giant Anytour X E+ 3 2024
2024 E-bike
Estimate price |
4,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

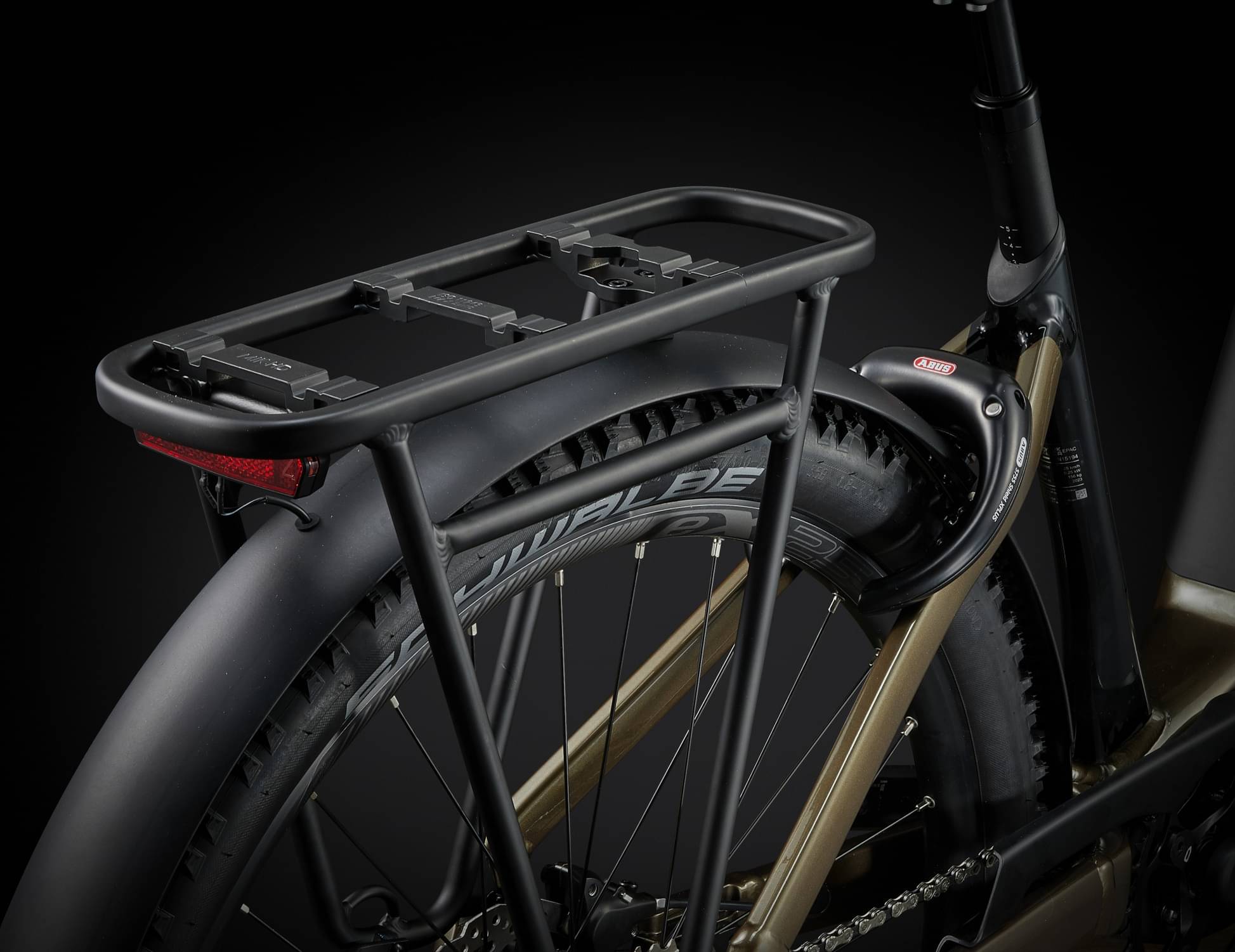

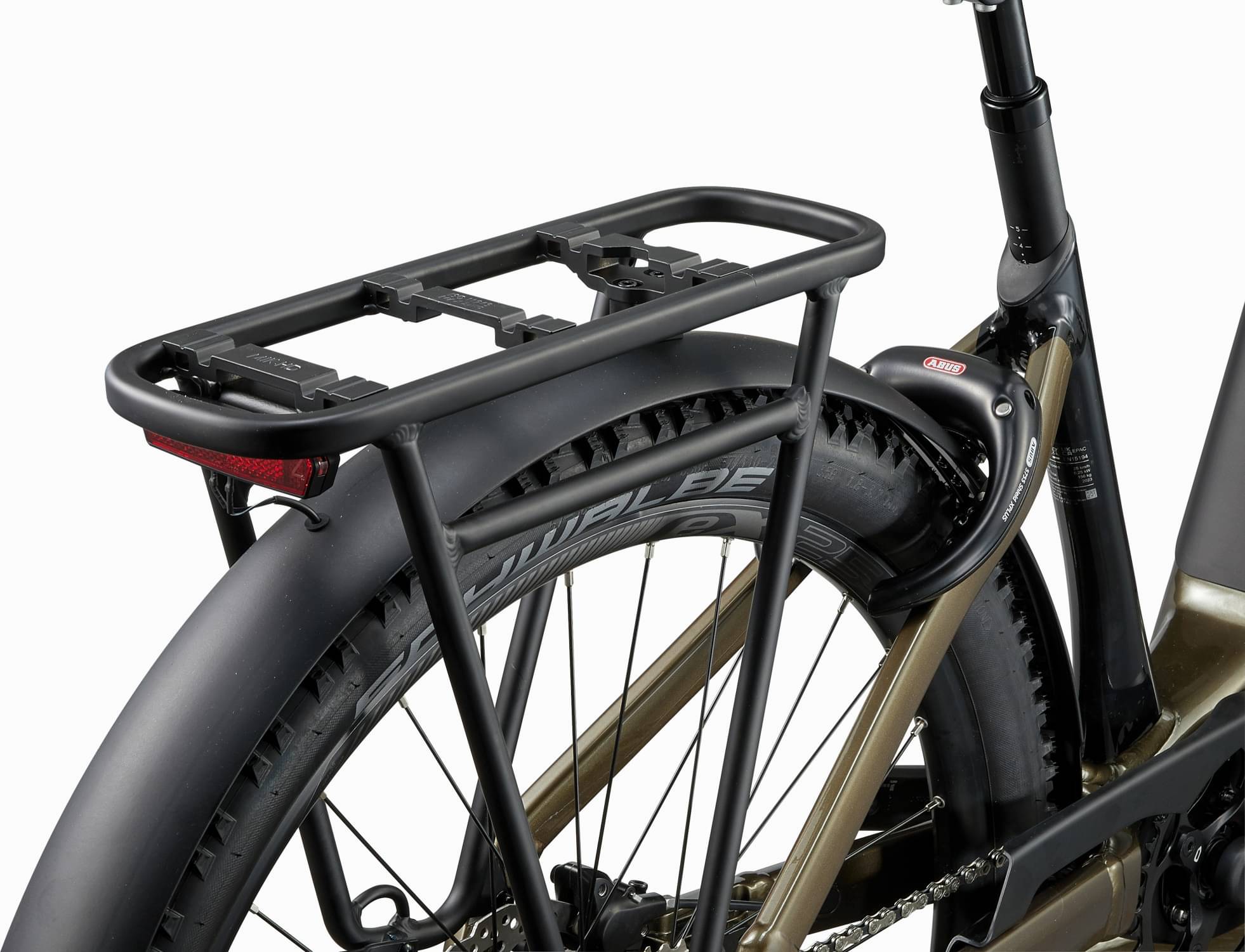

ALUXX SL aluminium, Integrated battery design, Headset integrated cable routing, M10 Trailer Mount, 27,5" Frame-set, KSA40 Kickstand

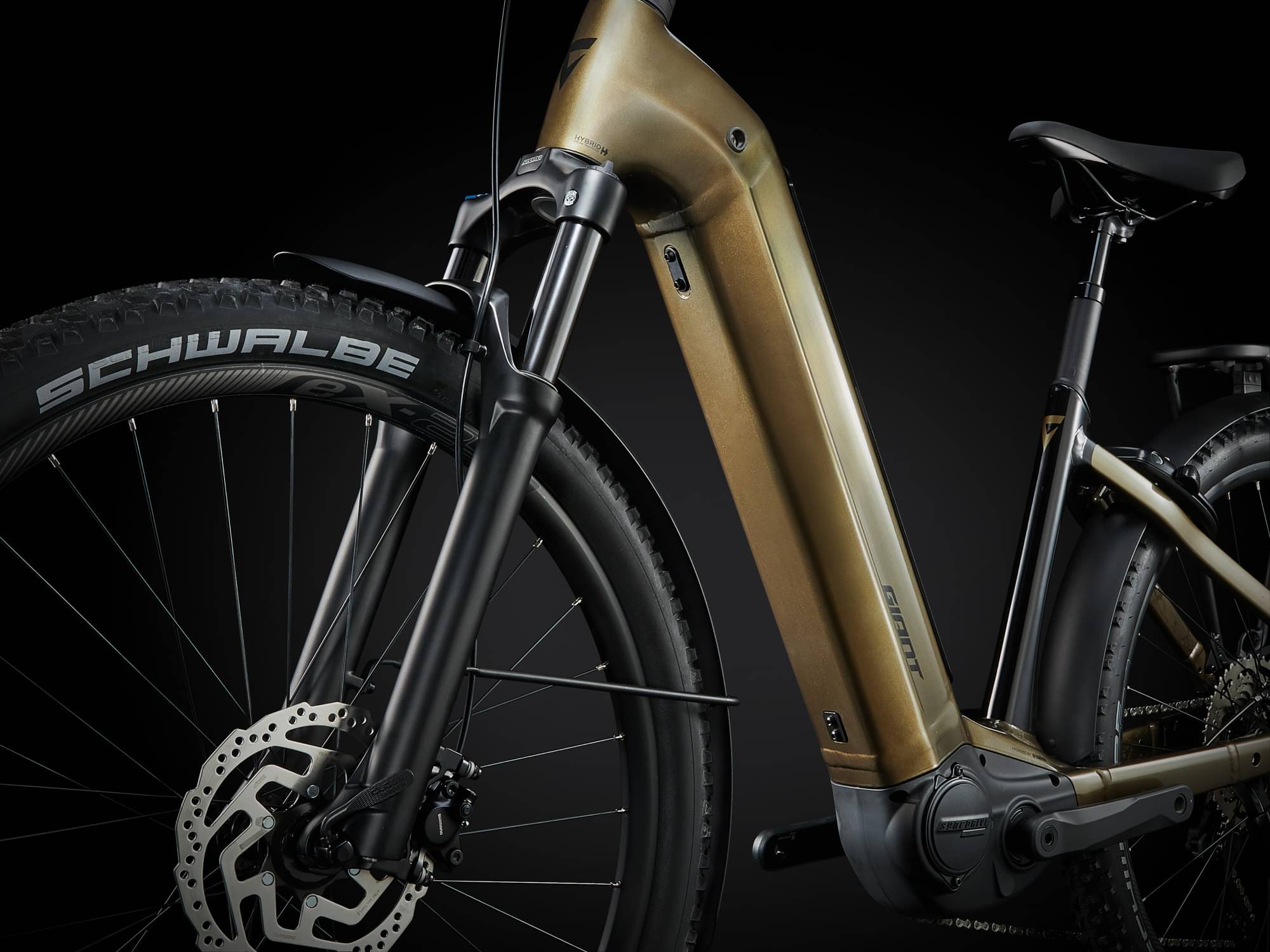

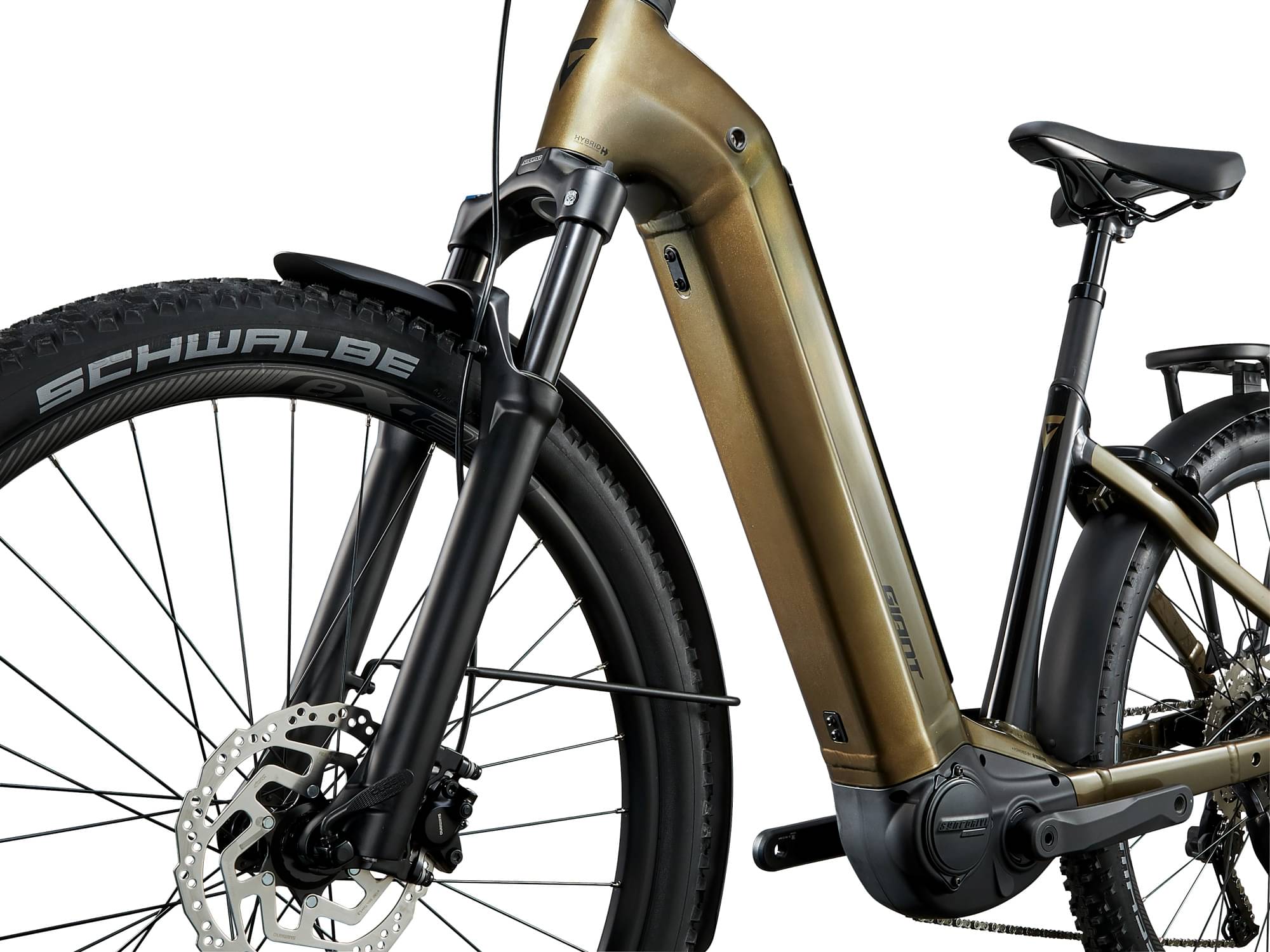

Suspension Fork
SR Suntour XCR32 ATB LO 27.5" Coil 100mm
Rear Shock
n/a

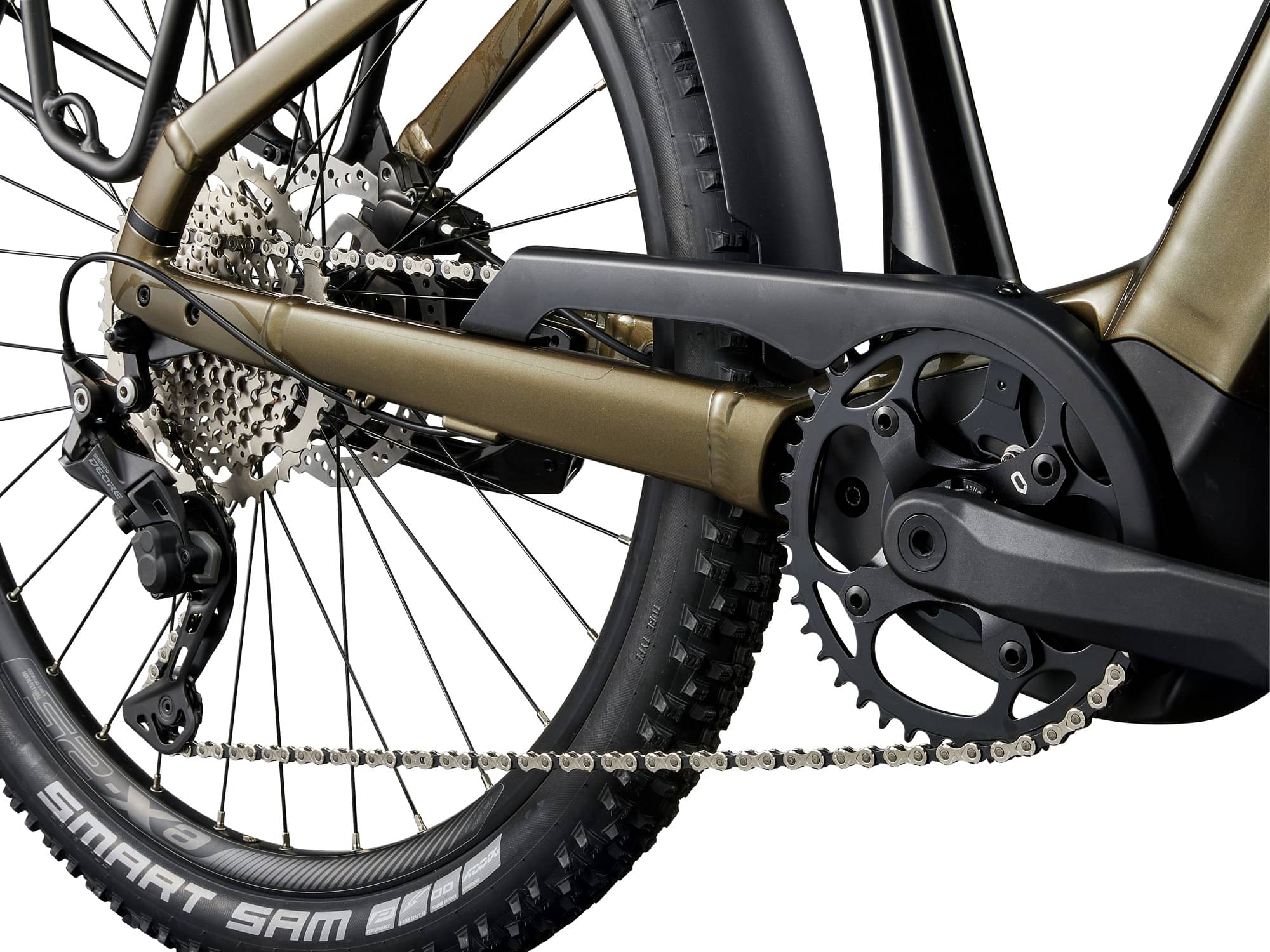

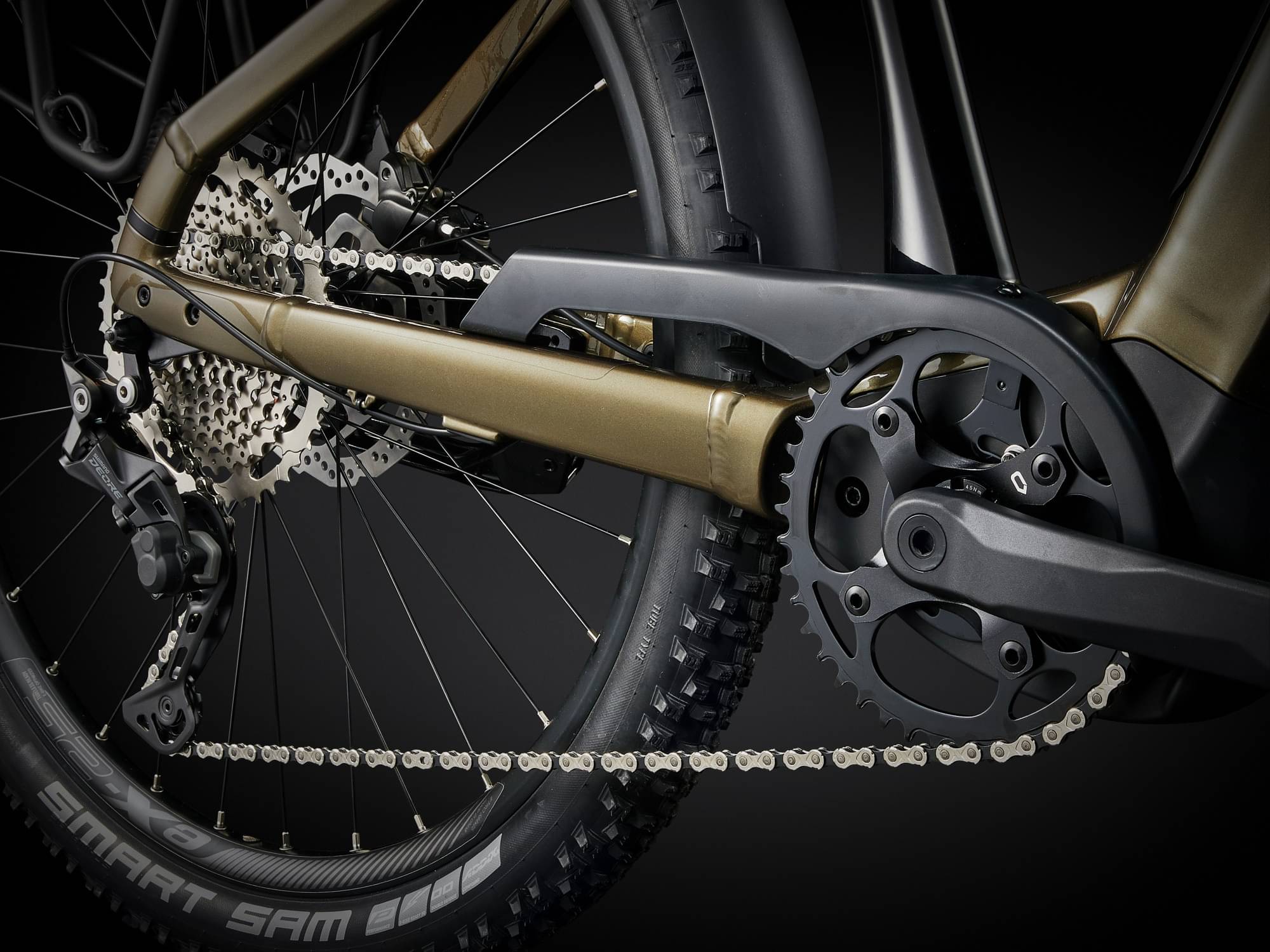

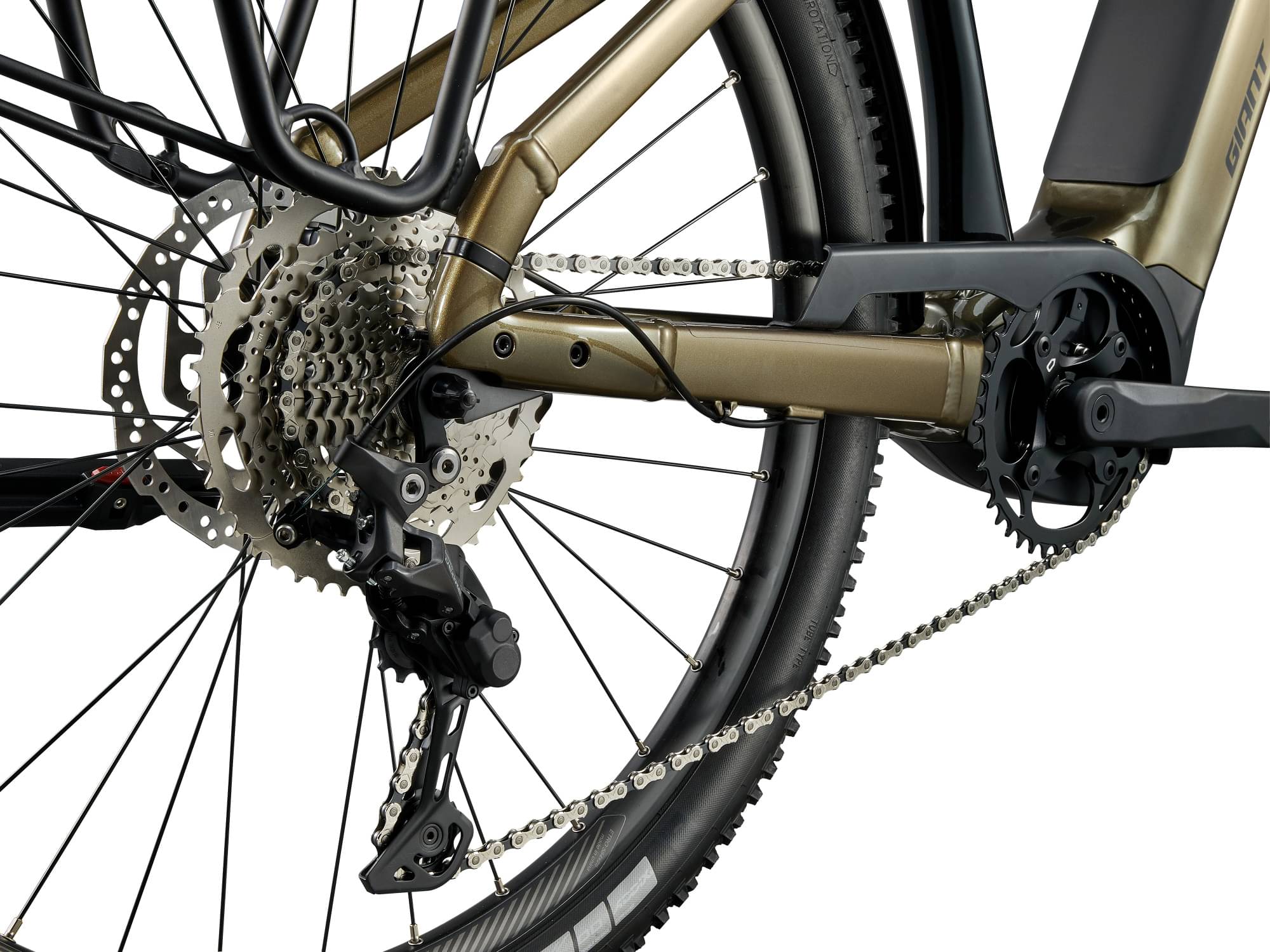

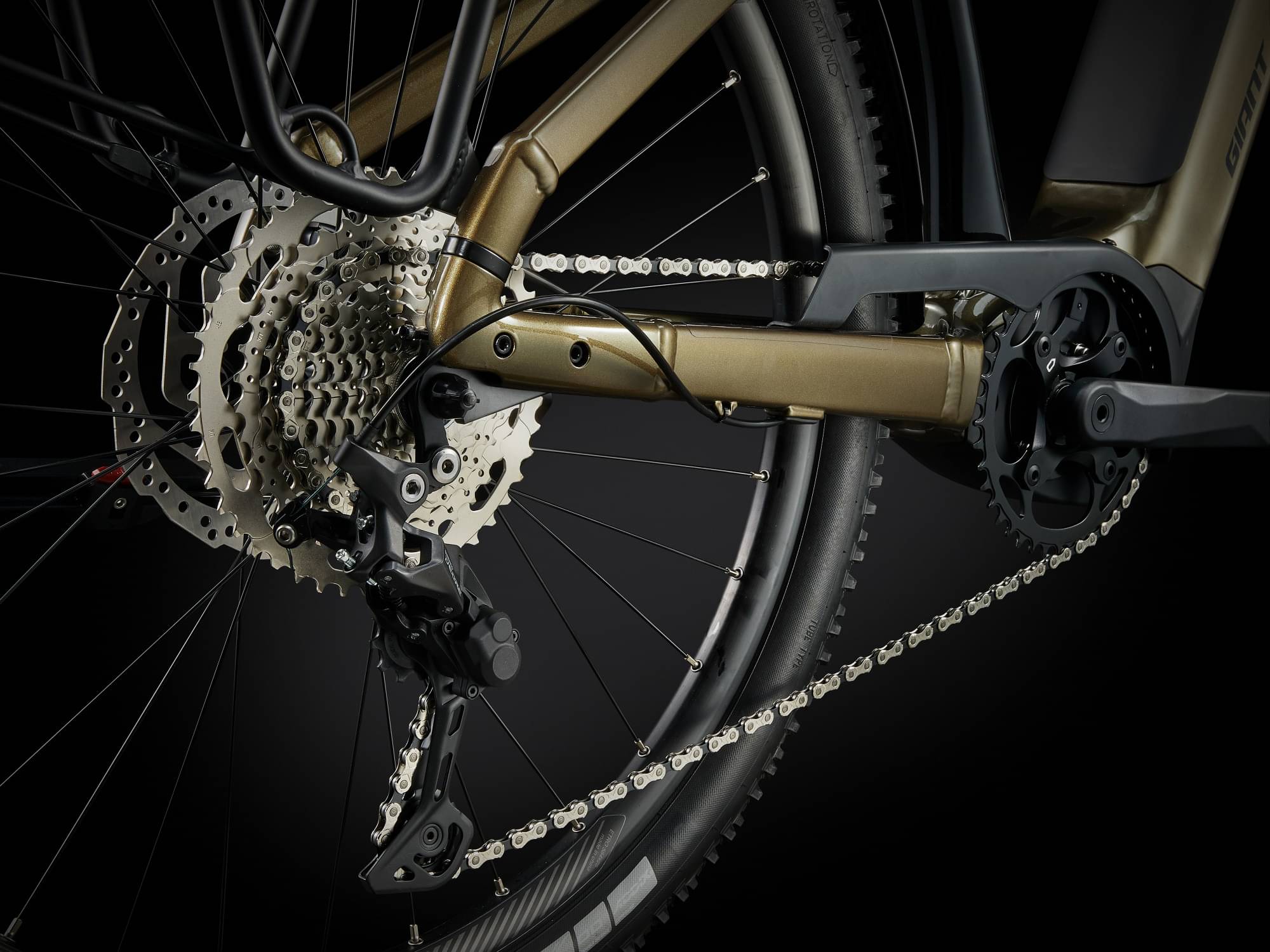

Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, Shadow+
Front Derailleur
n/a
Shift Levers
Shimano Deore 1x10
Cassette
Shimano Deore, CS-M4100, 11-46T, 10-speed
Crank
Aluminium 42T
Bottom Bracket
n/a
Chain
KMC e.10 Sport, e-bike optimised
Pedals
VP VPE537, PP platform / Anti-slip
Wheels
Front Hub
Shimano HB-MT200 100x9mm QR Disc [F] Shimano FH-QC400-HM [R]
Rear Hub
Shimano HB-MT200 100x9mm QR Disc [F] Shimano FH-QC400-HM [R]
Rims
Giant eX25, Tubeless Ready, 584x25 Aluminium
Spokes
Stainless
Tires
Schwalbe Smart Sam Plus 57-584 (27.5 x 2.25"), DD, GreenGuard, ADDIX, E-50
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200

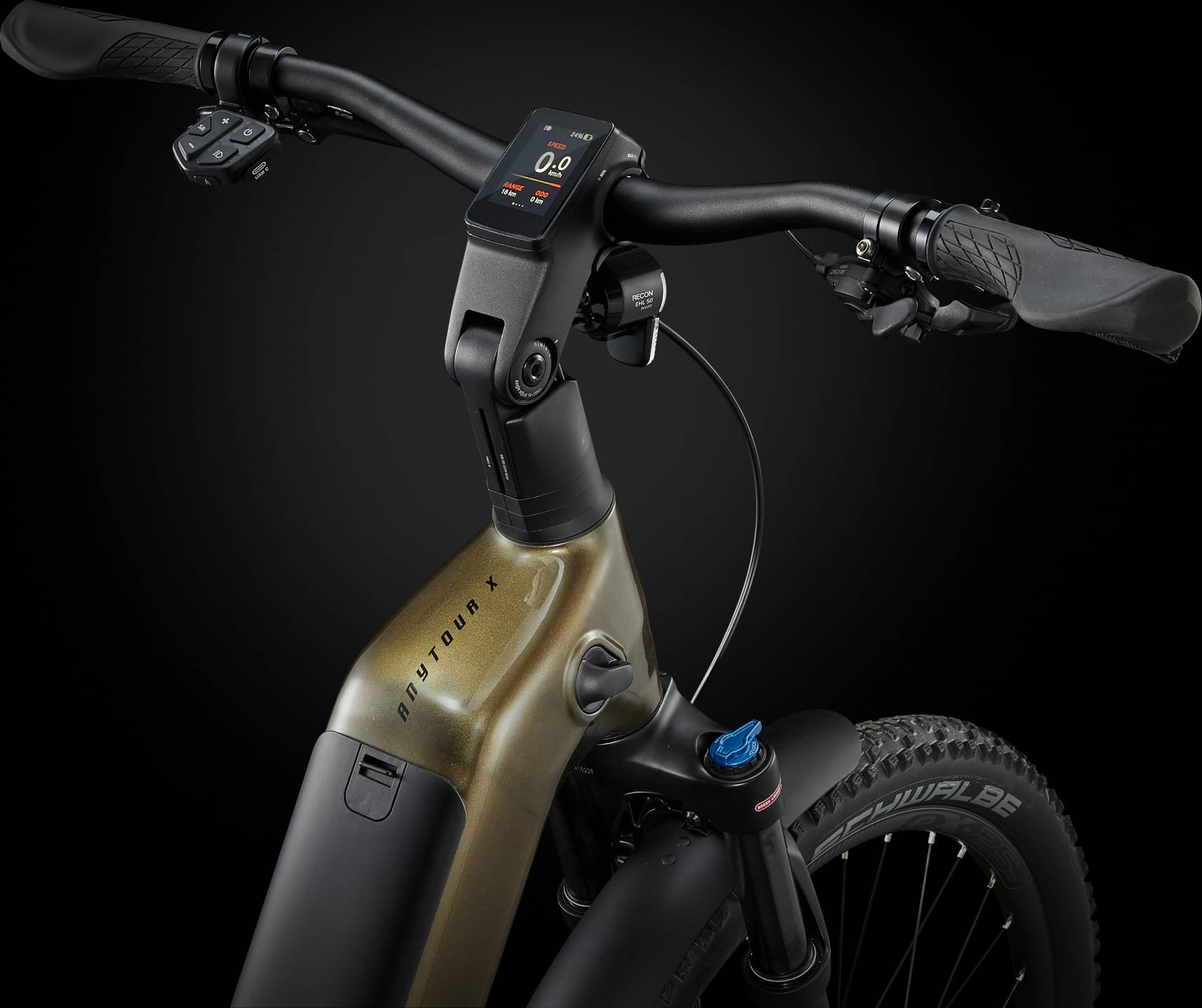

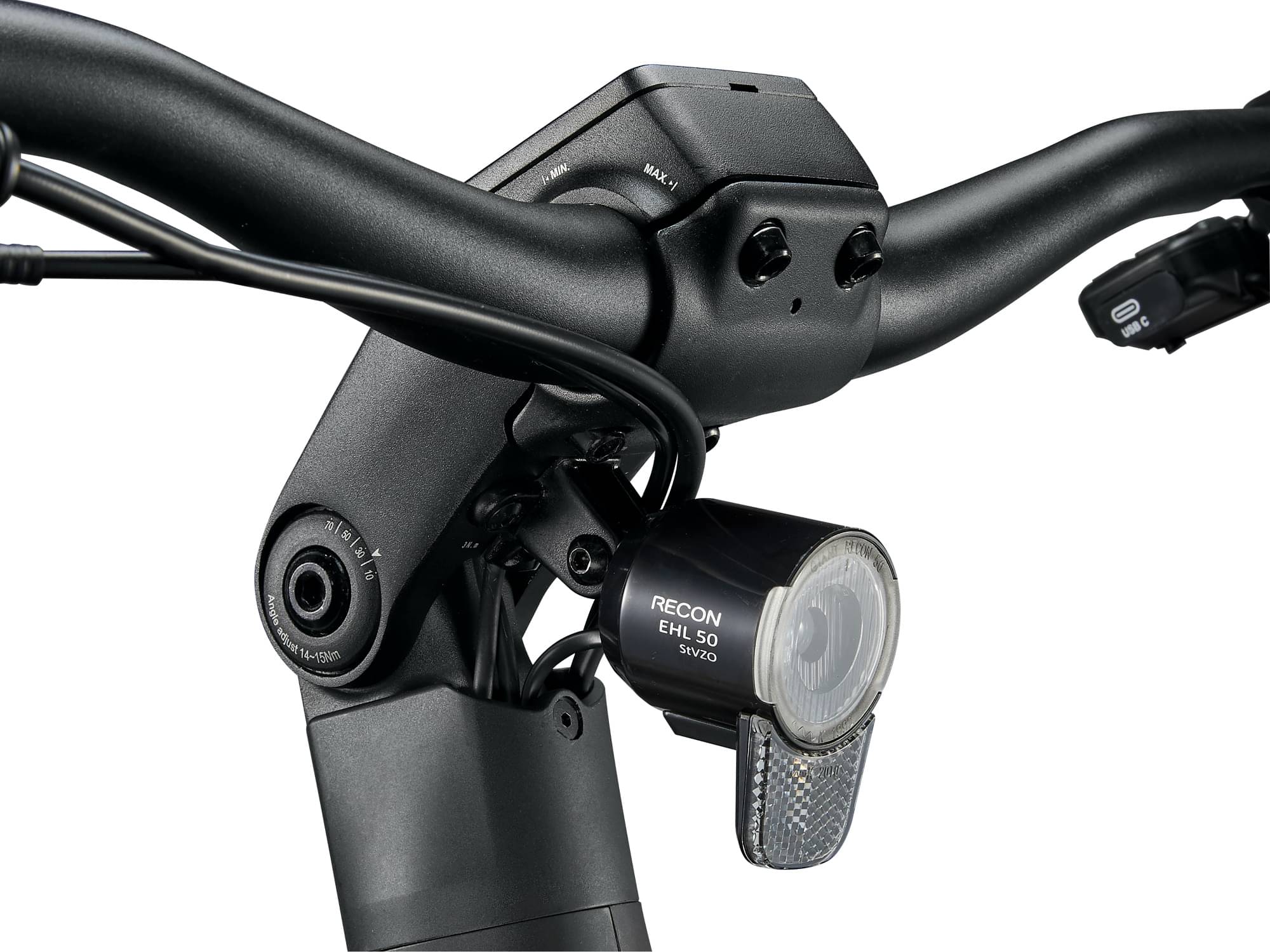

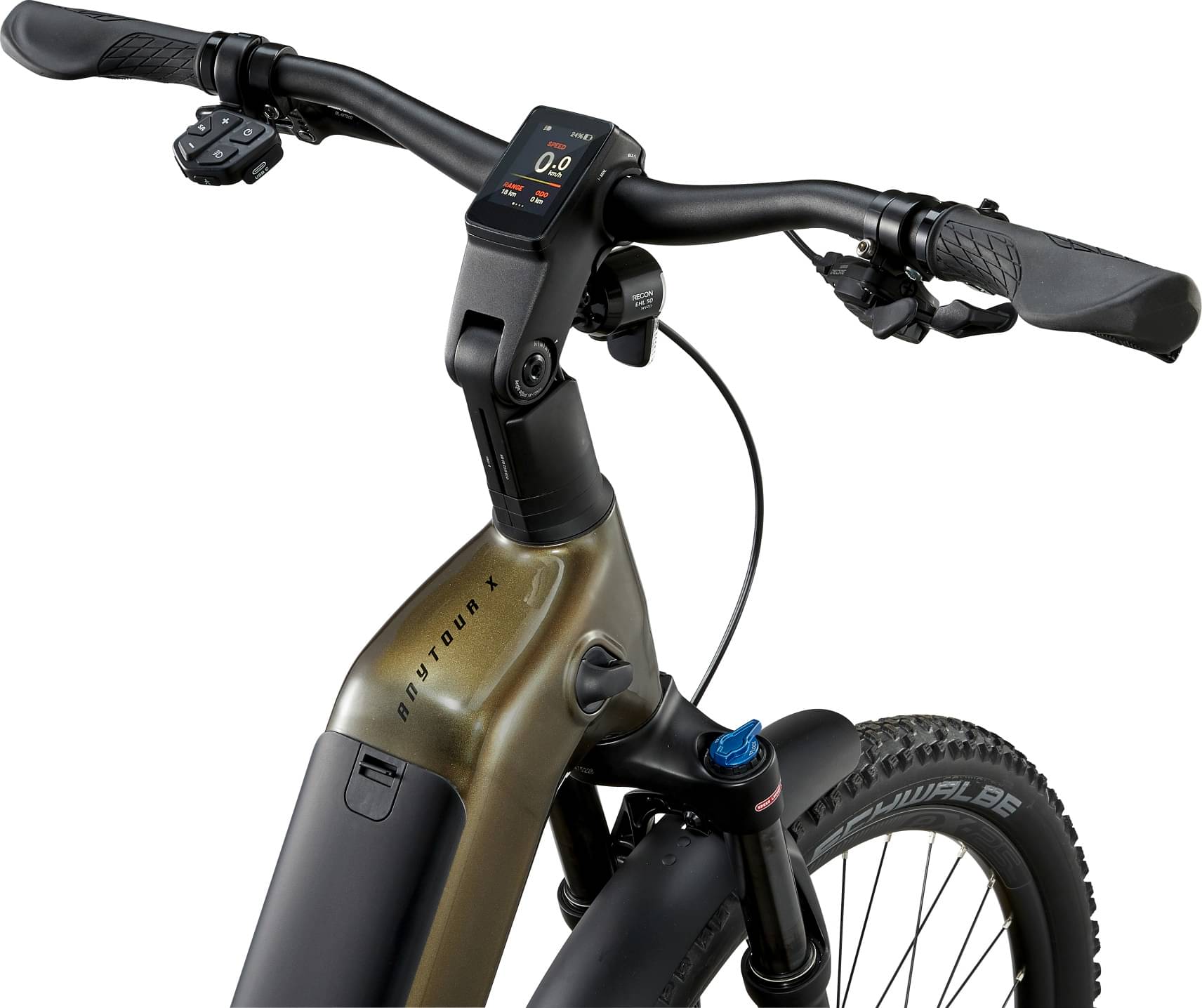

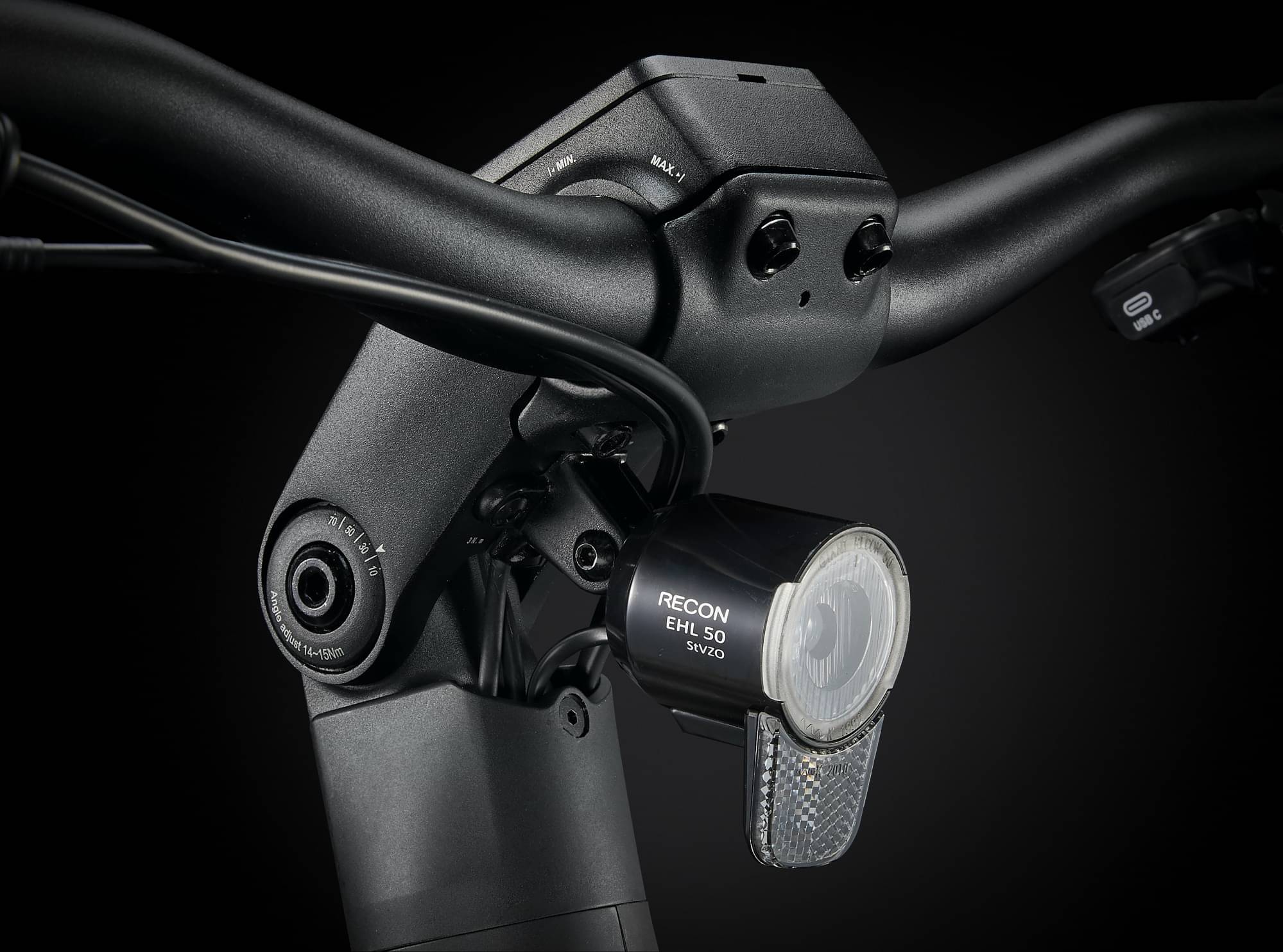

Cockpit
Stem
Giant Contour, EVO integrated, high adjustable
Handlebar
Giant Contour Comfort Riser 31.8x690mm
Grips
Giant Comfort Ergo Microtech Plus Lock-on

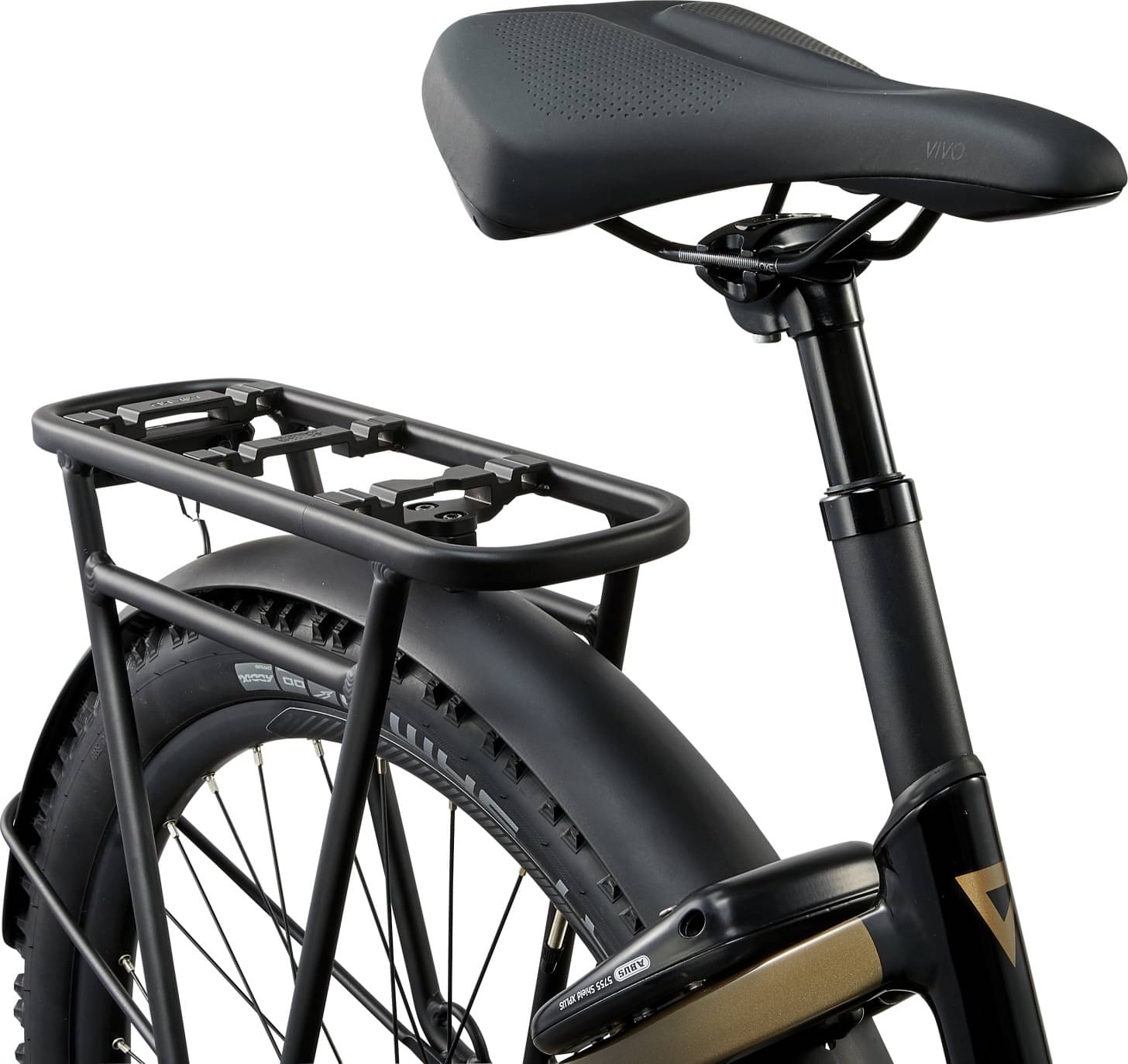

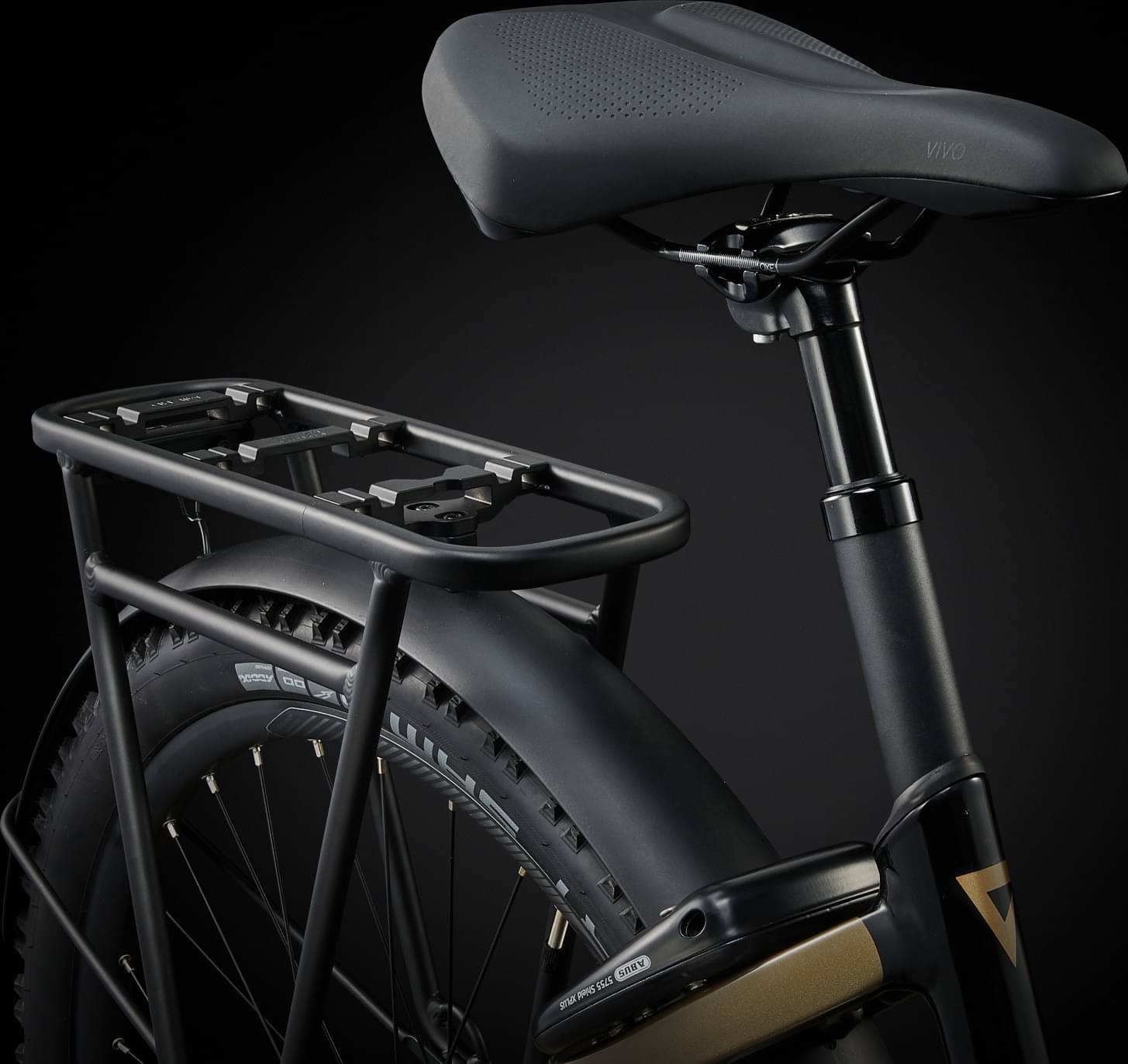

Seat
Saddle
Selle Royal Vivo Ergo Unisex
Seatpost
Suspension dropper post, 30.9mm
Motor & Battery

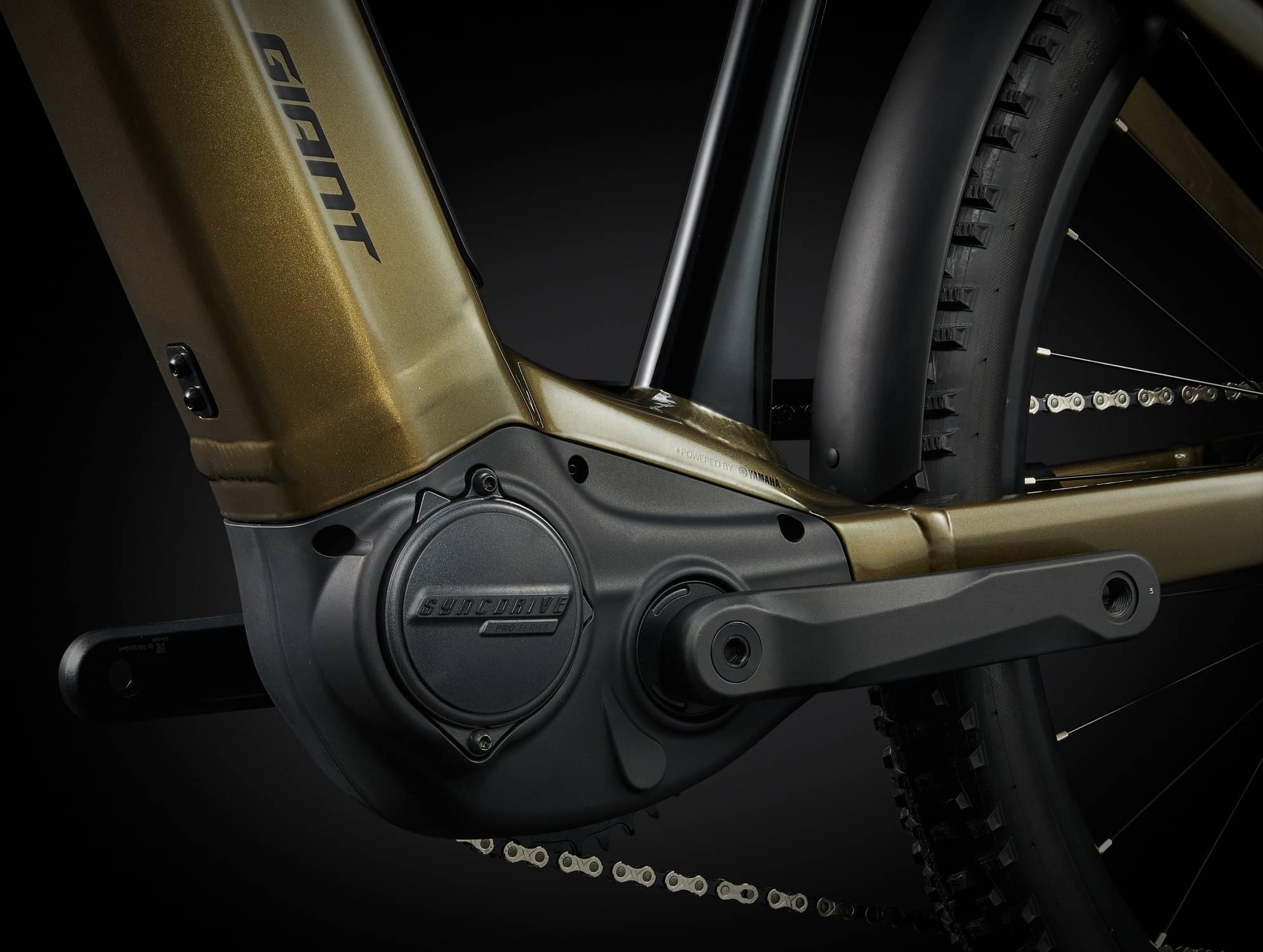

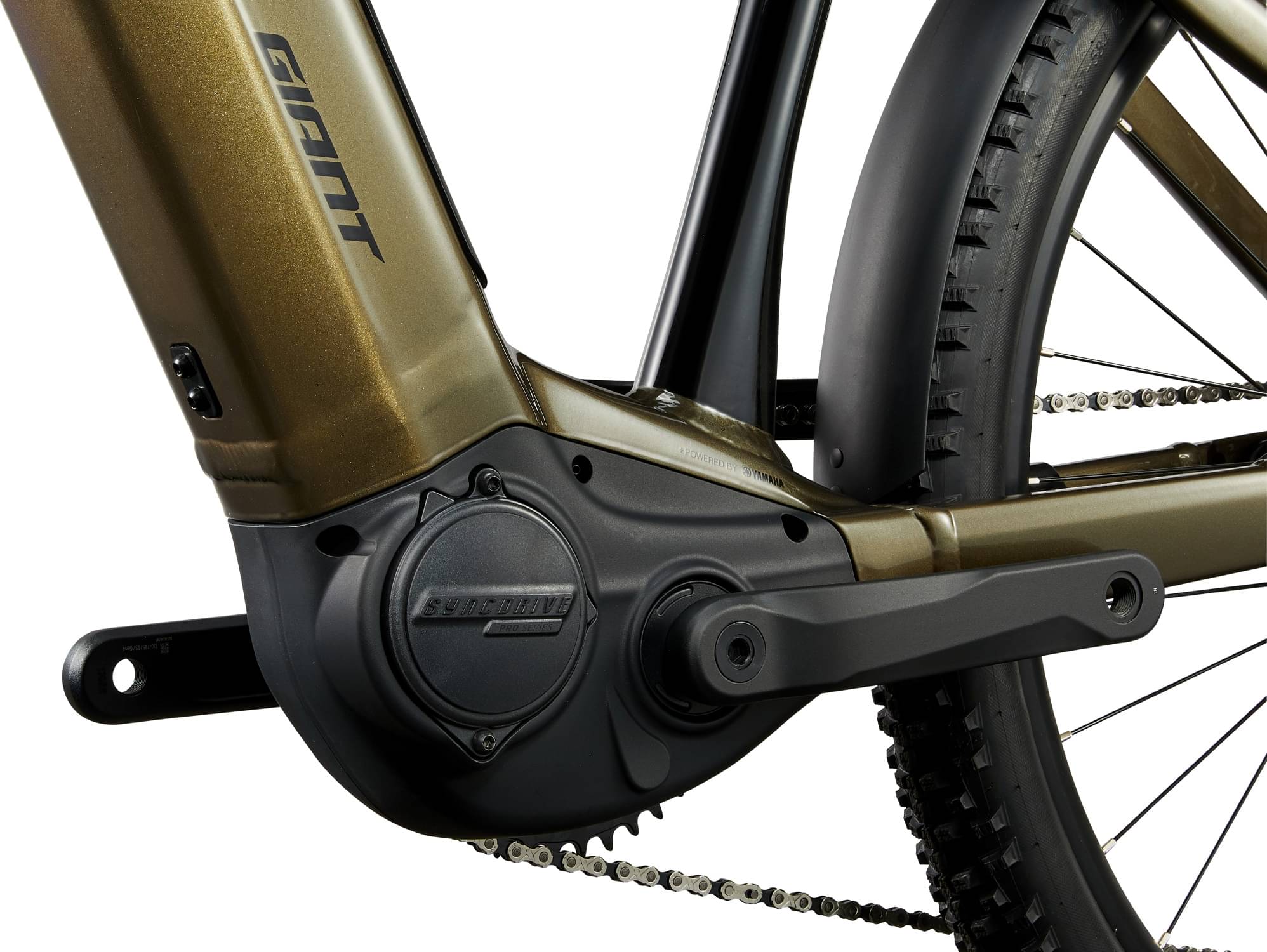

Motor
Giant SyncDrive Sport2, 75Nm, PedalPlus 6-sensor technology
Battery
Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Charger
Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.598 mm | 1.566 mm | 1.676 mm |
| Front Center | 655 mm | 663 mm | 673 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 625 mm | 625 mm | 662 mm |
| Reach | 391 mm | 399 mm | 395 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 340 mm | 410 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 130 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1120 mm | 1128 mm | 1138 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 592 mm | 564 mm | 524 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 169 cm | 176 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm |
