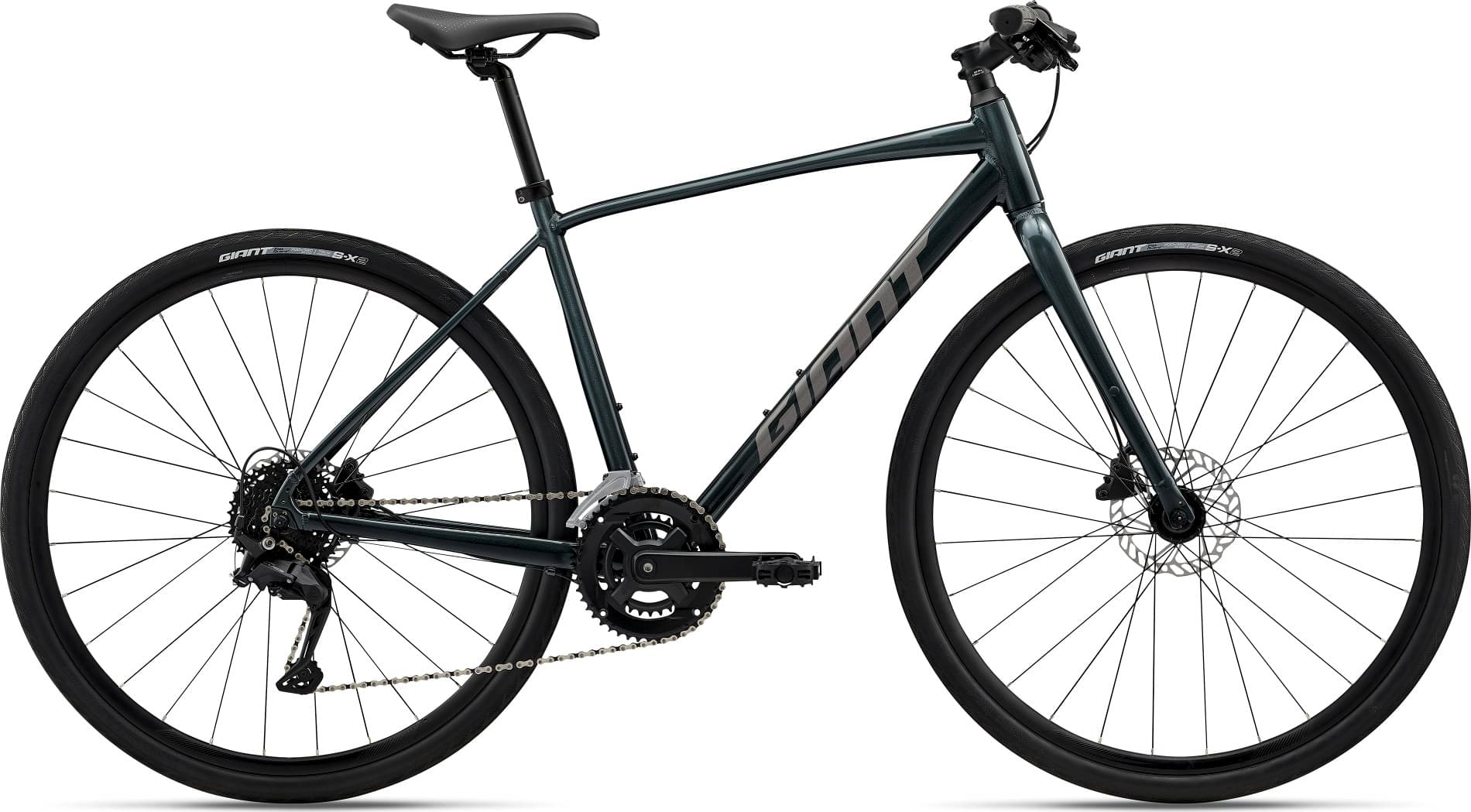

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminium, disc
Suspension Fork
Alloy, rack mount, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano CUES U3020
Front Derailleur
Shimano CUES U4010
Shift Levers
Shimano CUES U4000, 9-speed
Cassette
Shimano CS-LG3009, 11x36
Crank
Forged Alloy, 30/46 S:170mm, M:170mm, L:175mm, XL:175mm
Bottom Bracket
Cartridge
Chain
KMC Z8.3
Pedals
Giant platform
Wheels
Front Hub
Alloy, 28h
Rear Hub
Alloy, 28h
Rims
Giant double wall aluminium
Spokes
Stainless, 14g
Tires
Giant S-X2, puncture protect, 700x38c
Brakes
Brakes
Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
Tektro HD-R280
Cockpit
Stem
Giant Sport, 15-degree, 31.8mm XS:80mm, S:90mm, M:90mm, L:100mm, XL:100mm
Handlebar
Giant Sport XC, 31.8mm
Grips
Giant ErgoContact
Seat
Saddle
Giant ErgoContact
Seatpost
Giant D-Fuse, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.325 mm | 1.356 mm | 1.406 mm | 1.449 mm |
| Front Center | 636 mm | 637 mm | 653 mm | 669 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 69.4 mm | 69.4 mm | 69.4 mm |
| Stack | 538 mm | 556 mm | 585 mm | 613 mm |
| Reach | 406 mm | 410 mm | 416 mm | 423 mm |
| Top Tube Length | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1074 mm | 1075 mm | 1091 mm | 1107 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 714 mm | 754 mm | 799 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
