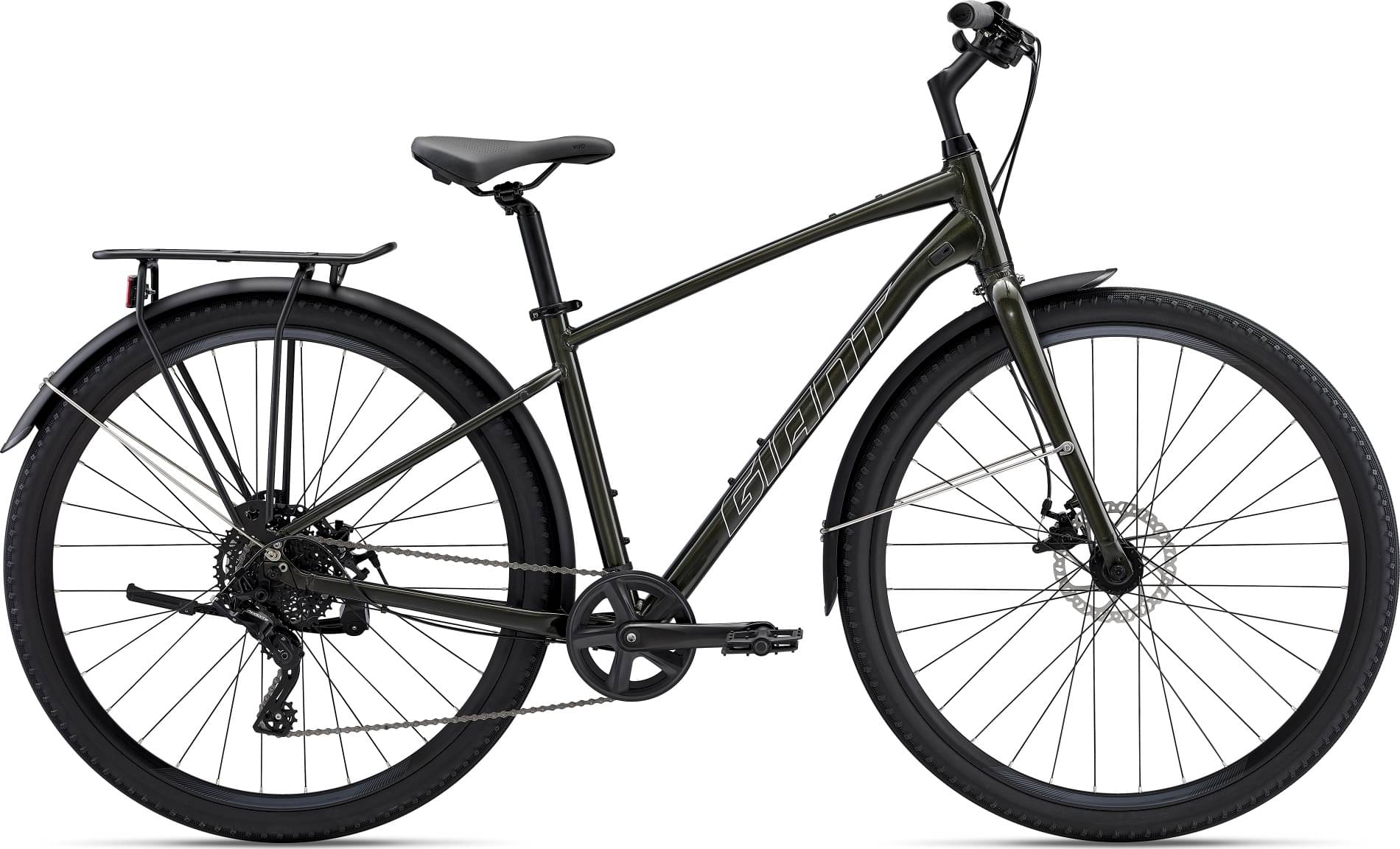

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Acolyte -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
high-tensile steel, rack mount
Rear Shock
N/A
Drivetrain
Rear Derailleur
microSHIFT Acolyte
Front Derailleur
N/A
Shift Levers
microSHIFT Acolyte, 1x8
Cassette
microSHIFT Acolyte, 12x42
Crank
forged alloy, 38t S:170mm, M:170mm, L:175mm, XL:175mm
Bottom Bracket
sealed cartridge
Chain
KMC Z8.3
Pedals
fitness platform
Wheels
Front Hub
alloy, 32h
Rear Hub
alloy, 32h
Rims
Giant double-wall aluminum
Spokes
stainless, 14g
Tires
Innova Multi Purpose Hybrid, 700x45c
Brakes
Brakes
Tektro mechanical [F]160mm, [R]160mm rotors
Brake Levers
alloy
Cockpit
Stem
alloy, quill, 40-degree, 25.4mm S:85mm, M:85m, L:105mm, XL:105mm
Handlebar
alloy, mid-rise, 25.4mm S:64cm, M:64cm, L:68cm, XL:68cm
Grips
Giant Ergo
Seat
Saddle
Selle Royal Vivo Comfort
Seatpost
Giant Sport, 30.9mm S:300mm, M:300mm, L:350mm, XL:350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.619 mm | 1.61 mm | 1.625 mm | 1.619 mm |
| Front Center | 632 mm | 648 mm | 664 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 83.6 mm | 83.8 mm | 83.8 mm | 83.8 mm |
| Stack | 617 mm | 631 mm | 645 mm | 659 mm |
| Reach | 381 mm | 392 mm | 397 mm | 407 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 385 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1089 mm | 1105 mm | 1121 mm | 1137 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 718 mm | 746 mm | 783 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
