Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

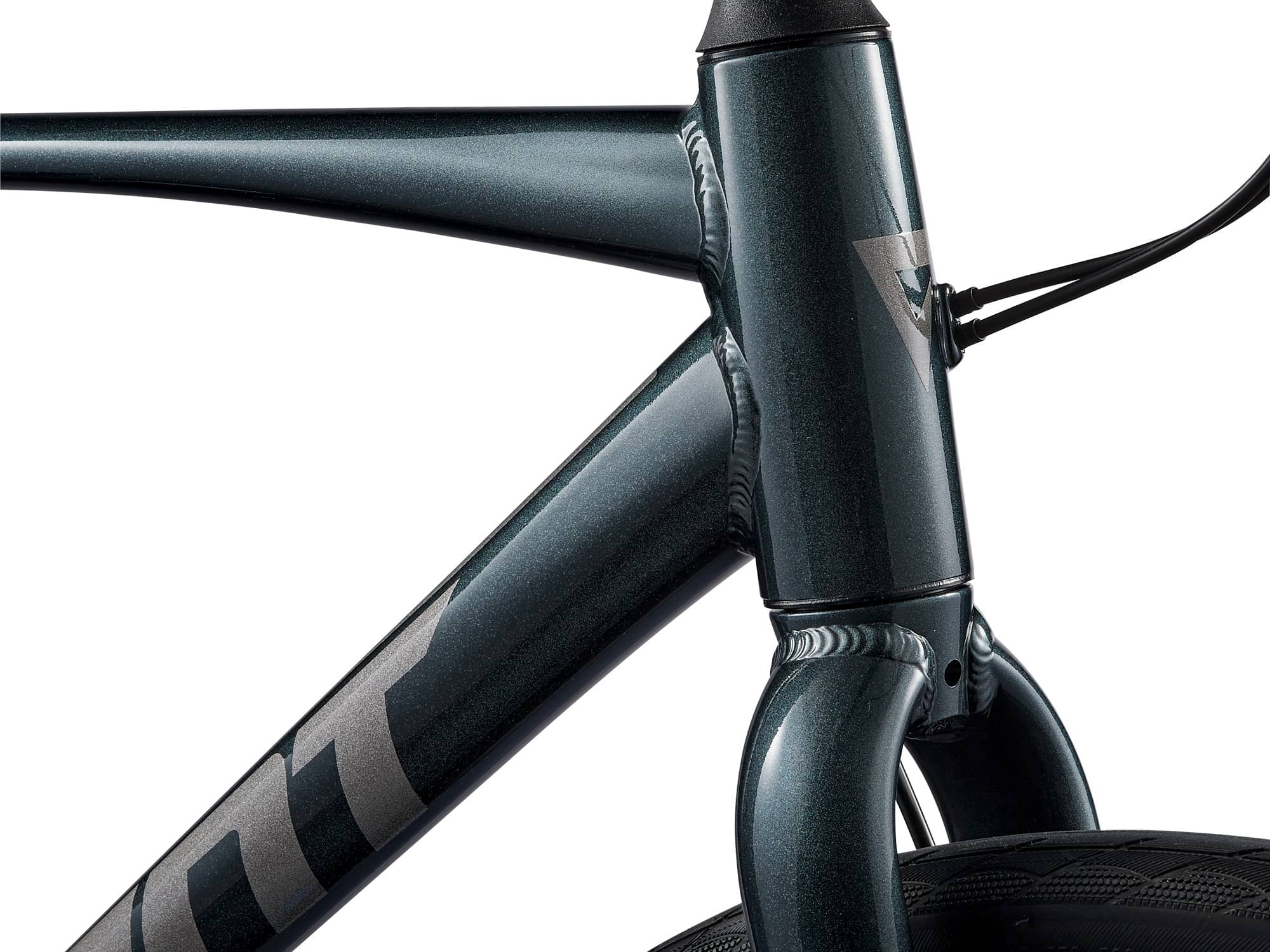

Frame
Frame
ALUXX-grade aluminum, disc
Suspension Fork
alloy, rack mount, disc
Rear Shock
N/A

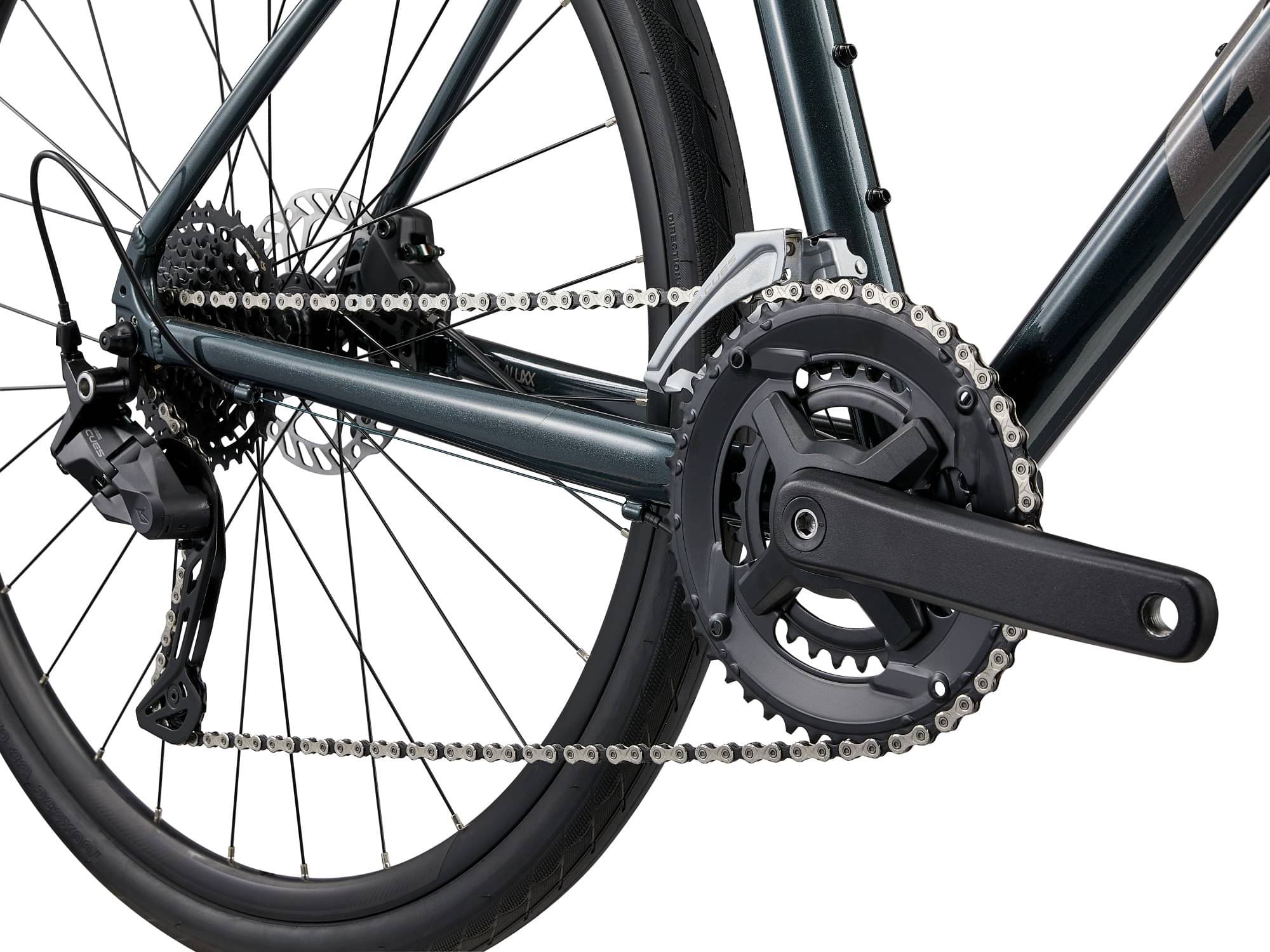

Drivetrain
Rear Derailleur
micoSHIFT Advent
Front Derailleur
N/A
Shift Levers
microSHIFT Advent, 1x9
Cassette
micorSHIFT Advent, 11x46
Crank
forged alloy, 30/46 XS:170mm, S:170mm, M:170mm, L:175mm, XL:175mm
Bottom Bracket
sealed cartridge
Chain
KMC X9
Pedals
Giant Urban Fitness
Wheels
Front Hub
alloy, 28h
Rear Hub
alloy, 28h
Rims
Giant double wall aluminum
Spokes
stainless, 14g
Tires
Giant S-X2, puncture protect, 700x38c

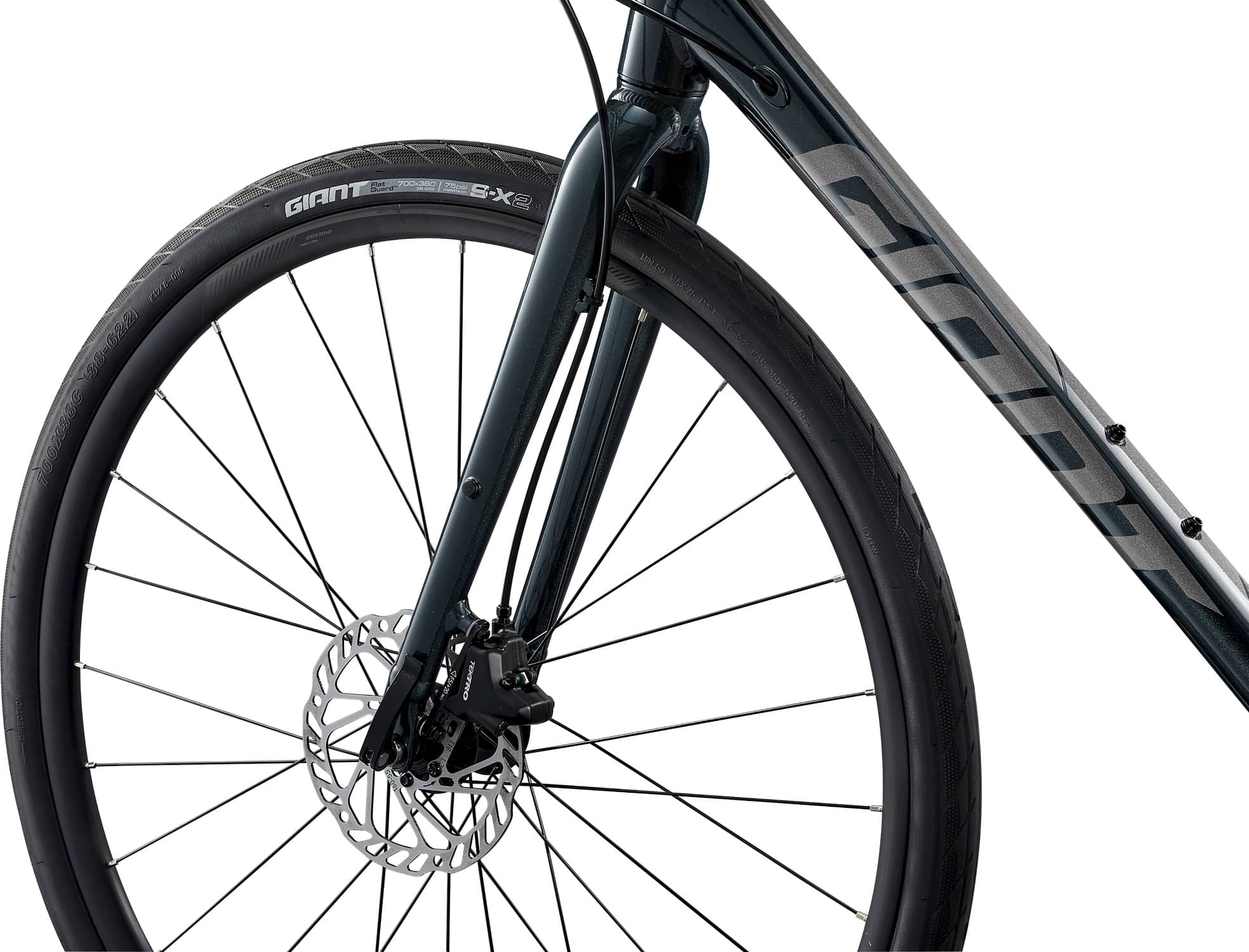

Brakes
Brakes
Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
Tektro TKD143

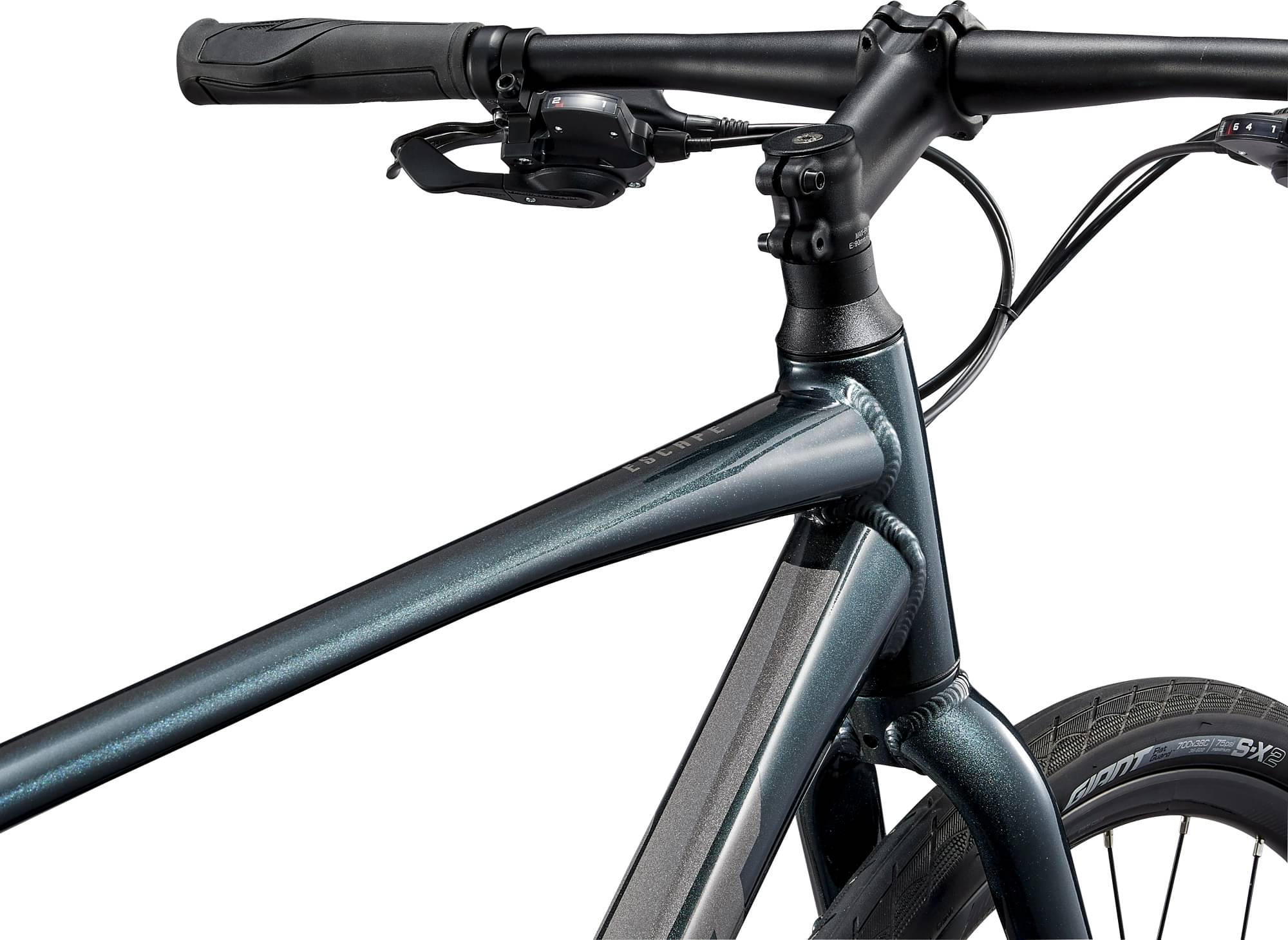

Cockpit
Stem
Giant Sport, 15-degree, 31.8mm XS:80mm, S:90mm, M:90mm, L:100mm, XL:100mm
Handlebar
Giant Sport XC, 31.8mm XS:60cm, S:64cm, M:64cm, L:68cm, XL:68cm
Grips
Giant ErgoContact
Seat
Saddle
Giant ErgoContact

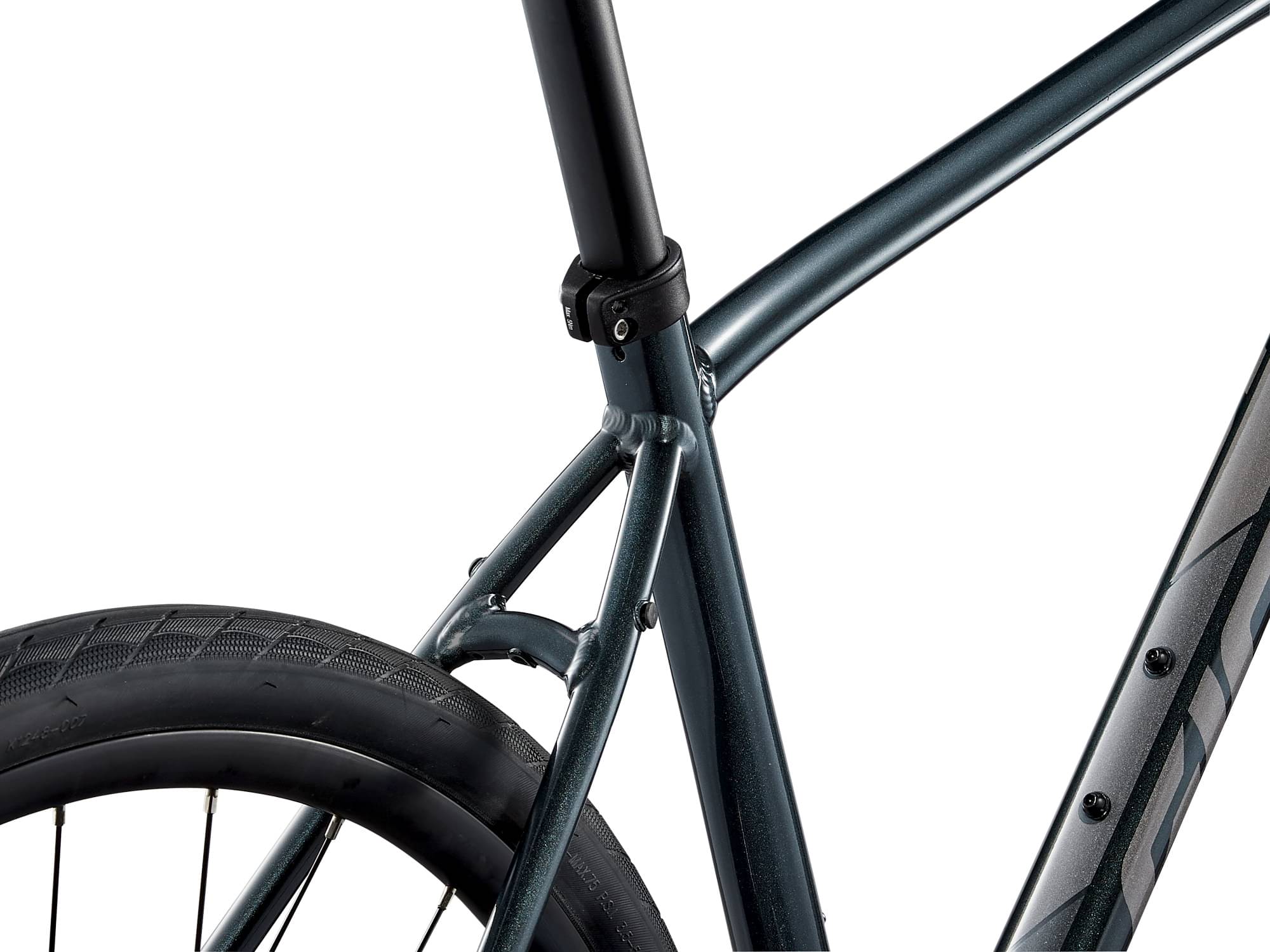

Seatpost
Giant D-Fuse, alloy XS:300mm, S:300mm, M:350mm, L:350mm, XL:350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.325 mm | 1.356 mm | 1.406 mm | 1.449 mm |
| Front Center | 636 mm | 637 mm | 653 mm | 669 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 69.4 mm | 69.4 mm | 69.4 mm |
| Stack | 538 mm | 556 mm | 585 mm | 613 mm |
| Reach | 406 mm | 410 mm | 416 mm | 423 mm |
| Top Tube Length | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1074 mm | 1075 mm | 1091 mm | 1107 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 714 mm | 754 mm | 799 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
