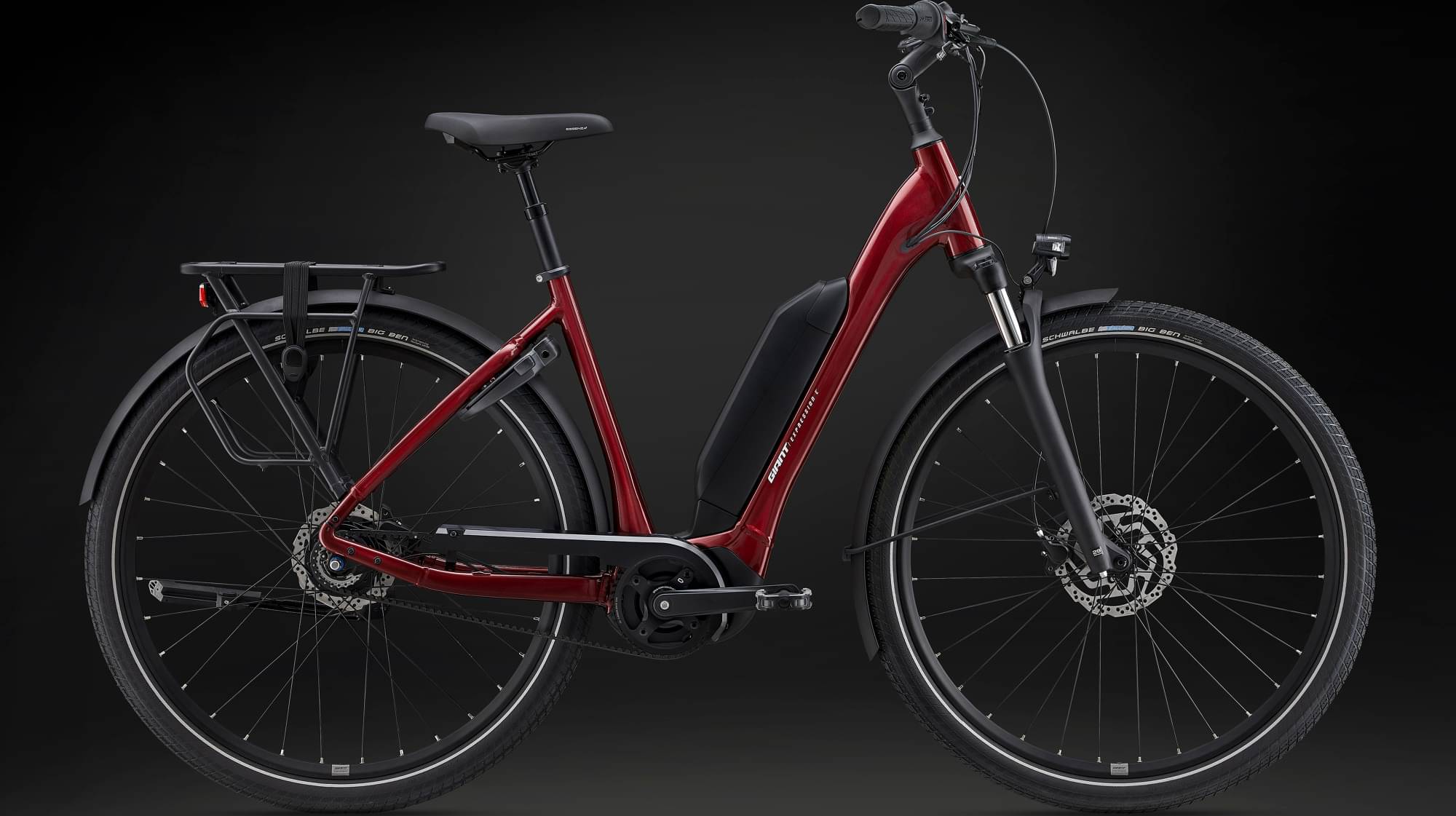

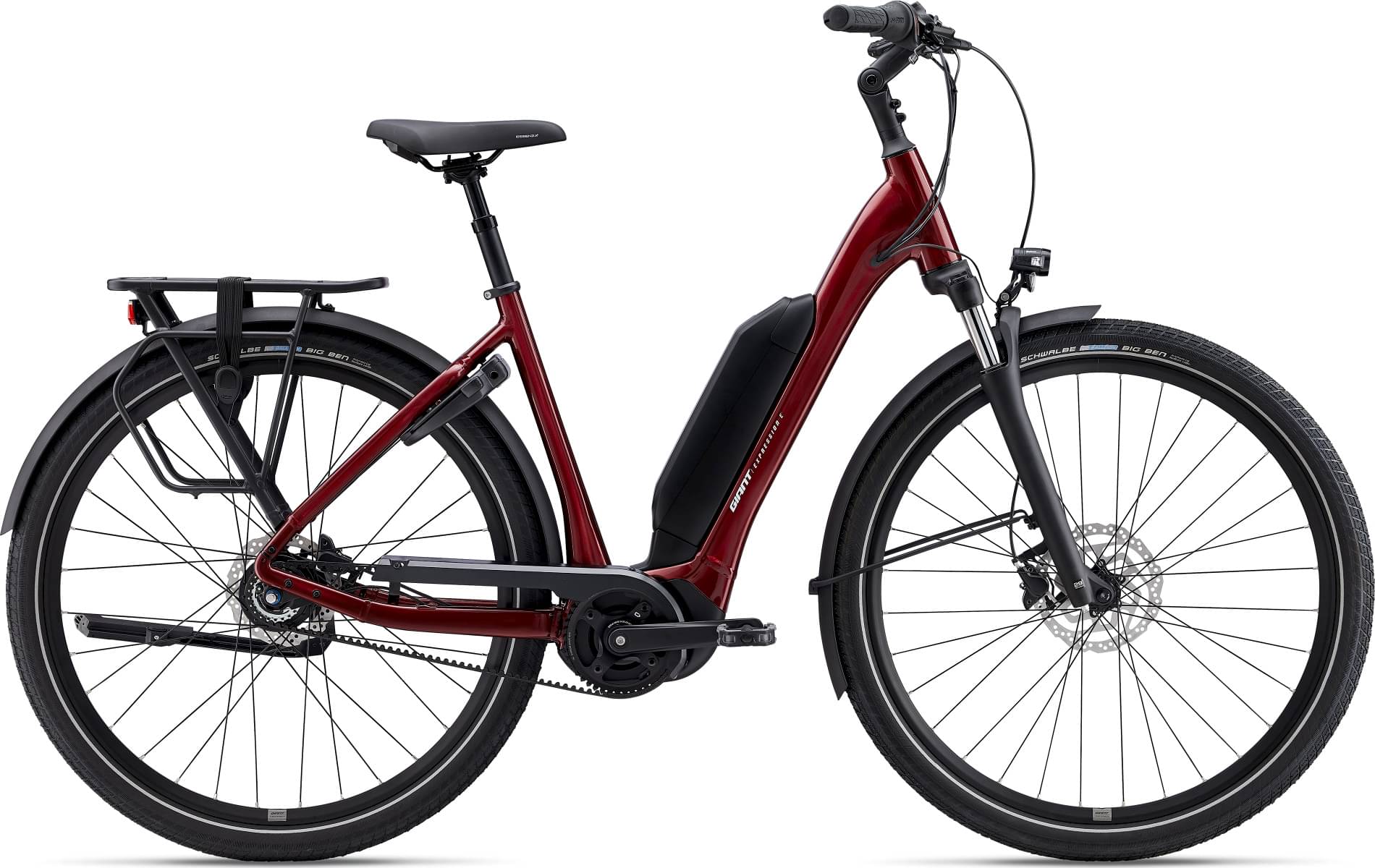

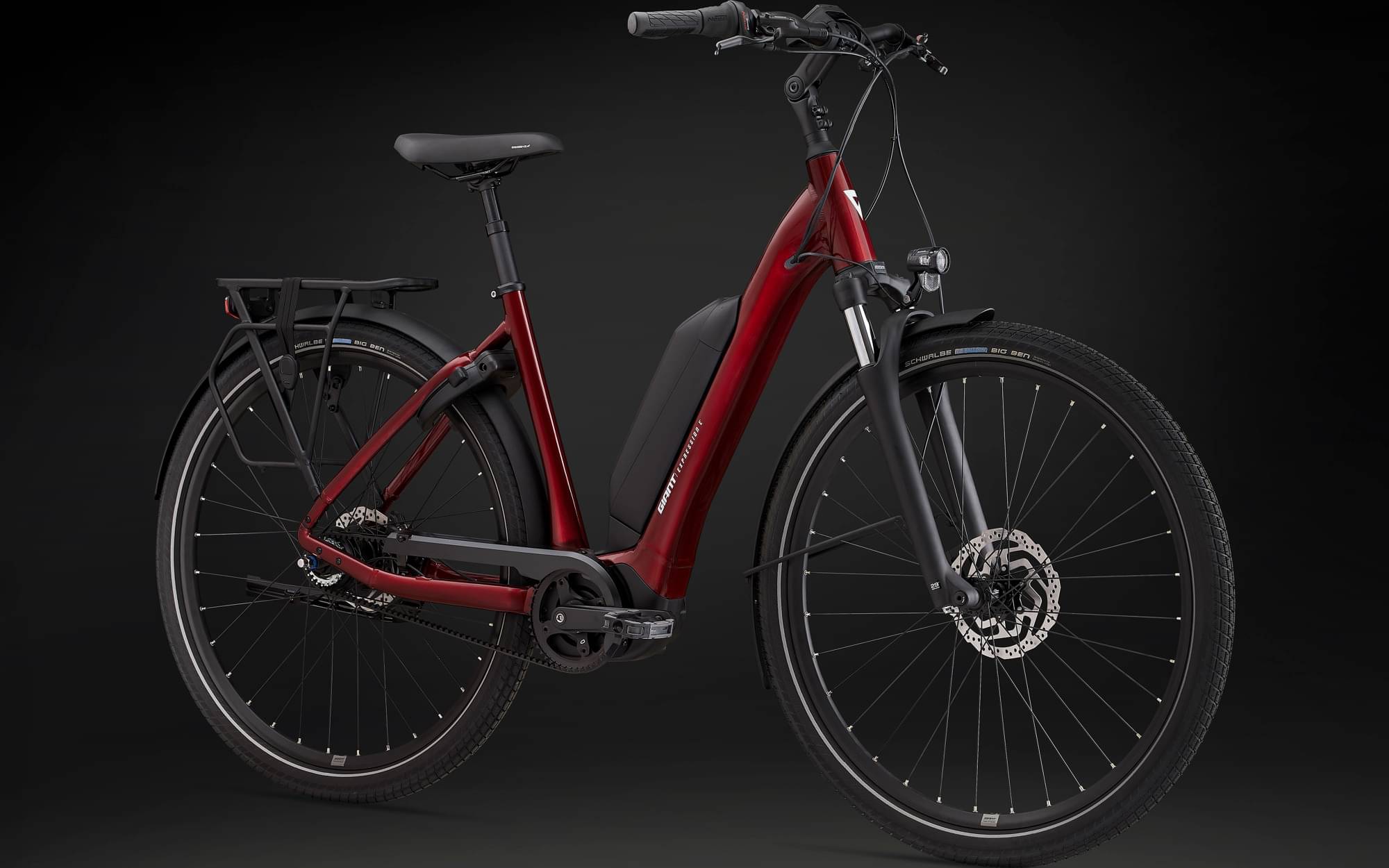

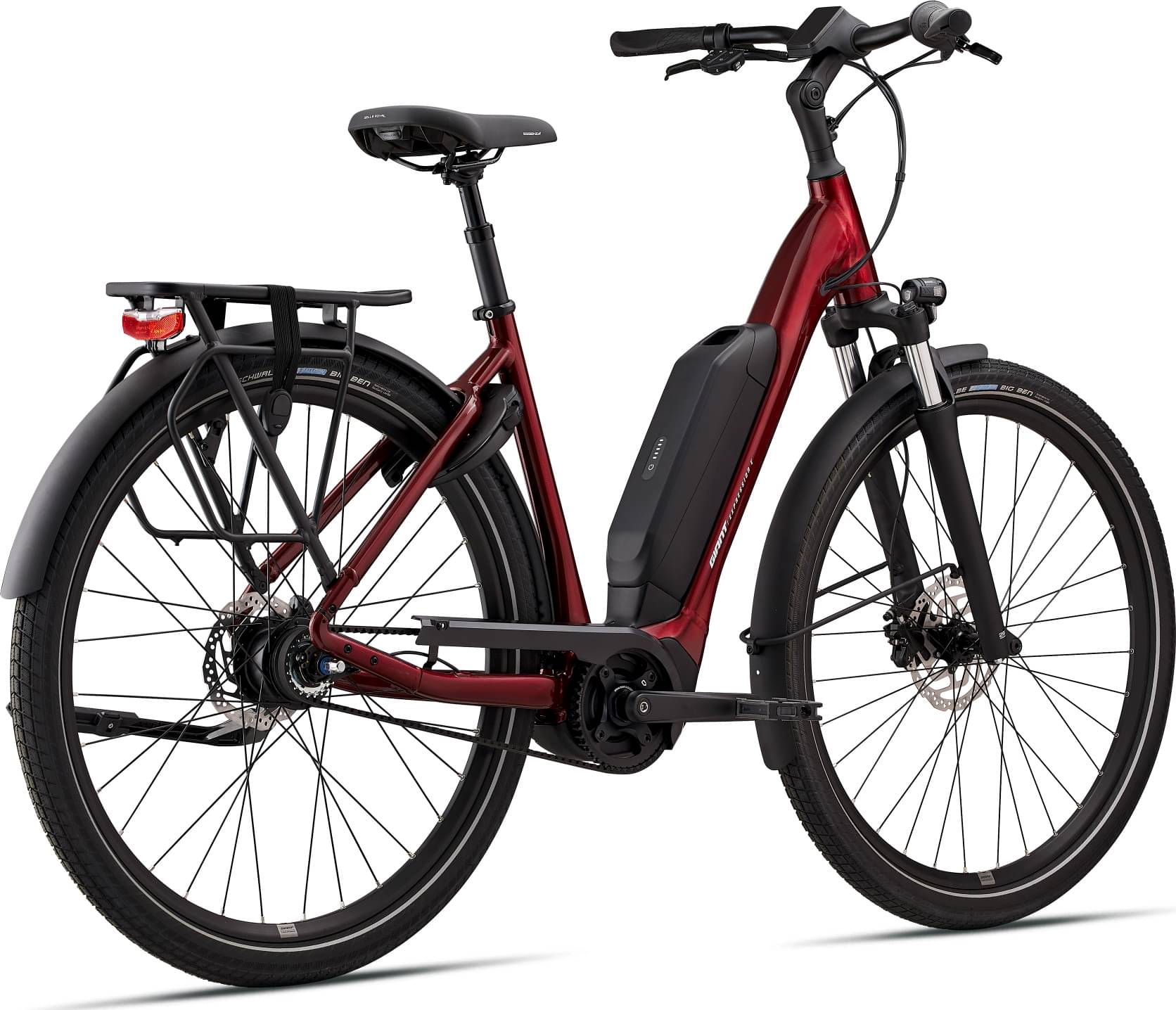

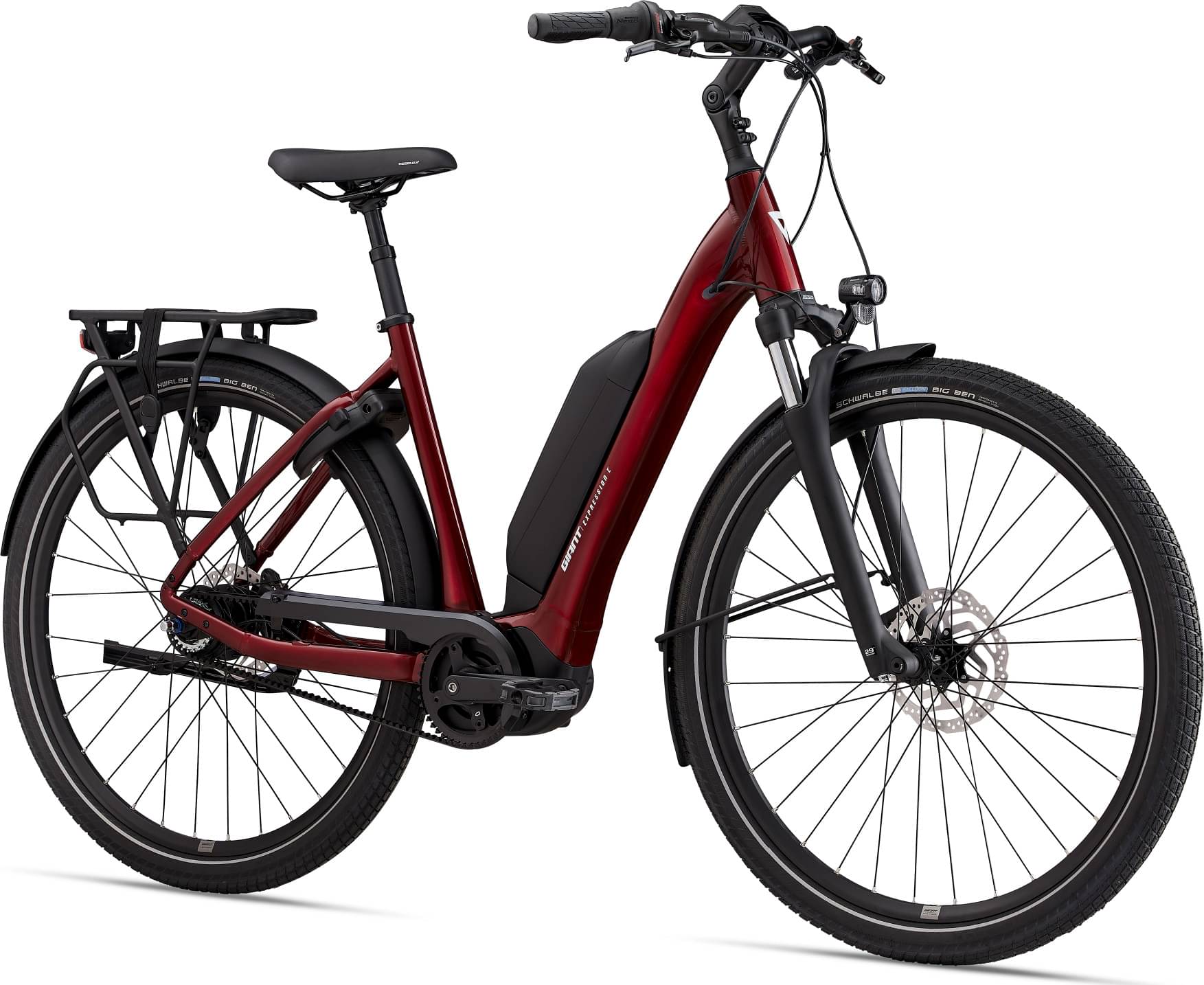

Giant Expression E+ 0 2024
2024 E-bike
Estimate price |
4,605$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Gates CDC, Nexus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Giant EnergyPak 600Wh, CO2 Neutral production -

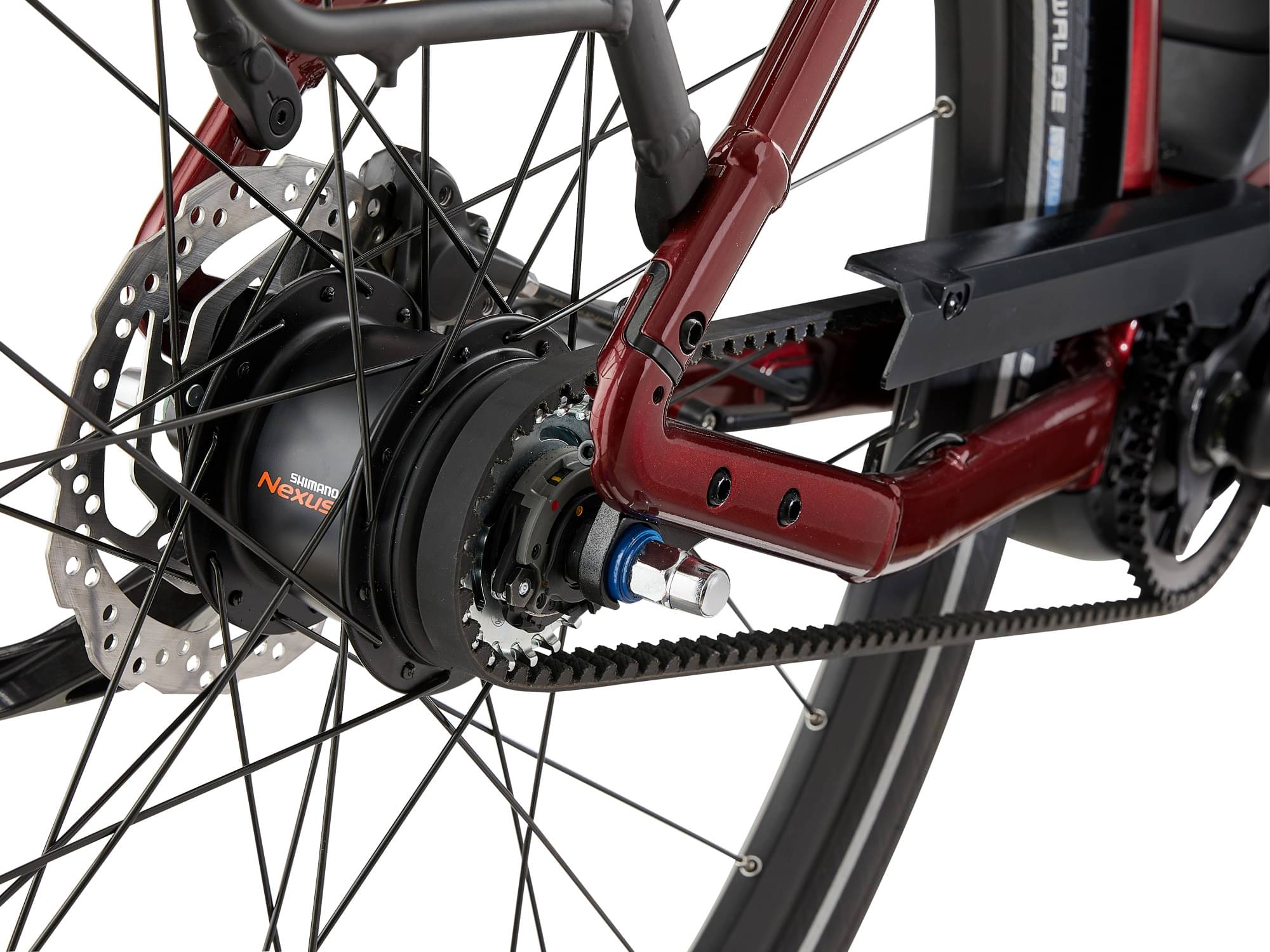

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminium, monotube, Battery Semi Integrated, low step through design
Suspension Fork
SR Suntour Mobie A32 DS Coil, 63mm travel 100x15mm axle
Drivetrain
Shift Levers
Shimano Nexus 8-speed RevoShift
Cassette
Gates CDC stainless steel 22T rear sprocket
Crank
Gates CDC CenterTrack 46T front sprocket
Chain
Gates CDC Carbon Drive 120T CenterTrack belt
Pedals
Wellgo C097, PP/ Kraton body, Anti-slip
Wheels
Front Hub
Shimano HB-TC500-15 100x15 [F], Shimano Nexus 8 disc brake [R]
Rear Hub
Shimano HB-TC500-15 100x15 [F], Shimano Nexus 8 disc brake [R]
Rims
Giant Double Wall Aluminium 622x19
Spokes
Stainless 14G(2.0mm) [F]Stainless 13-14G(2.3-2.0mm) butted [R]
Tires
Schwalbe Big Ben 55-622 Wire Bead w/ reflective stripe
Brakes
Brakes
Shimano BR-MT200 hydraulic disc, 180mm [F], 160mm [R]
Brake Levers
Shimano BL-MT200
Cockpit
Stem

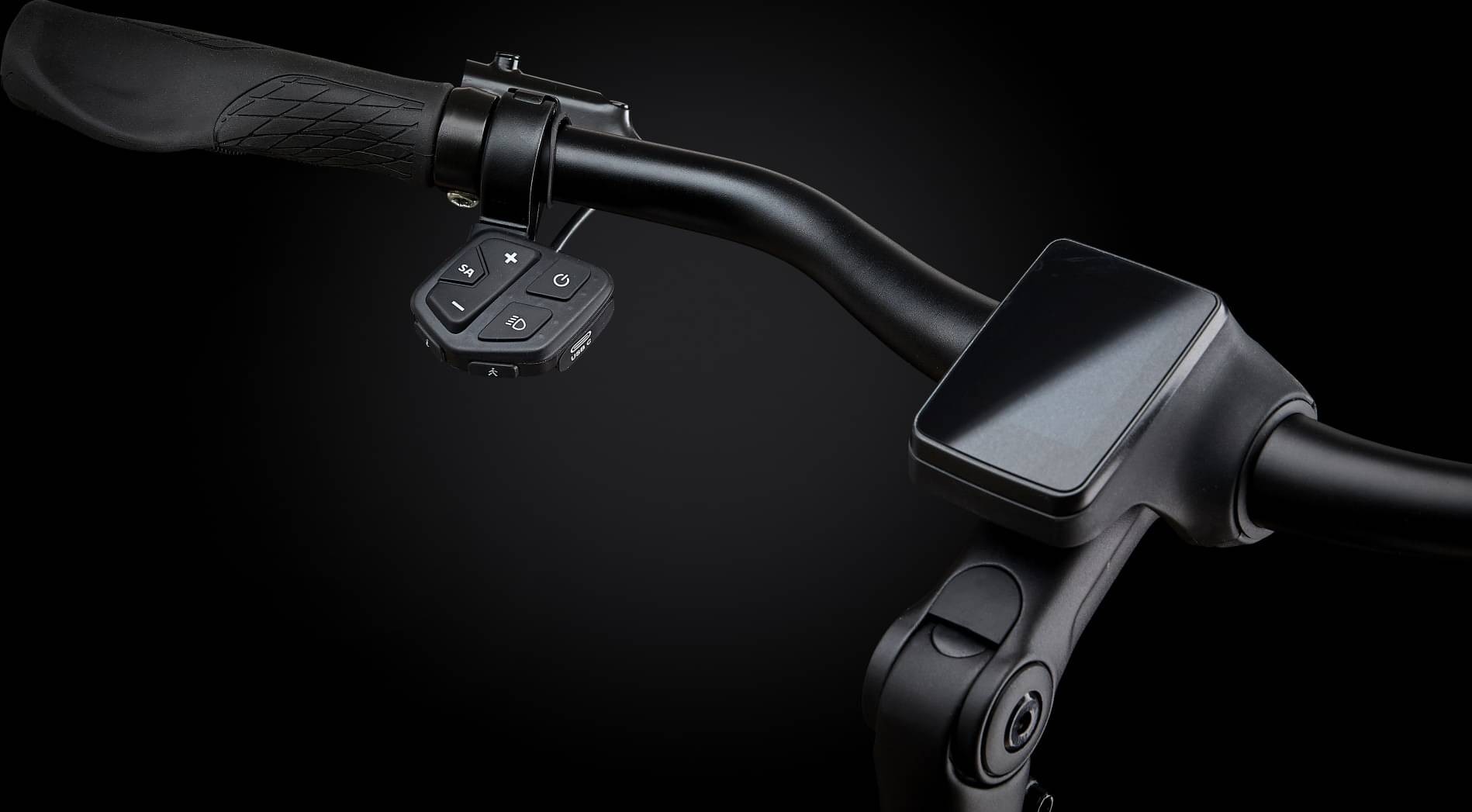

Aluminium angle adjustable stem w/ EVO display bracket
Handlebar
Aluminium, 30° back sweep, 31.8x660mm
Grips
Comfort Ergo Microtech Plus
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Suspension 30.9x300mm
Motor & Battery

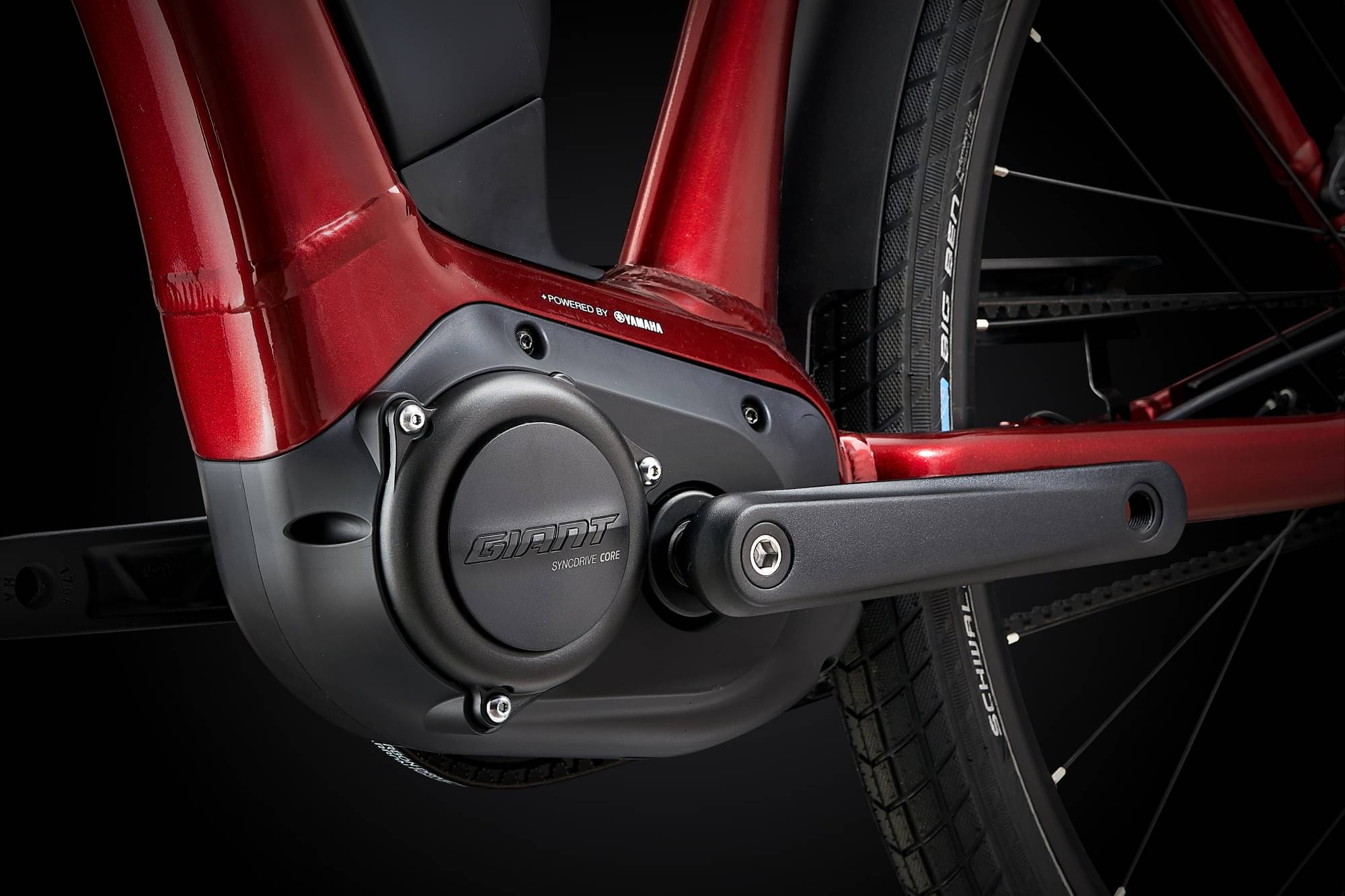

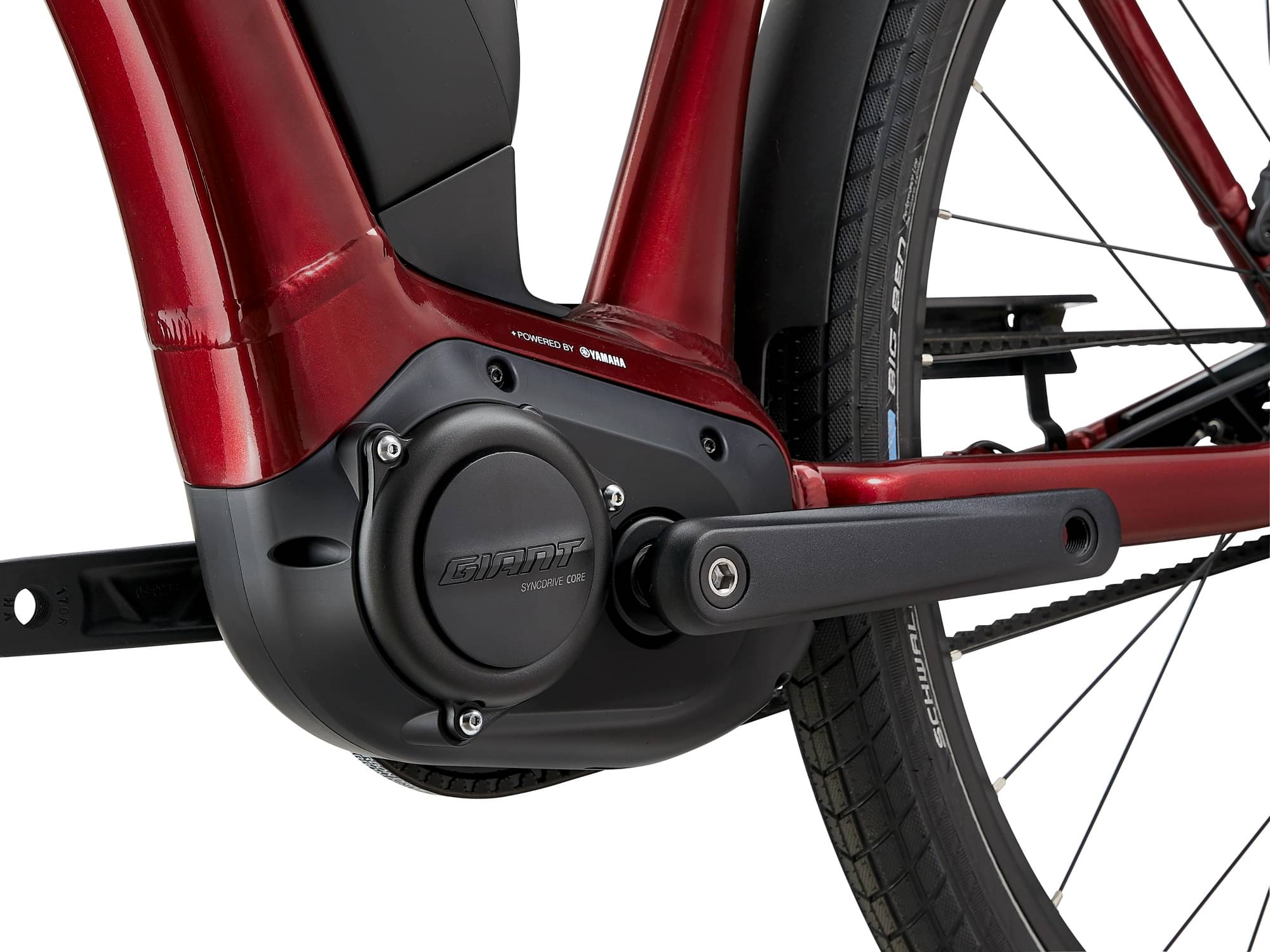

Motor
Giant SyncDrive Core, 50Nm, Powered by Yamaha, PedalPlus 6-sensor technology

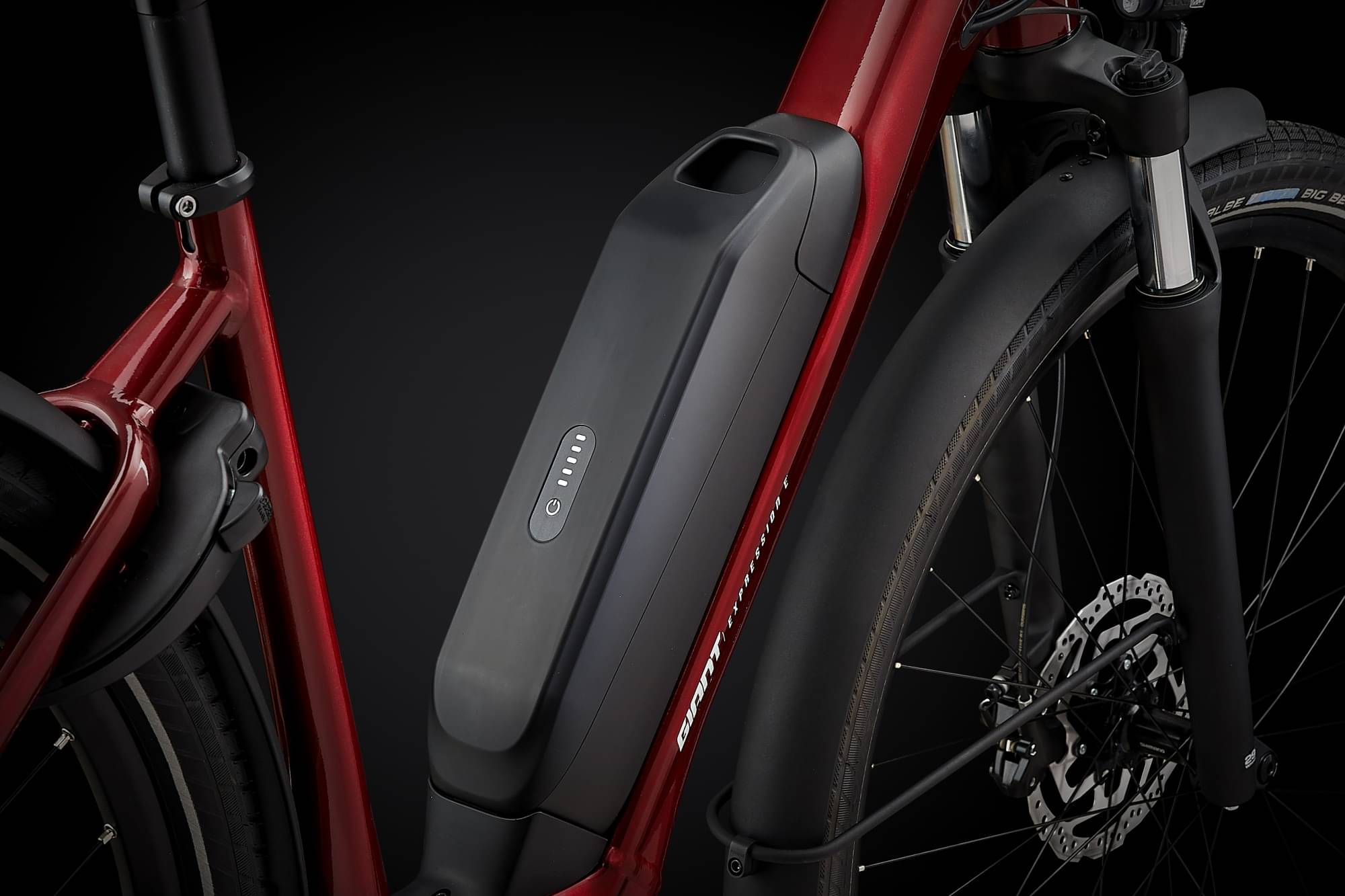

Battery
Giant EnergyPak 600Wh, CO2 Neutral production
Charger
Giant EnergyPak 4A smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.747 mm | 1.714 mm | 1.679 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 269 mm | 294 mm | 319 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 87.1 mm | 87.1 mm | 87.1 mm |
| Stack | 622 mm | 641 mm | 660 mm |
| Reach | 356 mm | 374 mm | 393 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 728 mm | 754 mm | 779 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 515 mm | 515 mm | 515 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
