Bike details
Overview
Key information split into simple groups.

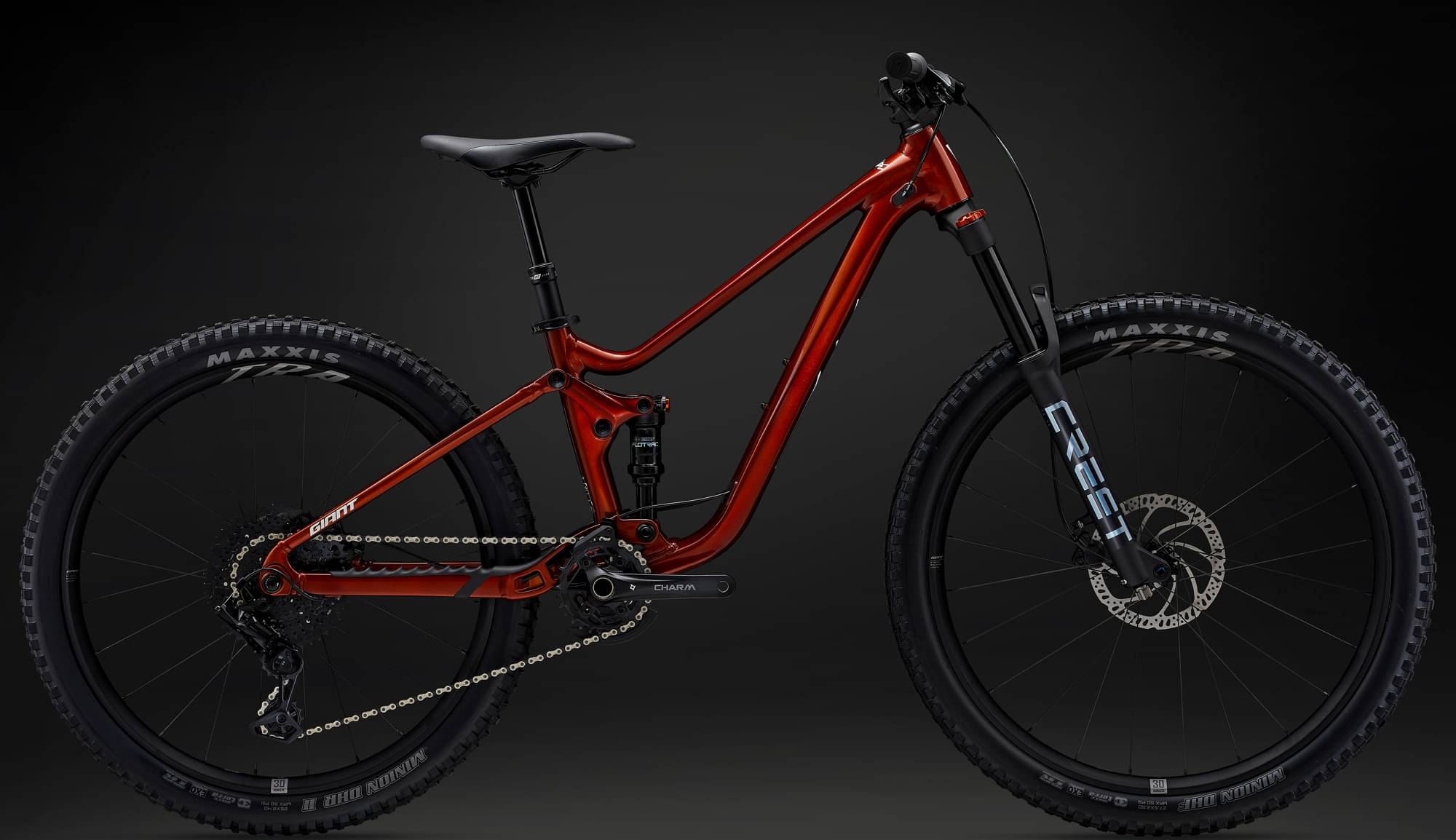

Bike summary
-
Category -
Frame Aluminum -
Travel Front 140mm -
Travel Rear 45mm -
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

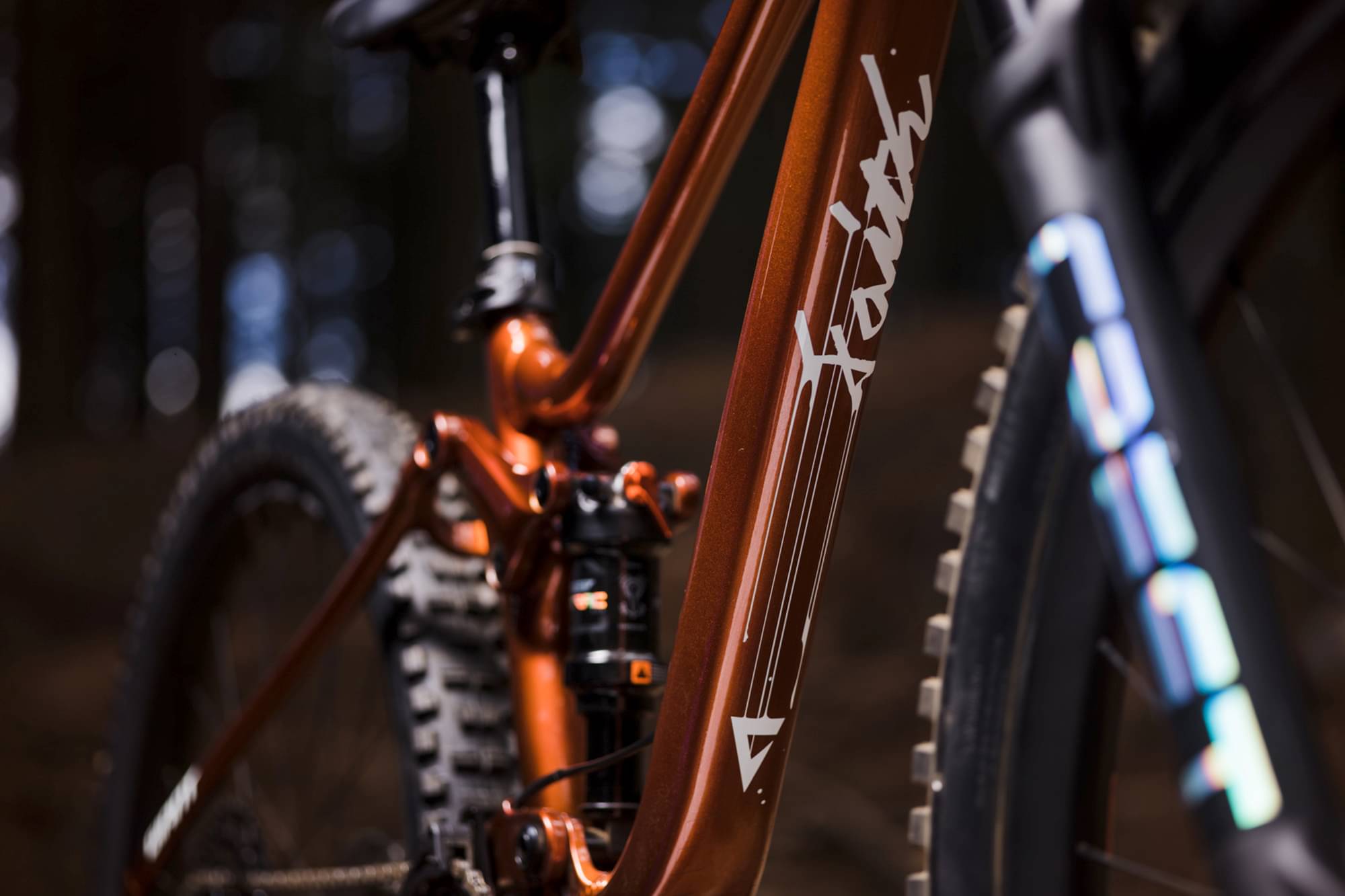

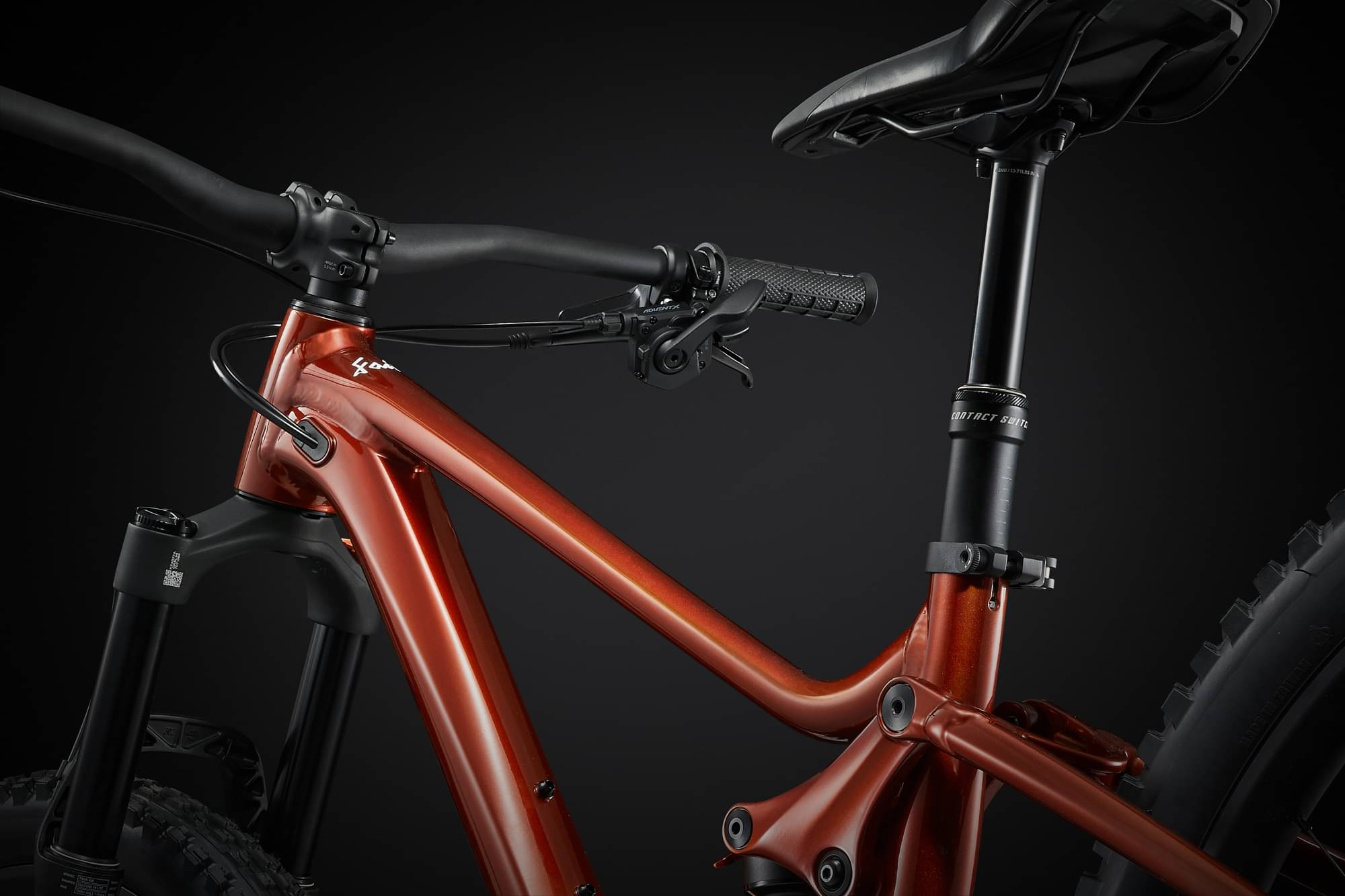

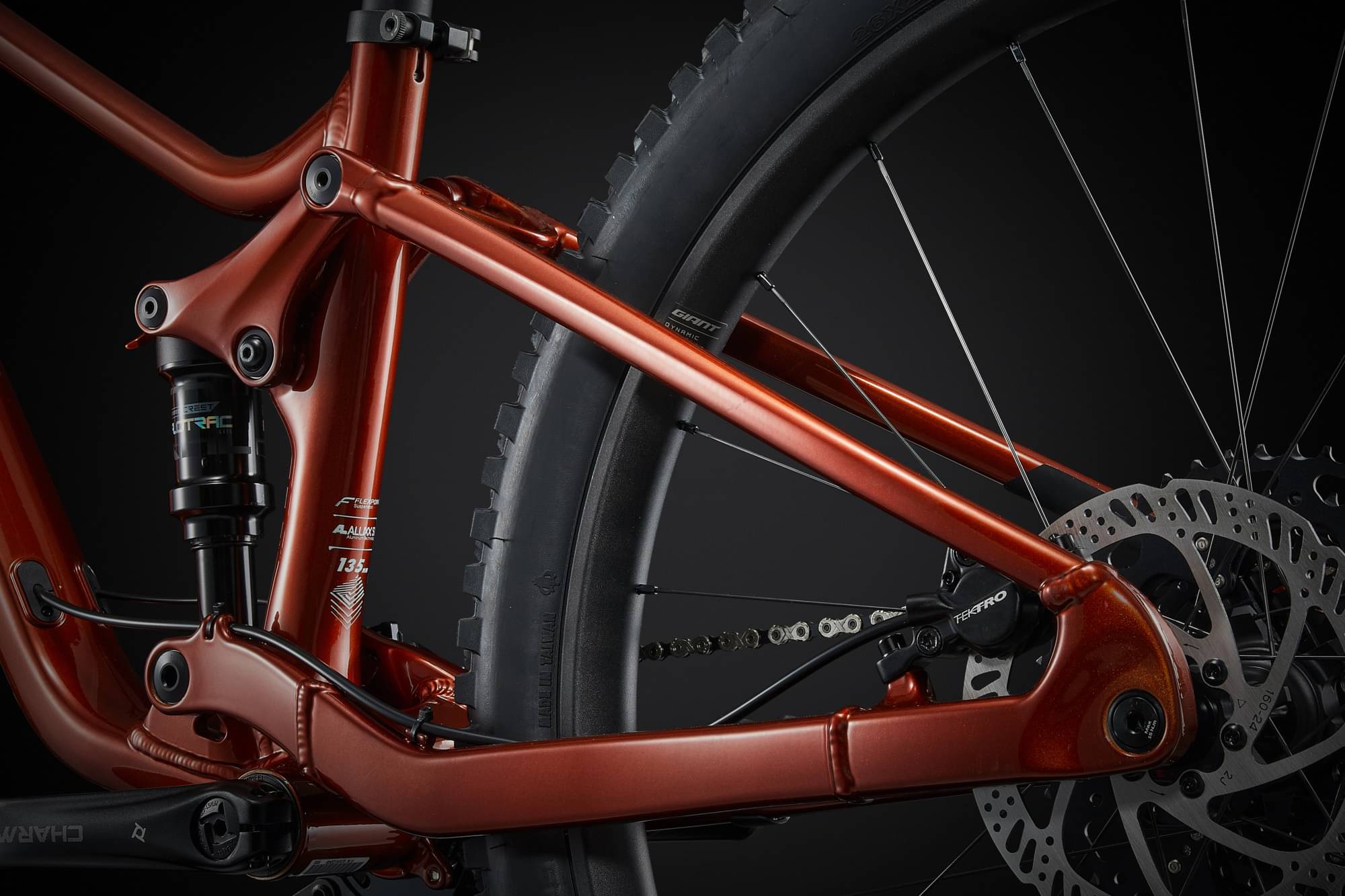

Frame
Frame

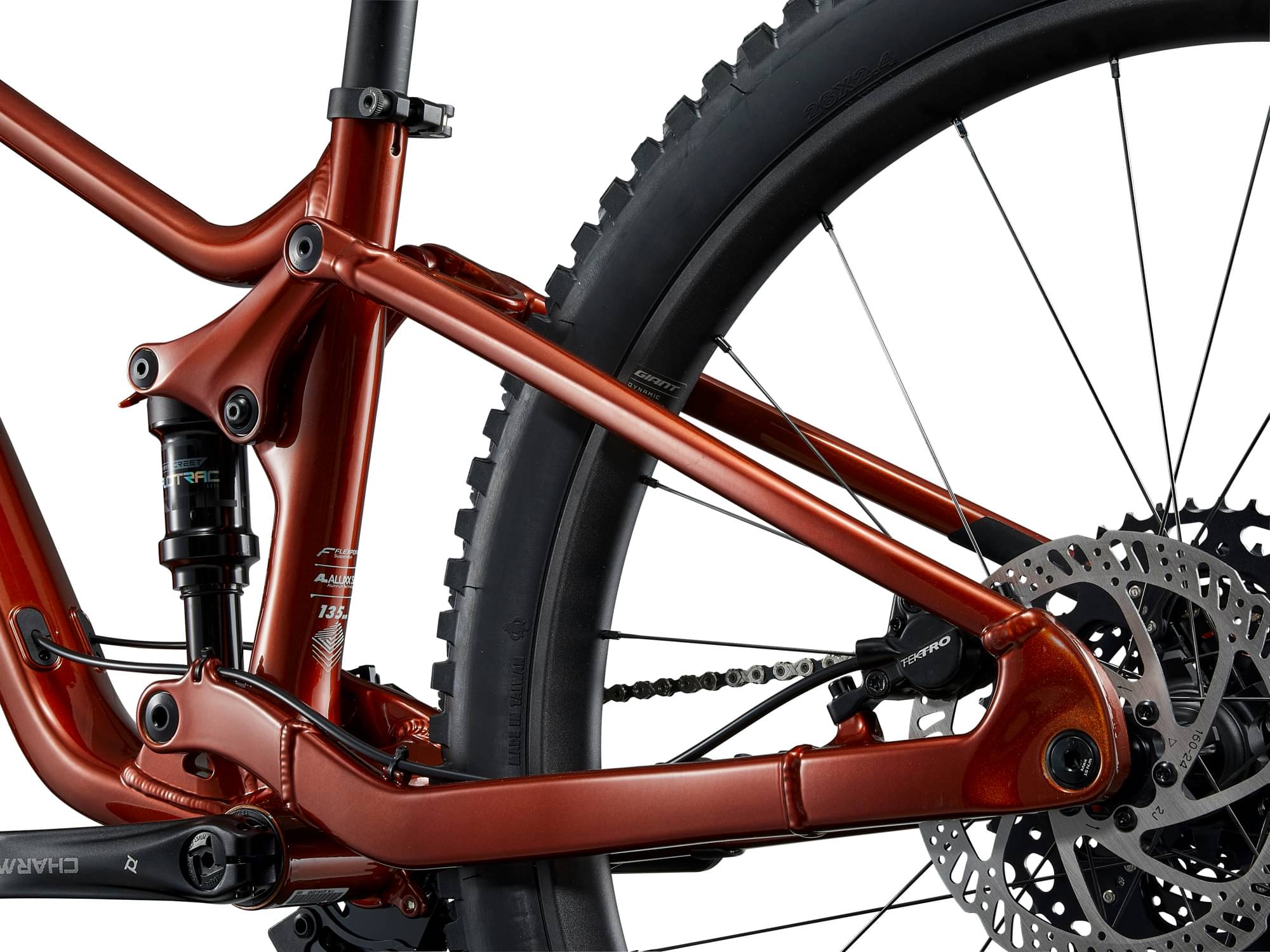

ALUXX SL-Grade Aluminum front and rear triangles, 12x148mm thru-axle, 135mm FlexPoint suspension

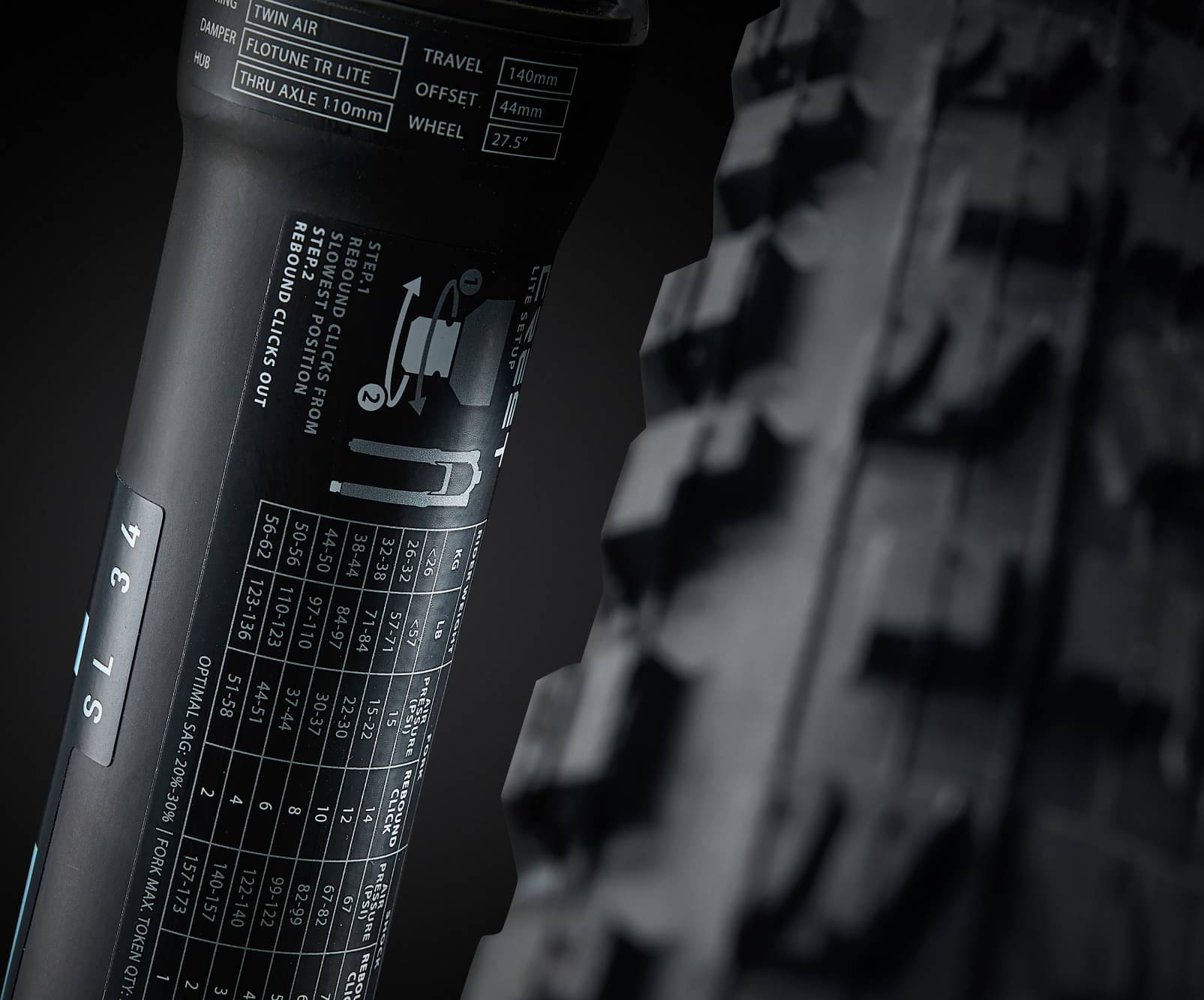

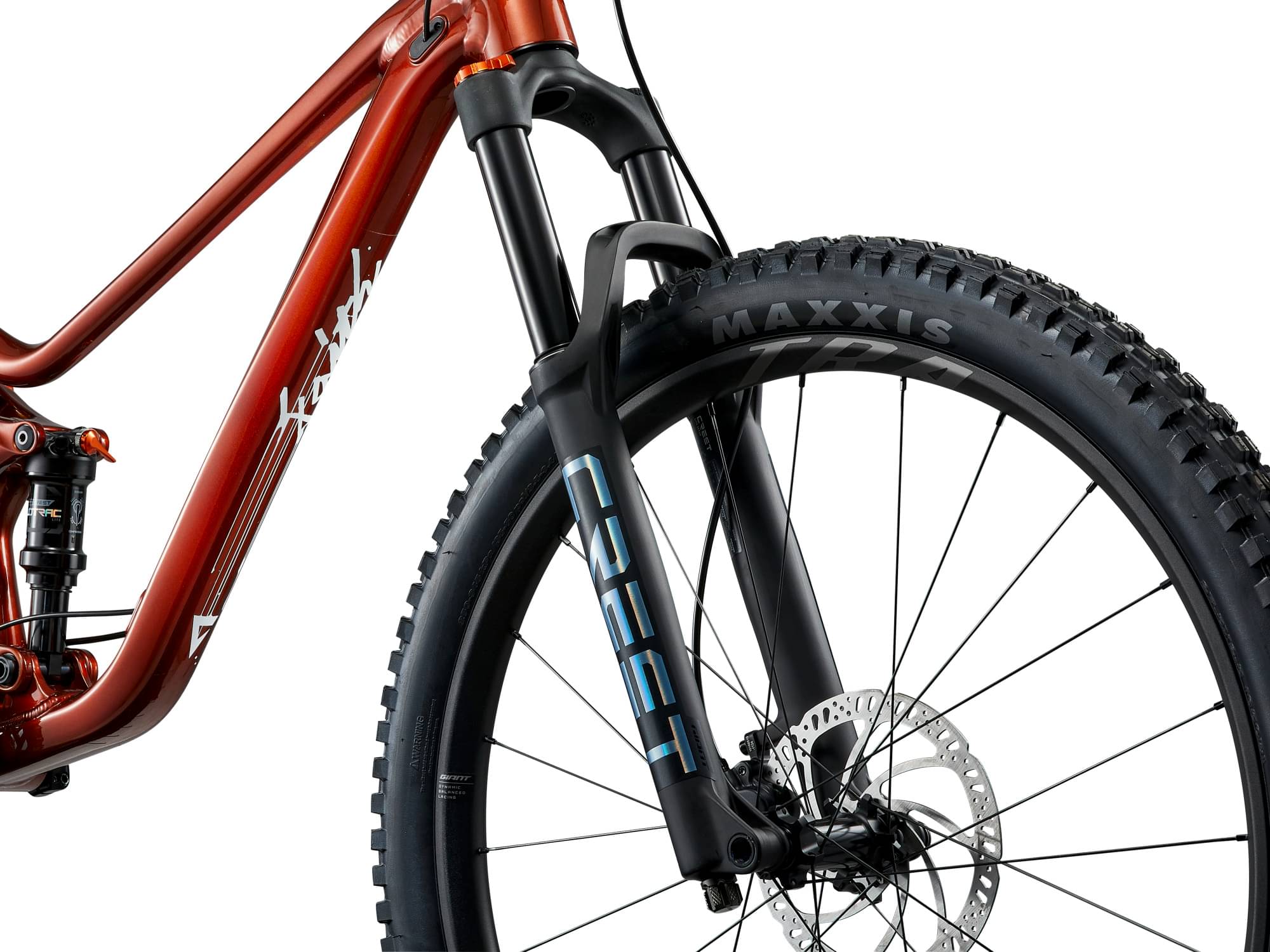

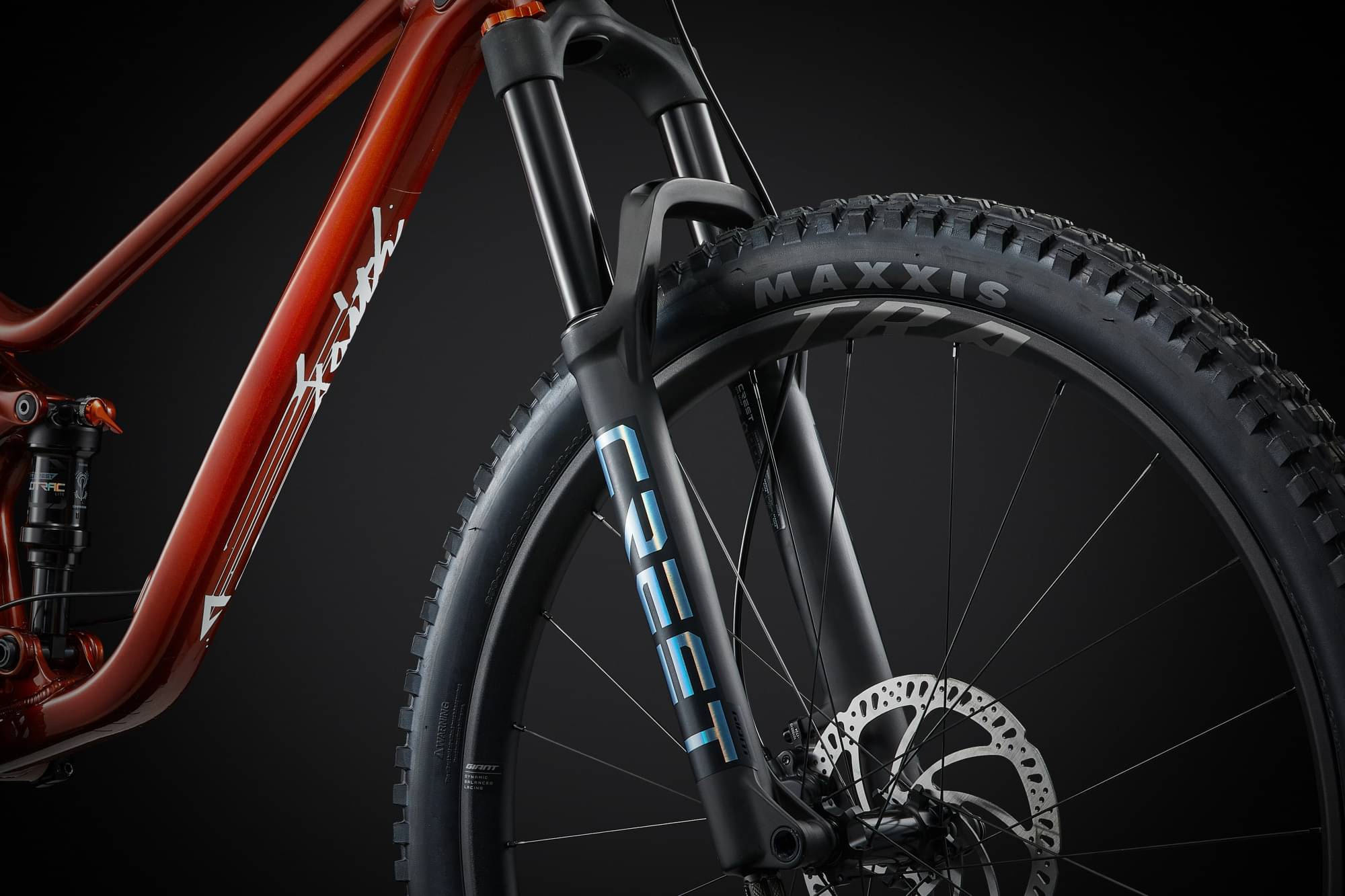

Suspension Fork
Crest SL FloTune Lite, FloTune Lite Damper, 140mm

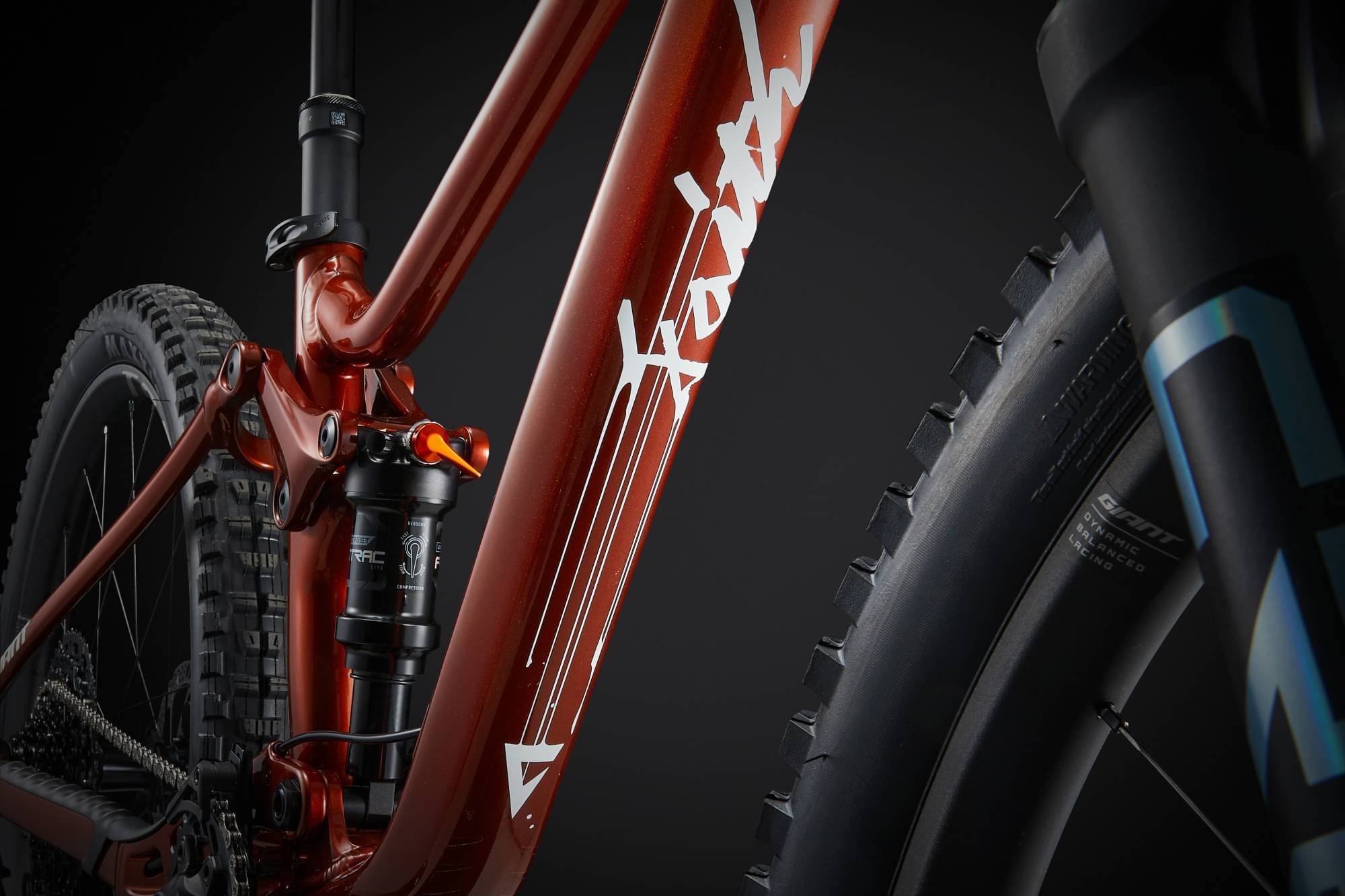

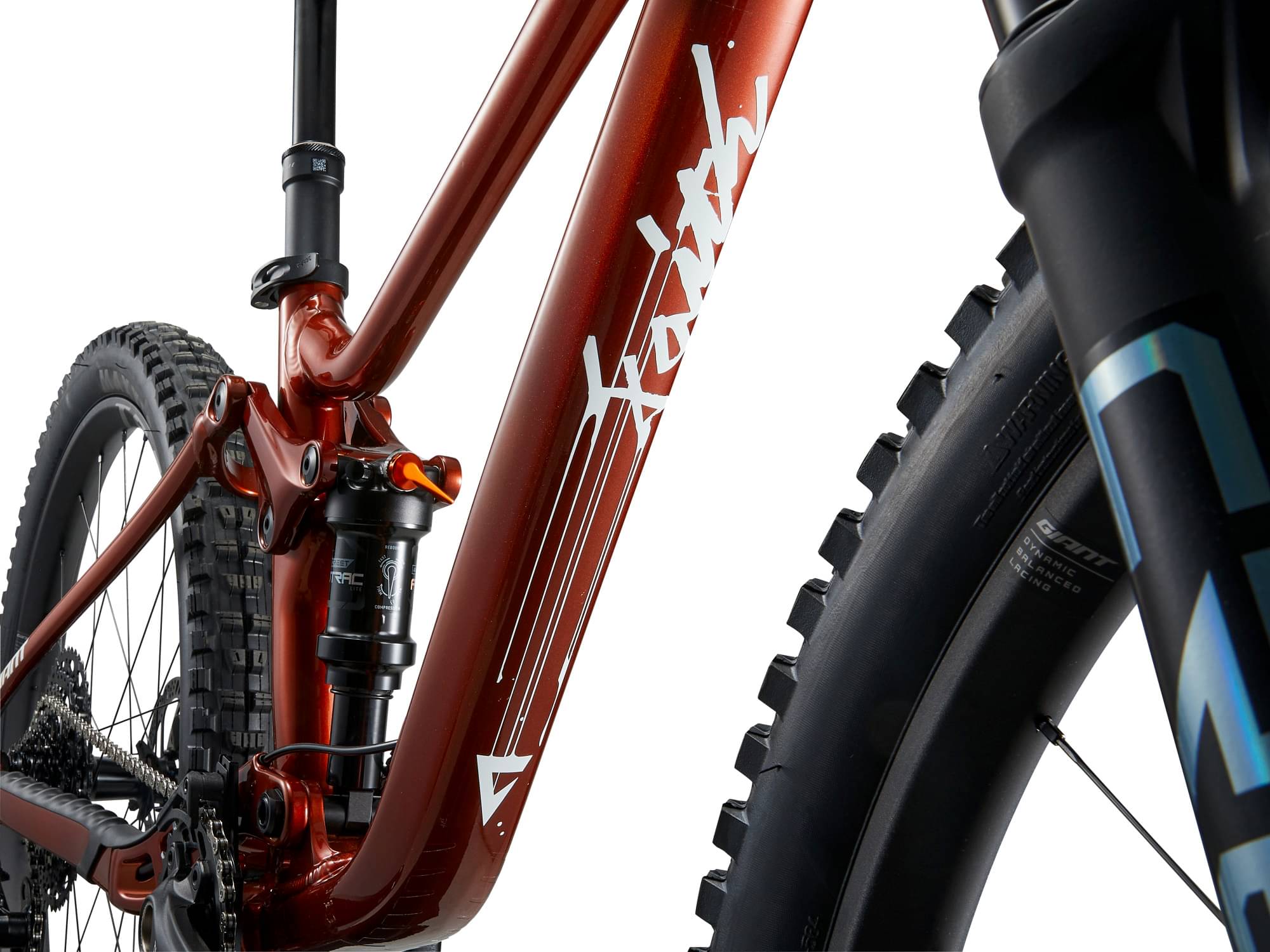

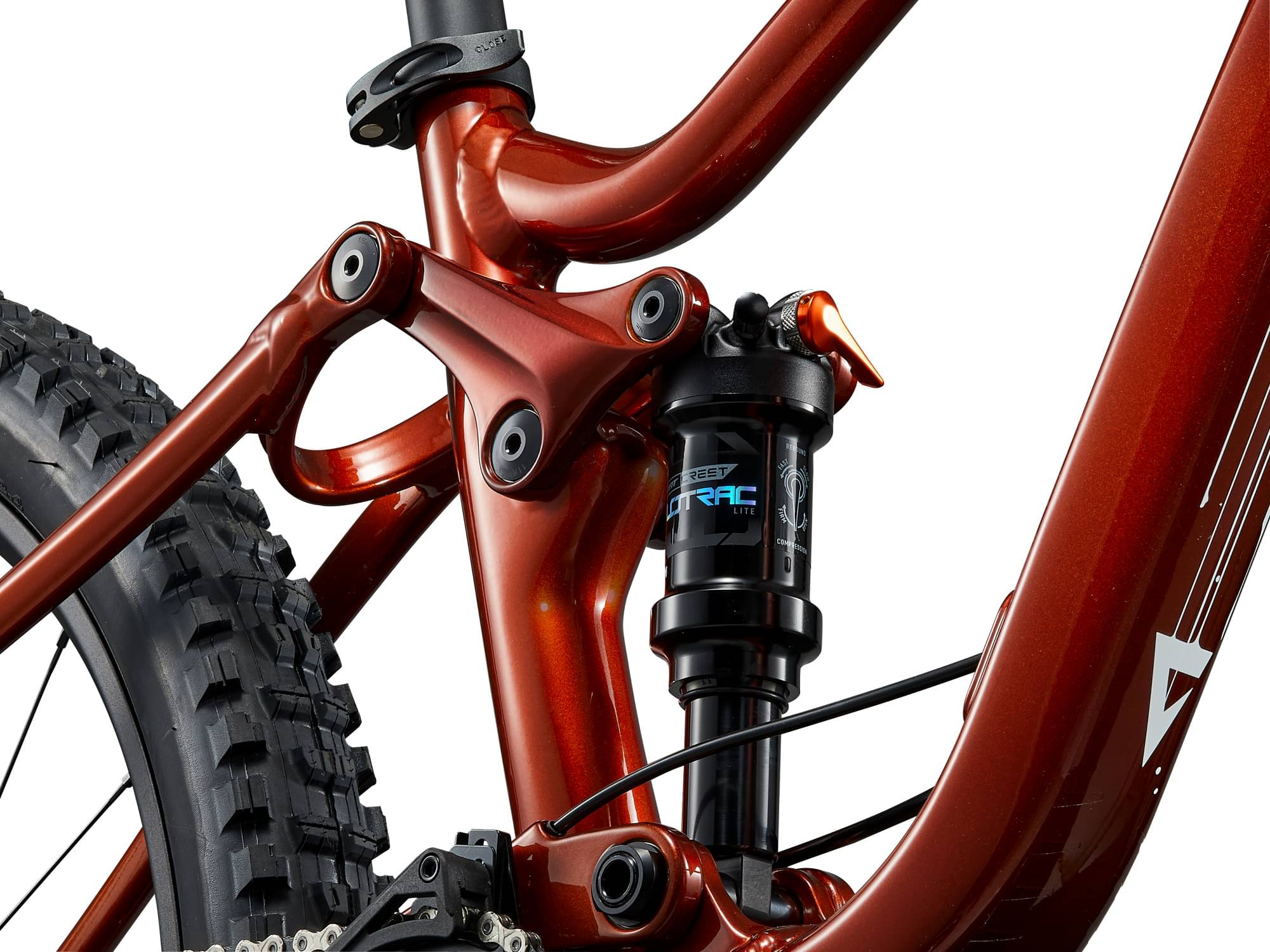

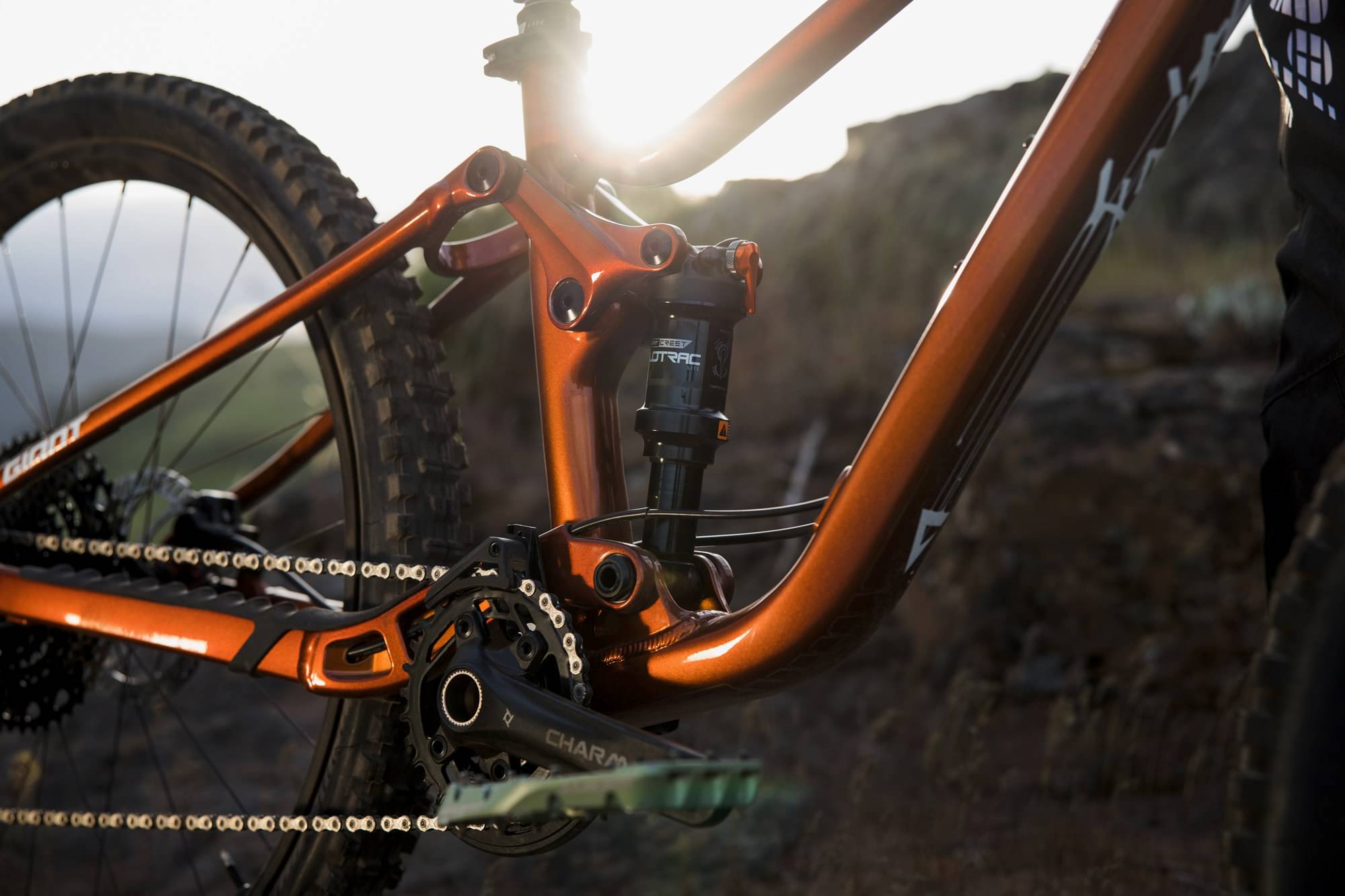

Rear Shock
Crest FloTrac Lite, 165/45mm, trunnion mount

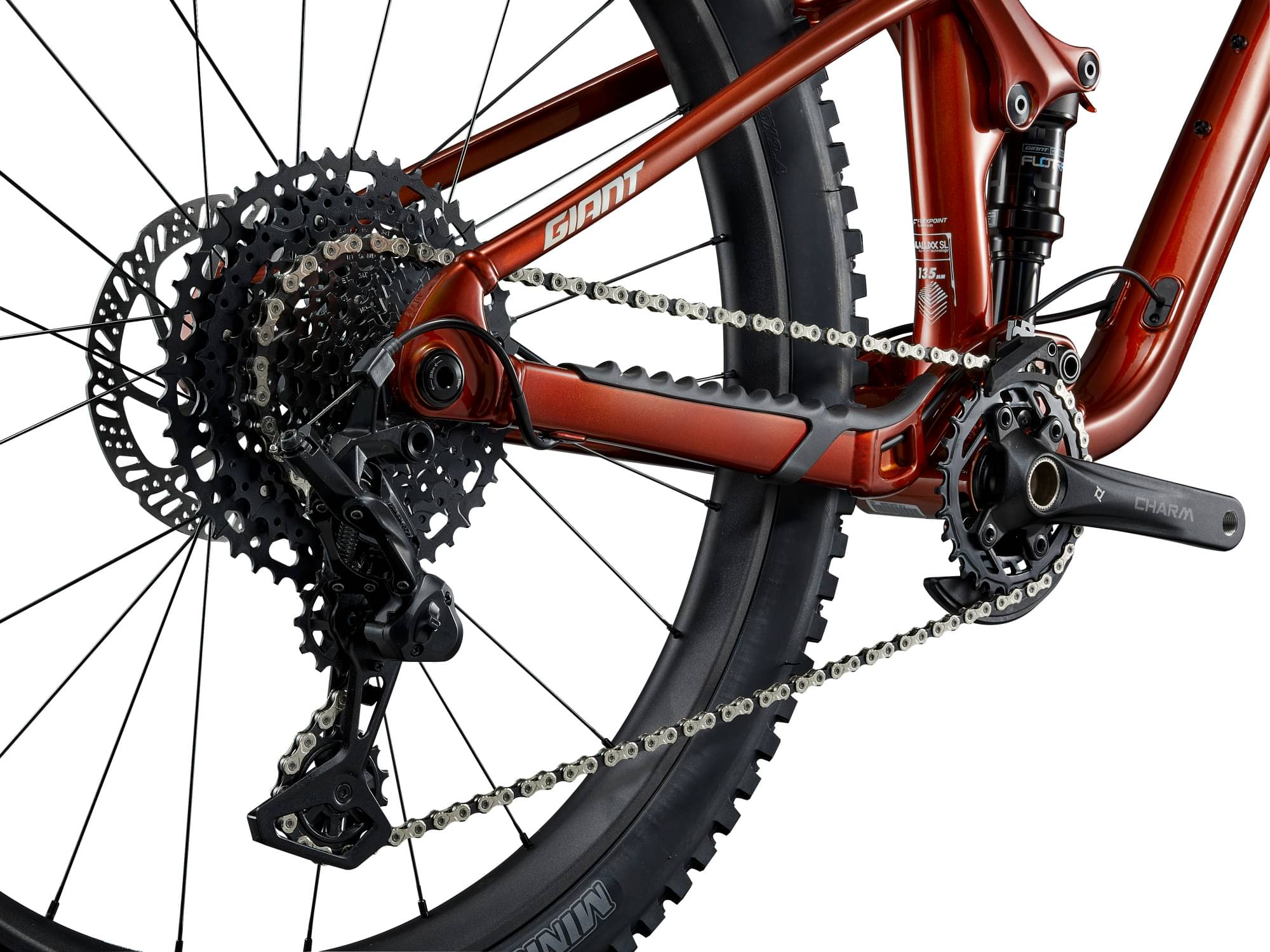

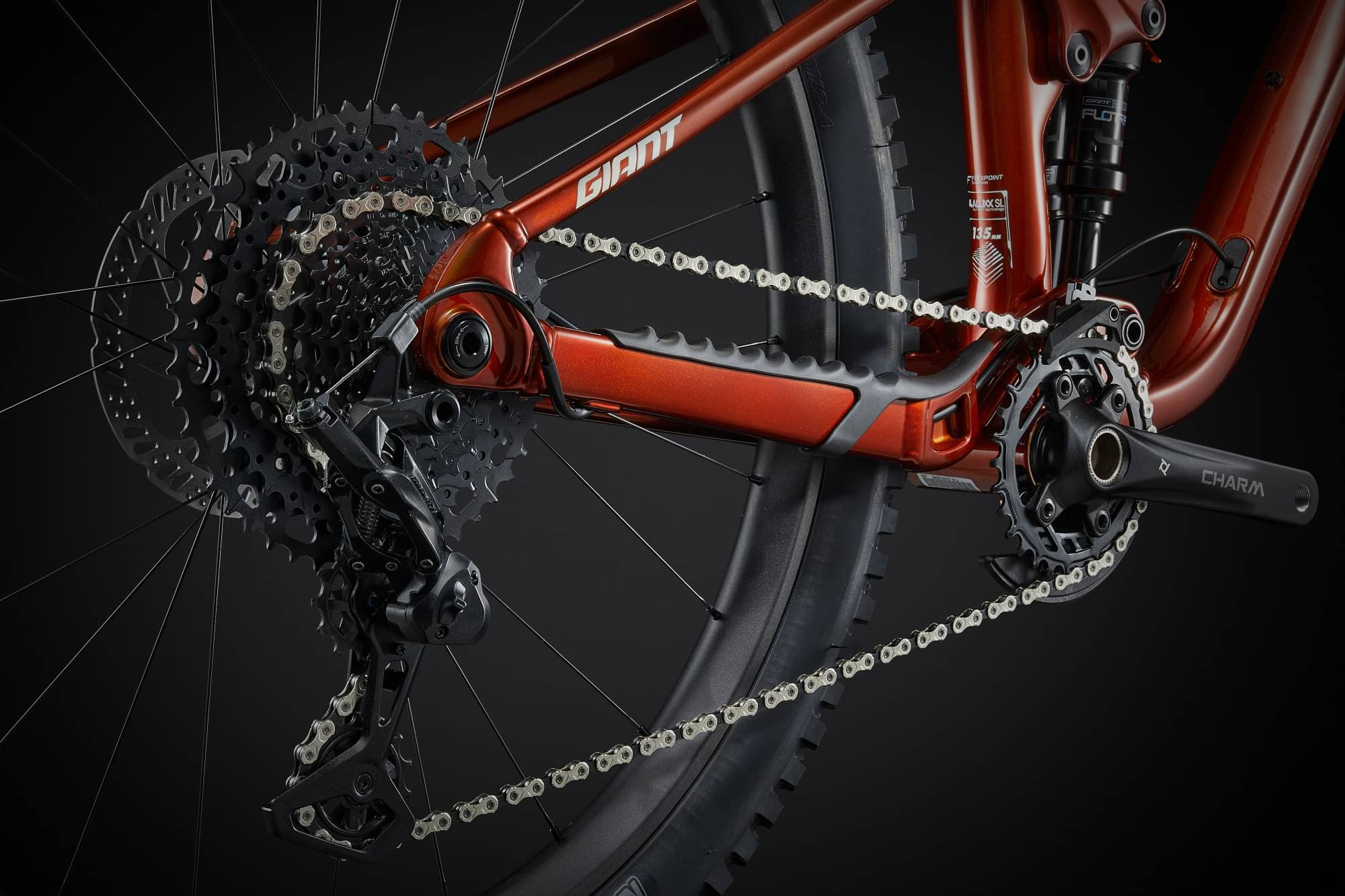

Drivetrain
Rear Derailleur
Microshift Advent X RD-M6205AM
Front Derailleur
N/A

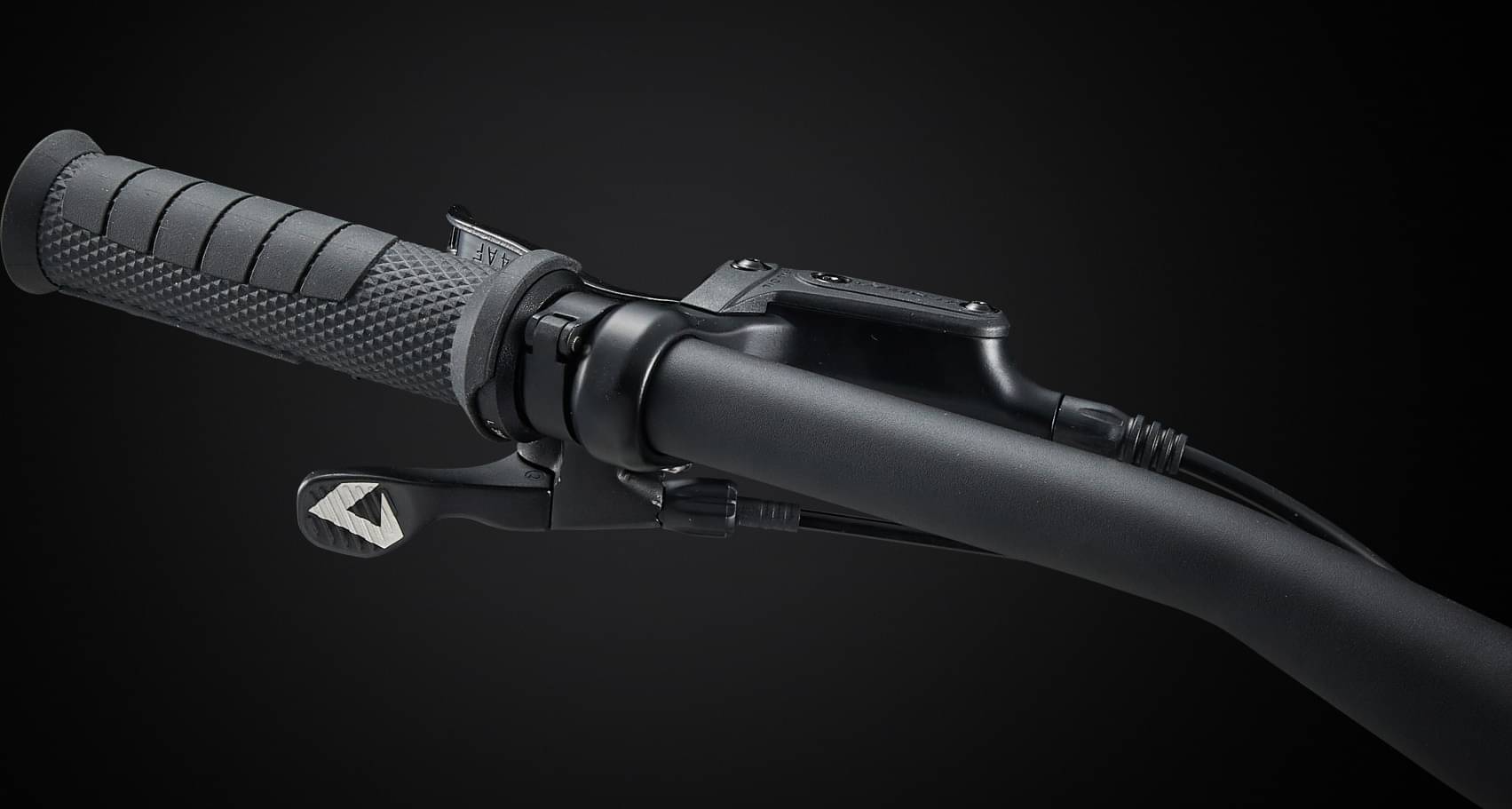

Shift Levers
MicroSHIFT Advent X Trail trigger shifter SL-M9505-R (with nanowire)
Cassette
Microshift Advent X G-Series, 10-speed, 11x48
Crank
ProWheel Charm, 30t, 155mm
Bottom Bracket
Press Fit
Chain
KMC X10 with missing link
Pedals
Giant Pinner Lite
Wheels
Front Hub
[F] Giant alloy, DBL, six-bolt [R] TRA HE, DBL, 72t pawl driver, 6 bolt
Rear Hub
[F] Giant alloy, DBL, six-bolt [R] TRA HE, DBL, 72t pawl driver, 6 bolt
Rims
Giant TRA WheelSystem, alloy, hollow rim wall construction, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology, [F] 27.5” [R] 26"
Spokes
Sapim Laser

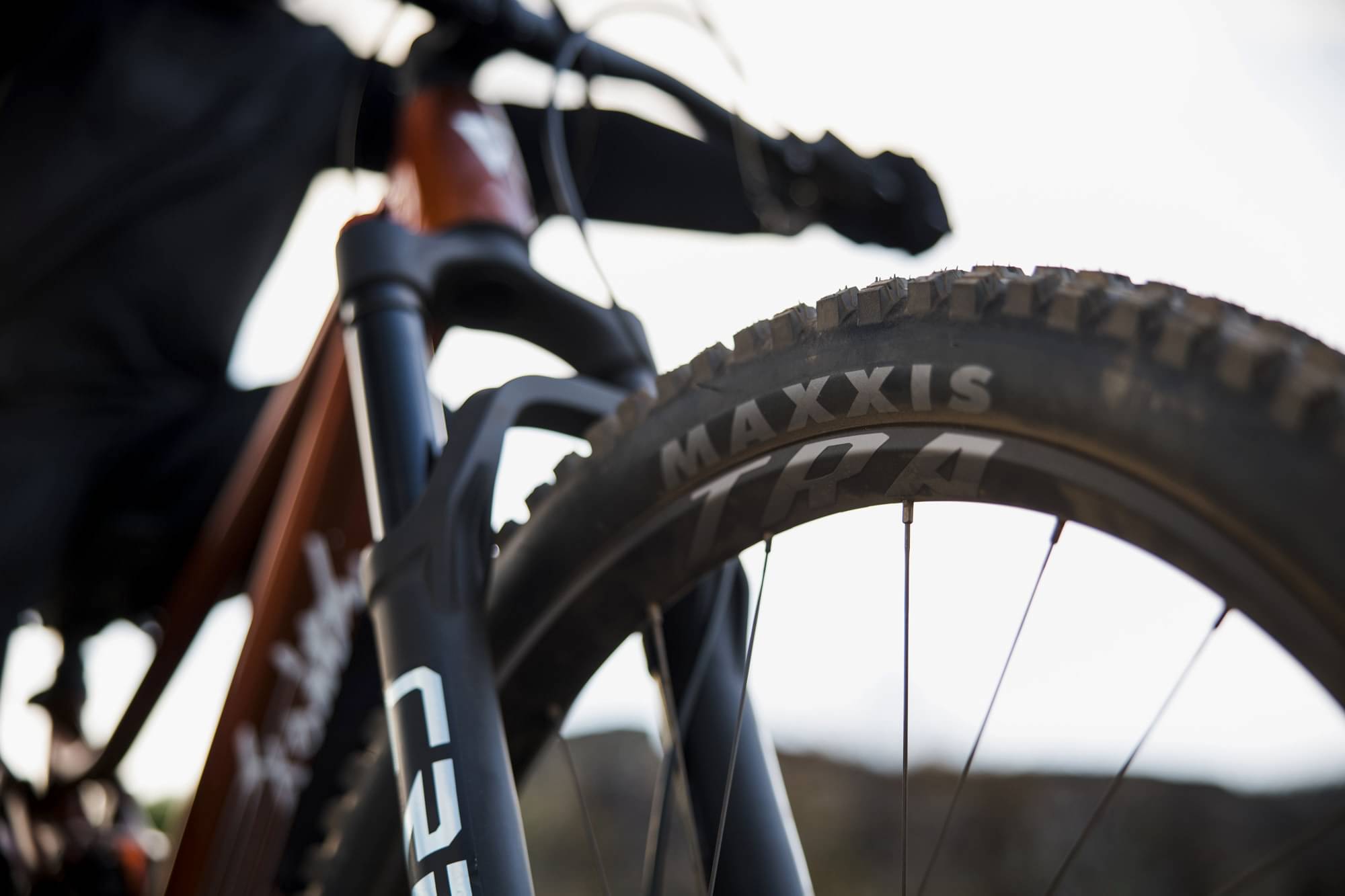

Tires
[F] Maxxis Minion DHF, 27.5x2.5, 60 TPI, folding, [R] Maxxis Minion DHR II, 26x2.4, 60 TPI, folding
Brakes
Brakes
Tektro [F]180mm, [R]160mm

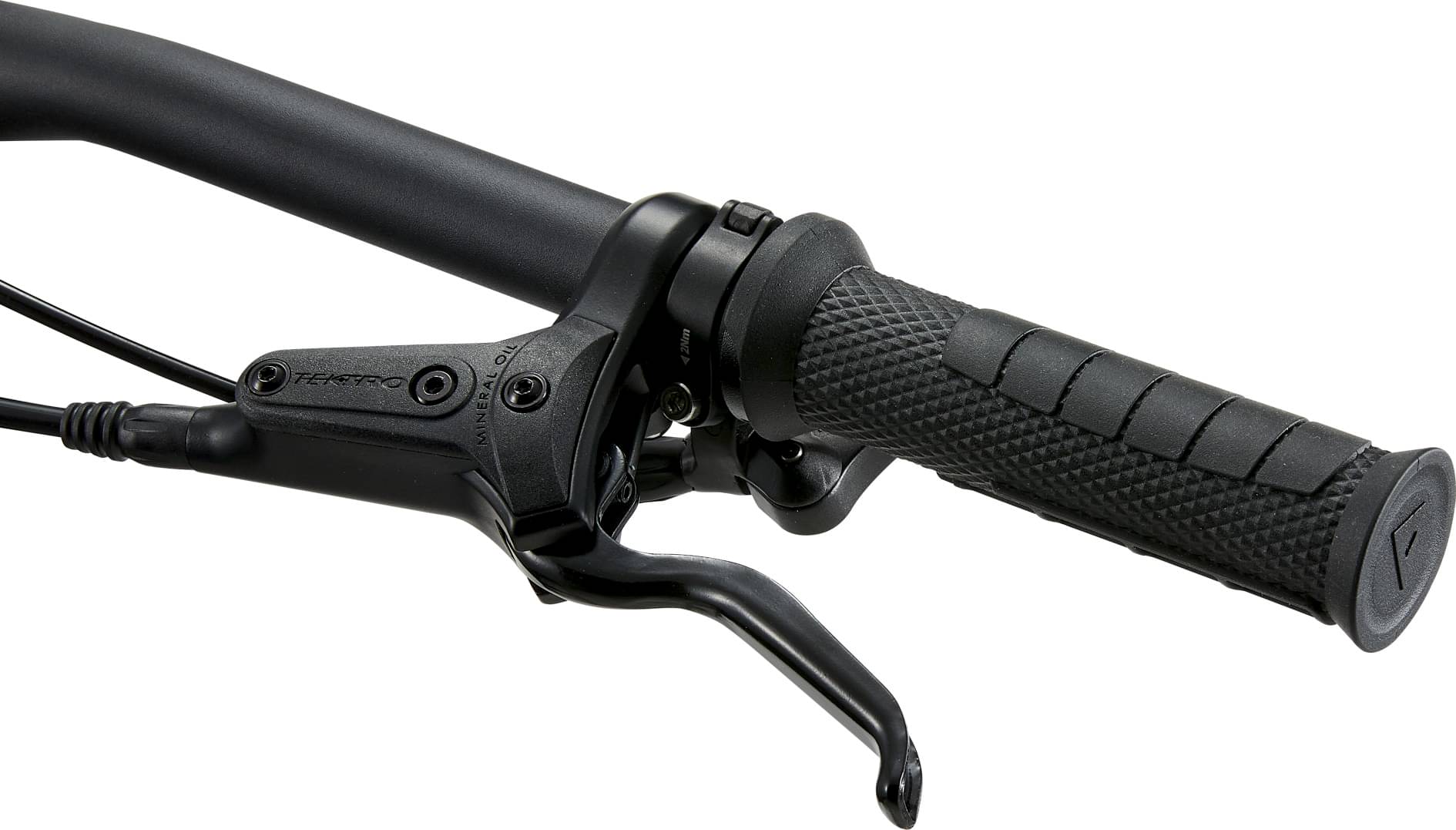

Brake Levers
Tektro HD-J285

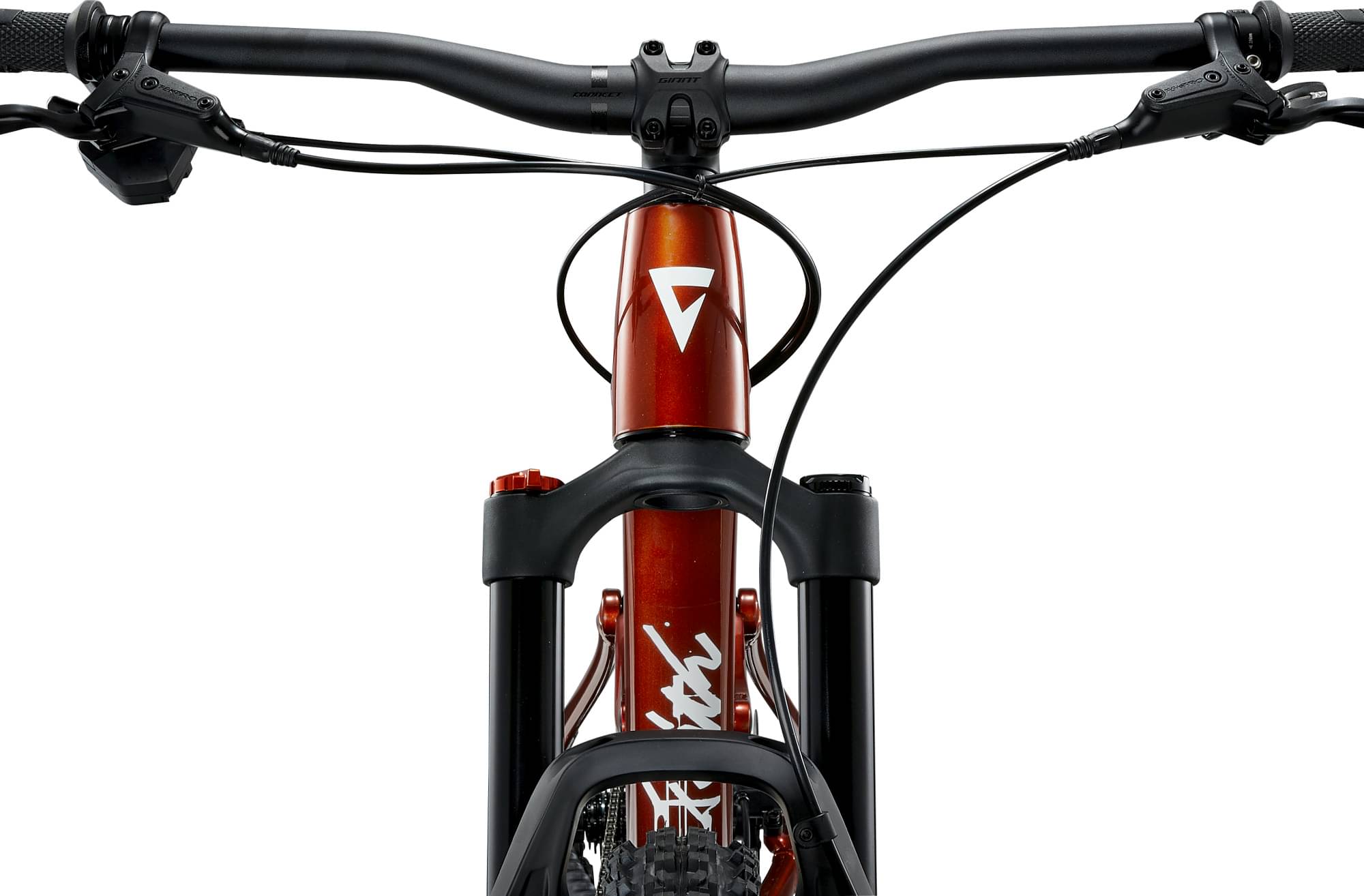

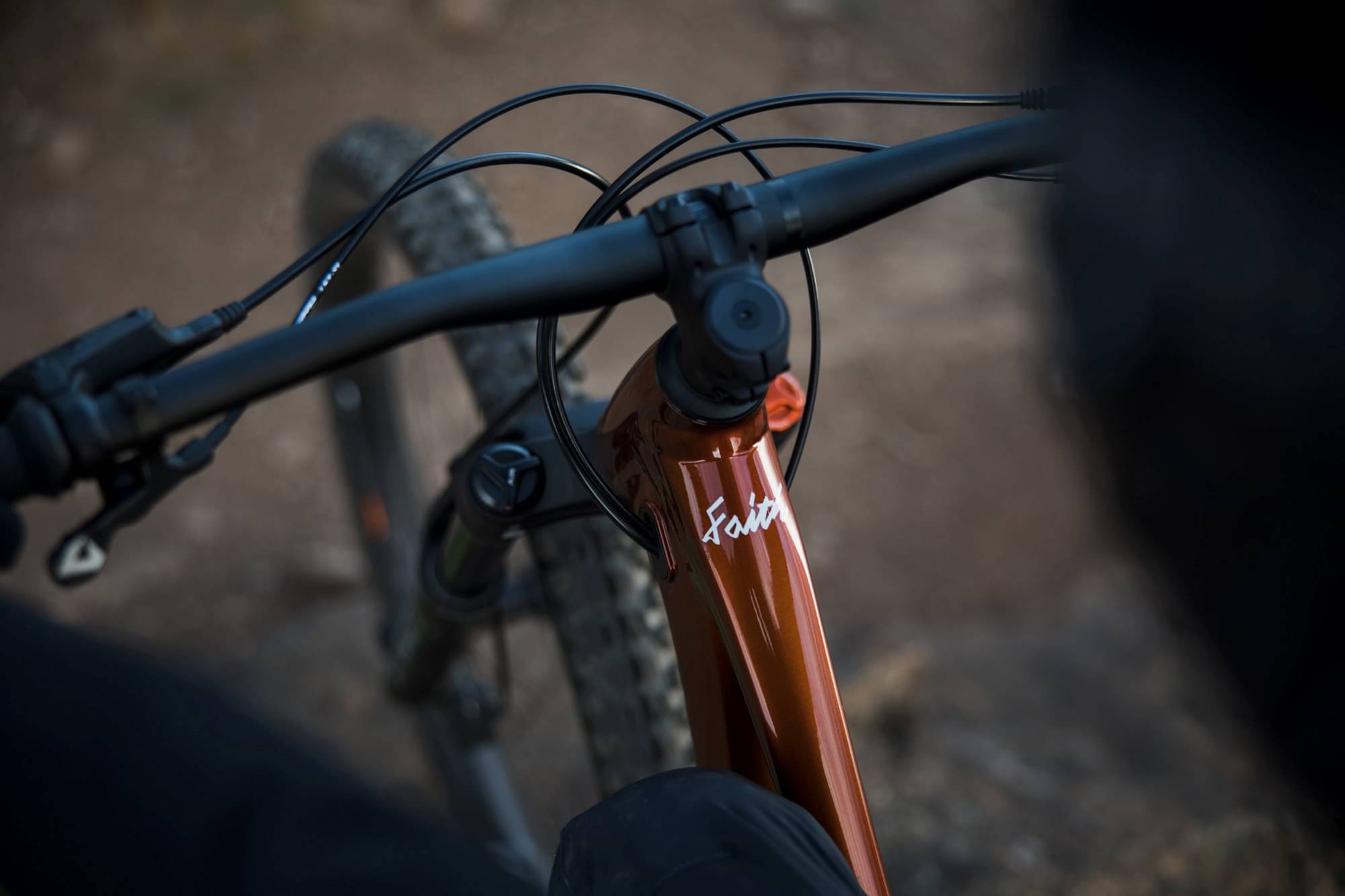

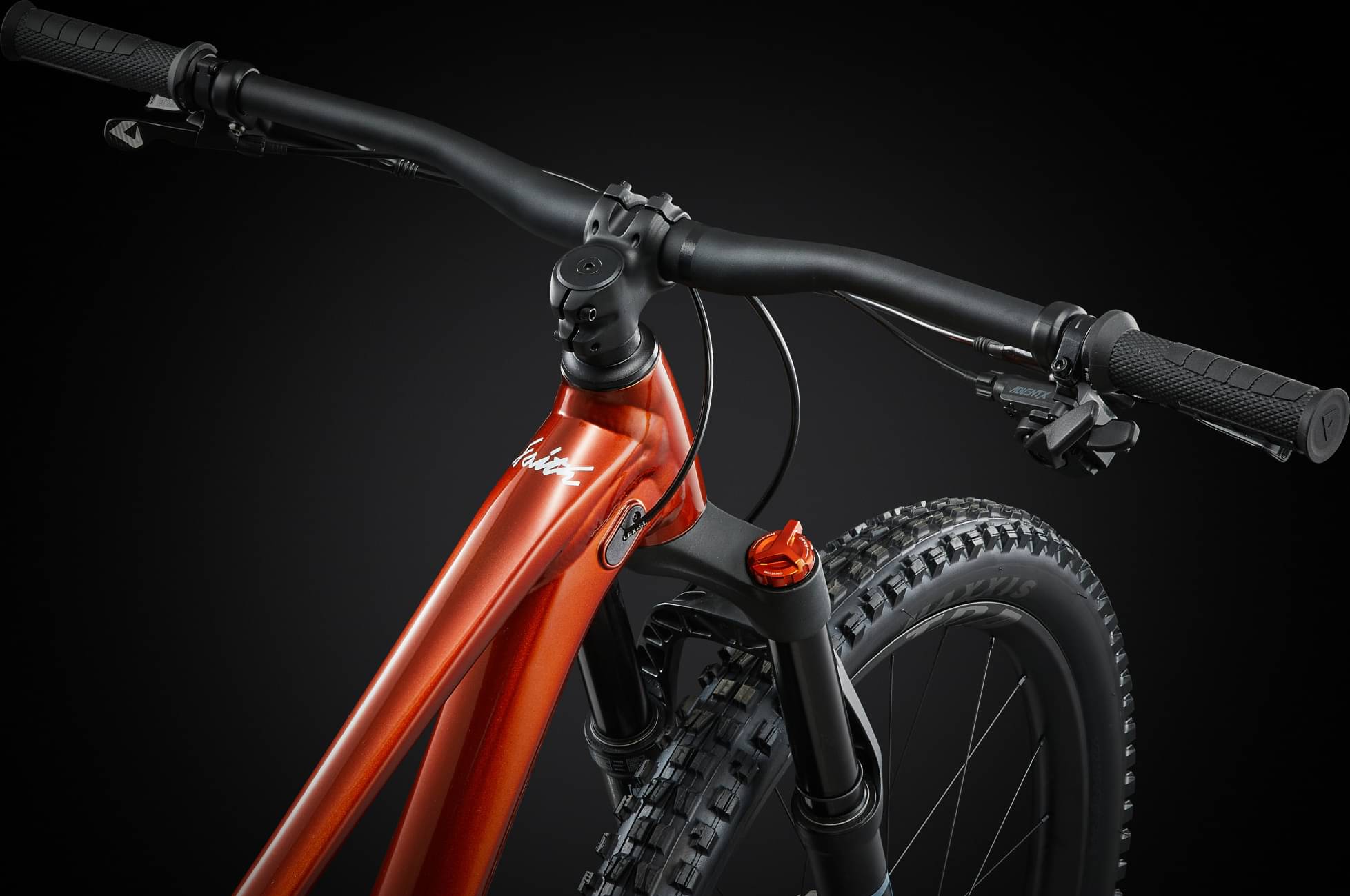

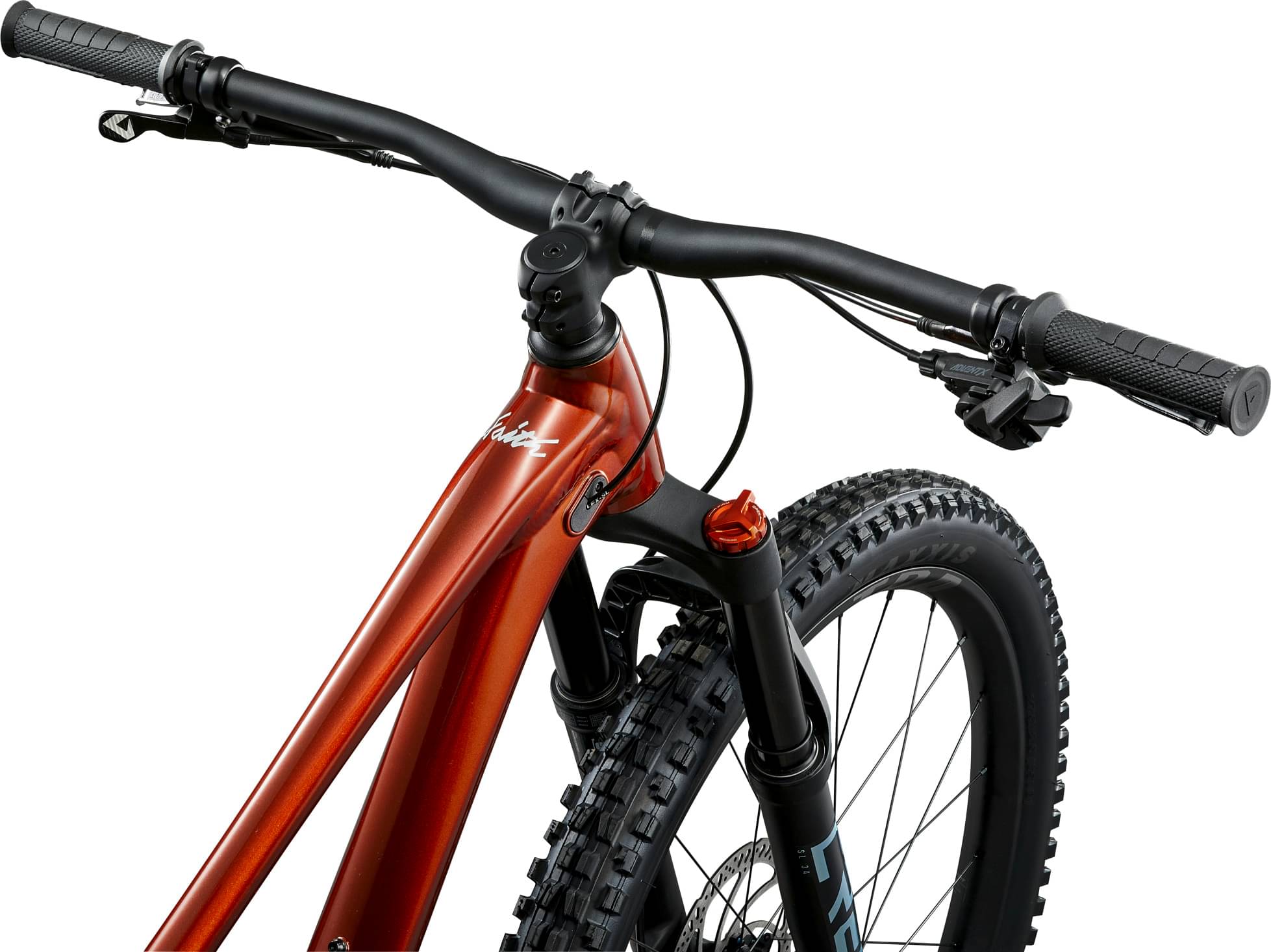

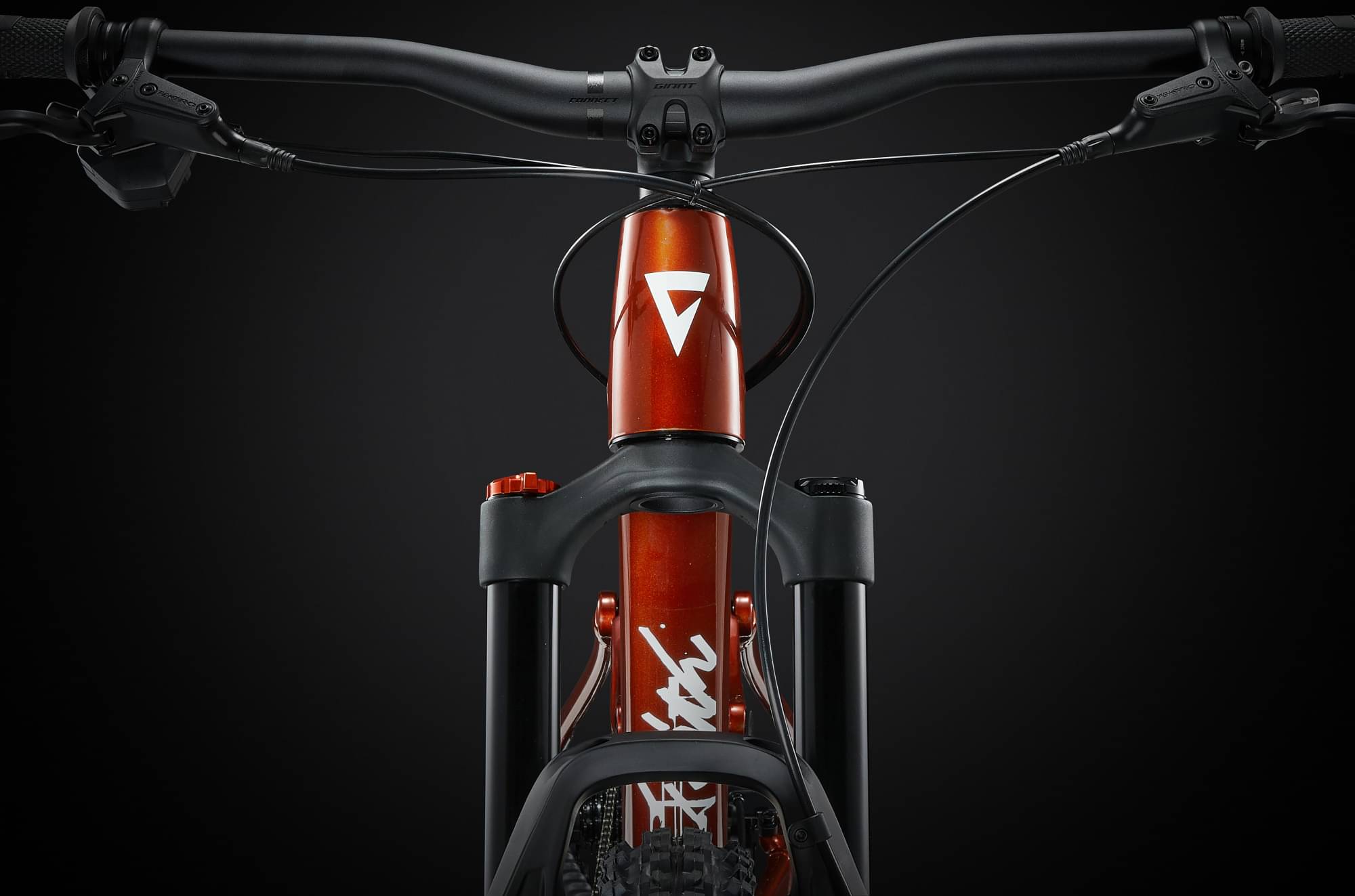

Cockpit
Stem
Giant Contact, 8 degree, 40mm
Handlebar
Giant Contact TR, 20mm rise, AL6061 aluminum,740mm
Grips
Giant small-hand

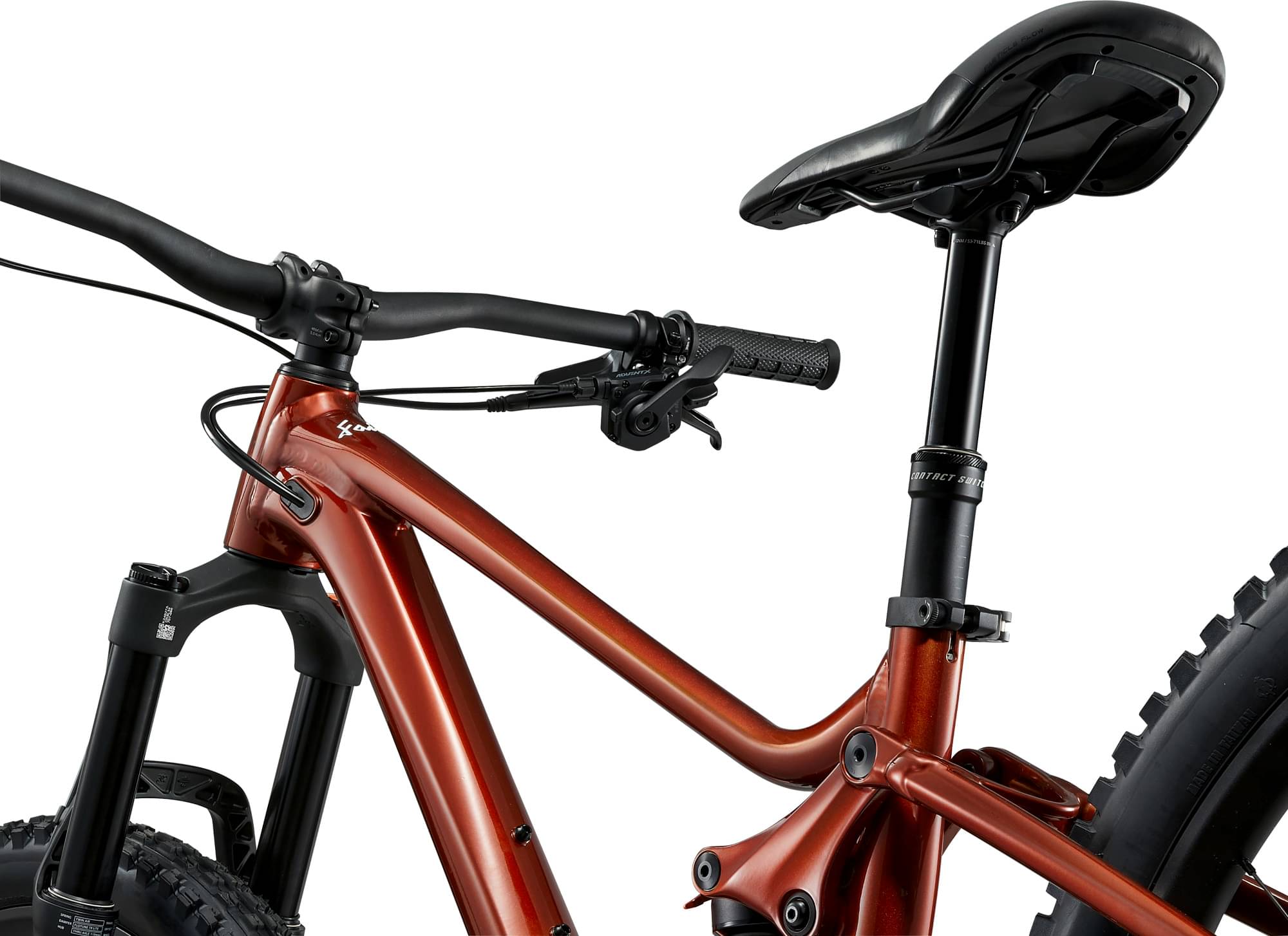

Seat
Saddle
Giant Romero
Seatpost
Contact Switch AT Lite, 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.425 mm |
| Bottom Bracket Height | 333 mm |
| Front Center | 723 mm |
| Rake | 41 mm |
| Trail | 126.5 mm |
| Stack | 584.5 mm |
| Reach | 410.1 mm |
| Top Tube Length | 545 mm |
| Seat Tube Angle | 77 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 64.5 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 425 mm |
| Wheelbase | 1147 mm |
| Bottom Bracket Drop | 10 mm |
| Standover Height | 676 mm |
| Wheels | 26" |
