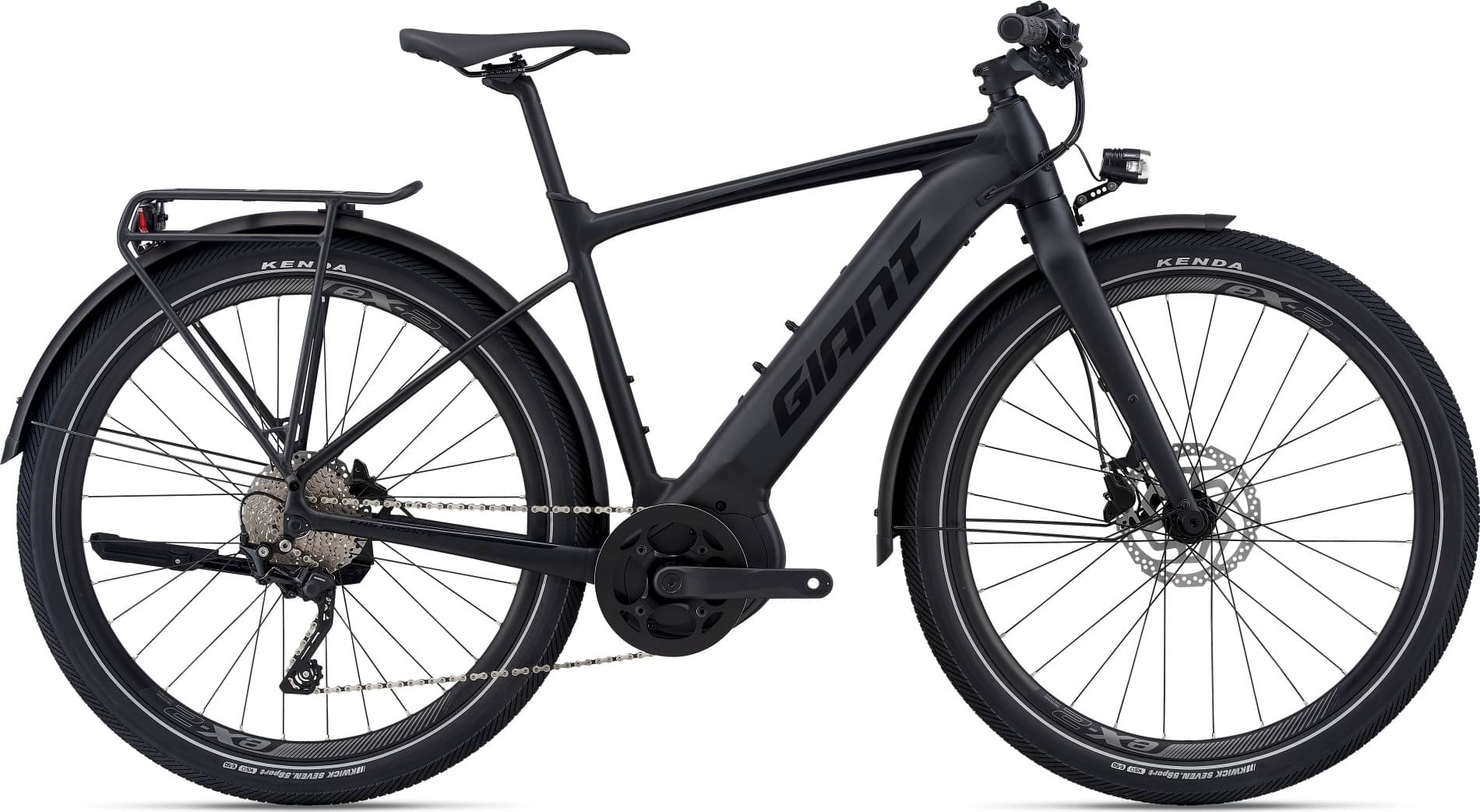

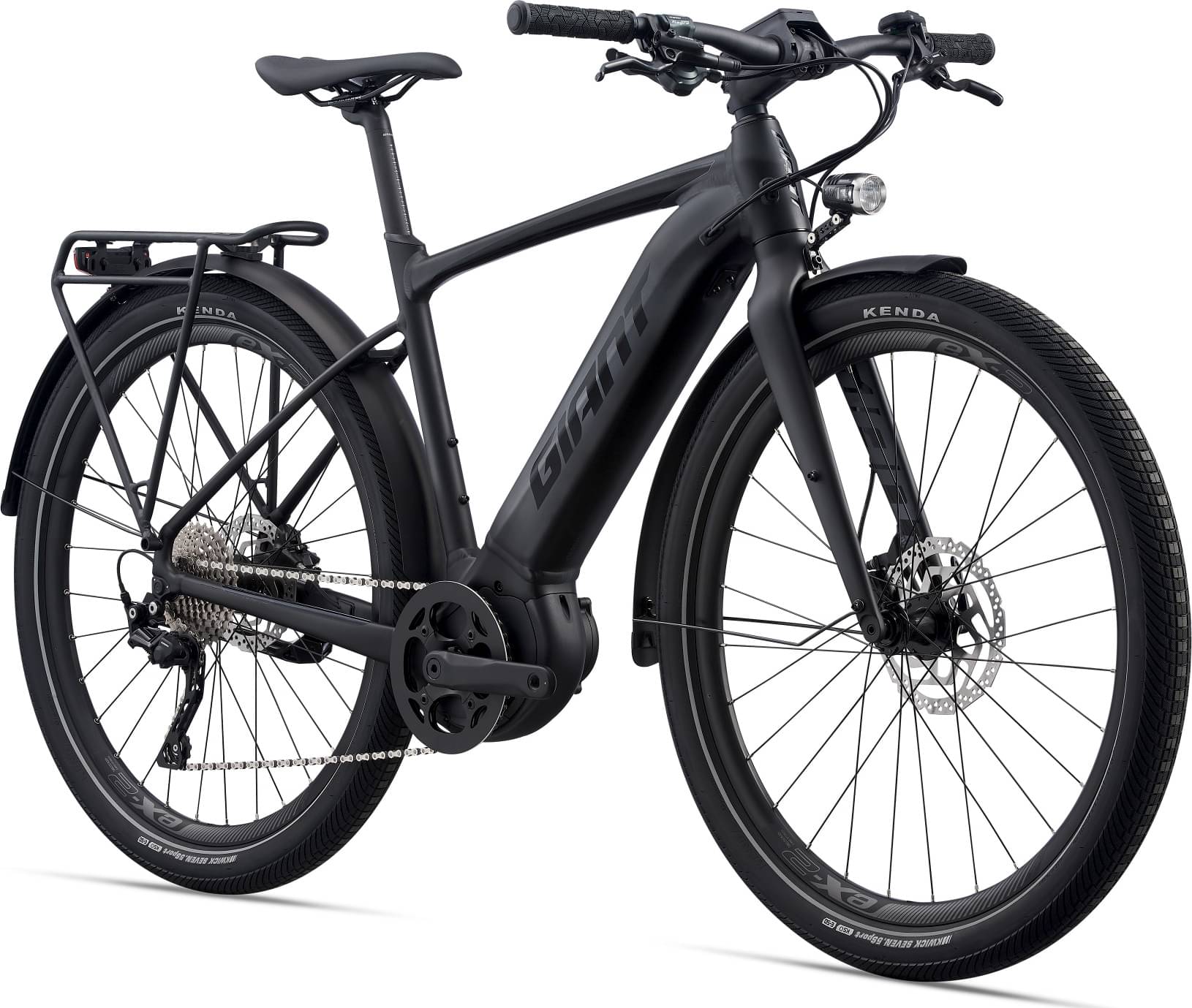

Giant FastRoad E+ EX D 2022
2022 E-bike
Estimate price |
4,591$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Motor Yamaha 250W 80Nm mid-drive -
Battery EnergyPak Smart Compact 500WhEnergyPak Plus range extender compatible -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD/LG
175cm - 185cm
LG
180cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX Aluminum
Suspension Fork
ALUXX SL-grade Aluminium, 12x100 thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX RX400, 10-speed
Front Derailleur
-
Shift Levers
Shimano Tiagra
Cassette
Shimano Tiagra, 11-36, 10-speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.10 Sport
Pedals
Aluminum Platform
Wheels
Front Hub
Giant Performance Tracker Road, Sealed Bearing
Rear Hub
Giant Performance Tracker Road, Sealed Bearing
Rims
Giant eX-2, Tubeless Ready
Spokes
Sapim E-Lite [r] Race [f]
Tires
Kenda Kwick Seven.5 27.5 x 2.40 (61-584), 60TPI, w/ reflex
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180/160mm
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8 x 690mm
Grips
Giant Contact Ergo
Seat
Saddle
Giant Sport
Seatpost
Giant D-shape, Aluminium
Motor & Battery
Motor
SyncDrive Pro, 80Nm, powered by Yamaha
Battery
EnergyPak Smart Compact 500WhEnergyPak Plus range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD/LG | LG |
|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.51 mm |
| Front Center | 625 mm | 630 mm |
| Rake | 45 mm | 45 mm |
| Trail | 71.2 mm | 67.9 mm |
| Stack | 589 mm | 610 mm |
| Reach | 400 mm | 404 mm |
| Top Tube Length | 580 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 525 mm |
| Head Tube Angle | 71.5 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1071 mm | 1076 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 774 mm | 796 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 175 cm | 180 cm |
| Rider Max Height | 185 cm | 190 cm |
