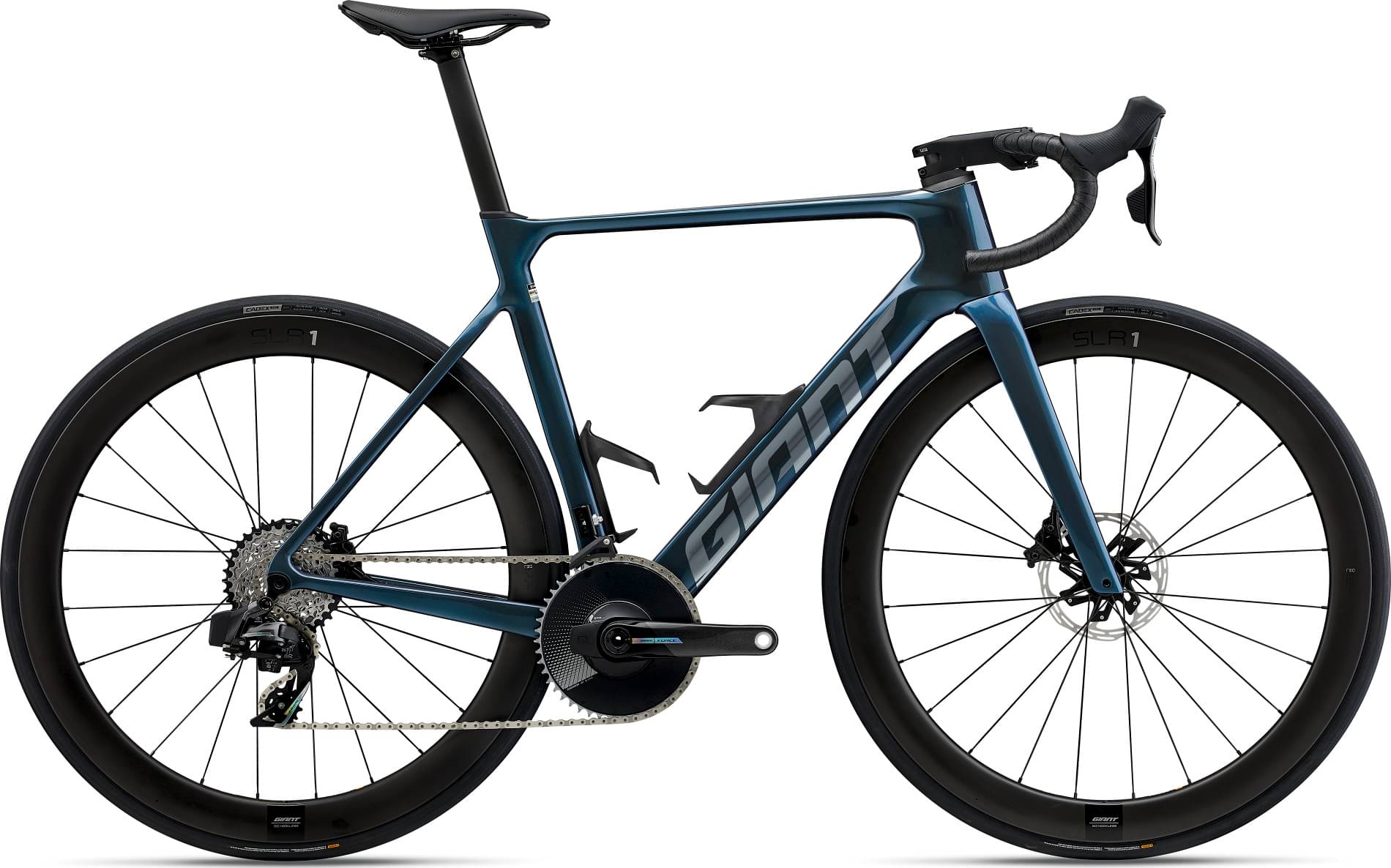

Giant Propel Advanced Pro 0 1X 2025
2025 Road
Estimate price |
5,504$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc
Suspension Fork
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Force AXS
Front Derailleur
N/A
Shift Levers
SRAM Force AXS
Cassette
SRAM Force, 12-speed, 10x36

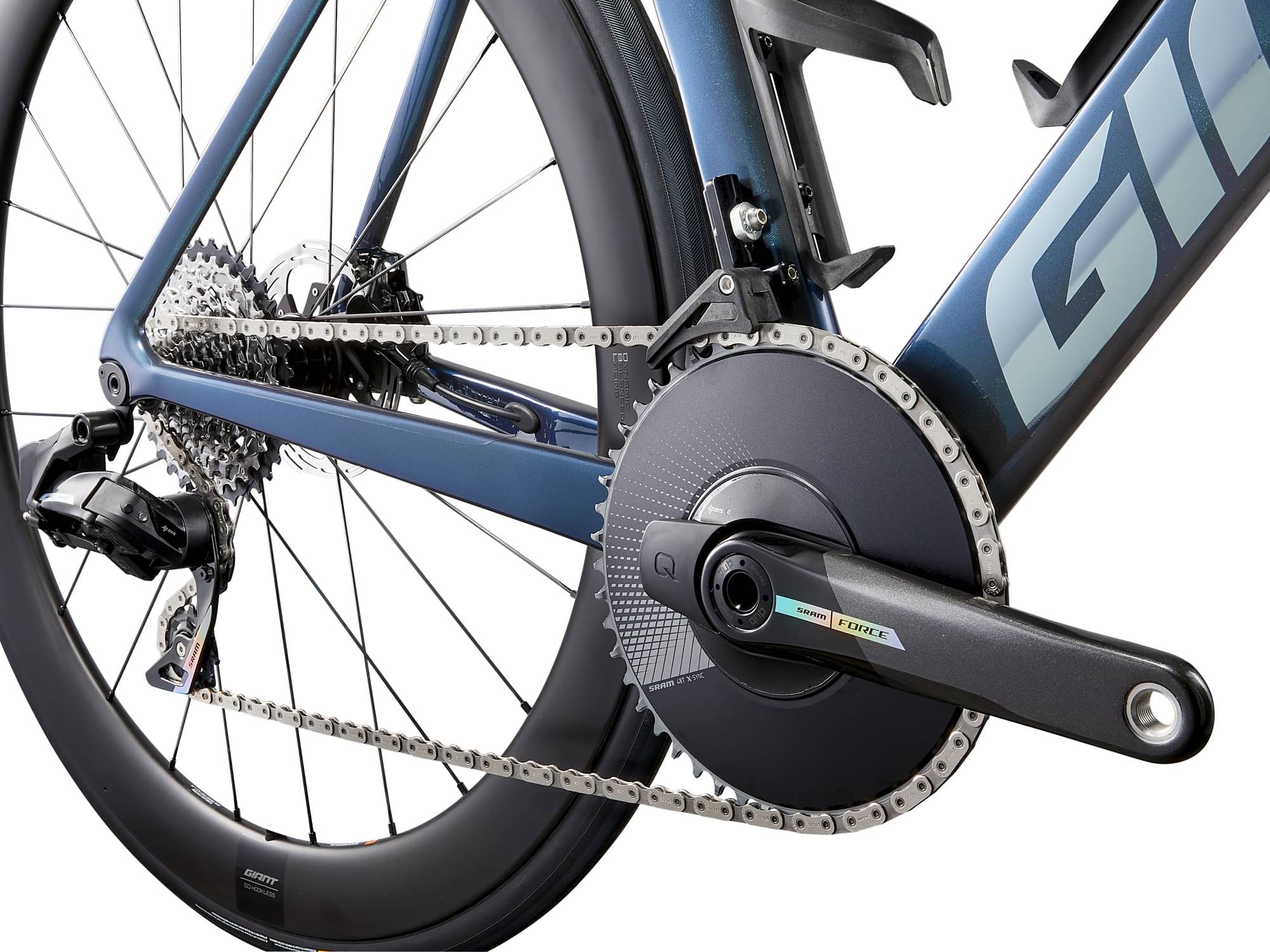

Crank
SRAM Force D2 DUB, 48t Aero with power meter XS:170mm, S:170mm, M:172.5mm, M/L:172
Bottom Bracket
SRAM, press fit
Chain
SRAM Force D1
Wheels
Front Hub
[F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Rims
Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Spokes
Sapim
Tires
CADEX Road Race, tubeless, 700x25c (26.5mm), folding
Brakes
Brakes
SRAM Force hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers
SRAM Force AXS
Cockpit
Stem
Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Handlebar
Giant Contact SLR Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 2.0
Seat
Saddle
Giant Fleet SL
Seatpost
Giant Vector, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.405 mm | 1.43 mm | 1.445 mm | 1.447 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 585 mm | 595 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62.5 mm | 57.8 mm | 57.8 mm | 57.8 mm | 57.8 mm |
| Stack | 528 mm | 545 mm | 562 mm | 581 mm | 596 mm |
| Reach | 383 mm | 388 mm | 393 mm | 402 mm | 412 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 500 mm | 520 mm | 545 mm | 575 mm | 595 mm |
| Head Tube Angle | 72.3 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 977 mm | 980 mm | 991 mm | 1006 mm | 1020 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 753 mm | 770 mm | 794 mm | 821 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
