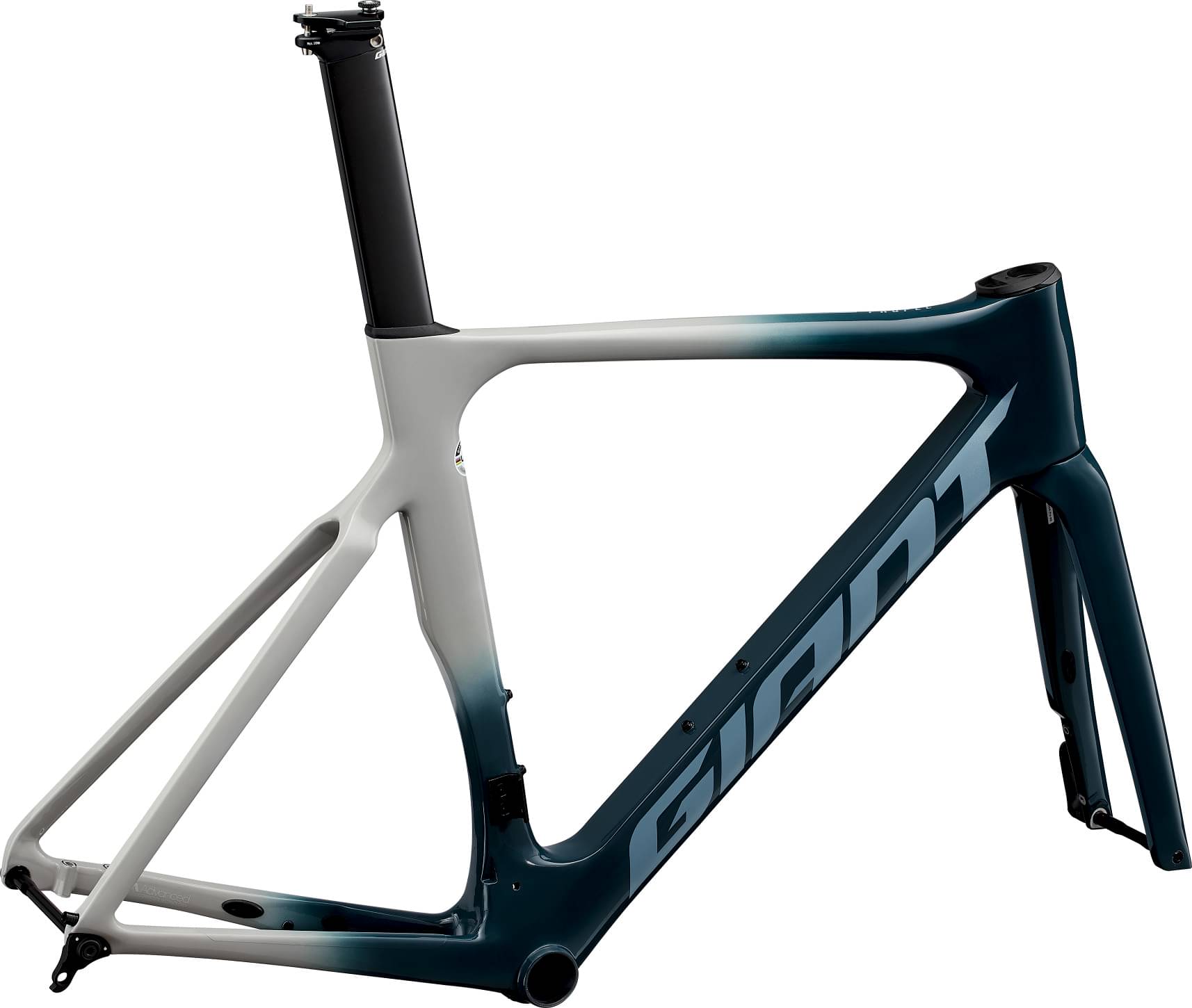

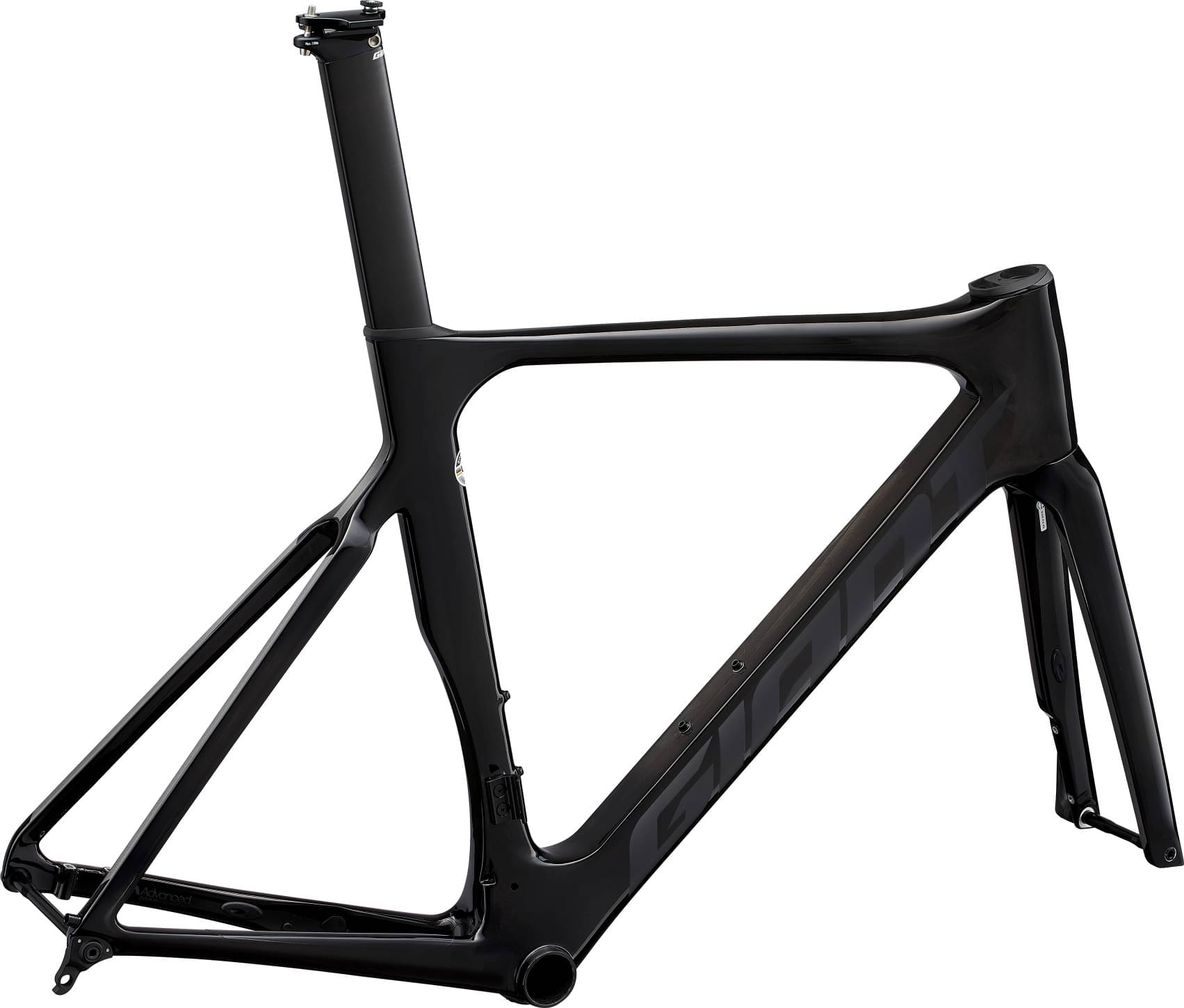

Giant Propel Advanced Pro Disc Frameset 2022
2022 Road
Estimate price |
3,651$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
171cm - 183cm
LG
181cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Rear Shock
N/A
Seat
Seatpost
Giant Vector, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.399 mm | 1.423 mm | 1.445 mm | 1.444 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 271 mm | 271 mm |
| Front Center | 575 mm | 581 mm | 611 mm | 625 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 57 mm | 57 mm | 57 mm |
| Stack | 529 mm | 545 mm | 581 mm | 595 mm |
| Reach | 378 mm | 383 mm | 402 mm | 412 mm |
| Top Tube Length | 535 mm | 550 mm | 580 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 500 mm | 520 mm | 575 mm | 595 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 145 mm | 185 mm | 200 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 976 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 65 mm | 65 mm |
| Standover Height | 769 mm | 787 mm | 829 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 171 cm | 181 cm | 189 cm |
| Rider Max Height | 175 cm | 183 cm | 193 cm | 199 cm |
