Bike details
Overview
Key information split into simple groups.

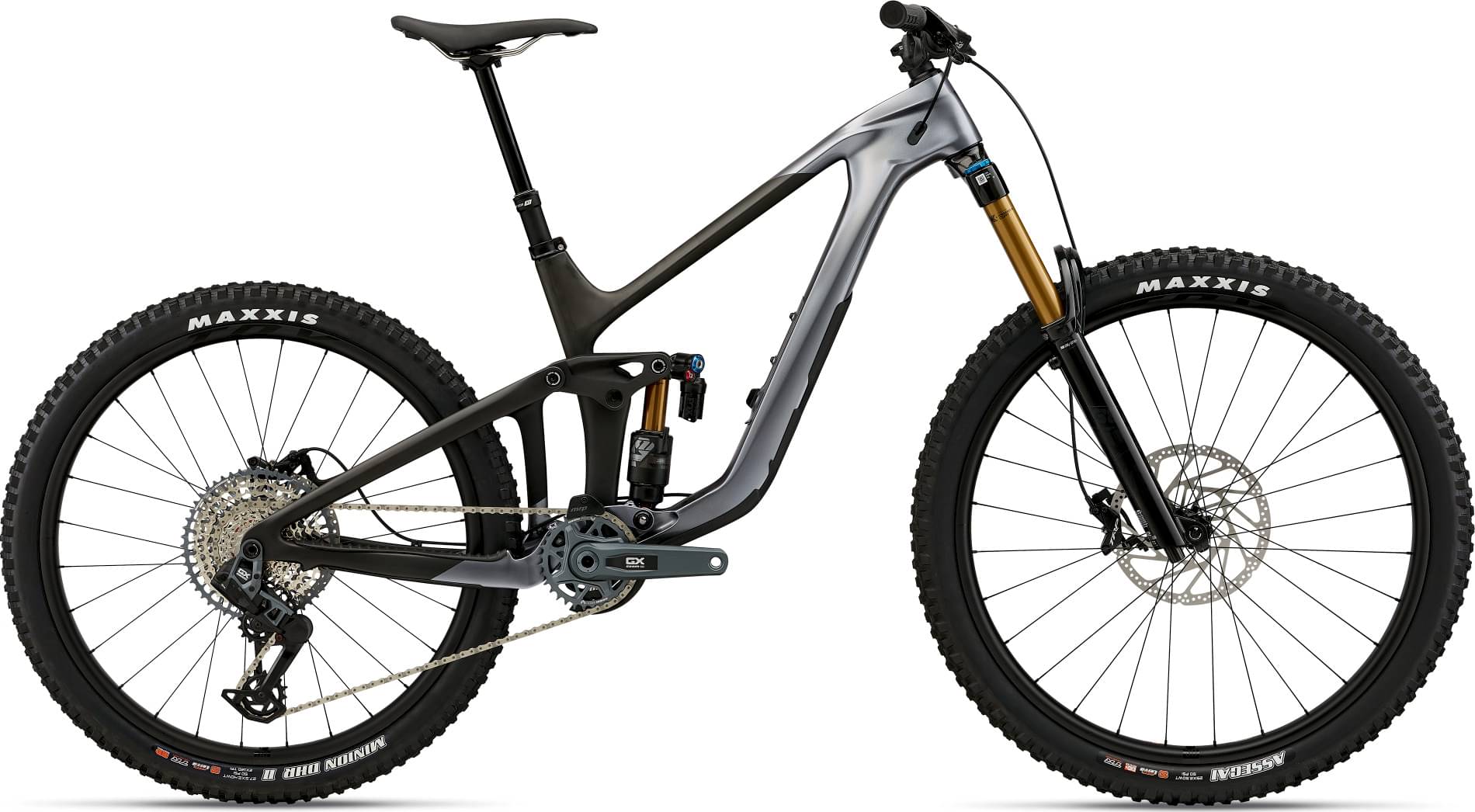

Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 173cm
SM Mid
163cm - 173cm
SM Low
163cm - 173cm
MD High
170cm - 181cm
MD Mid
170cm - 181cm
MD Low
170cm - 181cm
LG High
178cm - 189cm
LG Mid
178cm - 189cm
LG Low
178cm - 189cm
XL High
186cm - 198cm
XL Mid
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
Suspension Fork
Fox 38 Factory, 170mm, GRIP X2 damper, 15x110 Kabolt X, 44mm offset
Rear Shock
Fox Float X2 Factory, 205/62.5, custom tuned for Giant
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, discrete clamp, 1x12
Cassette
SRAM GX Eagle Transmission, 10x52
Crank
SRAM GX Eagle Transmission, DUB, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM GX Eagle Transmission
Pedals
platform [GC,GT]
Wheels
Front Hub
[F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, XD driver body
Rear Hub
[F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, XD driver body
Rims
Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
Spokes
Sapim, 28, straight pull, DBL Technology
Tires
[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Brakes
Brakes
TRP EVO DH-R, hydraulic, TRP rotors [F]220mm, [R]200mm
Brake Levers
Shimano SLX BL-M7100
Cockpit
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Handlebar
Giant Contact TR35, 800x35mm, 35mm rise
Grips
Giant Tactal Pro Single
Seat
Saddle
Giant Romero SL
Seatpost
Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Mid | SM Low | MD High | MD Mid | MD Low | LG High | LG Mid | LG Low | XL High | XL Mid | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.472 mm | 1.496 mm | 1.514 mm | 1.386 mm | 1.405 mm | 1.424 mm | 1.347 mm | 1.367 mm | 1.382 mm | 1.274 mm | 1.29 mm | 1.307 mm |
| Front Center | 771 mm | 771 mm | 770 mm | 803 mm | 803 mm | 802 mm | 828 mm | 828 mm | 827 mm | 861 mm | 861 mm | 860 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 141 mm | 144 mm | 147 mm | 141 mm | 144 mm | 147 mm | 141 mm | 144 mm | 147 mm | 141 mm | 144 mm | 147 mm |
| Stack | 627 mm | 630 mm | 633 mm | 632 mm | 635 mm | 638 mm | 641 mm | 644 mm | 647 mm | 646 mm | 649 mm | 652 mm |
| Reach | 426 mm | 421 mm | 418 mm | 456 mm | 452 mm | 448 mm | 476 mm | 471 mm | 468 mm | 507 mm | 503 mm | 499 mm |
| Top Tube Length | 556 mm | 557 mm | 558 mm | 587 mm | 588 mm | 589 mm | 621 mm | 621 mm | 622 mm | 653 mm | 653 mm | 654 mm |
| Seat Tube Angle | 78.2 ° | 77.8 ° | 77.5 ° | 78.2 ° | 77.8 ° | 77.5 ° | 77.2 ° | 76.9 ° | 76.5 ° | 77.2 ° | 76.9 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 425 mm | 425 mm | 425 mm | 450 mm | 450 mm | 450 mm | 475 mm | 475 mm | 475 mm |
| Head Tube Angle | 63.4 ° | 63 ° | 62.7 ° | 63.4 ° | 63 ° | 62.7 ° | 63.4 ° | 63.1 ° | 62.7 ° | 63.4 ° | 63.1 ° | 62.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 115 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 442 mm | 443 mm | 445 mm | 442 mm | 443 mm | 445 mm | 442 mm | 443 mm | 445 mm | 442 mm | 443 mm | 445 mm |
| Wheelbase | 1212 mm | 1213 mm | 1214 mm | 1244 mm | 1245 mm | 1246 mm | 1269 mm | 1270 mm | 1271 mm | 1302 mm | 1303 mm | 1304 mm |
| Bottom Bracket Drop | 19 mm | 24 mm | 29 mm | 19 mm | 24 mm | 29 mm | 19 mm | 24 mm | 29 mm | 19 mm | 24 mm | 29 mm |
| Standover Height | 723 mm | 718 mm | 714 mm | 742 mm | 738 mm | 733 mm | 755 mm | 750 mm | 746 mm | 771 mm | 766 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 163 cm | 163 cm | 170 cm | 170 cm | 170 cm | 178 cm | 178 cm | 178 cm | 186 cm | 186 cm | 186 cm |
| Rider Max Height | 173 cm | 173 cm | 173 cm | 181 cm | 181 cm | 181 cm | 189 cm | 189 cm | 189 cm | 198 cm | 198 cm | 198 cm |
