Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, disc
Suspension Fork
SR Suntour NEX hydraulic lockout, 700C, 63mm travel
Rear Shock
N/A

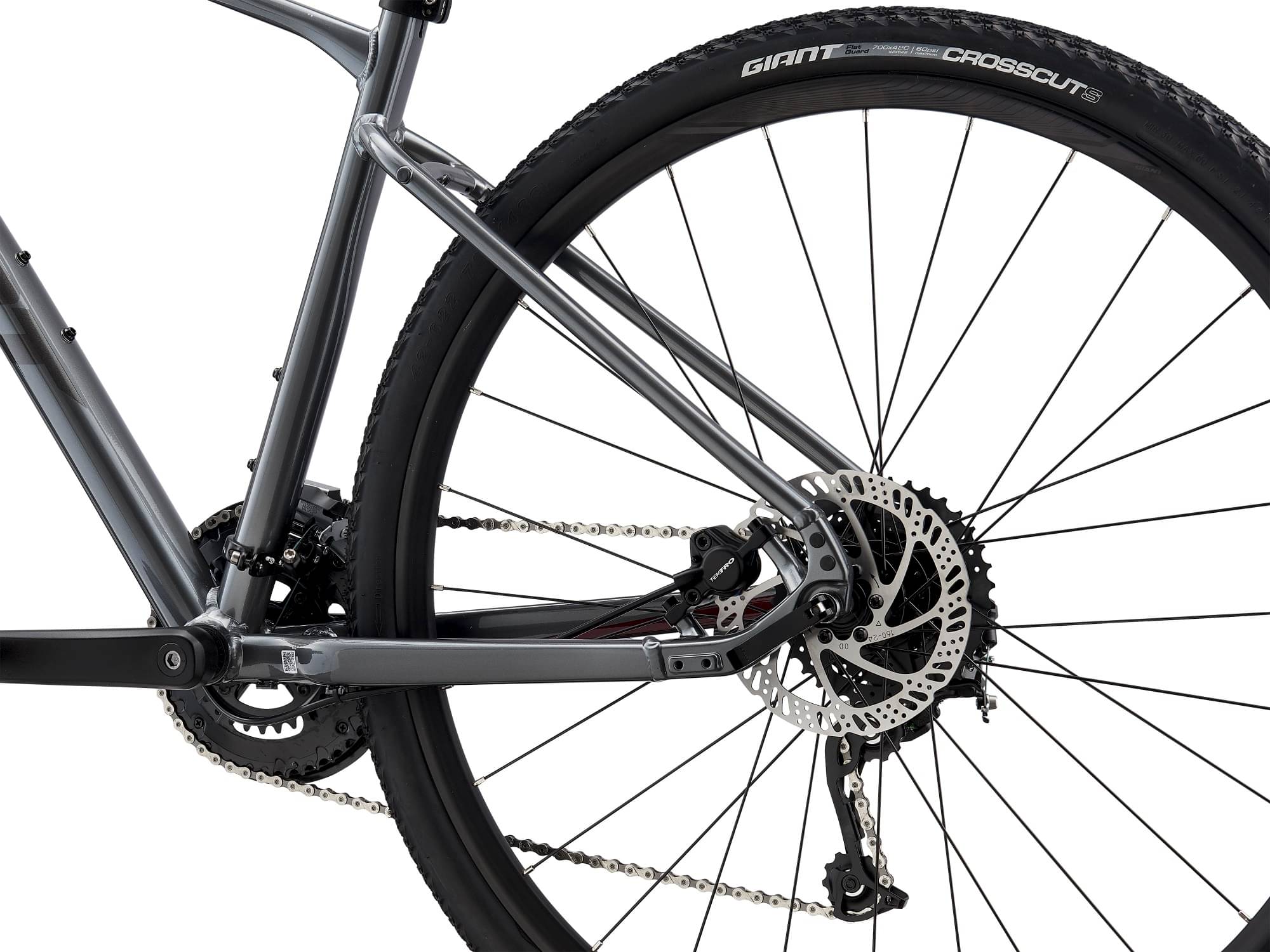

Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano Acera
Shift Levers
Shimano Altus, 2x9
Cassette
Shimano HG200, 11x36
Crank
forged alloy, 30/46 S:170mm, M:170mm, L:175mm, XL:175mm
Bottom Bracket
Cartridge
Chain
KMC X9 with Missing Link
Pedals
platform
Wheels
Front Hub
alloy, 28h
Rear Hub
alloy, 28h
Rims
Giant double wall aluminum
Spokes
Stainless steel
Tires
Giant CrossCut, anti-puncture, 700x42c
Brakes
Brakes
Tektro TKD-143 hydraulic, [F]160mm, [R]160mm rotors
Brake Levers
Tektro TKD-143

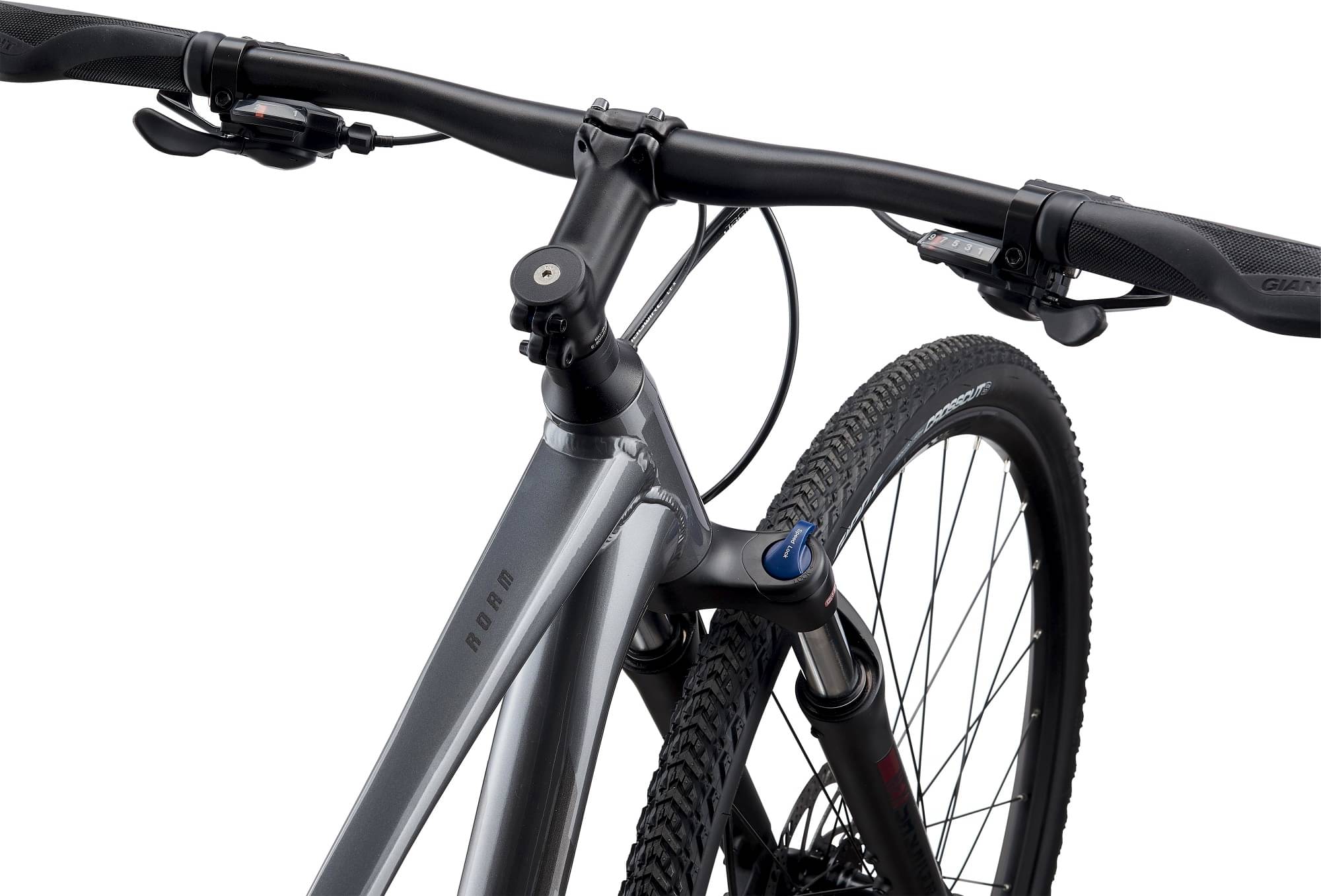

Cockpit
Stem
Giant Sport, 7-degree S:60mm, M:70mm, L:80mm, XL:90mm
Handlebar
Giant Sport XC, 31.8mm S:64cm, M:68cm, L:68cm, XL:68cm
Grips
Giant Connect Ergo
Seat
Saddle
Giant Sport
Seatpost
Giant D-Fuse, alloy, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.512 mm | 1.524 mm | 1.518 mm |
| Front Center | 645 mm | 655 mm | 666 mm | 682 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 606 mm | 620 mm | 634 mm | 648 mm |
| Reach | 404 mm | 410 mm | 416 mm | 427 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1088 mm | 1098 mm | 1109 mm | 1125 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 725 mm | 756 mm | 788 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
