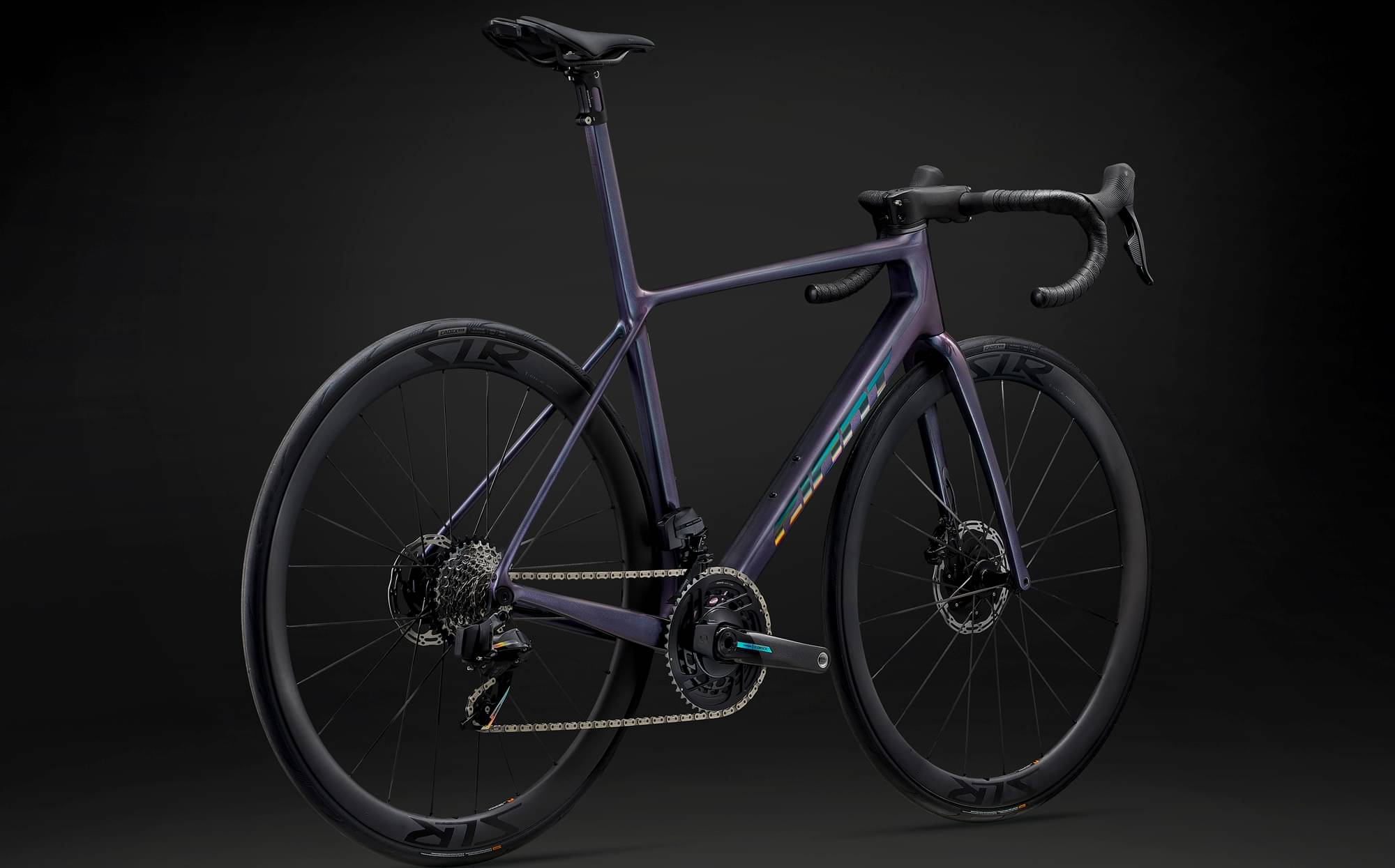

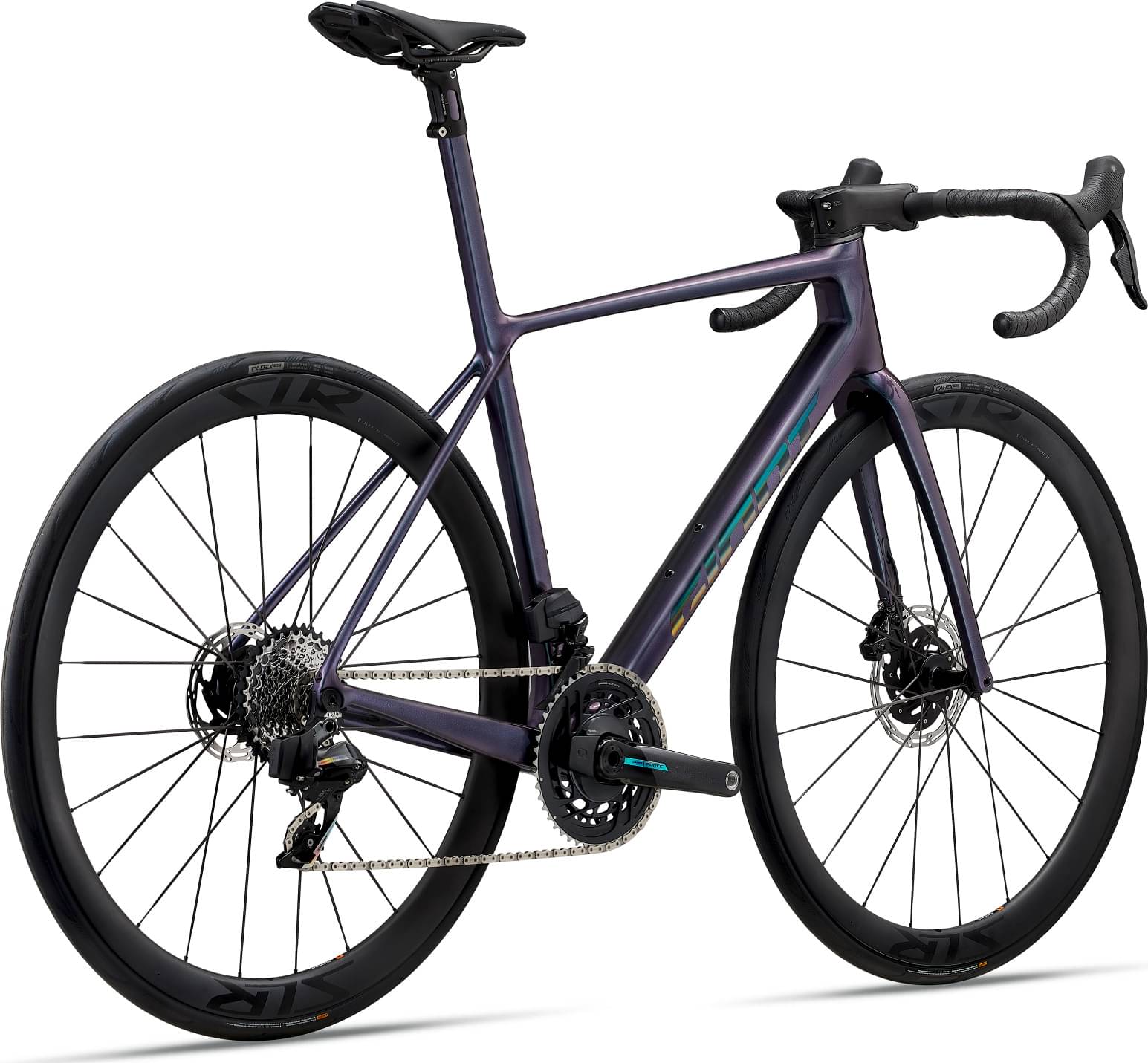

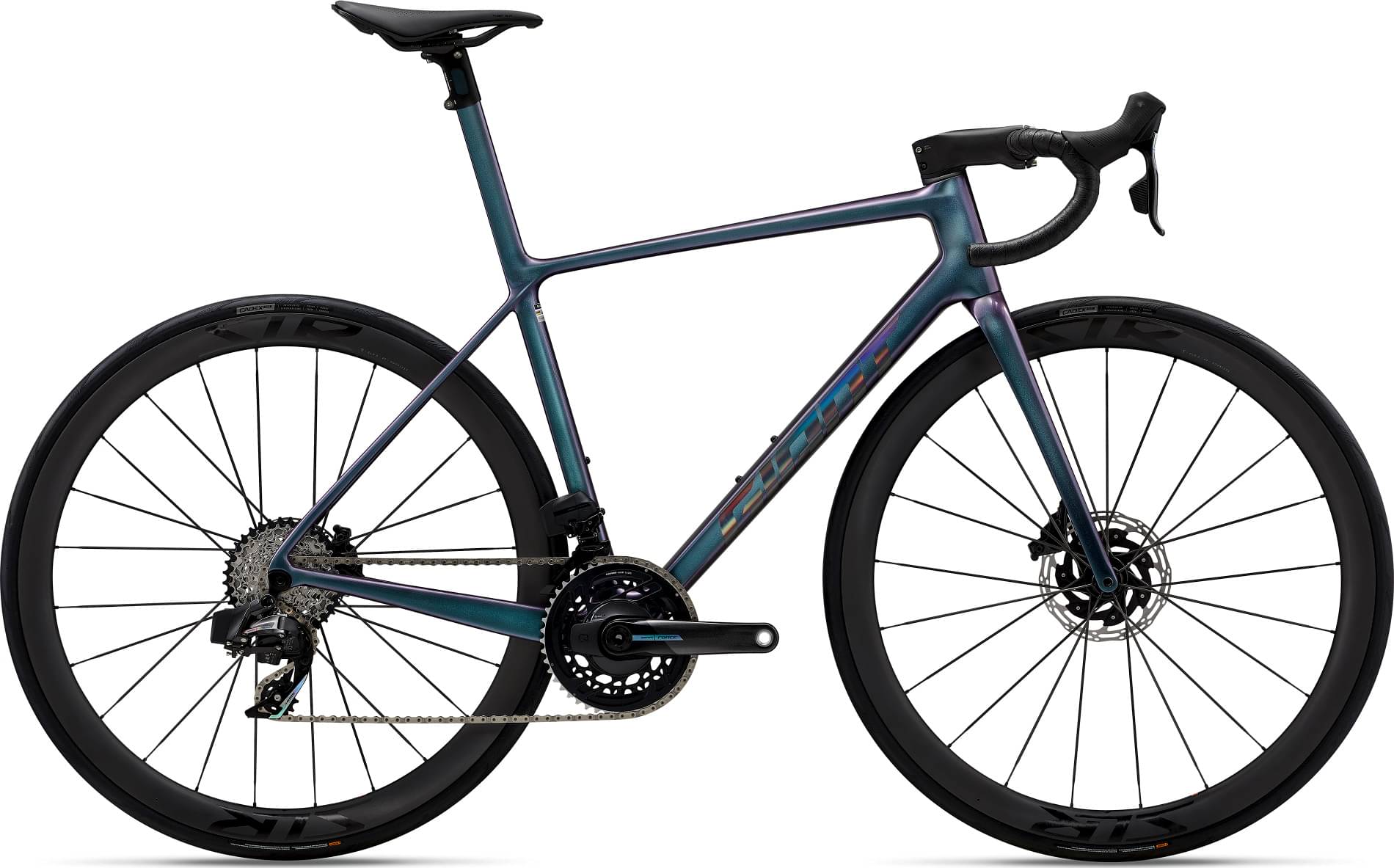

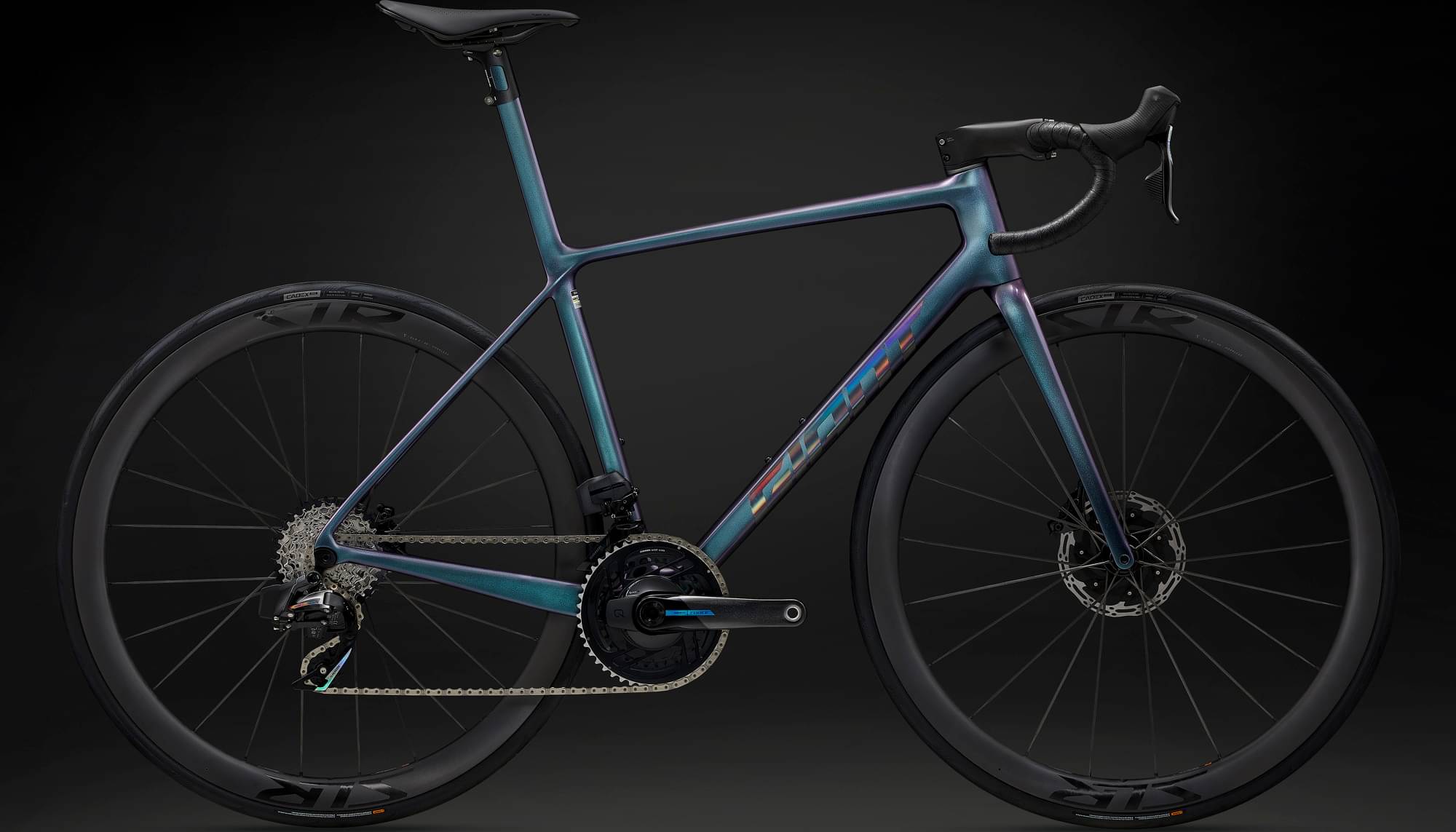

Giant TCR Advanced SL 1 AXS 2025
2025 Road
Estimate price |
12,193$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

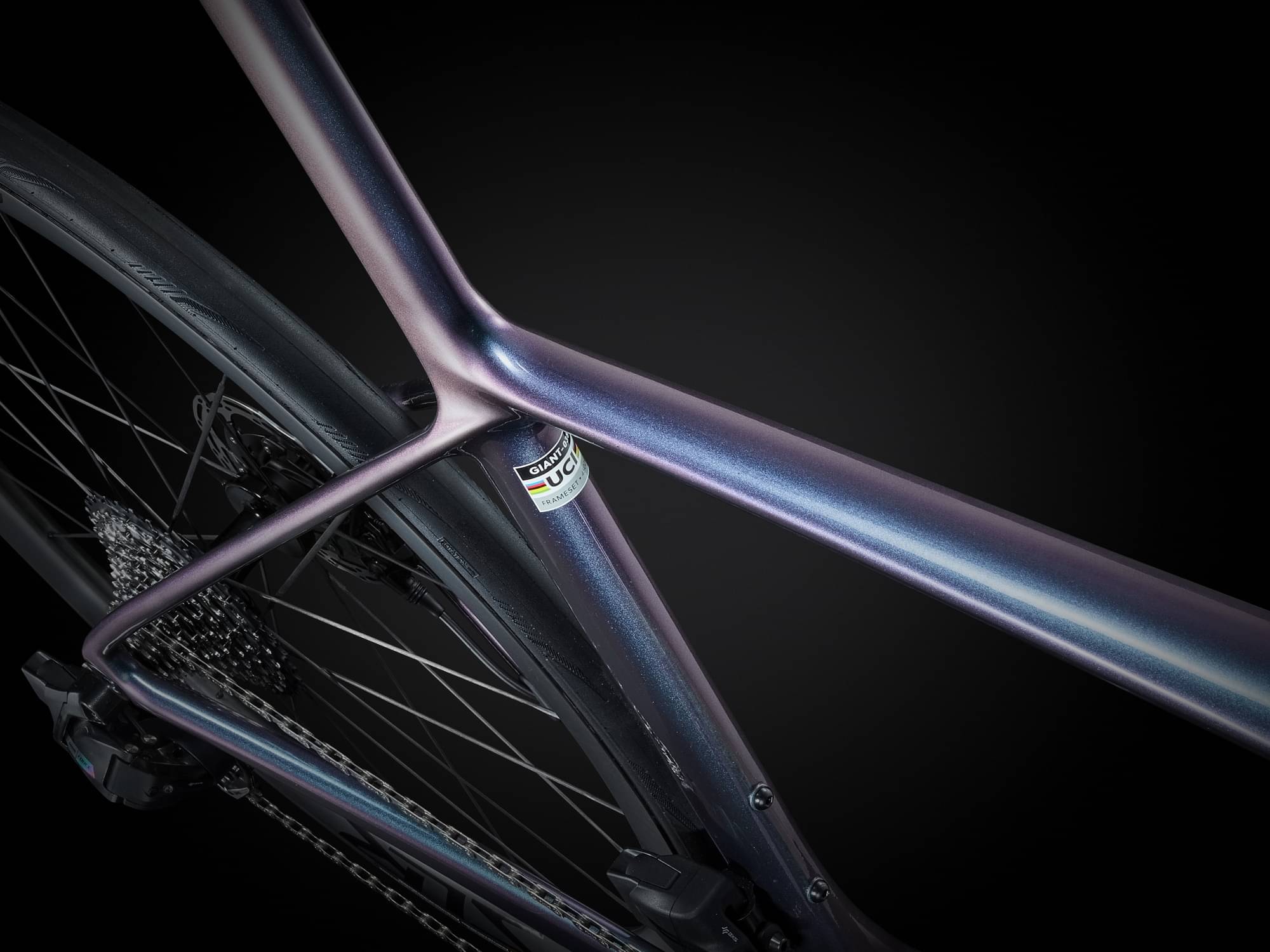

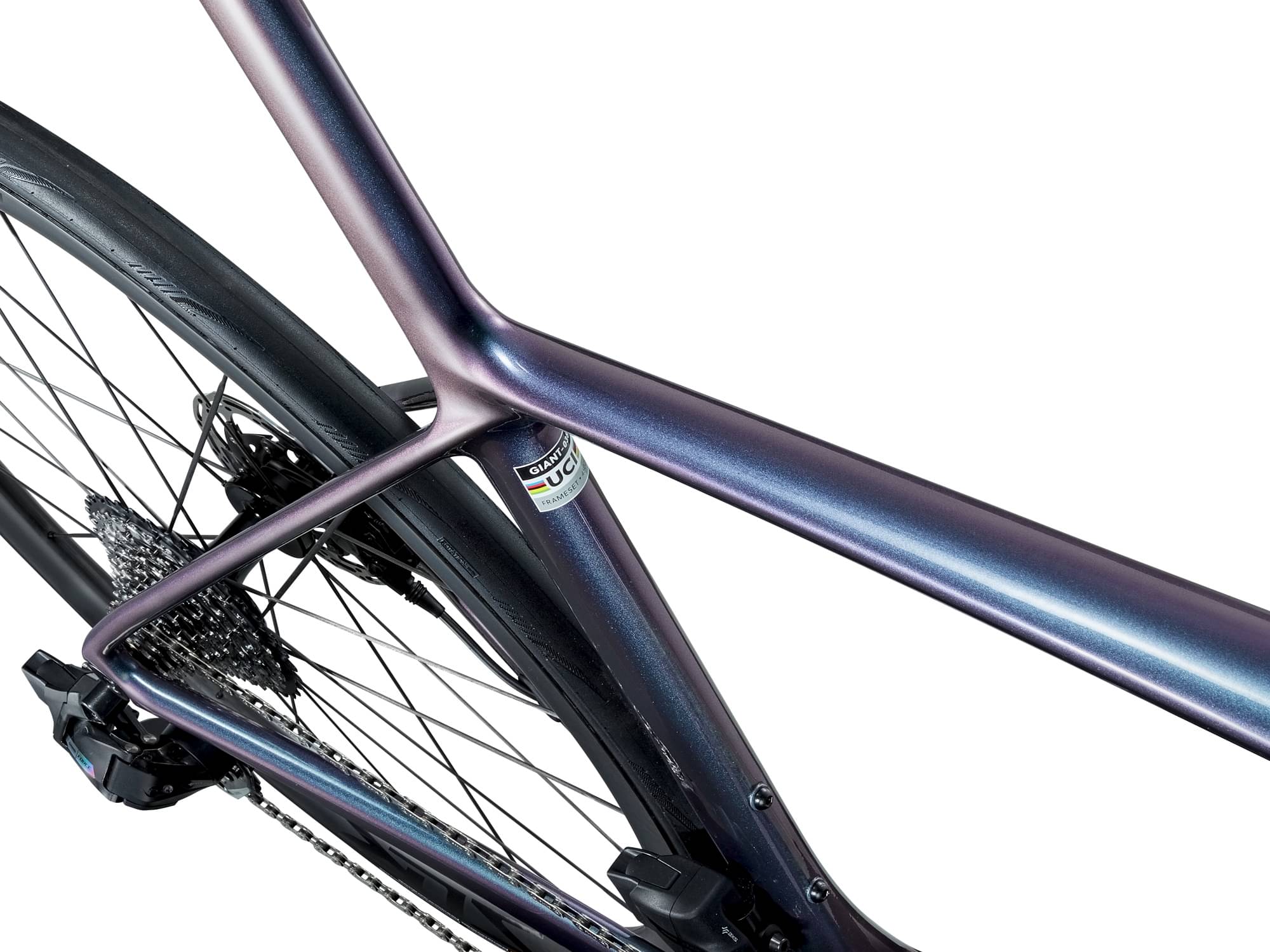

Advanced SL-Grade Composite, 12x142mm thru-axle, Integrated Seatpost, Disc
Suspension Fork

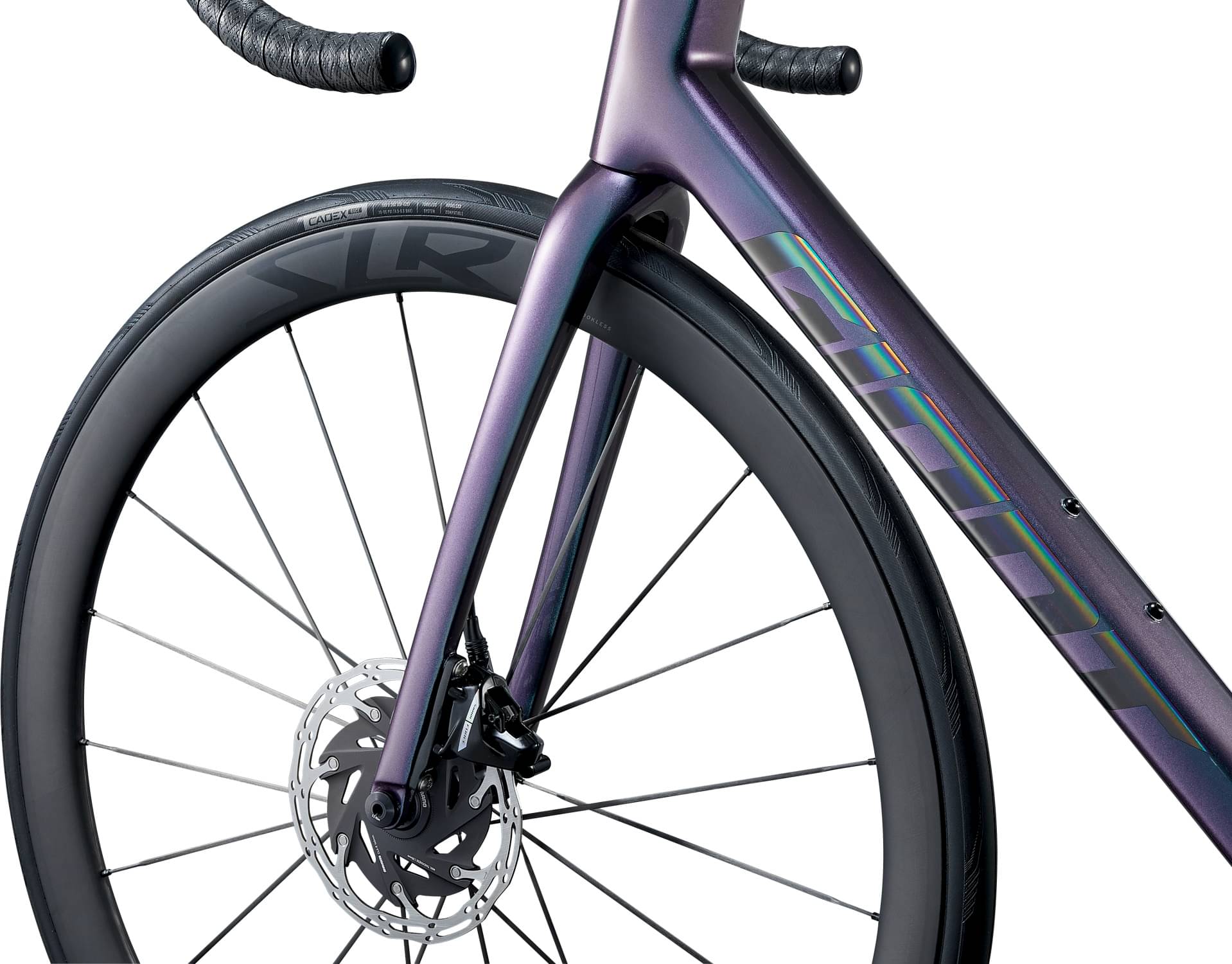

Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc

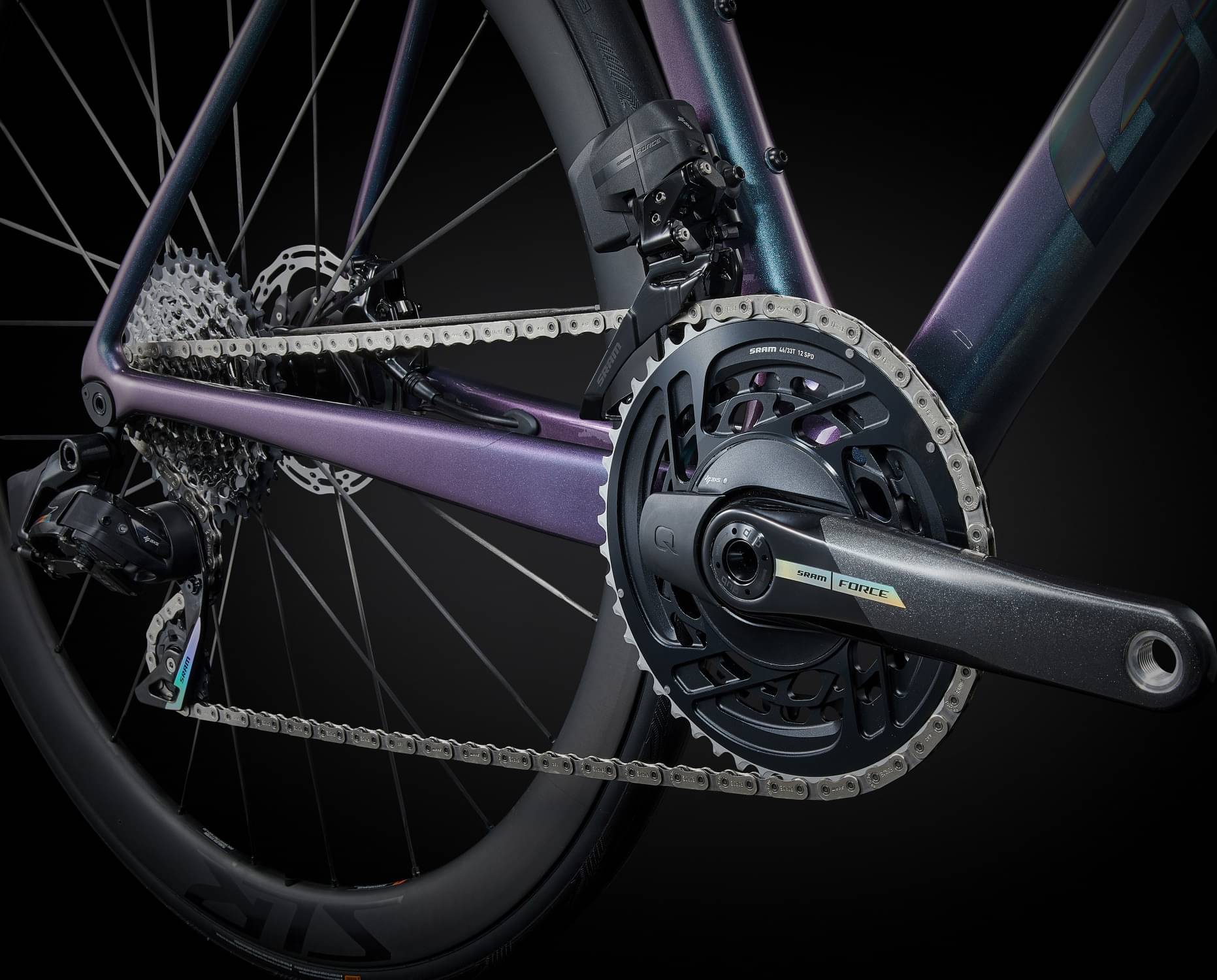

Drivetrain
Rear Derailleur
SRAM Force AXS
Front Derailleur
SRAM Force AXS
Shift Levers
SRAM Force AXS 2x12
Cassette
SRAM Force, XG-1270, 10X36
Crank

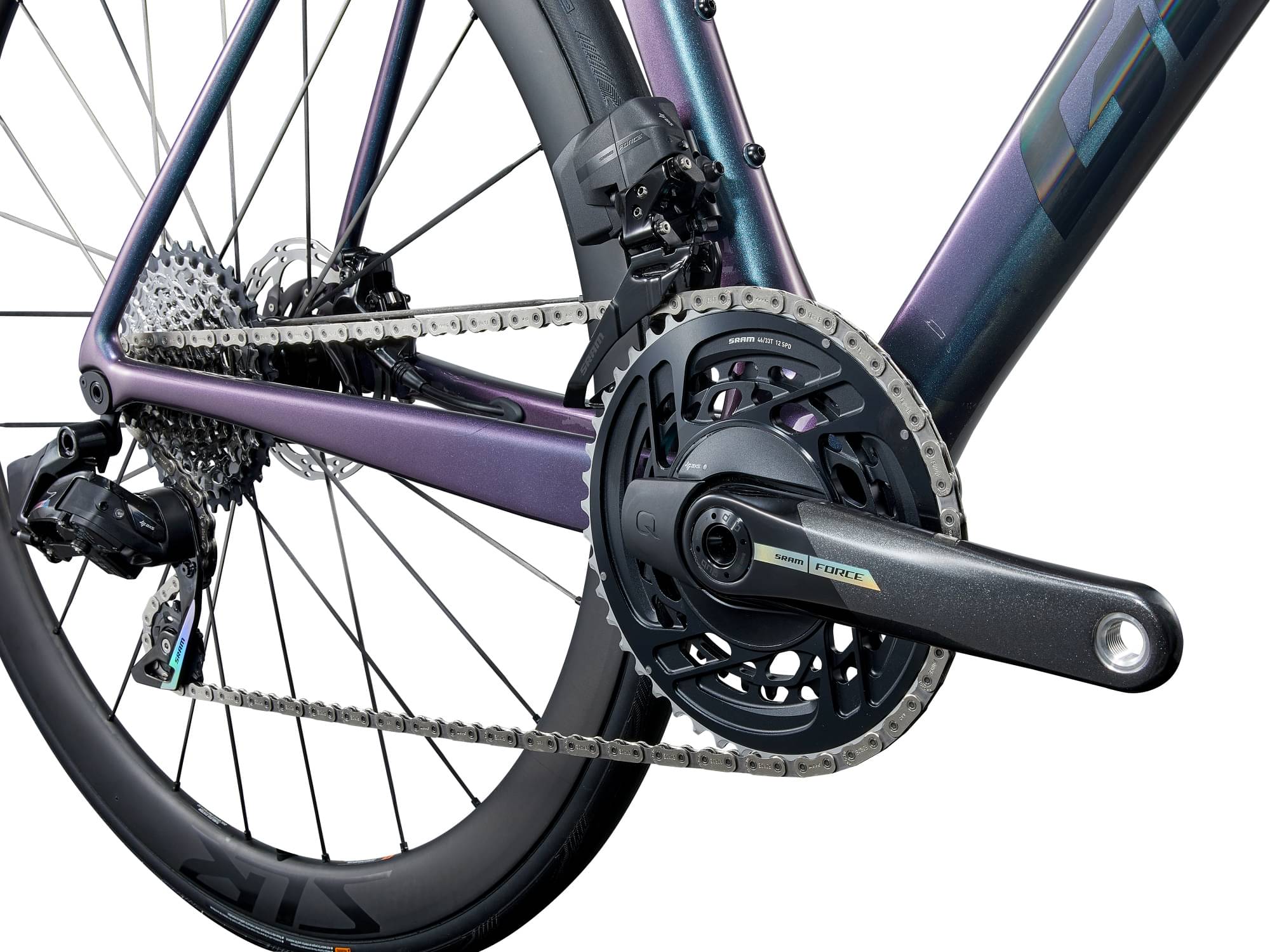

SRAM Force DUB 33/46 with Quarq power meter
Bottom Bracket
SRAM DUB, Press Fit
Chain
SRAM Force
Pedals
PEDALS NOT SUPPLIED
Wheels
Front Hub
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Rims
New Giant SLR 0 40 Carbon Disc Wheel System with GIANT patented DBL (Dynamic Balanced Lacing) technology
Spokes
Giant Aero Carbon Spoke
Tires
New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding

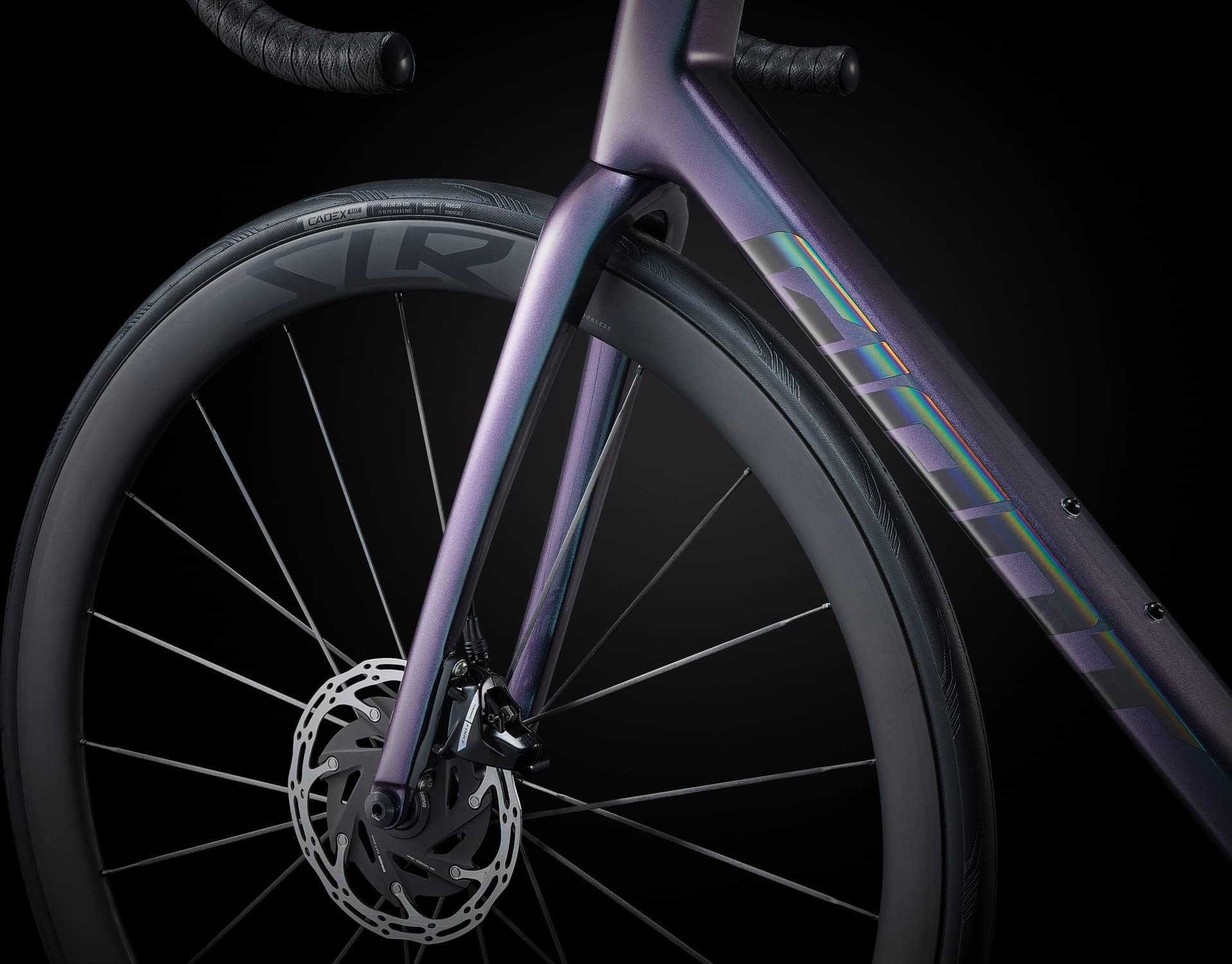

Brakes
Brakes
SRAM Force AXS HRD, Centreline XR 160/140mm rotors
Brake Levers
SRAM Force AXS HRD

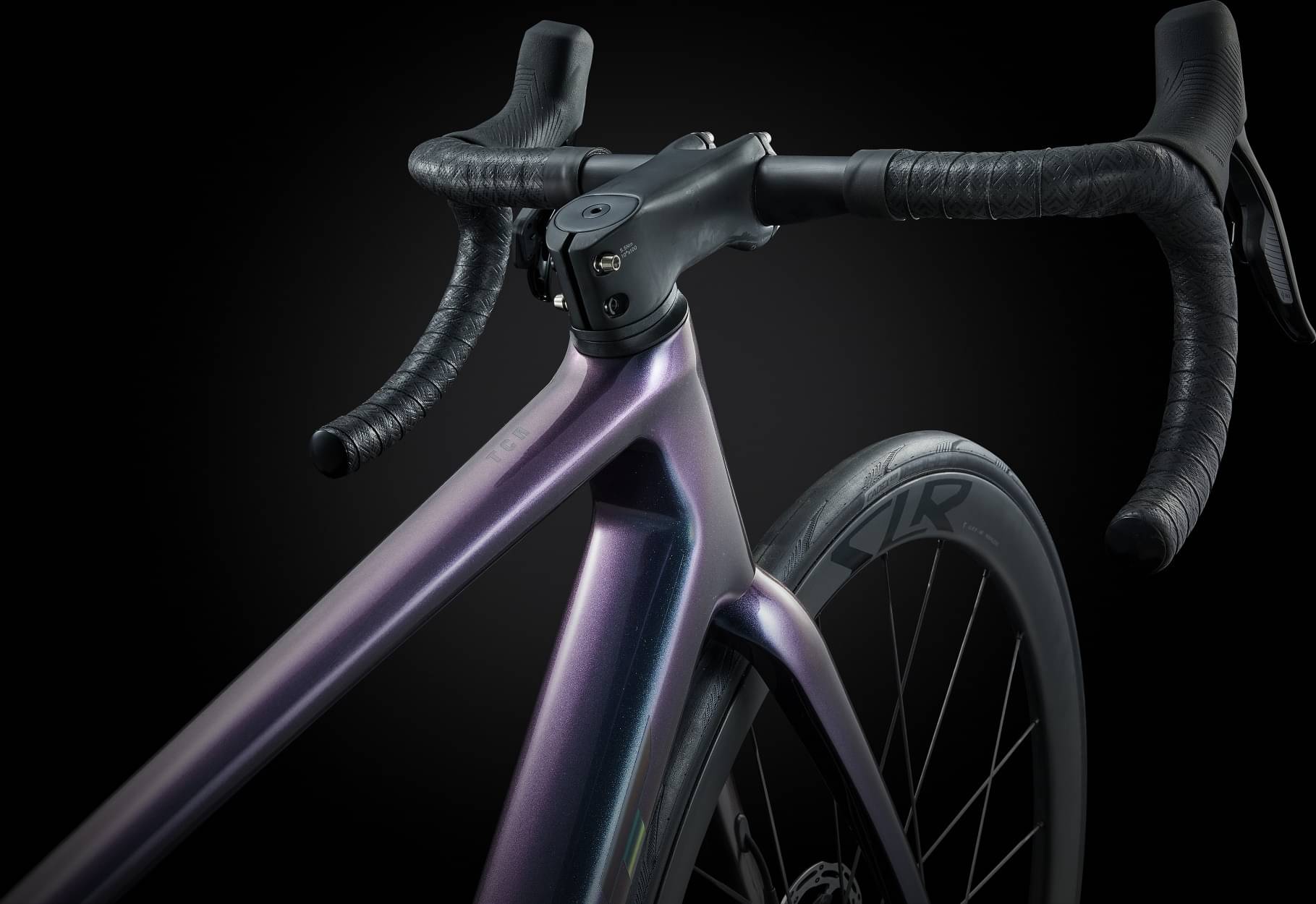

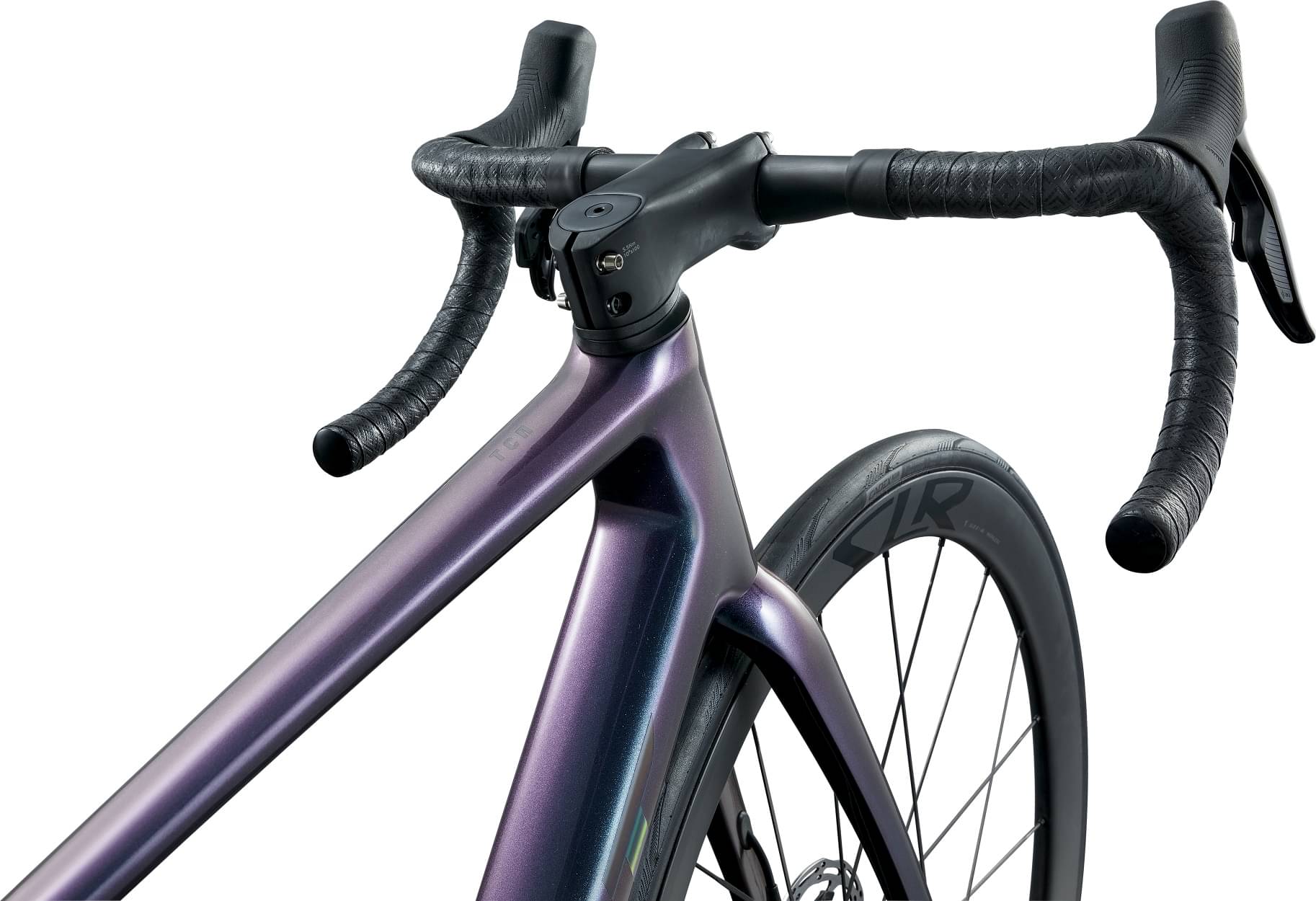

Cockpit
Stem
Giant Contact SLR Aerolight
Handlebar
Giant Contact SLR, 10.5 degree flare
Grips
Giant Stratus Lite 2.0 with gel
Seat
Saddle
Giant Fleet SLR 9mm Carbon Rail With Giant ParticleFlow technology
Seatpost
Advanced SL-Grade Composite, Integrated Design, ISP Clamps: Standard (25mm) and Long version (45mm) Offset -5/+15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.405 mm | 1.43 mm | 1.445 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 585 mm | 595 mm | 610 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 64 mm | 59 mm | 59 mm | 59 mm |
| Stack | 528 mm | 545 mm | 562 mm | 581 mm |
| Reach | 383 mm | 388 mm | 393 mm | 402 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 710 mm | 740 mm | 770 mm | 800 mm |
| Head Tube Angle | 72.3 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 977 mm | 980 mm | 991 mm | 1006 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 743 mm | 771 mm | 798 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 171 cm | 177 cm | 183 cm |
| Rider Max Height | 175 cm | 181 cm | 187 cm | 193 cm |
