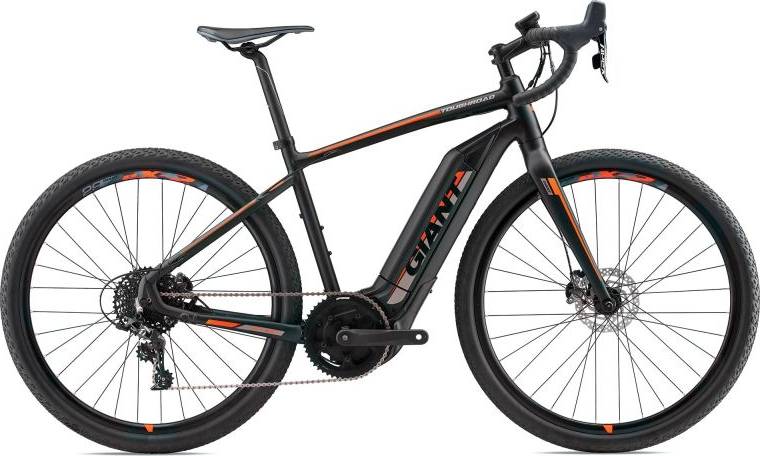

Giant ToughRoad E+ GX 2019
2019 E-bike
Estimate price |
3,800$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex 1, SRAM -
Suspension Rigid -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum
Suspension Fork
ALUXX SL hydroformed aluminum tapered steerer
Drivetrain
Rear Derailleur
SRAM Apex 1
Shift Levers
SRAM Apex 1
Cassette
SRAM PG-1130, 11-42, 11-Speed
Crank
SRAM X-Sync 42T
Chain
KMC e11 Turbo, EcoProteq, e-bike optimized
Wheels
Front Hub
Giant eTracker Sport, e-bike optimized
Rear Hub
Giant eTracker Sport, e-bike optimized
Rims
Giant eX2, Tubeless Ready, e-bike optimized
Spokes
Stainless Steel
Tires
Giant Crosscut Gravel S 700x50c (622x50) Tubeless Ready
Brakes
Brakes
SRAM Apex 1 HRD, hydraulic disc, 160mm
Brake Levers
SRAM Apex 1
Cockpit
Stem
Giant Connect
Handlebar
Giant Contact, 31.8mm
Seat
Saddle
Contact Neutral
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm, 350% tuneable support with automatic smart support. Pedal assist support up to 20 mph
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Remote
Giant RideControl EVO, grip launch control with walk assist, on-board navigation, mini USB charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 586 mm | 591 mm | 610 mm | 619 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm | 76 mm |
| Stack | 582 mm | 582 mm | 606 mm | 625 mm |
| Reach | 379 mm | 383 mm | 401 mm | 403 mm |
| Top Tube Length | 546 mm | 561 mm | 586 mm | 606 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 135 mm | 160 mm | 180 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1032 mm | 1037 mm | 1057 mm | 1066 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 723 mm | 753 mm | 787 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
ToughRoad E+ GX is a Giant E Toughroad model. 2 e-bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 3800$. Comparing the average cost of a Gravel e-bike to this one, you will see that ToughRoad E+ GX price is 4.34% higher.
ToughRoad E+ GX components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Giant ToughRoad E+ GX 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The ToughRoad E+ GX has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 200 cm (5.25 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
